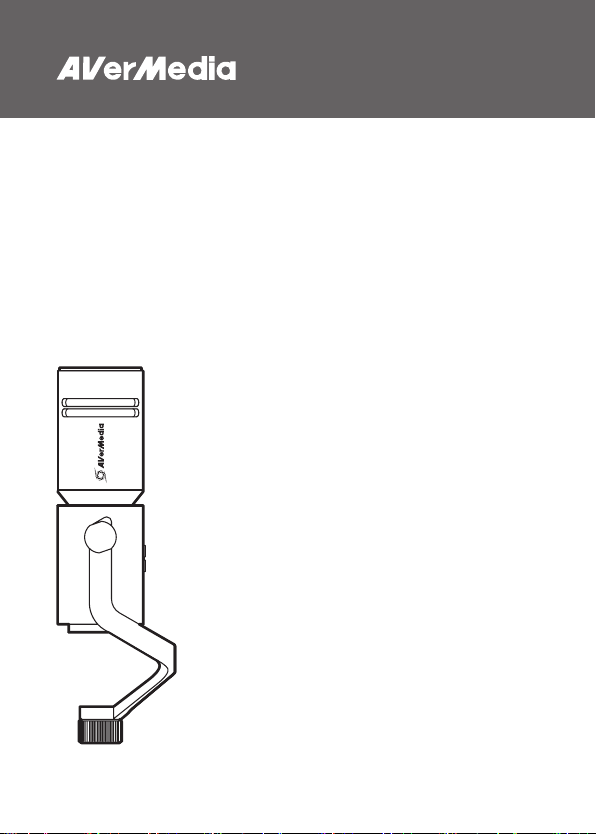

Avermedia Live Streamer MIC 330 User manual

Quick Guide
Live Streamer MIC 330 AM330
English Čeština
Deutsch Pусский
Français 
Italiano 繁體中文
Español 简体中文
Nederlands 한국어
Polski

2
Disclaimer
All pictures contained in this documentation are example images only. The images may vary depending on
the product and software version. Information presented in this documentation has been carefully checked
for reliability; however, no responsibility is assumed for inaccuracies. The information contained in this
documentation is subject to change without notice.
Copyright and Trademark Information
© 2021 by AVerMedia Technologies, Inc. All rights reserved. No part of this publication, in whole or in
part, may be reproduced, transmitted, transcribed, altered or translated into any language in any form by
any means without the written permission of AVerMedia Technologies, Inc. Information and specication
contained in this manual are subject to change without notice and do not represent a commitment on the
part of AVerMedia.
For more information, please visit www.avermedia.com.
AVerMedia is trademark or registered trademark of AVerMedia Technologies, Inc.
Headquarters
Address No.135, Jian 1st Rd., Zhonghe Dist., New Taipei City 23585, Taiwan
Website www.avermedia.com
Support www.avermedia.com/support
Telephone [phone]
US O󰀩ce
Address 4038 Clipper Ct., Fremont, CA 94538, United States
Website www.avermedia-usa.com
Europe O󰀩ce
Address Hanauer Landstrasse 291 B, 60314 Frankfurt Hessen, Germany
國際總部
地址 23585新北市中和區建一路135號
網址 www.avermedia.com
支援 www.avermedia.com/support
電話 [phone]
中国子公司
地址 上海市静安区武宁南路488号智慧广场1510室
网址 www.avermedia.com.cn
电话 [phone]

3
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Follow all instructions.
4. Heed all warnings.
5. Do not use the apparatus on uneven or unstable surfaces.
6. Do not use this apparatus in a wet environment or near water.
7. Unplug the apparatus before cleaning. Clean only with a dry cloth.
8. Use in a well ventilated environment. Do not block any ventilation openings.
9. Use the apparatus within ambient temperatures 32–104°F (0–40°C).
10. Use power sources within the specied voltage range.
11. Do not place heavy objects on the apparatus.
12. Do not install near heat sources such as radiators or stoves.
13. Do not defeat the safety purposes of the polarized or grounding-type plug.
14. Protect the power cord from being walked on or pinched, particularly where the cord
connects with plugs or adapters.
15. Only use the attachments and accessories specied by the manufacturer.
16. Unplug this apparatus during lightning or when unused for prolonged periods of time.
17. Do not modify or disassemble the apparatus in any way.
18. Refer all servicing to AVerMedia Customer Service.
19. Do not dispose the apparatus as general household waste. Dispose in accordance
with local environmental laws.
重要安全說明
1. 仔細閱讀這些說明。
2. 妥善保存這些說明。
3. 遵守所有的指示。
4. 注意所有的警告。
5. 請勿將本產品安裝於不平穩的表面。
6. 請勿在潮濕或靠近水的地方使用本產品。
7. 清潔前請拔除電源。僅使用乾布清潔。
8. 請於通風的環境使用本產品。請勿堵住通風口。
9. 請於規格溫度範圍32–104°F(0–40°C)使用本產品。
10. 請使用額定電壓範圍內的電源。
11. 請勿放置重物於本產品上。
12. 請勿安裝於熱源附近如暖器或火爐旁。
13. 請勿破壞極性或接地插頭的安全防護設計。
14. 請保護電源線，勿使其被踩踏或碾壓，特別是與插頭或變壓器的連接處。
15. 僅使用製造商指定的配件及零件。
16. 打雷或長時間不使用時請拔除電源。
17. 請勿以任何方式改造或拆解本產品。
18. 如需維修請洽本公司客服人員。
19. 請勿當作家庭垃圾任意丟棄。請遵從當地環境法規妥善處理。

4
重要安全说明
1. 仔细阅读这些说明。
2. 妥善保存这些说明。
3. 遵守所有的指示。
4. 注意所有的警告。
5. 请勿将本产品安装于不平稳的表面。
6. 请勿在潮湿或靠近水的地方使用本产品。
7. 清洁前请拔除电源。仅使用干布清洁。
8. 请于通风的环境使用本产品。请勿堵住通风口。
9. 请于规格温度范围32–104°F(0–40°C)使用本产品。
10. 请使用额定电压范围内的电源。
11. 请勿放置重物于本产品上。
12. 请勿安装于热源附近如暖器或火炉旁。
13. 请勿破坏极性或接地插头的安全防护设计。
14. 请保护电源线，勿使其被踩踏或碾压，特别是与插头或变压器的连接处。
15. 仅使用制造商指定的配件及零件。
16. 打雷或长时间不使用时请拔除电源。
17. 请勿以任何方式改造或拆解本产品。
18. 如需维修请洽本公司客服人员。
19. 请勿当作家庭垃圾任意丢弃。请遵从当地环境法规妥善处理。

5
EN
Parts and Ports
Inside the Box
These are what you'll nd in the box:
Live Streamer
MIC 330
Quick Guide
XLR Cable
1 Microphone Grille 4 On/Off Switch
2Interchangeable Color Ring 5 XLR Port
3Adjustment Knobs 6Mounting Bracket
(5/8" Thread)
Interchangeable
Color Ring
2
5
36
4
1
5/8" to 3/8"
Thread Adapter

6
Connection
A device like preamp, audio interace, or Live Streamer NEXUS is re-
quired to connect your Live Streamer MIC 330 to a computer.
Preamp/Audio Interface
XLR USB
Live Streamer NEXUS
MIC LINEIN CONSOLE SYSTEM GAME CHAT
Use and Placement
To get the richest sounds, aim the Live Streamer MIC 330 directly
toward your mouth and keep it within 10 cm (4 in). Make sure to point
the microphone away from your speakers to avoid unwanted sound
sources. To minimize feedback, always test your microphone place-
ment before streaming or recording.
90°
90°
180°
Speakers
Loudspeakers
10 cm
4 in
<

7
Specications
Type Dynamic microphone
Polar Pattern Cardioid
Connection XLR
Sensitivity -52 dB ±3 dB at 1 kHz (0 dB = 1V/Pa)
Frequency Response 50 – 18,000 Hz
Impedance 600 Ω ±30% (at 1 kHz)
Dimensions (Ø x L) 56 x 167 mm (2.20 x 6.57 in)
Weight Mic: 530.6 g (18.72 oz)
Bracket: 95.8 g (3.38 oz)
More Info
This device does NOT require a driver installation. For more
information, visit our webpage at http://q.avermedia.com/
AM330 or scan this QR code.
dB
30º 30º
0º
60º
90º
120º
150º
180º
150º
120º
90º
60º

8
Deutsch
Verpackungsinhalt
Inhalt der Schachtel:
• Live Streamer MIC 330
• XLR-Kabel
• Auswechselbarer Farbring
• 5/8 "bis 3/8" Gewindeadapter
• Schnellanleitung
Teile und Anschlüsse
1. Mikrofon-Schutzgitter
2. Auswechselbarer Farbring
3. Einstellknöpfe
4. An-/Ausschalter
5. XLR-Anschluss
6. Montagehalterung (5/8-Zoll-
Gewinde)
Verbindung
Für den Anschluss des Live Streamer
MIC 330 an einen Computer wird
ein Gerät wie z. B. ein Vorverstärker,
ein Audioanschluss oder ein Live
Streamer NEXUS benötigt.
Verwendung und Platzierung
Richten Sie für den besten Klang
das Live Streamer MIC 330 direkt
auf Ihren Mund und halten Sie es in
einem Abstand von 10 cm zu diesem.
Achten Sie darauf, das Mikrofon nicht
auf Ihre Lautsprecher zu richten, um
unerwünschte Rückkopplungen zu
vermeiden. Um Rückkopplungen
zu minimieren, müssen Sie die
Mikrofonpositionierung vor dem
Streaming oder der Aufnahme stets
testen.
Weitere Informationen
Dieses Gerät benötigt KEINE
Treiberinstallation.
Für weitere Informationen besuchen
Sie bitte unsere Webseite unter:
http://q.avermedia.com/AM330 oder
scannen Sie den QR-Code.
Français
Contenu du Coffret
Contenu de la boîte:
• Live Streamer MIC 330
• Câble XLR
• Anneau de Couleur
Interchangeable
• Adaptateur letage 5/8 "à 3/8"
• Guide de démarrage rapide
Présentation du produit
1. Grille Microphone
2. Anneau de Couleur Interchangeable
3. Boutons de Réglages
4. Interrupteur marche / arrêt
5. Port XLR
6. Support de Montage (Filetage 5/8 ")
Connexion
Un appareil tel qu'un pré-ampli, une
interface audio, ou le Live Streamer
NEXUS est nécessaire pour connecter
votre Live Streamer MIC 330 à un
ordinateur.
Utilisation et placement
Pour obtenir les sons les plus riches,
orientez le Live Streamer MIC 330
directement vers votre bouche et
maintenez-le à moins de 10 cm (4
pouces) de votre visage. Assurez-vous
de placer le microphone loin de vos
haut-parleurs pour éviter des sources
sonores indésirables. Pour minimiser les
commentaires de vos auditeurs, testez
toujours le positionnement de votre
microphone avant de streamer ou
d'enregistrer.
Plus d’informations
Cet appareil ne nécessite PAS
l'installation de pilotes.
Pour plus d'informations, visitez notre
page web http://q.avermedia.com/
AM330 ou scannez ce code QR.

9
Italiano
Contenuto della scatola
Contenuto:
• Live Streamer MIC 330
• Cavo XLR
• Anello di colore intercambiabile
• Adattatore lettato da 5/8 "a 3/8"
• Guida rapida
Parti e porte
1. Griglia del microfono
2. Anello di colore intercambiabile
3. Manopole di regolazione
4. Interruttore on/off
5. Porta XLR
6. Staffa di montaggio (lettatura 5/8")
Collegamento
È necessario un dispositivo come
preamplicatore, interfaccia audio
o Live Streamer NEXUS per collegare
il tuo Live Streamer MIC 330 a un
computer.
Uso e posizionamento
Per ottenere i suoni più ricchi, puntare
il Live Streamer MIC 330 direttamente
verso la bocca e mantenerlo
entro 10 cm (4 pollici). Assicurati di
puntare il microfono lontano dagli
altoparlanti per evitare sorgenti sonore
indesiderate. Per ridurre al minimo il
feedback, verica sempre la posizione
del microfono prima dello streaming o
della registrazione.
Maggiori informazioni
Questo dispositivo NON richiede
l'installazione di un driver
Per maggiori informazioni, visita
la nostra pagina web http://
q.avermedia.com/AM330 o fai la
scansione di questo codice QR.
Español
Dentro de la caja
Esto es lo que encontrarás en la caja:
• Live Streamer MIC 330
• Cable XLR
• Anillo de Color Intercambiable
• Adaptador de Rosca de 5/8” a
3/8”
• Guía rápida
Componentes del producto
1. Rejilla de Micrófono
2. Anillo de Color Intercambiable
3. Perillas de Ajuste
4. Interruptor de Encendido/
Apagado
5. Puerto XLR
6. Soporte de Montaje (Rosca de
5/8")
Conexión
Se requiere un dispositivo como
preamplicador, interfaz de audio o
Live Streamer NEXUS para conectar
su Live Streamer MIC 330 a un
ordenador.
Uso y colocación
Para obtener los sonidos más ricos,
apunte el Live Streamer MIC 330
directamente hacia su boca y
manténgalo dentro de los 10 cm (4
pulgadas). Asegúrese de apuntar
el micrófono lejos de los altavoces
para evitar fuentes de sonido
no deseadas. Para minimizar la
retroalimentación, pruebe siempre su
micrófono antes de hacer streaming
o grabar.
Más Información
Este dispositivo no requiere de
instalación de driver.
Para más información, visite nuestra
página web http://q.avermedia.
com/AM330 o escanee este código
QR.

10
Nederlands
In de doos
Dit is wat u in de doos zult vinden:
• Live Streamer MIC 330
• XLR-kabel
• Verwisselbare kleurenring
• 5/8 "tot 3/8" schroefdraadadapter
• Beknopte handleiding
Onderdelen en poorten
1. Microfoonrooster
2. Verwisselbare kleurenring
3. Regelknoppen
4. Aan/Uit-schakelaar
5. XLR-poort
6. Montagebeugel (5/8"
schroefdraad)
Verbinding
Voor een apparaat als preamp,
audio-interface of Live Streamer
NEXUS is het nodig om uw Live
Streamer MIC 330 aan te sluiten op
een computer.
Gebruik en plaatsing
Om de rijkste geluiden te krijgen,
richt de Live Streamer MIC 330
direct op uw mond en houd deze
op een afstand van minder dan
10 cm (4 in). Zorg ervoor dat u de
microfoon van uw luidsprekers
vandaan richt om ongewenste
geluidsbronnen te vermijden. Om
feedback te minimaliseren, moet u
altijd de plaatsing van de microfoon
testen voordat u gaat streamen of
opnemen.
Meer informatie
Dit apparaat vereist GEEN installatie
van een stuurprogramma.
Ga voor meer informatie naar onze
webpagina http://q.avermedia.
com/AM330 of scan deze QR-code.
Polski
W pudełku
W opakowaniu znajdują się:
• Live Streamer MIC 330
• Kabel XLR
• Wymienny kolorowy pierścień
• Adapter gwintu 5/8 "do 3/8"
• Skrócona instrukcja obsługi
Części i złącza
1. Kratka mikrofonu
2. Wymienny kolorowy pierścień
3. Pokrętła regulacyjne
4. Przełącznik włącz / wyłącz
5. Port XLR
6. Wspornik montażowy (gwint 5/8 ")
Połączenia
Do podłączenia urządzenia Live
Streamer MIC 330 do komputera
wymagane jest urządzenie takie jak
przedwzmacniacz, interfejs audio lub
Live Streamer NEXUS.
Użytkowanie i umiejscowienie
Aby uzyskać najlepszy dźwięk, skieruj
Live Streamer MIC 330 bezpośrednio w
stronę ust i trzymaj go w promieniu 10
cm (4 cale). Upewnij się, że mikrofon
nie jest skierowany w stronę głośników,
aby uniknąć niepożądanych źródeł
dźwięku. Aby zminimalizować
sprzężenie, zawsze sprawdź
położenie mikrofonu przed transmisją
strumieniową lub nagrywaniem.
Więcej informacji
To urządzenie NIE wymaga instalacji
sterownika.
Aby uzyskać więcej informacji,
odwiedź naszą stronę internetową
http://q.avermedia.com/AM330 lub
zeskanuj kod QR.

11
Čeština
Obsah balení
Následuje obsah balení:
• Live Streamer MIC 330
• Kabel XLR
• Vyměnitelný barevný kroužek
• Adaptér závitu 5/8 "na 3/8"
• Rychlý návod
Popis částí
1. Mřížka mikrofonu
2. Vyměnitelný barevný kroužek
3. Aretační matice
4. Vypínač
5. Zástrčka XLR
6. Držák (s ⅝” závitem)
Připojení
Pro připojení mikrofonu
Live Streamer MIC 300 k počítači
je potřeba zařízení jako
předzesilovač, zvukové rozhraní nebo
Live Streamer NEXUS.
Použití a umístění
Nejbohatšího zvuku dosáhnete
nasměrováním mikrofonu
Live Streamer MIC 330 přímo
proti ústům ve vzdálenosti do 10 cm.
Dbejte na to, aby mikrofon nesnímal
nežádoucí zvuky z reproduktorů. Vznik
zpětné vazby minimalizujte tak, že
vyzkoušíte umístění mikrofonu ještě
před streamingem nebo nahráváním.
Další informace
Toto zařízení NEVYŽADUJE instalování
ovladače.
Další informace najdete na webové
adrese http://q.avermedia.com/
AM330 nebo naskenujte QR kód.
Pусский
Комплектация
Вот что находится в комплекте
поставки:
• Live Streamer MIC 330
• XLR кабель
• Сменное цветное кольцо
• Резьбовой адаптер 5/8” на 3/8”
• Краткое руководство
Детали и порты
1. Решетка микрофона
2. Сменное цветное кольцо
3. Ручки регулировки
4. Переключатель вкл / выкл
5. XLR порт
6. Кронштейн крепления (резьба 5/8 ")
Подключение
Для подключения Live Streamer
MIC 330 к компьютеру
требуется предусилитель с
аудиоинтерфейсом или пульт Live
Streamer NEXUS.
Использование и размещение
Чтобы добиться наилучшего
звучания, направьте микрофон Live
Streamer MIC 330 прямо в сторону
уст и держите его на расстоянии
10 см (4 дюйма). Обязательно
разместите микрофон подальше
от динамиков, чтобы избежать
влияния нежелательных источников
звука. Чтобы свести к минимуму
эффект эха, всегда проверяйте
размещение микрофона перед
стримом или записью.
Дополнительная информация
Это устройство НЕ требует
установки драйверов.
Для получения дополнительной
информации посетите нашу веб-
страницу http://q.avermedia.com/
AM330 или отсканируйте этот QR-
код.

12


  
 
 
   
 
  
  

  



 
 
   
   


     
 
  

  
   
 
 
   
  
   


繁體中文
包裝內容
• LiveStreamerMIC330
• XLR音訊連接線
• 替換色環
• 5/8”轉3/8”螺牙轉接頭
• 快速安裝手冊
外觀簡介
1. 麥克風格柵
2. 替換色環
3. 調節旋鈕
4. 開/關
5. XLR接口
6. 安裝支架（5/8“螺紋）
連接方式
需將LiveStreamerNEXUS或麥克風前
置放大器等設備連接LiveStreamerMIC
330至電腦使用。
使用和放置
要獲得最佳聲音，請將LiveStreamer
MIC330直接對準您的嘴巴，並將其保持
在10公分以內。請確保不要將麥克風對
準喇叭，避免產生不需要的聲源。建議於
每次直播或錄製前測試麥克風的位置。
更多資訊
此產品不需安裝驅動程式。
更多資訊，請參考http://q.avermedia.com/
AM330或掃描QRcode。

13
简体中文
包装内容
包装参数
• LiveStreamerMIC330
• XLR线缆
• 可换色环
• 5/8”转3/8”螺纹接头
• 快速指南手册
外观简介
1. 麦克风格栅
2. 可换色环
3. 调节旋钮
4. 开关
5. XLR端口
6. 安装支架（5/8"螺纹）
连接
可以使用音频接口、声卡、导播台或其他
设备将麦克风 AM330 连接到计算机。
使用和放置
要获得丰富的声音，请将 AM330 直接对
准您的嘴巴，并将其保持在 10 厘米（4 英
寸）以内。确保麦克风远离扬声器，以减
少周围杂音。为了获得更好的音效，请在
播放流媒体或录制之前测试麦克风的位置。
更多信息
此设备不需要安装驱动。了解更多产品信
息请进入官网 http://q.avermedia.com/
AM330，或者扫描右方二维码。
한국어
구성품
제품 박스에는 다음과 같은 내용물이 있습
니다.
• Live Streamer MIC 330
• XLR 케이블
• 교환 가능한 컬러 링(고리)
• 5/8 to 3/8 변환 어댑터
• 퀵 가이드
부품과 포트
1. 마이크 그릴
2. 교환 가능한 컬러 링(고리)
3. 조절 노브
4. 온 / 오프 스위치
5. XLR 포트
6. 설치용 브래킷(5/8" 나사산)
연결 안내
Live Streamer MIC 330 컴퓨터 연결 시 프리
앰프, 오디오 인터페이스 또는 라이브 스트
리밍 NEXUS와 같은 장치가 필요합니다.
사용 및 배치
고품질의 더 풍성한 소리를 원한다면 Live
Streamer MIC 330 마이크를 말하는 방향으
로 위치하고 10cm(4인치) 이내로 가깝게 사
용하시는 것을 추천합니다.
또한 잡음이 들린다면 스피커에서 마이크를
멀리 두시고, 녹음 실수를 줄이려면 스트리
밍 또는 녹화 전에 항상 마이크 위치를 조정
해주세요.
추가 정보
이 장치는 드라이버를 설치할 필요가 없다.
자세한 내용을 저희 웹 페이지 http://
q.avermedia.com/AM330 을 방문하거나 이
QR 코드를 스캔하세요.

14
European Community Compliance Statement Class B
This product is herewith conrmed to comply with the requirements set out in the Council Directives on the
approximation of the laws of the Member States relating to Electromagnetic Compatibility Directive (EMC)
2014/30/EU.
Federal Communications Commission Statement Class B
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
NOTE - This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by tuning the equipment o󰀨 and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit di󰀨erent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for help.
CAUTION ON MODIFICATIONS - To comply with the limits for the Class B digital device, pursuant to Part
15 of the FCC Rules, this device must be installed in computer equipment certied to comply with the Class
B limits. All cables used to connect the computer and peripherals must be shielded and grounded. Operation
with non-certied computers or non-shielded cables may result in interference to radio or television reception.
Changes and modications not expressly approved by the manufacturer or registrant of the equipment can
void your authority to operate the equipment under Federal Communications Commission rules.
Waste Electrical and Electronic Equipment Directive
The mark of crossed-out wheeled bin indicates that this product must not be disposed of with your other
household waste. Instead, you need to dispose of the waste equipment by handing it over to a designated
collection point for the recycling of waste electrical and electronic equipment. For more information about
where to drop o󰀨 your waste equipment for recycling, please contact your household waste disposal service
or the shop where you purchased the product.
CAN ICES-3(B)/NMB-3(B)
Canada - Canada Industry Canada (IC) Labelling Requirements
Every manufacturer or importer shall ensure import or before o󰀨ering for sale, as appropriate, that each unit
of the type that they o󰀨er for sale bears, in alocation convenient for inspection, a permanent label or marking
containing (in French and English), the following statement:
ICES-003 (Interference - Causing Equipment Standards)
"This class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada."
Technical Regulations of the Customs Union
TR CU 020/2011

15
300AAM330ECA
Live Streamer MIC 330
Model No.: AM330
Microphone/麥克風/麦克风
Made in China/中國製造/中国制造
Regulatory Compliance Mark
BSMI Registration of Product Certication (Taiwan)
【圓剛BSMI限用物質及其化學符號】放置於公司企業社會責任專頁
網址http://www.avermedia.com/tw/about_us/social
D33183

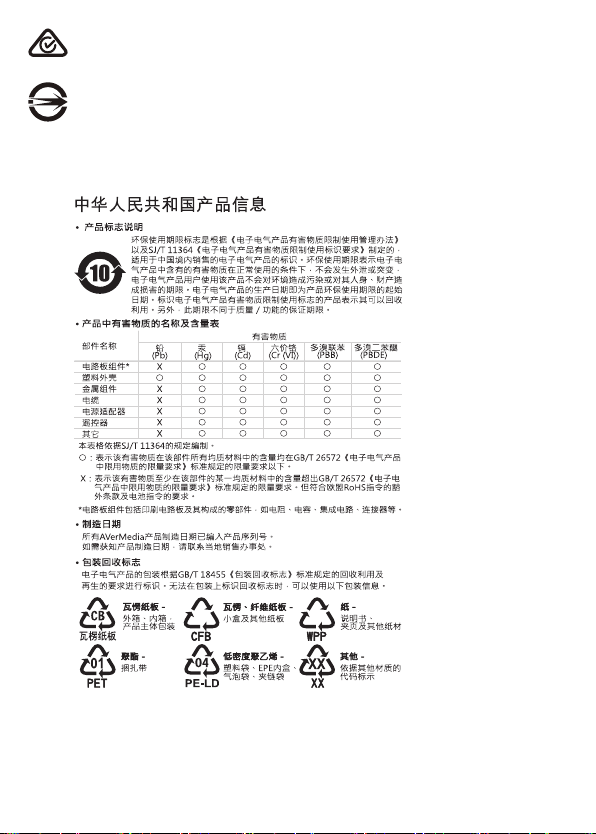

RoHS
China RoHS

www.avermedia.com
