Aversix AVB-2000 Series User manual

User Manual
Rugged Box PC
AVB-2000 Series

2
Contents
Prefaces……………………………………………………………………………………….…04
Revision…………………………………………………………………………..……………….…………………04
Copyright and Trademarks Notice………………………………………..……………………………..04
Disclaimer……………………………………………………………………………………………………………04
Declaration of Conformity…………………………………………………..………………………………04
Technical Support and Assistance………………….………………………………………………….…04
Safety Instructions……………….……………………….…………………………………………….………04
Packing List….……………………………………………….………………………………………………….…05
Ordering Information….……………………………………….………………………………..……………05
Optional Accessories….………………………….…………….…………………………………………..…05
Chapter 1 Product Introductions…………………………….………………………06
1.1 Overview…………………………………..………….………………………………………………………07
1.2 Hardware Specifications….………………………………..………………………………………….08
1.2.1 AVB-2000 Specificarion…...........………………………………………………………….08
1.2.2 AVB-2001(S) Series Specification……................…………………………………….09
1.2.3 AVB-2010(-2P)(-M12) Series Specification......…………………………………….10
1.2.4 AVB-2011(S)(-2P)(-M12) Series Specification………………………………………11
1.3 Panel I/O……………………………..…………………………………………....………………………..12

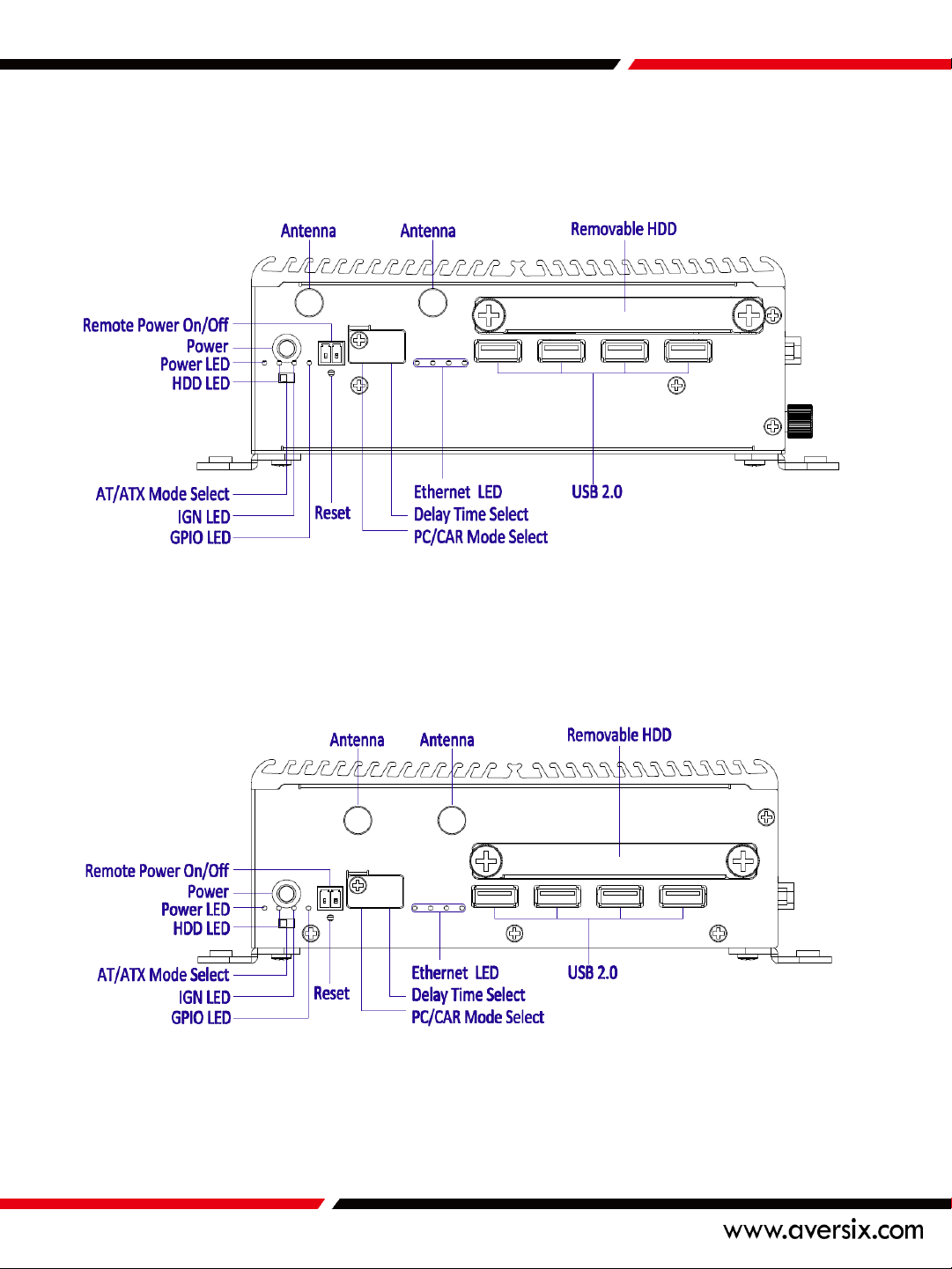

1.3.1 Front Panel……….……………...........………………………………………………………..12

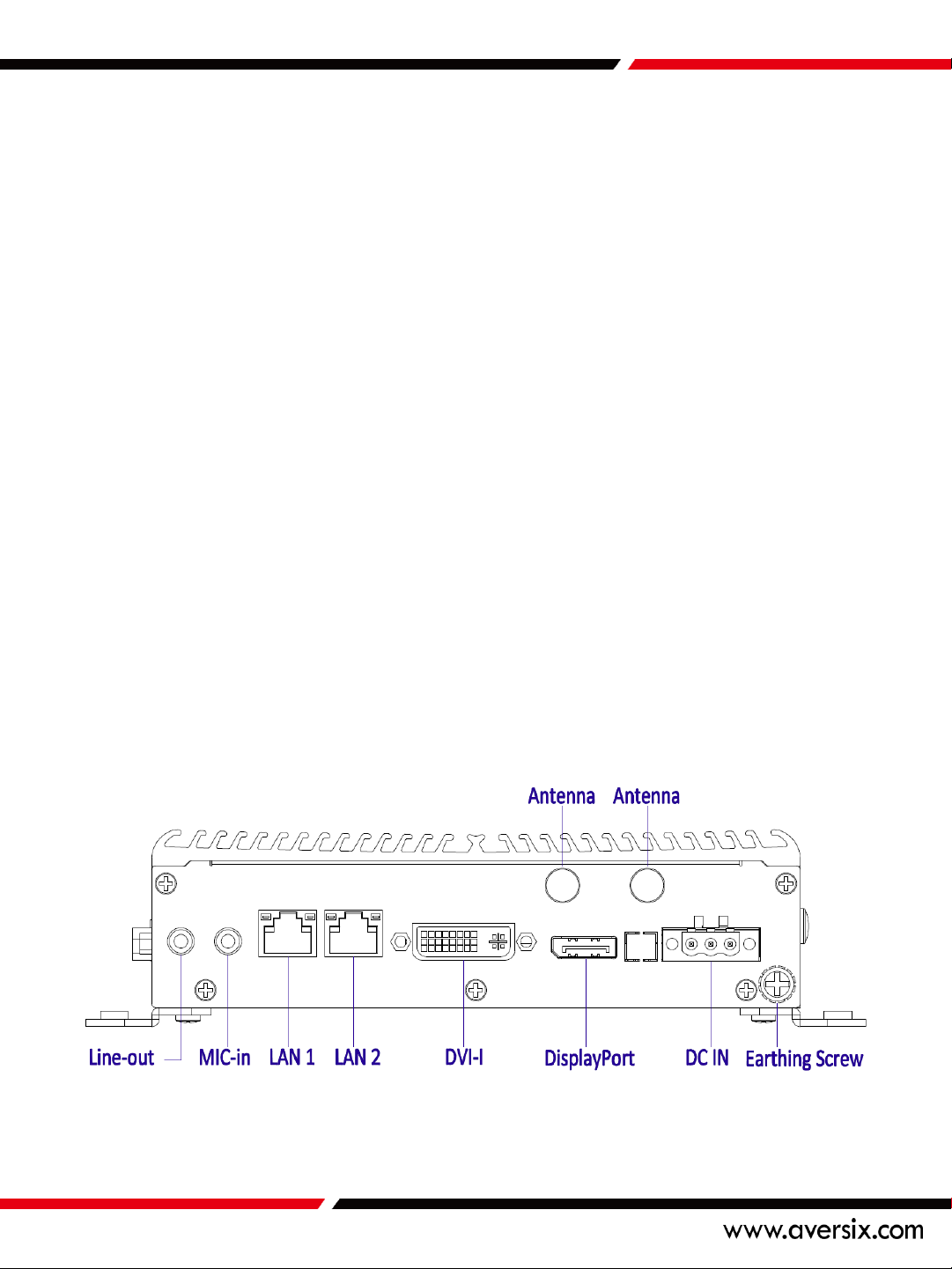

1.2.2 Rear Panel……….…………................……………………………………………………….15
1.3.3 Right Panel…….…………............…………………………………………………………….20
1.4 Mechanical Dimensions…………………………………………….………………………………...23
1.4.1 AVB-2000…………..………………..…………..………………………………………………..23
1.4.2 AVB-2001 Series…………………………..…………………………………………………….23
1.4.3 AVB-2010 Series……..…………..…………..…………………………………………………24
1.4.4 AVB-2011 Series…….………….……………..………………………………………………..24
Chapter 2 Switches and Connectors………………………...…………………….25
2.1 Switches and Connectors…………………………….…………….....................................26
2.1.1 Front View………………………………………………..………………………………………..26
2.1.2 Rear View….………………………………………………..……………………………………..26
2.1.3 Right View……..…………………………………………..……………………………………...27
2.2 Switches, LEDs and Connectors Definition……….…….………...............................28
2.3 Switches Definition………….……..........................................................................29
2.4 Connectors Definition………...............................................................................32
Chapter 3 System Setup………………………………………………………………...36
3.1 Installing SODIMM……………………….………………………..…….……..….......................37
3.2 Replace CMOS Battery…………………………………………………………………………………42
3.3 Installing Mini-PCIe card / mSATA Module……….……..….………….…….………………48
3.4 Installing antenna………………………….…………..…………………………………………………52
3.5 Installing SIM Card or CFast Card…..………………..…………………..…….…………………55
3.6 Installing the front removable SATA HDD bay.………….…………..……….….............56
3.7 Installing the right removable SATA HDD bay.………….…………..……………............57
3.8 Installing Wall Mount Brackets.…………..….….………..………………..…..…....…………59
3.9 Installing DIN-Rail Holder……………………………………………………………………………..60
AVB-2000 Series Rugged Box PC User Manual

3
Chapter 4 BIOS Setup…………………………………………………………………….62
4.1 BIOS Introduction…….……….………………………..….…….…..….……………………………..63
4.2 Main Setup……..……….……………………………………..…….….………………....................64
4.2.1 System Date…….…………………………………..……..………………….....................64
4.2.2 System Time………..………………………………..……….……………….....................64
4.3 Advanced Setup………………………………………………..………………………………………….65
4.3.1 Trusted Computing (Optional)………………………………………..………………….65
4.3.2 ACPI Settings….………………………………………………..…………………………………66
4.3.3 Super IO Configuration………………………..…………………..……......................67
4.3.4 Hardware Monitor…………………………….………..……………..…......................71
4.3.5 Serial Port Console Redirection………………..…....……..……........................72
4.3.6 CPU Configuration…………………………………………….….…….…......................73
4.3.7 PPM Configuration…………………………………...….…….…..............................73
4.3.8 SATA Configuration..……………………………....…………..………........................74
4.3.9 OS Selection……..……………………..……………..………………………………………….74
4.3.10 Network Stack Configuration………………………..…………..........................75
4.3.11 CSM Configuration………………..………………..…………................................76
4.3.12 USB Configuration…………………………………………………….………………………77
4.4 Chipset…………...……….…………………………………………..………………………………………78
4.4.1 North Bridge………………………………………………..…………………………………….78
4.4.2 South Bridge……………………………………………..……………………………………….80
4.5 Security…………...……….……….…..….…..………………………………..………………………….83
4.5.1 Administrators Password…………………………..……………………………………….83
4.5.2 Users Password…….………………….………………..………………………………………83
4.6 Boot…………...……….….………….…..…………………………..…………..……………...…………84
4.6.1 Setup Prompt Timeout………….…………..……………………………………………….84
4.6.2 Bootup NumLock State………………………..…………………………………………….84
4.6.3 Full Screen Logo Show……….…………..………………………………………………….84
4.6.4 Boot Option Priorities………………………..………………………………………………84
4.7 Save & Exit…...……….….…………….…..…..………………….………..…………....................85
4.7.1 Save Changes and Reset…………………………………..……..….........................85
4.7.2 Discard Changes and Reset……………………............…………..…………………..85
4.7.3 Restore Defaults………………………………………………..………….......................85
4.7.4 Save as User Defaults……..…………............…………..……………………………….85
4.7.5 Restore User Defaults……………………………………………………......................85
AVB-2000 Series Rugged Box PC User Manual

4
Copyright and Trademarks Notice
All rights reserved. No part of this manual may be reproduced, transcribed or transmitted
and stored in any system, or transmitted in any form or language, without the prior written
permission of Aversix Inc.
Disclaimer
This user’s manual is for informational purposes only and is subject to change without prior
notice. It does not represent commitment from Aversix Inc.
This product might include unintentional typographical or technical errors. Aversix will
periodically correct such erroneous files and incorporate these corrections into the new
version of the file.
Technical Support and Assistance
If there is a problem with your product and you are unable to get a solution from the user’s
manual, please contact your local distributor. Alternatively, please visit
https://www.aversix.com for further guidance.
Safety Instructions
￭Always read the safety instructions carefully before you install or operate the
system.
￭Never pour any liquid into the opening that could damage or cause electrical
shock.
￭Keep this User’s Manual for future reference.
￭Place the power cord such a way that people can not step on it. Do not place
anything over the power cord.
￭Always Unplug the Power Cord before inserting any add-on card or SATA HDD.
￭If the equipment is not used for long time, disconnect it from the power to avoid
transient over-voltage
￭If any of the following situations arises, get the equipment checked by service
personnel:
▶The power adapter, power cord or plug is damaged.
▶Liquid has penetrated into the system.
▶The system has been exposed to moisture.
▶The system does not work well or you can not get it work according to user’s
manual.
▶The system dropped and damaged.
▶The system has obvious sign of breakage.
Revision
Description
Date
1.0
Manual released
2020/04/10
Revision
Preface
AVB-2000 Series Rugged Box PC User Manual

5
Ordering Information
Model No.
Product Description
AVB-2000
Intel® J1900 Compact Fanless System with 2x LAN,2x COM and 1x
Removable 2.5” SATA HDD Bay
AVB-2001
Intel® J1900 Compact Fanless System with 2x LAN,2x COM and 2x
Removable 2.5” SATA HDD Bay
AVB-2001S
Intel® J1900 Compact Fanless System with 2x LAN,6x COM and 2x
Removable 2.5” SATA HDD Bay
AVB-2010
Intel® J1900 Compact Fanless System with 2x LAN, 2x COM, 1x
Removable 2.5” SATA HDD Bay and 1x Universal I/O bracket
AVB-2010-2P
Intel® J1900 Compact Fanless System with 2x PoE, 2x COM, 1x
Removable 2.5” SATA HDD Bay and 1x Universal I/O bracket
AVB-2011
Intel® J1900 Compact Fanless System with 2x LAN, 2x COM, 2x
Removable 2.5” SATA HDD Bay and 1x Universal I/O bracket
AVB-2011-2P
Intel® J1900 Compact Fanless System with 2x PoE, 2x COM, 2x
Removable 2.5” SATA HDD Bay and 1x Universal I/O bracket
AVB-2011S
Intel® J1900 Compact Fanless System with 2x LAN, 6x COM, 2x
Removable 2.5” SATA HDD Bay and 1x Universal I/O bracket
AVB-2011S-2P
Intel® J1900 Compact Fanless System with 2x PoE, 6x COM, 2x
Removable 2.5” SATA HDD Bay and 1x Universal I/O bracket
Optional Accessories
Model No.
Product Description
GST60A12-GAV
Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug 5.0mm Pitch
GST120A24-GAV
Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug 5.0mm Pitch
APCNEMA5-15P
Power Cord, 3-pin US Type, 180cm
APCCEE7-7
Power Cord, European Type, 180cm
DINRAIL-R10
DIN-RAIL Mount Kit
Item
Description
Q’ty
1
AVB-2000 Series Fanless Box PC
1
2
Utility DVD Driver
1
3
Wall Mount Kit
1
4
Accessory Kit
1
5
DVI to VGA Adapter
1
Package List
AVB-2000 Series Rugged Box PC User Manual

6
Chapter 1
Product Introductions
AVB-2000 Series Rugged Box PC User Manual

7
1.1 Overview
The AVB-2000 series is a compact fanless system with Intel® Celeron® J1900
quad-core processor.
The system integrates rich I/O, such as 1x DVI-I, 1x DisplayPort, 1x USB3.0, 4x
USB2.0, 1x CFast, 2x GbE LAN, 2x SIM, 2x COM ports and 2x Mini-PCIe
sockets. In addition, the AVB-2000 series also supports vehicle power
ignition function, and has 2x SATA, 2x PoE+ port and 6x COM ports models
for users to choose.
The AVB-2000 series system has a wide range of DC power input from 9V to
48V, wide operating temperature range of -40°C to +70°C and industrial-
grade protection (RVP, OVP, OCP, ESD, surge, etc.).
This design standard can ensure that the AVB-2000 series system can
operate in harsh and demanding environments.
AVB-2000 Series Rugged Box PC User Manual

8
1.2.1 AVB-2000 Specification
Processor
•Onboard Intel® Celeron® J1900 Quad Core
Processor, up to 2.42 GHz
BIOS
•AMI BIOS, 64Mbit SPI Flash ROM built on board.
Memory
•1x DDR3L-1066/ 1333MHz 204-Pin SO-DIMM
Socket
•Support up to 8GB (un-buffered and non-ECC)
Graphics
•Integrated Intel® HD Graphics
•Supports Dual Independent Display
•1x DVI-I (DVI-D+VGA)
•1x DisplayPort
Audio
•Realtek ALC888S
•High Definition Audio
Ethernet
•2x Intel® i210-AT GbE LAN Port, Support Wake-
on-LAN and PXE
Watchdog Timer
•Software Programmable Supports 1~255 sec.
System Reset
I/O Ports
•1x DVI-I
•1x DisplayPort
•2x GbE RJ45
•1x USB 3.0 Port and 4x USB 2.0 Port
•2x RS232/422/485 with Auto Flow Control, DB9
•1x Line-out and 1x Mic-in, Phone Jack 3.5mm
•4x Isolated DI and 4x Isolated DO Port, 10-Pin
Terminal Block
•1x Power On/Off Button
•1x AT/ATX Mode Switch
•1x PC/Car Mode Switch
•1x External Clear CMOS Switch
•1x Remote Power on/off Connector, 2-Pin
Terminal Block
Expansion
•1x Full-size Mini-PCIe Socket (mux with mSATA)
•1x Full-size Mini-PCIe Socket
•2x SIM Socket
•4x Antenna Hole
Storage
•1x Removable 2.5" SATA HDD Bay
•1x CFast Socket (Shared by mSATA)
•1x mSATA Socket (Shared by CFast)
Power Requiement
•Support Hardware AT, ATX Power Mode
•1x 3-pin Terminal Block Connector with Power
Input 9~48VDC
•Power Ignition Sensing
•1x Optional AC/DC 12V/5A, 60W Power Adapter
Protection
•Over Voltage Protection (OVP) Up to 52V
•Reverse Voltage Protection (RVP) up to -48V
•Over Current Protection (OCP) 20A
Environment
•Operating Temperature: Ambient with Air Flow:
-40°C to 70°C (with Industrial Grade Peripherals)
•Storage Temperature: -40°C to 80°C
•Relative humidity: 10%~95% (non-condensing)
•Shock: 50 Grms, Half-sine 11 ms
•Vibration: 5 Grms, 5-500 Hz, 3 Axis
Physical
•Dimension (WxDxH): 168 x 135 x 47 mm
•Extruded Aluminum with Heavy Duty Metal
•Wall mounting
•DIN-Rail mounting (Optional)
1.2 Hardware Specifications
AVB-2000 Series Rugged Box PC User Manual

9
1.2.2 AVB-2001(S) Series Specification
Processor
•Onboard Intel® Celeron® J1900 Quad Core
Processor, up to 2.42 GHz
BIOS
•AMI BIOS, 64Mbit SPI Flash ROM built on board.
Memory
•1x DDR3L-1066/1333MHz 204-Pin SO-DIMM
Socket
•Support up to 8GB (un-buffered and non-ECC)
Graphics
•Integrated Intel® HD Graphics
•Supports Dual Independent Display
•1x DVI-I (DVI-D+VGA)
•1x DisplayPort
Audio
•Realtek ALC888S
•High Definition Audio
Ethernet
•2x Intel® i210-AT GbE LAN Port, Support Wake-
on-LAN and PXE
Watchdog Timer
•Software Programmable Supports 1~255 sec.
System Reset
I/O Ports
•1x DVI-I
•1x DisplayPort
•2x GbE RJ45
•1x USB 3.0 Port and 4x USB 2.0 Port
•2x RS232/422/485 with Auto Flow Control, DB9
(AVB-2001 only)
•6x RS232/422/485 with Auto Flow Control, DB9
(AVB-2001S only)
•1x Line-out and 1x Mic-in, Phone Jack 3.5mm
•4x Isolated DI and 4x Isolated DO Port, 10-Pin
Terminal Block
•1x Power On/Off Button
•1x AT/ATX Mode Switch
•1x PC/Car Mode Switch
•1x External Clear CMOS Switch
•1x Remote Power on/off Connector, 2-Pin
Terminal Block
Expansion
•1x Full-size Mini PCIe Socket (mux with mSATA)
•1x Full-size Mini PCIe Socket
•2x SIM Socket
•4x Antenna Hole
Storage
•2x Removable 2.5" SATA HDD Bay
•1x CFast Socket (Shared by 1x SATA and mSATA)
•1x mSATA Socket (Shared by 1x SATA and CFast)
Power Requiement
•Support Hardware AT, ATX Power Mode
•1x 3-pin Terminal Block Connector with Power
Input 9~48VDC
•Power Ignition Sensing
•1x Optional AC/DC 12V/5A, 60W Power Adapter
Protection
•Over Voltage Protection (OVP) Up to 52V
•Reverse Voltage Protection (RVP) up to -48V
•Over Current Protection (OCP) 20A
Environment
•Operating Temperature: Ambient with Air Flow:
-40°C to 70°C (with Industrial Grade Peripherals)
•Storage Temperature: -40°C to 80°C
•Relative humidity: 10%~95% (non-condensing)
•Shock: 50 Grms, Half-sine 11 ms
•Vibration: 5 Grms, 5-500 Hz, 3 Axis
Physical
•Dimension (WxDxH): 168 x 135 x 62 mm
•Extruded Aluminum with Heavy Duty Metal
•Wall mounting
•DIN-Rail mounting (Optional)
AVB-2000 Series Rugged Box PC User Manual

10
1.2.3 AVB-2010(-2P)(-M12) Series Specifications
Processor
•Onboard Intel® Celeron® J1900 Quad Core
Processor, up to 2.42 GHz
BIOS
•AMI BIOS, 64Mbit SPI Flash ROM built on board.
Memory
•1x DDR3L-1066/1333MHz 204-Pin SO-DIMM
Socket
•Support up to 8GB (un-buffered and non-ECC)
Graphics
•Integrated Intel® HD Graphics
•Supports Dual Independent Display
•1x DVI-I (DVI-D+VGA)
•1x DisplayPort
Audio
•Realtek ALC888S
•High Definition Audio
Ethernet
•2x Intel® i210-AT GbE LAN Port, Support Wake-
on-LAN and PXE [AVB-2010(-M12) only]
•2x IEEE 802.3at PoE [AVB-2010-2P(-M12) only]
Watchdog Timer
•Software Programmable Supports 1~255 sec.
System Reset
I/O Ports
•1x DVI-I
•1x DisplayPort
•2x GbE RJ45 [AVB-2010(-2P) only]
•2x GbE M12 [AVB-2010(-2P)-M12 only]
•1x USB 3.0 Port and 4x USB 2.0 Port
•2x RS232/422/485 with Auto Flow Control, DB9
•1x Line-out and 1x Mic-in, Phone Jack 3.5mm
•4x Isolated DI and 4x Isolated DO Port, 10-Pin
Terminal Block
•1x Power On/Off Button
•1x AT/ATX Mode Switch
•1x PC/Car Mode Switch
•1x External Clear CMOS Switch
•1x Remote Power on/off Connector, 2-Pin
Terminal Block
•1x Universal I/O Bracket
Expansion
•1x Full-size Mini PCIe Socket (mux with mSATA)
•1x Full-size Mini PCIe Socket
•2x SIM Socket
•4x Antenna Hole
Storage
•1x Removable 2.5" SATA HDD Bay
•1x CFast Socket (Shared by mSATA)
•1x mSATA Socket (Shared by CFast)
Power Requiement
•Support Hardware AT, ATX Power Mode
•1x 3-pin Terminal Block Connector with Power
Input 9~48VDC
•Power Ignition Sensing
•1x Optional AC/DC 12V/5A, 60W Power Adapter
[AVB-2010(-M12) only]
•1x Optional AC/DC 24V/5A, 120W Power
Adapter [AVB-2010-2P(-M12) only]
Protection
•Over Voltage Protection (OVP) Up to 52V
•Reverse Voltage Protection (RVP) up to -48V
•Over Current Protection (OCP) 20A
Environment
•Operating Temperature: Ambient with Air Flow:
-40°C to 70°C (with Industrial Grade Peripherals)
•Storage Temperature: -40°C to 80°C
•Relative humidity: 10%~95% (non-condensing)
•Shock: 50 Grms, Half-sine 11 ms
•Vibration: 5 Grms, 5-500 Hz, 3 Axis
Physical
•Dimension (WxDxH): 168 x 135 x 61 mm
•Extruded Aluminum with Heavy Duty Metal
•Wall mounting
•DIN-Rail mounting (Optional)
AVB-2000 Series Rugged Box PC User Manual

11
1.2.4 AVB-2011(S)(-2P)(-M12) Series Specifications
Processor
•Onboard Intel® Celeron® J1900 Quad Core
Processor, up to 2.42 GHz
BIOS
•AMI BIOS, 64Mbit SPI Flash ROM built on board.
Memory
•1x DDR3L-1066/1333MHz 204-Pin SO-DIMM
Socket
•Support up to 8GB (un-buffered and non-ECC)
Graphics
•Integrated Intel® HD Graphics
•Supports Dual Independent Display
•1x DVI-I (DVI-D+VGA)
•1x DisplayPort
Audio
•Realtek ALC888S
•High Definition Audio
Ethernet
•2x Intel® i210-AT GbE LAN Port, Support Wake-on-
LAN and PXE [AVB-2011(S)(-M12) only]
•2x IEEE 802.3at PoE [AVB-2011(S)-2P(-M12) only]
Watchdog Timer
•Software Programmable Supports 1~255 sec.
System Reset
I/O Ports
•1x DVI-I
•1x DisplayPort
•2x GbE RJ45 [AVB-2011(S)(-M12) only]
•2x GbE M12 [AVB-2011(S)(-2P)(-M12) only]
•1x USB 3.0 Port and 4x USB 2.0 Port
•2x RS232/422/485 with Auto Flow Control, DB9
[AVB-2011(-2P)(-M12) only]
•6x RS232/422/485 with Auto Flow Control, DB9
[AVB-2011S(-2P)(-M12) only]
•1x Line-out and 1x Mic-in, Phone Jack 3.5mm
•4x Isolated DI and 4x Isolated DO Port, 10-Pin
Terminal Block
•1x Power On/Off Button
•1x AT/ATX Mode Switch
•1x PC/Car Mode Switch
•1x External Clear CMOS Switch
•1x Remote Power on/off Connector, 2-Pin
Terminal Block
•1x Universal I/O Bracket
Expansion
•1x Full-size Mini PCIe Socket (mux with mSATA)
•1x Full-size Mini PCIe Socket
•2x SIM Socket
•4x Antenna Hole
Storage
•2x Removable 2.5" SATA HDD Bay
•1x CFast Socket (Shared by 1x SATA and mSATA)
•1x mSATA Socket (Shared by 1x SATA and CFast)
Power Requiement
•Support Hardware AT, ATX Power Mode
•1x 3-pin Terminal Block Connector with Power
Input 9~48VDC
•Power Ignition Sensing
•1x Optional AC/DC 12V/5A, 60W Power Adapter
[AVB-2011(S)(-M12) only]
•1x Optional AC/DC 24V/5A, 120W Power Adapter
[AVB-2011(S)-2P(-M12) only]
Protection
•Over Voltage Protection (OVP) Up to 52V
•Reverse Voltage Protection (RVP) up to -48V
•Over Current Protection (OCP) 20A
Environment
•Operating Temperature: Ambient with Air Flow:
-40°C to 70°C (with Industrial Grade Peripherals)
•Storage Temperature: -40°C to 80°C
•Relative humidity: 10%~95% (non-condensing)
•Shock: 50 Grms, Half-sine 11 ms
•Vibration: 5 Grms, 5-500 Hz, 3 Axis
Physical
•Dimension (WxDxH): 168 x 135 x 76 mm
•Extruded Aluminum with Heavy Duty Metal
•Wall mounting
•DIN-Rail mounting (Optional)
AVB-2000 Series Rugged Box PC User Manual

12
1.3 Panel I/O
1.3.1 Front Panel
Power on/off button
Press to power-on or power-off the system
AT/ATX mode select switch
Used to select AT or ATX power mode
Reset button
Used to reset the system
Remote Power on/off Terminal Block
Used to plug a remote power on/off terminal
block
PC/Car mode select switch
Used to select PC or Car mode
Delay time select switch
Used to select car mode system turn off delay
time
USB 2.0 port
Used to connect USB 2.0/1.1 device
Removable HDD port
Removable 2.5" SATA HDD Area
Power LED
Indicates the power status of the system
HDD LED
Indicates the status of the hard drive
IGN LED
Indicates the status of the ignition active
GPIO LED
Indicates the status of the customer define
Ethernet LEDs
Indicates the status of the LAN active
Antenna hole
Used to connect an antenna for optional Mini-
PCIe WiFi module
AVB-2000
AVB-2000 Series Rugged Box PC User Manual

13
AVB-2001 Series
AVB-2010 Series
AVB-2000 Series Rugged Box PC User Manual

14
AVB-2011 Series
AVB-2000 Series Rugged Box PC User Manual

15
1.3.2 Rear Panel
Line-out
Used to connect a speaker
Mic-in
Used to connect a microphone
LAN port
Used to connect the system to a local area
network
DVI-I port
Used to connect a DVI monitor or connect
optional split cable for dual display mode
DisplayPort
Used to connect a DisplayPort monitor
DC IN
Used to plug a DC power input with terminal
block
Earthing Screw Hole
Used to connect the ground wire
Antenna Hole
Used to connect an antenna for optional Mini-
PCIe WiFi module
COM port
COM3 ~ COM6 support RS232/422/485 serial
device
(AVB-2001S/AVB-2011S Series only)
USB 2.0 port
Used to connect USB 2.0/1.1 device
Universal I/O Expansion
Used to customized I/O output
(AVB-2010/AVB-2011 Series only)
AVB-2000
AVB-2000 Series Rugged Box PC User Manual

16
AVB-2001
AVB-2001S
AVB-2000 Series Rugged Box PC User Manual

17
AVB-2010 / AVB-2010-2P
AVB-2010-M12 / AVB-2010-2P-M12
AVB-2000 Series Rugged Box PC User Manual

18
AVB-2011
AVB-2011S
AVB-2000 Series Rugged Box PC User Manual

19
AVB-2011-M12 / AVB-2011-2P-M12
AVB-2011S-M12 / AVB-2011S-2P-M12
AVB-2000 Series Rugged Box PC User Manual

20
1.3.3 Right Panel
COM port
COM1 ~ COM2 support RS232/422/485 serial
device
Digital I/O Terminal Block
The Digital I/O terminal block supports 8
digital input and 8 digital output
USB 3.0 port
Used to connect USB 3.0 device
Clear CMOS
Used to clear CMOS
CFast Socket
Used to insert CFast card
SIM card
Used to insert SIM card
AVB-2000
AVB-2000 Series Rugged Box PC User Manual
