Operating and Safety Instructions
for the Fine Fabric™ System 500™ (SKU# 16010-0)
IMPORTANT SAFETY INSTRUCTIONS!
Read and understand all instructions before using this hand tool. Follow all warnings on product and instructions.
Save these instructions where tool is stored.
Needle sticks can transmit life-threatening diseases if tools are shared
Use only your own tool and needles.
Use of a protective tagging glove is recommended.
Immediately discard any needle that sticks you or contacts your skin (see instructions).
To discard a contaminated needle, immediately:
1. Use an adhesive bandage or protective, sterile material to remove contaminated needle, to avoid
contaminating the needle guard.
2. Dispose of needle and bandage in an approved Biohazard-Sharps container.*
To reduce the chance of needle sticks:
1. Use a protective tagging glove while tagging. **
2. Put needle guard on needle when not in use, and when installing or removing uncontaminated needles.
Following these warnings is important because:
1. Invisible traces of infected blood can remain on the needle for days after a needle stick.
2. Someone else could use your hand tool by mistake.
3. A contaminated needle could affect the next person who gets stuck, transmitting HIV, Hepatitis or other blood
borne diseases.
* For details, see OSHA 3127 and 29 CFR 1910, 1030
** Call for supplier information on protective tagging gloves
IMPORTANT NOTES:
It is recommended that the user test the tagging system on each application prior to extended use as different
materials require different tagging fasteners and needles.
The Fine Fabric System 500 tool should be used only for the fastening purposes for which it is intended. When not in
use the tool should be stored with the needle guard attached and where only operators and their supervisors have
access to them.
The lanyard should be used at all times. Should the tool be accidentally dropped, the lanyard can prevent tool damage
and assist in keeping the needle and tool away from any part of the body.
Product Information and Training
For additional training and product information on your Fine FabricSystem 500 hand tool,
please visit this page on our website: https://fastener.averydennison.com/en/home/product-
selector/product-selector-swt/16010-0.html
7-60-5653-01Rev2
!
WARNING
Avery Dennison
224 Industrial Road
Fitchburg, MA 01420
800-225-5913
978-345-8100

Operating Instructions
Loading Fasteners:
Attaching Fasteners:
Unloading Fasteners from Tool: Remove Needle:
WARNING
Always use needle guard when tool is not in use
oIf a jam or miss-feed occurs, do NOT continue to repeatedly squeeze the
Trigger. Doing so will make the jam worse and could result in damage to
the tool.
oNever apply the last few fasteners after they have fallen off the reel holder
post as jamming may occur. Follow the Unloading Fastener Procedure
below. Remove the fasteners from the tool and begin a new roll.
▲
!
1) Remove grommet
and reel cover
2) Place fastener roll
over post with
fasteners coming
over the top
3) Replace reel cover
and grommet. Insure
that the reel is not
being compressed and
fasteners move freely
4) Slide fasteners
into track until they
engage the index
wheel
5) While gently
pulling the fastener
toward the front of
the tool, Squeeze
trigger 2-3X. Then
remove needle guard
1) Insert the needle
through fabric
2) Squeeze trigger
completely and
release
3) Withdraw needle
4) Inspect fastener is
secured properly
1) Replace needle
cap. Squeeze trigger
2) Rotate index wheel
counter-clockwise and
slide fasteners out of the
feed track
2) Remove needle
1) Rotate needle lock
180°
!
▲
!

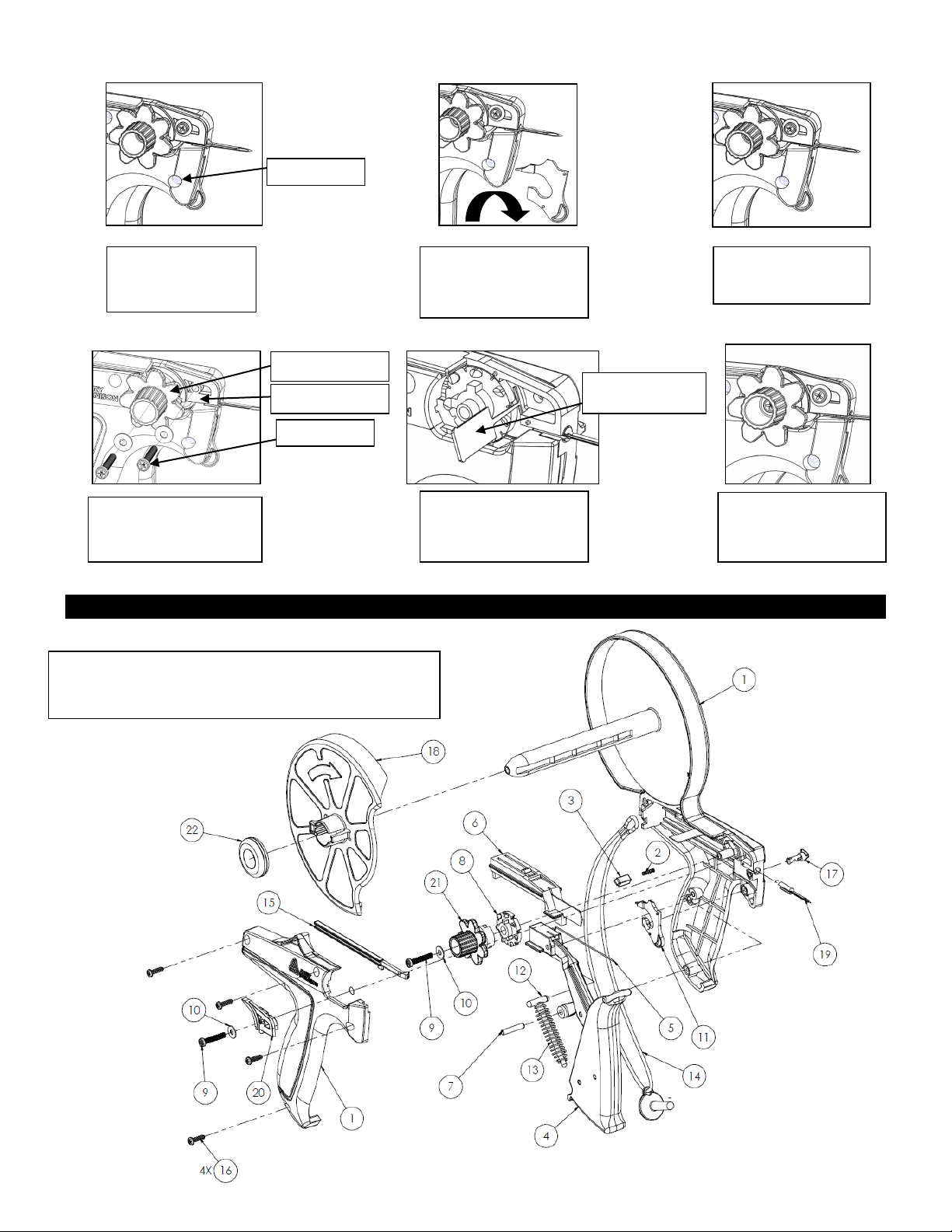

Fastener Breaks off in Tool and/or Jams:
Clearing Fastener Remnants
Clearing Fastener Jams in the Feed Track
Spare Parts List
!
FINE FABRIC™ SYSTEM 500™
HAND TOOL (SKU# 16010-0):
1) Loosen front Screw
counter clockwise for
3-4 turns
2) Slide Nose Insert out
by pivoting it down while
pulling forward and clear
fastener/s out
3) Replace Nose Insert
and tighten screw. DO
NOT OVER TIGHTEN
Front Screw
1) Remove the two screws
and washers.
2) Pull off the Filament
Wheel and Blade Insert.
Clear jammed fasteners
3) Replace Blade Insert
and Filament Wheel and
tighten screw. DO NOT
OVER TIGHTEN
Both Screws
Remove jammed
fastener
Filament Wheel
Blade Insert

For part pricing and ordering information, contact customer service at:
1-800-225-5913 or 1-978-345-8100
© 2019 Avery Dennison Corp. All Rights Reserved.
The information contained herein is believed to be reliable but Avery Dennison makes no representations
concerning the accuracy or correctness of the data. This product, like any other should be tested by the
customer/user thoroughly under end user conditions to ensure the product meets the particular requirements.
Independent results may vary. Avery Dennison’s liability is limited to the repair or replacement value of defective
product at Avery Dennison’s option. In no event shall Avery Dennison be held liable for consequential, indirect or
incidental damages. Products, information and specifications are subject to change without notice. The
descriptions and specifications contained in these instructions were in effect at the time the instructions were
approved for printing. Avery Dennison, whose policy is one of continuous improvement, reserves the right to
discontinue models at any time or change specifications or design, without notice and without incurring
obligations or liability. Updated versions will be available on request or as Avery Dennison may otherwise publish
or provide.
All other terms and conditions relating to this product, including the purchase and warranty terms are available
at fastener.averydennison.com
ITEM #
PART NUMBER
PART NAME
QTY.
1
7-60-5688-01
ASSY, LEFT AND RIGHT HANDLES
1
2
0-051-217-05
SPRING, COMPRESSION, Ø.088”X 3/8”
1
3
7-60-8809-01
DETENT
1
4
7-60-8916-02
ASSY, TRIGGER
1
5
7-60-5619-01
EJECTOR ROD
1
6
7-60-5617-01
ROCKER
1
7
0-043-277-59
DOWEL PIN, Ø.125 X .625 PRECISION
1
8
7-60-5618-01
INDEXING WHEEL
1
9
7-62-0171-01
SCREW, MACHINE, M3X0.5XM16L
2
10
7-62-0171-02
WASHER, M3.2 X M8.0 X M0.5
2
11
7-60-5614-01
NOSE INSERT
1
12
7-60-8812-01
SPRING RETAINER
1
13
7-60-8884-01
COMPRESSION SPRING
1
14
7-60-0700-14
ASSY,LANYARD/NEEDLE GUARD
1
15
7-60-8807-01
INDEXING SLIDE
1
16
7-62-0001-01
SCREW, #4-24 X .38”LG #3 HD
4
17
7-60-5227-01
NEEDLE LOCK,SNAP-IN
1
18
7-60-5380-01
COVER, RETAINER
1
19
7-60-5537-01
NEEDLE
1
20
7-60-5615-02
STEEL BLADE INSERT
1
21
7-60-5622-01
FILAMENT WHEEL
1
22
3-01-0410-01
GROMMET
1
