AutoJoe ATJ-AIR1-HYB User manual

1
HYBRID INFLATOR + DEFLATOR
12V DC | 120V AC | HIGH PRESSURE + HIGH VOLUME
DIGITAL PRESSURE GAUGE + 5 ADAPTERS
Model ATJ-AIR1-HYB
EN
Form No. ATJ-AIR1-HYB-880E-M
If you have any questions or comments, please call the
Snow Joe®+ Sun Joe®customer service department at:
1-866-SNOWJOE (1-866-766-9563)
© 2021 by Snow Joe®, LLC
All rights reserved. Original instructions. SAVE THESE INSTRUCTIONS

2
IMPORTANT!
Safety Instructions
mWARNING! Read all safety warnings,
instructions, illustrations and specications
provided with this device.
General Safety
mWARNING! When using the device,
basic safety precautions should always be
followed. Failure to follow all instructions listed
below may result in electric shock, re and/or
serious injury.
• Usage – For household use only. Do not use
this device for any application other than
those for which it was intended.
• Work area – Keep your work area clean and
well lit.
• Device condition – Keep the device dry,
clean and free from oil and grease.
• Explosion hazard – Do not operate the
device in explosive atmospheres, such as in
the presence of ammable liquids, gases or
dust.
• Bystanders – All bystanders, children and
pets should be kept a safe distance away
from the work area.
• Stay alert – Remain alert at all time, use
common sense and do not operate the
device when tired, or under the inuence of
drugs or alcohol.
• Do not overreach – Keep proper footing and
balance at all times.
• ON/OFF – Do not attempt to use the device if
it fails to turn on or o
• Storage – When idle, store out of the
reach of children and do not allow persons
unfamiliar with the device or these
instructions to operate it.
• Accessories – Use the device and any
accessories in accordance with these
instructions, taking into account the working
conditions and the work to be performed.
Electrical Safety
mWARNING! Do not expose the device
to rain or wet conditions. Water entering the unit
may damage the device and increase the risk of
electric shock.
• Do not abuse the cable – Never carry the
device by the cable or yank the cable to
disconnect it from the outlet. Keep the cable
away from heat, oil, and sharp edges.
• Power – Do not leave the device unattended
when it is plugged into an electrical outlet.
Turn o the device, and unplug it before
leaving.
• Double Insulation – This device is equipped
with double insulation. Servicing a double-
insulated device requires extreme care and
should be performed only by qualied service
personnel at an authorized Snow Joe®+ Sun
Joe®dealer. Replacement parts must be
identical to the parts they replace. A double-
insulated device is marked with the words
“Double Insulation” or “Double Insulated.”
The symbol may also be marked on the
device.
mWARNING! Do not use the device if
damaged or modied. A damaged or modied
device may exhibit unpredictable behavior
resulting in re, explosion or risk of injury.
mWARNING! Do not touch the inator +
deator or its power cords with wet hands.

3
Safety Symbols
The following table depicts and describes safety symbols that may appear on this product. Read,
understand, and follow all instructions on the machine before attempting to assemble and operate.
Symbols Descriptions
READ THE OPERATOR'S MANUAL – Read, understand,
and follow all instructions in the user manual before
attempting to assemble and operate.
Double Insulation – When servicing, use only identical
replacement parts.

4
1. LED light switch
2. Mode button
(PSI/kPa)
3. LCD display
4. Pressure setting
5. DC cable storage
Know Your Inator + Deator
Read the owner’s manual and safety rules carefully before using your Inflator + Deflator. Compare
the illustration below to the actual unit in order to familiarize yourself with the location of the various
controls and attachments. Save this manual for future reference.
Technical Data
High Pressure Motor .................................... 85 W
High Volume Motor....................................... 60 W
Power Input ................................ 120V AC | 60 Hz
12V DC Plug
AC Cord Length .............................. 5.9 ft. (1.8 m)
DC Cord Length ............................. 9.2 ft. (2.8 m)
High Pressure Hose Length ............25 in. (64 cm)
High Volume Hose Length .............. 16 in. (40 cm)
Max. Pressure .......................... 125 PSI (860 kPa)
Working Pressure ....................... 60 PSI (410 kPa)
Duty Cycle*.................................................10 min
High Pressure Air Flow ..........0.6 CFM (17 L/min)
High Volume Air Flow ...........14 CFM (396 L/min)
LED ............................................................. 2.4 W
Net Weight .................................... 3.6 lbs (1.6 kg)
6. High volume inator
7. High volume adapters
8. Handle
9. Sports ball needle
+ tapered adapter
10. AC plug and cable
11. High volume/high
pressure switch
12. Indicator LEDs
13. AC/DC switch
14. Air chuck
15. High volume
deator
16. 12V DC plug
17. High volume
air hose
18. Presta valve
adapter
19. LED light
*Do not operate for more than 10 minutes at a time, after which it must be switched o and allowed to cool down for at least 15 minutes
before restarting.
1 2 3 4 5 7 86
1410 11 12 13 15 16 1817 19
9

5
Unpacking
Carton Contents
• Inator + deator
• Tapered nozzle
• Presta valve adapter
• Sports ball needle
• High volume air hose
• High volume adapters (x2 connected)
• Manual and registration card
1. Carefully remove the inator + deator and
check to see that all of the above items are
supplied.
2. Inspect the product carefully to make sure
no breakage or damage occurred during
shipping. If you nd damaged or missing
parts, DO NOT return the unit to the store.
Please call the Snow Joe®+ Sun Joe®
customer service center at 1-866-SNOWJOE
(1-866-766-9563).
NOTE: Do not discard the shipping carton
and packaging material until you are ready
to use your new inator + deator. The
packaging is made of recyclable materials.
Properly dispose of these materials in
accordance with local regulations.
IMPORTANT! The equipment and packaging
material are not toys. Do not let children play
with plastic bags, foils, or small parts. These
items can be swallowed and pose a suocation
risk!
Power
This device can be powered from a 120V AC
electrical outlet or from the 12V DC socket in
your vehicle. Both cables are permanently xed
to the unit and can be stowed in their respective
compartments.
Flip the AC/DC switch left or right for the
respective cable you wish to use. Return it to the
center to turn o the device (Fig. 1).
Fig. 1
AC/DC switch
Power over AC
Using the AC cable stored on the bottom of the
device (Fig. 2), plug the end of the cable into an
electrical outlet or an extension cord (Fig. 3)
NOTE: This device is equipped with a
polarized plug (one blade is wider than the
other) which will only t in a polarized outlet
one way. If the plug does not fully t in the
outlet, reverse the plug. If it still does not t,
contact a qualied electrician to install the
proper outlet. Do not modify the plug in any
way.
mCAUTION! If using an extension
cord, ensure it is a properly wired and in good
condition. If used outdoors, only use a UL-,
CSA-, or ETL- rated extension cord for outdoor,
all-weather use. Follow the table below for the
minimum extension cord thickness and length.
Feel free to use an extension cord with a thicker
(lower number) gauge than shown.
Wire Gauge (AWG) Max Length
16 ≤ 50ft (15m)
14 ≤ 100ft (30m)
Fig. 2
AC cable compartment
BOTTOM
Fig. 3
Electrical outlet
AC plug

6
Power over 12V DC
Using the DC cable stored on the right side of
the device, plug the 12V DC plug (also known
as a car charger) into the 12V DC socket of your
vehicle (Fig. 4).
Operation
mCAUTION! Do not leave items
unattended during ination. These items can
burst and could cause serious injury.
mWARNING! The pressure setting
displayed on the LCD screen is not perfectly
calibrated to exact values. After ination, tire
pressure must be checked using a calibrated
pressure gauge before driving the vehicle.
mWARNING! Risk of injury. Do not direct
air stream at body.
mWARNING! Hot surface. To reduce the
risk of burns, do not touch the air chuck during
ination.
1. First, press the mode button to cycle
between PSI or kPa (Fig. 5).
2. The +and –buttons allows you to manually
adjust the pressure setting. This determines
the pressure to which the item is inated
Fig. 4
12V DC socket
12V DC
plug
Fig. 5 Mode button
up to, or deated down to. Press either the
+or –buttons to increase or decrease the
pressure value by increments of 0.5 PSI/
5 kPa, or long press to quickly cycle the
value up or down (Fig 6).
Inating with the High
Pressure Air Hose
Schrader valves (cars, motorcycles and
mountain bikes) can be attached directly to the
air chuck without any additional attachments.
1. Pull out the high pressure air hose from the
bottom of the inator + deator (Fig. 7).
2. Unscrew the valve cap from the valve stem
(Schrader) of your tire (Fig. 8).
Fig. 6
Fig. 7
High pressure air hose
BOTTOM
Fig. 8
Valve stem
(Schrader)
Valve cap

7
3. Place the air chuck onto the threaded valve
stem (Schrader), then press down on the air
chuck clamp to secure the chuck onto the
valve (Fig. 9).
4. Set the appropriate pressure according to
the label on the driver's side door or the
vehicle's user manual.
5. Once the desired pressure has been set,
ip the high volume/high pressure switch
to the high pressure setting (right) to initiate
ination (Fig. 10). The indicator LEDs will
cycle on from left to right to indicate ination
progress.
NOTE: Once the specied pressure setting
has been reached, the indicator LEDs will
light up solid and the motor will shut o
automatically.
6. Return the high volume/high pressure switch
back to the o (middle) position before using
it again.
High Pressure Air Hose Adapters
The high pressure air hose can also be used
with the provided adapters to inate a variety of
items. To use the adapters, lift up the air chuck
clamp and insert your adapter of choice into the
air chuck. Then press down on the air chuck
clamp to secure the adapter in place (Fig. 11).
Fig. 9
Air chuck
clamp
Air chuck
Valve stem
(Schrader)
Fig. 10
High volume/high pressure switch
High pressure
Presta Valve Adapter

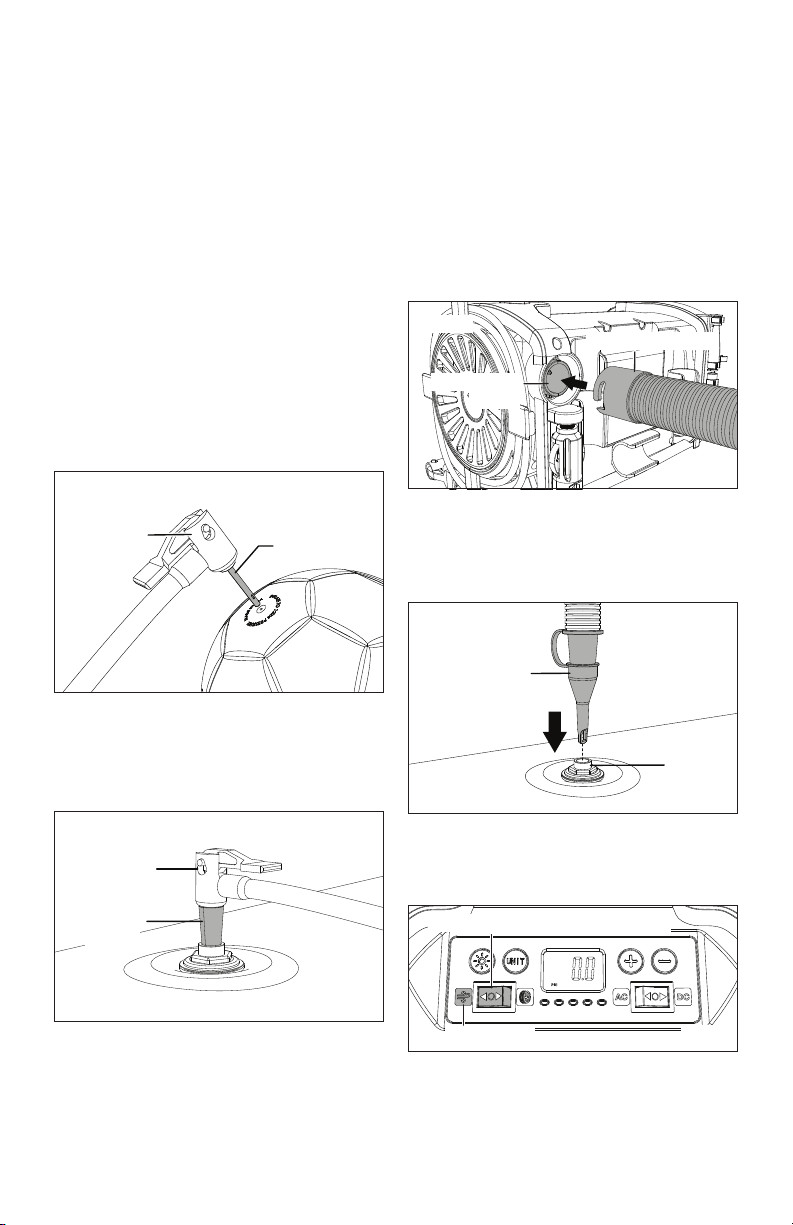

Presta valves are commonly used on road
bikes and some mountain bikes. To inate a
bicycle tire, you will need to use the presta valve
adapter.
1. Loosen the Presta valve locking nut on your
bike's valve stem (Fig. 12).
2. Thread the female end of the Presta valve
adapter onto valve stem of the bicycle tire.
3. Clamp the end of the air chuck down onto
the Presta valve adapter by pressing the air
chuck clamp down until it locks into place
(Fig. 13).
Fig. 11
Presta valve adapter
Sports ball
needle
Tapered nozzle
Air chuck
clamp
Fig. 12
To loosen
To tighten
Locking nut
Presta
valve
stem
Air chuck clamp
Fig. 13
Presta valve
adapter
Presta valve

8
4. Set the appropriate pressure according to
the bicycle's tire wall. Then ip the high
volume/high pressure switch to the high
pressure setting (right) to initiate ination
(Fig. 10). The indicator LEDs will cycle
on from left to right to indicate ination
progress.
NOTE: Once the specied pressure setting
has been reached, the indicator LEDs will
light up solid and the motor will shut o
automatically.
5. After ination, return the high volume/high
pressure switch back to the o (middle)
position. Then remove the air chuck and
retighten the locking nut (Fig. 12).
Sports Ball Needle
Inate all kinds of sports balls with the Sports
ball needle (Fig. 14).
Tapered Adapter
Inate all kinds of small plastic or rubber
inatables such as pool rings, oats, air pillows
and more with the tapered adapter (Fig. 15).
Fig. 14
Sports ball
needle
Air Chuck
Fig. 15
Tapered
adapter
Air chuck
Inating with the High Volume
Air Hose
The high volume air hose can be used to inate a
variety of large inatables such as rafts, bouncy
castles, air beds, inatable pools and more.
1. Pull out the high volume air hose from the
back of the unit. Insert the slotted end of the
hose into the high volume inator and twist
counter-clockwise until it locks into place
(Fig. 16).
2. Choose between the two high volume
adapters based on the size of the air valve
on the item. Insert the adapter into the air
valve (Fig. 17).
3. Flip the high volume/high pressure switch
to the high volume setting (left) to initiate
ination (Fig. 18).
4. Flip the high volume/high pressure switch
back to the o (middle) position once the
item has been suciently inated.
Fig. 16
High volume hose
High volume
inator
Fig. 17
Air
valve
High volume
hose nozzles
Fig. 18
High volume
High volume/high pressure switch

9
Deating with the High Volume
Air Hose
1. Insert the slotted end of the hose into the
high volume deator and twist counter-
clockwise until it locks into place (Fig. 19).
2. Flip the high volume/high pressure switch
to the high volume setting (left) to initiate
deation (Fig. 18).
3. Return the high volume/high pressure switch
back to the o (middle) position once the
item has been deated.
LED Light
The LED light switch controls the LED light on
the left side of the Inflator + Deflator (Fig. 20).
Follow the table below to activate the two
dierent modes.
LED Switch LED
1st press Solid white
2nd press Red + white blinking
3rd press OFF
Fig. 19
High volume hose
High
volume
deator
Fig. 20
LED Light LED light
switch
Care and Maintenance
mWARNING! Store the device away from
hot surfaces or under direct sunlight to reduce
the risk of a short circuit.
mCAUTION! Have your device serviced
by a qualied repair person using only identical
replacement parts.
mWARNING! Do not allow brake uids,
gasoline, petroleum-based products, solvents,
etc., come in contact with plastic parts.
Chemicals can damage, weaken or destroy
plastic, which could result in personal injury.
Servicing of a Double Insulated
Product
In a double-insulated product, two systems of
insulation are provided instead of grounding.
No grounding means is provided on a double-
insulated product, nor should a means for
grounding be added to the product. Servicing
of a double-insulated product requires extreme
care and knowledge of the system, and should
be done only by qualied service personnel.
Replacement parts for a double-insulated
product must be identical to those parts in the
product.
Disposal
Recycling the tool
• Do not dispose of electrical devices as
unsorted municipal waste. Use separate
collection facilities.
• Contact your local government agency for
information regarding the collection systems
available.
• If electrical devices are disposed of in
landlls or dumps, hazardous substances
can leak into the groundwater and get into
the food chain, damaging your health and
well-being.

10
Recycling + Disposal
The product comes in a package that protects
it against damage during shipping. Keep the
package until you are sure that all parts have
been delivered and the product is functioning
properly. Recycle the package afterwards or
keep it for long-term storage.
WEEE symbol. Waste electrical
products should not be disposed of
with household waste. Please recycle
where facilities exist. Check with
your local authority or local store for
recycling regulations.
Service + Support
If your Auto Joe™ATJ-AIR1-HYB Inflator +
Deflator requires service or maintenance, please
call Snow Joe®+ Sun Joe®customer service
at 1-866-SNOWJOE (1-866-766-9563) for
assistance.
Model + Serial Numbers
When contacting the company or arranging
service from an authorized dealer, you will need
to provide the model and serial numbers, which
can be found on the registration card. Copy
these numbers into the space provided below.
Record the following numbers from the registration card
of your new product:
Model #:
Serial #:
A T J - A I
R 1 - H Y B
