AVGear AVG-HD350AR12 User manual

HD350AR12
This product is a HDMI 2.0 receiver, which is
designed to receive 4K video from a transmitter at
distance up to 131 feet (40 meters) and 1080P video
at distances up to 230 feet (70 meters) over a single
CATx cable. It supports audio de-embedded and
ARC. It also supports bidirectional 12V IR and RS232
pass-through to control source or display device
remotely.
Features
▪Supports HDMI 2.0 and the HDMI video
resolution up to 4K@60Hz 4:4:4 HDR.
▪Extends 4K signals to distances up to 131 feet
(40 meters) and 1080P signals to distances up
to 230 feet (70 meters) over a single CATx
cable.
▪Supports video resolution up-scaling, the 1080P
input can be automatically upgraded to 4K
output.
▪SPDIF out on receiver for source audio de-
embedding.
▪18Gbps high bandwidth.
▪Bidirectional 12V IR, RS232 and 24V PoC.
▪Supports ARC.
▪Supports CEC pass-through.
▪Provides LEDs to indicate the current operating
status.
▪Firmware upgrade by Micro-USB port.

HD350AR12
PLEASE READ THIS PRODUCT MANUAL CAREFULLY
BEFORE USING THIS PRODUCT.
This manual is only for operational instruction only,
and is not to be used in a maintenance capacity. The
functions described in this version are current as at
August 2019. Any changes of functions and
operational parameters will be updated in future
manual versions. Please refer to your dealer for the
latest product details.
Version 1.0 23/09/19

HD350AR12
SAFETY OPERATION GUIDE
In order to guarantee the reliable operation of the equipment and safety of the
user, please abide by the following procedures in installation, use and
maintenance:
1. The system must be earthed properly. Please do not use two blade plugs
and ensure the AC power supply ranges from 100v to 240v and from 50Hz
to 60Hz.
2. Do not install the switcher in an environment where it will be exposed to
extreme hot or cold temperatures.
3. This unit will generate heat during operation, please ensure that you allow
adequate ventilation to ensure reliable operation.
4. Please disconnect the unit from mains power if it will be left unused for a
long period of time.
5. Please DO NOT try to open the casing of the equipment, DO NOT attempt to
repair the unit. Opening the unit will void the warranty. There are high
voltage components in the unit and attempting to repair the unit could result
in serious injury.
6. Do not allow the unit to come into contact with any liquid as that could result
in personal injury and or product failure.

HD350AR12
TABLE OF CONTENTS
Introduction ..............................................................................................................1
Introduction to the HD350AR12....................................................................1.1
Features .......................................................................................................1.2
What’s in the Box ........……………………………………………………………………2
Product Appearance of the HD350AR12................................................................3
ARC Mode.................................................................................................................4
System Connection..................................................................................................5
Specifications...........................................................................................................6

HD350AR12
1. Introduction
1.1. Introduction to the HD350AR12
This HD350AR12 is a HDMI 2.0 receiver, which is designed to receive 4K video from
a transmitter at distance up to 131 feet (40 meters) and 1080P video at distances up
to 230 feet (70 meters) over a single CATx cable. It supports audio de-embedded
and ARC. It also supports bidirectional 12V IR and RS232 pass-through to control
source or display device remotely. PoC feature allows the transmitter and the
receiver can be powered from each other and only one power adapter is needed in
system. Moreover, the receiver supports convenient firmware upgrade through
Micro-USB port.
1.2. Features
▪Supports HDMI 2.0 and the HDMI video resolution up to 4K@60Hz 4:4:4 HDR.
▪Extends 4K signals to distances up to 131 feet (40 meters) and 1080P signals to
distances up to 230 feet (70 meters) over a single CATx cable.
▪Supports video resolution up-scaling, the 1080P input can be automatically
upgraded to 4K output.
▪SPDIF out on receiver for source audio de-embedding.
▪18Gbps high bandwidth.
▪Bidirectional 12V IR, RS232 and 24V PoC.
▪Supports ARC.
▪Supports CEC pass-through.
▪Provides LEDs to indicate the current operating status.
▪Firmware upgrade by Micro-USB port.

HD350AR12
2. What’s in the Box
▪1x HD350AR12 Receiver
▪2x Mounting Ears with 4 Screws
▪4x Plastic Cushions
▪1x 3-pin Terminal Block
▪1x User Manual
Note: Please confirm if the products and the accessories are all included, if not
please contact your dealer.

HD350AR12

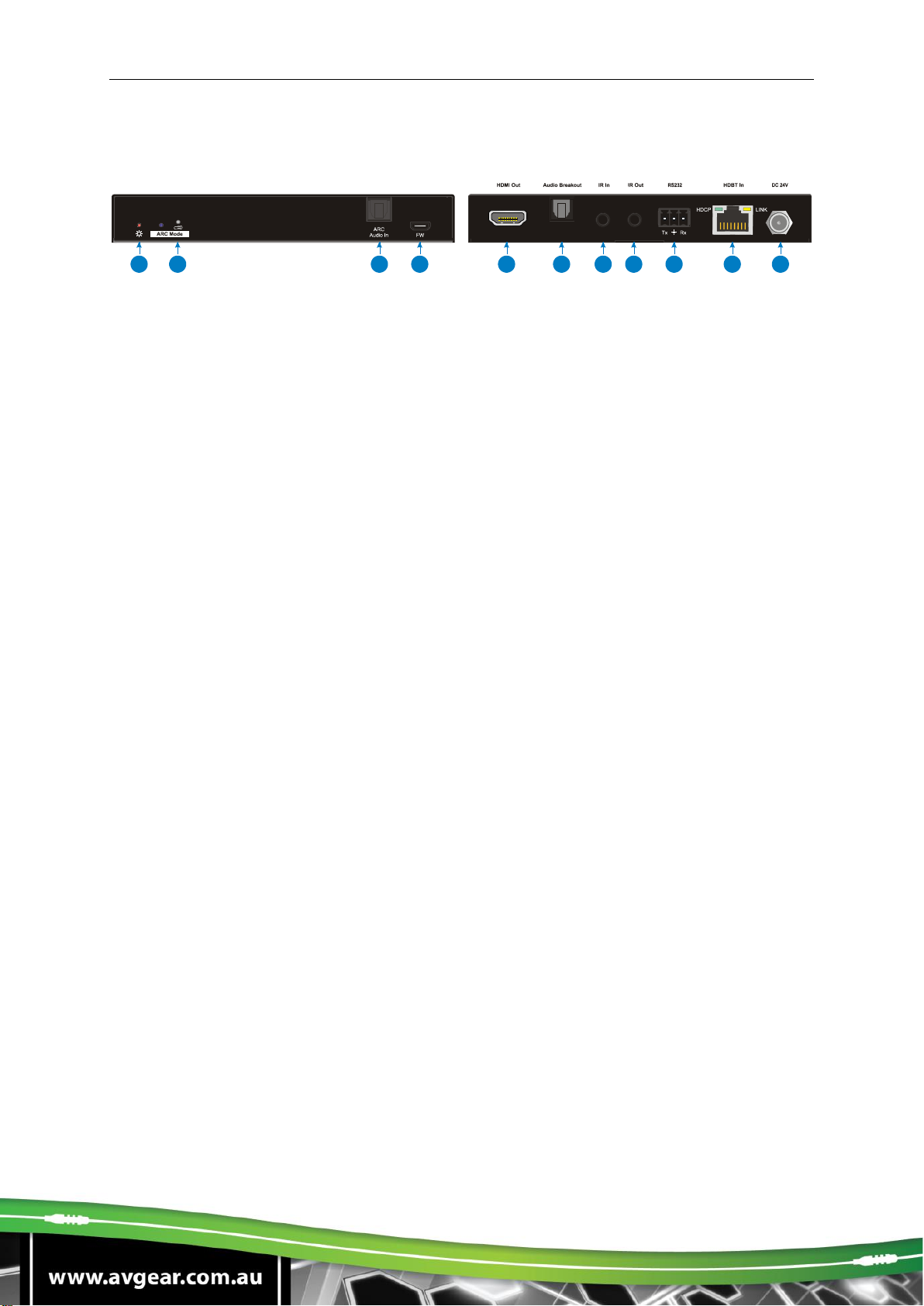

3. Product Appearance of the HD350AR12
1. Power LED: The LED illuminates green when power is applied
2. ARC Mode: Press the button with paper clip or other sharp tool to enable the
ARC mode, and then the left LED illuminates blue. Press it again to exit the
ARC mode and the LED is off.
3. ARC Audio In: Toslink connector to connect ARC audio source device (e.g.TV).
4. FW: Micro-USB port for firmware upgrade.
5. HDMI Out: Type-A female HDMI output port to connect HDMI display (e.g.TV).
6. Audio Breakout: If the ARC mode is OFF, the Toslink connector is connected
to speaker or amplifier for HDMI source audio de-embedding. Note that if the
ARC mode is ON, this port has no audio output.
7. IR In: 3.5mm jack to connect the 12V IR receiver for IR pass-through.
8. IR Out: 3.5mm jack to connect the 12V IR emitter for IR pass-through.
9. RS232: 3-pin terminal block to connect the RS232 control device (e.g. PC) or a
third-party device to be controlled.
10. HDBT In: RJ45 port to connect the HDBT output port of transmitter by CATx
Ethernet cable. The LINK LED illuminates orange when there is a valid
HDBaseT link between the transmitter and the receiver. The HDCP LED
illuminates green when the video contains HDCP content.
11. DC 24V: DC connector for the power adapter connection.
Note: Pictures shown in this manual are for reference only.
12345678911
10

HD350AR12

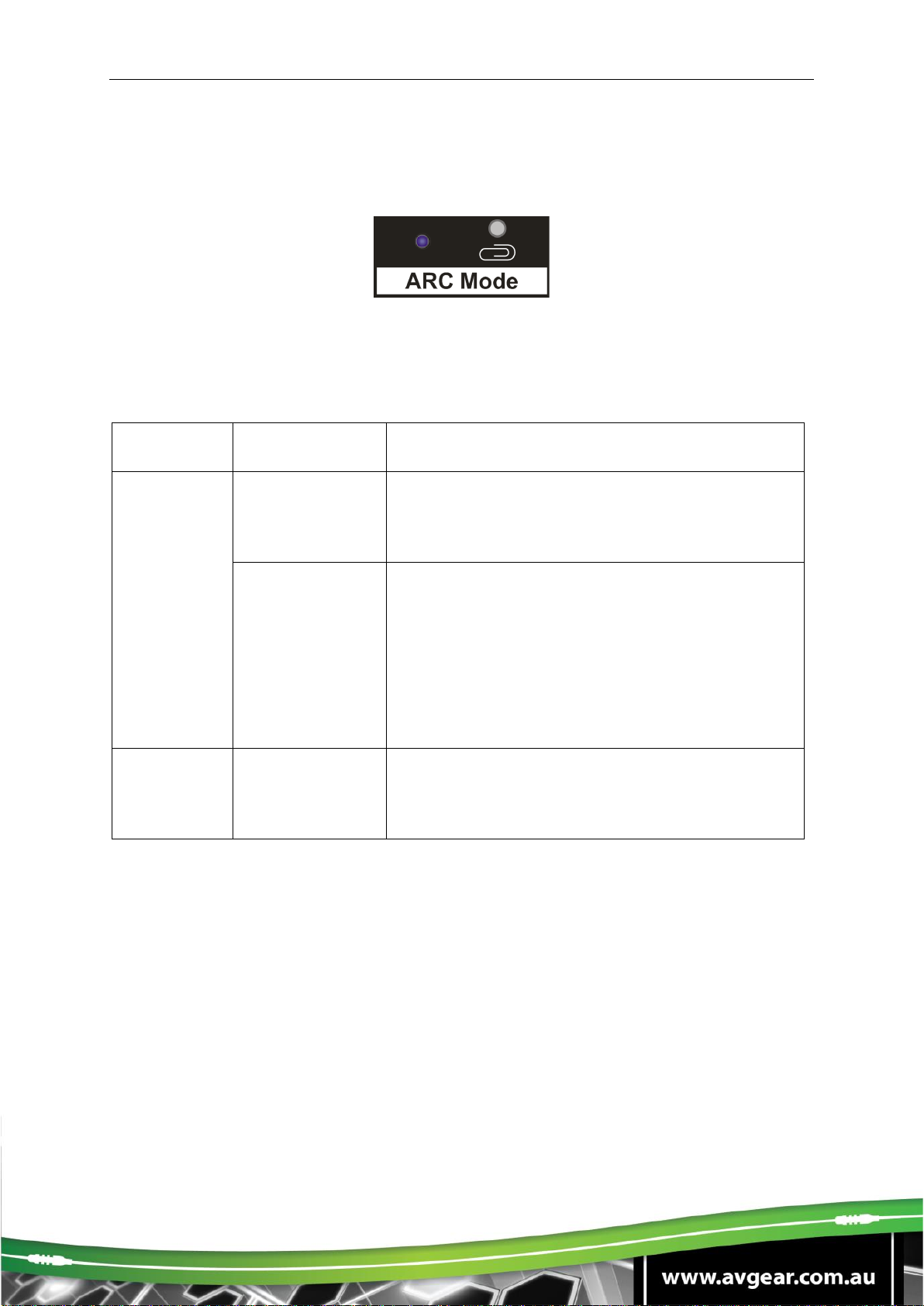

4. ARC Mode
The front panel of receiver provides a buttons to enable or disable ARC mode, as
below figure shows:
Press the button with paper clip or other sharp tool to enable the ARC mode, and
then the left LED illuminates blue. Press it again to exit the ARC mode and the LED
is off.
ARC Mode
Display
(e.g.TV)
Audio Transmission Path
ON
ARC is
supported
The TV audio is transmitted from the TV back to
the receiver via HDMI cable, and then it will be
output by the ARC Audio Out port of
transmitter.
ARC is not
supported
Connect the TV to the ARC Audio In port of
receiver with an audio cable. The TV audio is
transmitted from the TV back to the receiver via
the audio cable, and then it will be output by the
ARC Audio Out port of transmitter.
Note that if the ARC mode is ON, the Audio
Breakout port of receiver has no audio output.
OFF
/
The TV audio can’t be back to the ARC Audio
Out port of transmitter. The Audio Breakout
port of receiver is connected to speaker or
amplifier for HDMI source audio de-embedding.

HD350AR12
5. System Connection
The following diagram illustrates the typical input and output connections of the
extender:

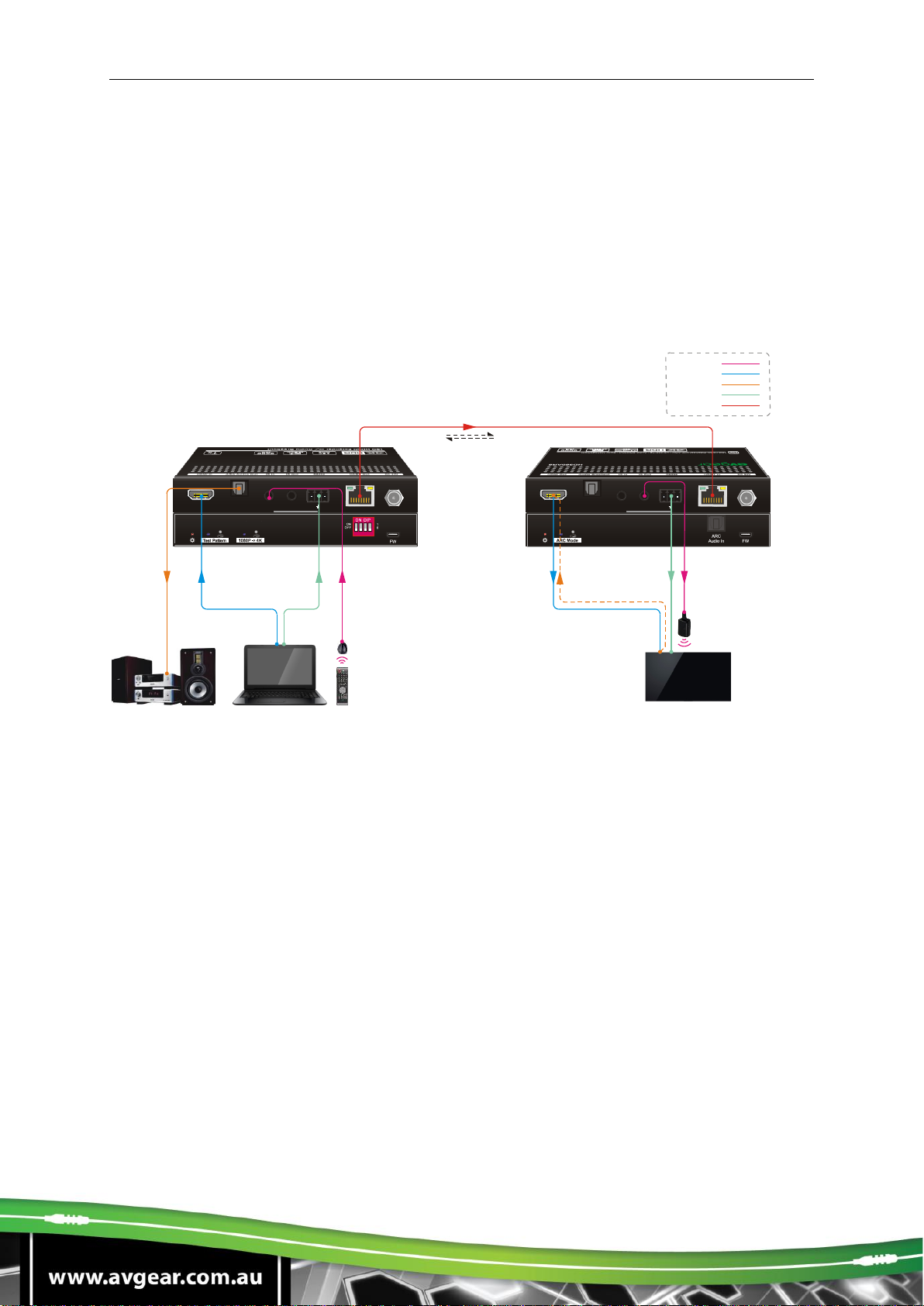

1) The ARC mode of receiver is ON, and the display device (e.g. HDTV) supports
ARC. The TV audio is transmitted from the TV back to the receiver via HDMI
cable, and then it will be output by the ARC Audio Out port of transmitter.
Note: The STP cable is recommended to be used to ensure optimal machine
performance in ARC mode.
1 2 3 4
Tx Rx
LINKHDCP
Tx Rx
LINKHDCP
Speaker Laptop Remote HDTV
HDMI:
HDBaseT:
Audio:
IR:
RS232:
ARC
ARC
Tx Rx
IR
Receiver
PoC
4K 40m 1080P 70m,
IR
Emitter

HD350AR12

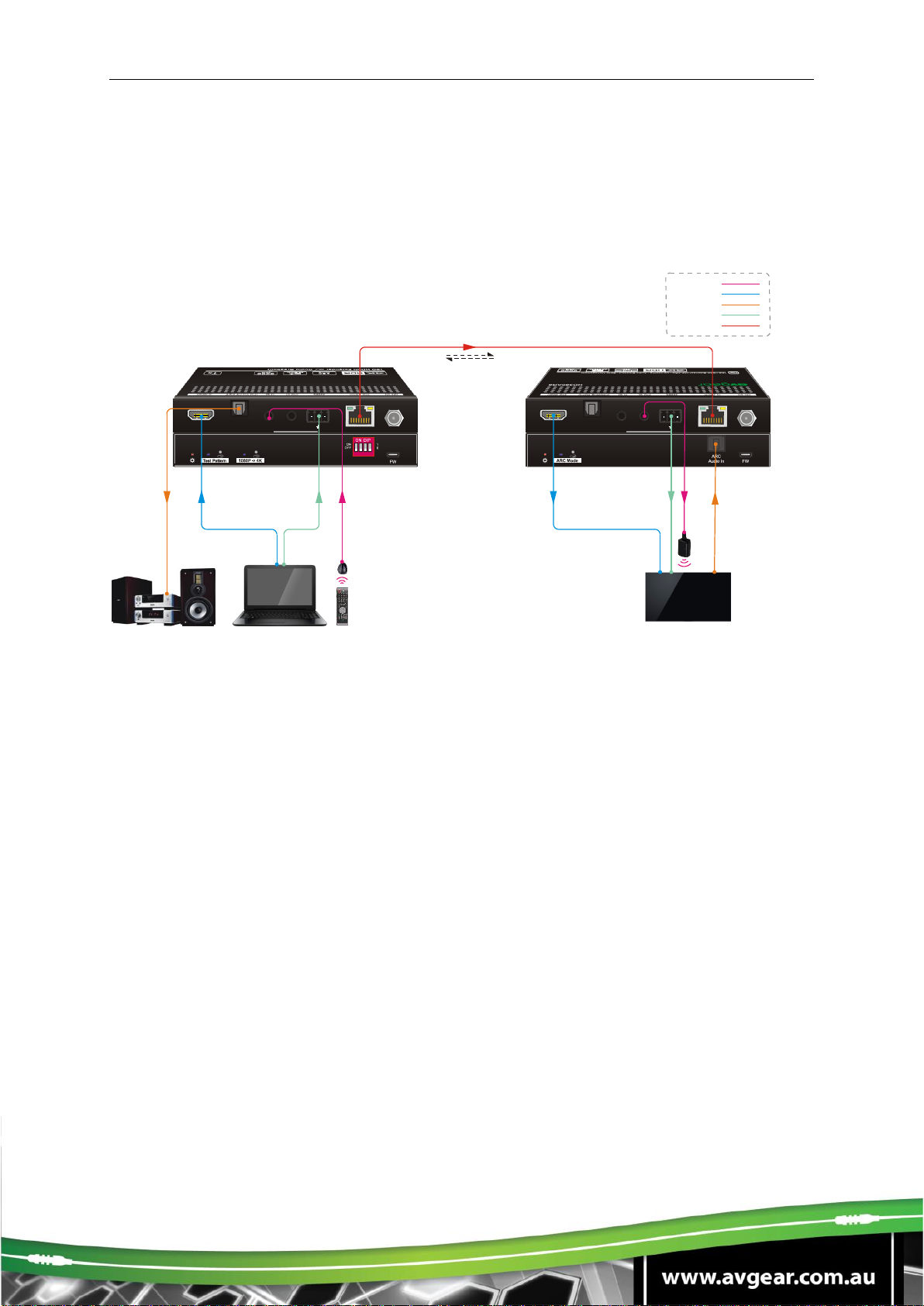

2) The ARC mode of receiver is ON, but the display device (e.g. HDTV) doesn’t
support ARC. The TV audio is transmitted from the TV back to the receiver via
the audio cable, and then it will be output by the ARC Audio Out port of
transmitter.
Note: The STP cable is recommended to be used to ensure optimal machine
performance in ARC mode.
1 2 3 4
Tx Rx
LINKHDCP
Tx Rx
LINKHDCP
Speaker Laptop Remote HDTV
HDMI:
HDBaseT:
Audio:
IR:
RS232:
ARC
Tx Rx
ARC
IR
Receiver
PoC
4K 40m 1080P 70m,
IR
Emitter

HD350AR12
3) The ARC mode of receiver is OFF. The TV audio can’t be back to the ARC
Audio Out port of transmitter. The Audio Breakout port of receiver is connected
to speaker or amplifier for HDMI source audio de-embedding.
1 2 3 4
Tx Rx
LINKHDCP
Tx Rx
LINKHDCP
Laptop Remote HDTV Speaker
HDMI:
HDBaseT:
Audio:
IR:
RS232:
Tx Rx
IR
Receiver
PoC
4K 40m 1080P 70m,
IR
Emitter

HD350AR12
6. Specifications
Video
Input
(1) HDBT
Input Connector
(1) RJ45
Input Resolution
Up to 4Kx2K@60Hz 4:2:0
Output
(1) HDMI
Output Connector
(1) Type-A female HDMI
Output Resolution
Up to 4Kx2K@60Hz 4:4:4 8bit HDR10
Audio
Input
(1) ARC Audio In
Input Connector
(1) Toslink Connector
Output
(1) Audio Breakout
Output Connector
(1) Toslink connector
Audio Format
Supports PCM, Dolby Digital, Dolby True-HD, DTS
and DTS-HD.
Frequency Response
20Hz –20KHz, ±3dB
Max Output Level
2.0Vrms ± 0.5dB. 2V = 16dB headroom above -
10dBV (316mV) nominal consumer line level signal
THD+N
< 0.05% (-80dB), 20Hz –20KHz bandwidth, 1KHz
sine at 0dBFS level (or max level)
SNR
> 85dB, 20Hz-20 kHz bandwidth
Crosstalk Isolation
> 70dB, 10KHz sine at 0dBFS level (or max level
before clipping)
L-R Level Deviation
< 0.3dB, 1KHz sine at 0dBFS level (or max level
before clipping)
Frequency Response
Deviation
< ± 0.5dB 20Hz - 20KHz
Output Load Capability
1KΩ and higher (Supports 10x paralleled 10KΩ
loads)
Stereo Channel
Separation
>70dB@1KHz
Control
Control Part
(1) ARC Mode button, (1) FW, (1) 12V IR In, (1) 12V
IR Out,
(1) RS232
Control Connector
(1) Micro-USB port, (2) 3.5mm jacks,
(1) 3-pin terminal block
General
Bandwidth
18Gbps
HDMI Standard
2.0
HDCP Version
2.2, 1.4 compliant

HD350AR12
CEC
Pass-through
Bidirectional PoC
Supported
HDMI 2.0 Cable Length
4K@60Hz 4:4:4 ≤ 5m, 4K@60Hz 4:2:0 ≤ 15m,
1080P ≤ 20m
Transmission Standard
HDBaseT
Transmission Distance
1080P@60Hz ≤ 230 feet (70 meters),
4K@60Hz ≤ 131 feet (40 meters)
Operation Temperature
-5~ +55℃
Storage Temperature
-25 ~ +70℃
Relative Humidity
10%-90%
Power Supply
Input:100V~240V AC; Output:24V DC 1.25A
Power Consumption
12W (Max)
Dimension (W*H*D)
40mm x 19.5mm x 84mm
Net Weight
290g
Note: Please adopt high-qualified HDMI cable fully compliant with HDMI 2.0 for
reliable transmission and connection.
