AVGear AVG-HD310SR User manual

AVG-HD310SR
The AVG-HD310SR is a ultra compact
Receiver. It uses HDBaseT 2.0 technology to
deliver HDMI signal with a maximum transmit
tion distance up to 100/70m for 1080P/4K signal
via a Cat5e / Cat6A cable.
Features
Ultra thin design.
Supports Full HD: Delivers high
resolution image (1080p@60Hz@48
b/pixels/3D/4Kx2K).
Maximum transmission distance is up
to 100m for 1080p and up to 70m for
4Kx2K over single CAT5e / CAT6a
cable.
High Bandwidth: 10.2Gps.
HDTV Compatible, use HDMI 1.4 and
HDCP2.2 compliant.
Supports CEC / IR / RS232
passthrough.
Supports bi-directional PoH.
Bi-directional RS232 / 12v IR control.
HDBaseT 2.0 technology.

AVG-HD310SR
PLEASE READ THIS PRODUCT MANUAL CAREFULLY
BEFORE USING THIS PRODUCT.
This manual is only for operational instruction only,
and is not to be used in a maintenance capacity. The
functions described in this version are current as at
January 2017. Any changes of functions and
operational parameters will be updated in future
manual versions. Please refer to your dealer for the
latest product details.
Version 1.0 10/1/17

AVG-HD310SR
SAFETY OPERATION GUIDE
In order to guarantee the reliable operation of the equipment and safety of the
user, please abide by the following procedures during installation, use and
maintenance:
1. The system must be earthed properly. Please do not use two blade plugs
and ensure the AC power supply ranges from 100v to 240v and from 50Hz
to 60Hz.
2. Do not install the units in an environment where they will be exposed to
extreme hot or cold temperatures.
3. These units will generate heat during operation, please ensure that you allow
adequate ventilation to ensure reliable operation.
4. Please disconnect the units from mains power if they will be left unused for a
long time.
5. Please DO NOT try to open the casing of the equipment, DO NOT attempt to
repair the unit. Opening the unit will void the warranty. There are high
voltage components in the unit and attempting to repair the unit could result
in serious injury.
6. Do not allow the unit to come into contact with any liquid as that could result
in personal injury and product failure.

AVG-HD310SR
TABLE OF CONTENTS
Introduction ............................................................................................................ 1
Introduction to the AVG-HD310SR ..............................................................1.1
Features ......................................................................................................1.2
What’s in the Box ........……………………………………………………………………2
Product Appearance of the AVG-HD310SR ......................................................... 3
Receiver .......................................................................................................3.1
System Connection ................................................................................................ 4
System Applications......................................................................................4.1
Usage Guidelines.........................................................................................4.2
Connection Diagram ....................................................................................4.3
Connection Procedure .................................................................................4.4
Specifications ......................................................................................................... 5
Supported Resolutions ..................................................................................5.1
Panel Drawing......................................................................................................... 6
Troubleshooting & Maintenance ........................................................................... 7

AVG-HD310SR
1. Introduction
1.1 Introduction to the AVG-HD310SR
The AVG-HD310SR is a mini-size HDBT Receiver. HDBT 2.0 technology is used to
transmit a high resolution 1080p / 4K signal to the receiver up to 100 / 70m via a Cat5e
/ Cat6A cable. The receiver then outputs the HDMI signal.
Bi-directional RS232, 12v IR and PoH power is also transmitted across the
Cat5e/Cat6A cable.
1.2 Features
Ultrathin design.
Supports Full HD: Delivers a high resolution image (1080p@60Hz@48
b/pixels/3D/4Kx2K).
Maximum transmission distance is 100m for 1080p and 70m for 4Kx2K over a
single CAT5e/CAT6a cable.
High Bandwidth: 10.2Gps.
HDTV Compatible, HDMI 1.4 and HDCP2.2 compliant.
Supports CEC passthrough.
Bi-directional 12v IR and RS232.
Supports bi-directional PoH function.
Bi-directional RS232/IR control.
Uses HDBaseT technology.
LED indicators show working status.

AVG-HD310SR
2. What’s in the Box
1 x AVG-HD310SR (Receiver)
2 x Mounting Brackets
4 x Screws
4 x Rubber Feet
1 x RS232 cables
1 x User Manual
Note: Please confirm if the product and the accessories are all included, if not, please
contact your dealer.

AVG-HD310SR
3. Product Appearance of the AVG-HD310SR
3.1. Receiver
No.
Name
Description
①
LINK
HDBT Link Status indicator.
OFF: No Link
GREEN: Link Successful
Blinking GREEN: Link Error
②
HDCP
HDCP compliant indicator
OFF: No HDMI traffic (no picture output)
GREEN: HDMI Traffic contains HDCP.
Blinking GREEN: HDMI Traffic without HDCP.
③
Power
Illuminates red when powered on
④
RS232
RS232 connector.
⑤
IR IN
Connect with a 12v IR receiver to collect infrared signals, works
with the IR OUT port of the Transmitter(HD310ST).
⑥
IR OUT
Connect with a 12v IR Emitter to send infrared signal, works with
the IR IN port of the Transmitter(HD310ST).
⑦
HDMI OUT
Connect with HDMI display.
⑧
HDBT IN
Connect to the HDBT OUT socket on the Transmitter via CAT5e/
CAT6A cable.
⑨
DC 24V
Insert a DC 24V 1.25A power supply. (Not required if the
HD310ST has power connected)
Note: Pictures shown in this manual are only for reference.
HDCPLINK
RX
RXTX

AVG-HD310SR
4. System Connection
4.1. System Applications
Robust performance for control and signal transmission makes the AVG-HD310SR
ideal in the custom installation industry, IT computer space, signal monitoring, big
screen displays, conference systems, television broadcast, education, banking and
security institutions etc.
4.2. Usage Guidelines
1. The system should be installed in a clean environment with temperature and
humidity maintained to within equipment specification.
2. All of the power switches, plugs, sockets and power cords should be insulated and
safe.
3. All devices should be connected before power is turned on.
4. Use shielded straight-thru Cat5e/Cat6Acable with TIA/EIA T568B terminations for
best transmission results.

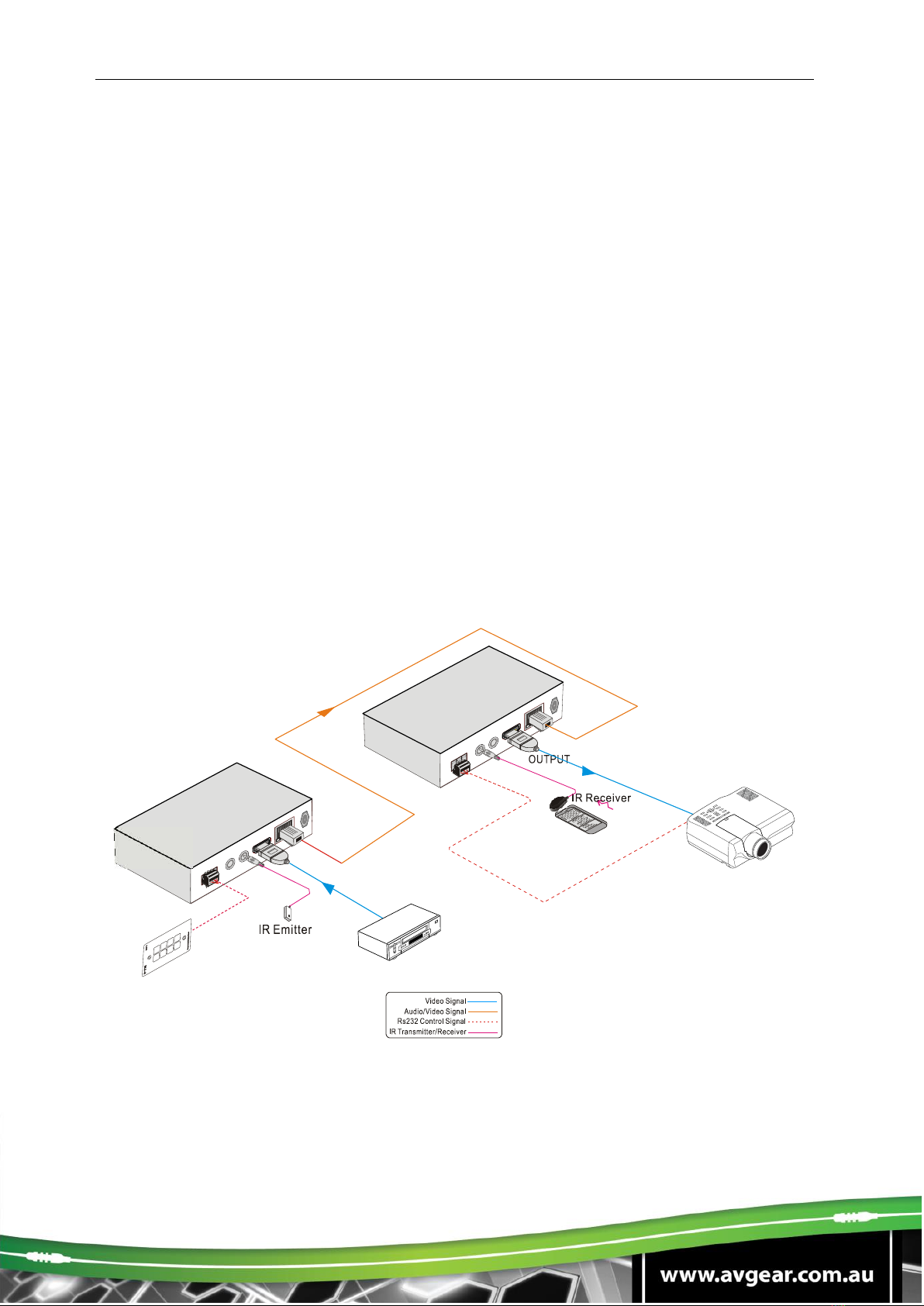

4.3. Connection Diagram
DVD
HDMI
HDMI
INPUT
RS232
Controlpanel
Projector
IR Remote
Receiver
Transmitter
CAT5e

AVG-HD310SR
4.4. Connection Procedure
Step 1. Connect the HDBT cable to either a AVG-HD310ST or the HDBT output of a
HDBT matrix, such as the AVG-UHMS88PRO.
Step 2. Connect a HDMI display (such as HDTV) to HDMI OUT port of the receiver
with a HDMI cable.
Step 3. When using IR control, do the following.
a) Connect an IR receiver to the IR IN port of the Receiver.
b) Connect an IR Emitter to the IR OUT port of Transmitter or if using a HDBT
matrix connect to the IR OUT port of the matrix.
Step 4. Connect a DC24V power adaptor to the power port of the transmitter or the
receiver as the other will be powered via the PoH.
Note: If you are connecting the AVG-HD310SR to a HDBT matrix that supports PoC,
you will not require the DC24V power supply at the receiver.

AVG-HD310SR
5. Specifications
Model
Spec
Receiver
Input
Signal
1 x IR IN
1 x RS232
1 x HDBT IN
Connector
1 x 3.5mm mini jack
1 x 3p captive screw connector
1 x RJ-45
Audio
Digital audio, transmit through HDMI audio
Output
Output
1 x IR OUT
1 x RS232
1 x HDMI OUT
Connector
1 x 3.5mm mini jack
1 x 3p captive screw connector
1 x female HDMI
General
Resolution Range
640x480@60Hz ~ 4K×2K@30Hz
Transmission Mode
HDBaseT
Transmission Distance
1080P@60Hz ≤100m
4Kx2K@30Hz ≤70m
Bandwidth
10.2Gbps
HDMI Standard
HDMI 1.4 and HDCP 2.2
Temperature
0 ~ 50℃
Reference Humidity
10% ~ 90%
Power Supply
DC 24V, 1.25A
Power Consumption
14W (Max)
Dimension (W*H*D)
115 x 16.2 x 109 mm
Weight
196g

AVG-HD310SR
5.1 Supported Resolutions
Aspect Ratio
Resolution
Refresh Rate
4Kx 2K
4096x2160
30Hz
3840x2160
24/25/30Hz
16:9
1920x1080
60Hz
1600x900
60Hz
1366x768
60Hz
1280x720
60Hz
1024x576
60Hz
16:10
1920x1200
60Hz
1680x1050
60Hz
1360x768
60Hz
1280x800
60Hz
4:3
1600x1200
60/65/70/75/85Hz
1280x1024
60/75/85/96Hz
1024x768
60/70/75/85Hz
800x600
56/60/72/75/85Hz
640x480
60/72/75Hz
Note: HDBaseT Extender supports 4k HDMI signal, please adopt quality HDMI cables
compliant with HDMI2.0 for reliable transmission.

AVG-HD310SR
6. Panel Drawing
Receiver

AVG-HD310SR
7. Troubleshooting & Maintenance
No image on the display:
Ensure that the display device has been set to the correct input.
Ensure that the HDMI cables used for both the Source/Transmitter and the
Receiver/Display are properly connected and are working. Test the HDMI
cables directly from a source to the display and ensure correct operation.
Ensure that the Cat5e/Cat6a cable has not been damaged and that it has been
terminated correctly with T568B on both ends. A temporary length of
Cat5e/Cat6 can be used for testing to ensure that the devices are compatible
and working properly.
Ensure proper grounding of the power supply.
Known issues with HDMI 1.2 source devices: Older compatibility (HDMI 1.2)
may result in HDBaseT transmission issues.
Colour loss or poor picture quality:
Ensure that the HDMI cables used for both the Source/Transmitter and the
Receiver/Display are properly connected and are high quality. Test the HDMI
cables directly from a source to a display to check picture quality.
Ensure proper grounding of the power supply.
If the static becomes stronger or picture quality becomes worse when
connecting the video connectors, this may be due to improper grounding.
Check the grounding and make sure all the components are properly grounded
to a common ground. Improper grounding may cause damage to the Receiver.
If your problem persists after following the above troubleshooting steps, seek further
help from your authorised dealer.
