Avico 630TVLD-WDR User manual

D-WDR/3D DNR
630TVL
DOME CAMERA
USER’S MAN
■
■
■
■
■
■
■
■
■
■
■
■
■
Sony 1/3”Super HAD CCD II
High Resolution 630TV Lines
D-WDR(Wide Dynamic Range)
3D DNR(Digital Noise Reduction)
Sens-Up Function(x1024)
LSC (Lens Shading Compensation)
Intelligent Motion Detection
PELCO-D / RS485(Optional)
Heater & Blower Option
35pcs IR LED Vandal Dome Camera or
Non-IR LED Vandal Dome Camera
Flush or Surface Mounting Type
True 3-Axis Easy Ball Type Gimbal Bracket built-in
IP68 rate Waterproof Design
D-WDR/3D DNR DOME CAMERA
8-009-06

1. Features
D-WDR(Wide Dynamic Range)
Delivers a powerful Wide Dynamic Range to the camera to provide D-WDR captures
the images at all light levels by correcting GAMMA CURVE. If you use an ordinary
camera in a scene with an intensive backlight, the object will be displayed dark on
the monitor affected by the backlight.To solve this problem, you can use the D-WDR
function to improve the dark part without saturation from bright part.
You can adjust SET LEVEL to get clearer images.
630 TVL ULTRA HIGH RESOLUTION
The horizontal resolution is 630 TV Lines in Color mode and 700 TV Lines in Black/
White mode using a high density CCD. It gives a vivid image output with super
high horizontal resolution using our own De-Mosaic Interpolation algorithm and a
specialised built-in sharpness filter.
3D DNR(Digital Noise Reduction)
Achieves excellent 3D-DNR (3 Dimensional-Digital Noise Reduction)
function very excellently by using upgraded 3D filtering and enables to keep this
function automatically while operating the camera to provide the clear and superior
images in very low light luminance.The SAMRT 3D-DNR will be work automatically if
There is any movement or motion. Also, this can be focus on the object in reduce the
“Ghost Effect”caused by moving object to it self.
Smart IR Function
LSC ( Lens Shading Compensation)
Sens-Up(x1024)
Achieves high quality pictures by supporting a long exposure time - more than
1/50second - and enables recognition of the shape and color of a suspended
object under no light conditions
POLYGONAL PRIVACY MASKING(Polygonal, 8colors)
Ensures privacy protection for private and specific areas on the video signal
output using a polygonal masking function. It allows the size and position of the
masking areas to be controlled very easily, and there are 8 mask areas which are
user programmable - color, brightness and mosaic.
HLC
Enables the recognition of a visible car license plate by blocking unwanted light
sources.
HIGH SENSITIVITY TRUE DAY&NIGHT
The Day & Night function delivers high quality color rendition and converts
automatically into monochrome as luminance levels drop.

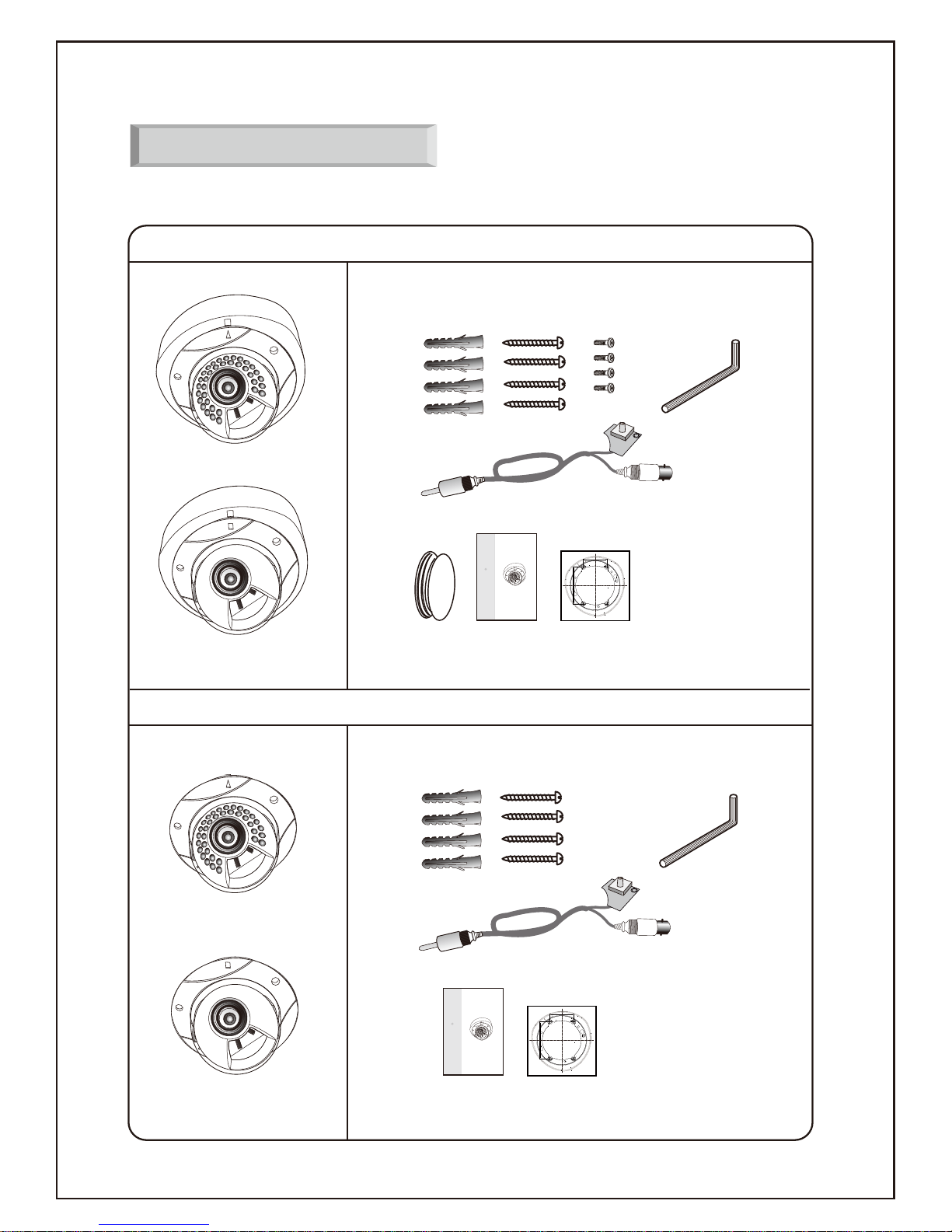

2. Components
Vandal Dome Camera(Surface Mount Type)
IR LED Vandal Dome
Non-IR LED Vandal Dome
IR LED Vandal Dome
Non-IR LED Vandal Dome
Vandal Dome Camera(Flush Mount Type)
SCREW
SIDE CAP
Mounting Template
Manual
L-WRENCH
Second Video & External OSD Control Cable
SUPER
WDR/3D DNR
DOME CAMERA
USER’S MANUAL
SUPER WDR 3D DNR
■
■
■
■
■
■
■
■
■
■
■
■
■
Sony1/3” Color VerticalD ouble Density CCD
Sony1/3” SuperHAD II CCD
960HCCD (700TV Lines)
HighResolution 600TV Lines
HighResolution 700TV Lines(960H)
WDR(WideDynamic Range)
3DDNR(Digital Noise Reduction)
Sens-UpFunction(x512)
EclipseFunction
RS485( PELCO-D) Optional
UTPInterface Optional
Heater& Blower Option
35pcsIR LED Vandal Dome Camera or
Non-IRLED Vandal Dome Camera
Flushor Surface Mounting Type
True3-Axis Easy Ball Type Gimbal Bracketbuilt-in
IP67rate Waterproof Design
70.0
109.0
MountingTemplate
Sur face Mount
70.0
109.0
MountingTemplate
Sur face Mount
SCREW
Mounting Template
Manual
L-WRENCH
Second Video & External OSD Control Cable
SUPER
WDR/3D DNR
DOME CAMERA
USER’S MANUAL
SUPER WDR 3D DNR
■
■
■
■
■
■
■
■
■
■
■
■
■
Sony1/3” Color VerticalD ouble Density CCD
Sony1/3” SuperHAD II CCD
960HCCD (700TV Lines)
HighResolution 600TV Lines
HighResolution 700TV Lines(960H)
WDR(WideDynamic Range)
3DDNR(Digital Noise Reduction)
Sens-UpFunction(x512)
EclipseFunction
RS485( PELCO-D) Optional
UTPInterface Optional
Heater& Blower Option
35pcsIR LED Vandal Dome Camera or
Non-IRLED Vandal Dome Camera
Flushor Surface Mounting Type
True3-Axis Easy Ball Type Gimbal Bracketbuilt-in
IP67rate Waterproof Design

3. Names and Functions of Parts
Surface Mount
POWER
RS-485(Optional)
3/4” Cap (2EA)
BNC
Plastic Anchors
Surface Mounting Screws
M4 x 30
OSD Board
Service Video
10
11
12
13
14
15
16
17
1Bubble
Dome Cover
2
Assembly Torx Screw
M4 X 9(3EA)
22
Flush Mount Base
7
8
9
Heater & Blower Board
(Optional)
Assembly Screw(Surface Mount)
M4 X 10 (4EA)
Lens
3
Bracket
6
Surface Mount
Fix Screw
LEDs
4
Gimbal
5
19
Safety Cable
21
20
18
Control Board

4. Installation & Connection
Surface Mount Installation
UNLOCK LOCK
STEP :
1. Mount the surface mount
plate to a sturdy surface or
wall with the installation
template (mouting screws
M4 x 30).
2. Connect the pre-drilled two
screws in the flush mounting
ring through the locking
hole( ) and turn it
counterwise for the
temporary locking system
before drilling four screws
(M4 x 10) of flush mount ring.
Please check if the symbol
in the surface mount ring and
the square hole ( ) in the
flush mount ring meet in a line
when it is locked.
3. Screw with four screws
(M4 x 10) from flush mount
ring to be mounted with the
surface mount.
1
2
3
1
2
3
Surface Mount Ring (Symbol)
Flush Mount Ring Square Hole
Dome Cover Ring (Symbol)

4. Adjust the lens focus and zoom of camera to monitor the objective.
5. Fit three screws(M4 x 9) from dome cover ring to the flush mount ring
and fix it by (3) screws. When you fit the dome cover ring please fit the
symbols in the line.

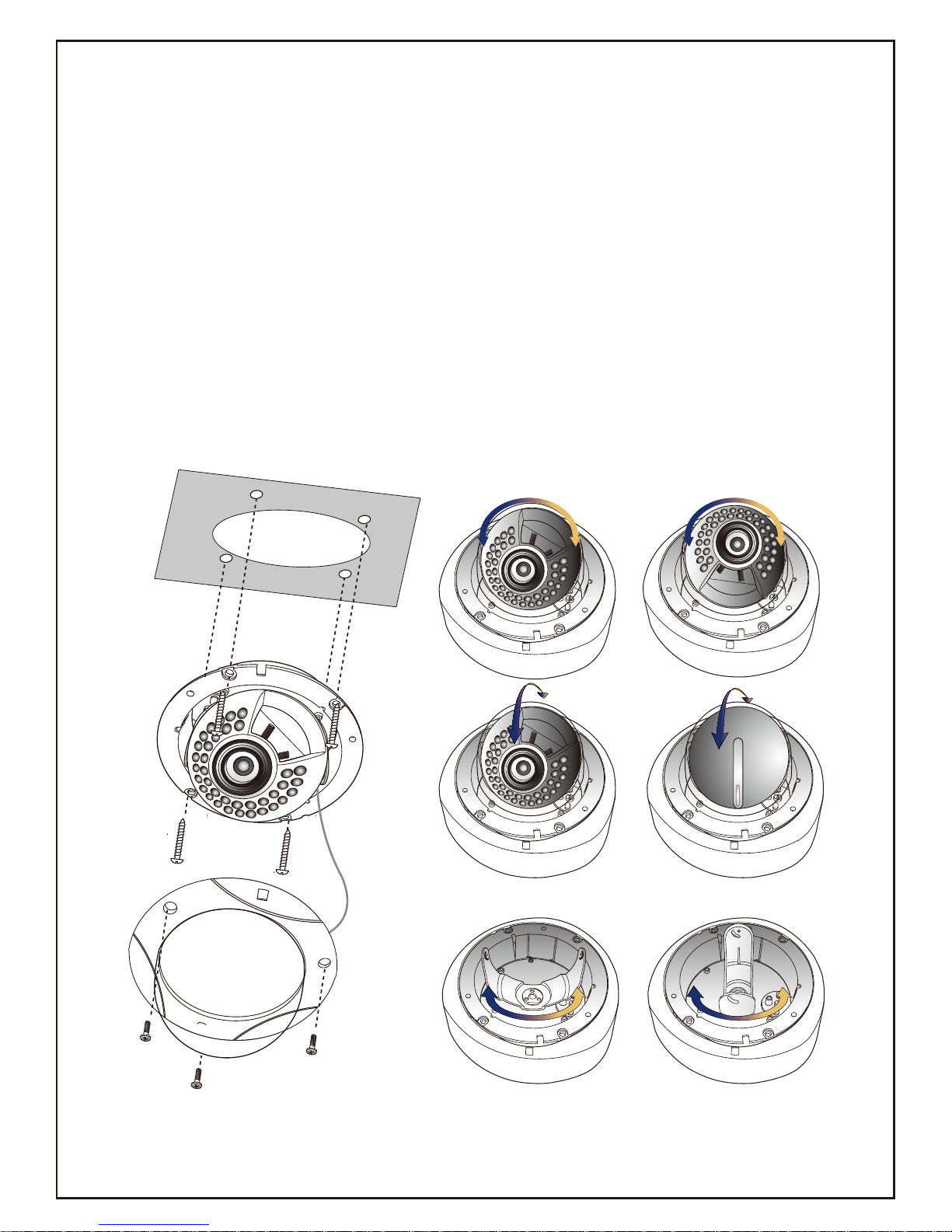

Adjusting the 3-Axis GimbalFlush Mount
D-WDR(Wide Dynamic Range)
Delivers a powerful Wide Dynamic Range to the camera to provide D-WDR captures
the images at all light levels by correcting GAMMA CURVE. If you use an ordinary
camera in a scene with an intensive backlight, the object will be displayed dark on
the monitor affected by the backlight.To solve this problem, you can use the D-WDR
function to improve the dark part without saturation from bright part.
You can adjust SET LEVEL to get clearer images.
630 TVL ULTRA HIGH RESOLUTION
The horizontal resolution is 630 TV Lines in Color mode and 700 TV Lines in Black/
White mode using a high density CCD. It gives a vivid image output with super
high horizontal resolution using our own De-Mosaic Interpolation algorithm and a
specialised built-in sharpness filter.
3D DNR(Digital Noise Reduction)
Achieves excellent 3D-DNR (3 Dimensional-Digital Noise Reduction)
function very excellently by using upgraded 3D filtering and enables to keep this
function automatically while operating the camera to provide the clear and superior
images in very low light luminance.The SAMRT 3D-DNR will be work automatically if
There is any movement or motion. Also, this can be focus on the object in reduce the
“Ghost Effect”caused by moving object to it self.
Smart IR Function
LSC ( Lens Shading Compensation)
Sens-Up(x1024)
Achieves high quality pictures by supporting a long exposure time - more than
1/50second - and enables recognition of the shape and color of a suspended
object under no light conditions
POLYGONAL PRIVACY MASKING(Polygonal, 8colors)
Ensures privacy protection for private and specific areas on the video signal
output using a polygonal masking function. It allows the size and position of the
masking areas to be controlled very easily, and there are 8 mask areas which are
user programmable - color, brightness and mosaic.
HLC
Enables the recognition of a visible car license plate by blocking unwanted light
sources.
HIGH SENSITIVITY TRUE DAY&NIGHT
The Day & Night function delivers high quality color rendition and converts
automatically into monochrome as luminance levels drop.

Power Consumption
Power Supply
Heater
Blower
430mA (Heater) / 40mA(Blower)
Only AC 24V
On : 5
℃ O : 7 ℃
Continuous 24 Hour Operation

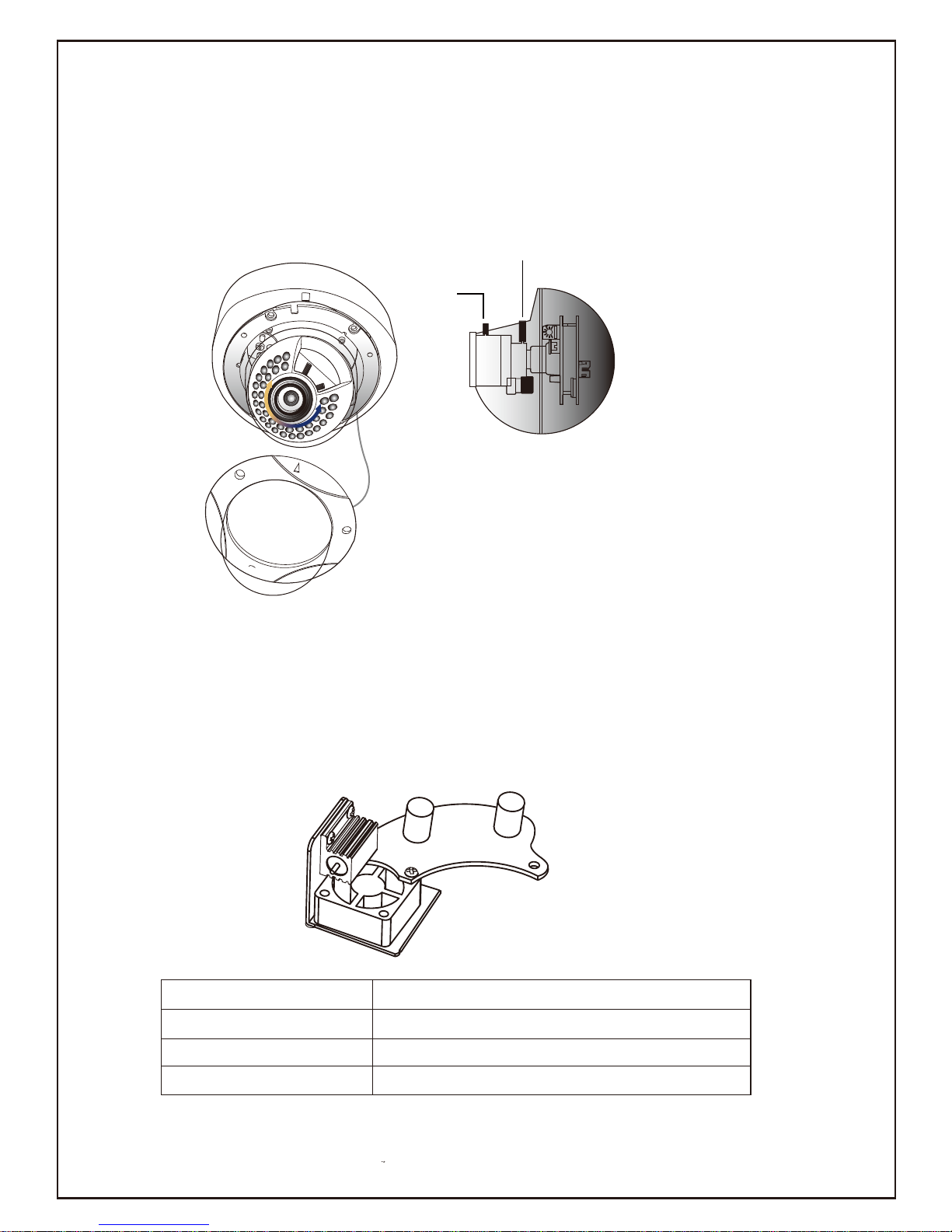

Adjusting the Varifocal DC Auto Iris Lens
Heater / Blower Specfications
FOCUS
ZOOM

Camera O.S.D Setup Controls
UP
DOWN RIGHT
LEFT ENTER

DC Power Connecting
Monitor
Power
(Adaptor Plug)
Adaptor
Video Cable
DVR
RS485 +
RS485 -(White)
RS485 +(Orange)
(Option)
RS485 -
PORT2
TX
+
_+ _+ _+ _
RX TX RX
PORT1
AC Power Connecting
Monitor
Adaptor
Video Cable
DVR
RS485 +
RS485 -(White)
Power
RS485 +(Orange)
(Option)
RS485 -
PORT2
TX
+
_+ _+ _+ _
RX TX RX
PORT1
+

5. Setup Menu Flow
EXPOSURE LENS DC, MANUAL
AGC OFF,LOW,MID,HIGH
SENSE-UP AUTO, OFF, X2, X4, X8, X16, X32, X64,
X128, X256, X512, X1024
BACK LIGHT OFF
BLC - BLC LEVEL<OFF, LOW, MID, HIGH>
HLC
D-WDR-SET LEVEL<0~20>
3D-DNR OFF, LOW, MID, HIGH, AUTO
RETURN
WHITE BALANCE WB MODE ATW, MANUAL, PUSH
R-Y GAIN
B-Y GAIN
RETURN
DAY&NIGHT D&N MODE AUTO, COLOR, B&W, EXT, EXT2
BURST ON, OFF
C_SUP <0 ~ 100>
S_SUP <0 ~ 100>
SMART IR ON, OFF
RETURN
IMAGE ADJUST MIRROR OFF, MIRROR
SHARPNESS <0~30>
GAMMA 0.45, 0.55, 0.65, USER<0.2 ~ 1.0>
LSC OFF, ON <0 ~ 30>
MONITOR CRT, LCD
RETURN
MOTION MOTION OFF, ON
AREA AREA1 ~ AREA4
SENSITIVITY <1 ~ 30>
DISPLAY OFF, MESSAGE, TRACE
HOLD TIME <0~15>
ALARM OUTPUT OFF, ON
RETURN

PRIVACY MASK1 OFF
ON
DOT SEL
DOT XY
MOVE XY
COLOR SET<1~8>
MASK8 OFF
ON
DOT SEL
DOT XY
MOVE XY
COLOR SET<1~8>
RETURN
SPECIAL LANGUAGE 9 Language
TITLE
COMMUNICATION OFF
ON
ID<0 ~ 255>
BAUD RATE<2400, 4800, 9600>
PROTOCOL<PELCO-D>
DPC OFF, AUTO
FACTORY SET NO, YES
RETURN
EXIT SAVE&EXIT
EXIT
RETURN

6. Special Features
PRIVACY MASK1 OFF
ON
DOT SEL
DOT XY
MOVE XY
COLOR SET<1~8>
MASK8 OFF
ON
DOT SEL
DOT XY
MOVE XY
COLOR SET<1~8>
RETURN
SPECIAL LANGUAGE 9 Language
TITLE
COMMUNICATION OFF
ON
ID<0 ~ 255>
BAUD RATE<2400, 4800, 9600>
PROTOCOL<PELCO-D>
DPC OFF, AUTO
FACTORY SET NO, YES
RETURN
EXIT SAVE&EXIT
EXIT
RETURN
1. D-WDR(Wide Dynamic Range)
D-WDR captures the images at all light levels by correcting GAMMA CURVE.
If you use an ordinary camera in a scene with an intensive backlight,
the object will be displayed dark on the monitor affected by the backlight.
To solve this problem, you can use the D-WDR function to improve the dark
part without saturation from bright part.
You can adjust SET LEVEL to get clearer images.
2. HLC
This function is to mask the bright color.
You can select 4 mask areas and DAY&NIGHT and adjust HLC level.
EXPOSURE
LENS DC
AGC MID
SENS-UP AUTO
BACK LIGHT D-WDR
3D-DNR AUTO
RETURN
D-WDR
SET LEVEL 003
RETURN
EXPOSURE
LENS DC
AGC MID
SENS-UP AUTO
BACK LIGHT HLC
3D-DNR AUTO
RETURN
HLC
HBLC MANUAL
MODE ALL DAY
HLC LEVEL 003
MASK1 ON
MASK2 ON
MASK3 ON
MASK4 ON
RETURN

4. SMART MOTION
With learning capability, it memorizes the previous screen on the
movement of the subject approximately in 3 to 5 seconds. When
there is a change, the alarm function goes off.
3. 3D DNR(Digital Noise Reduction)
Select 3D DNR ON or OFF.
3D-DNR function reduce the background noise in a low luminance
environment. Upgraded 3D filtering ensures even more clear image.
[DNR Level High : Picture image is more clear but Ghost is more increased.
DNR Level Low : Picture image is not clear but less Ghost.]
MAIN MENU
EXPOSURE
WHITE BALANCE
DAY & NIGHT
MOTION
IMAGE ADJUST
PRIVACY
SPECIAL
EXIT
MAIN MENU
EXPOSURE
WHITE BALANCE
DAY & NIGHT
MOTION
IMAGE ADJUST
PRIVACY
SPECIAL
EXIT
MOTION
MOTION
AREA
SENSITIVITY
HOLD TIME
DISPLAY
ALARM OUTPUT
RETURN
ON
003
007
TRACE
OFF
EXPOSURE
LENS DC
AGC MID
SENS-UP AUTO
BACK LIGHT D-WDR
3D-DNR AUTO
RETURN

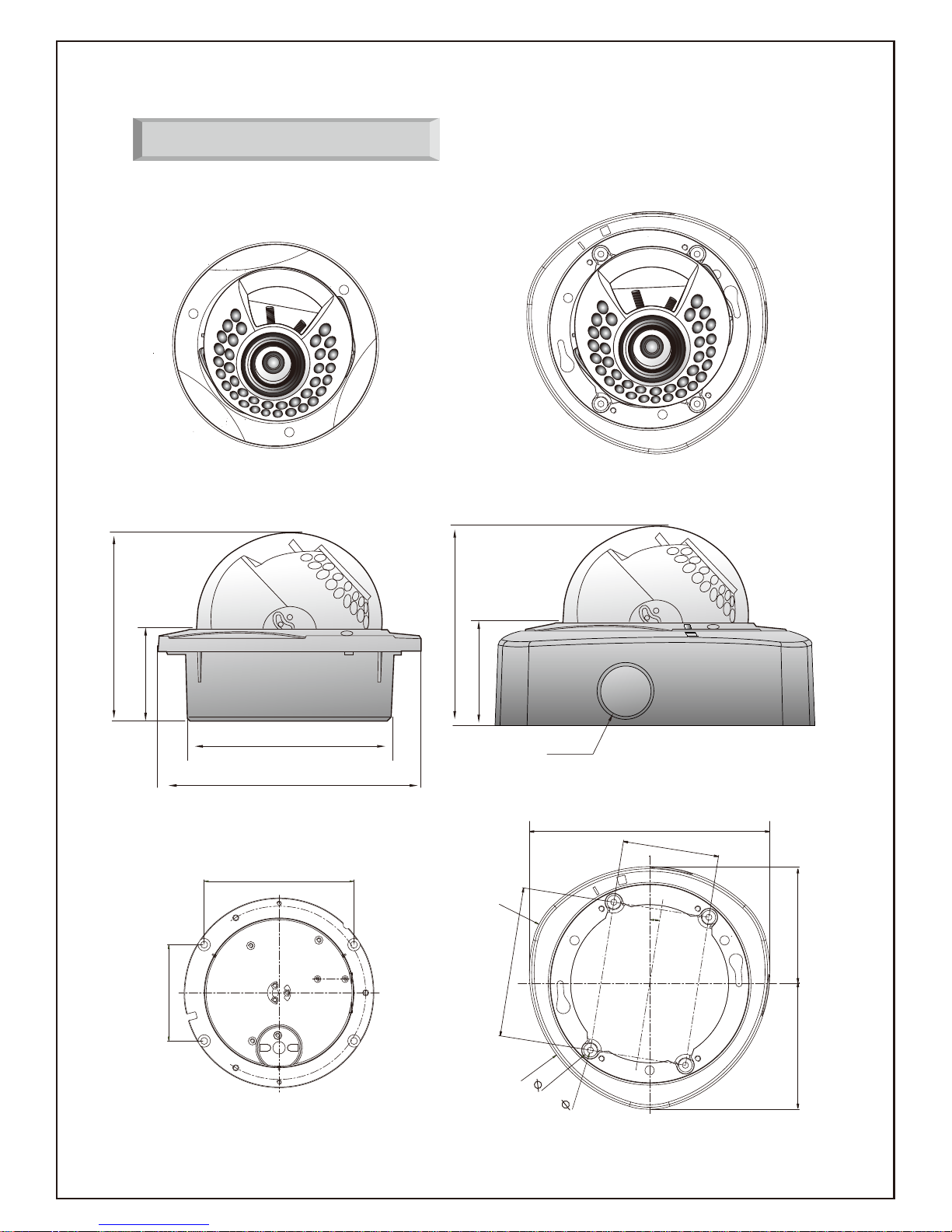

7. Dimensions
Surface MountFlush Mount
109.0
70.0
52.0
115.0
143.2
unit : mm
108.0
70.0
109.0
9.0°
174.7
85.1
91.3
R101.6
R51.6
9.9
4.5
56.7
PF 3/4”
113.0

8. SPECIFICATIONS
-20℃~60℃/30% ~80%
-30℃~60℃/20% ~90%
IR LEDs 35 pcs
Indoor 35m/Outdoor 25m
IR LED Vandal Dome Camera
Vandal Dome Camera
Night View Distance
Operating Temperature/Humidity
Storage Temperature/Humidity
LENS
2.8~12mm DC Iris Varifocal Lens
2.8~12mm Varifocal Lens
2.8~12mm DC Iris Varifocal Lens
LENS(Optional)
Supply Voltage
500mA 250mA/ 550mA 120mA 80mA /200mA
AC24V 670mA AC24V 510mA
Current
Use to Heater/Blower
[Recommended - Voltage : +/-20%, Current :
Adapter with rated power of 2 times(than real using current ]
Design and specifications are subject to change without notice.
NTSC PAL
Sony 1/3” Super HAD CCD II
768(H) X 494(V) 752(H) X 582(V)
811(H) X 508(V) 795(H) X 596(V)
H/V 15.734/59.94Hz H/V 15.625/50Hz
2:1 Interlace
630 TV Lines
0.12Lux(15IRE), 0.2Lux(30IRE), 0.4Lux(50IRE) F1.2
0.0002Lux(15IRE), 0.0005Lux(30IRE), 0.0008Lux(50IRE) F1.2
1.0Vp-p/ 75ohm Video 0.714Vp-p
0.45, 0.55, 0.65, USER
LENS, AGC, SENS-UP, BACK LIGHT(BLC, HLC, D-WDR),
3D-DNR, WHITE BALANCE, DAY & NIGHT
MIRROR, SHARPNESS, GAMMA, MONITOR, LSC,
MOTION, PRIVACY (MASK1 ~MASK8), LANGUAGE
COMMUNICATION, DPC
1/60~1/100,000 1/50~1/100,000
8 Windows(Polygonal, 8 Colors)
AUTO, COLOR, B&W, EXT, EXT2
ON / OFF
AUTO, OFF ~x1024
9 Language
ATW / AWC / MANUAL / PUSH
ON / OFF(WDR LEVEL)
OFF, LOW, MID, HIGH
ON / OFF
L
ICR (Optional)
OW / MIDDLE / HIGH / OFF
TV System
S
Total Pixel
Eective Pixel
ensor
Synchronization
Scanning System
Horizontal Resolution
Min. Illumination
Sens-Up On
Video Output
γ Correction
S/N
O.S.D
Electrical Shutter
Privacy Masking
Day & Night
Motion Detection
Sens-Up(Low Shutter)
Language
White Balance
D-WDR
3D-DNR
HLC
A
Day & Night System
GC
CRT, LCD
Monitor
ON / OFF
LSC
ON / OFF
MIRROR
More than 52dB(AGC o)
DC12V AC 24V / DC 12V DC 12V AC24V /DC 12V

PRODUCT WARRANTY CARD
1) ITEM # :
2) S/N # :
3) INSTALLATION CONDITION
- Indoor  / Outdoor 
- Power supply SPECIFICATION :
DC12V  / AC24V 
CURRENT __________ mA
4) TROUBLESHOOTING
- No picture 
- Bad image 
- No power 
- Water damage 
- LED ON  / OFF 
- ETC.  :
* Please keep this warranty card with the manual.
* Please fill out this warranty card and send us this warranty card
with the faulty units together.
Following cases can be charged even within the warrany period.
a. When defects are caused by user’s carelessness.
b. When improper or unauthorized repairs are done or when the inside is
modified or damaged.
c. Defects caused by natural disaster or power problem.
d. When the warranty card is not filled out or corrected unconfirmed.
