Avico 700TVL X-WDR/3D DNR User manual

700TVL WDR 3D DNR CAMERA
700TVL
X-WDR/3D DNR
STANDARD CAMERA
USER’S MANUAL
■
■
Sony 1/3” 960H CCD II
High Resolution 700TV Lines
■
■
■
■
■
■
■
■
■
■
■
WDR(Wide Dynamic Range)
3D DNR(Digital Noise Reduction)
Zero Defect
Sens-Up Function(x512)
Eclipse Function
Back Light Compensation
Day & Night (ICR-Optional)
Motion Detection
RS485 / PELCO-D
Privacy Mask(Polygonal,8 Colors)
O.S.D menu function
960H/ES 001

The lightning flash with an arrowhead symbol, within an equilateral triangle is
intended to alert the user to the presence of uninsulated “dangerous voltage”
within the product's enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
This installation should be made by a qualified service person
and should conform to all local codes.
INFORMATION - This equipment has been tested and found to comply with
limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference
at his own expense.
WARNING - Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the equipment.
CAUTION : To prevent electric shock and risk of fire hazards:
Do NOT use power sources other than that specified.
Do NOT expose this appliance to rain or moisture.

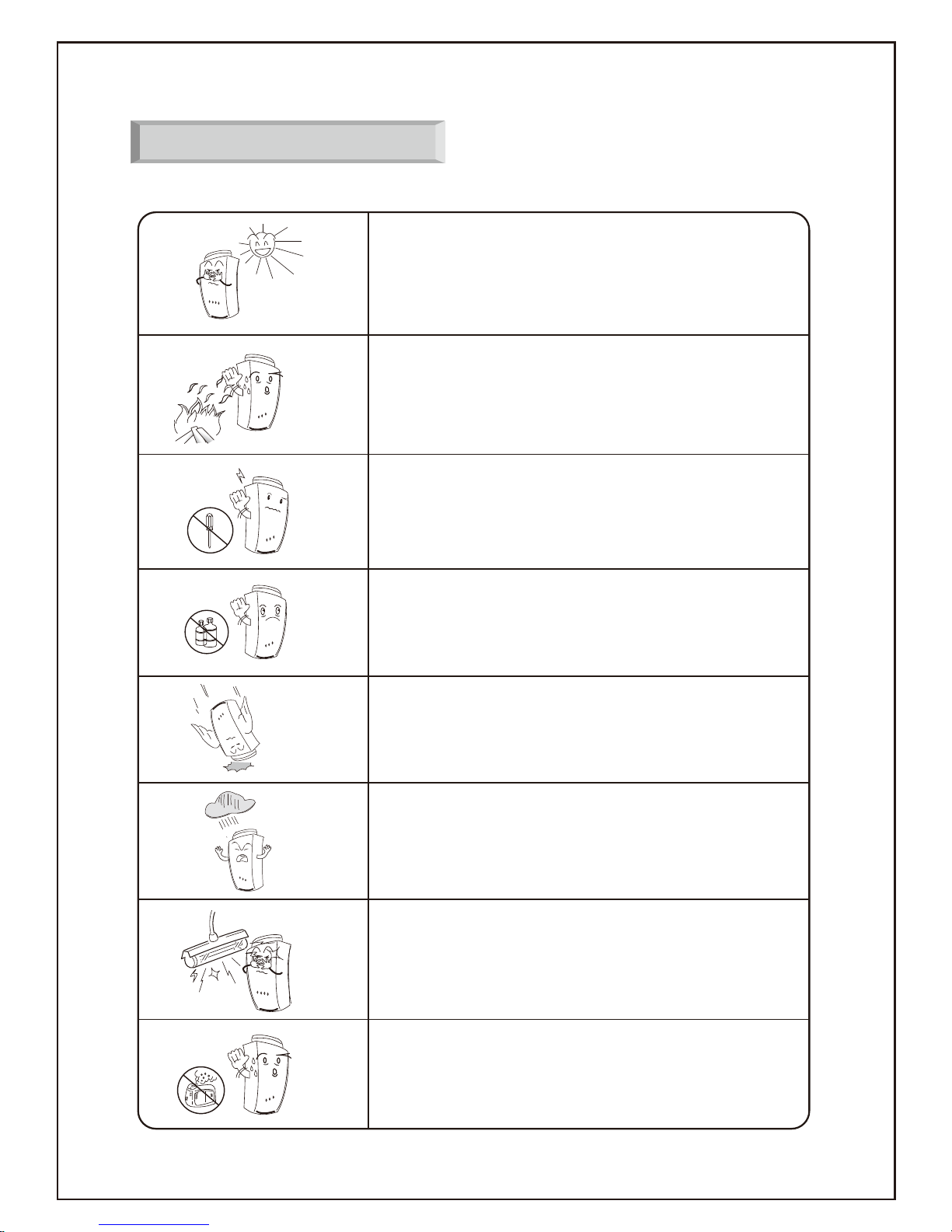

Precaution
Do not install the camera in
extreme temperature conditions.
To avoid malfunctions, never
use the camera close to a gas
or oil leak
Do not Keep the camera face to
strong light directly
Do not disassemble the camera
even if troubles happened
Do not drop the camera or
subject them to physical shocks.
Do not install the camera under
unstable lighting conditions
Do not install or use the camera
in an environment where the
humidity is high
Do not expose the camera to
rain or spill beverage on it.

1. Features
WDR(Wide Dynamic Range)
Delivers a powerful Wide Dynamic Range to the camera which provides superior
images, internally and externally, even under extreme light and dark contracts.
It automatically compensates the necessary light levels to get detailed information
in the dark part of the image without saturation from the bright part. It enables the
WDR function to be very efficient, using a normal CCD, by using a Dual Shutter
(long & short shutter) algorithm, a specialised AE (Auto Exposure) and intelligent
image processing.
700 TVL ULTRA HIGH RESOLUTION
The horizontal resolution of 700 TV Lines with 960H CCD II. It gives a vivid image
output with super high horizontal resolution using our own De-Mosaic Interpolation
algorithm and a specialised built-in sharpness filter.
3D DNR(Digital Noise Reduction)
Achieves excellent 3D-DNR (3-Dimensional Digital Noise Reduction) function
using upgraded 3D filtering.This function is automatically enabled when the
camera is being used and provides clear and superior images in very low light
luminance. Normally video noise increases in low light conditions, while the gain
level of the amplifier increases. It compensates for the dynamic noise using the
inactive information of a normal frame
ZERO DEFECT
Adaptive Defect Correction delivers clear picture capture in very low light luminance
using two algorithms for defect pixel compensation.
Sens-Up(x512, DSS)
Achieves high quality pictures by supporting a long exposure time - more than
1/50second - and enables recognition of the shape and color of a suspended
object under no light conditions - in cases where exposure time is greater than
8 seconds (x512).
POLYGONAL PRIVACY MASKING(Polygonal, 8colors)
Ensures privacy protection for private and specific areas on the video signal
output using a polygonal masking function. It allows the size and position of the
masking areas to be controlled very easily, and there are 8 mask areas which are
user programmable - color, brightness and mosaic.
ECLIPSE
Enables the recognition of a visible car license plate by blocking unwanted light
sources.
HIGH SENSITIVITY TRUE DAY&NIGHT
The Day & Night function delivers high quality color rendition and converts
automatically into monochrome as luminance levels drop.

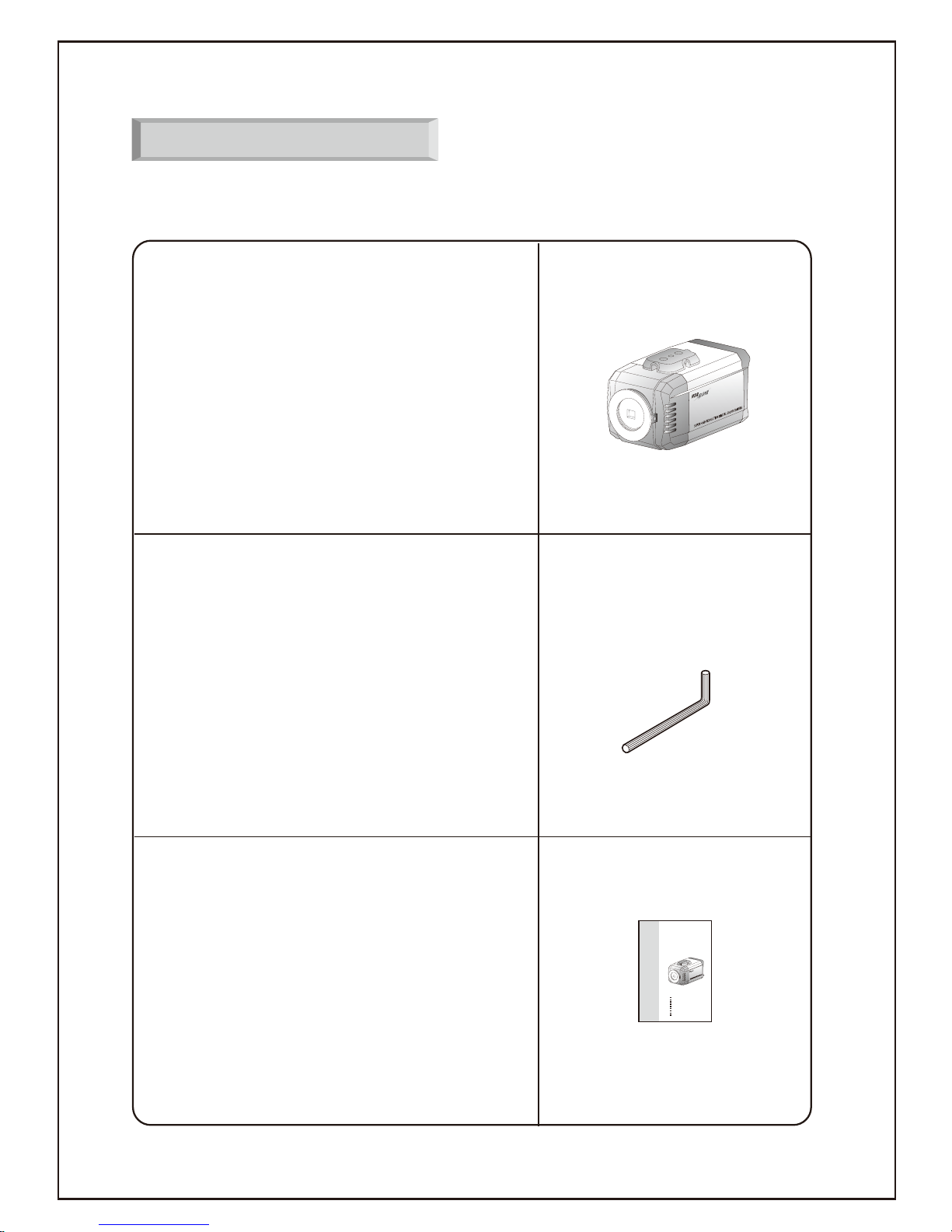

2. Components
WDR/3D DNR STANDARD CAMERA
WDR / 3D DNR
STANDARD CAMERA
USER’S MANUAL
WDR/3D DNR
ZeroD efect
High Resolution of 600 TV Lines
Sens Up(x512, DSS)
DIS(Digital Image Stabilization)
Polygonal Privacy Masking
D.Zoom(x1~x10)
Eclipse
High Sensitivity Day&Night
WDR/3D DNR Camera
L-Wrench
Manual

3. Names and Functions of Parts
1) Front
①Lens protection cap
Please cover while it is out of use.
②CS-Mount lens adaptor
Please attach the CS-Mount lens here.
③Back Focus clamp screw
Please loosen the clamp screw with a screwdriver before
adjusting the Back focal length.
Mounting bracket screw hole
Please use the screw hole when
fixing the camera onto the
mounting bracket. Please use
the clamp screw as specified in
the picture.
The mounting bracket can be separated and attached
to the top of the camera. In this instance please do not
tighten the screw to a depth of more than 5mm,
otherwise serious damage can influence in the inner parts
of the camera.
4
1/4"-20 UNC (20 THREAD)
L:4.5mm±0.2mm (ISO standard),
or 0.197" (ASA standard)
L

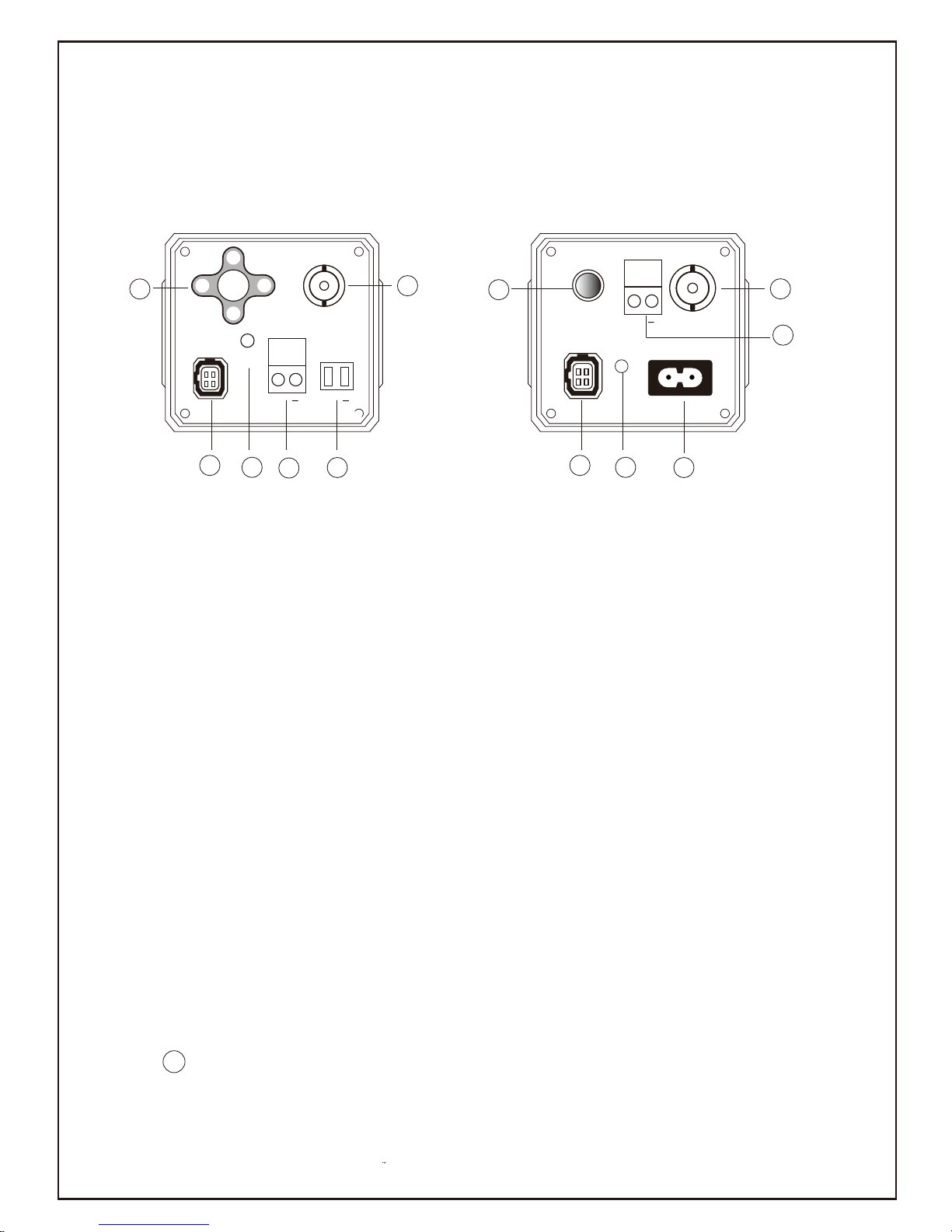

2) Back
①Auto iris lens connector
DC12V, DC12V/AC24V Free Voltage
This is the connection terminal for auto iris lens.
②Video composite Out
③Power lamp
Light up when the correct power is supplied to the camera.
④Setting button(OSD Joystick)
ENTER button : Use for menu display. This button can
be used to confirm settings after changing the value of the
selected function or current conditions.
UP & DOWN buttons : Use for selecting items by moving
the cursor up or down on the menu screen.
LEFT(L) & RIGHT(R) buttons : Use when changing item values
by moving the cursor to the left or right on the menu screen.
⑤
Power input terminal
RS-485(Option)
The camera can be controlled by using external controller
like a remote controller.
Connect to the power appropriate to each power
requirement, 12V DC or 24V AC or 90~240V AC.
13
3
42
5
6
66 13
VIDEO
AC 90~240V
DC IRIS
POWER
2
4
VIDEO
DC IRIS
POWER
+ +
DC 12VRS 485
U
D
LR
U
D
LR
AC 24V
+
RS 485

4. Installation
1) Lens
Lenses are sold separately. Lenses such as auto iris lens,
CS-Mount lens and C-Mount lens can be used.
Note) How to operate this product effectively
• Please keep lens clean
• Any foreign objects and finger marks on the lens can cause
inferior image quality in low light conditions.

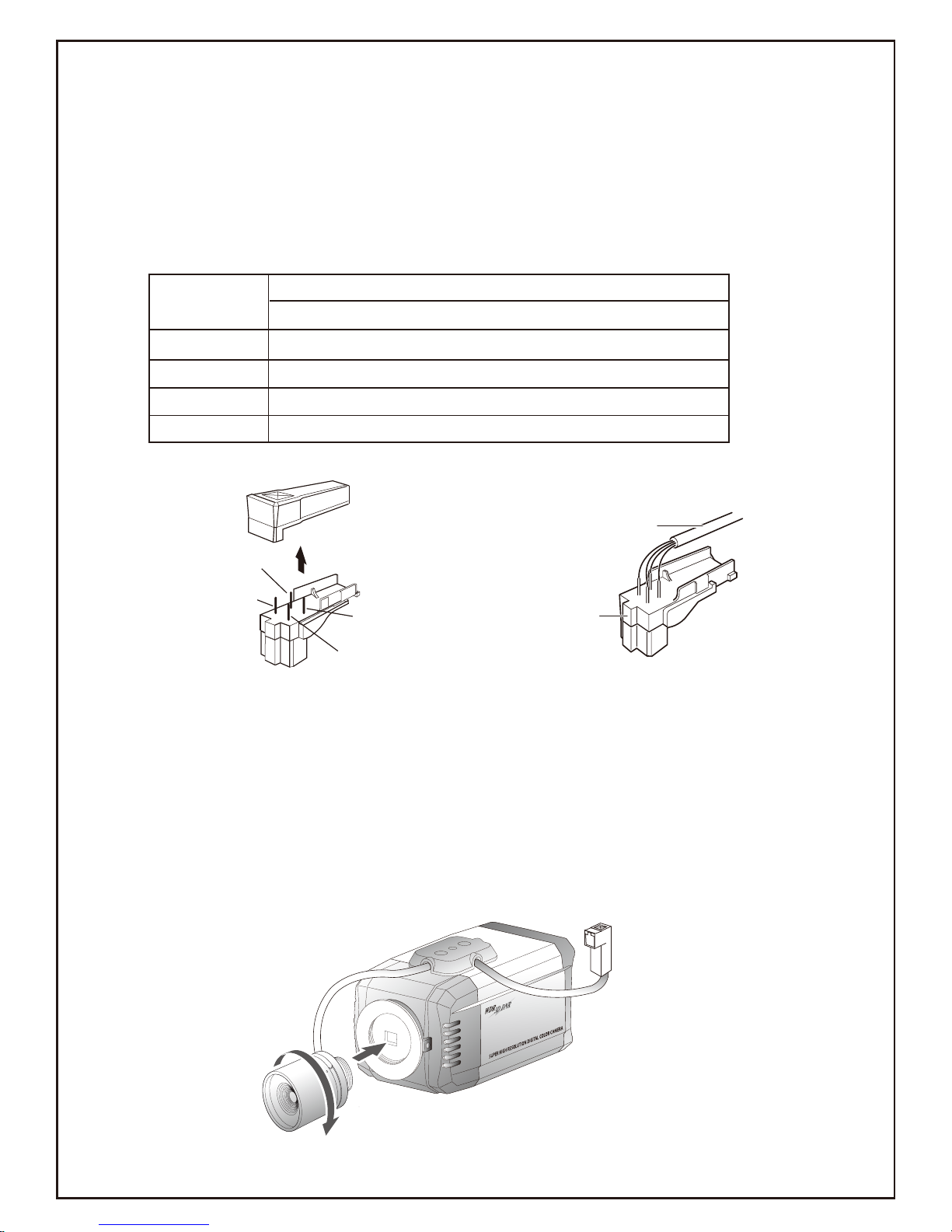

①When using an auto iris lens
Please peel off about 8mm of the outer skin of the auto iris
lens cable.
Please peel off about 2mm of the outer skin of the insulated
conductor inside the lens cable.
approx 8mm
approx 2mm

Please remove the cover of the auto iris lens connection
plug and solder the lens cable to the connector pin in the plug.
Pin No. LENS
DC
No.1 Pin Damping-
No.2 Pin Damping+
No.3 Pin Drive+
No.4 Pin Drive-
Please fit the auto iris lens connector plug and take off the
lens protection cap, and then attach the auto iris lens to the
camera by screwing it in clockwise.
Please insert the connection plug that is connected to the
auto iris lens cable into the auto iris lens connector, which is
located on the back of the camera.
No. 3 Pin
No. 1 Pin connector
Lens cable
No. 4 Pin
No. 2 Pin

2) Power
* Be sure to connect power only after all installation is complete.
* Please use a power adaptor that meets the required standards.
[Recommended - Voltage : +/-20%, Current : Adapter with
rated power of 2 times(than real using current ]

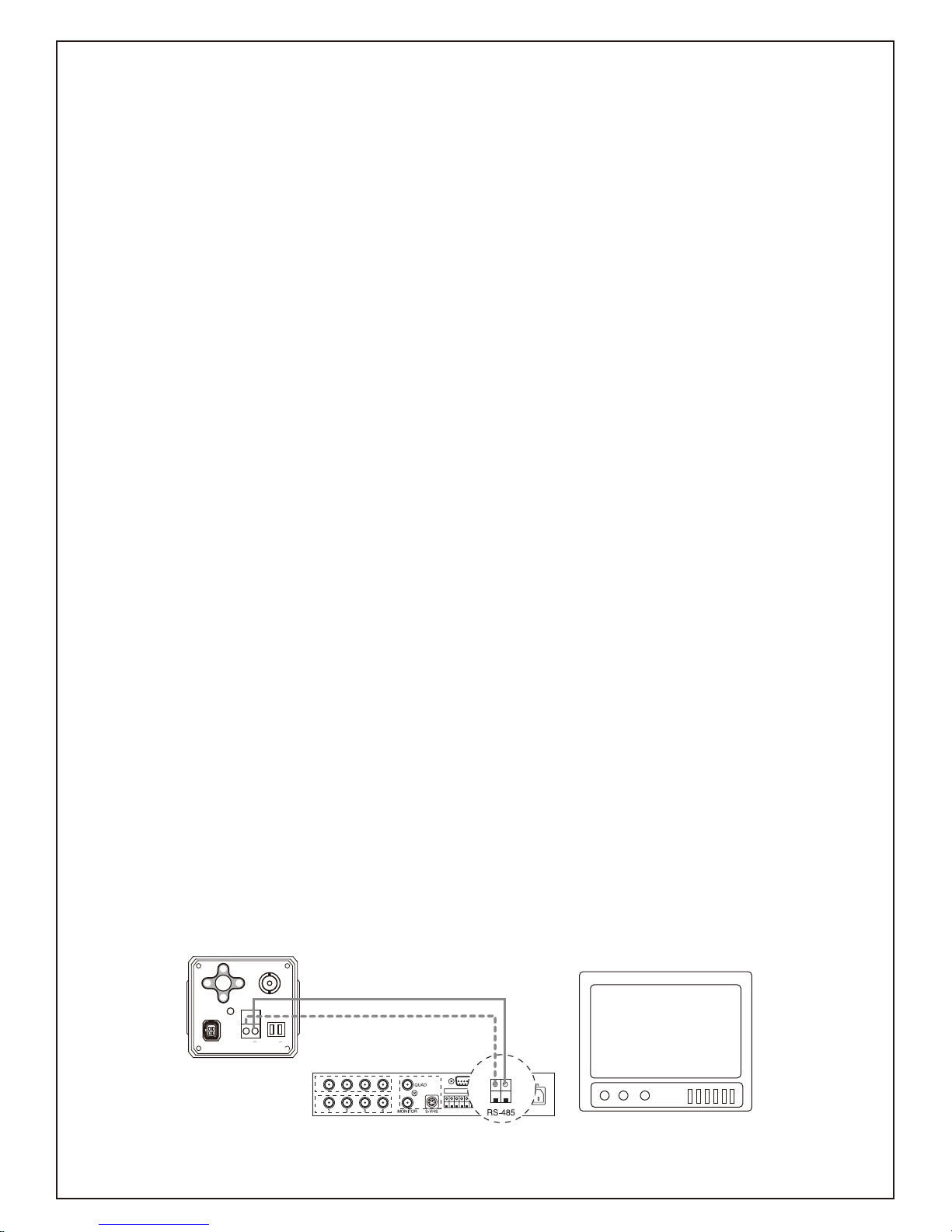

3) RS485(option)
*The camera can be controlled by using external controllers
like a remote controller.
* Connect the RS485 cable(+, -) to the connection port of the
485 control that is connected to the DVR or
System Controller.
* Use the PELCO-D protocol.
* When controlling RS485, please check the following:
- Communication Speed : 4800 bps
- Data Bit Number : 8 bits
- Stop Bit Number : 1 bit
- Parity Bit : none
②When using a CS-Mount lens
Please take off the lens protection cap and attach the
CS-Mount lens to the camera by screwing it in clockwise.
③When using a C-Mount lens
Please take off the lens protection cap and attach the
C-mount adaptor.
VIDEO
DC IRIS
POWER
+ +
DC 12VRS 485
U
D
LR
AC 24V
Monitor
DVR
RS485 + RS485 -

EXPOSURE LENS DC, ELC
E.SHUTTER AUTO, 1/50,1/60(NTSC),
1/100,000
BLC ON<1~255>, OFF
WDR OFF
ON
WDR LEVEL<0~20>
WEIGHT<0~20>
AGC OFF,LOW,MID,HIGH
SENS-UP
AUTO, OFF, MANUAL (x512 ~ x2)
RETURN
COLOR WB MODE AWC, ATW, MANUAL, PUSH
R-Y GAIN
B-Y GAIN
RETURN
DAY&NIGHT D&N MODE AUTO, DAY, NIGHT, EXT
LEAD TIME <1, 5, 30, 60>
BURST ON, OFF
RETURN
FUNCTION MIRROR ON, OFF
SHARPNESS <0~40>
GAMMA 0.45, 0.5, 0.6
NEGA OFF, ON
3D DNR OFF, LOW, MID, HIGH
ECLIPSE OFF
ON
SET LEVEL-LOW/MIDDLE/HIGH
HI-INV -ON/OFF
RETURN
MOTION ALARM OFF, ON
SET WINDOWS
ALL SET
ALL CLEAR
SENSITIV
SHOW OFF, ICON, TRACE
DELAY TIME <1~15>
RETURN

EXPOSURE LENS DC, ELC
E.SHUTTER AUTO, 1/50,1/60(NTSC),
1/100,000
BLC ON<1~255>, OFF
WDR OFF
ON
WDR LEVEL<0~20>
WEIGHT<0~20>
AGC OFF,LOW,MID,HIGH
SENS-UP
AUTO, OFF, MANUAL (x512 ~ x2)
RETURN
COLOR WB MODE AWC, ATW, MANUAL, PUSH
R-Y GAIN
B-Y GAIN
RETURN
DAY&NIGHT D&N MODE AUTO, DAY, NIGHT, EXT
LEAD TIME <1, 5, 30, 60>
BURST ON, OFF
RETURN
FUNCTION MIRROR ON, OFF
SHARPNESS <0~40>
GAMMA 0.45, 0.5, 0.6
NEGA OFF, ON
3D DNR OFF, LOW, MID, HIGH
ECLIPSE OFF
ON
SET LEVEL-LOW/MIDDLE/HIGH
HI-INV -ON/OFF
RETURN
MOTION ALARM OFF, ON
SET WINDOWS
ALL SET
ALL CLEAR
SENSITIV
SHOW OFF, ICON, TRACE
DELAY TIME <1~15>
RETURN
PRIVACY MASK1 OFF
ON
SETWINDOWS
COLOR SET<1~8>
MASK8 OFF
ON
SET WINDOWS
COLOR SET<1~8>
RETURN
SYNC SYNC MODE AUTO, INTER
V-PHASE <0~199>
RETURN
COMMUNICATION ADDRESS <0~255>
BAUDRATE OFF, 2400~38400
PROTOCOL PELCO-D
RETURN
SPECIAL
TITLE OFF
ON
EDIT
RESET
POSITION
LANGUAGE ENG
DPC AUTO,OFF
RETURN
EXIT SAVE&EXIT
FACTORY SET
EXIT
RETURN

6. Special Features
1. WDR(Wide Dynamic Range)
Wide Dynamic Range is essential for capturing the images at all
light levels.
1) WDR LEVEL :
You can set the WDR(Entry) LEVEL on the entry timing for this function.
You have to set the level into low number if you need a WDR function just
in more strong light.
On the contrary you have to set the level into high number if you need a
WDR function just in normal conditions(or low light) without strong lights as
like sunshine.
EXPOSURE
LENS DC
E.SHUTTER 1/60
BLC ON
WDR ON
AGC HIGH
SENS-UP MANUAL
RETURN
WDR
WDR LEVEL 11
WEIGHT 10
RETURN
WDR Entry Level
(Day Time)
(0~20)
Strong Sunshine Light
(Day Time)
Middle Light
(Day Time)
0 2 4 6 8 10 12 14 16 18 20
Low Light
(Day Time)
※Eclipse mode should be Off while you use WDR function.
 (Eclipse is just a special WDR function for car license plate)
2) WEIGHT : This is a level to make the dark area more bright.
Low number for more dark condition and high number for
more brightness condition.


2. 3D DNR(Digital Noise Reduction)
Select 3D DNR ON or OFF.
3D-DNR function reduce the background noise in a low luminance
environment. Upgraded 3D filtering ensures even more clear image.
[DNR Level High : Picture image is more clear but Ghost is more increased.
DNR Level Low : Picture image is not clear but less Ghost.]
3. ECLIPSE
If there is a highlight within a limited environment such as car park,
It makes it possible to review vehicle license plates by removing the
highlight.
[Only used for car license plate in low light condition and the WDR
in OSD menu should be Off mode while Eclipse work as On mode]
FUNCTION
MAIN MENU
EXPOSURE
COLOR
DAY & NIGHT
MOTION
FUNCTION
PRIVACY MASK
SYNC
COMMUNICATION
SPECIAL
EXIT
FUNCTION
MIRROR
ON/OFF
SHARPNESS <0~40>
GAMMA 0.45
NEGA ON/OFF
3D DNR MIDDLE
ECLIPSE OFF
RETURN
MIRROR
ON/OFF
SHARPNESS <0~40>
GAMMA 0.45
NEGA ON/OFF
3D DNR MIDDLE
ECLIPSE OFF
RETURN
MAIN MENU
EXPOSURE
COLOR
DAY & NIGHT
MOTION
FUNCTION
PRIVACY MASK
SYNC
COMMUNICATION
SPECIAL
EXIT

7. SPECIFICATIONS
Design and specifications are subject to change without notice.
61(W) x 55(H) x 106(L)mm
NTSC PAL
Sony 1/3” 960H CCD II
976(H) X 494(V) 976(H) X 582(V)
1020(H) X 508(V) 1020(H) X 596(V)
H/V 15.734/59.94Hz H/V 15.625/50Hz
H/V 15.750/60Hz H/V 15.625/50Hz
2:1 Interlace
700 TV Lines
0.12Lux(15IRE), 0.2Lux(30IRE), 0.4Lux(50IRE) F1.2
0.0002Lux(15IRE), 0.0005Lux(30IRE), 0.0008Lux(50IRE) F1.2
1.0Vp-p/ 75ohm Video 0.714Vp-p
0.45, 0.6, 1.0
LENS,E-SHUTTER, BACKLIGHT,WDR, AGC, SENS-UP
WHITE-BALANCE, DAY&NIGHT, MOTION, MIRROR
SHARPNESS, GAMMA, DNR,
ECLIPSE, PRIVACY
COMMUNICATION, SYNC, TITLE, LANGUAGE
1/60~1/100,000 1/50~1/100,000
8 Windows(Polygonal, 8 Colors)
COLOR / BW / AUTO / EXT
ON / OFF
x1.0 ~x10
OFF ~x512
AUTO / INTERNAL / DIGITAL LINE LOCK
ATW / AWC / MANUAL / PUSH
ON / OFF(WDR LEVEL, WEIGHT)
120dB Max.
ON / OFF(OFF, LOW, MID, HIGH)
ON / OFF
ON / OFF
ON / OFF
LOW / MIDDLE / HIGH / OFF
C / CS Mount
-20
℃ ~60 ℃ /30% ~80%
-30
℃ ~60 ℃ /20% ~90%
DC12
AC 90~240V
V, 120mA
DC 12V, 250mA / AC 24V, 110mA
TV System
S
Total Pixel
Eective Pixel
ensor
Synchronization Internal
Line Lock
Scanning System
Horizontal Resolution
Min. Illumination
Sens-Up On
Video Output
γ Correction
S/N
O.S.D
Electrical Shutter
Privacy Masking
Day & Night
Motion Detection
Digital Zoom
Sens-Up(Low Shutter)
SYNC
White Balance
WDR
WDR Level
3D-DNR
MIRROR
NEGA
ECLIPSE
AGC
Lens
Operating Temperature/Humidity
Storage Temperature/Humidity
Power(Max.) DC
DC /
Free Voltage
AC
Dimension(mm)
More than 52dB(AGC o)
DPC

PRODUCT WARRANTY CARD
1) ITEM # :
2) S/N # :
3) INSTALLATION CONDITION
- Indoor  / Outdoor 
- Power supply SPECIFICATION :
DC12V  / AC24V 
CURRENT __________ mA
4) TROUBLESHOOTING
- No picture 
- Bad image 
- No power 
- Water damage 
- LED ON  / OFF 
- ETC.  :
* Please keep this warranty card with the manual.
* Please fill out this warranty card and send us this warranty card
with the faulty units together.
Following cases can be charged even within the warrany period.
a. When defects are caused by user’s carelessness.
b. When improper or unauthorized repairs are done or when the inside is
modified or damaged.
c. Defects caused by natural disaster or power problem.
d. When the warranty card is not filled out or corrected unconfirmed.
