Avico AL-2WTD66VAH User manual

7-2D002
SUPER
WDR/3D DNR
IR BULLET CAMERA
USER’S MANUAL
SUPER WDR 3D DNR BULLET CAMERA
Sony 1/3”Color Vertical Double Density CCD
Super WDR/3D DNR
Zero Defect
High Resolution of 600 TV Lines
Sens Up(x512, DSS)
DIS(Digital Image Stabilization)
Polygonal Privacy Masking
D.Zoom(x1~x10)
Eclipse
High Sensitivity Day&Night

The lightning flash with an arrowhead symbol, within an equilateral triangle is
intended to alert the user to the presence of uninsulated “dangerous voltage”
within the product's enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
This installation should be made by a qualified service person
and should conform to all local codes.
INFORMATION - This equipment has been tested and found to comply with
limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference
at his own expense.
WARNING - Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the equipment.
CAUTION : To prevent electric shock and risk of fire hazards:
Do NOT use power sources other than that specified.
Do NOT expose this appliance to rain or moisture.

Precaution
Do not install the camera in
extreme temperature conditions.
To avoid malfunctions, never
use the camera close to a gas
or oil leak
Do not Keep the camera face to
strong light directly
Do not disassemble the camera
even if troubles happened
Do not drop the camera or
subject them to physical shocks.
Do not install the camera under
unstable lighting conditions
Do not install or use the camera
in an environment where the
humidity is high
Do not expose the camera to
rain or spill beverage on it.

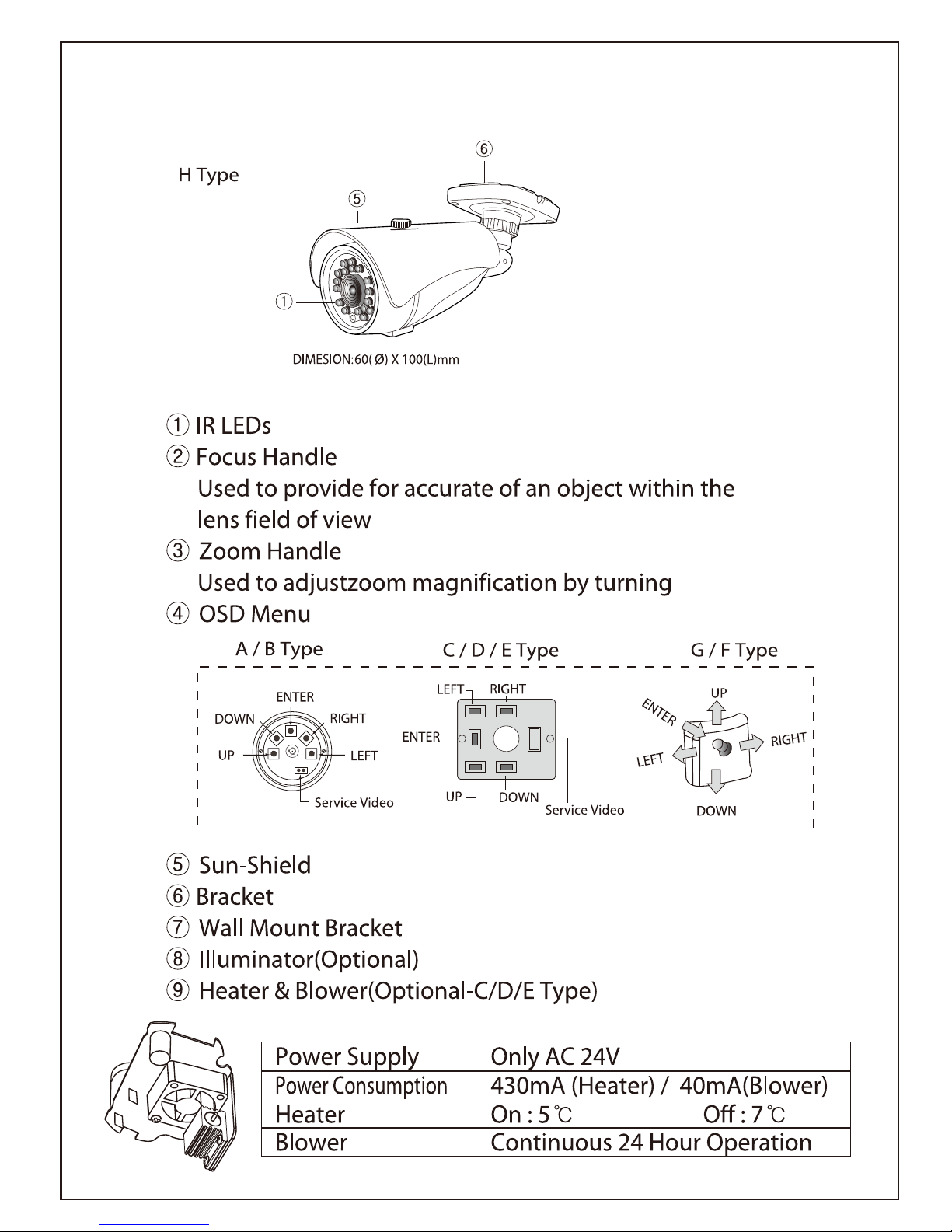

1. Features
SUPER WDR(Wide Dynamic Range)
Wide Dynamic Range to the camera which provides superior images, internally and
externally, even under extreme light and dark contracts. It automatically compensates
the necessary light levels to get detailed information in the dark part of the image
without saturation from the bright part.
600 TVL ULTRA HIGH RESOLUTION
The horizontal resolution is 600 TV Lines in Color mode and 700 TV Lines in Black/
White mode using a high density CCD. It gives a vivid image output with super
high horizontal resolution.
3D DNR(Digital Noise Reduction)
3D-DNR (3-Dimensional Digital Noise Reduction) function using upgraded 3D filtering.
This function is automatically enabled when the camera is being used and provides
clear and superior images in very low light luminance.
D-ZOOM(x1~x10)
Digital zoom magnification to get an enlarged video image. It has remote control technology
for a camera without physical control, by a built-in pan & tilt function on the chip.
ZERO DEFECT
Adaptive Defect Correction delivers clear picture capture in very low light luminance using
two algorithms for defect pixel compensation.
DIS(Digital Image Stabilization)
Digital image stabilisation and anti-shaking compensation against outside influences, such as
wind and vibration. After installation, the camera gives a much more stable video output.
Sens-Up(x512, DSS)
Achieves high quality pictures by supporting a long exposure time - more than 1/50second
- and enables recognition of the shape and color of a suspended object under no light
conditions - in cases where exposure time is greater than 8 seconds (x512).
POLYGONAL PRIVACY MASKING(Polygonal, 8colors)
Ensures privacy protection for private and specific areas on the video signal output using
a polygonal masking function. It allows the size and position of the masking areas to be
controlled very easily, and there are 8 mask areas which are user programmable - color,
brightness and mosaic.
ECLIPSE
If there is a highlight within a limited environment such as car park, It makes it possible
to review vehicle license plates by removing the highlight.
HIGH SENSITIVITY TRUE DAY&NIGHT
The Day & Night function delivers high quality color rendition and converts automatically
into monochrome as luminance levels drop.

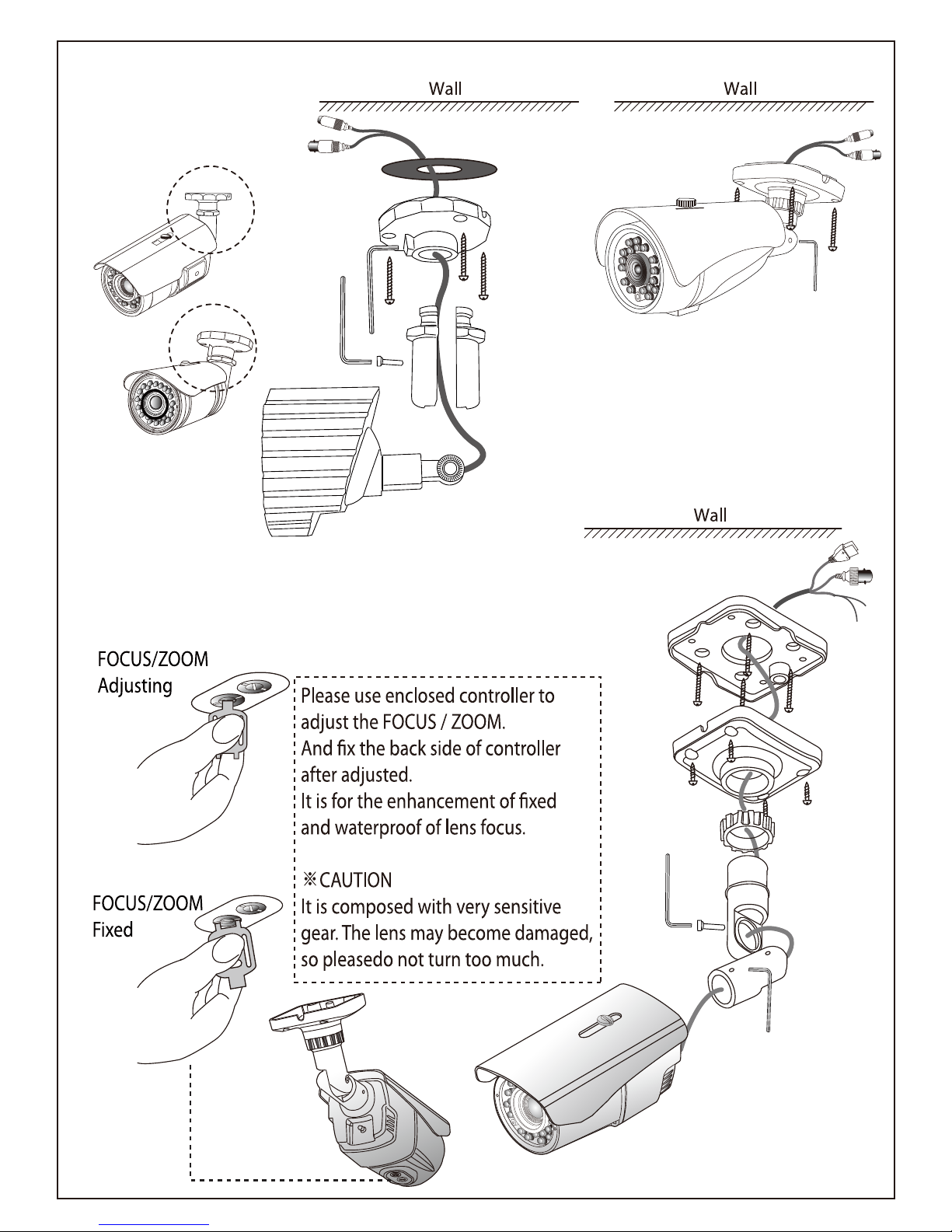

Monitor
Power
(Adaptor Plug)
Adaptor
Video Cable

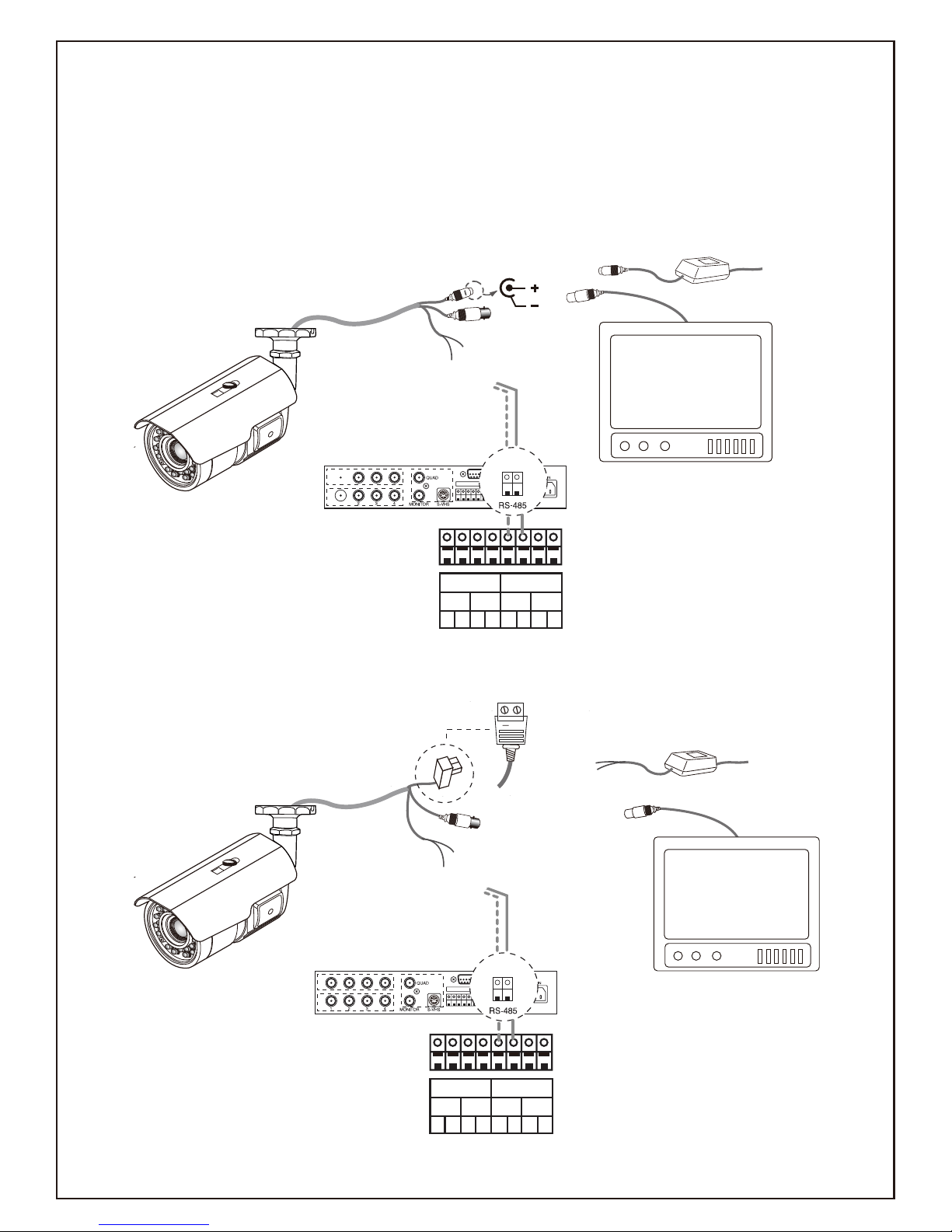

DC Power Connecting
AC Power Connecting
Monitor
Adaptor
Video Cable
DVR
RS485 +
RS485 -(White)
Power
RS485 +(Orange)
(Option)
RS485 -
PORT2
TX
+
_+ _+ _+ _
RX TX RX
PORT1
DVR
RS485 +
RS485 -(White)
RS485 +(Orange)
(Option)
RS485 -
PORT2
TX
+
_+ _+ _+ _
RX TX RX
PORT1
+

5. Setup Menu Flow
EXPOSURE LENS DC, ELC
E.SHUTTER AUTO, 1/50(PAL),1/60(NTSC),
1/100,000
BLC ON<1~256>, OFF
SUPER WDR OFF
ON
WDR LEVEL<0~10>
AGC OFF,LOW,MID,HIGH
SENS-UP AUTO, OFF, MANUAL (x2 ~ x512)
RETURN
COLOR WB MODE AWC, ATW, MANUAL, PUSH
R-Y GAIN
B-Y GAIN
RETURN
DAY&NIGHT D&N MODE AUTO, DAY, NIGHT, EXT
LEAD TIME <1, 3, 5, 10>
BURST ON, OFF
RETURN
FUNCTION MIRROR ON, OFF, V-FLIP, ROTATE
SHARPNESS <0~40>
GAMMA 0.45, 0.5, 0.6
FREEZE OFF, ON
NEGA OFF, ON
3D DNR OFF, LOW, MID, HIGH
D.ZOOM OFF
ON
ZOOM(x1.0~10)
PAN(-128~127)
TILT(-128~127)
SHOW POS<OFF,ON>
LSC OFF, ON<0~50>
ECLIPSE OFF
ON
SET LEVEL-LOW/MIDDLE/HIGH
HI-INV -ON/OFF
DIS OFF, ON
RETURN

MOTION ALARM OFF, ON
SET WINDOWS
ALL SET
ALL CLEAR
SENSITIV
SHOW OFF, ICON, TRACE
DELAY TIME <1~15>
RETURN
PRIVACY MASK1 OFF
ON
SETWINDOWS
COLOR SET<1~8>
MASK8 OFF
ON
SET WINDOWS
COLOR SET<1~8>
RETURN
SYNC SYNC MODE AUTO, INTER
V-PHASE <0~199>
RETURN
COMMUNICATION ADDRESS <0~254>
BAUDRATE OFF, 2400~38400
PROTOCOL PELCO-D
RETURN
SPECIAL TITLE OFF
ON
EDIT
RESET
POSITION
LANGUAGE ENG
DPC AUTO,OFF
FILTER BLUE, RED
RETURN
EXIT SAVE&EXIT
FACTORY SET
EXIT
RETURN
EXPOSURE LENS DC, ELC
E.SHUTTER AUTO, 1/50(PAL),1/60(NTSC),
1/100,000
BLC ON<1~256>, OFF
SUPER WDR OFF
ON
WDR LEVEL<0~10>
AGC OFF,LOW,MID,HIGH
SENS-UP AUTO, OFF, MANUAL (x2 ~ x512)
RETURN
COLOR WB MODE AWC, ATW, MANUAL, PUSH
R-Y GAIN
B-Y GAIN
RETURN
DAY&NIGHT D&N MODE AUTO, DAY, NIGHT, EXT
LEAD TIME <1, 3, 5, 10>
BURST ON, OFF
RETURN
FUNCTION MIRROR ON, OFF, V-FLIP, ROTATE
SHARPNESS <0~40>
GAMMA 0.45, 0.5, 0.6
FREEZE OFF, ON
NEGA OFF, ON
3D DNR OFF, LOW, MID, HIGH
D.ZOOM OFF
ON
ZOOM(x1.0~10)
PAN(-128~127)
TILT(-128~127)
SHOW POS<OFF,ON>
LSC OFF, ON<0~50>
ECLIPSE OFF
ON
SET LEVEL-LOW/MIDDLE/HIGH
HI-INV -ON/OFF
DIS OFF, ON
RETURN

6. Special Features
1. SUPER WDR(Wide Dynamic Range)
Wide Dynamic Range is essential for capturing the images at all
light levels.
EXPOSURE
LENS DC
E.SHUTTER 1/60
BLC --------
SUPER WDR ON
AGC HIGH
SENS-UP MANUAL
RETURN
SUPER WDR
WDR LEVEL 0
RETURN
- WDR Low level (0~3) : WDR mode in general or low light condition
- WDR Middle Level (4~7) : WDR mode in middle light condition
- WDR High Level (8~10) : WDR mode in strong light condition
* Factroy default level : O (WDR On mode)
WDR LEVEL
(0~10)
Strong Sunshine Light
(Day Time)
Middle Light
(Day Time)
Low Light
(Day Time)
0 1 2 3 4 5 6 7 8 9 10
* ECLIPSE mode should be off while WDR mode is on.
* ECLIPSE function should be just used for car number plate
in more strong light as like car headlight.

2. 3D DNR(Digital Noise Reduction)
Select 3D DNR ON or OFF.
3D-DNR function reduce the background noise in a low luminance
environment. Upgraded 3D filtering ensures even more clear image.
[DNR Level High : Picture image is more clear but Ghost is more increased.
DNR Level Low : Picture image is not clear but less Ghost.]
3. ECLIPSE
If there is a highlight within a limited environment such as car park,
It makes it possible to review vehicle license plates by removing the
highlight.
[Only used for car license plate in low light condition and the WDR
in OSD menu should be Off mode while Eclipse work as On mode]
FUNCTION
MIRROR
ON/OFF/V-FLIP/ROTATE
SHARPNESS <0~40>
GAMMA 0.45
FREEZE ON/OFF
NEGA ON/OFF
3D DNR MIDDLE
D.ZOOM OFF
LSC OFF
ECLIPSE ON
DIS OFF
RETURN
MAIN MENU
EXPOSURE
COLOR
DAY & NIGHT
MOTION
FUNCTION
PRIVACY MASK
SYNC
COMMUNICATION
SPECIAL
EXIT
FUNCTION
MIRROR
ON/OFF/V-FLIP/ROTATE
SHARPNESS <0~40>
GAMMA 0.45
FREEZE ON/OFF
NEGA ON/OFF
3D DNR MIDDLE
D.ZOOM OFF
LSC OFF
ECLIPSE OFF
DIS OFF
RETURN
MAIN MENU
EXPOSURE
COLOR
DAY & NIGHT
MOTION
FUNCTION
PRIVACY MASK
SYNC
COMMUNICATION
SPECIAL
EXIT

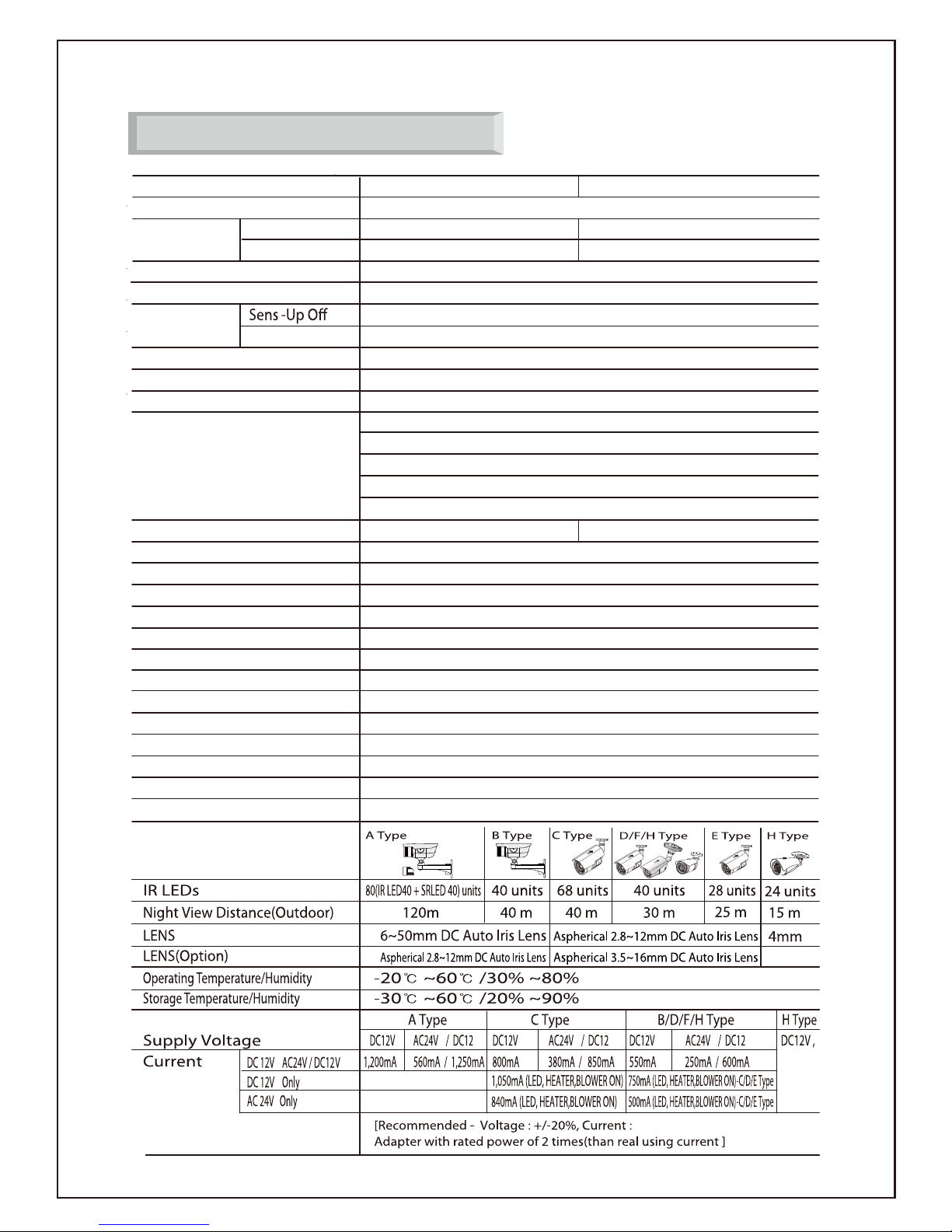

7. SPECIFICATIONS
Design and specifications are subject to change without notice.
NTSC PAL
Sony 1/3” Color Vertical Double Density CCD
H/V 15.734/59.94Hz H/V 15.625/50Hz
H/V 15.750/60Hz H/V 15.625/50Hz
2:1 Interlace
600 TV Lines (Max.) / 700TV Lines(B/W)
0.12Lux(15IRE), 0.2Lux(30IRE), 0.4Lux(50IRE) F1.2
0.0002Lux(15IRE), 0.0005Lux(30IRE), 0.0008Lux(50IRE) F1.2
1.0Vp-p/ 75ohm Video 0.714Vp-p
0.45, 0.5, 0.6
LENS,E-SHUTTER, BACKLIGHT,SUPER WDR,
More than 52dB(AGC o)
AGC, SENS-UP
WHITE-BALANCE, DAY&NIGHT, MOTION, MIRROR
SHARPNESS, GAMMA, FREEZE, NEGA, DNR, D-ZOOM
LSC, ECLIPSE, DIS, PRIVACY, COMMUNICATION
1/60~1/100,000 1/50~1/100,000
8 Windows(Polygonal, 8 Colors)
AUTO / DAY/ NIGHT / EXT
ON / OFF
x1.0 ~x10
AUTO, OFF ~x512
AUTO / INTERNAL / DIGITAL LINE LOCK(Option)
ATW / AWC / MANUAL / PUSH
ON / OFF(WDR LEVEL(0~10), 120dB(WDR Ranmge)
OFF, LOW, MID, HIGH
ON / OFF
ON / OFF
ON / OFF
OFF / LOW / MIDDLE / HIGH
TV System
Sensor
Synchronization Internal
Line Lock
Scanning System
Horizontal Resolution
Min. Illumination
Sens -Up On
Video Output
γ Correction
S/N
O.S.D
Electrical Shutter
Privacy Masking
Day & Night
Motion Detection
Digital Zoom
Sens-Up(Low Shutter)
SYNC
White Balance
Super WDR
3D-DNR
LSC
DIS
ECLIPSE
AGC
SYNC, TITLE, LANGUAGE, DPC, FILTER
350mA

PRODUCT WARRANTY CARD
1) ITEM # :
2) S/N # :
3) INSTALLATION CONDITION
- Indoor  / Outdoor 
- Power supply SPECIFICATION :
DC12V  / AC24V 
CURRENT __________ mA
4) TROUBLESHOOTING
- No picture 
- Bad image 
- No power 
- Water damage 
- LED ON  / OFF 
- ETC.  :
* Please keep this warranty card with the manual.
* Please fill out this warranty card and send us this warranty card
with the faulty units together.
Following cases can be charged even within the warrany period.
a. When defects are caused by user’s carelessness.
b. When improper or unauthorized repairs are done or when the inside is
modified or damaged.
c. Defects caused by natural disaster or power problem.
d. When the warranty card is not filled out or corrected unconfirmed.
