Avico AVIP-HDT4130V User manual

3 MEGA PIXEL
HD NETWORK
IR BULLET CAMERA
USER’S MANUAL
HD NETWORK IR BULLET CAMERA
IP3-002
■ Sony EXMOR 3Mega Pixel Image Sensor
■ Triple Codec (H.264/MPEG4/MJPEG)
■ Triple Stream
■ Support Onvif
■ Support POE
■
IR LED : 40 units 850nm Infrared LED, 20,000hrs
■ Night View Distance : Indoor 45 / Outdoor 30m
■ External Control : Focus/Zoom(Gear Type),
Reset/Factory Default(Joystick)
■ Sense-Up (x29)
■ True Day & Night(ICR)
■ Built-in Concealed Cable Bracket
■ Weatherproof (IP67)

The lightning flash with an arrowhead symbol, within an equilateral triangle is
intended to alert the user to the presence of uninsulated “dangerous voltage”
within the product's enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
This installation should be made by a qualified service person
and should conform to all local codes.
INFORMATION - This equipment has been tested and found to comply with
limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference
at his own expense.
WARNING - Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the equipment.
CAUTION : To prevent electric shock and risk of fire hazards:
Do NOT use power sources other than that specified.
Do NOT expose this appliance to rain or moisture.

Precaution
Components
Do not install the camera in extreme temperature conditions .
To avoid malfunctions, never use the camera close to a gas
or oil leak
Do not Keep the camera face tostrong light directly
Do not disassemble the camera even if troubles happened
Do not drop the camera or subject them to physical shocks.
Do not install the camera under unstable lighting conditions
Do not install or use the camera in an environment where the
humidity is high
Do not expose the camera to rain or spill beverage on it.
WDR / 3D DNR
IR BULLET CAMERA
USER’S MANUAL
WDR/3D DNR IR BULLET CAMERA
WDR/3DDNR
ZeroDefect
HighResolution of 600 TV Lines
SensUp(x512, DSS)
DIS(DigitalImage Stabilization)
PolygonalPrivacy Masking
D.Zoom(x1~x10)
Eclipse
HighSensitivity Day&Night
SCREW
MANUAL
L-WRENCH Sticker
WALL MOUNT BRACKET
SUN SHIELD FOCUS/ZOOM
CONTROLLER

1. Interface
2. IP Initialization
IP Address 192.168.1.30
Gateway 192.168.1.1
Subnet mask 255.255.255.0
I D admin
Password admin
Web Port 80
RTSP Port 554
Factory
Default
* You should change the ID and Password after purchasing.
* You will be responsible for all the damages unless you change the ID and
Password.
Service Video
Power
Audio Out(yellow)
GND (Black)
Audio In(White)
LAN Cable
Sense In (Yellow)
GND (Black)
Alarm 12V Out (Red)
Alarm Out (White)
RIGHT
(RESET)
LEFT
(FATORY
DEFAULT)

3. Specification
Design and specifications are subject to change without notice.
CAMERA SECTION
IMAGE Image Sensor Sony EXMOR 3MP Image Sensor
Scan System Progressive Scan
Total Pixels 2144(H) x1588(V), 3.48 Mega Pixels
Eective Pixels 2096(H) x1561(V), 3.14 Mega Pixels
Function Day & Night Auto/Day(Color)/Night(BW)
Privacy Area On/O (6 Programmable Zone)
WDR DWDR (1~5Step)
DNR 1~63
Motion Detector 48 Zone (On/O, 1~5Step)
Elec. Shutter Auto(1/15~1/10000),
Suppress Rolling, Manual
Sense Up Auto(Level1~Level29)
White Balance Auto/Indoor/Outdoor/Fluorescent
Ext. Video VBS1.0Vp-p
Lens Focal Length 2.8~10 Mega Lens
IR LEDs IR LEDs 40 pcs
Night View Distance 30m
Electrical Power Supply DC12[V] ±10% / POE
Current Max 750mA
Environmental Operating Temp. -10 ℃ ~ +50 ℃
Preservation Temp. -20 ℃ ~ +60 ℃
Humidity 0% ~ 90%
Mechanical Weight Approx. 1,100 g
NETWORK SECTION
System OS Embedded Linux
Network Interface RJ45 100/100 Base-T PoE
Protocol TCP/IP,UDP/IP,RTP,RTSP,RTCP,NTP,
HTTP,DHCP,FTP,SMTP,DNS,DDNS
Onvif ver2.0
DDNS iplinker.net
Simultaneous Access Max. 10 user
Video Compress Format H.264/MPEG4/MJPEG
Resolution
2048 x 1536 / 1600 x 1200 / 1920 x 1080 / 1280 x 1024 /
1080 x 960 / 1280 x 720 / 640 x 480 / 320 x 240
Frame rate 25fps (@2048X1536) / 30fps (@1920X1080)
Video Quality H.264,MPEG4 : Bitrate Control
MJPEG : Quality Level Control
Streaming Triple Stream (Stream1,2,3)
RTP/RTSP, UnicastRTP, Multicast RTP
Audio Compress Format G.711 u-law
Streaming Two way
Event Sensor In 1 (Digital Input)
Alarm Out 1 (Digital Outut, Open Collector)
Web Manager IE, Firefox, Safari, Opera
Browser Viewer IE only (Active-X)

4. Installation & Dimension
140 136
153.03
106
62
Ø70
Ø5
72.34
78
42
92
76
72.34
unit :mm
Wall
Adjust
FOCUS/ZOOM
Lock the device
tightly for
waterproong
Please use enclosed adjusting kit to
adjust the FOCUS / ZOOM.
And lock the device tightly after
adjusting focus and zoom.
It is for waterproong.
※REMARKS
It is composed with very sensitive
gear. The lens may become damaged
so please do not turn too much when
adjusting FOCUS/ZOOM.
Attach
Sticker
here
※CAUTION
Please attach the sticker
included in accessory kit after
nishing the adjustment.
It can prevent from being
controled randomly.

5. IP Manager
6) If you want to change many IP addresses, you can enter the starting
IP address and the ending IP address, and enter each increasing step.
7) Click Save
5) Click Batch
You can do all the settings about network by IP Manager.
1) Run IP Manager
2) Click Find
3) Choose the cameras you want to change
4) Click Change
2)
3)
4)
2)
3)
4)

10) Check the Status
11) Try again for the failed cameras
8) Conrm if the changing values are correct.
9) Click Change
9)
8)
6)
7)

6.Web Viewer

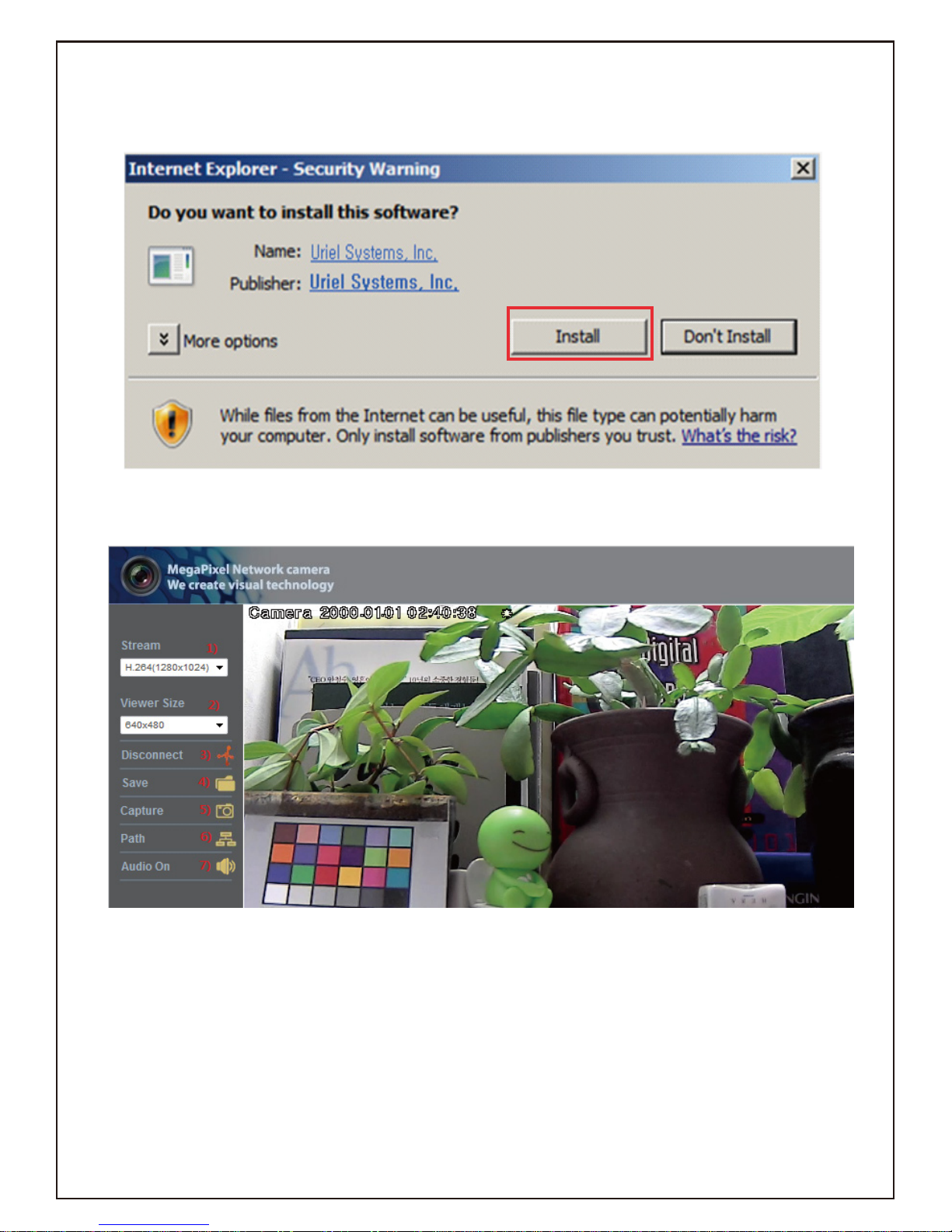

Install Active-X
You can connect the web server inside the camera and check the picture.
First enter the address on internet explorer.
1) Enter ID / Password
2) Click Viewer
ID
Password
admin
1)
2)
3)
4)

1) Stream : Choosing stream, displaying the status of chosen stream
2) Viewer Size : Choose the size of window
3) Disconnect : Disconnect the camera
4) Save : Record the current moving picture in AVI le format.
5) Capture : Save the current still picture in BMP le format.
6) Path : Choose the directory to Save, Capture
7) Audio On : Turn On/O Audio
Audio should be On at setting.
Web viewer functions
5)

7. Web Manager
When it is working ne under LAN condition, but not working under WAN,
and the camera cannot receive the correct time from NTP server,
Check the network setting and change
You can control all the functions through Web Manager log on.
When you use, you should change ID and Password and don’t open for secure use.
1) Enter ID / Password
2) Click Manager
ID
Password
admin
1)
2)
1)
4)
6)
2) Assigned IP
IP Address
DNS
3)
5)
192.168.1.30
MAC
Dynamic(DHCP)
Static
IP Address
Subnetmask
Gateway
1’st DNS 168.126.63.1
2’nd DNS
192.168.1.30
255.255.255.0
192.168.1.1
40:04:0C:01:00:AA

4) After Update completed, click Restart
3) Wait until Update completed
* Don’t click any buttons when it is being updated.
Update is needed to improve the functions and quality.

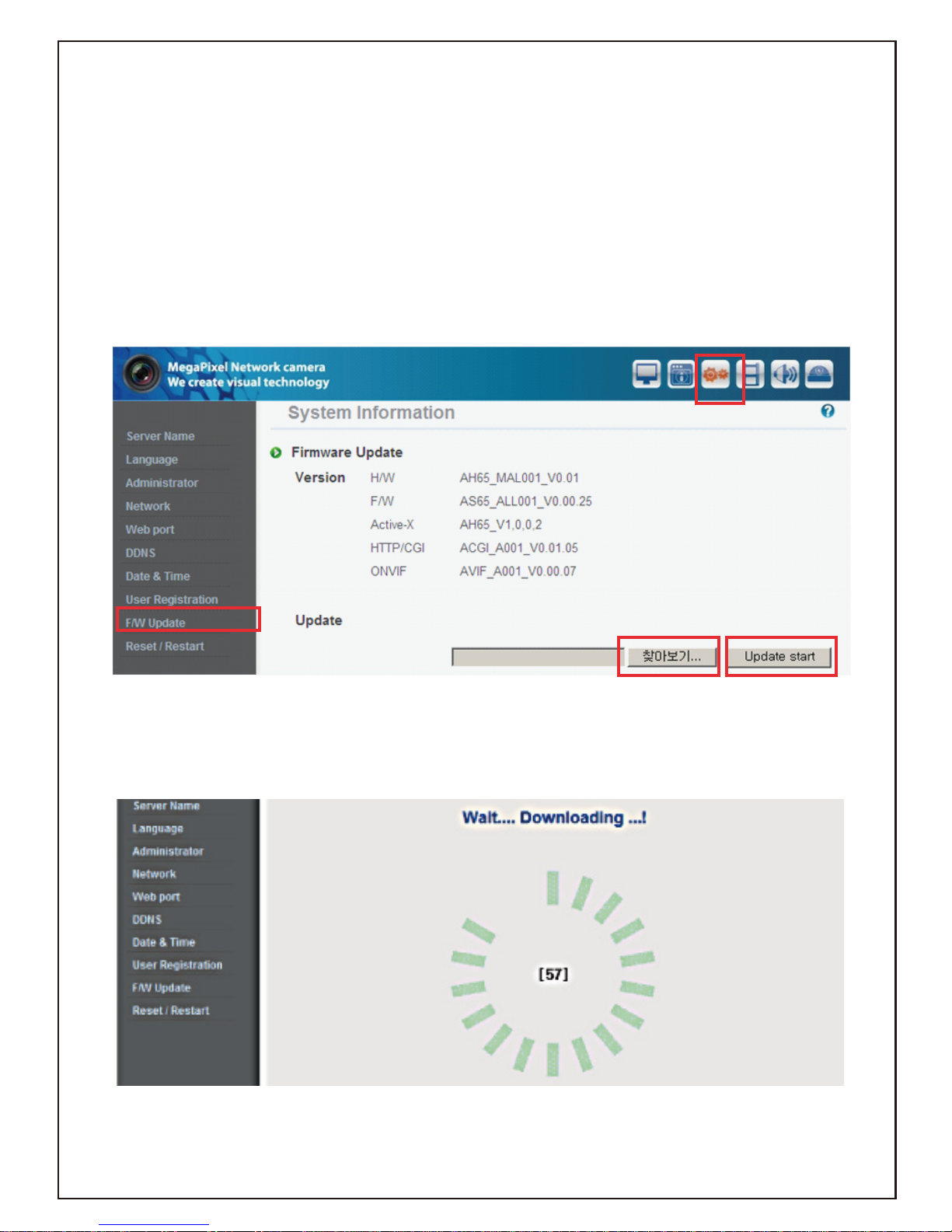

1) Click the nd and choose the update le.
2) Click Update start and wait until Wait Downloading appears.
* Don’t click any buttons when you are waiting.
How to update the rmware
3) 4)
1)
2)

8. Web Viewer

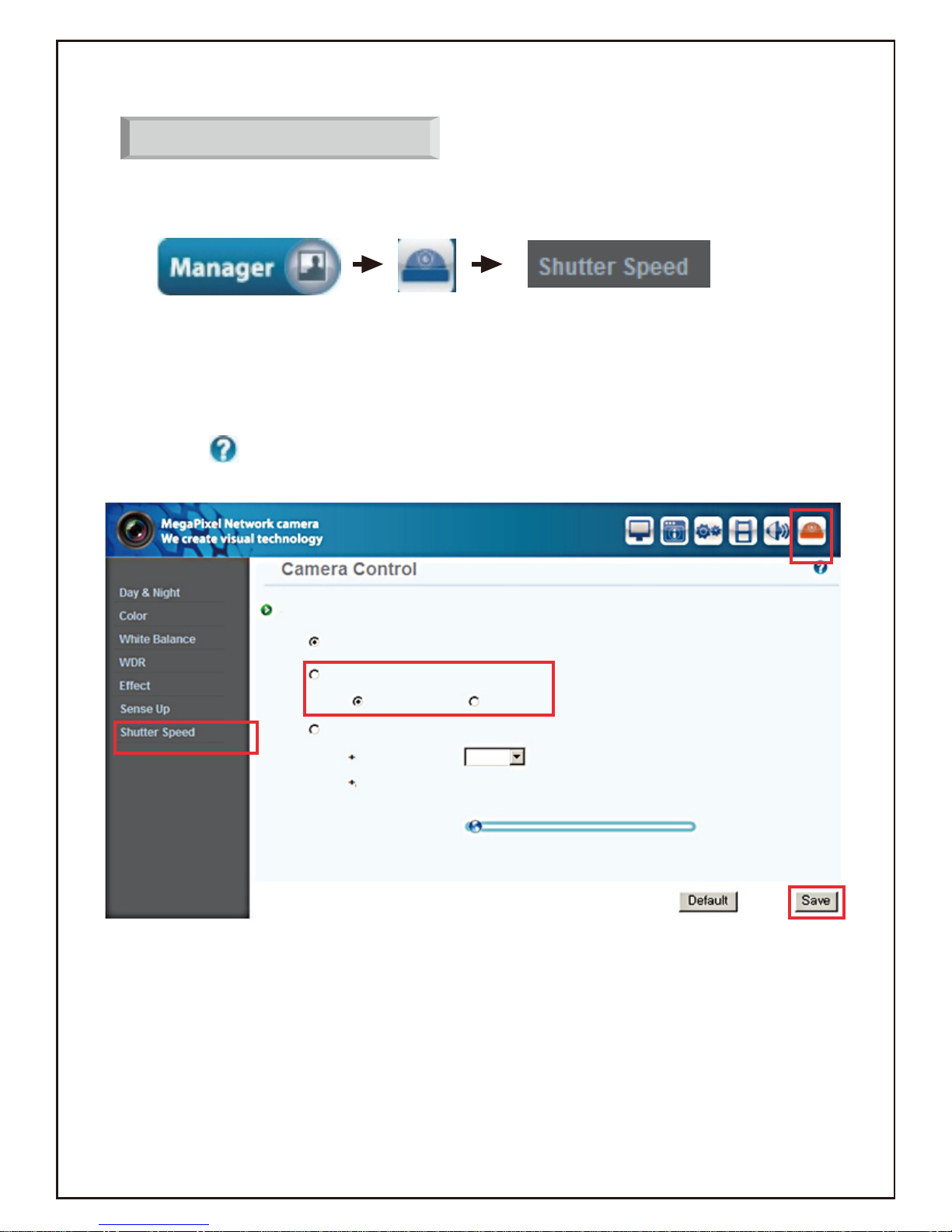

If there is a rolling picture under lighting, you can use this Suppress rolling function.
If you choose “Strong” on Suppress Rolling function, electric shutter will be xed at
1/15 ~ 1/120 sec. you should be careful when you use it under bright lighting.
Click Help ( ) for more details.
Suppress rolling
Shutter Speed
Auto
Suppress Rolling(60Hz)
User
weak
Shutter Speed 1/60
strong
(-)
(2)
(+)
AGC
2)
3)
4)
1)

9. Web Manager
Refer to below bit rate and frame rate example for your easier understanding.
Current Status
Frame Rate : 30[fps]
Bit Rate : 4000[Kbps]
Case 1
Frame Rate 15[fps]
Bit Rate 4000[Kbps]
The pictures transferred per 1 sec. is decreased from 30 to 15.
The date size transferred per 1 sec. is maintained on 4000[Kbps]
Picture quality will be better, and network load will be same.
Case 2
Frame Rate 30[fps]
Bit Rate 2000[Kbps]
The pictures transferred per 1 sec. is maintained on 30.
The date size transferred per 1 sec. is decreased from 4000[Kbps] to 2000.
Picture quality will be worse and network load will be decreased from
4000[Kbps] to 2000, by half.
Frame rate / Bit rate adjustment

Case 3
Frame Rate 15[fps]
Bit Rate 2000[Kbps]
The pictures transferred per 1 sec. is decreased from 30 to 15.
The date size transferred per 1 sec. is decreased from 4000[Kbps] to 2000.
Picture quality is same, network load will be decreased from 4000[Kbps] to
2000, by half.
Therefore you should change both frame rate and bit rate.
Image Mirror
Normal
1280x1024
640x480
Input 1
Input 2
Stream Source Codec show / hide
Save
Stream 1
Stream 2
Stream 3
Input
Frame Rate(fps)
Key Frame
Bit Rate(Kbps)
30
30
4000
(1~15)
(5~30)[15]
(64~12000)[8000]
Rate Mode VBR
None MJPEG
Frame rate(fps) 5 (1~15)
Quality 50 (5~80)[50]
None MPEG4
Frame Rate(fps) 15 (1~15)
Key Frame 30 (5~30)[15]
Bit Rate(Kbps) 4000 (64~12000)[8000]
( ) : Value Range [ ] : Default Value
Rate Mode VBR
H.264
Resolution
Stream Setting
1)
2)
3)

How to set WDR
If you want to watch the more clear image under back light condition,
you can do setting as below, and choose the step and click Save.
* You should check the pictures after click the Save button.
WDR
Enable
WDR
Step 1 Step 2 Step 3 Step 4 Step 5
Save
Ligth Compensation
Back-light Front-light
2)
3)
1)
5)
4)
