Avigo 5F5EAD4 Mercedes-Benz GL Class User manual

The owner’s manual contains important safety information as well as assembly, use and maintenance instructions.
The Mercedes-Benz Ride-on Car must be assembled by an adult who has read and understands the instructions in this manual.
Keep the packaging away from children and dispose of properly before use.
Keep this manual for future reference.
Operator’s Manual
Model 5F5EAD4
Mercedes-Benz GL Class
Styles and colors may vary.
Made in China.

2
. . . on the purchase of your new Mercedes-Benz.
This ride-on car will provide your child with many miles
of riding of enjoyment. To help assure you and your
rider a safe ride we ask you to please read this manual
carefully, and keep it for future reference.
Follow the recommendations in this manual; they are
designed to improve the safety and operation of your
Mercedes-Benz ride-on car and its rider.
Please call us at Kid Trax Toys Consumer Relations at
877-741-6154 with comments or questions.
©2011 Pacic Cycle Inc.
4902 Hammersley Rd.
Madison, WI 53711
United States of America
Phone: [phone]
www.kidtraxtoys.com
“Mercedes-Benz”, , and the design of the enclosed
product are subject to intellectual property protection owned by
Daimler AG. They are used by Paragon Child Products Col, Ltd.
(Goodbaby Group) under license.
AVIGO is a mark of Geoffrey, LLC,
a subsidiary of Toys“R”Us, Inc.
©2011 Geoffrey, LLC.
Made in China
Distributed in the U.S. by
Toys“R”Us, Inc., Wayne, NJ 07470
Distributed in Australia by Toys“R”Us
(Australia) Pty Ltd., Regents Park NSW 2143
www.toysrus.com
Congratulations

3
Contents
Safety.................................1
User Requirements . . . . . . . . . . . . . . . . . . . . 2
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Parts for Assembly . . . . . . . . . . . . . . . . . . . . 3
Hardware............................3
Battery Connections ....................4
Connect the Battery to the Motor .........4
Charge the Battery . . . . . . . . . . . . . . . . . . . . 4

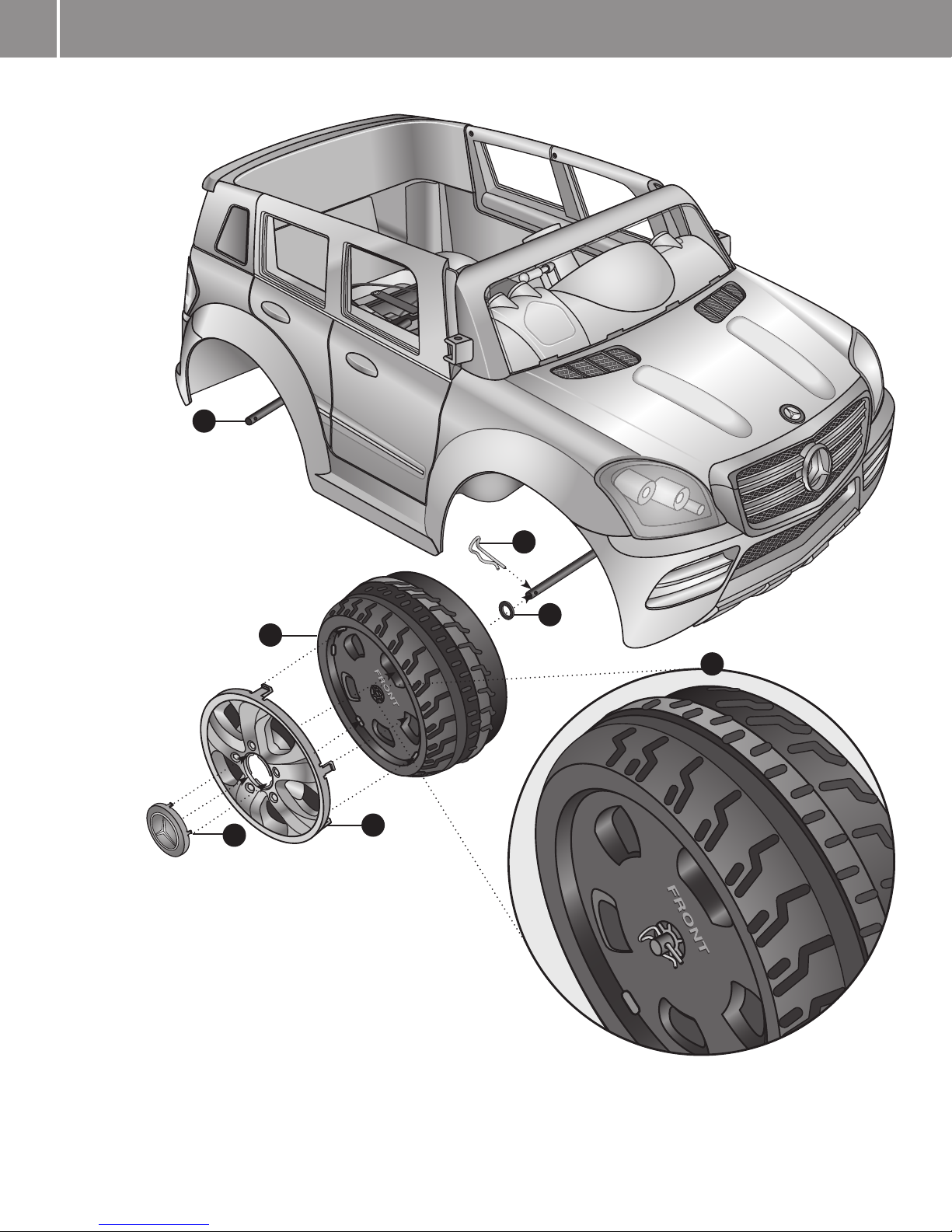

Attach the Wheels ......................5
Attach the Seat . . . . . . . . . . . . . . . . . . . . . . . 6
Attach the Steering Wheel . . . . . . . . . . . . . . . 7
Install the Batteries for Sound Effects......7
Attach the Steering Wheel...............7

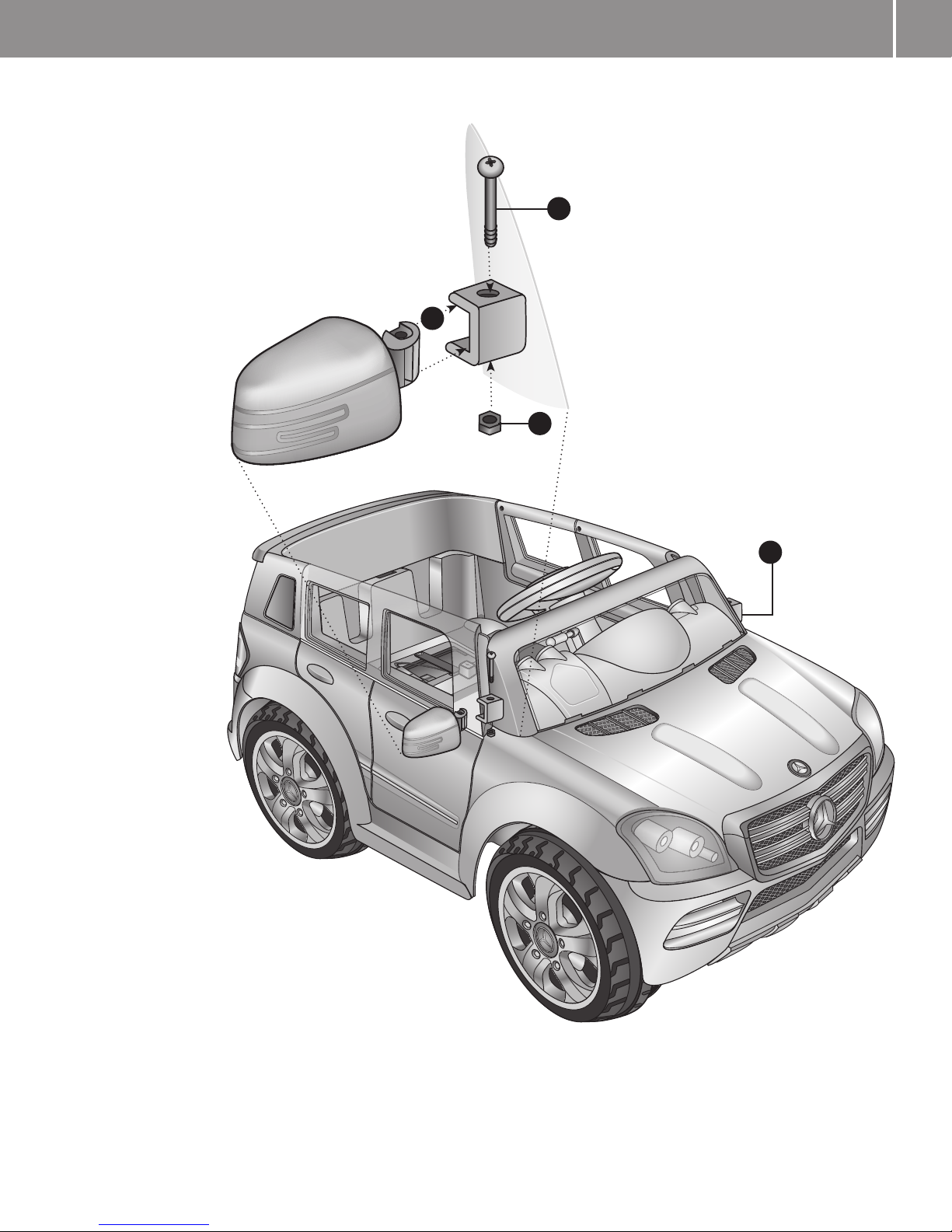

Attach the Rearview Mirrors..............8
Using Your Mercedes-Benz Ride-on Car . . . 9

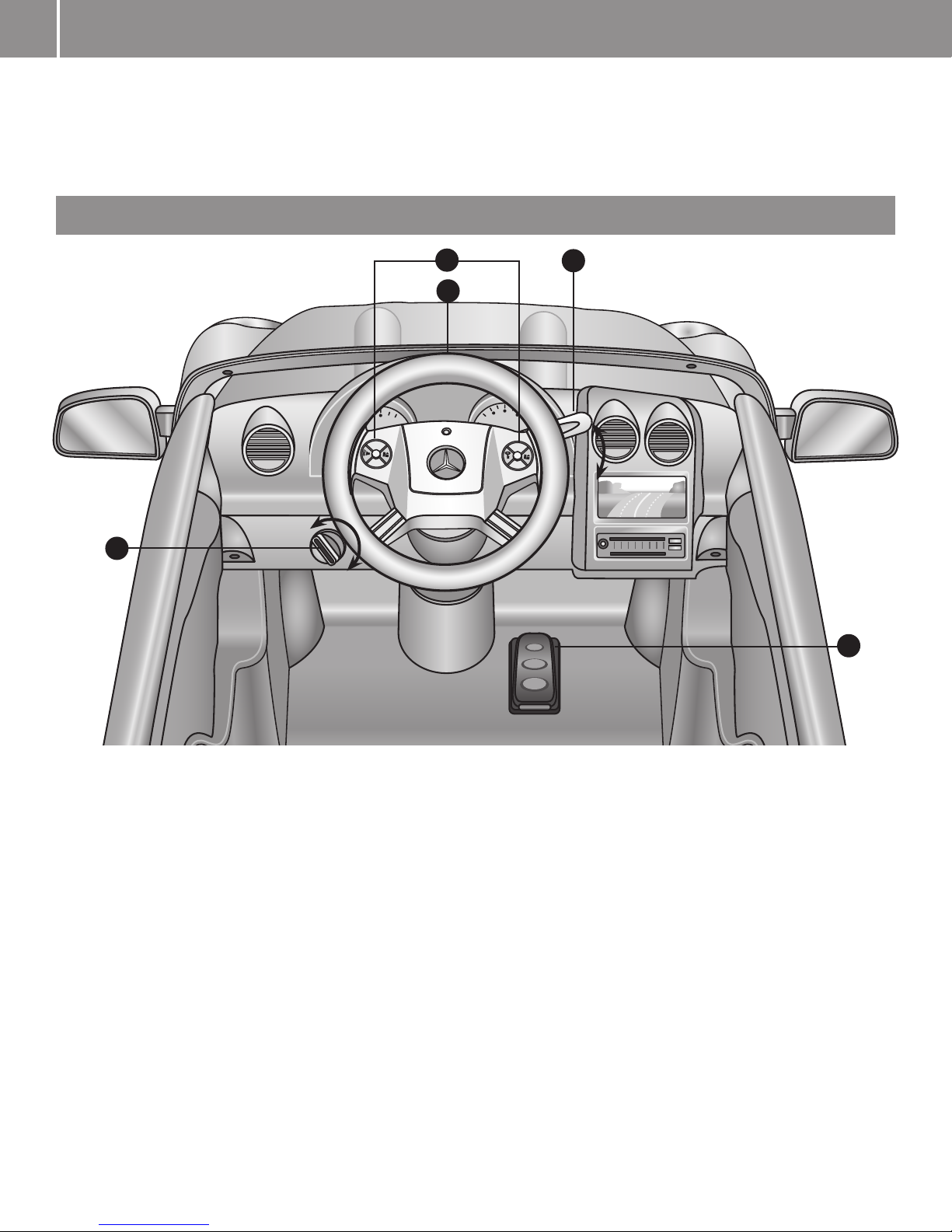

Ride-on Car Controls ..................9
Maintenance ...........................10
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Battery..............................10
Recharge Interval and Time . . . . . . . . . . . . . 10
Battery Storage .......................10
Battery Replacement and Disposal ........11
Battery Fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Troubleshooting Guide ..................12
Services, Repairs and Parts ..............14
FCC Information ........................14
Warranty ..............................15

1
WARNING!
WARNING!
Safety
This product contains small parts that are for adult assembly only.
The user must follow all safety rules and guidelines below or serious injury or death may occur.
• Always use common sense and safe practices when using the vehicle. The user must be three years old and up,
and weigh no more than 77 lbs (35 kg).
• Keep small children away when assembling. Remove and dispose of all protective material and poly bags before
assembly. Be sure to remove all packaging materials and parts from underneath the car body.
• RidersmustalwayswearattedhelmetthatcomplieswithU.S.ConsumerProductSafetyCommission(CPSC)
StandardCFR1203.
• Body parts such as hands, legs, hair and clothing can get caught in moving parts. Never place a body part near a
moving part or wear loose clothing while using the vehicle. Always wear shoes when using the vehicle.
• Usingthevehiclenearstreets,motorvehicles,drop-offssuchassteps,water(swimmingpools),slopedsurfaces,
hills,wetareas,ammablevapors,inalleys,atnightorinthedarkcouldresultinanunexpectedaccident.Always
use the vehicle in a safe, secure environment with continuous adult supervision.
• Donotusethevehicleinunsafeconditionssuchassnow,rain,loosedirt,mud,sandornegravel.Thismayresult
in unexpected action such as a tip over and skidding.
• Do not use the vehicle in an unsafe manner. Examples include but are not limited to:
1. Pulling the vehicle with another vehicle or similar device.
2. Allowing more than one rider.
3. Pushing the user from the back.
4. Traveling at an unsafe speed.
Charging the Battery Warnings
• UseofabatteryorchargerotherthanthesuppliedKidTraxToys6Vrechargeablebatteryandcharger
maycauseareorexplosion.OnlyusethesuppliedKidTraxToys6Vrechargeablebatteryandcharger
with the vehicle.
• UsingtheKidTraxToys6Vrechargeablebatteryandchargerforanyotherproductmayresultin
overheating,reorexplosion.NeverusetheKidTraxToys6Vrechargeablebatteryandchargerwith
another product.
• Explosive gases are created during charging. Charge the battery in a well ventilated area. Do not
chargethebatterynearheatorammablematerials.
• Contactbetweenthepositiveandnegativeterminalsmayresultinreorexplosion.Avoiddirectcontact
between the terminals. Picking up the battery by the wires or charger can cause damage to the battery
andmayresultinare.Alwayspickupthebatterybyitscaseorhandles.
• Liquidsonthebatterymaycausereorelectricshock.Alwayskeepallliquidsawayfromthebattery
and keep the battery dry.
• Contact or exposure to battery leakage (lead acid) may cause serious injury. If contact or exposure
occursimmediatelycallyourphysician.Ifthechemicalisontheskinorintheeyes,ushwithcoolwater
forfteenminutes.Ifthechemicalwasswallowed,immediatelygivethepersonwaterormilk.Donot
give water or milk if the patient is vomiting or has a decreased level of alertness. Do not induce vomiting.
The following safety hazards may result in serious injury or death to the user:

2
WARNING!
The suitable age range for a child using the Mercedes-Benz Ride-on Car is three years old and up. The maximum weight
of the child is 77 lbs (35 kg).
Before using the Mercedes-Benz Ride-on Car the child must understand the vehicle controls and safety issues.
They must also demonstrate the capability to handle the vehicle and operate its controls.
It is the responsibility of the adult to educate the child, determine if they are t to operate the vehicle, and
supervise the vehicle’s use.
Here are basic safe riding rules you should read aloud to your child and anyone who may ride the Mercedes-Benz
Ride-on Car:
• An adult must always supervise the child who is riding the Mercedes GL.
• Always sit in the seat when using the vehicle.
• Keep your hands, hair and clothes away from moving parts. Always wear shoes when riding in the vehicle.
• Do not drive the vehicle on streets or near cars.
• Children under three years old should not be allowed to use the vehicle.
• Onlydriveonlevelground.Don’tgonearwater,drop-offsorupanddownsteepslopes.
• Don’tdrivethevehicleintoloosedirt,mud,sandornegravel.Drivingthevehicleintoloosedirt,mud,sand,orne
gravel may damage the electronics and gear box inside the vehicle.
User Requirements
• Battery posts, terminals and related accessories contain lead and lead compounds (acid), chemicals
knowntotheStateofCaliforniatocausecancer,reproductiveharmandaretoxicandcorrosive.Never
open the battery.
• Tamperingormodifyingtheelectriccircuitsystemmaycauseashock,reorexplosionandpermanently
damage the system. Exposed wiring, circuitry in the charger may cause electric shock. Always keep the
charger housing closed.
Important!BeforeusingtheMercedes-Benzforthersttimethebatteryneedstobechargedforafulltwenty-four
hours(nomorethanthirtyhours).Onlyanadultwhohasreadandunderstandsthefollowingsafetywarningsshould
handle, charge or recharge of the battery (see Maintenance).
Note: It is not necessary to remove the battery from the vehicle for charging. However, if the adapter cord will not
safelyreacha120Vwalloutlet,thebatterycanberemovedforcharging(seepage11forinstructionsconcerning
battery replacement).
