Avipas AV-2010 User manual

Model: AV-2010
20x USB2.0 PTZ Camera with PoE+
User Manual
V1.0
Please read this user manual
thoroughly before using.
www.avipas.com

Preface
Thank you for using this 20x USB2.0 PTZ camera.
This manual introduces the functions, installation process and operation of the HD camera. Prior to
installation and usage, please read the manual thoroughly.
Precautions
This product should only be used under the specified conditions in order to avoid any damage to the
camera:
◼Do not subject the camera to rain or moisture.
◼Do not remove the cover. Otherwise, you may risk receiving an electric shock. In case of
unintended equipment operation, contact an authorized engineer.
◼Never operate under unspecified temperature, humidity or power supply.
◼Please use soft dry cloth to clean the camera. If the camera is very dirty, clean it with diluted
neuter detergent; do not use any type of solvents, which may damage the surface.
Note:
This is a class A production. Electromagnetic radiation at certain frequencies may affect the image quality
of TV in home environment.

CONTENT
SAFETY GUIDES......................................................................................................................................... 1
PACKING LIST............................................................................................................................................. 2
QUICK START.............................................................................................................................................. 2
PRODUCT HIGHLIGHTS............................................................................................................................ 3
CAMERA SPECIFICATIONS....................................................................................................................... 3
CAMERA INTERFACE. ............................................................................................................................... 5
CAMERA DIMENSIONS. ............................................................................................................................ 6
IR REMOTE CONTROLLER....................................................................................................................... 7
VISCA IN (RS232) PORT. ............................................................................................................................ 9
OSD MENU................................................................................................................................................. 10
UVC CONTROL......................................................................................................................................... 13

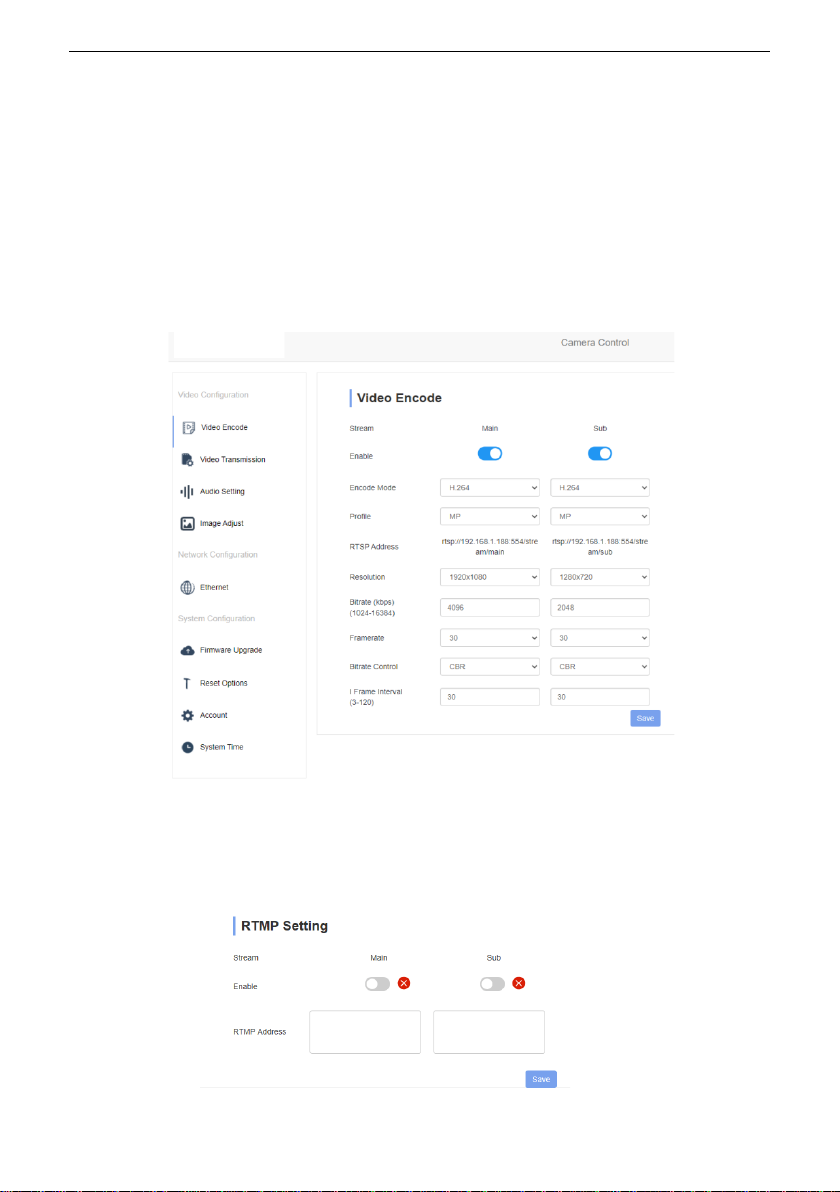

WEB SETTINGS......................................................................................................................................... 13
VIEW RTSP STREAM VIA VLC ............................................................................................................... 18
VISCA OVER IP ......................................................................................................................................... 18
VISCA PROTOCOL.................................................................................................................................... 21
PELCO-D PROTOCOL............................................................................................................................... 30
PELCO-P PROTOCOL................................................................................................................................ 31
WARRANTY............................................................................................................................................... 32

1
SAFETY GUIDES
1. Electric safety installation and operation must accord with electric safety standard.
2. Use caution to transport, avoid pressure, vibration or soakage during transport, storage and installation.
3. Polarity of power supply:
The power supply of this product is +12V, the max electrical current is 2A. Polarity of the power
supply plug is shown as below.
4. Installation precautions:
To reduce the risk of mechanical damage, do not grab the camera lens when carrying it. Do not touch
camera lens by hand. Do not use in corrosive liquid, gas or solid environment to avoid any cover (plastic
material) damage. Make sure there is no obstacle within rotation range. Do not power on before installation
is completed.
5. Do not dismantle the camera. We are not responsible for any unauthorized modification or dismantling.
CAUTION!
Video quality may be affected by certain frequencies of electromagnetic field.
Never grab the lens of the camera, or move the camera by hand when it is working.

2
PACKING LIST
When unpacked, check if all supplied accessories are included:
Camera ···································································1pc
Power Adapter···························································1pc
Power Cable ·····························································1pc
RS232 Control Cable···················································1pc
USB2.0 Cable ···························································1pc
IR Remote Controller ·················································· 1pc
User Manual ·····························································1pc
QUICK START
1. External interface: RS232 I/O, USB2.0 output, LAN output, DC12V power, audio input. Please check all
connections before powering on the device.
2. Dial switch settings (at the bottom of the camera):
Dial Switch (ARM)
SW-1
SW-2
Instruction
1
OFF
OFF
Updating mode
2
ON
OFF
Debugging mode
3
OFF
ON
Undefined
4
ON
ON
Working mode

3
PRODUCT HIGHLIGHTS
▪Adopts advanced ISP, 1/2.8-inch 2.1MP sensor, providing full HD video resolution.
▪High-quality 20x optical zoom, 2x digital zoom lens with 60-degree field of view.
▪IP, USB video output interface, compatible with different applications.
▪Advanced focusing algorithm: fast and precise focusing performance during movement.
▪Smooth PTZ mechanism, accurate pan tilt motor control.
▪Up to 128 presets available.
▪White balance/ Exposure/ Focus/ Iris can be adjusted automatically or manually.
▪Support PoE+: one single CAT5/6 for video, control and power, highly efficient video encoding.
▪Support line-in function, AAC and LPCM audio encoding.
▪Support VISCA, PELCO-P, PELCO-D, ONVIF and VISCA over IP control protocol; IP VISCA
over both TCP and UDP.
▪Support RS232 daisy chain, up to 7 cameras under VISCA protocol.
▪Support upside-down (ceiling) installation, H/V flip.
▪Support RS232/UVC control.
▪Standard UVC1.1 protocol, seamlessly compatible with all major video conferencing software
and platforms.
CAMERA SPECIFICATIONS
Video Format
USB: 1920*1080P30; 1280*720P30; 1024*576P30; 960*540P30; 720*576P30;
640*480P30; 640*360P30; 352*288P30; 320*240P30
RJ45: 1920*1080@3~30 / 1280*720@3~30 / 1024*576 @3~30 (Main stream);
1280*720@3~30 / 1024*576@3~30 / 640*360 @3~30 (Sub stream)
Video Interface
RJ45, USB2.0
Sensor
1/2.8” 2.1MP CMOS sensor
Dial Switch
SW-5
SW-6
Instruction
1
OFF
OFF
Undefined
2
ON
OFF
Undefined
3
OFF
ON
Undefined
4
ON
ON
Undefined
Dial Switch
SW-3
SW-4
Instruction
1
OFF
OFF
reserve
2
ON
OFF
reserve
3
OFF
ON
reserve
4
ON
ON
reserve

4
Zoom
f4.9~98mm, F1.5~3.0 View angle: 60°(Far)~3.23°(Near)
Rotation Angle
Pan: -170° ~ +170° Tilt: -90° ~ +90°
Rotation Speed
Pan: 0°~120°/s Tilt: 0°~80°/s
Preset
remote controller: 10; RS232: 128;
Accuracy: 0.1°
Control Port
RS232, RJ45 (VISCA over IP), USB2.0(UVC1.1)
Network Speed
1000M
Video encode
H.264/H.265 (default: H.264)
Bit Rate Control
Variable Bit Rate, Constant Bit Rate
Video Bit Rate
1024Kbps~16384Kbps
IP Protocol
TCP/IP, HTTP, RTSP, RTMP, DHCP, Onvif, VISCA over IP, NTP
POE+
Support
Daisy Chain
RS232 serial daisy chain (up to 7 units under VISCA protocol)
Minimum Lux
0.1 Lux (F1.5)
White Balance
Auto/Indoor/Outdoor/Manual/AWT/PUSH
Exposure
Auto/Manual/Bright/Shutter/Iris
Focus
Auto/Manual
Iris
Auto/Manual
Electric Shutter
Auto/Manual
Gamma
Support
WDR
Support
BLC
Support
2D/3D Noise Reduction
Support
Anti-Flicker
OFF/50Hz/60Hz
H/V Flip
Support
Input Voltage
DC12V/ POE+
Dimension
6.6*6.6*7.1inch (167.5*168*180.5mm)
Net Weight
3.1lb (1.4kg)

5
CAMERA INTERFACE
1. Camera Lens
2. Camera Base
3. IR Receiver Panel
4. Power Indicator Light
5. Dial Switch
6. Tripod Screw Hole
7. Installation Hole
8. RS232 Control Input
9. RS232 Control Output
10. USB2.0 Output
11. RJ45 Output
12. DC12V Power Jack
13. Line-in Audio Input

6
CAMERA DIMENSION(MM)

7
IR REMOTE CONTROLLER
POWER
Under normal working mode, press POWER to enter standby
mode. Press POWER again, camera will start self-initialization, then go
back to HOME position.
It will go to preset position 0 if the preset is set.
FREEZE （do NOT support USB output）
Press FREEZE to freeze/ unfreeze the image.
IRT (IR Transfer/IR Pass)
Enable/ disable the IR pass function. Press IRT, camera will
receive and pass the IR remote control signal to the codec/terminal (via
VISCA IN port). Press IRT again to disable the function.
SET 1~SET4 ADDRESS SETTING
To set the current camera’s address (ID), press and hold the key
for 3 seconds until the backlight of the key is lighting up.
CAM 1~CAM 4（CAMERA SELECTING）
Press the corresponding camera number to select the camera.
NUMERIC KEY (1-9)
Set preset: press and hold the number for 3 seconds to set preset
position.
Call preset: press the corresponding number to call preset position.
CLR PRE (CLEAR PRESET)
Press 【CLR PRE + number】 to clear the corresponding preset
position. Press and hold CLR PRE to clear all existing preset positions.

8

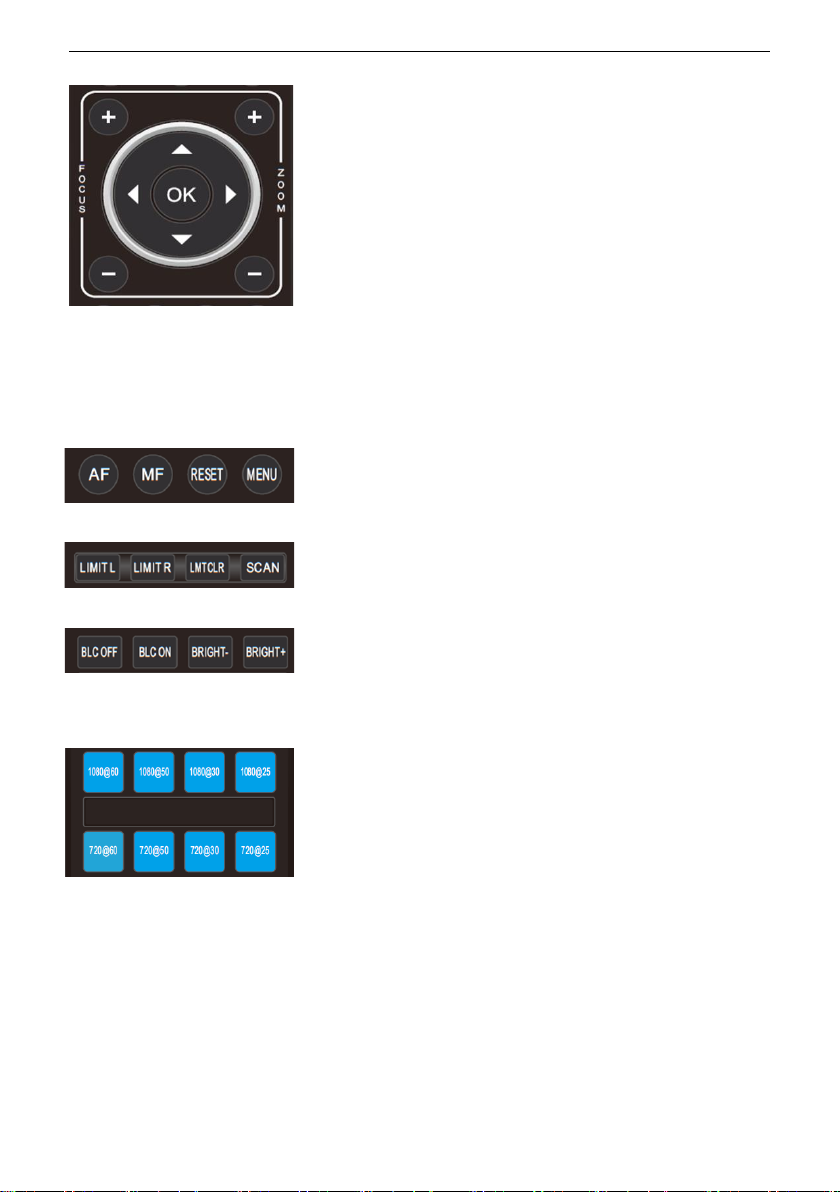

FOCUS
To manually adjust focus, only valid under manual mode.
ZOOM
To manually adjust zoom.
NAVIGATE KEY: UP/DOWN/LEFT/RIGHT
Under working mode, use navigate keys to pan/ tilt.
Once entering the camera OSD menu, use navigate keys to select and
enter submenu.
OK /HOME KEY
Under working mode, press OK to make the camera go back to its
HOME position.
Once entering the camera OSD menu, press OK to confirm selection.
AF: Auto focus.
MF: Manual focus.
RESET: Press and hold for 3 seconds to reset camera.
MENU: Enter OSD menu.
LEARN+LIMIT L: Set the pan tilt left limit position.
LEARN+LIMIT R: Set the pan tilt right limit position.
LEARN+LMT CLR: Clear all position limits.
BLC OFF/ BLC ON: Turn on/off backlight compensation.
BRIGHT-/BRIGHT+: Set image brightness, only valid under bright
priority exposure mode.
Video Format Selection:
Press and hold for 3 seconds to select different video format output.

9
VISCA IN （RS232 PORT）
VISCA Network Construction:
SERIAL PORT CONFIGURATION
VISCA IN & DB9 Connection
Camera VISCA IN
Windows DB-9
1
DTR
6
DSR
2
DSR
4
DTR
3
TXD
2
RXD
4
GND
5
GND
5
RXD
3
TXD
6
A (+)
7
IR OUT
8
B (-)
No.
V_IN
V_OUT
VISCA
IN
RS485
1
DTR
DTR
1
2
DSR
DSR
2
3
TXD
TXD
3
4
GND
GND
4
5
RXD
RXD
5
6
A
6
A(+)
7
IR OUT
7
IR
OUT
8
B
8
B(-)
VISCA IN &Mini DIN Connection
Camera VISCA IN
Mini DIN
1
DTR
1
DSR
2
DSR
2
DTR
3
TXD
5
RXD
4
GND
4
GND
5
RXD
3
TXD
6
A (+)
6
NC
7
IR OUT
7
NC
8
B (-)
8
NC
Parameter
Value
Parameter
Value
Baud rate
2400/4800/9600/115200
Stop Bit
1bit
Start Bit
1 bit
Check Bit
None
Date Bit
8 bit

10
OSD MENU
1. Under working mode, press MENU on the IR remote controller to enter the camera OSD menu:
2. Use navigate keys UP/DOWN to select from the main menu options.
3. Press RIGHT to enter any submenu; use UP/DONW to select the submenu; use LEFT/RIGHT to change
current settings.
4. Press MENU again to return to the previous menu, repeat and exit the OSD menu.
5. OSD Menu setting list
SYSTEM
LANGUAGE
English
Default: English
PROTOCOL
Optional item: VISCA/PELCO-P/PELCO-D
Default: VISCA
ADDRESS
VISCA: 1~7 PELCO-P/D: 0~255
Default: 1
BAUDRATE
Optional item: 2400/4800/9600/115200
Default: 9600
PTZ SPEED
Pan Tilt speed
Default：18
PST PT SPD
Preset pan tilt Speed
Default：18
RETURN
Return to previous menu
FOCUS
FOCUS MODE
AUTO/MANU/PUSH
Default: AUTO
DZOOM
Turn on/off digital zoom (2x digital zoom)
Default: OFF
ZOOM SPEED
Zoom speed
Default: 5
PST Z SPD
Preset zoom Speed
Default: 5
RETURN
RETURN to previous menu
EXPOSURE
EXPOSURE MODE
AUTO/MANU/IRIS/SHUT/BRI.
Default: AUTO
SHUTTER
Shutter speed:1/30~1/10000, only valid under manual mode
Default: AUTO
IRIS
Iris setting:0~13, only valid under manual mode
Default: AUTO
GAIN
Gain setting: 0~15, only valid under manual mode
Default: AUTO

11
BRIGHT
Bright setting:0~27, only valid under bright priority mode
Default: AUTO
FLICK
Anti-Flicker setting:50/60HZ/OFF
Default: 50HZ
BACKLIGHT
ON/OFF
Default: OFF
GAMMA
Gamma curve selection
Default: 0
RETURN
Return to previous menu
WB MODE
Optional: ATW/MANU/SON./FL./AUTO/IDR./ODR./PUSH
Default: ATW
B_GAIN
Blue gain level: 0~255, only valid under manual white balance mode
Default: AUTO
R_GAIN
Red gain level:0~255, only valid under manual white balance mode
Default: AUTO
DEFOG
ON/OFF
Default: OFF
RETURN
Return to previous menu
QUALITY
2D NR
2D noise reduction: the higher the value, the less noise on image,
with lower resolution
Default: OFF
3D NR
3D noise reduction: OFF/AUTO/0~4, the higher the value, the less
motion noise on image. Higher value will cause image smear.
Default: AUTO
SHARPNESS
Sharpness setting: 0~15
Default: 3
CONSTRAST
Set contrast level
Default: 8
SATURATION
Set saturation level
Default: 8
BRIGHT
Whole image brightness level
Default: 8
D_WDR
Set wide dynamic range: OFF, 1~6
Default: OFF
RETURN
Return to previous menu
CTRL
MIRROR
ON/OFF, Default: OFF
FLIP
ON/OFF, Default: OFF
D/N MODE
DAY/NIGHT, Default: DAY
GAIN LIMIT
Default: 128
RETURN
Return to previous menu
NETWORK
DHCP
ON/OFF
Using up/down/left/right navigation keys to select item, then
using numeric keys to set parameter. Press MENU to exit and
ADDRESS
192.168.001.188

12
NETMASK
255.255.255.000
save settings.
GATEWAY
192.168.001.001
RETURN
Return to previous menu
RESET
CAM RESET
Reset camera parameters to default
PTZ RESET
Reset pan/tilt presets to default
ALL RESET
Reset all parameters to default
RETURN
Return to the previous menu
INFO
CONTROL VER
Camera control firmware version
CONTROL DATE
Camera control firmware releasing date
FORMAT
Current video output format
BAUDRATE
Current RS232 baud rate
IP
Camera IP address
NET MASK
Current subnet mask
RETURN
Return to the previous menu
UVC CONTROL
1. Make sure the USB2.0 camera output is connected to a USB2.0 port on your PC/MAC, and it is recognized
by the PC Device Manager. If connected to the USB3.0 port, output video resolution may be compromised.
2. The interval of control commands sending from the server (via USB) to the camera should be no less than
250ms.
PU_BRIGHTNESS_CONTROL
81 01 04 4d 00 00 0p 0q FF
PU_CONTRAST_CONTROL
81 01 04 A2 00 00 0p 0q FF
PU_SATURATION_CONTROL
81 01 04 A1 00 00 0p 0q FF
PU_SHARPNESS_CONTROL
8x 01 04 42 00 00 0p 0q FF
PU_GAMMA_CONTROL
8x 01 04 5B 0p FF
PU_WHITE_BALANCE_TEMPERATURE_CONTROL
8x 01 04 35 0X FF

13
PU_BACKLIGHT_COMPENSATION_CONTROL
81 01 04 33 02/03 FF
PU_POWER_LINE_FREQUENCY_CONTROL
8x 01 04 AA 00/01/02 FF
CT_ZOOM_ABSOLUTE_CONTROL
8x 01 04 47 0p 0q 0r 0s FF
CT_PANTILT_ABSOLUTE_CONTROL
8x 01 06 02 VV WW 0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z F
CT_PANTILT_RELATIVE_CONTROL
8x 01 06 01 pp qq rr ss FF
CT_ZOOM_RELATIVE_CONTROL
8x 01 04 07 pp FF
WEB SETTINGS
To preview the video output on a local screen, no need to install additional media player plug-in.
The web interface supports Google Chrome, Firefox, IE, Safari, Opera, etc.
1. Login
To access the camera interface, open a browser, in the address bar,
input camera’s IP address (default IP address is 192.168.1.188).
Default username: admin Default password: admin
2. Real-time Preview
The preview interface is shown above. Virtual control panel on the right offers control options including

14
pan, tilt, zoom, focus, pan tilt speed, focus speed, zoom speed, preset position, etc.
On the lower right corner of the preview image, you can select change the volume level. Full-size view
and picture-in-picture mode are supported.
3. Configuration
Click “Setting” to enter camera configuration interface.
Video Encode: Set image encoding mode for main stream and sub stream. Resolution, bit rate, frame rate,
bit rate control, I frame interval, etc.
Video Transmission: RTMP syntax: stream URL + “/” + stream key. E.g., Server URL is
rtmp://a.rtmp.youtube.com/live2, Stream key is 123456abcdefg, thus for RTMP Address, input
rtmp://a.rtmp.youtube.com/live2/123456abcdefg

15
Audio Setting: To enable/disable embedded audio. Audio encoding mode can be selected. Parameters such
as sampling rate and bit rate can be adjusted.
Image Parameter: To set focus, exposure, white balance, image, image quality, noise-reduction, etc.
Ethernet: To set DHCP mode, IP address, Net mask, Gateway, DNS, HTTP Port, RTSP Port, Visca Over IP.
Default settings are as follows:

16
DHCP
OFF
Gateway
192.168.1.1
RTSP Port
554
IP address
192.168.1.188
DNS
192.168.1.1
RTSP Encrypt
ON
Netmask
255.255.255.0
HTTP Port
80
Visca Over IP
52381
Firmware upgrade: To update the camera ISP.
Click Select File, in the dialog box, select the upgrade file. Click Upgrade to start the updating process.
Do NOT power off or do any operation when upgrading. Please reboot the camera after the upgrade is finished.
Then re-login to web interface, select “Reset all” to reset the camera completely.
Reset to default: To reset the camera to default settings.
Reset simply: reset camera image settings;
Reset completely: reset all camera settings including IP configurations, image settings, language and protocol;
Reboot: reboot ISP part of the camera.
Account Setting: To set camera account username and password.
System time: set the time zone and NTP enable.
