Avipas AV-2000W/G User manual

Model: AV-2000W/G
20x NDI PTZ Camera with PoE
User Manual
V1.0
Please read this user manual
thoroughly before using.
www.avipas.com

Preface
Thank you for using this 20x NDI PTZ camera.
This manual introduces the functions, installation process and operation of the HD camera. Prior to
installation and usage, please read the manual thoroughly.
Precautions
This product should only be used under the specified conditions in order to avoid any damage to the
camera:
Do not subject the camera to rain or moisture.
Do not remove the cover. Otherwise, you may risk receiving an electric shock. In case of
unintended equipment operation, contact an authorized engineer.
Never operate under unspecified temperature, humidity or power supply.
Please use soft dry cloth to clean the camera. If the camera is very dirty, clean it with diluted
neutral detergent; do not use any type of solvents, which may damage the surface.
Note:
This is a class A production. Electromagnetic radiation at certain frequencies may affect the image quality
of TV in home environment.

CONTENT
SAFETY GUIDES......................................................................................................................................... 1
PACKING LIST............................................................................................................................................. 2
QUICK START.............................................................................................................................................. 2
PRODUCT HIGHLIGHTS............................................................................................................................ 3
CAMERA SPECIFICATIONS....................................................................................................................... 3
CAMERA INTERFACE. ............................................................................................................................... 5
CAMERA DIMENSIONS. ............................................................................................................................ 6
IR REMOTE CONTROLLER. ...................................................................................................................... 7
VISCA IN (RS232) PORT. ............................................................................................................................ 9
OSD MENU................................................................................................................................................. 10
WEB SETTINGS......................................................................................................................................... 13
VIEW RTSP STREAM VIA VLC ............................................................................................................... 17
VISCA OVER IP ......................................................................................................................................... 17
NEWTEK TOOLS GUIDE.......................................................................................................................... 21
VISCA PROTOCOL.................................................................................................................................... 23
PELCO-D PROTOCOL............................................................................................................................... 31
PELCO-P PROTOCOL................................................................................................................................ 32
WARRANTY............................................................................................................................................... 33

1
SAFETY GUIDES
1. Electric safety installation and operation must accord with electric safety standard.
2. Use caution to transport, avoid pressure, vibration or soakage during transport, storage and installation.
3. Polarity of power supply:
The power supply of this product is +12V, the max electrical current is 2A. Polarity of the power
supply plug is shown as below.
4. Installation precautions:
To reduce the risk of mechanical damage, do not grab the camera lens when carrying it. Do not touch
camera lens by hand. Do not use in corrosive liquid, gas or solid environment to avoid any cover (plastic
material) damage. Make sure there is no obstacle within rotation range. Do not power on before installation
is completed.
5. Do not dismantle the camera. We are not responsible for any unauthorized modification or dismantling.
CAUTION!
Video quality may be affected by certain frequencies of electromagnetic field.
Never grab the lens of the camera, or move the camera by hand when it is working.

2
PACKING LIST
When unpacked, check if all supplied accessories are included:
Camera ··································································· 1pc
Power Adapter··························································· 1pc
Power Cable ····························································· 1pc
RS232 Control Cable··················································· 1pc
IR Remote Controller ·················································· 1pc
User Manual ····························································· 1pc
QUICK START
1. External interface: RS232 I/O, HDMI output, NDI|HX output, DC12V power, audio input. Please check
all connections before powering on the device.
2. Dial switch settings (at the bottom of the camera):
Dial Switch (ARM)
SW-1
SW-2
Instruction
1
OFF
OFF
Updating mode
2
ON
OFF
Debugging mode
3
OFF
ON
Undefined
4
ON
ON
Working mode

3
PRODUCT HIGHLIGHTS
Adopts advanced ISP, 1/2.8-inch 2.4MP sensor, providing full HD video resolution.
High-quality 20x optical zoom, 2x digital zoom lens with 60-degree field of view.
NDI|HX, HDMI video output interface, compatible with different applications.
Advanced focusing algorithm: fast and precise focusing performance during movement.
Smooth PTZ mechanism, accurate pan tilt motor control.
Up to 128 presets available.
White balance/ Exposure/ Focus/ Iris can be adjusted automatically or manually.
Support PoE: one single CAT5/6 for video, control and power, highly efficient video encoding.
Support Line-in function, AAC audio encoding.
Support VISCA, PELCO-P, P E LCO-D, ONVIF, VISCA over IP and NDI control protocol; IP
VISCA over both TCP and UDP.
Support RS232 daisy chain, up to 7 cameras under VISCA protocol.
Support upside-down (ceiling) installation, H/V flip.
CAMERA SPECIFICATIONS
Video Format
HDMI
1920*1080P60/59.94/50/30/29.97/25/24/23.98, 1920*1080I60/59.94/50
1280*720P60/59.94/50/30/29.97/25
IP
1920*1080@3~30/1280*720@3~30/1024*576 @3~30 (Main stream)
1280*720@3~30/1024*576@3~30/640*360 @3~30 (Sub stream)
Video Interface NDI|HX, HDMI
Dial Switch
SW-5
SW-6
Instruction
1
OFF
OFF
Undefined
2
ON
OFF
Undefined
3
OFF
ON
Undefined
4
ON
ON
Undefined
Dial Switch
SW-3
SW-4
Instruction
1
OFF
OFF
reserve
2
ON
OFF
reserve
3
OFF
ON
reserve
4
ON
ON
reserve

4
Audio Interface Line-in
Sensor 1/2.8” 2.4MP CMOS sensor
Zoom f4.9~98mm, F1.5~3.0 View angle: 60°(Far)~3.23°(Near)
Rotation Angle Pan: -170° ~ +170° Tilt: -90° ~ +90°
Rotation Speed Pan: 0°~120°/s Tilt: 0°~80°/s
Preset remote controller: 10; RS232&IP: 128; Accuracy: 0.1°
Control Port RS232, NDI|HX
Network Speed 1000M
Video encode H.264/H.265 (default: H.264)
Bit Rate Control Variable Bit Rate, Constant Bit Rate
Video Bit Rate 1024Kbps~16384Kbps
IP Protocol TC P / IP, H T TP, RT S P, RTMP, DHCP, Onvif, VISCA over I P, NTP
POE Support
Daisy Chain RS232 serial daisy chain (up to 7 units under VISCA protocol)
Minimum Lux 0.1 Lux (F1.5)
White Balance Auto/Indoor/Outdoor/Manual/AWT/PUSH
Exposure Auto/Manual/Bright/Shutter/Iris
Focus Auto/Manual
Iris Auto/Manual
Electric Shutter Auto/Manual
Gamma Support
WDR Support
BLC Support
2D/3D Noise Reduction Support
Anti-Flicker OFF/50Hz/60Hz
H/V Flip Support
Input Voltage DC12V/POE
Dimension 6.6*6.6*7.1inch (167.5*168*180.5mm)
Net Weight 3.1lb (1.4kg)

5
CAMERA INTERFACE
1. Camera Lens
2. Camera Base
3. IR Receiver Panel
4. Power Indicator Light
5. Dial Switch
6. Tripod Screw Hole
7. Installation Hole
8. RS232 Control Input
9. RS232 Control Output
10. HDMI Output
11. RJ45 Output
12. DC12V Power Jack
13. Line-in Audio Input

6

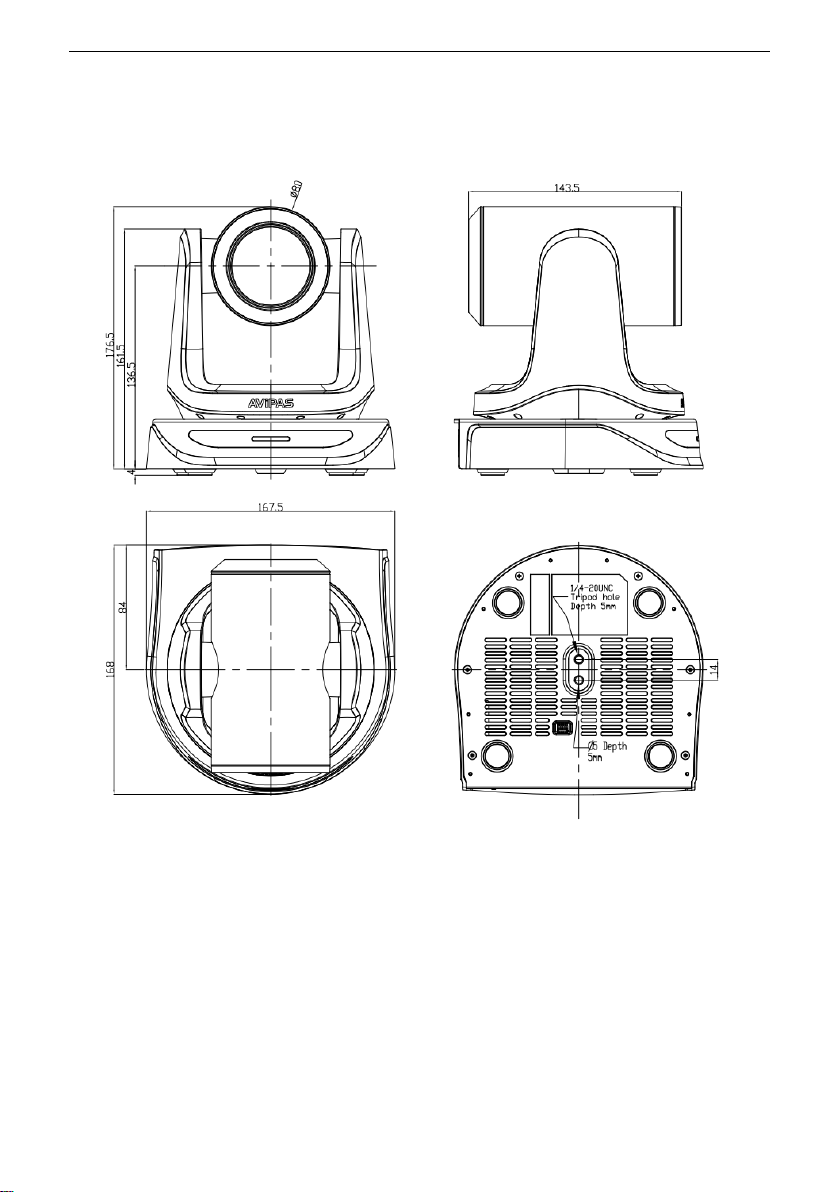

CAMERA DIMENSION(MM)

7
IR REMOTE CONTROLLER
POWER
Under normal working mode, press POWER to enter standby
mode. Press POWER again, camera will start self-initialization, then go
back to HOME position.
It will go to preset position 0 if the preset is set.
FREEZE
Press FREEZE to freeze/ unfreeze the image.
IRT (IR Transfer/IR Pass)
Enable/ disable the IR pass function. Press IRT, camera will
receive and pass the IR remote control signal to the codec/terminal (via
VISCA IN port). Press IRT again to disable the function.
SET 1~SET4 ADDRESS SETTING
To set the current camera’s address (ID), press and hold the key
for 3 seconds until the backlight of the key is lighting up.
CAM 1~CAM 4（CAMERA SELECTING）
Press the corresponding camera number to select the camera.
NUMERIC KEY (1-9)
Set preset: press and hold the number for 3 seconds to set preset
position.
Call preset: press the corresponding number to call preset position.
CLR PRE (CLEAR PRESET)
Press 【CLR PRE + number】to clear the corresponding preset
position. Press and hold CLR PRE to clear all existing preset positions.

8
FOCUS
To manually adjust focus, only valid under manual mode.
ZOOM
To manually adjust zoom.
NAVIGATE KEY: UP/DOWN/LEFT/RIGHT
Under working mode, use navigate keys to pan/ tilt.
Once entering the camera OSD menu, use navigate keys to select and
enter submenu.
OK /HOME KEY
Under working mode, press OK to make the camera go back to its
HOME position.
Once entering the camera OSD menu, press OK to confirm selection.
AF: Auto focus.
MF: Manual focus.
RESET: Press and hold for 3 seconds to reset camera.
MENU: Enter OSD menu.
LEARN+LIMIT L: Set the pan tilt left limit position.
LEARN+LIMIT R: Set the pan tilt right limit position.
LEARN+LMT CLR: Clear all position limits.
BLC OFF/ BLC ON: Back light off/on
BRIGHT-/BRIGHT+: Set image brightness, only valid under bright
priority exposure mode.
Video Format Selection:
Press and hold for 3 seconds to select different video format output.

9
VISCA IN/OUT （RS232 PORT）
VISCA Network Construction:
Serial Port Configuration:
No. V_IN V_OUT
VISCA
IN
RS485
1
DTR
DTR
1
2
DSR
DSR
2
3
TXD
TXD
3
4
GND
GND
4
5
RXD
RXD
5
6
A
6
A(+)
7
IR OUT
7
IR OUT
8
B
8
B(-)
VISCA IN &Mini DIN Connection
Camera VISCA IN
Mini DIN
1
DTR
1
DSR
2
DSR
2
DTR
3
TXD
5
RXD
4
GND
4
GND
5
RXD
3
TXD
6
A (+)
6
NC
7
IR OUT
7
NC
8
B (-)
8
NC
VISCA IN & DB9 Connection
Camera VISCA IN
Windows DB-9
1
DTR
6
DSR
2
DSR
4
DTR
3
TXD
2
RXD
4
GND
5
GND
5
RXD
3
TXD
6
A (+)
7
IR OUT
8
B (-)
Parameter
Val ue
Parameter
Val ue
Baud rate
2400/4800/9600/115200
Stop Bit
1bit
Start Bit
1 bit
Check Bit
None
Data Bit
8 bit

10
OSD MENU
1. Under working mode, press MENU on the IR remote controller to enter the camera OSD menu:
2. Use navigate keys UP/DOWN to select from the main menu options.
3. Press RIGHT to enter any submenu; use UP/DONW to select the submenu; use LEFT/RIGHT to change
current settings.
4. Press MENU again to return to the previous menu, repeat to exit the OSD menu.
5. OSD Menu setting list
SYSTEM
LANGUAGE English Default: English
PROTOCOL Optional item: VISCA/PELCO-P/PELCO-D Default: VISCA
ADDRESS VISCA: 1~7 PELCO-P/D: 0~255 Default: 1
BAUDRATE Optional item: 2400/4800/9600/115200 Default: 9600
PTZ SPEED Pan Tilt speed: 5~24 Default：18
RETURN Return to previous menu
FOCUS
FOCUS MODE AUTO/MANU/PUSH Default: AUTO
FOCUS LIMIT 1.5M/2M/3M/6M/10M Default: 1.5M
DZOOM Turn on/off digital zoom (2x digital zoom) Default: OFF
RATIO DIS Zoom ratio display Default: OFF
ZOOM SPEED Zoom speed: 0~7 Default: 5
RETURN RETURN to previous menu
EXPOSURE MODE AUTO/MANU/IRIS/SHUT/BRI. Default: AUTO
SHUTTER Shutter speed:1/30~1/10k, only valid under manual mode Default: AUTO
IRIS Iris level: 0~13, only valid under manual mode Default: AUTO

11
EXPOSURE GAIN Gain level: 0~15, only valid under manual mode Default: AUTO
BRIGHT Bright level: 0~27, only valid under bright priority mode Default: AUTO
FLICK Anti-Flicker: 50HZ/60HZ/OFF Default: 50HZ
BACKLIGHT ON/OFF Default: OFF
GAMMA Gamma curve selection: 0~6 Default: 0
RETURN Return to previous menu
WB MODE AUTO/IDR./ODR./PUSH /ATW/ MANU/MANU2/SON./FL. Default: AT W
B_GAIN Blue gain level: 0~255, only valid under manual white balance mode Default: AUTO
R_GAIN Red gain level: 0~255, only valid under manual white balance mode Default: AUTO
DEFOG 1~15/OFF Default: OFF
RETURN Return to previous menu
QUALITY
2D NR
2D noise reduction: higher value: less motion noise on image,
lower resolution
Default: OFF
3D NR
3D noise reduction: OFF/AUTO/0~4
higher value: less motion noise on image, lower resolution
Default: AUTO
SHARPNESS Sharpness level: 0~15 Default: 3
CONSTRAST Set contrast level: 0~15 Default: 8
SATURATION Set saturation level: 0~15 Default: 8
BRIGHT Whole image brightness level: 0~15 Default: 8
D_WDR Set wide dynamic range: OFF, 1~6 Default: OFF
RETURN Return to previous menu
CTRL
MIRROR ON/OFF, Default: OFF
FLIP ON/OFF, Default: OFF
D/N MODE DAY/NIGHT, Default: DAY
GAIN LIMIT Default: 128
RETURN Return to previous menu
FOR MAT
1080P60 1080P59.94
1080P50 1080P30

12
1080P29.97 1080P25
After selecting the video format, press OK to confirm.
1080P24 1080P23.98
1080I60 1080I59.94
1080I50 720P60
720P59.94 720P50
720P30 720P29.97
720P25
RETURN Return to previous menu
NETWORK
DHCP ON/OFF Use up/down/left/right navigation keys to select item, then use
numeric keys to enter parameters.
Press MENU to exit and save settings.
ADDRESS 192.168.001.188
NETMASK 255.255.255.000
GATEWAY 192.168.001.001
RETURN Return to previous menu
RESET
CAM RESET Reset camera parameters to default
PTZ RESET Reset pan/tilt presets to default
ALL RESET Reset all parameters to default
RETURN Return to the previous menu
INFO
CONTROL VER Camera control firmware version
CONTROL DATE Camera control firmware releasing date
FORMAT Current video output format
BAUDRATE Current RS232 baud rate
IP Camera IP address
NET MASK Current subnet mask
RETURN Return to the previous menu

13
WEB SETTINGS
To preview the video output on a local screen, there’s no need to install additional media player plug-in.
The web interface supports Chrome, Firefox, IE, Safari, Opera, etc.
1. Login
To access the camera interface, open a browser, in the address bar,
input camera’s IP address (default IP address is 192.168.1.188),
Default username: admin Default password: admin
2. Real-time Preview
The preview interface is shown above. Virtual control panel on the right offers control options including
pan, tilt, zoom, focus, pan tilt speed, focus speed, zoom speed, preset positions, etc.
On the lower right corner of the preview image, you can change the volume level. Full-screen view and
picture-in-picture mode are supported.
3. Configuration
Click “Setting” to enter camera configuration interface.

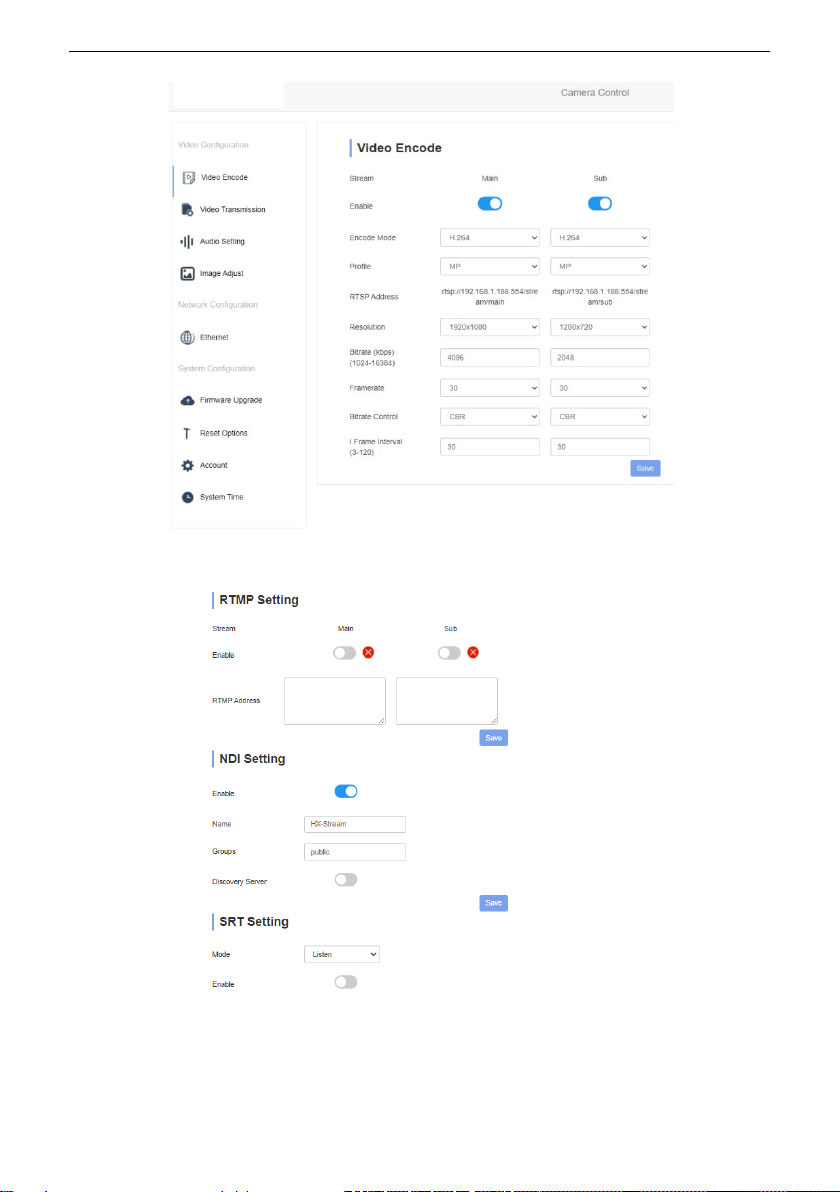

Video Encode: Set image encoding mode for main stream and sub stream: resolution, bit rate, frame rate, bit
rate control, I frame interval, etc.

14
Video Transmission: RTMP, NDI and SRT settings are available, as shown below:
RTMP(S) syntax: stream URL + “/” + stream key.
E.g., Server URL is rtmp://a.rtmp.youtube.com/live2, Stream key is 123456abcdefg, thus for RTMP
Address, rtmp://a.rtmp.youtube.com/live2/123456abcdefg

15
Audio Setting: To enable/disable embedded audio. Audio encoding mode can be selected. Parameters such
as sampling rate and bit rate can be adjusted.
Image Parameter: To set focus, exposure, white balance, image quality, noise-reduction, etc.
Ethernet: To set DHCP mode, IP address, Net mask, Gateway, DNS, HTTP Port, RTSP Port, Visca Over IP.
Default settings are as follows:

16
DHCP OFF Gateway 192.168.1.1 RTSP Port 554
IP address 192.168.1.188 DNS 192.168.1.1 RTSP Encrypt OFF
Netmask 255.255.255.0 HTTP Port 80 IP VISCA UDP 52381
Username/PSW admin ONVIF Port 8000 NDI Port 5961
Firmware upgrade: To update the camera I SP.
Click Select File, in the dialog box, select the upgrade file. Click Upgrade to start the updating process.
Do NOT power off or do any operation when upgrading. Please reboot the camera after the upgrade is finished.
Then re-login to web interface, select “Reset all” to reset the camera completely.
Reset to default: To reset the camera to default settings.
Reset simply: reset camera image settings;
Reset completely: reset all camera settings including IP configuration, image settings, language and protocol;
Reboot: reboot ISP part of the camera.
Account Setting: To set camera account username and password.
