Avipas AV-1562 User manual

0
Model: AV-1563
30x Full HD PTZ Camera with PoE
Model: AV-1562
20x Full HD PTZ Camera with PoE
User Manual
V1.0
Please read this user manual
thoroughly before using.
www.avipas.com

1
Preface
Thanks for using this HD Video Conferencing Camera.
This manual introduces the functions, installation process and operation of the HD camera. Prior
to installation and usage, please read the manual thoroughly.
Precautions
This product should only be used under the specified conditions in order to avoid any damage to
the camera:
Do not subject the camera to rain or moisture.
Do not remove the cover. Otherwise, you may risk receiving an electric shock. In case of
unintended equipment operation, contact an authorized engineer.
Never operate under unspecified temperature, humidity or power supply.
Please use soft dry cloth to clean the camera. If the camera is very dirty, clean it with diluted
neuter detergent; do not use any type of solvents, which may damage the surface.
Note:
This is a class A production. Electromagnetic radiation at certain frequencies may affect the
image quality of TV in home environment.

2
Content
1. Camera Installation…………………………………………………………………...……………………….…………4
1.1 Camera Introduction………………………………………………….…..…….………...….5
1.2 Interfaces and Connection……………………………………………..………..…………...5
1.3 Mounting Brackets…………………………………………….…………………….……....5
2. Product Overview.…………………………………………………………...……………………..8
2.1
Dimensions..…………………...………………………...…………………...……...…………..8
2.2 RS-232
Interface……………………………………...…………………………...………...……………9
2.3 Rotary DIP
Switch…………………………………………………………………..……………...…….....10
2.4 Main
Features…………………………………………………………………….…………………...11
2.5 Specifications…………………………………………………….…………..………….….11
3. Remote Control……………………………………………………………………………………13
3.1 Fuctions for IR Remote Control……………………………………………….….………...13
3.2 Camera Menu ……..………………………………………...……………………………...14
4. Network Configuration……………………………………………...…………………………….15
4.1 Network Connection…………………………………………...……………...……………15
4.2 IE Login…………………………………………………………...…...…………………...16
4.3 Streaming……………………………………………………...…...……………………….17
4.4 Software Upgrade…...…………………………………………………...…...…………….18
5. Serial Port Communication and Control………………………………………………………..…19
5.1 VISCA Protocol Return Command…………………………………………..……………..19
5.2 VISCA Protocol Control Command……………………………………….…….…………19
5.3 VISCA Protocol Inquiry Command……………………………………….….…………….22
5.4 Pelco-D protocol command list……………………………………………...……………...24
5.5 Pelco-P protocol command list……………………………………………...……………...25
6. Maintenance and Troubleshooting…………………………………….…………………………..26
6.1 Maintenance…………………………………….…………………….…………………….26
6.2 Troubleshooting………………………………….……..……………..……………………26

3
Attentions
Electric Safety
Installation and operation must accord with electric safety standard.
Use caution to transport
Avoid stress, vibration or soakage in transport, storage and installation.
Polarity of power supply
The power supply of this product is +12V, the max electrical current is 2A. Polarity of the power
supply plug is shown in the drawing below.
Installation precautions
Do not grasp the camera lens when carrying it. Do not touch camera lens by hand. Mechanical
damage may result from doing so.
Do not use in corrosive liquid, gas or solid environment to avoid any cover (plastic material)
damage.
Make sure there is no obstacle within rotation range.
Do not power on before installation is completed.
Do not dismantle the camera
We are not responsible for any unauthorized modification or dismantling.
CAUTION!
Certain frequencies of electromagnetic field may affect the image of the camera!
Supplied Accessories
When unpacked, check if all supplied accessories are included:
Camera ..............................................1PCS
AC power adaptor ............................1PCS
Power cord.........................................1PCS
RS232 cable.......................................1PCS
Remote control...................................1PCS
User manual .......................................1PCS

4
1. Camera Installation

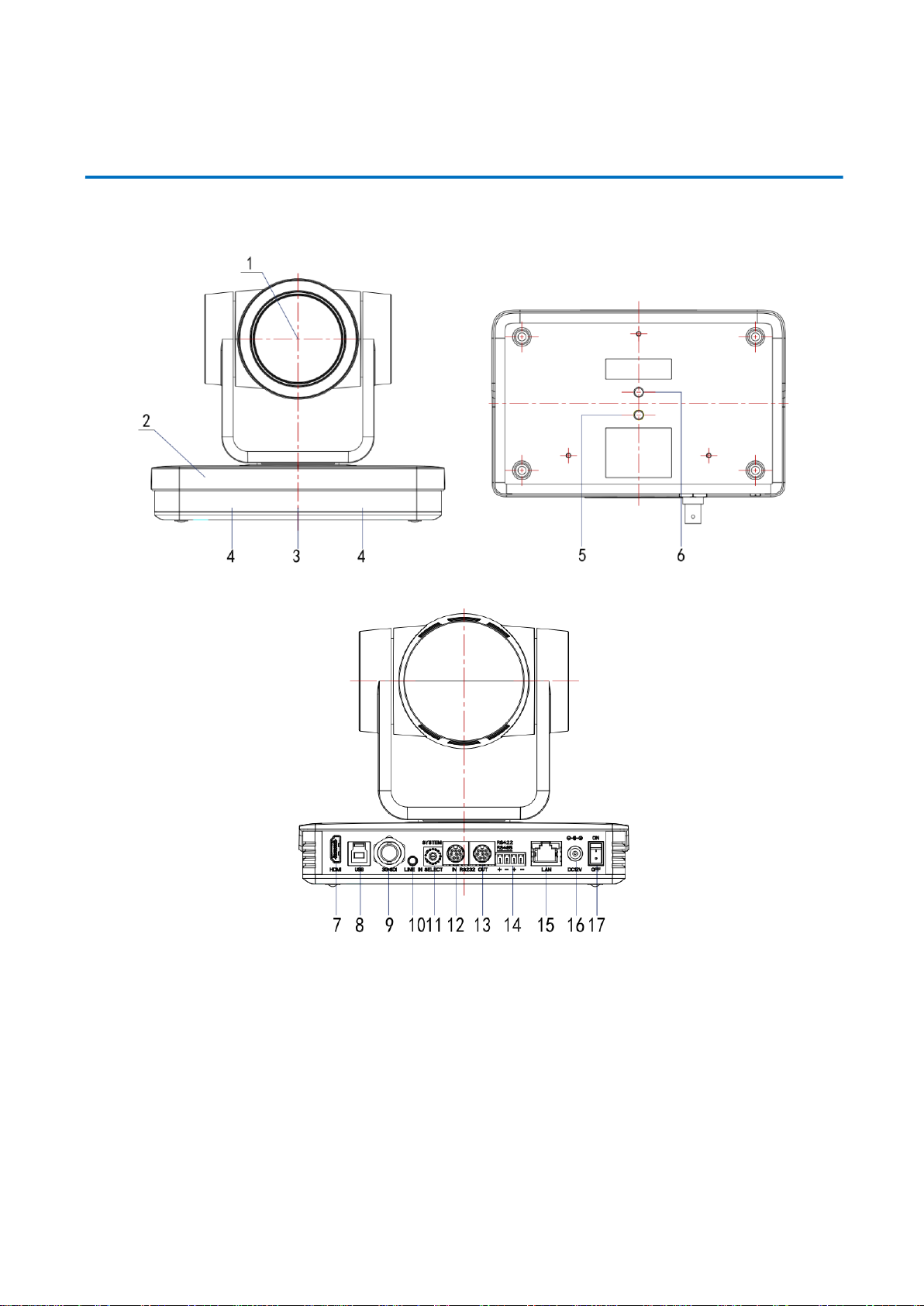

1.1 Camera Interface Illustration
Figure 1.1 Interface of SU Model
1. Camera Lens
2. Camera Base
3. Remote Control Receiving Indicator
4. Infrared Receiver
5. Tripod Screw Hole
6. Screw Hole for Tripod
7. HDM Output
8. USB3.0 Output
9. SDI Output
10. Audio Input Interface (Line-in)
11. Rotary DIP Switch
12. RS232 Control Interface (input)
13. RS232 Control Interface (output)
14. RS422 Interface (Compatible with RS485)
15. Network Interface (LAN)
16. DC12V Input Power Supply Socket
17. Power Switch

5
1.2 Interface and Connection
Figure 1.2 Wiring Diagram
1) After powering on and initialization, camera will automatically go to preset position 0 (Center
position as default).
2) The default cam address for the IR remote control is #1.
1.3 Mounting Brackets
Note: Ceiling or wall mounting brackets can only be mounted on a template and concrete wall.
For safety reason, plasterboard is not recommended.

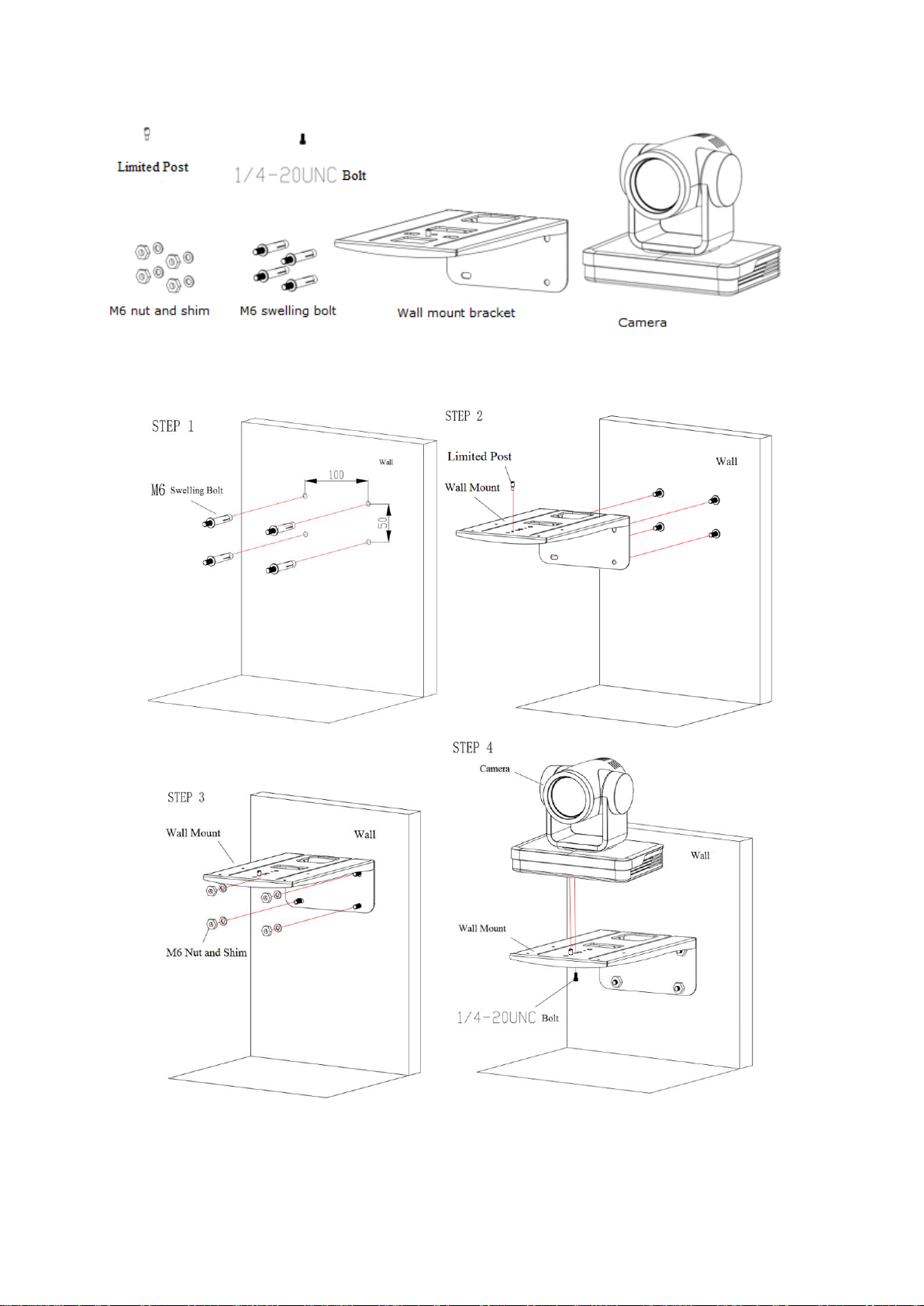

1) Wall Mount:

6

7
2) Ceiling Mounting

8
2. Product Overview
2.1 Dimensions
Figure 2.2 Product Dimensions

9
2.2 RS-232 Interface
1). RS-232 Interface Definition
Connection to PC or Camera Controller
Camera
WindowsDB-9
1.DTR
1.DCD
2.DSR
2.RXD
3.TXD
3.TXD
4.GND
4.DTR
5.RXD
5.GND
6.GND
6.DSR
7.IR OUT
7.RTS
8.NC
8.CTS
9.RI
2). RS232 Mini-DIN 8-pin: Port Definition
3). RS232 (DB9) Port Definition
NO.
Port
Definition
1
DTR
Data Terminal Ready
2
DSR
Data Set Ready
3
TXD
Transmit Data
4
GND
Signal Ground
5
RXD
Receive Data
6
GND
Signal Ground
7
IR OUT
IR Commander Signal
8
NC
No Connection
NO.
Port
Definition
1
DCD
Data Carrier Detect
2
RXD
Receive Data
3
TXD
Transmit Data
4
DTR
Data Terminal Ready
5
GND
System Ground
6
DSR
Data Set Ready
7
RTS
Request to Send
8
CTS
Clear to Send
9
RI
Ring Indicator

10

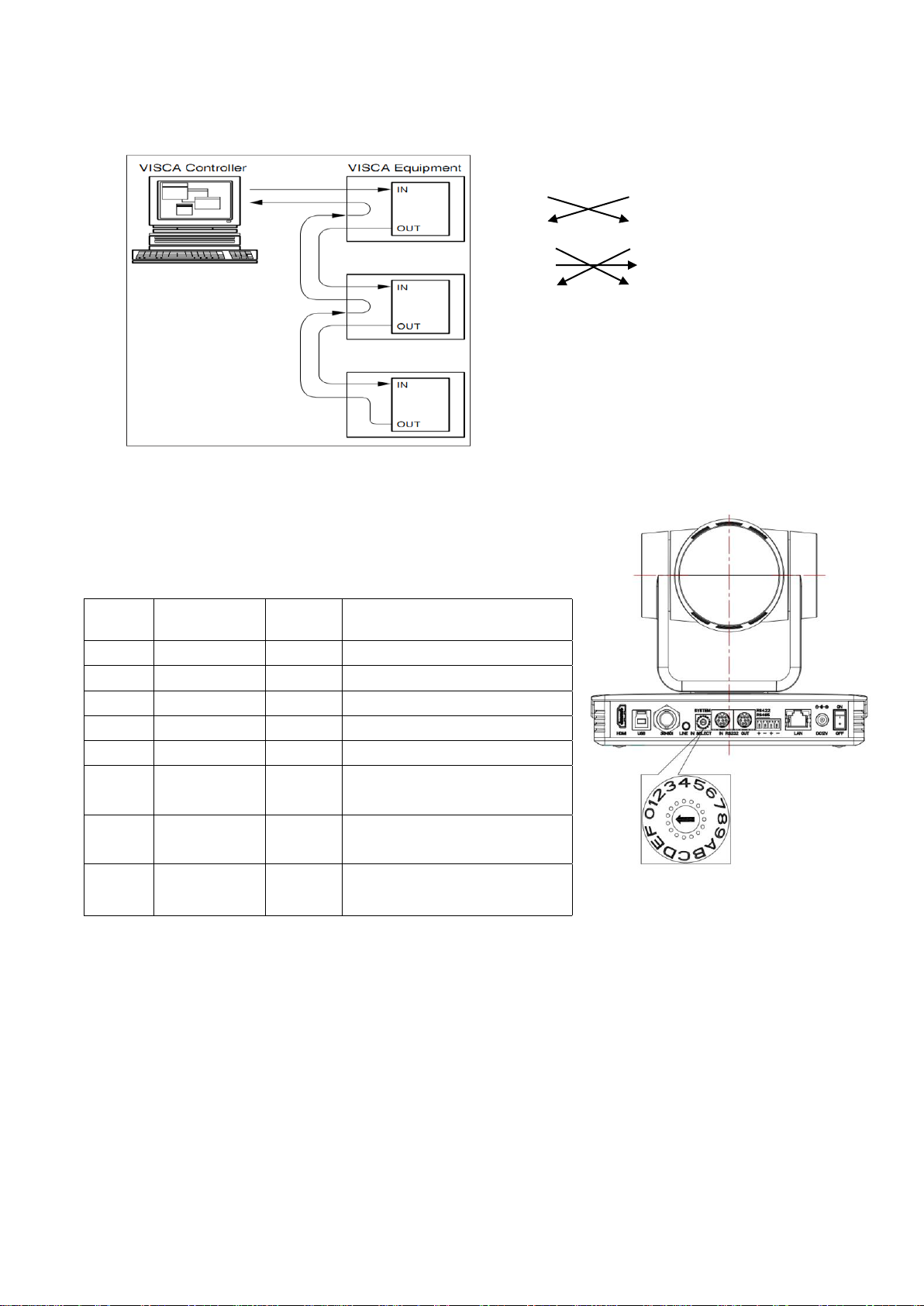

4). VISCA networking as shown below:
Camera cascade connection
Camera 1
Camera 2
1.DTR
1.DTR
2.DSR
2.DSR
3.TXD
3.TXD
4.GND
4.GND
5.RXD
5.RXD
6.GND
6.GND
7.IR OUT
7.OPEN
8. NC
8.OPEN
2.3 Rotary DIP Switch
Dial-up
video format
Dial-up
video format
0
1080P60
8
1080P59.94
1
1080P50
9
1080I59.94
2
1080I60
A
1080P29.97
3
1080I50
B
720P59.94
4
1080P30
C
720P29.97
5
1080P25
D
AV-1563: 720P29.97
AV-1562: 1080P59.94
6
720P60
E
AV-1563: 720P29.97
AV-1562: 1080P59.94
7
720P50
F
video format to be set from OSD menu
Note:
Please reboot the camera after switching the video format for changes to take effect.
Only when the dial is set at "F", video format can be changed from:
---webpage;
---remote control shortcut; (not all video formats are available)
---OSD menu;
Otherwise, video format can be changed from webpage and remote control shortcut. OSD menu won't
show "video format" item.

11
2.4 Main Features
AV-1563/1562 camera features advanced ISP processing algorithms to provide vivid images with a
strong sense of depth, high resolution and fantastic color rendition. It supports H.265/H.264 encoding
which makes motion video fluent and clear even under less-than-ideal bandwidth conditions.
Full HD resolution: 1/2.8-inch high-quality CMOS sensor. Resolution is up to 1920*1080 with a
frame rate up to 60 fps.
30x/20x optical zoom lens: with 65° (1563)/ 56° (1562) FOV without distortion.
Auto-focus technology: fast, accurate and stable auto-focus technology.
Low noise and high SNR: super high SNR achieved with low noise CMOS. Advanced 2D/3D
noise reduction technology further reduces the noise while ensuring image clarity.
Multiple video output interface options: HDMI, SDI, USB3.0, LAN. Simultaneously output
video signal via HDMI, SDI, USB3.0 and LAN. LAN supports POE, USB3.0 support dual stream
output, SDI output could be up to 1080P@60fps.
Multiple audio/video compression standards: support H.264/H.265 video compression, up to
1920×1080 resolution @60 fps; support AAC, MP3 and G.711A audio compression,
8000,16000,32000,44100,48000 sampling frequency.
Built-in gravity sensor: support PTZ auto-flip function and easy installation.
Multiple network protocols: support ONVIF, GB/T28181, RTSP, RTMP protocols; support
RTMP push mode，easy to be connected directly to streaming server (Wowza, FMS, etc.);
support RTP multicast mode.
Control interface: RS422 (compatible with RS485), RS232-IN, RS232-OUT for cascading.
Multiple control protocols: support VISCA, PELCO-D, PELCO-P, VISCA over IP and ONVIF
protocols.
Multiple presets: up to 255 presets (10 presets using remote control).
IR/Wireless remote control: users can choose IR remote control or wireless remote control via IP
according to different applications.
Versatile for applications: online-education, lecture capture, webcasting, video conferencing,
tele-medicine, etc.
2.5 Specifications
Camera Parameter
Optical Zoom
30X f4.3~129mm 20X f5.2-98mm
Sensor
1/2.8-inch high-quality HD CMOS sensor
Effective Pixels
16: 9, 2.07 megapixel
Video Format
HDMI/SDI/LAN video format
1080P60/50/30/25/59.94/59.97, 1080I60/50/59.94, 720P60/50/59.94/29.97
USB3.0 interface video format (up to 30fps)
To USB3.0: YUY2/MJPEG/NV12/H.264/265: 1920*1080, 1280*720, 1024*576, 960*540,
800*448, 720*480, 640*360, 640*480, 320*176
To USB2.0: YUY2/NV12: 1024*576, 960*540, 800*448, 720*480, 640*360, 640*480,
320*176; MJPEG/H.264/H.265: 1920*1080, 1280*720, 1024*576, 960*540, 800*448,
720*480, 640*360, 640*480, 320*176
View Angle
30x: 65° (W) ~ 2.34°(T); 20x: 56° (W)~3.2° (T)
AV
30x: F1.6 ~ F4.7; 20x: F1.5~F3.0
Digital Zoom
10x
Min Illumination
0.5Lux (F1.8, AGC ON)

12
DNR
2D & 3D DNR
White Balance
Auto / Manual/ One Push/ Specify color temperature (range: 2400k-7100k)
Focus/Aperture/
Electronic Shutter
Auto/Manual/One Push Focus
Iris
Auto/Manual
Shutter
Auto/Manual
BLC
ON/OFF
WDR
OFF/ Dynamic level adjustment
Video Adjustment
Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR
>50dB
Input/output Interface
Video Output
HDMI, SDI, LAN, USB3.0
Video Stream
Dual stream output
Video Compression
Format
LAN: H.265, H.264
USB3.0: YUY2, MJPEG, H.264, NV12, H.265
Audio Input Interface
Double track 3.5mm linear input
Audio Output Interface
HDMI, SDI, LAN
Audio Compression
Format
AAC/MP3/G.711A
Control Interface
RS232-IN, RS232-OUT, RS422
Control Protocol
VISCA/Pelco-D/Pelco-P, Baud Rate: 115200/38400/9600/4800/2400bps
Power Interface
HEC3800 outlet (DC12V)
Input Voltage
DC12V±10%
Input Electric Current
Maximum: 1A
Power Consumption
Maximum: 12W
Network Protocols
RTSP, RTMP, ONVIF, GB/T28181;
Network VISCA control protocol (VISCA over IP);
USB Communication
UVC (Video)
PTZ Parameter
Pan/Tilt Rotation
±170°, -30°~+90°
Pan Control Speed
0.1 - 100°/sec
Tilt Control Speed
0.1- 45°/sec
Preset Speed
Pan: 100°/sec, Tilt: 45°/sec
Preset Number
255 presets (10 presets via remote control)
Other Parameter
Stored Temperature
-10℃~+70℃
Storage Humidity
20%~95%
Working Temperature
-10℃~+50℃
Working Humidity
20%~80%
Dimension
7.1*4.5*5.9inch (181*115*149mm)
Weight
2.5lbs (1.15kg)

13

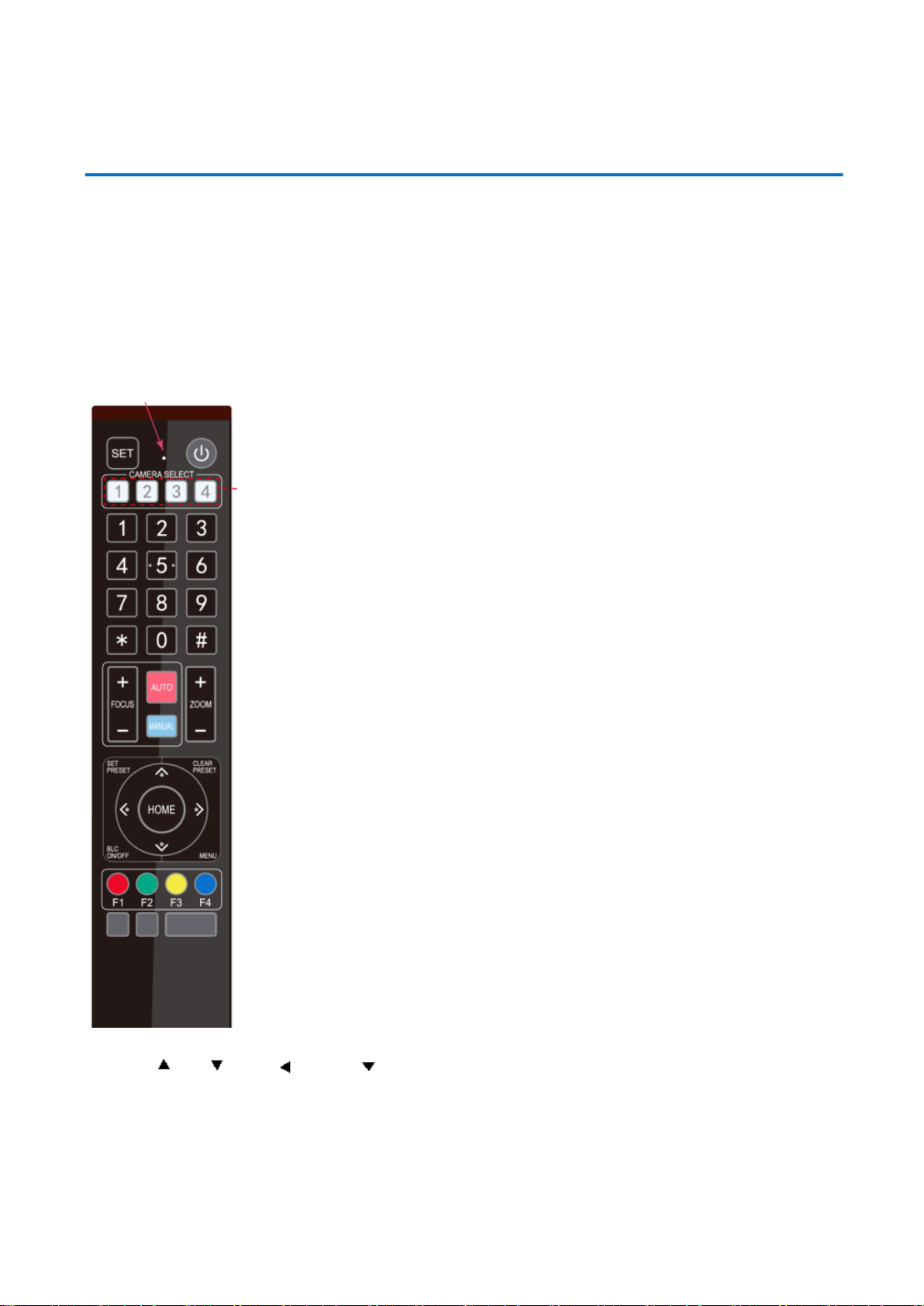

3. Remote Control
3.1 Functions for IR Remote Control
1). In this manual, “press the key” means a short press rather than a long-press and hold. A note will be
given if a long-press for more than one second is required.
2). When a key-combination is required, do it in sequence. For example 【*】+【#】+【F1】means
press 【*】first and then press【#】and lastly press【F1】.
1. Standby Button
Press this button and hold it for 3 secs to enter standby mode. The camera will
do self-testing and return back to 【HOME】position. (Note: If Preset 0 is set,
and with no operation for 12s, the camera will automatically turn to Preset
position 0.
2. Camera Address Selection
Press the camera address number to control the particular camera with the
address setting.
3. Number Keys
To set or call 0-9 presets.
4. *, #, Key Combination
To use as combination with 【F1-F4】to set camera address.
【*】+【#】+【F1】: Camera Address No.1
【*】+【#】+【F2】: Camera Address No. 2
【*】+【#】+【F3】: Camera Address No. 3
【*】+【#】+【F4】: Camera Address No. 4
5. Focus Control
【AUTO】: to enter auto focus mode.
【MANUAL】: to enter manual focus mode.
Switch the camera focus mode to manual by pressing FOCUS【+】or
FOCUS【-】to adjust.
6. Zoom Control
ZOOM【+】: Lens near; ZOOM【-】: Lens far
7. Set/ Clear Presets
【SET PRESET】+【0-9】number key: To set presets
【CLEAR PRESET】+【0-9】number key: To clear presets
8. Pan-Tilt Control Buttons
Press the Up, down, left and right buttons to adjust the camera position. Press 【HOME】
to return to the center position.
9. BLC Control
【BLC ON/OFF】: To turn on/off the back light.
10. Menu Settings

14
【MENU】: to open/ close the OSD menu; to enter/ exit the OSD menu, or to return to the previous
submenu.
11. Key Combination Functions
1) 【#】+【#】+【#】: Clear all presets
2) 【*】+【#】+【6】: Restore factory
defaults
3) 【*】+【#】+【9】: Flip switch
4) 【*】+【#】+【AUTO】: Enter the auto
mode
5) 【*】+【#】+【3】: Set language to Chinese
6) 【*】+【#】+【4】: Set language to
English
7) 【*】+【#】+【MANUAL】: Restore the
default user name, PSW and IP address
8) 【#】+【#】+【0】: Switch the video
format to 1080P60
9)【#】+【#】+【1】: Switch the video format
to 1080P50
10)【#】+【#】+【2】: Switch the video
format to 1080I60
11)【#】+【#】+【3】: Switch the video format
to 1080I50
12)【#】+【#】+【4】: Switch the video
format to 720P60
13)【#】+【#】+【5】: Switch the video format
to 720P50
14)【#】+【#】+【6】: Switch the video
format to 1080P30
15)【#】+【#】+【7】: Switch the video format
to 1080P25
16)【#】+【#】+【8】: Switch the video
format to 720P30
17)【#】+【#】+【9】: Switch the video format
to 720P25
3.2 Camera Menu
1. Menu Options
【MENU】: Enter /exit the OSD menu or return to the previous sub-menu
【HOME】:Enter the sub-menu
【↑】【↓】：Choose item
【←】【→】：Modify values
2. Menu Structure

- 2 -

15
4. Network Configuration
4.1 Network Connection
Direct connection: Connect the camera and computer via an Ethernet cable directly.
Internet connection mode: Connect the camera to Internet (via a Router or a Switch).
The computer must be assigned to the network segment where the camera IP address belongs to. The
device will not be accessible otherwise.
The camera’s default IP address is 192.168.5.163, and in this case, your computer’s IP must be
192.168.5.xxx.
Open “Network and Sharing Center”, select “Ethernet”, “Ethernet Status”, “Properties”. Double click
“Internet protocol version 4 (TCP/IPv4)”. In the TCP/IPv4 Properties window; select “Advanced” to
access TCP/IP settings. Set computer’s IP, subnet mask and default gateway accordingly. Click the
“Confirm” to finish the adding of IP segment. If you’re using a camera with default settings, the
recommended settings for your computer is:
IP: 192.168.5.160
Subnet mask: 255.255.255.0
Default gateway: 192.168.5.1
Note: please make sure the IP address to be added is not the same as any other device connected
to your computer.
To verify the network segment has been successfully added, click “Search”icon and input “cmd”.
Then click “Command Prompt” and open DOS command window. Ping 192.168.5.26 and press Enter
key to display information as shown below:
Connect the camera to your computer, power on. Open DOS command window, and ping
192.168.5.163, then press Enter key.

16
4.2 IE Login
1) Web Page Login
Input the default IP address 192.168.5.163 in the browser and click Enter. User can login as
administrator or as normal user. If login as administrator (Default User name/Password: admin), users
can preview, playback, and set configuration; If login in as normal user (Default User
name/Password:user1 or user2), users can only preview, playback, camera configurations cannot be
changed.
Note: Web access support IE and Chrome browsers.
2) Download and Install Plug in for IE login
First-time login: a pop-up message will show on the bottom of IE browser: “Playback plug-in is not
installed, please download and install!”. Click on this message, download and install
MRWebXinstall.exe following the information.
4.3 Video Encode
1). Video Stream Capture
Configurations -> Video Configure-> Video Encode

17
Configure the parameters according to the network settings.
Note: stream name live/av0 (live/ XXX)
For example:
The default IP address of the camera is 192.168.5.163. To obtain video via RTSP stream, please use
the URL below:
rtsp://192.168.5.163/live/av0（av0 main stream）
rtsp://192.168.5.163/live/av1（av1 sub stream）
2). Push Video Stream
Configurations -> Video Configure-> Stream Publish

18
To push RTMP stream to a server/ platform (public network), make sure the camera’s IP
configurations are set to be consistent with the public network, otherwise it will not connect to server
successfully. For connection details, please refer to: avipas.com-> SUPPORT -> HOW TO
MATERIALS -> How to live stream.
Host address: server address. Can be a domain name or an IP address
Host port: server default port number
Stream name: live/test (live/ XXX)
Username and password: you will find the username and password on your server, otherwise leave it
empty
Access URL：rtmp://host domain name: host port/live/xxx
Or (rtmp://host IP address: host port/live/xxx)
4.4 Software Upgrade
1). Log in to the web page to access camera settings.
2). Go to “Configurations” tab -> System Configure-> Update
