Avision 8 AM56 User manual

A3 Multi-Function Copier
Quick Start Guide
Avision Inc.

ii
Table of Contents
1. Removing the Box and Packing Material ..........................1
2. Removing the Tapes and Latch .........................................3
3. Install the Toner Cartridge ................................................. 4
4. Install the Developing Unit .................................................5
5. Install the Drum Unit...........................................................8

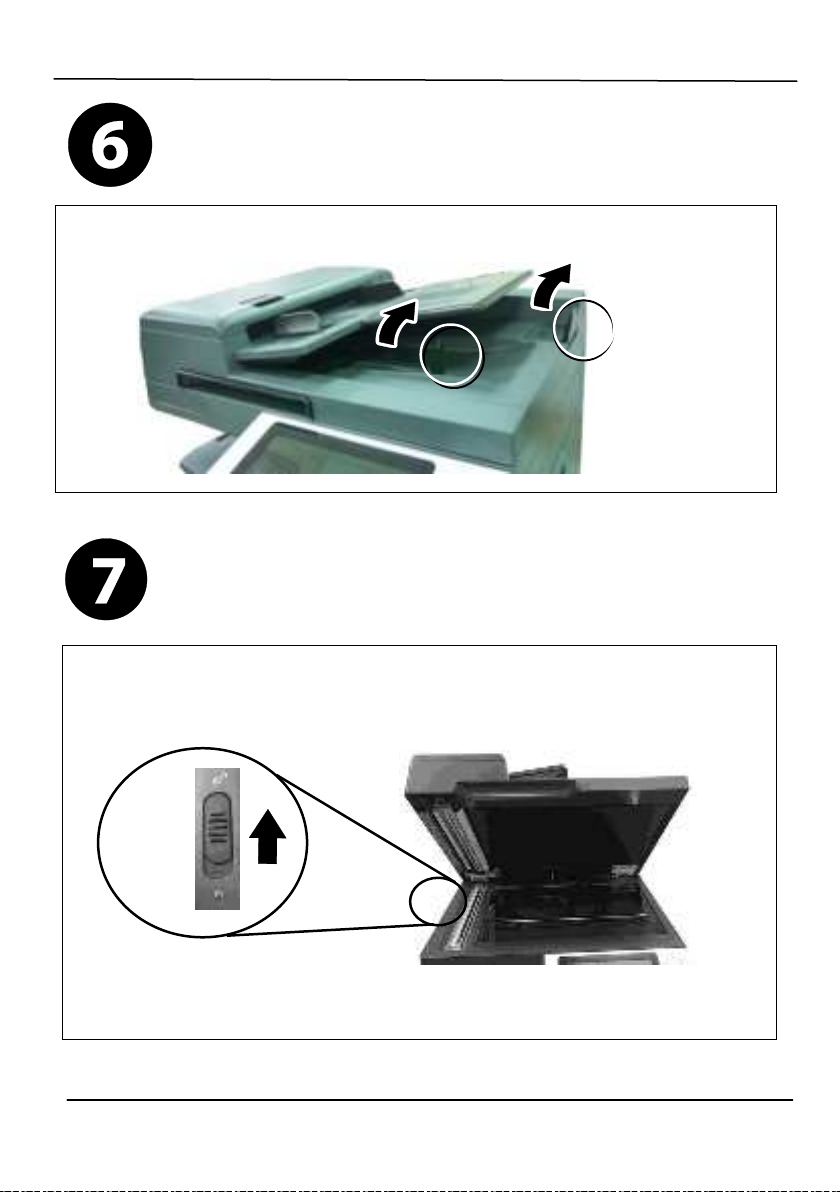

6. Raise the Paper Stopper ..................................................10
7. Releasing the Lock Switch............................................... 10

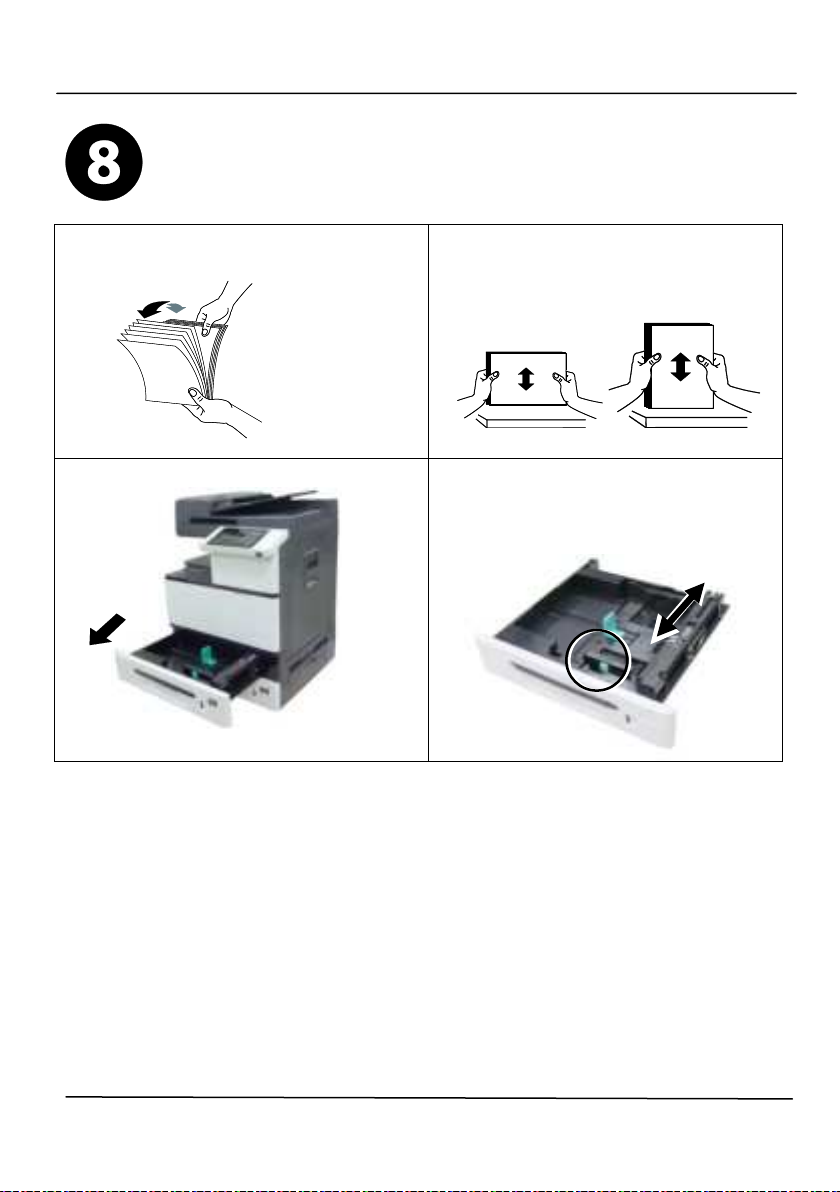

8. Load Paper into the Main Tray.........................................11
9. Connect to Power .............................................................14
10. Connect to a Wired Network ............................................14
11. Specify a Static IP Address.............................................. 15
12. Install the Printer Driver ...................................................16

1
Removing the Box and
Packing Material
1. Open the carton with a utility knife, and
then take out all the accessories
[including (1)Developing Unit, (2) Power
Cord/CD, (3) Drum Unit, (4)Toner
Cartridge, as shown in below:
2. Remove four box supports.
3. Remove all buckles on the sides of the
printer box.
4. Pull the printer box upward.
(1)
(3)
(4)
(2)

2
5. Check all items against the check list. If anything missing, contact your authorized
distributor.
No.
Item
Quantity
1
MFP main unit
1
2
Drum unit
1
3
Toner Cartridge
1
4
Developing unit
1
5
Power Cord
1
6
USB Cable
1
7
DVD-ROM (driver and manual)
1
8
Warranty Card
1
9
Quick Installation Guide（This Document)
1











3
Removing the Tapes and Latch
1. Pull down the manual tray and
remove the tape.
2. Pull the Paper Tray and remove the
tapes on the Tray.
3. Open Side Door and remove the tapes on the fuser.
4. Remove the Latch and its instruction sheet by pressing the bolt with one
hand and pulling the latch with the other hand as shown in below.

4
Install the Toner Cartridge
WARNING!
Be careful not to inhale toner.
To avoid print quality problems, DO NOT touch the toner rollers.
If toner gets on your clothing or other fabric, wipe off the toner with a dry
cloth. Wash the items in cold water and dry them in the shade.
To prevent the toner cartridge from damage, do not expose it more than
several minutes.
5. Open the front cover by pulling the
handle as shown.
6. Remove the package cushion and
tapes on the toner cartridge. Tilt the
toner cartridge up and down and then
right and left 10 times to distribute the
toner evenly inside the toner cartridge.
7. Hold the handle of the toner
cartridge and insert it to its proper
position as shown.
8. Close the front cover.

5
Install the Developing Unit
Caution!
To prevent damage to the Developing Unit, do not expose it to light for more
than a few minutes
1. Pull the handle down to open the Side
Door as shown.
2. Open the paper guide latch in a
clockwise direction, and then push the
paper guide up to fix the paper
guide.



6
3. Remove the tape, protective
film, and the plugson both
sides.
Important：Do not remove the
transparent plastic protective cover
on the surface of the developing
unit as shown in the figure to avoid
abnormal images。
4. Open the handle of the developing unit
and hold the handle with both hands,
as shown in the figure below.
5. Hold the handle with both hands, placing the front end of the developing unit to the
top of the rails on both sides , and then gently push the developing unit into the
machine along the rails . Make sure the handles are closed and left flat on the
surface of the developing unit as shown in below .







7
6. Pull down the latch of the paper guide
counterclockwise to restore the latch
of the paper guide to its original
status.
7. Close the Side Door and then the
Manual Tray as shown.

8

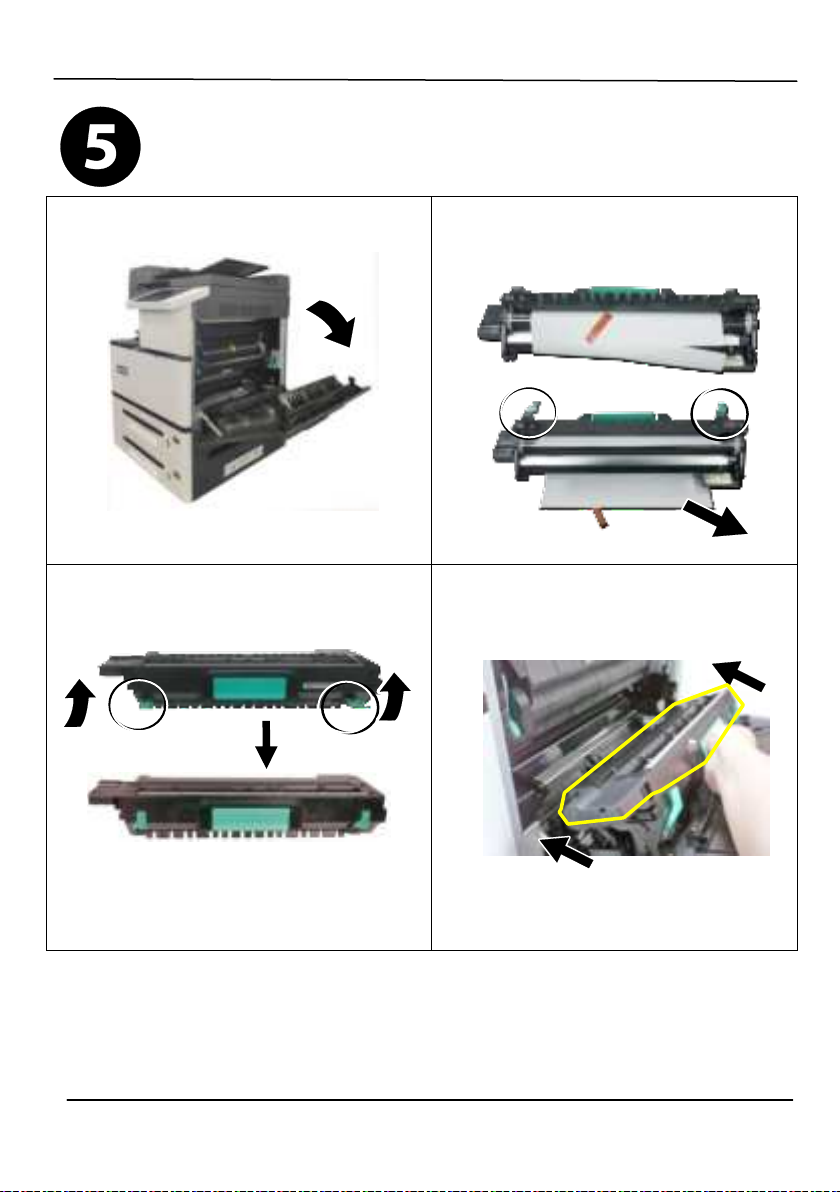

Install the Drum Unit
1. Open the side door by pulling the
handle as shown.
2. Remove the plastic bag, tape , and
then press down the Release Arms
to pull out the protective film .
3. Pull up the Release Arms on both
ends.
Note! To prevent damage to the
Developing Unit, do not expose it to light for
more than a few minutes.
4. Holding the handle of the Drum Unit,
insert the Drum Unit horizontally into
the slot along the top of the support
frame on both sides.




