Avitech Pacific C-A User manual

User Manual

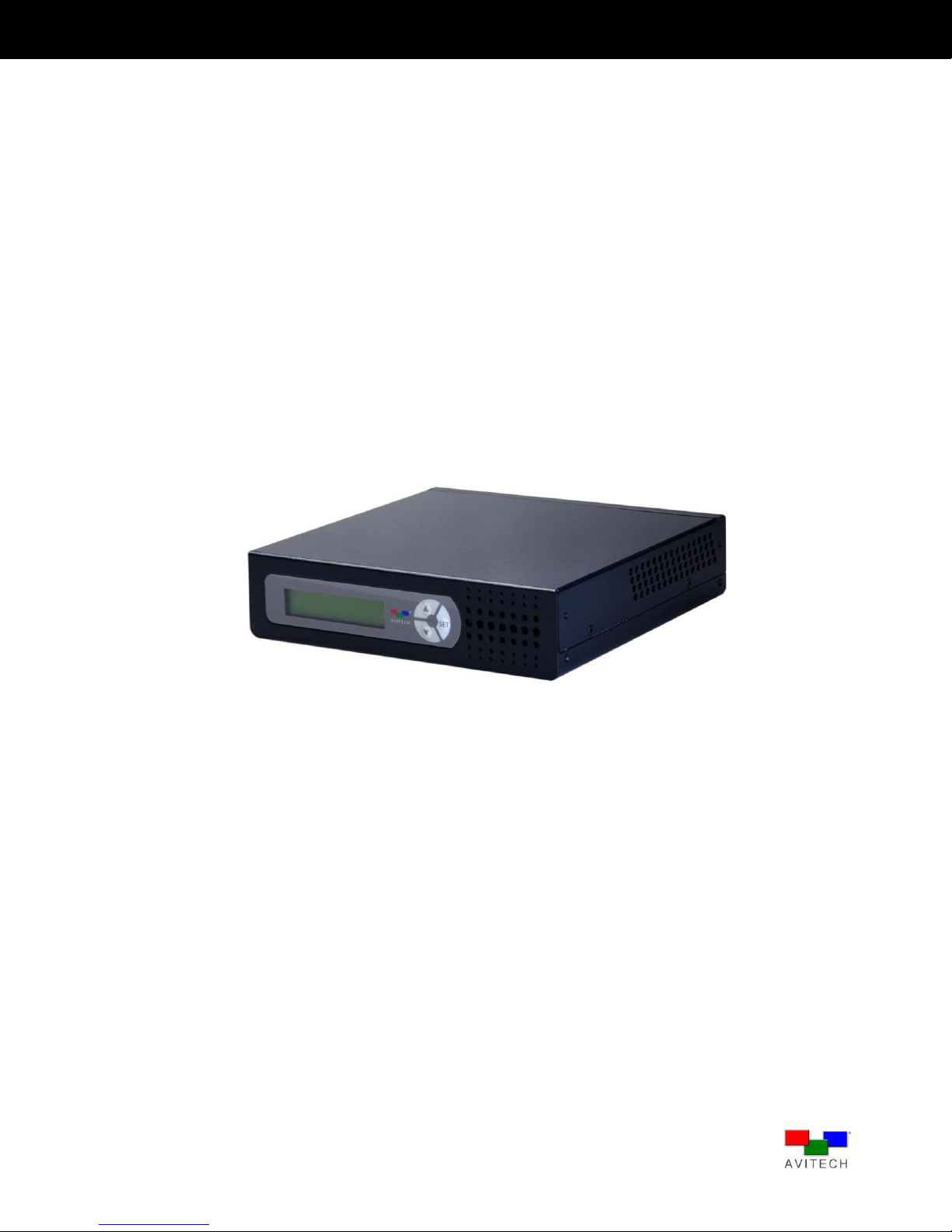

Pacific C-A / C-AG
All-in-one Converter box with Scaler
Revision 1.0.0, (May, 2014)

User Manual
ii
ABOUT THIS MANUAL
This manual contains information on using the Avitech Pacific C-A / C-AG all-in-one converter. There are 2 chapters
in this manual.
Getting Started introduces the features and specifications as well as external components of Pacific C-A /
C-AG.
System Configuration discusses the steps on using the LCD panel to set up Avitech Pacific C-A / C-AG, as
well as using the proprietary Avitech PacificConfig utility.
The following conventions are used to distinguish elements of text throughout the manual.
provides additional hints or information that require special attention.
identifies warnings which must be strictly followed.
Any name of a menu, command, icon or button on the screen is shown in a bold typeset. For example: On the Start
menu select Settings.
To assist us in making improvements to this user manual, we welcome any comments and constructive criticism.
Email us at: s[email protected].
WARNING
Do not attempt to disassemble the Pacific all-in-one converter module. Doing so may void the warranty. There are
no serviceable parts inside. Please refer all servicing to qualified personnel.
TRADEMARKS
All brands and product names are trademarks or registered trademarks of their respective companies.
COPYRIGHT
The information in this manual is subject to change without prior notice. No part of this document may be
reproduced or transmitted in any form or by any means, electronic or mechanical for any purpose, without the
express written permission of Avitech International Corporation. Avitech International Corporation may have
patents, patent applications, trademarks, copyrights or other intellectual property rights covering the subject matter
in this document. Except as expressly written by Avitech International Corporation, the furnishing of this document
does not provide any license to patents, trademarks, copyrights or other intellectual property of Avitech International
Corporation or any of its affiliates.
TECHNICAL SUPPORT
For any questions regarding the information provided in this guide, call our technical support help line at
425-885-3863, or our toll free help line at 1-877-AVI-TECH, or email us at: [email protected]

iii
Contents
About This Manual....................................................................................................................ii
Warranty.....................................................................................................................................v
Limitation of Liability................................................................................................................v
Extended Warranty Options.....................................................................................................v
Services and Repairs Outside the Warranty Period..............................................................v
Regulatory Information ............................................................................................................v
Federal Communications Commission (FCC) Statement.....................................................v
European Union CE Marking and Compliance Notices ........................................................v
Australia and New Zealand C-Tick Marking and Compliance Notice..................................v
1. Getting Started ............................................................................................................1
1.1 Package Contents..............................................................................................................1
1.2 Product Features ...............................................................................................................2
1.3 Specifications ....................................................................................................................3
1.4 Connections to the Pacific C-A / C-AG............................................................................6
2. System Configuration .................................................................................................8
2.1 Using the LCD Panel .........................................................................................................8
2.1.1 Welcome Screen ...................................................................................................8
2.1.2 Navigating the Main Menu....................................................................................9
2.2 Using the Avitech PacificConfig Utility.........................................................................16
2.2.1 PacificConfig Utility Control Panel....................................................................16
2.2.2 Using the PacificConfig Utility...........................................................................17
2.2.3 Status Information ..............................................................................................17
2.3 Using the Avitech ScreenCrop Utility............................................................................18
2.3.1 ScreenCrop Utility Control Panel ......................................................................19
2.3.2 Using the ScreenCrop Utility .............................................................................21
2.3.3 Status Information ..............................................................................................21
2.3.4 Cropping Feature ................................................................................................22
2.3.5 Cropped Instances Switching............................................................................23
2.3.6 Pan Anywhere......................................................................................................24
Appendix A Change the IP Address............................................................................25
Method 1: Change the IP Address of the Pacific C-A / C-AG / C-HSS / C-SHS.................25
Method 2: Change the IP Address of the Controlling Computer .......................................26
For Windows XP ..............................................................................................................26
For Windows 7 .................................................................................................................26
Output Resolutions.................................................................................................................27
Appendix B Resetting to the Factory-Default State....................................................28
Method 1 ..................................................................................................................................28

iv
Method 2 ..................................................................................................................................28

v
Warranty
Avitech International Corporation (herein after referred to as “Avitech”)
warrants to the original purchaser of the products manufactured in its
facility (the “Product”), that these products will be free from defects in
material and workmanship for a period of 1 year or 15 months from the
date of shipment of the Product to the purchaser. There is a 3 month
grace period between shipping and installation.
If the Product proves to be defective during the 1 year warranty period,
the purchaser’s exclusive remedy and Avitech’s sole obligation under
this warranty is expressly limited, at Avitech’s sole option, to:
(a) repairing the defective Product without charge for parts and labor;
or (b) providing a replacement in exchange for the defective Product;
or (c) if after a reasonable time is unable to correct the defect or
provide a replacement Product in good working order, then the
purchaser shall be entitled to recover damages subject to the limitation
of liability set forth below.
Limitation of Liability
Avitech’s liability under this warranty shall not exceed the purchase
price paid for the defective product. In no event shall Avitech be liable
for any incidental, special, or consequential damages, including
without limitation, loss of profits for any breach of this warranty.
If Avitech replaces the defective Product with a replacement Product
as provided under the terms of this Warranty, in no event will the term
of the warranty on the replacement Product exceed the number of
months remaining on the warranty covering the defective Product.
Equipment manufactured by other suppliers and supplied by Avitech
carries the respective manufacturer’s warranty. Avitech assumes no
warranty responsibility either expressed or implied for equipment
manufactured by others and supplied by Avitech.
This Warranty is in lieu of all other warranties expressed or implied,
including without limitation, any implied warranty of merchantability or
fitness for a particular purpose, all of which are expressly disclaimed.
This Hardware Warranty shall not apply to any defect, failure, or
damage: (a) caused by improper use of the Product or inadequate
maintenance and care of the Product; (b) resulting from attempts by
other than Avitech representatives to install, repair, or service the
Product; (c) caused by installation of the Product in a hostile operating
environment or connection of the Product to incompatible equipment;
or (d) caused by the modification of the Product or integration with
other products when the effect of such modification or integration
increases the time or difficulties of servicing the Product.
Any Product which fails under conditions other than those specifically
covered by the Hardware Warranty, will be repaired at the price of
parts and labor in effect at the time of repair. Such repairs are
warranted for a period of 90 days from date of reshipment to customer.
Extended Warranty Options
Avitech offers OPTIONAL Extended Warranty plans that provide
continuous coverage for the Product after the expiration of the
Warranty Period. Contact an Avitech sales representative for details
on the options that are available for the Avitech equipment.
Services and Repairs Outside the Warranty Period
Avitech makes its best offer to repair a product that is outside the
warranty period, provided the product has not reached its end of life
(EOL). The minimum charge for such repair excluding shipping and
handling is $200 (US dollars).
AVITECH INTERNATIONAL CORPORATION
● 15377 NE 90th Street Redmond, WA 98052 USA
● TOLL FREE 1 877 AVITECH
● PHONE [phone]
● FAX [phone]
●[e-mail]
● http://avitechvideo.com
Regulatory Information
Marking labels located on the exterior of the device indicate
regulations that the model complies with. Please check the marking
labels on the device and refer to the corresponding statements in this
chapter. Some notices apply to specific models only.
Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for
a Class A digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is
likely to cause harmful interference, in which case the user will be
required to correct the interference at his own expense. Properly
shielded and grounded cables and connectors must be used in order
to meet FCC emission limits. Avitech is not responsible for any radio or
television interference caused by using other than recommended
cables and connectors or by unauthorized changes or modifications to
this equipment. Unauthorized changes or modifications could void the
user's authority to operate the equipment. Operation is subject to the
following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
European Union CE Marking and Compliance Notices
Statements of Compliance
English
This product follows the provisions of the European Directive
1999/5/EC.
Dansk (Danish)
Dette produkt er i overensstemmelse med det europæiske direktiv
1999/5/EC.
Nederlands (Dutch)
Dit product is in navolging van de bepalingen van Europees Directief
1999/5/EC.
Suomi (Finnish)
Tämä tuote noudattaa EU-direktiivin 1999/5/EC määräyksiä.
Français (French)
Ce produit est conforme aux exigences de la Directive Européenne
1999/5/EC.
Deutsch (German)
Dieses Produkt entspricht den Bestimmungen der Europäischen
Richtlinie 1999/5/EC.
Ελληνικά (Greek)
To προϊόν αυτό πληροί τις προβλέψεις της Ευρωπαϊκής Οδηγίας
1999/5/EC.
Íslenska (Icelandic)
Þessi vara stenst reglugerð Evrópska Efnahags Bandalagsins númer
1999/5/EC.
Italiano (Italian)
Questo prodotto è conforme alla Direttiva Europea 1999/5/EC.
Norsk (Norwegian)
Dette produktet er i henhold til bestemmelsene i det europeiske
direktivet 1999/5/EC.
Português (Portuguese)
Este produto cumpre com as normas da Diretiva Européia 1999/5/EC.
Español (Spanish)
Este producto cumple con las normas del Directivo Europeo
1999/5/EC.
Svenska (Swedish)
Denna produkt har tillverkats i enlighet med EG-direktiv 1999/5/EC.
Australia and New Zealand C-Tick Marking and
Compliance Notice
Statement of Compliance
This product complies with Australia and New Zealand's standards for
radio interference.

1
1. Getting Started
The Pacific C-A / C-AG all-in-one Converter box allows conversion of input signals from HDMI/DVI/
VGA/YPbPr/CVBS (NTSC/PAL) and SDI (3G/HD/SD) to HDMI/DVI/VGA/YPbPr and SDI (3G/HD/SD)
output signals with scaling. A compact, stand-alone video converter, it is ideal for many professional
video conversion applications, including video production, conferencing, presentations, OB vans, post-
production, and television broadcasting. It provides automatic video input format detection and audio
monitoring, supports a wide variety of video resolutions, and is capable of simultaneous output of VGA,
DVI, HDMI, YPbPr and SDI signals.
This chapter introduces the features and specifications as well as external components of Avitech
Pacific C-A / C-AG.
1.1 Package Contents
Avitech Pacific C-A / C-AG
Utility Disc (software and user manual)
12 V DC 2.5 A Power Adapter
Magnetic Foot Stand with Screws (4 pcs)
DVI-I to VGA Adapter
D
DVI-I to YPbPr Adapter (optional)

2
Rack mount kit (optional)
D
Table 1-1 Package Contents
1.2 Product Features
The Pacific C-A / C-AG is capable of converting and scaling signals to a high quality HDMI/DVI/VGA/
YPbPr and SDI signals. It can sense the following input signals: HDMI/DVI/VGA/YPbPr/SDI (3G/HD/SD)
/CVBS (NTSC/PAL) automatically, then convert and scale them to the user-defined HDMI/DVI/VGA and
SDI/YPbPr signal. The Pacific is capable of simultaneous output of DVI, HDMI, and SDI signals with
most resolutions.* It also features a DVI-D LOOP OUT** port for connection to an external display for
monitoring of the signal entering the DVI-I IN port.
The Pacific C-A / C-AG also supports area of interest cropping through its LCD interface and through a
computer connected to the Pacific C-A / C-AG. Additionally, Avitech’s PacificConfig utility*** software
can monitor the broadcast output of all networked Pacific devices.
For television broadcast application, the Pacific C-A / C-AG supports the setting of safe area graticules,
genlock functions (Pacific C-AG) with timing offset controls, and the embedding of analog stereo audio
into the SDI/HDMI output with a user defined time delay. The Pacific also has audio monitoring
capabilities through a 1/8 inch stereo headphone jack (which can support up to 170ms of delay).
The LCD interface on the Pacific C-A / C-AG displays its operational status and input signal information.
The LCD interface also allows users to fully configure all the Pacific’s settings.
* See the Output Resolution Table in the Appendix of this manual for a complete list of resolutions.
** DVI-D loop out does not support analog source signals; VGA or YPbPr (through VGA or YPbPr to DVI
adapter).
*** Input port selection, output resolution, and device name and IP address adjustments are also supported
by the Avitech PacificConfig software.
Note: To comply with the HDCP license agreement, any source with HDCP encryption cannot be converted
to SDI.

3
1.3 Specifications
Input
SDI/CVBS
(BNC connector)
Automatic sensing SDI (3G/HD/SD) CVBS (NTSC/PAL):
NTSC/PAL
SD-SDI (SMPTE 259M): 525i60, 625i50
HD-SDI (SMPTE 292M): 720p25, 720p29.97, 720p30, 720p50,
720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60
3G-SDI (SMPTE 424M): 1080p23.98, 1080PsF24, 1080p25,
1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
HDMI
(HDMI type A)
Automatic sensing, the following input signals are supported:
640x480, 60Hz/75Hz
720×400, 70Hz
800x600, 50Hz/60Hz/75Hz
1024x768, 50Hz/60Hz/75Hz
1280x960, 50Hz/60Hz
1280x1024, 50Hz/60Hz/75Hz
1360x765, 50Hz/60Hz
1400x1080, 50Hz/60Hz
1600x1200, 50Hz/60Hz
1680x1050, 50Hz/60Hz
1920x1080, 50Hz/60Hz
1920x1200, 50Hz/60Hz
DVI-I
(DVI-I connector)
Automatic sensing, the following input signals are supported:
640x480, 60Hz/75Hz
720×400, 70Hz
800x600, 50Hz/60Hz/75Hz
1024x768, 50Hz/60Hz/75Hz
1280x960, 50Hz/60Hz
1280x1024, 50Hz/60Hz/75Hz
1360x765, 50Hz/60Hz
1400x1080, 50Hz/60Hz
1600x1200, 50Hz/60Hz
1680x1050, 50Hz/60Hz
1920x1080, 50Hz/60Hz
1920x1200, 50Hz/60Hz
VGA/YPbPr
(through adapter)
Automatic sensing, through adapter in DVI-I IN port; input signals
supported:
800x600, 50Hz/60Hz
1024x768, 50Hz/60Hz
1280x960, 50Hz/60Hz
1280x1024, 50Hz/60Hz
1360x765, 50Hz/60Hz
1400x1080, 50Hz/60Hz
1600x1200, 50Hz/60Hz
1680x1050, 50Hz/60Hz
1920x1080, 50Hz/60Hz
1920x1200, 50Hz/60Hz
If the refresh rate is not 60Hz, the image could become out of alignment.
In this case, use the “VGA Adjustment” feature to realign. “H START, V
START, WIDTH, HEIGHT, and H TOTAL”(through LCD interface).
Genlock
(BNC connector)
Frame synchronizer (Ref IN port)
Note: Port is not available for the Pacific C-A model without genlock
feature.
Audio
(Phono jack)
Analog audio (AUDIO IN port, stereo)
AES/EBU (embedded)

4
Input
Ethernet
(RJ45 connector)
For connecting to a computer and using Avitech PacificConfig utility or
performing advanced operations (IP port).
Output
SDI
(BNC connector)
User configurable (support SMPTE 259M, 292M, and 424M at YCbCr
4:2:2/4:4:4 or RGB 4:4:4, 10-/12-bit):
SD-SDI: 487i59.94, 576i50
HD-SDI: 720p23.98, 720p24, 720p25, 720p29.97, 720p30,
720p50, 720p59.94, 720p60, 1080PsF23.98, 1080PsF24,
1080i50, 1080i59.94, 1080i60
3G-SDI: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,
1080p50, 1080p59.94, 1080p60
User configurable (support SMPTE 425M at XYZ 4:4:4 or RGB 4:4:4,
12-bit):
3G-SDI: 2048p23.98, 2048p24
SDI Embedded Audio (SDI OUT port)
Note: For models (Pacific C-A) without genlock feature (no Ref IN port);
the following refresh rates are not supported 23.98, 29.97 and 59.94Hz.
YPbPr
(DVI-I connector)
User configurable:
480i59.94
576i50
720p50, 720p59.94, 720p60
1080PsF23.98, 1080PsF24
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50,
1080p59.94, 1080p60
Note: For models (Pacific C-A) without genlock feature (no Ref IN port);
the following refresh rates are not supported 23.98, 29.97 and 59.94Hz.
HDMI
(HDMI type A)
User configurable:
800x600, 50Hz/60Hz/75Hz
1024x768, 50Hz/60Hz/75Hz
1280x720, 50Hz/60Hz/75Hz
1280x768, 50Hz/60Hz/75Hz
1280x1024, 50Hz/60Hz/75Hz
1360x768, 50Hz/60Hz/75Hz
1400x1050, 50Hz/60Hz/75Hz
1440x900, 50Hz/60Hz/75Hz
1600x1200, 50Hz/60Hz/75Hz
1680x1050,50Hz/60Hz/75Hz
1920x1080, 50Hz/60Hz
DVI-I
(DVI-I connector)
User configurable:
640x480, 60Hz
800x600, 50Hz/60Hz/75Hz
1024x768, 50Hz/60Hz/75Hz
1280x720, 50Hz/60Hz/75Hz
1280x768, 50Hz/60Hz/75Hz
1280x1024, 50Hz/60Hz/75Hz
1360x768, 50Hz/60Hz/75Hz
1400x1050, 50Hz/60Hz/75Hz
1440x900, 50Hz/60Hz/75Hz
1600x1200, 50Hz/60Hz/75Hz
1680x1050,50Hz/60Hz/75Hz
1920x1080, 50Hz/60Hz
1920x1200, 50Hz/60Hz

5
Output
VGA
(DVI-I connector)
User configurable:
640x480, 60Hz
800x600, 50Hz/60Hz/75Hz
1024x768, 50Hz/60Hz/75Hz
1280x720, 50Hz/60Hz/75Hz
1280x768, 50Hz/60Hz/75Hz
1280x1024, 50Hz/60Hz/75Hz
1360x768, 50Hz/60Hz/75Hz
1400x1050, 50Hz/60Hz/75Hz
1440x900, 50Hz/60Hz/75Hz
1600x1200, 50Hz/60Hz/75Hz
1680x1050,50Hz/60Hz/75Hz
1920x1080, 50Hz/60Hz
1920x1200, 50Hz/60Hz
DVI-D Loopout
(DVI-D connector)
Looping output of the DVI-I input (non-configurable and not available for
VGA or YPbPr signal through DVI adapter):
640x480, 60Hz/75Hz
720×400, 70Hz
800x600, 50Hz/60Hz/75Hz
1024x768, 50Hz/60Hz/75Hz
1280x960, 50Hz/60Hz
1280x1024, 50Hz/60Hz/75Hz
1360x765, 50Hz/60Hz
1400x1080, 50Hz/60Hz
1600x1200, 50Hz/60Hz
1680x1050, 50Hz/60Hz
1920x1080, 50Hz/60Hz
1920x1200, 50Hz/60Hz
Audio
(Headphone jack)
Analog Audio (audio out port)
Stereo
Others
Power
Power consumption is 15 W maximum
Input (AC): 100 to 250 V
Output (DC): 12 V adapter
Dimensions/
Weight
Dimensions: 174×172×43 mm (6.85×6.77×1.69 inch)
Weight: 740 g (1.63 lb)
Environment/
Safety
Temperature:
Operating: 0  C (32  F) to 40  C (104  F)
Storage: –10  C (14  F) to 50  C (122  F)
Humidity: 0% to 80% relative, non-condensing
Safety: FCC/CE/C-Tick/Class A
Table 1-2 Specifications

6
1.4 Connections to the Pacific C-A / C-AG

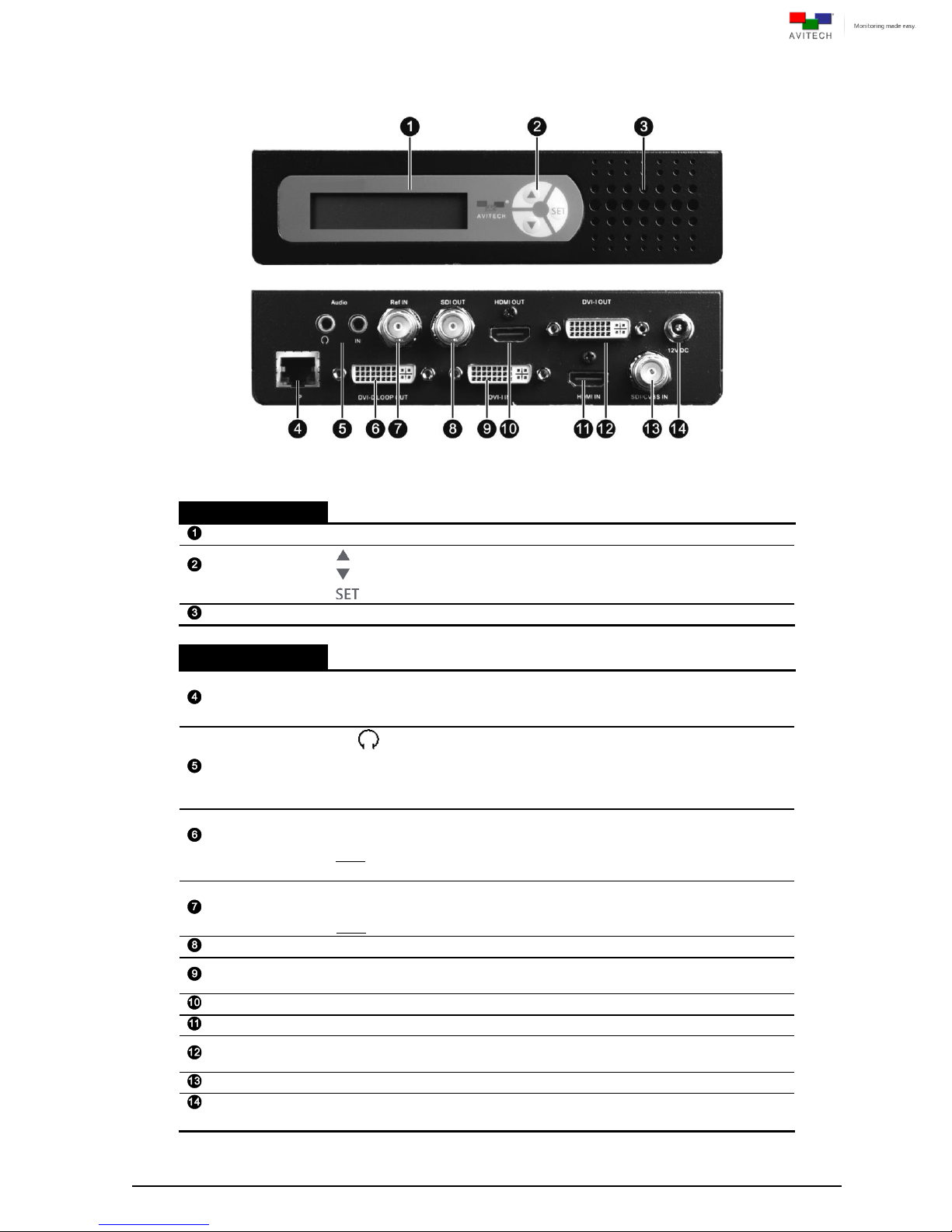

Figure 1-1 Pacific C-A / C-AG Components
Front Panel
LCD Panel
Displays the configuration and control parameters
Control
Buttons
Go to previous selection
Go to next selection
Enters next menu level or select item
System Fan
Contains the system fan*
Rear Panel
Ethernet (IP)
Allows a computer to control the Pacific C-A / C-AG through a network
connection through an Ethernet cable.
(use with Avitech’s PacificConfig utility software)
Audio In/Out

Connects to the green connector for headphone function (stereo)
IN
Connects to the pink connector for analog audio input
DVI-D LOOP
OUT
DVI connector for DVI video out loop (output signal coming from DVI-I IN
port only)**
Note: Often used for preview when the connected desktop computer is
only capable of supporting a single display output
Ref IN
Multi-format sync reference input (YPbPr/NTSC/PAL) for genlock function
(frame synchronizer)
Note: Port is not available for model (Pacific C-A) without genlock feature.
SDI OUT
BNC connector supports SDI (3G/HD/SD) signal output
DVI-I IN
DVI connector for DVI/VGA/YPbPr input sources (a DVI to VGA adapter
or DVI to YPbPr adapter may be required)
HDMI OUT
Connects to the monitor’s HDMI signal cable
HDMI IN
HDMI connector for HDMI input source***
DVI-I OUT
Connects to the monitor’s DVI / YPbPr and VGA (through adapter) signal
cable
SDI/CVBS IN
BNC connector for SDI (3G/HD/SD) / CVBS (NTSC/PAL) video sources
Power
(DC 12V)
Connects to the 12 V DC power adapter
Table 1-3 Pacific C-A / C-AG Component Description

7
* Do not cover or block the ventilation openings.
** DVI-D loop out does not support analog source signals; VGA or YPbPr (through VGA or
YPbPr to DVI adapter).
***To comply with the HDCP license agreement, any source with HDCP encryption cannot be converted to
SDI.

8
2. System Configuration
This chapter discusses the process of using the LCD panel to set up the Pacific C-A / C-AG, as well as
instructions on how to use the Avitech PacificConfig utility software.
2.1 Using the LCD Panel
The LCD panel allows for control of the Pacific C-A / C-AG including features such as input/output signal
adjustments, video cropping, keying/overlay, aspect ratio adjustments and operational status reports.
The LCD panel consists of 3 buttons:
Go to previous selection (up arrow button)
Go to next selection (down arrow button)
Enter the next level of a menu, or select the currently highlighted item.

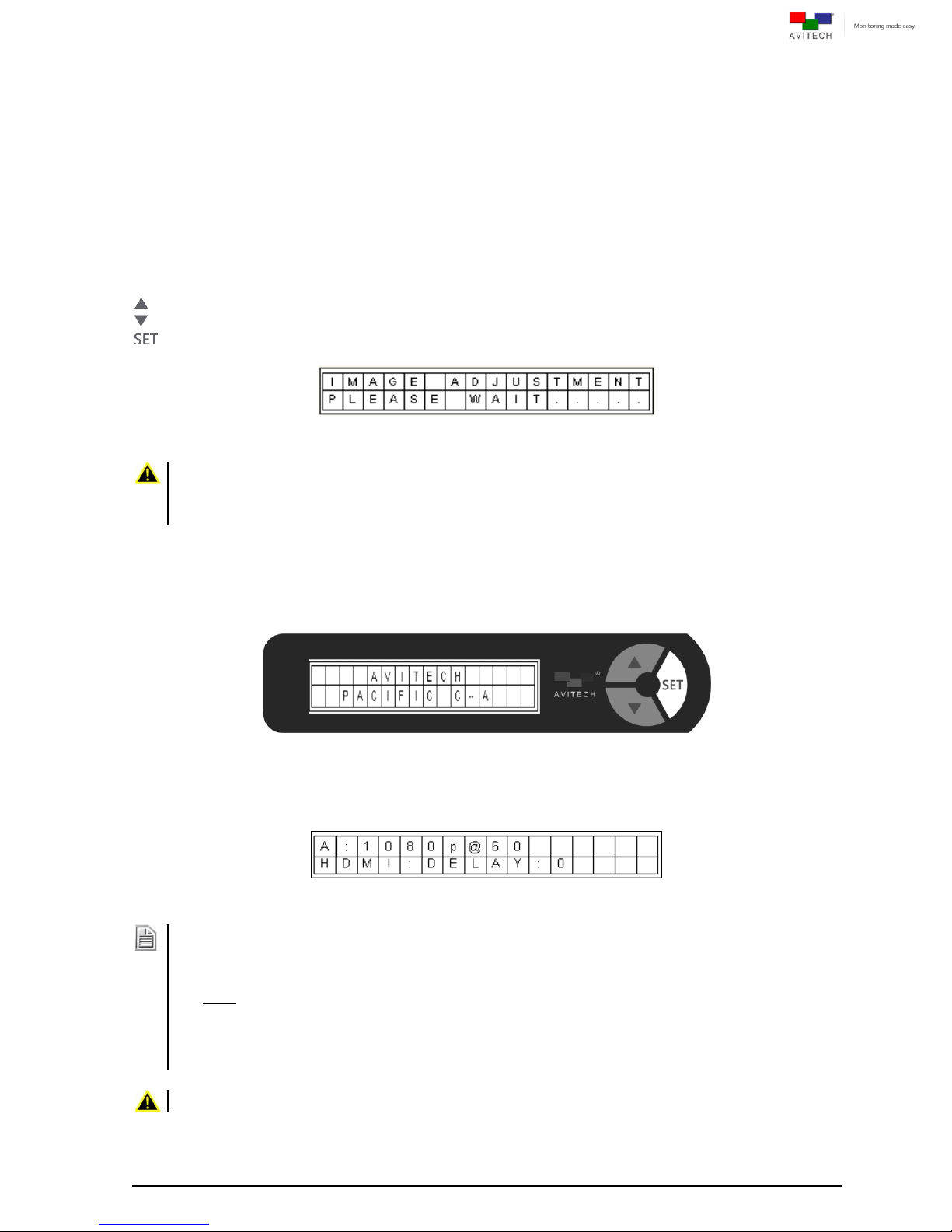

Figure 2-1 LCD Panel: Busy State
1. When the busy state “PLEASE WAIT . . . .” message is displayed on the LCD panel (see sample
screen above), DO NOT disconnect or connect any signal cables as a fault may occur.
2. Also, DO NOT change any of the incoming signal’s display resolutions while the Pacific C-A / C-AG is in
the busy state.
2.1.1 Welcome Screen
Upon starting up the LCD panel, the welcome screen is shown for about 15 seconds.
Figure 2-2 LCD Panel: Welcome Screen
Then the following default screen is displayed.
Figure 2-3 LCD Panel: Default Initial Screen
This screen displays the unit’s default settings.
1. First line (video): Automatically selects the input signal in the following order (firstly CVBS, SDI, YPbPr,
VGA, DVI, and lastly HDMI) when more than one signal type is detected.
Then, outputs it at 1080p @ 60Hz.
Note: Due to the screen display size constraint, (A:AUTO, H:HDMI, V:VGA, Y:YPbPr, S:SDI, D:DVI).
2. Second line (audio): The default audio signal source is set at “Follow Video” (e.g., HDMI). The audio
feature allows the selection of an audio signal source (Follow Video, HDMI, SDI, LINE IN). By default
the audio time delay is set to: 0(no audio delay). The Pacific C-A / C-AG supports up to 170ms of time
delay.
Settings made through the LCD panel will be saved automatically upon powering off the Pacific.

9
2.1.2 Navigating the Main Menu
1. Press the button from the default initial screen to enter the main menu.
2. Use the buttons on the front panel to navigate: ( / / )
3. There are a number of tables below, each detailing an item on the main menu (Input Port,
Output Port… etc.) Within each table is listed the choices that can be made within each item.
Input Port
Autoscan
On: enables the signal automatic detection feature.
Off: selects the signal manually.
Source:
HDMI
DVI
VGA
YPbPr
SDI
Exit
Exits the input signal setup menu.
Table 2-1 Input Port
If selecting the signal manually, make sure to select the correct signal type based on the actual connected
input signal to the Pacific C-A / C-AG to avoid image display problems (e.g., noise, flicker, etc.).
Output Port
SDI Enable
On: enables SDI out feature (default setting).
Off: disables SDI out feature.
YPbPr Enable
On: enables YPbPr out feature.
Off: disables YPbPr out feature (default setting).
Note: Make sure to select “Off”when outputting VGA signal on “DVI-I
OUT”port (through DVI-I to VGA adapter) to avoid a color display
problem.
Standard
SMPTE: select this for SDI/YPbPr output.
VESA: select this for HDMI/DVI/VGA output.
Output Timing
For SMPTE standard, select the following output signal.
2048p @ 23.98, 24 (Hz)
1080p @ 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (Hz)
1080i @ 50, 59.94, 60 (Hz)
1080PsF @ 23.98, 24 (Hz)
720p @ 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (Hz)
SD_625 (576i @ 50 Hz)
SD_525 (487i @ 59.94 Hz)
For VESA standard, select the following output signal.
1920x1200 @ 50, 60 (Hz)
1920x1080 @ 50, 60 (Hz)
1680x1050 @ 50, 60, 75 (Hz)
1600x1200 @ 50, 60, 75 (Hz)
1440x900 @ 50, 60, 75 (Hz)
1400x1050 @ 50, 60, 75 (Hz)
1360x768 @ 50, 60, 75 (Hz)
1280x1024 @ 50, 60, 75 (Hz)
1280x768 @ 50, 60, 75 (Hz)
1280x720 @ 50, 60, 75 (Hz)
1024x768 @ 50, 60, 75 (Hz)
800x600 @ 50, 60, 75 (Hz)
640x480 @ 60 (Hz)
Note: For models (Pacific C-A) without the genlock feature (no Ref IN
port); 23.98, 29.97 and 59.94Hz refresh rates are not supported.

10
Output Port
Exit
Exits the output signal setup menu.
Table 2-2 Output Port
Map Structure
Status
Selects the desired “sampling structure/pixel depth” based on output
signal’s “image format” and “frame/field rate.”
YCbCr422  10-bit  425M Level A/B
425M Level B is only available for 1080p@50, 1080p@59.94,
1080p@60, [email protected], 2048p@24 (Hz)
YCbCr444  10-bit  425M Level A
RGB444  12-bit  425M Level A/B
XYZ444  12-bit  425M Level A/B
Exit
Exits the map structure setup menu.
Table 2-3 Map Structure
1. Map structure is not available when “OUTPUT PORT”  ”STANDARD”  is set at “VESA.”
2. Map structure is locked at YCbCr422 when output resolution is at SD_525, SD_625, 1080p@50,
1080p@59.94, 1080p@60 (Hz).
3. Map structure can only be RGB444 or XYZ444 when output resolution is at 2048p@23.98, 2048p@24
(Hz).
OSD
(on screen display)
Color Bar
On: enables the color bar and current pattern select feature. The color bar
can only be turned on when there is no input signal. (default setting is On)
COLOR BAR
2×2 CROSSHATCH
Off: disables the display of the color bar.
Exit
Exits the OSD setup menu.
Table 2-4 OSD
The color bar feature is a pattern generator for showing a signal when there is no input signal. It can be
utilized as test pattern (input signal) for self testing or verification for other devices.
Adjustment
Status
The input port currently selected is displayed as follows, (Input Port: VGA,
Input Port: CVBS, etc.) If the selected input is digital such as SDI, DVI, or HDMI
then the “VGA Adjustment”and “CVBS/YPbPr Adjustment”portions of the
image adjustment menu are not available. With digital signals use the (“Image
Adjustment”/ “Parameter”) portion of the menu.
When the selected input signal is VGA, CVBS, or YPbPr, the “VGA
Adjustment”and “CVBS/YPbPr Adjustment”portions of the “Image
Adjustment”menu are available.
Auto-detect (firstly CVBS, SDI, YPbPr, VGA, DVI, and lastly HDMI)
VGA Adjustment: this feature is designed to adjust an analog VGA
signal that may be misaligned or off-color due to a long cabling
situation.
Note: Only available when the signal is VGA.
DEFAULT
HSTART (horizontal starting position)
WIDTH (horizontal “active area”)
VSTART (vertical starting position)

11
Adjustment
HEIGHT (vertical “active area”)
HTOTAL (horizontal total) ****(refer to the figure below)
Make sure the value of HSTART added to the value of WIDTH does
not exceed HTOTAL.
Note: V TOTAL: (vertical total) ****(refer to the figure below)
Make sure the value of VSTART added to the value of HEIGHT
does not exceed V TOTAL.
REDGAIN
GREENGAIN
BLUEGAIN
AUTO ADJUST (performs automatic alignment of VGA image
inside the window)
AUTO GAIN (performs automatic gain adjustment by correcting the
color values)
CVBS/YPbPr Adjustment: this feature is designed to adjust a CVBS or
YPbPr misaligned or color-off signal due to a long cabling situation.
Note: Only available when the signal is CVBS or YPbPr.
DEFAULT
HSTART (horizontal starting position)
WIDTH (horizontal “active area”)
VSTART (vertical starting position)
HEIGHT (vertical “active area”)
HTOTAL (horizontal total) ****(refer to the figure above)
Make sure the value of HSTART added to the value of WIDTH does
not exceed HTOTAL.
Note: V TOTAL: (vertical total) ****(refer to the figure above)
Make sure the value of VSTART added to the value of HEIGHT
does not exceed V TOTAL.
Parameter:
LAMBDA (only available when output signal is set at
[email protected], 2048p@24 and Map Structure is set at XYZ444) *
BRIGHTNESS
CONTRAST
SHARPNESS
SATURATION (only available when signal is non-RGB; or HDMI
YCbCr422 / interlaced. It can only be set for YUV color space.)
HUE (only available when signal is non-RGB; or HDMI YCbCr422 /
interlaced. It can only be set for YUV color space.)
DEFAULT
Exit
Exits the image adjustment setup menu.
Table 2-5 Image Adjustment

12
1. Image misalignment is most likely to occur with VGA signals in the 50Hz timing frequency range and
the less commonly used resolutions in the 60Hz timing frequency range.
a) When switching between VGA resolution signals that have timing frequencies (horizontal and vertical
frequency, vertical total) that are very similar, image misalignment may occur.
b) e.g., 1280×1024 60Hz change to 1400×1050 60Hz (adjust HSTART/VSTART/WIDTH/HEIGHT) back
to 1280×1024 60Hz (since the timing frequency is very near that of 1400×1050 60Hz, adjust
HSTART/VSTART/WIDTH/HEIGHT for 1280×1024 60Hz again to prevent image misalignment).
2. Depending on the signal type, SATURATION and HUE can only be set for YUV color space.
a) YUV is a color space typically used as part of a color image pipeline. Taking human perception into
account, YUV encodes a color image or video, allowing reduced bandwidth for chrominance
components. This typically masks transmission errors or compression artifacts more efficiently than
using a "direct" RGB-representation.
b) When the HDMI signal is transmitted under YCbCr422 color space (set from HDMI device itself),
Pacific C-A / C-AG will enable the SATURATION and HUE function in IMAGE PARAMETER menu. If
the HDMI signal is under YCbCr444 color space, the SATURATION and HUE functions will be
disabled.
*

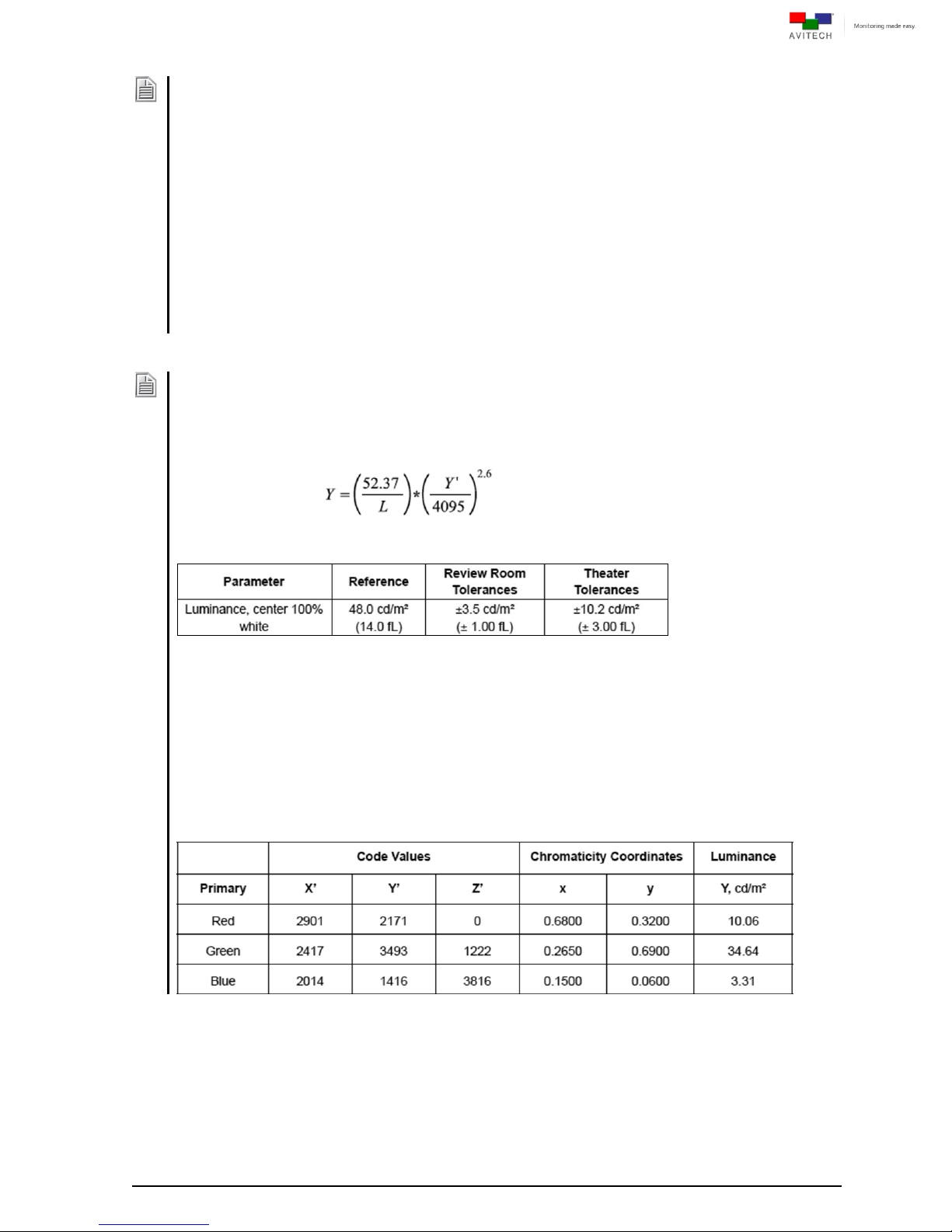

In compliance with ST 431-1:2006 (SMPTE standard that specifies the absolute luminance level, white
point chromaticity, and luminance uniformity of the reflected screen light for the presentation of motion
pictures by projectors with digital light engines in review rooms and commercial cinemas. The purpose of
this specification is to achieve the tone scale and contrast in the projected image that will correspond to that
intended during the mastering process), this item allows the adjustment of the “L”value in the decoding
equation for luminance: where Y’ is the DCDM (Digital Cinema Distribution
Master) code value for luminance, Y is luminance, and L is 48.0.
The following “white luminance value”table includes the value for (Parameter), (Reference), (Review Room
Tolerances), and (Theater Tolerances).
MAKE SURE that 48.0 cd/m2is the basis (Reference) for the adjustment, then use the “Lambda”item in the
LCD panel (–10 to 10) to adjust the Theater Tolerance.
Reference: The desired parameter level or value. This is the value relative to defined tolerances.
Review Room: A theater in which critical image decisions are made.
Theater: A facility in which a paying customer views the images.
The projector should be set-up and run according to the manufacturer’s specifications. For these
measurements, the projector must be turned on and allowed to stabilize for at least 20 minutes before any
measurements are taken. Theroom lights in thetheater should be turned off (except for lighting provided for
safety reasons), in order to equal the normal theater operating conditions. The projector must receive
images defined by the X’Y’Z’ code values (refer to the next table; the last column when added up
corresponds to the “L” value of approximately 48.0).

13
Crop Image
Status
On: adjusts the crop area and location.
LEFT: sets the horizontal starting point.
TOP: sets the vertical starting point.
RIGHT: sets the horizontal ending point.
BOTTOM: sets the vertical ending point.
DEFAULT
Off: disables the crop image feature.
Exit
Exits the crop image setup menu.
Table 2-6 Crop Image
1. The CROP IMAGE feature will be turned Off when KEYING feature is enabled.
2. Make sure the difference in value between LEFT and RIGHT is not less than 20%
(e.g., LEFT = 80.0% RIGHT = 100.0%). Likewise, the difference in value between TOP and
BOTTOM must not be less than 20% (e.g., TOP = 80.0% BOTTOM = 100.0%). Put simply, the
smallest crop size that is valid is 20% the total height by 20% the total width.
Aspect Ratio
Status
On: sets the display’s aspect ratio.
4:3
16:9
AUTO
CUSTOM
1to 20 for width ratio : 1to 20 for height ratio.
Off: disables the aspect ratio detect feature.
Exit
Exits the aspect ratio setup menu.
Table 2-7 Aspect Ratio
1. The ASPECT RATIO feature will be turned Off when KEYING feature is enabled.
2. When the width is greater than the height, the width cannot be more than 6 times the value of the
height. (6:1 ratio)
3. Likewise, when the height is greater than the width, the height cannot be more than 6 times the
value of the width. (1:6 ratio)
Keying (Overlay)
Status
On: This superimposes the inputted computer image on top of an existing
video signal. This feature works best with green screens and virtual sets.
CROP IMAGE: set the crop area parameters.
OUTPUT WINDOW: set output video range.
BACKGROUND COLOR: set background color range (RGB)
DEFAULT
Off: disables the keying feature.
Exit
Exits the keying setup menu.
Table 2-8 Keying
The KEYING feature will be turned Off when the CROP IMAGE or ASPECT RATIO features are enabled.
Color Correct(ion)
Status
On: enables the color correction feature.
Off: disables the color correction feature.
Exit
Exits the color correction setup menu.
Table 2-9 Color Correction

14
1. This function is applicable for 1080p input signal only.
2. When the Pacific C-A / C-AG (SDI OUT) is connected to the Pacific C-SHS (SDI IN), make sure that the
Pacific C-A / C-AG’s COLOR CORRECT function is enabled (set On) and the Pacific C-SHS’s COLOR
CORRECT function is disabled (set Off) to allow the embedded color corrected signal to pass through.
Genlock
Status
On: This feature in the Pacific C-AG synchronizes the video sources
(Signals from DVI-I IN, SDI/CVBS IN, and HDMI IN ports will be
synchronized with the Ref IN port signal).
GENLOCK OUTPUT: refer to table 2-11 for more details on
supported output standard.
TIMING OFFSET: sets the delay lines.
for SD 525 signal up to 524 delay lines
for SD 625 signal up to 624 delay lines
for 720p signal up to 749 delay lines
for 1080p or 1080i or 2048p signal up to 1124 delay lines
Off: disables the genlock feature.
Exit
Exits the genlock setup menu.
Table 2-10 Genlock
1. For models (Pacific C-A) without the genlock feature, this item is not available for configuration.
2. Genlock feature is not available when “OUTPUT PORT”  ”STANDARD” is set to “VESA.”
3. The genlock feature requires a sync reference signal entering the Ref IN port. Changing or
disconnecting the sync reference will cause the Pacific to automatically turn off genlock.
Table 2-11 Genlock Output

15
Headphone
Status
Enables audio output through headphones.
SOURCE: selects from the available 4 source channels.
CH1, CH2, CH3, CH4
MIX MODE: selects the left/right/both channels.
LCH, RCH, R/L
VOLUME: adjusts the volume.
1up to 127 (level –Each press of the button moves one
cursor position to the right. A long press of button accepts
the value entered).
Exit
Exits the headphone setup menu.
Table 2-12 Headphone
Audio
Status
On: enables the audio output.
SOURCE: selects the audio source.
HDMI
LINE IN
SDI
DELAY: sets the delay times.
0to 170ms, sample rate at 48kHz (Each press of the
button moves one cursor position to the right. A long press of
button accepts the value entered).
FOLLOW VIDEO: enables (On) auto switching of audio source to
selected video source.
Off: disables the audio output.
Exit
Exits the audio setup menu.
Table 2-13 Audio
Setup
Backlight
On: enables the LCD panel's backlight.
Off: disables the LCD panel's backlight.
Contrast
Sets the LCD panel's contrast from 0to 16.
Idle Time
On: scrolling text (conversion format and related frame rate) will appear
when the LCD panel of Pacific C-A / C-AG is idle.
15 mins
30 mins
45 mins
60 mins
Off: disables the scrolling text feature.
Reset
On: resets to default setting, system reboot is required.
Off: keeps present setting.
BIOS Version
Shows the current firmware version for reference.
IP Address
Allows user to modify the IP ADDRESS, SUBNET MASK, and
GATEWAY based on their Ethernet environment.
Note: Each press of the button moves one cursor position to the right.
A long press of button accepts the value entered.
Exit
Exits the setup menu.
Table 2-14 Setup
