AVMATRIX TS3019 User manual

WIRELESS TALLY SYSTEM

USING THE UNIT SAFELY
Before using this unit, please read below warning and precautions which provide important information
concerning the proper operation of the unit. Besides, to assure that you have gained a good grasp of
every feature of your new unit, read below manual of PVS0615U video switcher. This manual should be
saved and kept on hand for further convenient reference.
Warning And Cautions
※To avoid falling or damage, please do not place this unit on an unstable cart, stand, or table.
※Operate unit only on the specified supply voltage.
※Disconnect power cord by connector only. Do not pull on cable portion.
※Do not place or drop heavy or sharp-edged objects on power cord. A damaged cord can cause fire or
electrical shock hazards. Regularly check power cord for excessive wear or damage to avoid possible fire
/ electrical hazards.
※Do not operate unit in hazardous or potentially explosive atmospheres. Doing so could result in fire,
explosion, or other dangerous results.
※Do not use this unit in or near water.
※Do not allow liquids, metal pieces, or other foreign materials to enter the unit.
※Handle with care to avoid shocks in transit. Shocks may cause malfunction. When you need to
transport the unit, use the original packing materials or alternate adequate packing.
※Do not remove covers, panels, casing, or access circuitry with power applied to the unit! Turn power
off and disconnect power cord prior to removal. Internal servicing / adjustment of unit should only be
performed by qualified personnel.
※Turn off the unit if an abnormality or malfunction occurs. Disconnect everything before moving the unit.
Note: due to constant effort to improve products and product features, specifications may change without
notice.

CONTENT
1.Brief Introduction.......................................................................................................................................................1
1.1 Overview........................................................................................................................................................1
1.2.Main Features...............................................................................................................................................1
2.INTERFACES............................................................................................................................................................2
2.1 Interfaces................................................................................................................................................................ 2
2.2 GPIO Definition.............................................................................................................................................3
3.SPECIFICATION...................................................................................................................................................... 4
4.DIP Functions............................................................................................................................................................5
5.Operation Instruction................................................................................................................................................8
5.1 Wireless Tally connection...........................................................................................................................8
5.2 Wired Tally Connection...............................................................................................................................9
5.3 Remote serial control (PTZ camera remote control)........................................................................... 11
6. Accessories............................................................................................................................................................ 11

1
1.Brief Introduction
1.1 Overview
TS3019 is a wireless tally system,which is an auxiliary system that indicates the current broadcast
position (red light) and the upcoming position (green light) of the camera operator, host and other related
personnel through the tally indicator red and green, relaying information in real time.The wireless tally
system suitable for interview programs,performances, sports, live weddings, churches and other live
broadcast activities.
1.2.Main Features
TALLY BOX
Up to 200m wireless connection distance (line-of-sight)
The tally box with multiple interfaces including GPIO/USB/RS-485/RS-232
GPIO compatible with AVMATRIX and other video switchers
Compatible with VMix via USB-C
RS-232/RS-485 support TSL protocol Tally input and one-way transmissive control information
Support 433Mhz wireless Tally connection and RS-485 wired Tally connection

2
TALLY LAMP
Tally lamp can be powered by Micro-USB or 18650 li-ion battery
Both front and rear indicator on the lamps with 4-level adjustable brightness, the brightness up to
2000cd/㎡
Visible signal strength and battery status on the tally lamp
1/4 inch hot shoe for tally lamp installation
Support remote PTZ camera control via RS-232/RS-485
2.INTERFACES
2.1 Interfaces
DIP
USB-C
RS-485
GPIO
RS-232
ANT
LED

3
Note: Signal strength indication: when the signal is strong the signal indicator shows green, when the
signal is moderate the indicator shows yellow, and when the signal is weak the indicator shows red.
Power indication: when the power is sufficient the indicator shows green, when the power is average the
indicator shows yellow, when the power is low, the indicator shows red，and when charging the power
indicator flashes, when charging is complete, the power indicator stops flashing and the green light is
always on.
2.2 GPIO Definition
GPIO
Definition
GPIO
Definition
1
GND Grounded
14
PVW12 green Tally12
2
PGM12 red Tally12
15
PVW11 green Tally11
3
PGM11 red Tally11
16
PVW10 green Tally10
4
PGM10 red Tally10
17
PVW9 green Tally9
5
PGM9 red Tally9
18
PVW8 green Tally8
6
PGM8 red Tally8
19
PVW7 green Tally7
Tally out
RS-485
USB
power
Signal strength Power indication

4
7
PGM7 red Tally7
20
PVW6 green Tally6
8
PGM6 red Tally6
21
PVW5 green Tally5
9
PGM5 red Tally5
22
PVW4 green Tally4
10
PGM4 red Tally4
23
PVW3 green Tally3
11
PGM3 red Tally3
24
PVW2 green Tally2
12
PGM2 red Tally2
25
PVW1 green Tally1
13
PGM1 red Tally1
3.SPECIFICATION
TALLY
BOX
PARAMETERS
Connections
1×GPIO，1×RS-232，1×RS-485，1×USB type-c
Number of Lamps
Support up to 16 tally lamps (12 LED lamp)
Wireless Distance
Transmission up to 200m (line-of-sight)
Wireless Connectivity
433MHz
Wired Connectivity
RS-485 serial connection
Application Support
Video switchers with GPIO-tally interface such as
AVMATRIX ,Roland, SONY, NewTek, Panasonic,
DataVideo, or tally converter box with GPIO such as
BMD's GPI and tally interface
Power
Working Voltage: 5V, Power Consumption: ≤ 0.2W
TALLY
LAMP
PARAMETERS
Connections
1×USB Type-c,1×RS-485,TALLY OUT
Power supply
5V USB power supply or 18650 lithium battery
(optional) power supply
Brightness
Support 4-level brightness
Battery Operating Time
up to 9 hours (depending on battery capacity & lamp
brightness & usage environment)
Power
Working Voltage: 5V; Power Consumption: ≤2.5W;
Battery Charging Current: 5V 1A
Mouting Hole
1/4 inch hotshoe hole
Dimension (LWD)
Tally box: 104*75.5*24.5mm
Tally lamp: 98.5*65*26.5 mm

5
OTHERS
Weight
Tally box: 327g
Tally lamp: 90g (without battery)
Temperature
Working temperature: -20℃~60℃
storage temperature: -30℃~70℃
Accessories
Tally box: 1×power supply (5V 1A) , 1×USB2.0
type-c cable, 1×antenna, 1×GPIO connector
Tally lamp: 1×USB2.0 type-c cable
4.DIP Functions
The dip switch of Tally box provides the following settings:
1.DIP SW 1-2
This switch is used to select the input interface.
when (SW1,SW2) is set to (1,1), GPIO input is selected.
when (SW1,SW2) is set to (1,0), USB-C input is selected.

6
2.DIP SW 3
This switch is used to select the input and output of the RS-485 interface.
When set to 1, RS-485 is selected as input, and when set to 0, RS-485 is selected as output.
The RS485 is configured as an output when a wired connection is required between the tally box and tally
lamp.
3.DIP SW 4
This switch is used to set the switch selection control between DIP and the PC software.
When set to 1, it works according to the current DIP configuration parameters; when set to 0, DIP
parameters are invalid and the built-in parameters configured by the PC software are used.
4.DIP SW 5
This switch is used to set the group of tally box.
When set to 1, group 1 is selected, and when set to 0, group 2 is selected.
Note: The transmitter and receiver of the same group should be set in the same cluster.
This function is used when more than one tally is needed to work at the same time on the same occasion
(within a 1km radius) to prevent the signals of different groups from interfering with each other. The
factory default is group 1. When the signal is not received, check whether the TX and RX group settings
are the same group. DIP can be configured for two groups, the software can be configured for up to 8
groups.
5.DIP SW 6
This switch is used to select the operating state of the USB-C interface.
When set to 1, USB-C interface is in working state, and when set to 0, USB-C interface is in configuration
state and used to connect to the computer to control the software configuration parameters.

7

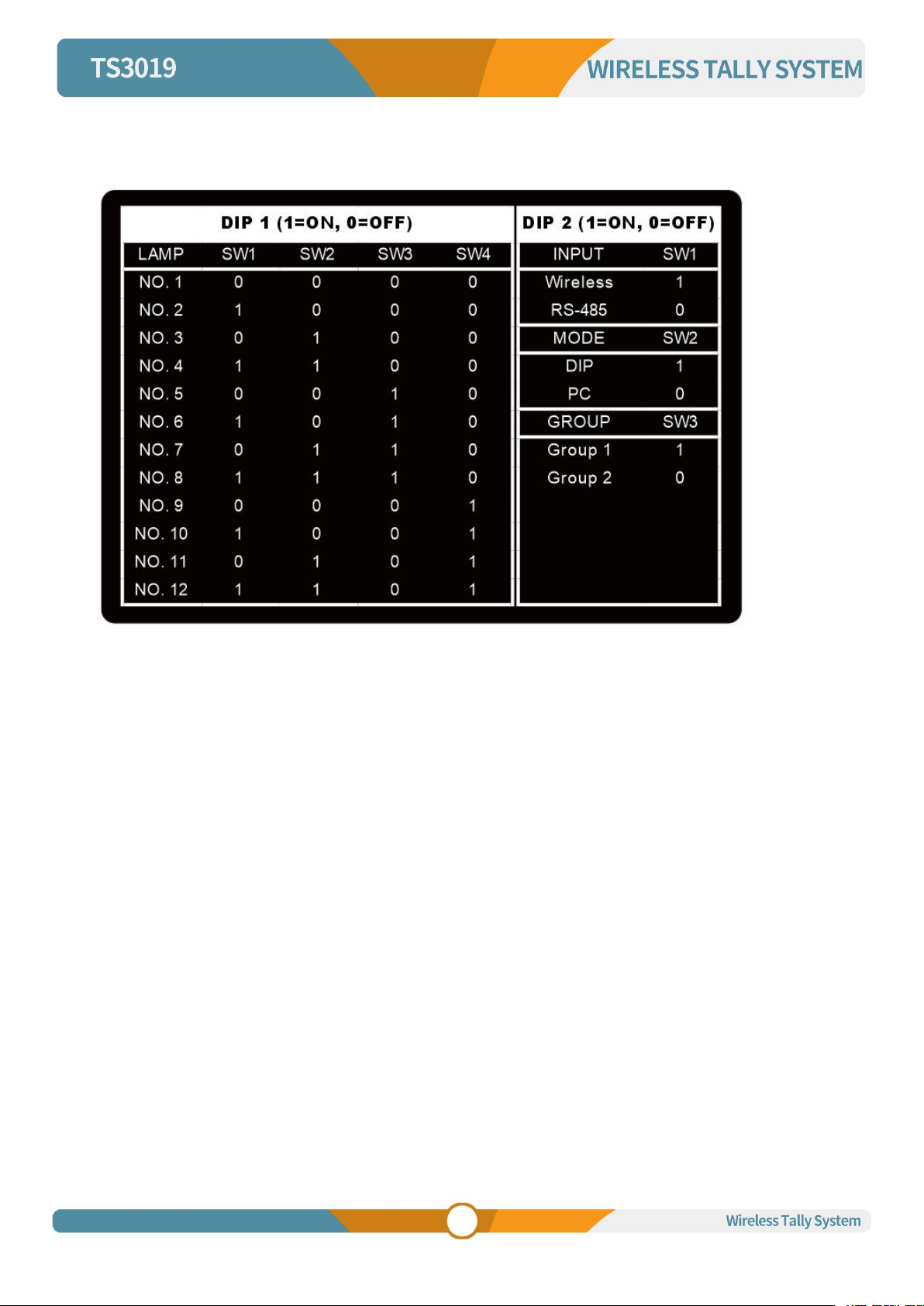

The dip switches for the Tally lamp provide the following settings:
1.DIP1 SW 1-4
This switch is used to set the number of the Tally lamp. The channel corresponding to the Tally input.
2.DIP2 SW 1
This switch is used to set the connection type of tally lamp.
When SW1 is set to 1, tally lamp is wirelessly connected and lights up by receiving tally information from
the wireless transmitter of tally box, and when SW1 is set to 0, tally lamp is wired and lights up by RS485
connection to tally box.
3.DIP2 SW2
This switch is used to set the switch selection control between DIP and the PC software.
When set to 1, it works according to the current DIP configuration parameters; when set to 0, DIP
parameters are invalid and the built-in parameters configured by the PC software are used.
4.DIP2 SW3
This switch is used to set the group of tally lamp.
5.DIP2 SW4
This switch serves as a reserved key and has no function.

8
5.Operation Instruction
5.1 Wireless Tally connection
Video switcher connection
Vmix connection

9
Vmix Connect TS3019：
Step 1: Configure Tally box and Tally lamp
Set the input of Tally box to USB-C (SW1:1, SW2:0). Set the Tally lamp to 1, 2, 3, 4 respectively.
Step 2: Use a USB A to C cable to connect the USB Type C port of the Tally box and the USB-A port of
the PC. Look at the Device Manager on the PC to check the status of the COM port connected to the Tally
box. The figure below shows COM3.
Step 3: Set up Vmix software
Open the Vmix setup, click Tally Lights and reset to default mode as shown below.
Users can increase PIN according to the actual number of Tally lamp. (For example, if you want to
connect 6 Tally lamps, you need to fill in PreviewPIN and ActivePIN in order from 2.3 of the lamp 1 to the
lamp 6 according to the rules, and then click to confirm), as shown in the following figure.

10

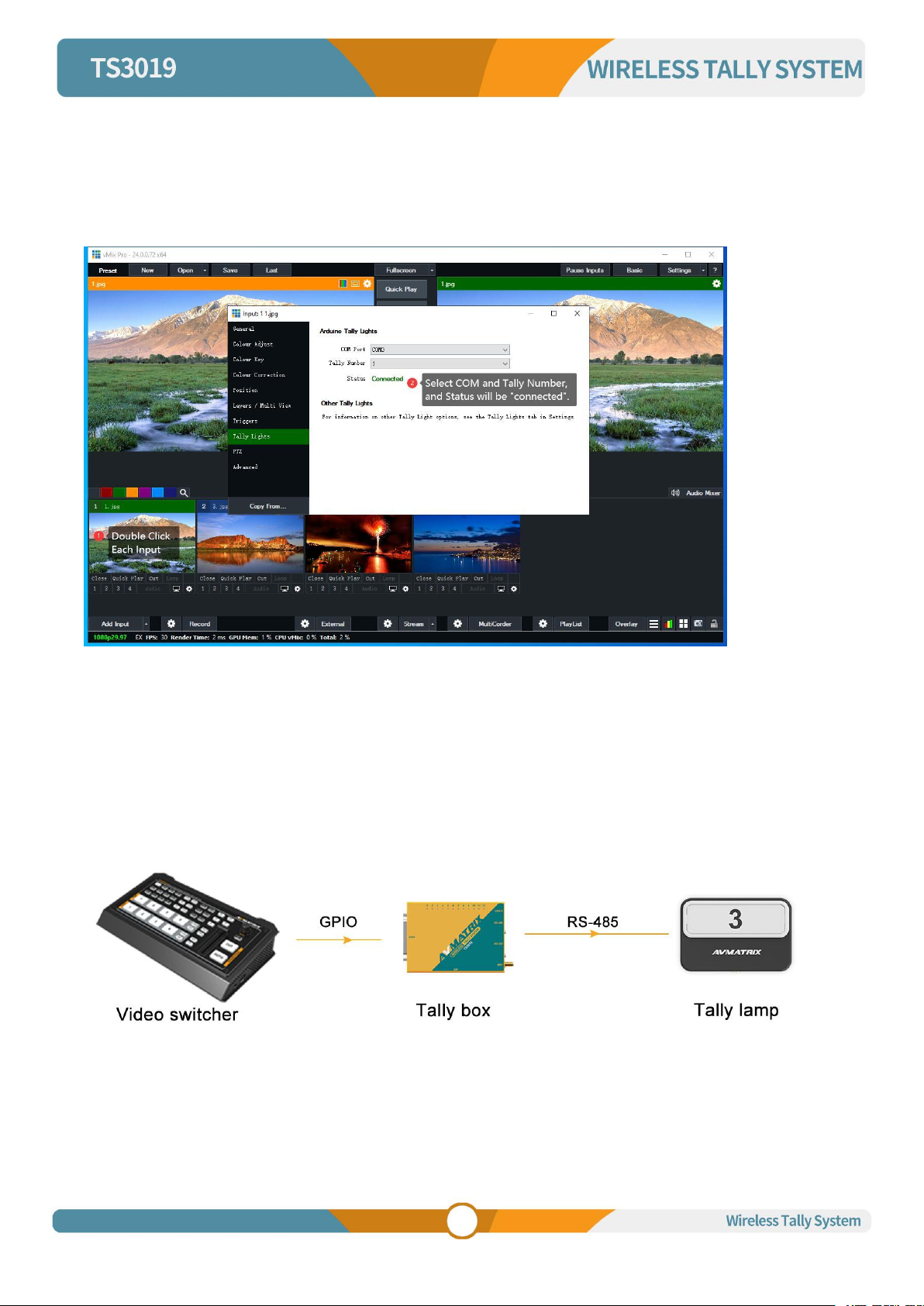

Step 4: Connection
Double click each input , click Tally Lights, select the COM port status , Tally Number select the Tally
lamp corresponding to the input source, and you can finish configuring the connection.
(The COM port status as shown below is COM3, Tally Number selects lamp 1, indicator 1 on Tally box
lights up, lamp 1 will also light up, that is, the connection.)
5.2 Wired Tally Connection

11

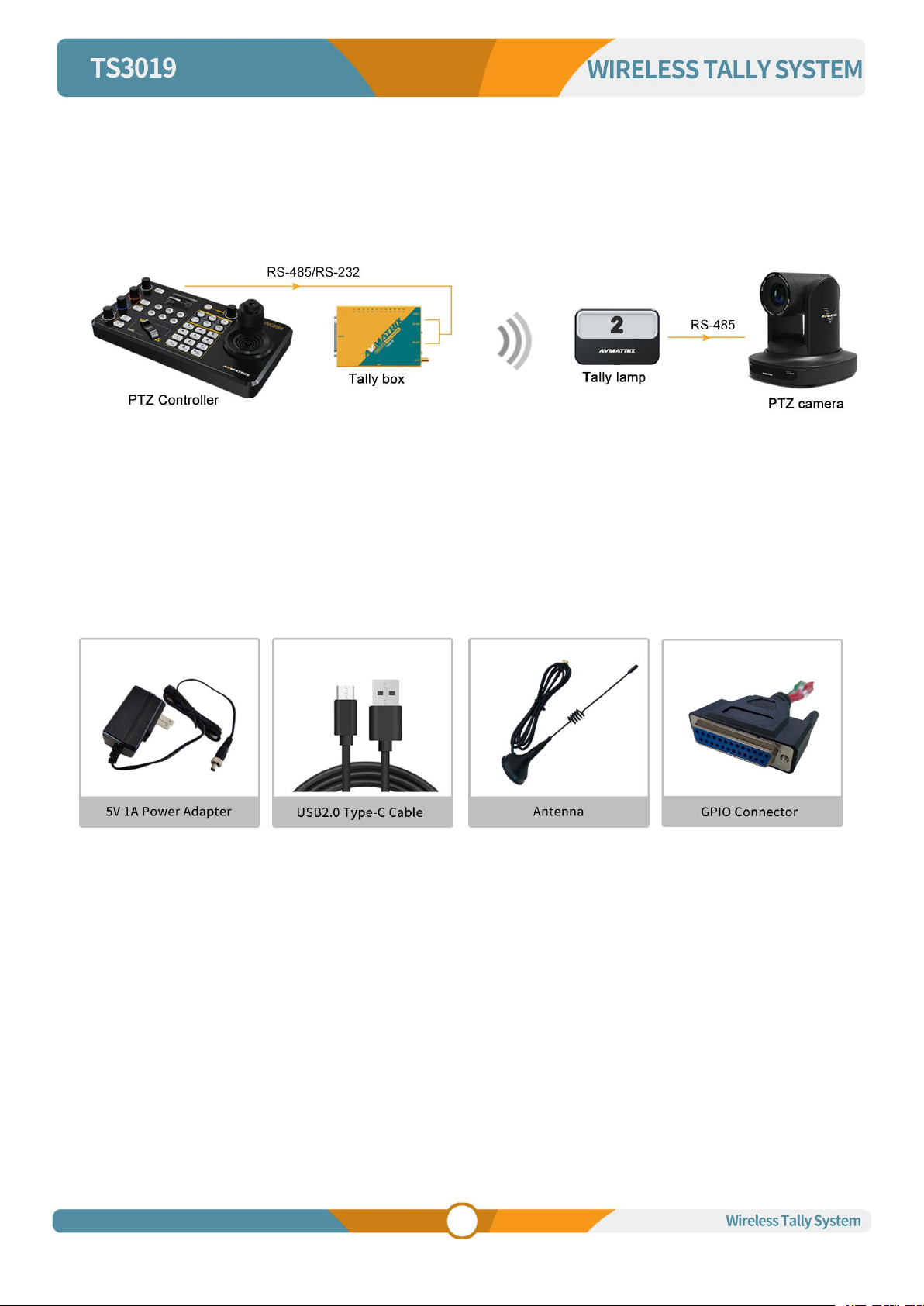

5.3 Remote serial control (PTZ camera remote control)
6. Accessories
The Tally box is equipped with 1×power adapter (5V 1A) , 1×antenna, 1×USB2.0 type-c cable, 1×GPIO
connector, and the Tally lamp is equipped with 1×USB2.0 type-c cable.
