AVMATRIX SE1217 H.265 User manual

1
H.265/ H.264 HDMI
STREAMING ENCODER

2
USING THE UNIT SAFELY
Before using this unit, please read below warning and precautions which provide
important information concerning the proper operation of the unit. Besides, to assure that
you have gained a good grasp of every feature of your new unit, read below manual. This
manual should be saved and kept on hand for further convenient reference.
Warning and Cautions
※To avoid falling or damage, please do not place this unit on an unstable cart, stand, or
table.
※Operate unit only on the specified supply voltage.
※Disconnect power cord by connector only. Do not pull on cable portion.
※Do not place or drop heavy or sharp-edged objects on power cord. A damaged cord
can cause fire or electrical shock hazards. Regularly check power cord for excessive wear
or damage to avoid possible fire / electrical hazards.
※Ensure unit is always properly grounded to prevent electrical shock hazard.
※Do not operate unit in hazardous or potentially explosive atmospheres. Doing so could
result in fire, explosion, or other dangerous results.
※Do not use this unit in or near water.
※Do not allow liquids, metal pieces, or other foreign materials to enter the unit.
※Handle with care to avoid shocks in transit. Shocks may cause malfunction. When you
need to transport the unit, use the original packing materials, or alternate adequate
packing.
※Do not remove covers, panels, casing, or access circuitry with power applied to the unit!
Turn power off and disconnect power cord prior to removal. Internal servicing / adjustment
of unit should only be performed by qualified personnel.
※Turn off the unit if an abnormality or malfunction occurs. Disconnect everything before
moving the unit.
Note: due to constant effort to improve products and product features, specifications may
change without notice.

3
CONTENTS
1. BRIEF INTRODUCTION.................................................................................................... 1
1.1. Overview............................................................................................................................1
1.2. Main Features...................................................................................................................1
1.3. Interfaces...........................................................................................................................1
2. SPECIFICATION................................................................................................................. 2
3. OPERATIONS GUIDE........................................................................................................2
3.1. Network Configuration and Login.................................................................................. 2
3.2. Management Web Page................................................................................................. 3
3.2.1. Language Settings........................................................................................................3
3.2.2. Device Status.................................................................................................................3
3.2.3. Network Settings........................................................................................................... 4
3.2.4. Main Stream Settings...................................................................................................4
3.2.5. Sub Stream Settings.....................................................................................................6
3.2.6. Audio and Extension.................................................................................................... 7
3.2.7. System Settings............................................................................................................ 8

1
1. BRIEF INTRODUCTION
1.1.Overview
SE1217 is a HD audio and video encoder which can encode and compress HDMI video
and audio source into IP stream, and then transmit it to streaming media server via
network IP address to live broadcast on platforms like Facebook, YouTube, Ustream,
Twitch, Wowza etc.
1.2.Main Features
1×HDMI input, 1×HDMI loop out, 1×Analog audio input
Up to 60fps at 1920x1080 streaming
H.265/ H.264 Stream Protocol
Dual-stream (Main stream and Sub stream)
RTSP/RTP/RTMP/HTTP/UDP/SRT unicast and multicast protocol
OSD Image and Text overlay
Mirror Image & Upside-down Image
Replace the capture, no computer to achieve the push stream.
Live stream without a computer connection

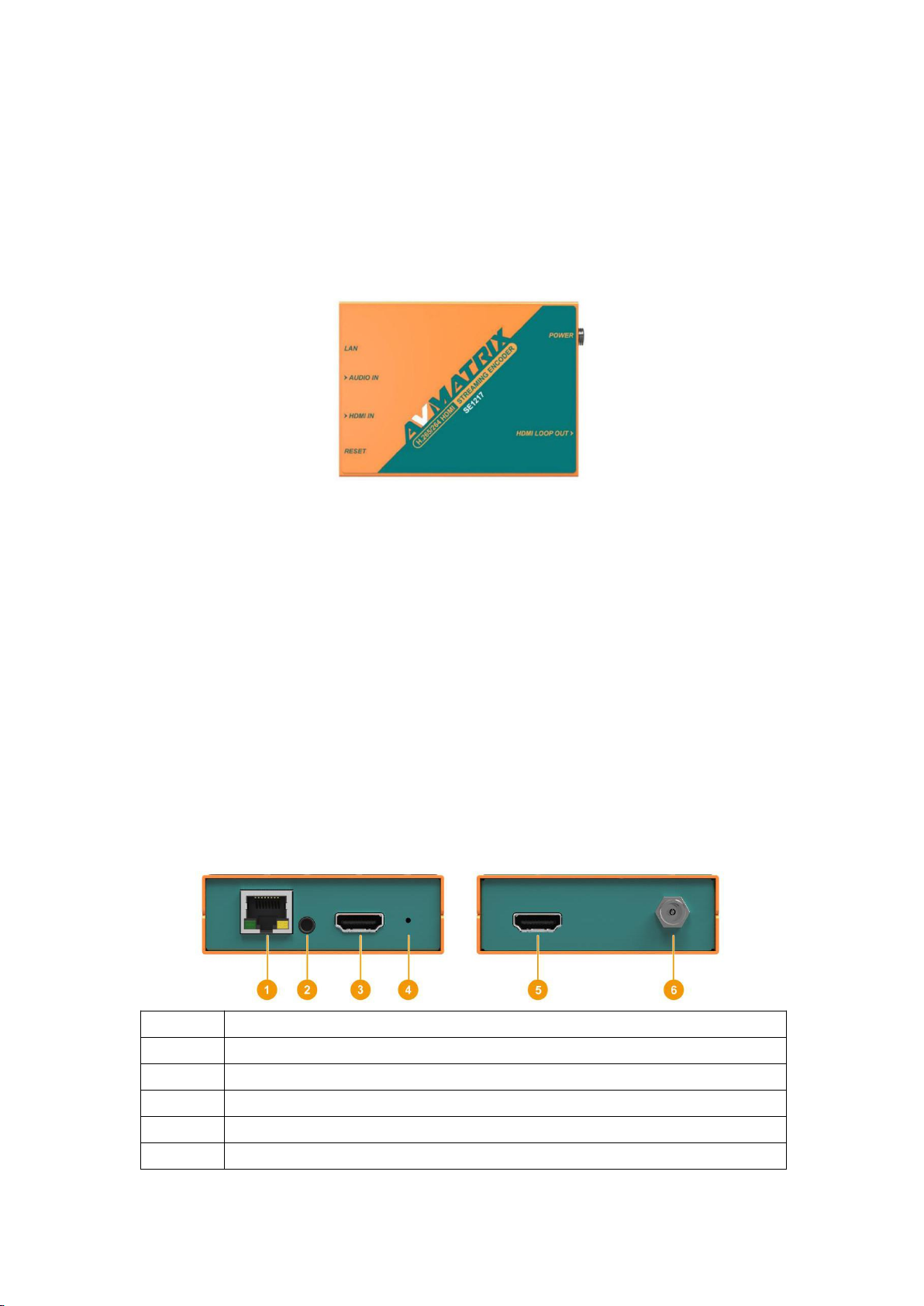

1.3.Interfaces
1
LAN PORT FOR STREAM
2
AUDIO INPUT
3
HDMI INPUT
4
RESET/ LED INDICATOR
5
DC 12V IN
6
HDMI LOOPOUT

2
2. SPECIFICATIONS
CONNECTION
Video
Input: HDMI Type A ×1; Loop Out:HDMI Type A ×1
Analog Audio
3.5mm line in ×1
Network
RJ-45×1(100/1000Mbps self-adaptive Ethernet)
STANDARDS
HDMI In Format Support
1080p 60/59.94/50/30/29.97/25/24/23.98/23.976,
1080i 50/59.94/60,
720p 60/59.94/50/30/29.97/25/24/23.98,
576i 50, 576p 50, 480p 59.94/60, 480i 59.94/60
Video Coding
H.265/ H.264
Video Bitrate
16Kbps ~ 12MKbps
Audio Coding
ACC/ MP3/ MP2/ G711
Audio Bitrate
24Kbps ~ 320Kbps
Encoding Resolution
1920×1080, 1680×1056, 1280×720, 1024×576, 960×540,
850×480, 720×576, 720×540, 720×480, 720×404, 720×400,
704×576, 640×480, 640×360
Encoding Frame Rate
5-60fps
SYSTEMS
Network Protocols
HTTP, RTSP, RTMP, UDP, Multicast, Unicast, SRT,
Configuration Management
Web configuration, Remote upgrade
OTHERS
Consumption
5W
Temperature
Working temp: -10℃~60℃, Storage temp: -20℃~70℃
Dimension (LWD)
104 × 75.5 × 24.5mm
Weight
Net weight: 310g, Gross weight: 690g
Accessories
12V 2A power supply; Mounting bracket for optional
3. OPERATIONS GUIDE
3.1.Network Configuration and Login
Connect the encoder to network via a network cable. The default IP address of the
encoder is 192.168.1.168. The encoder can auto obtain a new IP address when it is using
DHCP on the network,
Or disable DHCP and configure the encoder and computer’s network in the same network
segment. The default IP address as below.
IP Address: 192.168.1.168
Subnet Mask: 255.255.255.0
Default Gateway: 192.168.1.1
Visit encoder’s IP address 192.168.1.168 through an Internet browser to login the WEB
page for setting up. The default Username is admin, and password is admin.

3
3.2.Management Web Page
The encoding settings can be set on the encoder management web page.

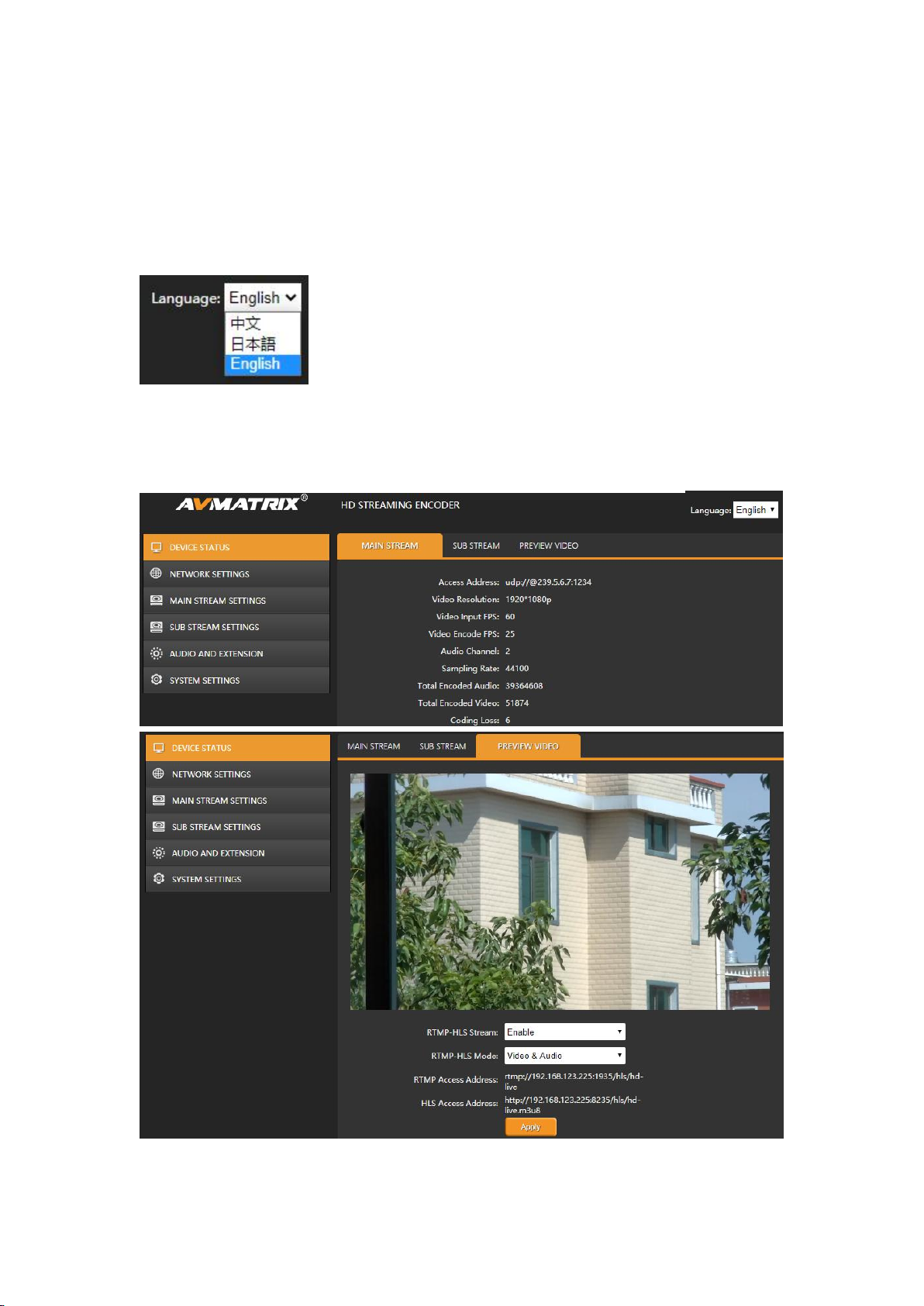

3.2.1. Language Settings
There are languages of Chinese (中文), Japanese (日本語) and English for option on the
top-right corner of the encoder management web page.
3.2.2. Device Status
The status of MAIN STREAM and SUB STREAM can be checked on the web page. And
we also can have a preview on the streaming video from PREVIEW VIDEO.

4
3.2.3. Network Settings
The network can be set to dynamic IP (DHCP Enable) or static IP (DHCP Disable). The
default IP information can be checked in Part 3.1.
3.2.4. Main Stream Settings
The main stream can be set to mirror image and upside-down image from MAIN
PARAMETER tab. Configure main stream network protocol RTMP/ HTTP/ RTSP/
UNICAST /MULTICAST/ RTP/ SRT accordingly. Please note that only one of HTTP/
RTSP/ UNICAST /MULTICAST/ RTP can be enable at same time.

5

6
3.2.5. Sub Stream Settings

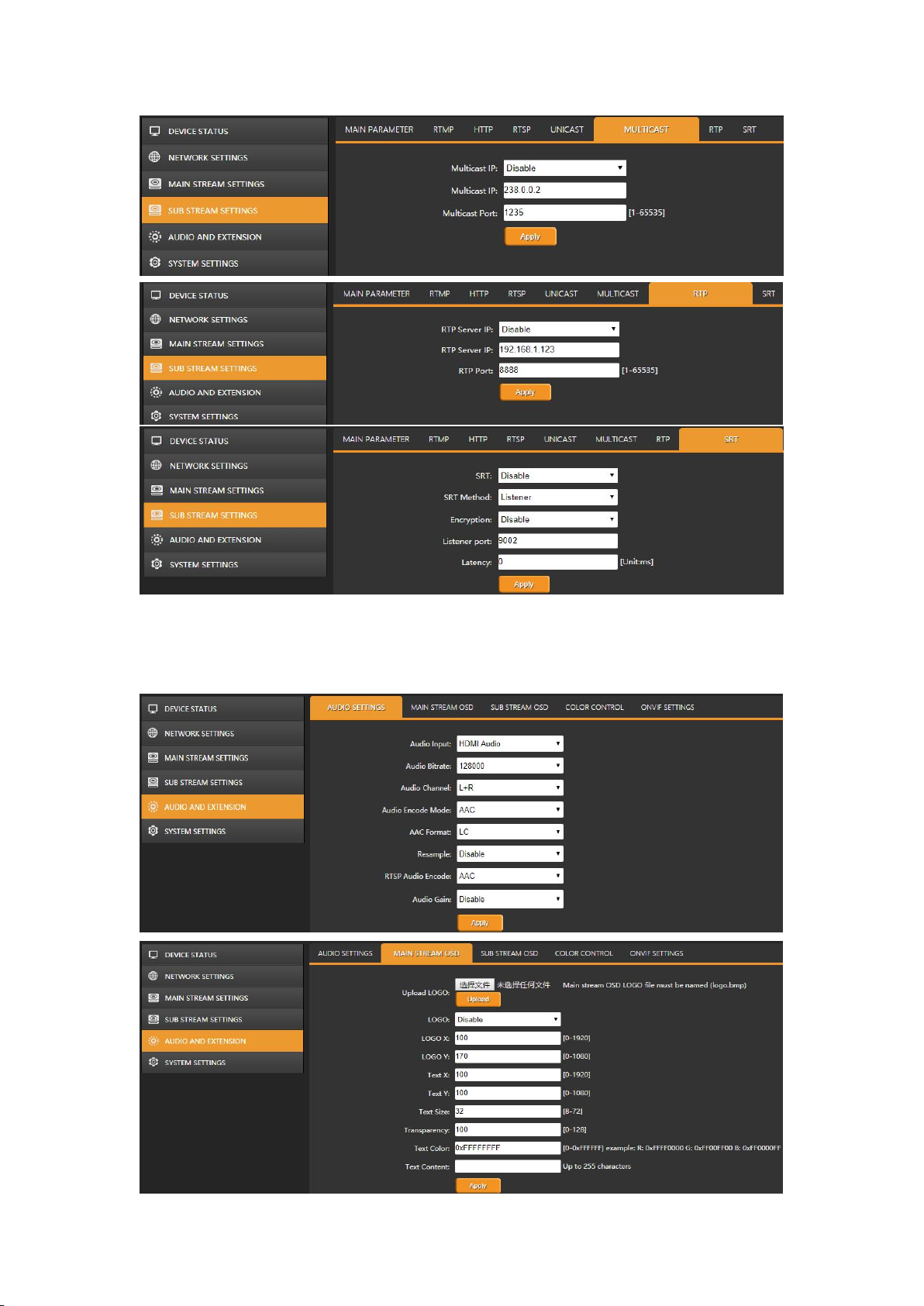

Configure sub stream network protocol RTMP/ HTTP/ RTSP/ UNICAST/ MULTICAST/
RTP/ SRT accordingly. Please note that only one of HTTP/ RTSP/ UNICAST/
MULTICAST/ RTP can be enable at same time.

7
3.2.6. Audio and Extension
The audio can be from HDMI embedded audio or analog Line in audio. Audio Encode
Mode can be ACC/ MP3/ MP2.

8

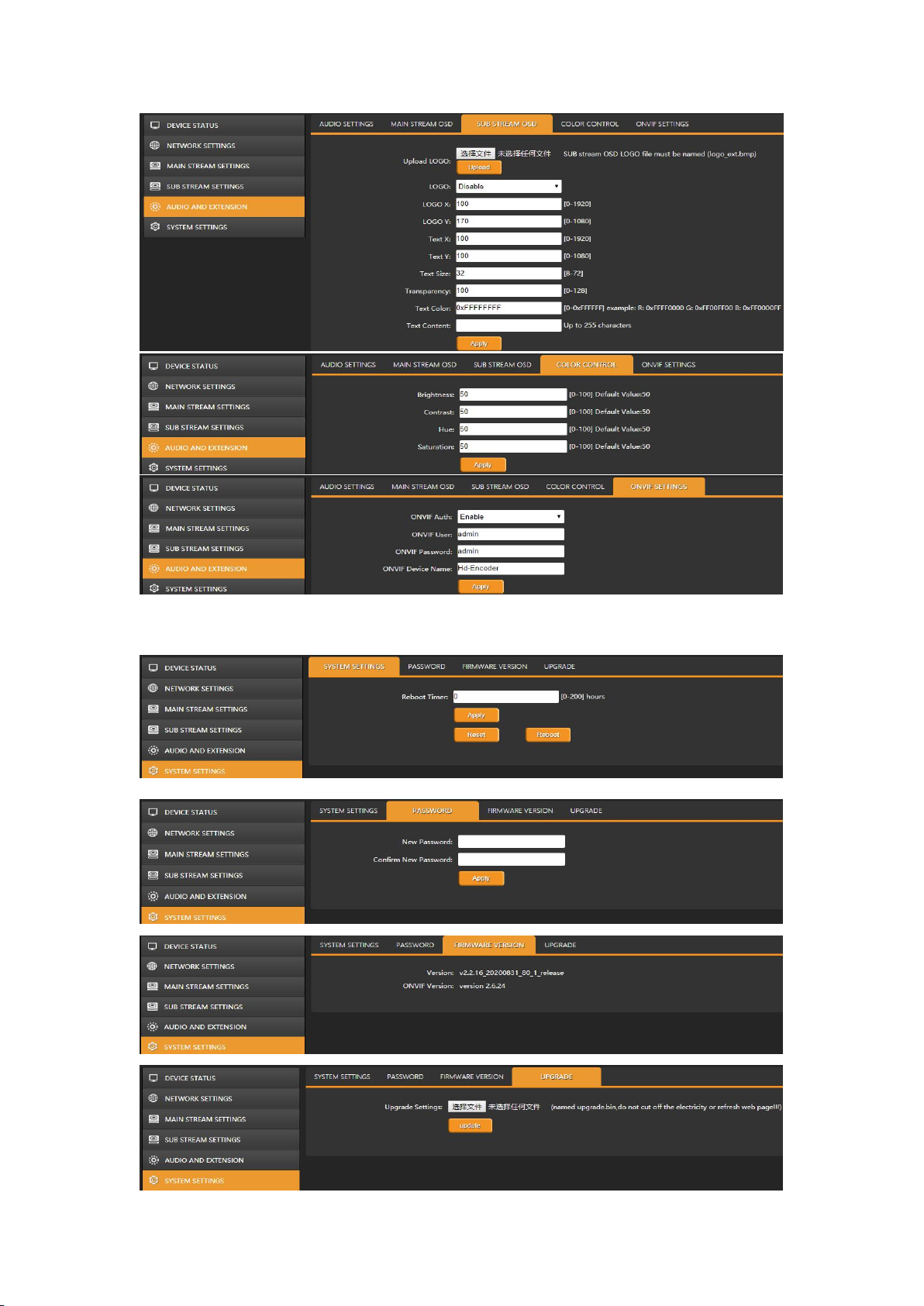

3.2.7. System Settings
