Avol AET22350FN User manual

22” Full HD ATSC/NTSC System LED TV
Model No.: AET22350FN

Contents
Caution
Safety Information
Accessories
Technical Specification
Product Introduction
Front View
OSD Menu
1. Picture menu
2. Sound menu
3. Time menu
4. Setup menu
5. Lock menu

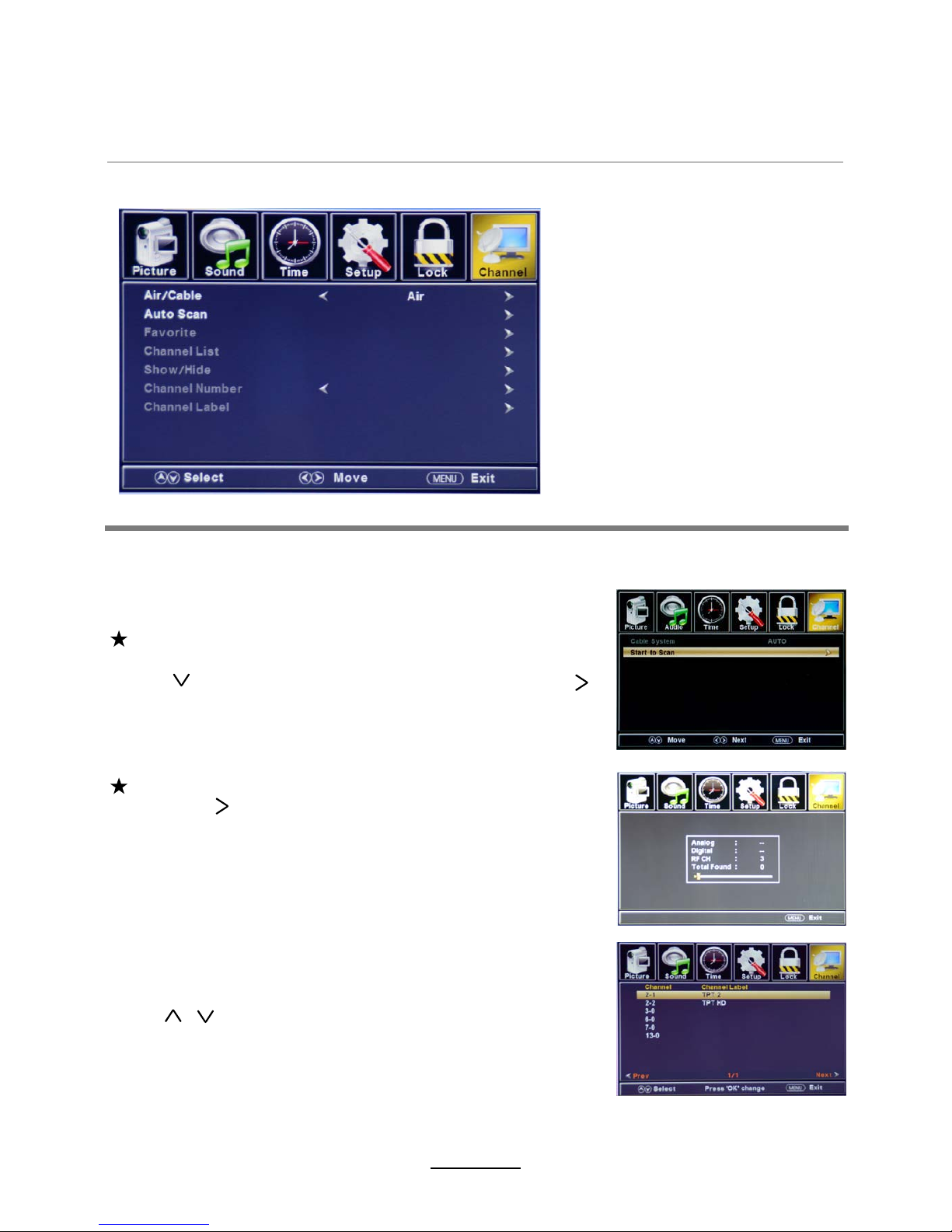

6. Channel menu
Simple Trouble Shooting
1
2
3
3
4
5
4
9-15
9
10
11
12
13
14-15
16
Connections
6
7
Remote Control
First Time Installation
8
Basic Operation
Wall Mounting 4

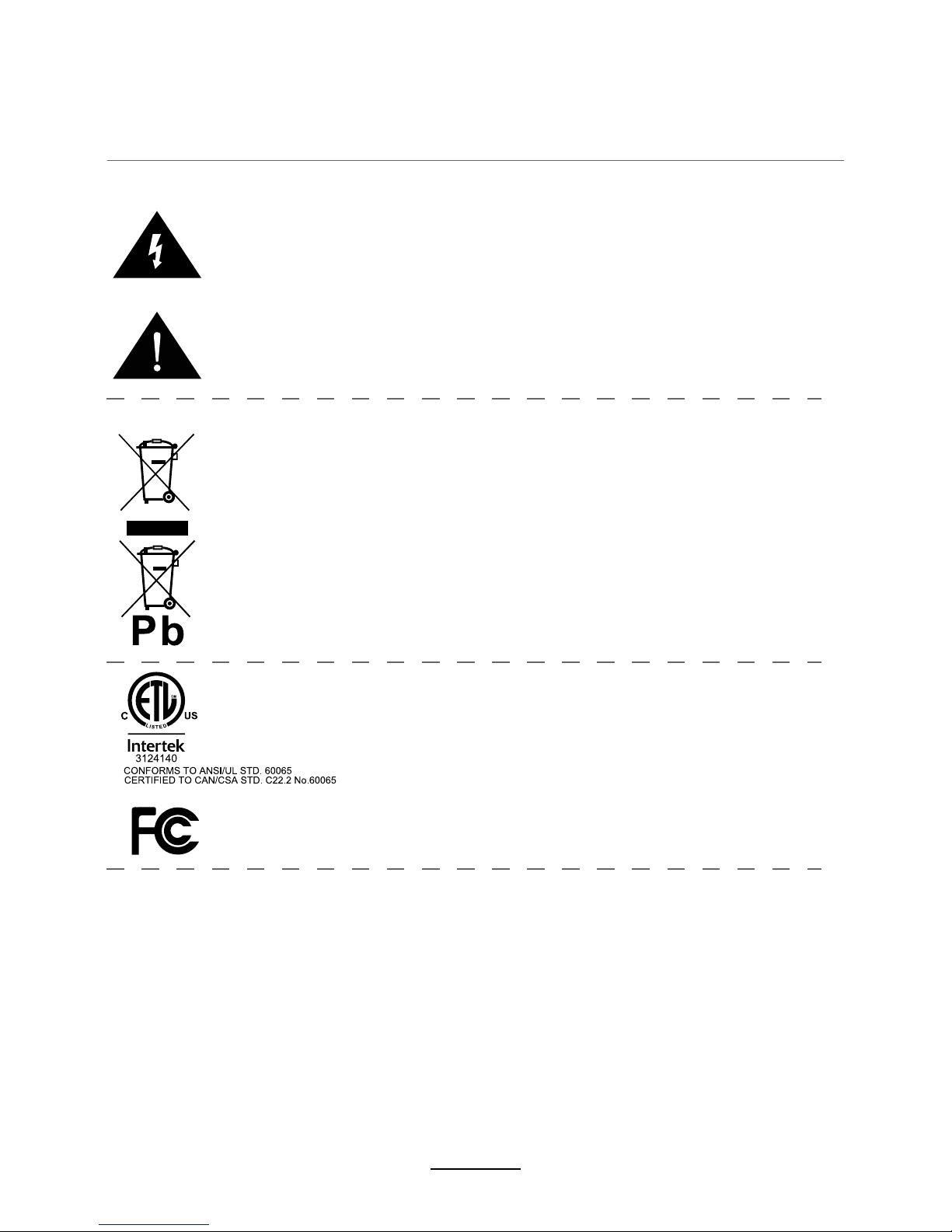

Caution
Correct disposal of this Product
(Waste Electrical & Electronic Equipment (WEEE)
Your product is designed and manufactured with high quality materials and
components which can be recycled and reused.
This symbol means that electrical and electronic equipment, at their end-
of-life should be disposed of separately from your household waste.
Please dispose of this equipment at your local community waste collection/
recycling centre.
In the USA there are separate collection systems for used electrical and
electronic products. Please help us to conserve the environment we live in!
1
The exclamation point within an equilateral triangle is intend to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
The lightening flash with arrowhead symbol, within an equilateral triangle
is intended to alert the user to the presence of un-insulated “dangerous
voltage” within the products enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to the persons.
This unit complies with America Safety directives.
This unit complies with FCC directives.

Safety Information
To ensure reliable and safe operation of this equipment, please read carefully all the
instructions in this user guide, especially the safety information below.
Electrical safety
• To prevent overload, don't share the same mains supply socket with too many other
items of equipment.
- Do not place any connecting wires where they may be stepped on or tripped over.
- Do not place heavy items on the leads, which may damage them.
- Hold the Mains plug, not the wires, when removing from a socket.
- During a thunderstorm or while leaving the TV for long periods, disconnect the aerial
(if outdoor) and power adaptor from the supply.
- Do not allow water or moisture to enter the TV . Do NOT use in wet
or moist areas such as Bathrooms, steamy kitchens or near swimming pools.
• Pull the plug out immediately, and seek professional help if:
- the mains plug or cable is damaged.
- liquid is spilt onto the set, or if it is accidentally exposed to water or moisture.
- anything accidentally penetrates the ventilation slots.
- the set does not work normally.
- Do NOT remove the safety covers. There are no user serviceable parts inside.
You may invalidate the warranty. Qualified personnel only are permitted to service
this apparatus.
- To avoid battery leakage, remove exhausted batteries from the remote control
handset, or when not using for along period.
- Do NOT break open or throw exhausted batteries on a fire.
Physical safety
• Do NOT block ventilation slots in the back cover. You may place the TV in a cabinet,
but ensure at least 5cm (2") clearance all around the unit.
• Do NOT tap or shake the TV screen, you may damage the internal circuitry. Take good
care of the remote control, do not drop it or allow it to come into contact with liquids.
• To clean the TV use a soft dry cloth. Do NOT use solvents or petrol based fluids. For
stubborn stains, you may use a damp soft cloth with diluted detergent.
2

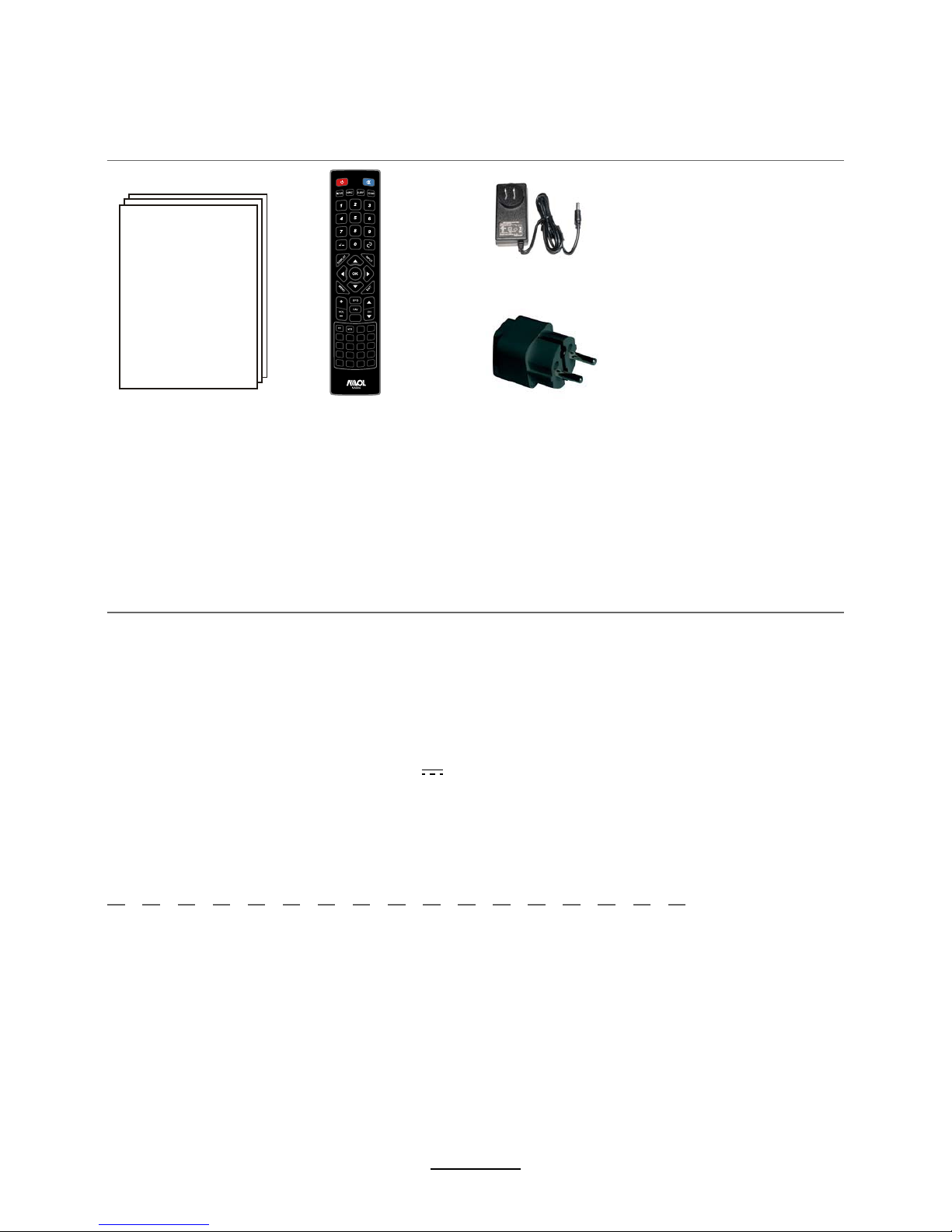

Accessories
3
- TV System
- Screen Size
- Resolution
- Aerial input
- Audio output powe
- Power Consumption
Remote Control
Type
Control distance
Control angle
Batteries
Technical Specification
User’s Manual Remote control
* Note: The configuration of the components may look different from the folltowing illustration
ATSC/NTSC
22 inch(diagonal)
1920x 1080
75 Ω(unbalanced)
2x3W
12V 3A 36W
0
infrared
5m
30 (horizontal)
2 x 1.5V, size AAA
220V
Power Socket
(Model No. : NA004)
The Mains adaptor

100mm
100mm
The TV is provided with mounting holes 100x100mm for a VESA approved wallmounting bracket (NOT
SUPPLIED). Remove the Posi screws holding the base to the base bracket and lift the base away (do not
remove the basemounting bracket).Mount the VESA bracket using 4xMB4x8mm ISO metric threaded screws
(not supplied). Do not use screws longer than 8 mm, it will occur damage to the internal parts. Fit the wall
- Do not fasten the screws too tight for this may damage the TV or cause the TV to fall, resulting in personal
injury.
- Do not mount your TV at more than a 15 degree tilt.
- Always use two people to mount the TV to a wall.
- Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric
shock.
Wall Mounting

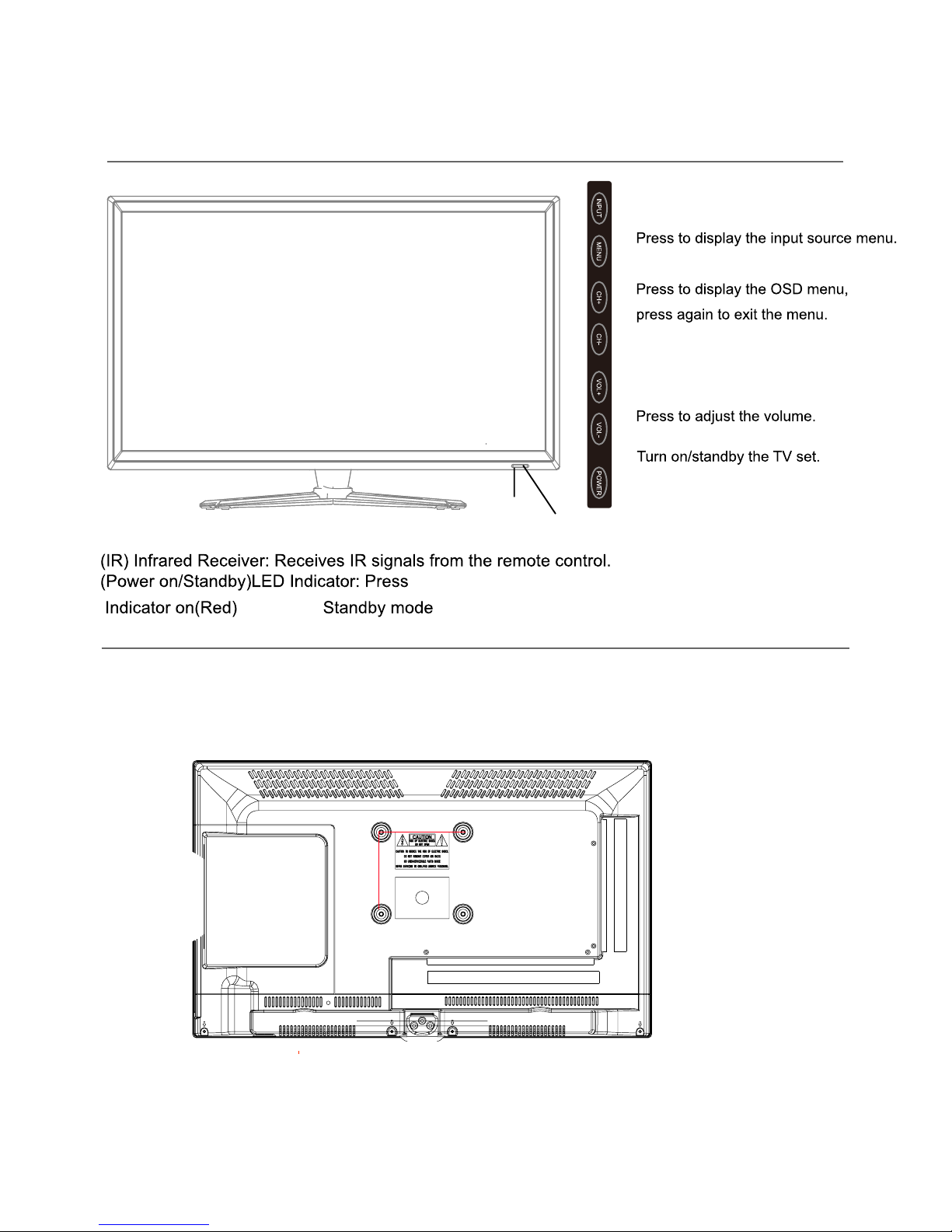

Front View
INPUT:
MENU:
CH+/-:
Press to scan through channels.
VOL+/-:
POWER:
Led Indicator
Remote Control window
(Keep clear)
Product Introduction
4
POWER to turn on and off.
Indicator on(Green) Power on mode

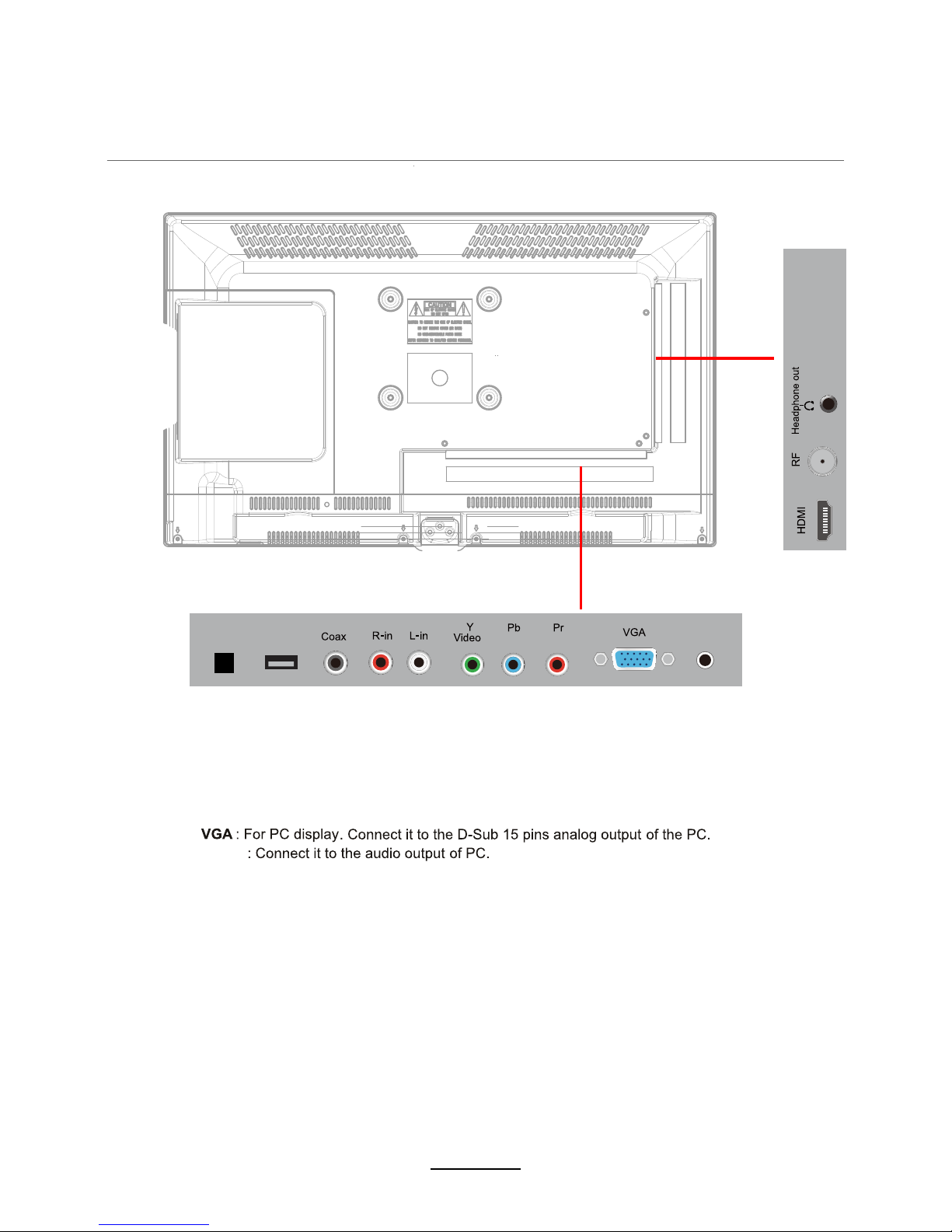

PC-IN
Headphone out: Connect it to your headphone or audio equipments
RF: Connect antenna or cable 75 Ohm coaxial to receiveTV signal.
COAX : Digital audio output.
HDMI : Connect it to the HDMI output of video device.
R/L in : Connect them to audio output of video device. (Share them with Video and YPbPr)
VIDEO IN : Connect it to video output of video device.
SERVICE: For service use only.
YPbPr : Connect them to the video output terminal of DVD.
PC-IN
POWER: Connect to the mains adaptor.
Connections
5
IN
SERVICE
POWER

: Go to program you latest program
ASPECT
SOUND
SLEEP
123
456
789
0
VOL CH
INPUT
DISPLAY
EPG
FAV
MENU
CC MTS
EXIT

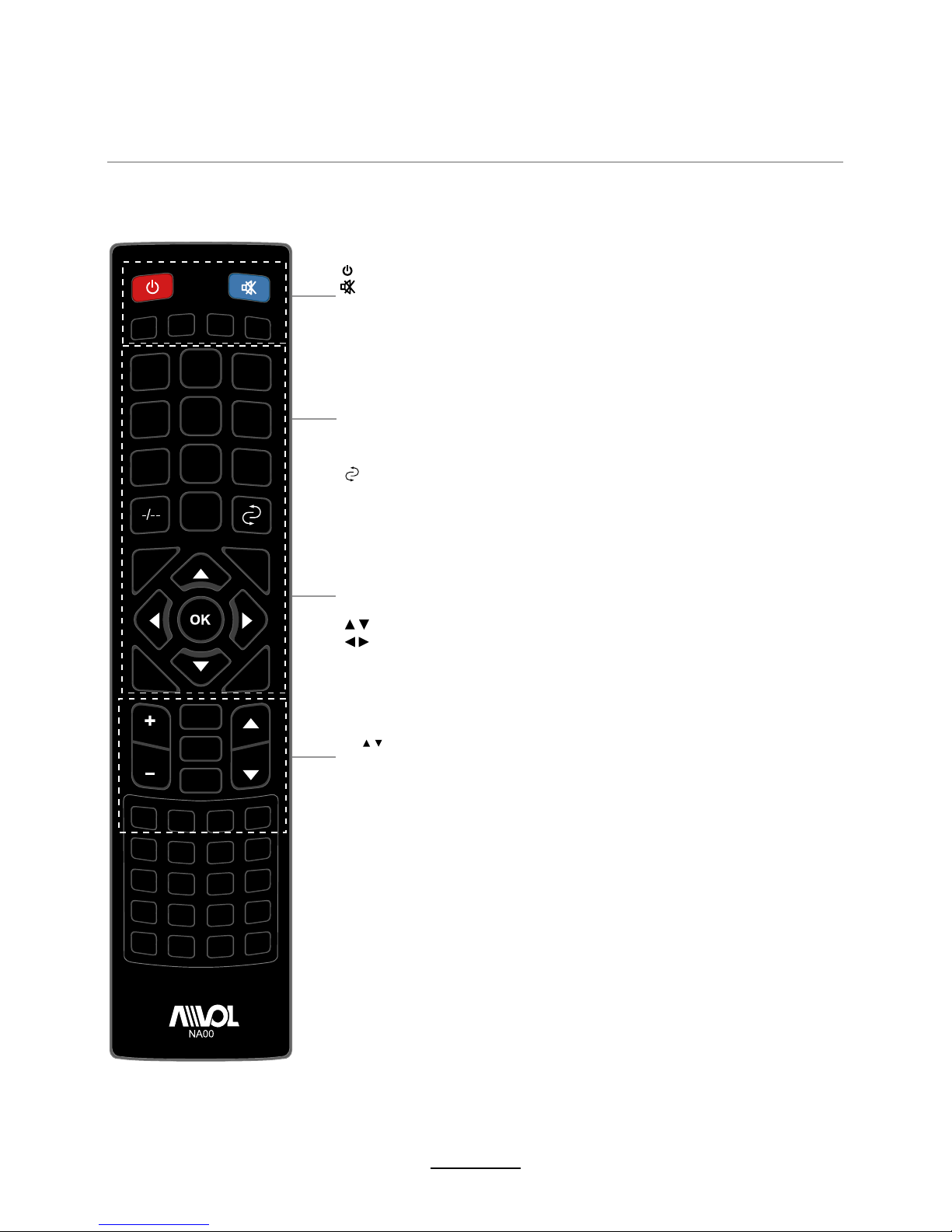

4
INPUT: Source select.
POWER : Turn on/standby the TV
MUTE: Silence status
EXIT:Exit from the current menu
: Cursor up/down keys in OSD menu
: Cursor left/right keys in OSD menu
OK: Confirm button.
-/-- : Press before entering a channel number greater than 9.
Select 1, 2 or 3 digits.
For channels (Air or Cable).
MENU : TV system menu
DISPLAY: Display playing status
PICTURE: Select the picture mode
SOUND : Select the sound mode
ASPECT: Adjust picture size
SLEEP: Time shutting down
0-9, : Choose channel
CH / : Scan the channel.
FAV: Press to add or remove favorite channel.
EPG: Press to enter the EPG menu directly.
CC: Press to display the closed caption.
MTS: Press to select the audio channels.
VOL+/-:Volume up/down
Remote Control
6
The remote control is using Infra-Red(IR). Point it towards the front of the TV. The remote
control may not work correctly if it is operated out of range or out of angle.

7
First Time Installation
1. Connect the mains lead to the AC power supply and the Aerial lead to the RF input socket.
2. Turn on the TV by pressing .
3. The “Setup Wizard "menu will appear on your screen.(Picture below)
Select the Menu Language by pressing
buttons.
Press button to go to next step.
Press button to go to next step.
Press button to Go to next step then
enter “Auto Scan”(Channel Serch).
Select Time Zone by pressing
buttons.
Select Daylight Saving Time by pressing
buttons.
Select Time Format by pressing
buttons.
Select Air or Cable for RF Input by
pressing buttons.
The screen indicates the progress of "Auto Scan".
After completion of "Auto Scan", close the menu by
presssing "Menu" key. You may now view your local
or cable channels by the corresponding number or
by pressing the Channel up or down on your remote
control.

TV
AV
Component
HDMI
PC
button to select the function item, press button to adjust/setup,
Basic Operation
8
Basic Operation
Power on/off
2. -To turn on the TV
Press POWER button on the TV or remote control.
-To turn off the TV
Press POWER button on the TV or remote control.
Input Source select
Press INPUT button on the TV set or remote control to display input
source menu, and use CH+/- button on the TV set or button
on remote control to select the input source, press OK button on the
remote control or choose Vol + button on main uni to enter.
Note: Before you select the input source, make sure the
connections are prepared.
Basic OSD Menu operation
Use /
/
button to select the main menu, and press button to enter the submenu.
In the submenu, use /
or press button to enter the submenu.
* (Press MENU button to return to the upper menu.)
* (Press EXIT button to exit the menu display.)
Note1: Only when you input the suitable signal, the relevant items can be activated
Note2: Please operating the OSD menu according to hint on the bottom of the banner.
Main menu
Sound
Time
Setup
Lock
Channel Submenu
(Picture menu
for example)
Hint---you should operate the OSD menu according to the hint.
Press MENU button to display the OSD menu as below:
1. Connect to the power supply with the power adaptor.
Source Select

OSD Menu
9
1. Picture menu
Description
Picture mode: Select between Standard, Dynamic, Soft User and Power Saving.
You may select the picture mode directly by pressing the PICTURE button on the remote
control.
Contrast: Control the difference between the bright and dark regions of the screen picture.
Brightness: Adjust brightness of the picture.
Color: Adjust color of the picture.
Tint: Control the fresh tones to make them appear natural.
Sharpness: Set the amount of fine detail in the picture.
Color Temperature: Select between Normal, Cool and Warm.
Note: when select the "Power Saving", the machine is in energy-saving status.
Advanced Settings:
Aspect Ratio: Select Wide, Zoom, Cinema and Normal.
Noise Reduction: Select Medium,High, Auto, Off and Low.
Dynamic Contrast: On/off.
If the broadcast signal received by your TV is weak, you can activate Noise Reduciton feature to
help reduce any static and ghosting that my appear on screen.
Note: When the signal is weak, select one of the other options until the best picture is displayed.
HDMI Mode: Select Video and Graphic. It only has selection function in HDMI Mode.
Select the adjustment of 100% Reproduce rate in HDMI.
Press button to enter the Advanced Picture Settings.

OSD Menu
10
2. Sound menu
Description
Sound Mode: Select your desired picture mode as follow: Standard, Music, Movie, Sports and User
You may select the sound mode directly by pressing the SOUND button on the remote control.
Bass: Low frequency intensity.
Treble: High frequency intensity.
Balance: Left and right stereo audio channels balance.
Surround Sound: Activate or deactivate the Surround function.
Audio Language: Select audio language.
50
50
50
AVL: Activate or deactivate the Auto Volume Limited function.
MTS: Select the MTS mode between Stereo, Mono and SAP.
Digital Audio Output: Select the Digital Audio Output mode between PCM, RAW and off.

OSD Menu
11
Description
3. Time menu
Sleep timer: You may set the automatic shutdown timer choosing from 5 to 240 minutes, or
deactivate this function.
Time zone: Select between Pacific, Alaska, Hawaii, Samoa, Newfoundland, Atlantic, Eastern,
Central and Mountain.
Daylight Saving Time (Could only be activated in DTV mode): Select between On and Off.
Clock: User can not change time manually during DTV mode as time comes from signal
directly.
Time Format˖
Auto Clock˖
Select between 12-hour and 24-hour.
Can manually modify the time when it is closed, interception can only be opened
when the TV stream.

OSD Menu
12
Description
4. Setup menu
Menu Language: Select OSD menu language.
Transparency: Turn on or off the transparency menu function.
OSD Timeout: Set the time of the menu display on screen for the following time durations:
5s, 15s, 30s, 45s, 60s.
Closed Caption:
CC Mode: Allow you to select the CC Mode among: On, Off and CC on Mute.
Analog CC: Allow you to select the basic selection among: CC1, CC2, CC3, CC4,
Text1, Text2, Text3 and Text4.
Digital CC: Allow you to select the advanced selection among: Service1, Service2,
Service3 Service4, Service 5 and Service 6.
Option: Use thumbstick buttons to operating in option menu as your desire.
Input Label: Adjust input name.
Restore Default: Restore all settings in SETUP menu to factory settings.
Over Scan: Select from on or off.
Other Settings: Select from blue screen or audio only.
Setup Wizard: Enter the Setup Wizard.

OSD Menu
13
Description
5. Lock menu
You must enter the password to gain access to the Lock menu. The default password is 0000.
You may modify the following options:
Change password: Change the password, you must enter the new password twice to confirm it.
Note: Do not forget the password.
System Lock: Allow you to turn on or off the system lock.
This option menu allows you to lock any TV channel or adjust the Movie rating filter.
US Rating:
TV: Use buttons to select the desired rating
and press button to block or unblock rating.
MPAA: The Movie rating (MPAA) is used for original
movies rated by the Motion Picture Association of
America (MPAA) as broadcasted on cable TV and not
edited for television.
Use button to select N/A, G, PG, PG-13, R,
NC-17 or X.
Canada English: Select among: E, C, C8+, G, PG,
14+ and 18+.
Canada French: Select among: E, G, 8ans+, 13ans+,
16ans+ and 18ans+.
G: General Audiences. Movie is appropriate for all ages.
PG: Parental Guideance Suggested. May contain material not
suited for younger viewers.
PG-13: Contains content that may not be appropriate for viewers
under the age of 13.
R: Restricted. Contains adult content, no one under 17 admitted
without parent.
NC-17: No one 17 and under admintted.
X: Adults only.
Canada:
Reset RRT: Allow you to reset the RRT setting.
Input Block: Select the channel lock function.

OSD Menu
14
Description
6. Channel menu
Air/Cable: Allow you to select antenna between Air and Cable.
If you selet “Cable”, the following items(Favorite, Show/Hide, Channel NO, Channel Label and
DTV Signal) are unable to use.
Auto Scan: Enter the Auto Scan menu to start auto scan.
If you select “Cable” as input signal in Antenna item, allows
you to select Cable System among: Auto, STD, IRC and HRC.
Use button to highlight the “Start to Scan”, then press
button to search the channels automatically.
The receivable channels will be stored automatically.
When searching channels, press MENU to stop.
If you select “Air” as input signal in Antenna item, you
can press button to search the channels automatically.
The receivable channels will be stored automatically.
When searching channels, press MENU to stop.
NOTE: It will take a while to auto scan in NTSC or ATSC
mode, please wait patiently.
Use / button to highlight the desired item, then press
OK button to add or remove the highlighted channel as
favorite.
Favorite: Allow you to add these channels which you desired
as the favorite channels.
Channel list: Display a channel list.
Cable System
AUTO
Channel

Channel No.: Show and select the channel.
Channel Label: Allow you to setup a label for the channel.
Press / button to select the position of the table, and press / button to select the
words.
DTV Signal: Show the quality of digital signal: good, Normal, Bad.
OSD Menu
15
Show/Hide: Allow you to show or hide the channels.
Use / button to highlight the desired item, then press
OK button to show or hide the highlighted channel.

Simple Trouble Shooting
16
If the display fails or performance dramatically deteriorates check the Display in accordance
with the following instructions.Remember to check the peripherals topinpiont the source of the
failure.
If the display still fails to perform as expected,connect your helpline for assistance.
No power
- Check all connections to the TV.
- Press either the power button or the Standby button on the Remote control.
No picture or sound
- Ensure that the TV is plugged in and the power is on.
- Ensure that the aerial is connected.
- Try a different programme.
Poor picture quality
- Check the aerial connections.
- Check that the channel is tuned in properly.
- Adjust the picture settings:brightness,colour,sharpness,contrast,hue.
- Make sure that the TV is not located close to electrical appliances that may emit radio
frequency interference.
No colour
- Adjust the colour setting.
- Check that the programme is broadcast in colour.
- Check that the cannel is tuned properly.
TV does not respond to remote control
- Check that there are no obstructions between the remote control and the unit.
- Check that the remote control is within range of the unit.
- Check that the batteries in the remote control and not weak or exhausted.
This TV is for household use and registered as harmless on electromagnetic waves.
Therefor,you can use it in every location as well as residential areas.
- Check SWITCH on rear cabinet is ON.
Note : TV panel is built with very high precision technology giving you fine picture details
in vibrant color. Occasionally, a few non-active pixels may appear on the screen as fixed point
of red, blue or white. Please note this does not affect the performance of the product.

MODEL# LABOR PARTS
AET22350FN 90 Days 1 Year
- To damages or problems which result from delivery or improper installation
Therefore, these costs are paid by the consumer.
Retain your sales receipt to prove date of purchase.
Without receipt of proof of purchase, no warranty will be honored.
CUSTOMER SERVICE ASSISTANCE
Asiaventurelink Co.,Ltd.
#1007, Renaissance Tower, Gongdeok-dong,
Mapo-gu, Seoul, Korea
TEL. : +82 - 2 - 3273 - 8990
FAX : +82 - 2 - 712 – 8342
E-MAIL : [email protected]
Web : www.AVL21c.com
Printed in China
LIMITED WARRANTY
Copy of your sales receipt must be submitted at the time warranty service is provided.
THE ABOVE WARRANTY DOES NOT APPLY :
- To damages or problems which result from misuse, abuse, accident, alteration, or incorrect electrical
current or voltage.
- To service calls, which do not involve defective workmanship or material, such as head cleaning and
explaining the operation of the unit.
To prove warranty coverage :
WARRANTY PERIOD
Asiaventurelink Co.,Ltd. will repair or replace without charge,at its option, your product which proves to be
defective in material or workmanship under normal use, during the warranty period listed below from the
date of original purchase.
No other express warranty is applicable to this product. The duration of any implied warranties, including
the implied warranty of merchantablility, is limited to the duration of the express warranty herein.
Asiaventurelink Co.,Ltd. shall not be liable for the loss of the use-of the product, inconvenience, loss or
any other damages, direct or consequential, arising out of the use of, or inability to use, this product or
for any breach of any express or implied warranty, including the implied warranty of merchantability
applicable to this product.
Some states do not allow the exclusion or limitation of incidental consequential damages or limitations on
how long an implied warranty lasts ; so these limitations or exclusions may not apply to you. This warranty
gives you specific legal right and you may also have there rights which vary from state to state.
