Avol alt4070fwd User manual

Attention:
Please kindly refer to “Tuner selection”(Page 9 of User’s manual) for the choosing suitable
TV broadcasting system as per your living area when you use this unit firstly. TV Color system is
automatically searched regardless of your living area.
Model No.: ALT4070FWD
40” Full HD DVB-T/Multi System LCD TV

Contents
Caution
Caution
Safety Information
Accessories
Technical Specification
Product Introduction

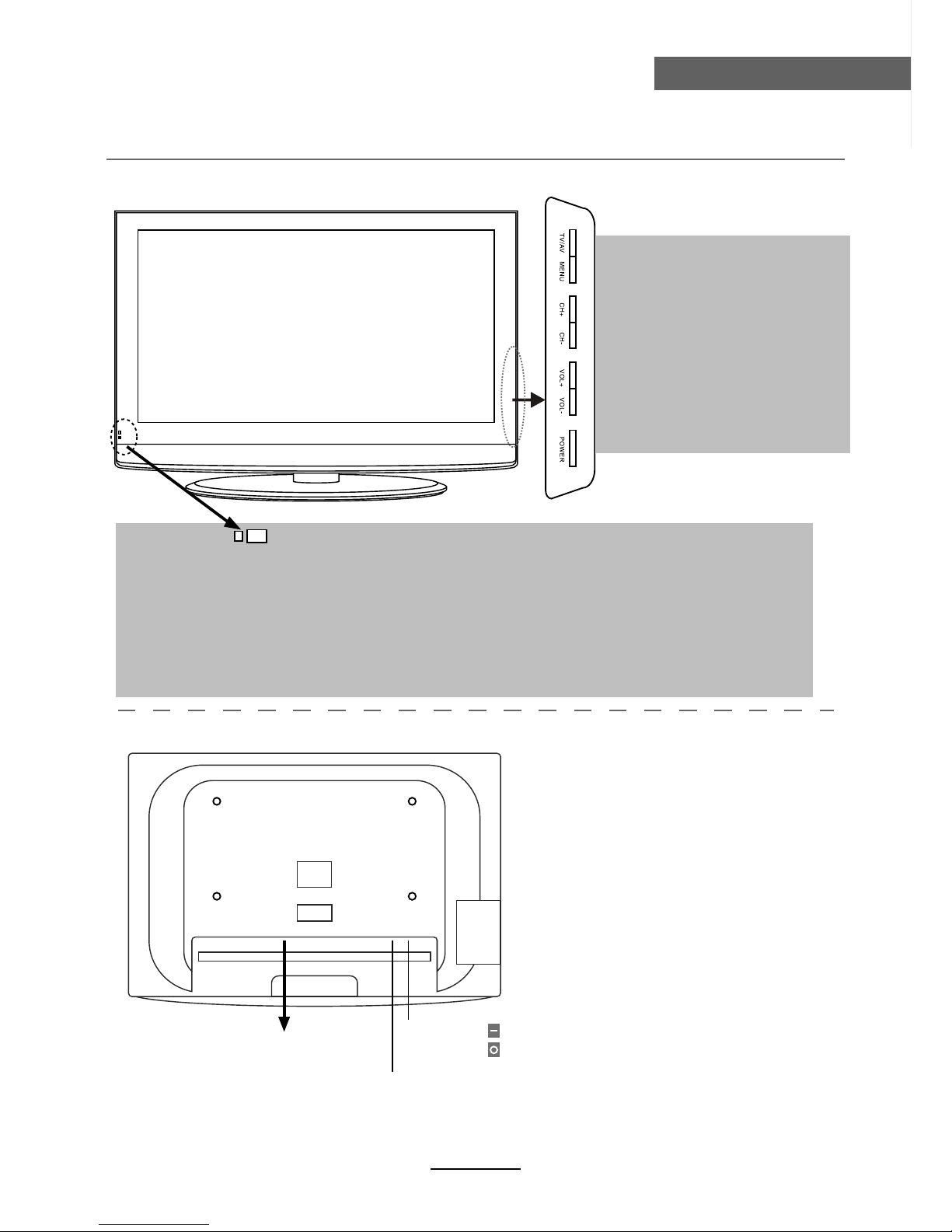

Front View
Rear View
OSD Menu
1. CHANNEL menu
2. PICTURE menu
3. SOUND menu
4. TIME menu
5. OPTION menu
6. LOCK menu
Simple Troubleshooting
1
2
3
3
4
5
4
4
9-15
9-10
11
12
13
14
15
16
Connections
6-7
Remote Control
8
Basic Operation

Caution
Correct disposal of this Product
(Waste Electrical & Electronic Equipment (WEEE)
Your product is designed and manufactured with high quality materials and
components which can be recycled and reused.
This symbol means that electrical and electronic equipment, at their end-
of-life should be disposed of separately from your household waste.
Please dispose of this equipment at your local community waste collection/
recycling centre.
In the USA there are separate collection systems for used electrical and
electronic products. Please help us to conserve the environment we live in!
1
Caution
The exclamation point within an equilateral triangle is intend to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
The lightening flash with arrowhead symbol, within an equilateral triangle
is intended to alert the user to the presence of un-insulated “dangerous
voltage” within the products enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to the persons.
This unit complies with America Safety directives.
This unit complies with FCC directives.
directives.

Safety Information
To ensure reliable and safe operation of this equipment, please read carefully all the
instructions in this user guide, especially the safety information below.
Electrical safety
• The TV set should only be connected to a mains supply which matches that stated on
the label on the mains adaptor.
• To prevent overload, don't share the same mains supply socket with too many other
items of equipment.
- Do not place any connecting wires where they may be stepped on or tripped over.
- Do not place heavy items on the leads, which may damage them.
- Hold the Mains plug, not the wires, when removing from a socket.
- During a thunderstorm or while leaving the TV for long periods, disconnect the aerial
(if outdoor) and mains adaptor from the supply.
- Do not allow water or moisture to enter the TV or mains adaptor. Do NOT use in wet
or moist areas such as Bathrooms, steamy kitchens or near swimming pools.
• Pull the plug out immediately, and seek professional help if:
- the mains plug or cable is damaged.
- liquid is spilt onto the set, or if it is accidentally exposed to water or moisture.
- anything accidentally penetrates the ventilation slots.
- the set does not work normally.
- Do NOT remove the safety covers. There are no user serviceable parts inside.
You may invalidate the warranty. Qualified personnel only are permitted to service
this apparatus.
- To avoid battery leakage, remove exhausted batteries from the remote control
handset, or when not using for along period.
- Do NOT break open or throw exhausted batteries on a fire.
Physical safety
• Do NOT block ventilation slots in the back cover. You may place the TV in a cabinet,
but ensure at least 5cm (2") clearance all around the unit.
• Do NOT tap or shake the TV screen, you may damage the internal circuitry. Take good
care of the remote control, do not drop it or allow it to come into contact with liquids.
• To clean the TV use a soft dry cloth. Do NOT use solvents or petrol based fluids. For
stubborn stains, you may use a damp soft cloth with diluted detergent.
2
Safety Information

Accessories
3
Accessories & Technical Specification
- TV System
- Sound System
- DVB-T System
- Screen Size
- Resolution
- Aerial input
- Audio output powe
- Power Consumption
Remote Control
Type
Control distance
Control angle
Batteries
Dimensions
Weight
Technical Specification

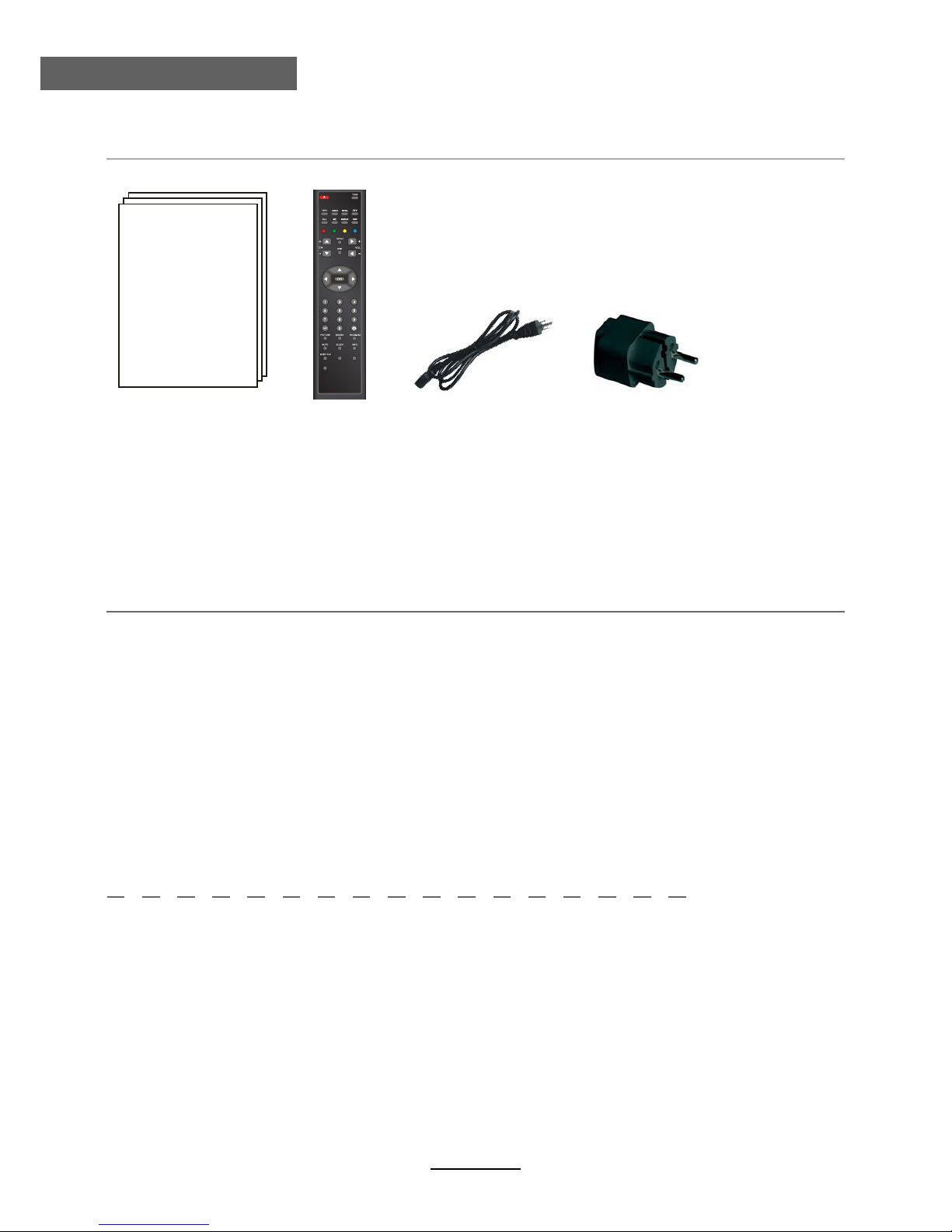

User’s Manual Remote control Power cable
* Note: The configuration of the components may look different from the folltowing illustration
PAL, SECAM, NTSC, DVB-T
B/G, D/K, I, M
MPEG 2 support for Germany, Italy, Turkey and so on
MHEG 5 support for UK
40 inch(diagonal)
1920x1080
ȍXQEDODQFHG
2x10W
AC100-240V 50/60Hz 250W
0
infrared
5m
30 (horizontal)
2 x 1.5V, size
(without battery)
AA
54 x 217 x 21 mm
70g
220V
Power Socket
CHANNEL LIST
TV/RADIO
EPG

Product Introduction
4
Product Introduction
Front View
Rear View
TV/AV:
Display the input source menu.
MENU:
Display/exit the OSD menu.
CH+/-:
Scan through channels.
VOL+/-:
Adjust the volume.
POWER:
Turn on/standby the TV set.
Remote Control window(keep clear)LED indicator
(IR) Infrared Receiver: Receives IR signals from the remote control.
(Power on/Standby) LED indicator: Press POWER to turn on and off.
The effective receiving range for the signal is 5-8 metres from the front of the remote
control window, and 30
0
to the left or right side and 20
0
above or below the control
window.
Indicator on(Red) Standby mode
Indicator on(Green) Power on mode
Connections
--See next page
POWER
SWITCH
AC POWER IN
on
off
Vesa standard (400x200mm)
Screw type: 4 x M5 x 15

Connections
5
Connections
1234 5 67891011 12
2. HDMI1/2/3: Connect it to the HDMI of DVD or other equipment.
1. Service: USB jack for upgrade.
4. PC AUDIO IN: Connect it to the audio output terminal of PC.
3. VGA: For PC display.Connect it to the D-Sub 15 pins analog output connector of the PC.
5. SCART1/2: Connect them to the SCART video output terminal of DVD.
6. Common interface: CI slot.
7. YPbPr: Connect them to the YPbPr video output terminal of DVD.
8. VIDEO: Connect it to video output terminal of DVD.
9. L/R in: Connect them to the audio output terminal of DVD(in AV mode).
L/R in: Connect them to the audio output terminal of DVD(in YPbPr mode).
10. Coax:Digital coaxial output.
11. RF1(for Europe): Connect antenna or cable 75 Ohm coaxial to receive TV signal.
12. RF2(for USA): Connect antenna or cable 75 Ohm coaxial to receive TV signal.

CHANNEL LIST
TV/RADIO
EPG
Remote Control
6

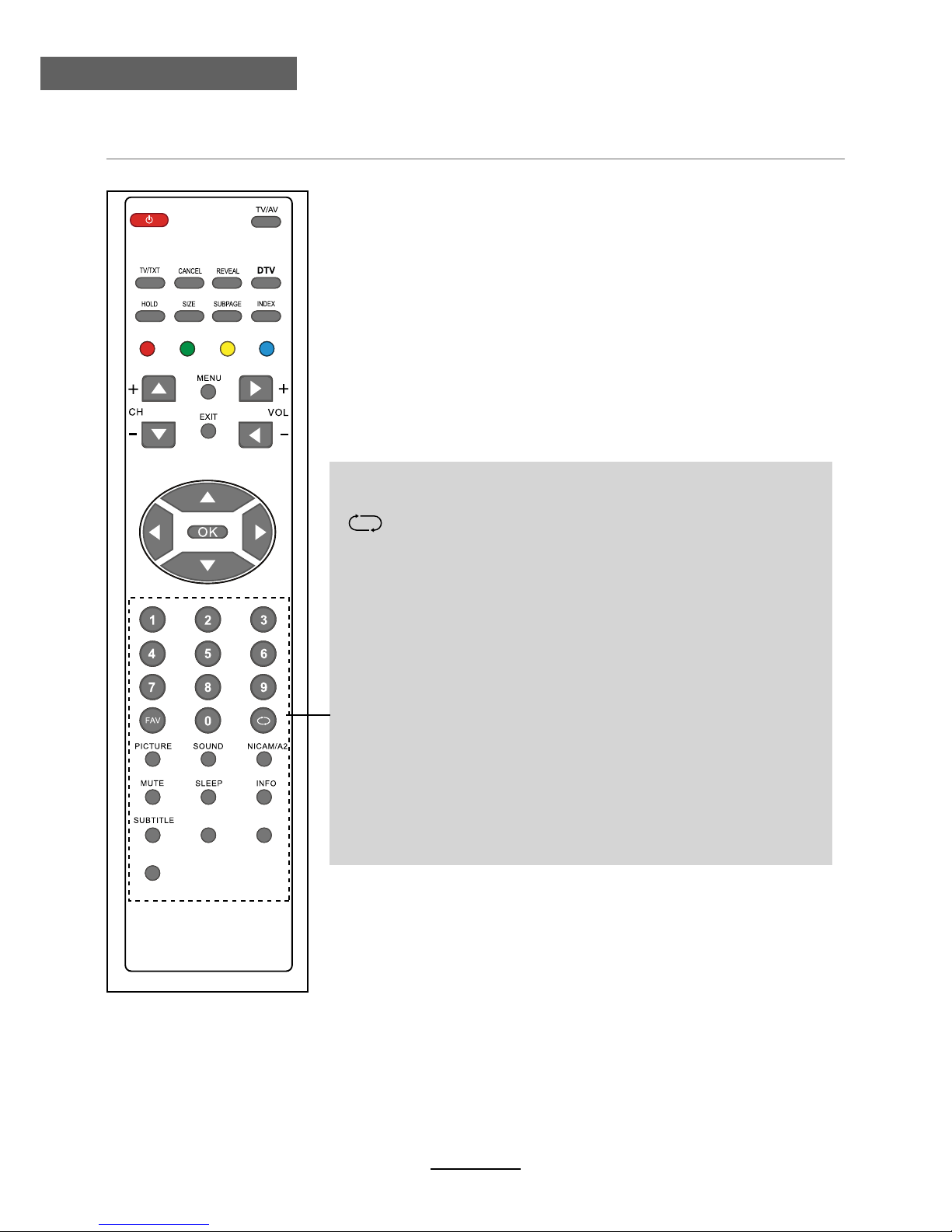

Remote Control
The remote control is using Infra-Red(IR). Point it towards the front of the LCD TV. The remote
control may not work correctly if it is operated out of range or out of angle.
POWER: Turn the TV on/standby.
TV/AV: Press to display the input source menu.
TV/TXT: Turn off/on the Teletext display.
CANCEL: Cancel the Teletext display.
REVEAL: Reveal any hidden text.
DTV: Switch to DTV mode.
HOLD: Hold or carry on the current subpage.
SIZE: Press to see top half of page double size, Press again
to see the bottom half of page double size. Press again for
normal size.
SUBPAGE: Press to subpage, again to cancel.
INDEX: Go to index.
Colour buttons: Short cuts-follow the coloured links in the
text.
MENU: System setup menu.
EXIT: Exit the OSD menu.
CH+/-: Channel/Program +/-.
VOL+/-: Volume +/-.
Cursor left/right/up/down: Cursor buttons used in menus.
OK: CONFIRM BUTTON for menu.

Remote Control
7
Remote Control
CHANNEL LIST
TV/RADIO
EPG
0-9,-/--: Choose channel directly.
FAV: Display the favourite program list.
: Return to the previous channel viewed.
PICTURE: Select the picture mode.
SOUND: Select the sound mode.
NICAM: NICAM/A2 select.
MUTE: Press to mute the sound, press again or press VOL+
to unmute.
SLEEP: Standby timer.
INFO: Means information, to display brief information
concerning the cuiient channel or disc you are wathching.
SUBTITLE: To switch the dialog at the bottom of the screen
in DTV mode.
CHANNEL LIST: Display the programs list.
EPG: To show the Electronic Program Guide during no-menu
state only in DTV mode.
TV/RADIO: Change the state between DTV and RADIO in
DTV mode.

Basic Operation
8
Basic Operation
Power on/off
1. Connect to the power supply with a power code, and turn on the power switch.
2. -To turn on the TV
Press POWER button on the TV or remote control.
-To turn off the TV
Press POWER button on the TV or remote control.
Input Source select
Press TV/AV button on the TV set or remote control to display the
input source menu, and use CH+/- button on the TV set or Ĥ0ĥ!button
on remote control to select the input source, press OK button on the
remote control to enter.
Note: Before you select the input source, make sure the
connections are prepared.

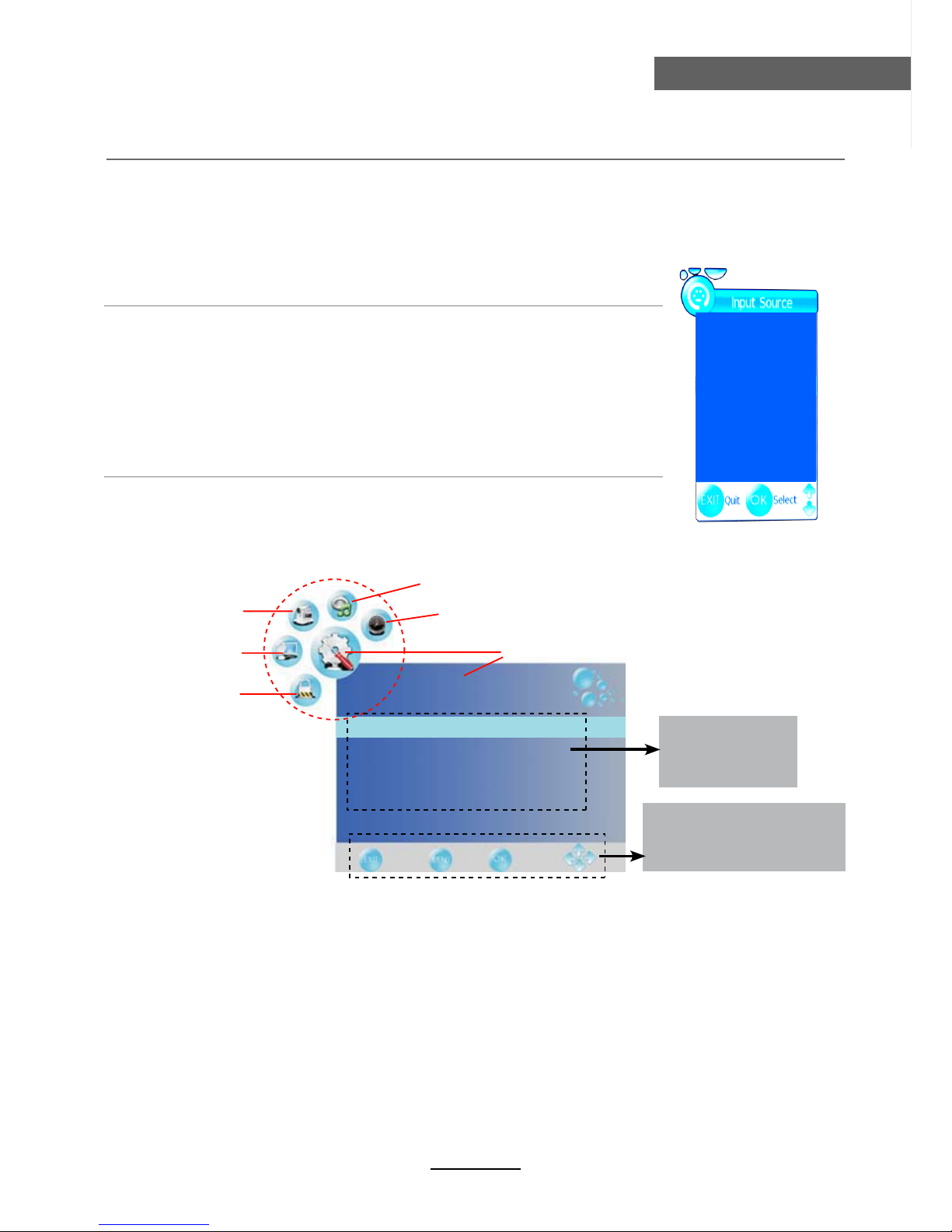

Basic OSD Menu operation
Hint---you should operate
Press MENU button to display the OSD menu as below:
Use
Ĥ
/
ĥ
Ĥ
/
ĥ
button to select the main menu, and press button to enter the submenu.
In the submenu, use Ĥ/ĥ
ĥ
button to select the function item, press button to adjust/setup,
or press OK button to enter the submenu.
* (Press MENU button to return to the upper menu.)
* (Press EXIT button to exit the menu display.)
Note1: Only when you input the suitable signal, the relevant items can be activated
Note2: Please operating the OSD menu according to hint on the bottom of the banner.
the OSD menu according
to the hint.

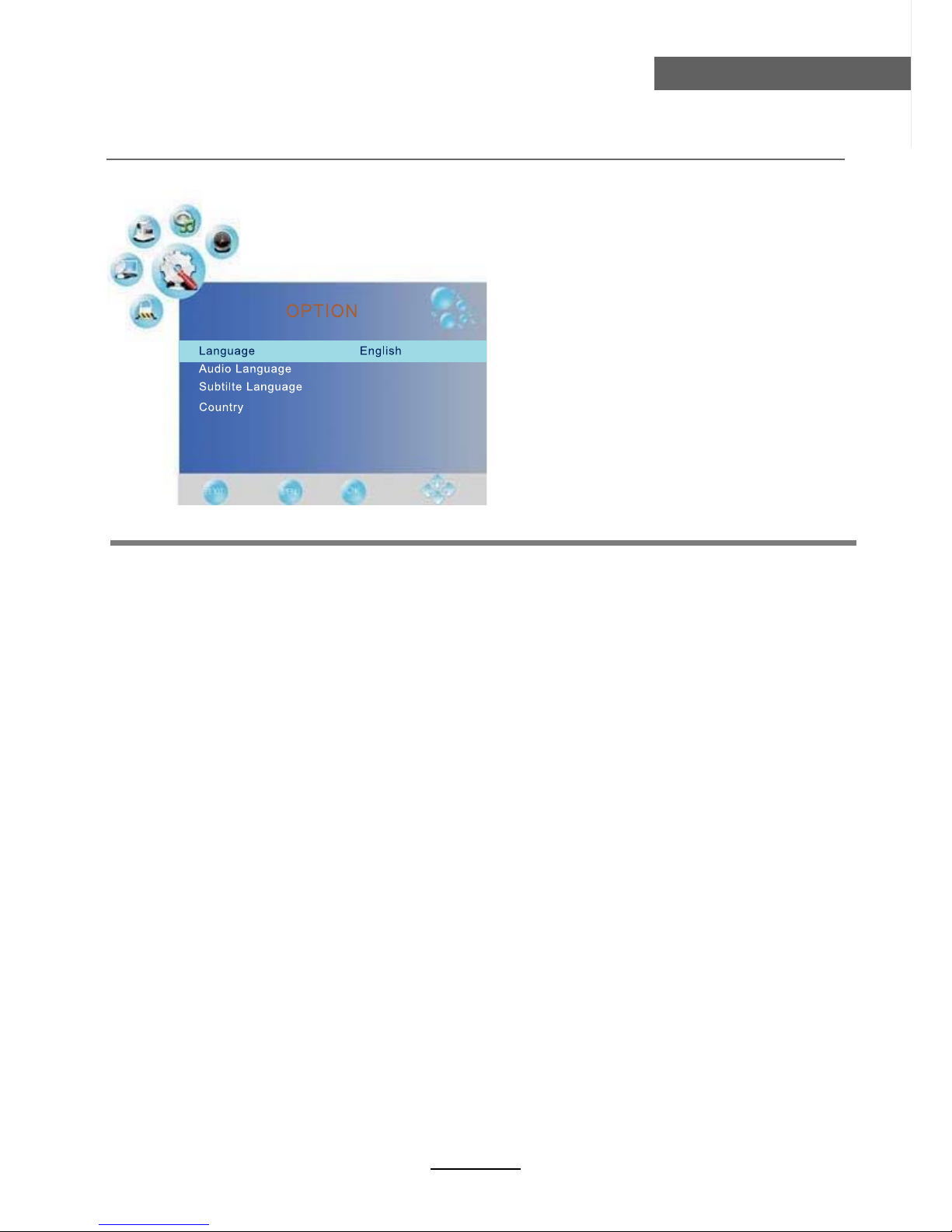

OPTION
Language
Audio Language
Subtilte Language
Country
Restore Setting
English
English
English
Australia
MAINS MENU
PICTURE menu
SOUND menu
TIMER menu
OPTION menu
CHANNEL menu
LOCK menu
Submenu
(OPTION menu
for example)
DTV
ATV
SCART1
SCART2
AV
YPbPr
VGA
HDMI2
HDMI3
HDMI1

OSD Menu
9
OSD Menu

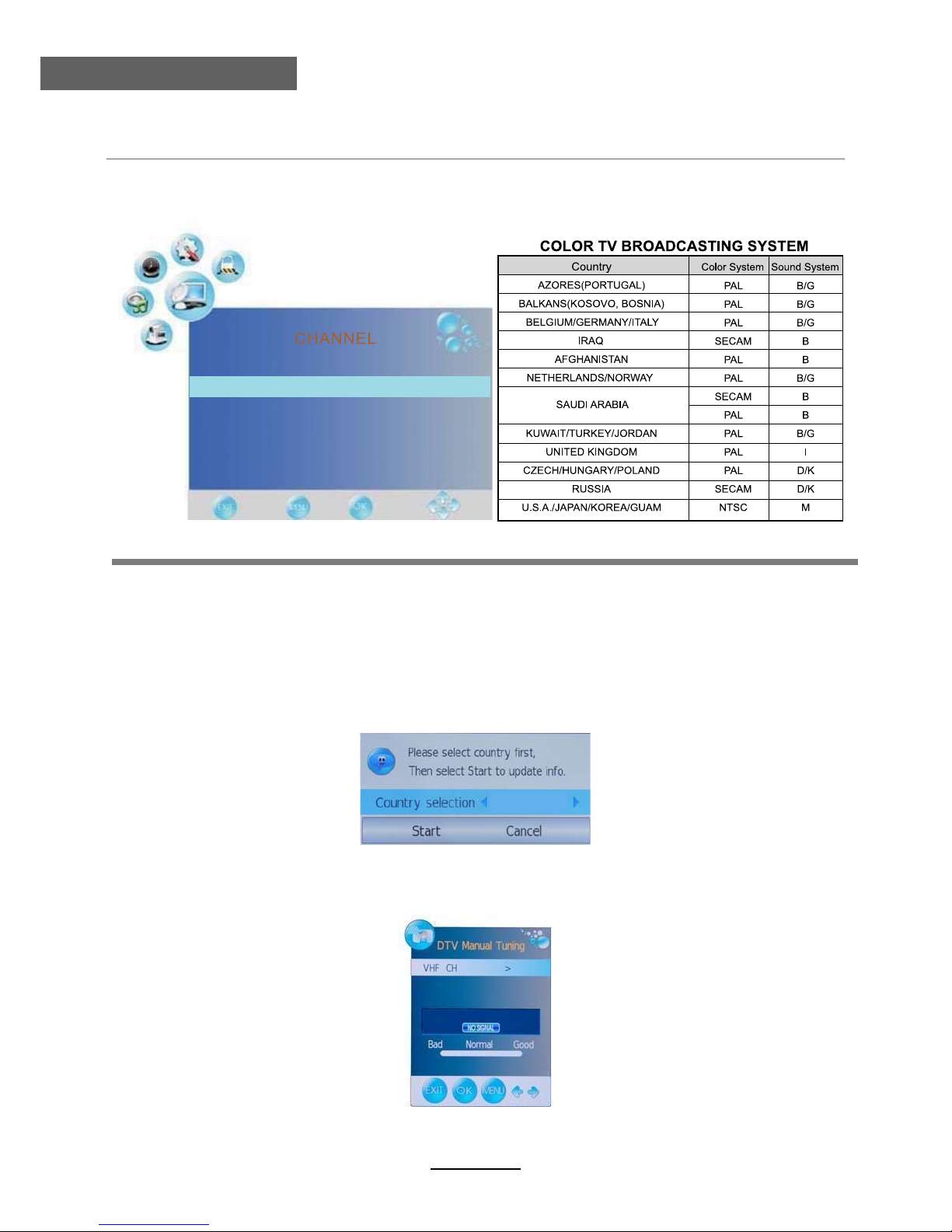

1. CHANNEL menu
Description
Tuner selection: Select the tuner mode, PAL/SECAM or NTSC.
Auto Scan:
In NTSC mode: press OK button to enter the Auto scan menu, then start auto tuning by OK
button.
In PAL/SECAM mode: press OK button to enter the hint menu for Country selecting, select
“Start” and press OK button to enter the Auto scan menu, then start auto tuning by OK
button(It contains ATV and DTV signals).
DTV Manual Scan: Press OK button to enter the DTV Manual Scan menu, select a DTV
channel, and press OK button to start searching.
DTV Manual Scan
Tuner selection PAL/SECAM
Auto Scan
ATV Manual Scan
Programme Edit
CI Information

OSD Menu
10
OSD Menu

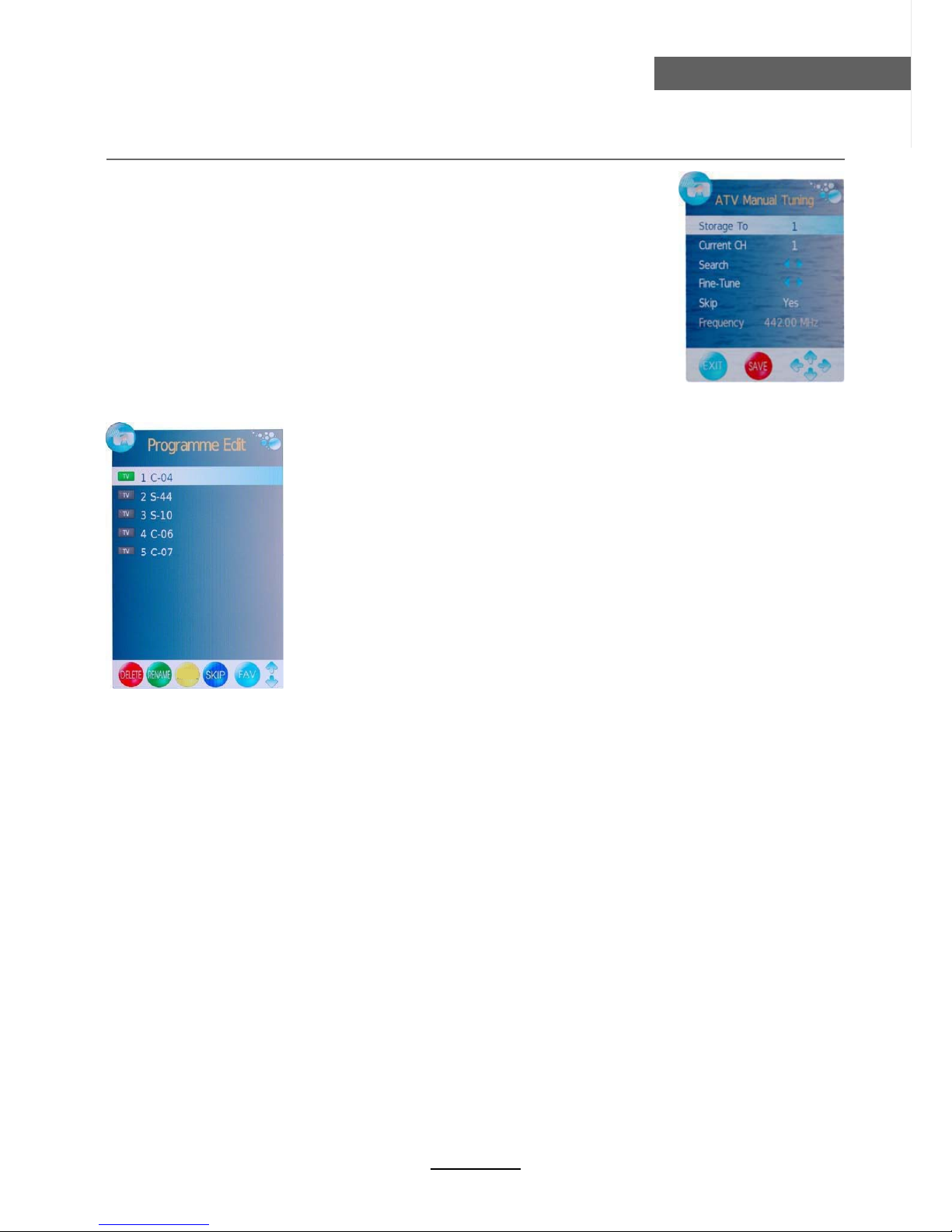

ATV Manual Scan: Press OK button to enter the ATV Manual Scan menu.
Storage To: Select a position for storing the program searched.
Current CH: Select a channel you want to manual tuning.
Search: Press < / > button to manual search.
Fin-Tune: Press < / > button to fine-tune.
Skip: Select “Yes” to skip the program when you scan the programs
by CH+/-.
Frequency: Display the current channel’s frequency.
Program Edit: Press OK button to enter the Program Edit menu as the following picture.
Note: Press RED button to save all the setups you have changed.
SWAP
Delete: Select a program, and press RED button, on the right of program, “Delete” will
appear, then press RED button again, the program will be deleted. If you press RED button
once,but do not want to delete the program, press MENU button to quit.
Rename: Select a program, and press GREEN button, then you could use < and > buttons
to select the position of the program’s name you want to change, and press and 
buttons to change the character, press < or > button to confirm the change. Press menu
to exit and it will automatically save the current set.(It can only rename ATV program.)
Move: Select a program, and press YELLOW button, then you could use and 
buttons to change the position of the program, press YELLOW again to confirm the change.
Press menu to exit and it will automatically save the current set.
Swap: Slect a program, and press BLUE button to sign the program, while the program
have been signed, it will be skiped when you scan programs by CH+/-.
FAV: Select a program, press FAV button to set the program as the favorite channel.
Note: The function of “RENAME” and “MOVE” could not be used in DTV source.

Size
OSD Menu
11
OSD Menu
2. PICTURE menu
Description
Picture Mode: Select picture display mode.
Contrast: Control the difference between the brightness and darkest regions of the picture.
Brightness: Controls the overall brightness of the picture.
Colour: Control the colour.
Sharpness: Increase this setting to see crisp edges in the picture; decrease it for soft edges.
Tint: Control the tint.
Color Temperature: Cycles among colour modes: User, Cool, Standard, Warm.
When you select “User” mode, you could adjust the colours below(Red, Green, Blue) by yourself.
Aspect Ratio: Select screen display mode.
Noise Reduction: Reduce the noise point of the picture when you turn on the function by
selecting “On”.
Screen(only exist in PC-RGB mode): Press OK button to enter the submenu to adjust the
picture of the screen.
Tint

OSD Menu
12
OSD Menu
3. SOUND menu
Description
Sound Mode: Select the sound mode.
Treble(Could be adjusted when the sound mode is User): Controls the relative intensity of
higher pitched sounds.
Balance: To adjust the balance of the left and right sound track, or turn off the volume of the
left and right sound track.
Auto Volume: Control the volume of the program automatically when you turn on the function
by selecting “On”.
Surround Sound: Turn on/off the surround sound function by selecting “on”/“off”.

OSD Menu
13
OSD Menu
Clock: Use the < and > buttons to select the position, and use the and button to set the
time.
Note: User can not change time manually during DTV mode, for time is from signal source
directly.
Off Time: Press OK button to enter the submenu, you could set the time when the TV set will be
turned off automatically, you could also set the frequency.
On Time: Press OK button to enter the submenu, you could set the time when the TV set will be
turned on automatically, you could also set the frequency, volume and program.
Sleep Timer: Allows you to setup the sleep timer among: 10min, 20min, 30min, 60min, 90min,
120min,180min, 240min and off.
Auto Sleep: Turn on/off the auto standby function.
Time Zone: Allows you to select the time zone.

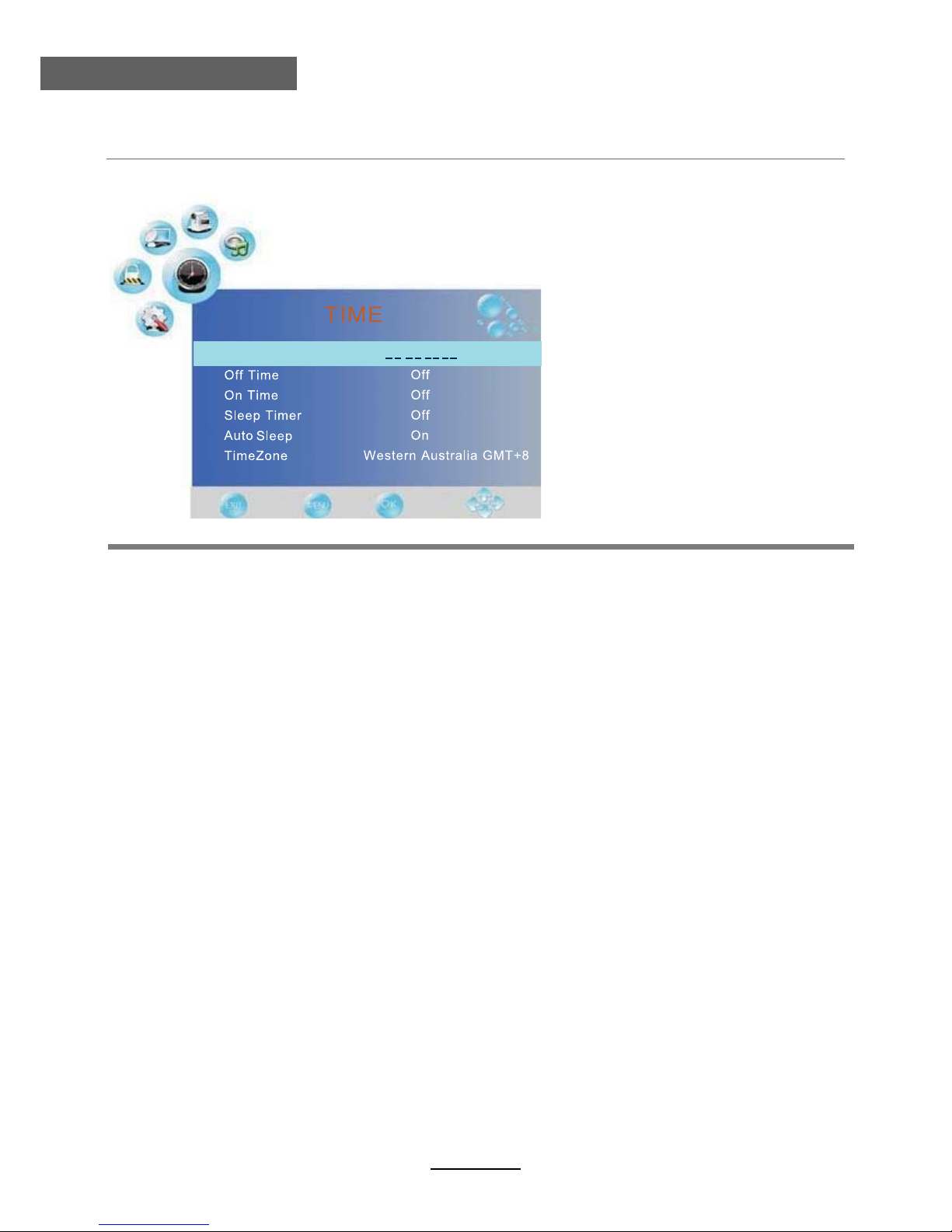

Clock
4. TIME menu
Description

OSD Menu
14
OSD Menu
Language: Allows you to select menu language.
Audio Language(Could be selected in TV mode): Allows you to select audio language.
Subtitle Language(Could be selected in TV mode): Allows you to select subtitle language.
Country: Display the current Country, and you should select the Country when you want to
auto tuning.
Restore Setting: Press OK button to restore factory default.
5. OPTION menu
Description
Restore Setting
English
UK
English
Quit Back Select

OSD Menu
15
OSD Menu
Description
Lock Channel: Allows you to turn on or off the channel lock. When select “On”, chanel menu
is closed.
Change Password: Press OK button to enter the submenu, and you could change the
password here.
Block Program: Press OK button to enter the submenu as the right picture, select a program,
and press GREEN button to block it.
Parental Guidance: Cycles among ages: 4,5,6......18, or you could turn the function off.
6. LOCK menu
Change Password
Note: You should enter the code to operate the menu.(original code is 0000)
Please enter password

Simple Troubleshooting
16
Simple Troubleshooting
If the display fails or performance dramatically deteriorates check the Display in accordance
with the following instructions.Remember to check the peripherals topinpiont the source of the
failure.
If the display still fails to perform as expected,connect your helpline for assistance.
No power
- Check all connections to the TV.
- Press either the power button or the Standby button on the Remote control.
No picture or sound
- Ensure that the TV is plugged in and the power is on.
- Ensure that the aerial is connected.
- Try a different programme.
Poor picture quality
- Check the aerial connections.
- Check that the channel is tuned in properly.
- Adjust the picture settings:brightness,colour,sharpness,contrast,hue.
- Make sure that the TV is not located close to electrical appliances that may emit radio
frequency interference.
No colour
- Adjust the colour setting.
- Check that the programme is broadcast in colour.
- Check that the cannel is tuned properly.
TV does not respond to remote control
- Check that there are no obstructions between the remote control and the unit.
- Check that the remote control is within range of the unit.
- Check that the batteries in the remote control and not weak or exhausted.
This LCD TV is for household use and registered as harmless on electromagnetic waves.
Therefor,you can use it in every location as well as residential areas.

;΀͵Ͷͽ ͽͲͳ΀΃ ΁Ͳ΃΅΄
Ͳͽ΅ͷΈ͵ ͵ΒΪΤ ΊΖΒΣ
΅ΠΕΒΞΒΘΖΤΠΣΡΣΠΓΝΖΞΤΨΙΚΔΙΣΖΤΦΝΥΗΣΠΞΕΖΝΚΧΖΣΪΠΣΚΞΡΣΠΡΖΣΚΟΤΥΒΝΝΒΥΚΠΟ
΅ΙΖΣΖΗΠΣΖΥΙΖΤΖΔΠΤΥΤΒΣΖΡΒΚΕΓΪΥΙΖΔΠΟΤΦΞΖΣ
΃ΖΥΒΚΟΪΠΦΣΤΒΝΖΤΣΖΔΖΚΡΥΥΠΡΣΠΧΖΕΒΥΖΠΗΡΦΣΔΙΒΤΖ
ΈΚΥΙΠΦΥΣΖΔΖΚΡΥΠΗΡΣΠΠΗΠΗΡΦΣΔΙΒΤΖΟΠΨΒΣΣΒΟΥΪΨΚΝΝΓΖΙΠΟΠΣΖΕ
ʹΆ΄΅΀;Ͷ΃΄Ͷ΃·ͺʹͶͲ΄΄ͺ΄΅ͲͿʹͶ
ͲΤΚΒΧΖΟΥΦΣΖΝΚΟΜʹΠͽΥΕ
΃ΖΟΒΚΤΤΒΟΔΖ΅ΠΨΖΣ͸ΠΟΘΕΖΠΜΕΠΟΘ
;ΒΡΠΘΦ΄ΖΠΦΝͼΠΣΖΒ
΅Ͷͽ
ͷͲΉ׊
Ͷ;ͲͺͽͲ·ͽͱͲ·ͽΔΔΠΞ
ΈΖΓΨΨΨͲ·ͽΔΔΠΞ
΁ΣΚΟΥΖΕΚΟʹΙΚΟΒ
ͽͺ;ͺ΅Ͷ͵ΈͲ΃΃ͲͿ΅Ί
ʹΠΡΪΠΗΪΠΦΣΤΒΝΖΤΣΖΔΖΚΡΥΞΦΤΥΓΖΤΦΓΞΚΥΥΖΕΒΥΥΙΖΥΚΞΖΨΒΣΣΒΟΥΪΤΖΣΧΚΔΖΚΤΡΣΠΧΚΕΖΕ
΅͹ͶͲͳ΀·ͶΈͲ΃΃ͲͿ΅Ί͵΀Ͷ΄Ϳ΀΅Ͳ΁΁ͽΊ
΅ΠΕΒΞΒΘΖΤΠΣΡΣΠΓΝΖΞΤΨΙΚΔΙΣΖΤΦΝΥΗΣΠΞΞΚΤΦΤΖΒΓΦΤΖΒΔΔΚΕΖΟΥΒΝΥΖΣΒΥΚΠΟΠΣΚΟΔΠΣΣΖΔΥΖΝΖΔΥΣΚΔΒΝ
ΔΦΣΣΖΟΥΠΣΧΠΝΥΒΘΖ
΅ΠΤΖΣΧΚΔΖΔΒΝΝΤΨΙΚΔΙΕΠΟΠΥΚΟΧΠΝΧΖΕΖΗΖΔΥΚΧΖΨΠΣΜΞΒΟΤΙΚΡΠΣΞΒΥΖΣΚΒΝΤΦΔΙΒΤΙΖΒΕΔΝΖΒΟΚΟΘΒΟΕ
ΖΩΡΝΒΚΟΚΟΘΥΙΖΠΡΖΣΒΥΚΠΟΠΗΥΙΖΦΟΚΥ
΅ΠΡΣΠΧΖΨΒΣΣΒΟΥΪΔΠΧΖΣΒΘΖ
ΈͲ΃΃ͲͿ΅Ί΁Ͷ΃ͺ΀͵
ͲΤΚΒΧΖΟΥΦΣΖΝΚΟΜʹΠͽΥΕΨΚΝΝΣΖΡΒΚΣΠΣΣΖΡΝΒΔΖΨΚΥΙΠΦΥΔΙΒΣΘΖΒΥΚΥΤΠΡΥΚΠΟΪΠΦΣΡΣΠΕΦΔΥΨΙΚΔΙΡΣΠΧΖΤΥΠΓΖ
ΕΖΗΖΔΥΚΧΖΚΟΞΒΥΖΣΚΒΝΠΣΨΠΣΜΞΒΟΤΙΚΡΦΟΕΖΣΟΠΣΞΒΝΦΤΖΕΦΣΚΟΘΥΙΖΨΒΣΣΒΟΥΪΡΖΣΚΠΕΝΚΤΥΖΕΓΖΝΠΨΗΣΠΞΥΙΖ
ΕΒΥΖΠΗΠΣΚΘΚΟΒΝΡΦΣΔΙΒΤΖ
ͿΠΠΥΙΖΣΖΩΡΣΖΤΤΨΒΣΣΒΟΥΪΚΤΒΡΡΝΚΔΒΓΝΖΥΠΥΙΚΤΡΣΠΕΦΔΥ΅ΙΖΕΦΣΒΥΚΠΟΠΗΒΟΪΚΞΡΝΚΖΕΨΒΣΣΒΟΥΚΖΤΚΟΔΝΦΕΚΟΘ
ΥΙΖΚΞΡΝΚΖΕΨΒΣΣΒΟΥΪΠΗΞΖΣΔΙΒΟΥΒΓΝΚΝΚΥΪΚΤΝΚΞΚΥΖΕΥΠΥΙΖΕΦΣΒΥΚΠΟΠΗΥΙΖΖΩΡΣΖΤΤΨΒΣΣΒΟΥΪΙΖΣΖΚΟ
ͲΤΚΒΧΖΟΥΦΣΖΝΚΟΜʹΠͽΥΕΤΙΒΝΝΟΠΥΓΖΝΚΒΓΝΖΗΠΣΥΙΖΝΠΤΤΠΗΥΙΖΦΤΖΠΗΥΙΖΡΣΠΕΦΔΥΚΟΔΠΟΧΖΟΚΖΟΔΖΝΠΤΤΠΣ
ΒΟΪΠΥΙΖΣΕΒΞΒΘΖΤΕΚΣΖΔΥΠΣΔΠΟΤΖ΢ΦΖΟΥΚΒΝΒΣΚΤΚΟΘΠΦΥΠΗΥΙΖΦΤΖΠΗΠΣΚΟΒΓΚΝΚΥΪΥΠΦΤΖΥΙΚΤΡΣΠΕΦΔΥΠΣ
ΗΠΣΒΟΪΓΣΖΒΔΙΠΗΒΟΪΖΩΡΣΖΤΤΠΣΚΞΡΝΚΖΕΨΒΣΣΒΟΥΪΚΟΔΝΦΕΚΟΘΥΙΖΚΞΡΝΚΖΕΨΒΣΣΒΟΥΪΠΗΞΖΣΔΙΒΟΥΒΓΚΝΚΥΪ
ΒΡΡΝΚΔΒΓΝΖΥΠΥΙΚΤΡΣΠΕΦΔΥ
΄ΠΞΖΤΥΒΥΖΤΕΠΟΠΥΒΝΝΠΨΥΙΖΖΩΔΝΦΤΚΠΟΠΣΝΚΞΚΥΒΥΚΠΟΠΗΚΟΔΚΕΖΟΥΒΝΔΠΟΤΖ΢ΦΖΟΥΚΒΝΕΒΞΒΘΖΤΠΣΝΚΞΚΥΒΥΚΠΟΤΠΟ
ΙΠΨΝΠΟΘΒΟΚΞΡΝΚΖΕΨΒΣΣΒΟΥΪΝΒΤΥΤΤΠΥΙΖΤΖΝΚΞΚΥΒΥΚΠΟΤΠΣΖΩΔΝΦΤΚΠΟΤΞΒΪΟΠΥΒΡΡΝΪΥΠΪΠΦ΅ΙΚΤΨΒΣΣΒΟΥΪ
ΘΚΧΖΤΪΠΦΤΡΖΔΚΗΚΔΝΖΘΒΝΣΚΘΙΥΒΟΕΪΠΦΞΒΪΒΝΤΠΙΒΧΖΥΙΖΣΖΣΚΘΙΥΤΨΙΚΔΙΧΒΣΪΗΣΠΞΤΥΒΥΖΥΠΤΥΒΥΖ
