Avol AET2210FM User manual

Model No.: AET2210FM
Attention:
Please kindly refer to “TV Broadcasting system”(Page 11 of User’s manual) for the choosing suitable
TV broadcasting system as per your living area when you use this unit firstly. TV Color system is
automatically searched regardless of your living area.

Contents
Caution
Caution
Safety Information
Accessories
Technical Specification
Product Introduction
Front View
Rear View
OSD Menu
1. PICTURE menu
2. SOUND menu
3. TV menu
4. Function menu
5. PC menu
Simple Troubleshooting
1
2
3
3
4
5
4
4
9-13
9
10
11
12
13
14
Connections
6-7
Remote Control
8
Basic Operation

Caution
Correct disposal of this Product
(Waste Electrical & Electronic Equipment (WEEE)
Your product is designed and manufactured with high quality materials and
components which can be recycled and reused.
This symbol means that electrical and electronic equipment, at their end-
of-life should be disposed of separately from your household waste.
Please dispose of this equipment at your local community waste collection/
recycling centre.
In the USA there are separate collection systems for used electrical and
electronic products. Please help us to conserve the environment we live in!
1
Caution
The exclamation point within an equilateral triangle is intend to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
The lightening flash with arrowhead symbol, within an equilateral triangle
is intended to alert the user to the presence of un-insulated “dangerous
voltage” within the products enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to the persons.
This unit complies with America Safety directives.
This unit complies with FCC directives.
directives.

Safety Information
To ensure reliable and safe operation of this equipment, please read carefully all the
instructions in this user guide, especially the safety information below.
Electrical safety
• The TV set should only be connected to a mains supply which matches that stated on
the label on the mains adaptor.
• To prevent overload, don't share the same mains supply socket with too many other
items of equipment.
- Do not place any connecting wires where they may be stepped on or tripped over.
- Do not place heavy items on the leads, which may damage them.
- Hold the Mains plug, not the wires, when removing from a socket.
- During a thunderstorm or while leaving the TV for long periods, disconnect the aerial
(if outdoor) and mains adaptor from the supply.
- Do not allow water or moisture to enter the TV or mains adaptor. Do NOT use in wet
or moist areas such as Bathrooms, steamy kitchens or near swimming pools.
• Pull the plug out immediately, and seek professional help if:
- the mains plug or cable is damaged.
- liquid is spilt onto the set, or if it is accidentally exposed to water or moisture.
- anything accidentally penetrates the ventilation slots.
- the set does not work normally.
- Do NOT remove the safety covers. There are no user serviceable parts inside.
You may invalidate the warranty. Qualified personnel only are permitted to service
this apparatus.
- To avoid battery leakage, remove exhausted batteries from the remote control
handset, or when not using for along period.
- Do NOT break open or throw exhausted batteries on a fire.
Physical safety
• Do NOT block ventilation slots in the back cover. You may place the TV in a cabinet,
but ensure at least 5cm (2") clearance all around the unit.
• Do NOT tap or shake the TV screen, you may damage the internal circuitry. Take good
care of the remote control, do not drop it or allow it to come into contact with liquids.
• To clean the TV use a soft dry cloth. Do NOT use solvents or petrol based fluids. For
stubborn stains, you may use a damp soft cloth with diluted detergent.
2
Safety Information

Accessories
3
Accessories & Technical Specification
- TV System
- Screen Size
- Resolution
- Aerial input
- Audio output powe
- Power Consumption
Remote Control
Type
Control distance
Control angle
Batteries
Dimensions
Weight
Technical Specification
User’s Manual Remote control
Power Cord
* Note: The configuration of the components may look different from the following illustration
PAL, SECAM, NTSC
22 inch(diagonal)
1920x1080
ȍXQEDODQFHG
2x3W
DC 12V 5A 45W
0
infrared
5m
30 (horizontal)
2 x 1.5V, size
ZLWKRXWEDWWHU\
AAA
50 x 200 x 25 mm
70g
Din to
F Connector
220V
Power Socket
Mains adaptor

Product Introduction
4
Product Introduction
Front View
Rear View
MENU: Display/exit the OSD menu.
CH+/-: Scan through channels.
VOL+/-: Adjust the volume.
TV/AV: Display the input source menu.
POWER: Turn on/standby the TV set.
Remote Control window(keep clear) LED indicator
(IR) Infrared Receiver: Receives IR signals from the remote control.
(Power on/Standby) LED indicator: Press POWER to turn on and off.
The effective receiving range for the signal is 5-8 metres from the front of the remote
control window, and 30
0
to the left or right side and 20
0
above or below the control
window.
Indicator on(Red) Standby mode
Indicator on(Green) Power on mode
Connections
See next page
Wall Mounting
The TV is provided with mounting holes for a VESA approved wallmounting bracket (NOT SUPPLIED).
Remove the Posi screws holding the base to the base bracket and lift the base away (do not remove the
basemounting bracket).Mount the VESA bracket using 4xM4x10mm ISO metric threaded screws (not
supplied). Do not use screws longer than 10mm, it will occur damage to the internal parts. Fit the wall
bracket securely following themanufacturers instructions.

Connections
5

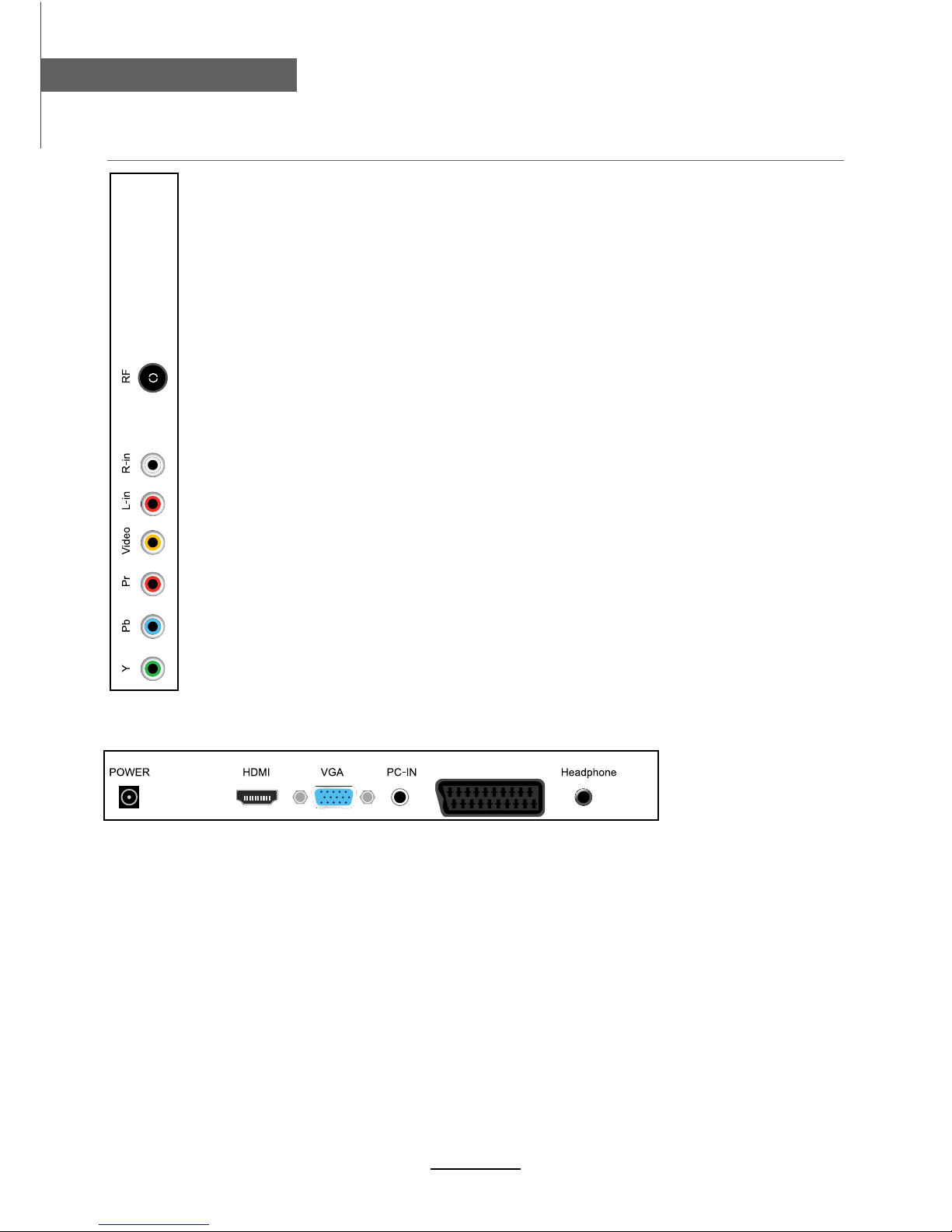

Connections
RF: Connect antenna or cable 75 Ohm coaxial to receive TV signal.
R/L in: Connect them to the audio output terminal of DVD.(shared with YPbPr)
VIDEO: Connect it to video output terminal of DVD.
YPbPr: Connect them to the YPbPr video output terminal of DVD.(used in
component source)
SCART
POWER: Connect to the mains adaptor.
HDMI: Connect it to the HDMI of DVD or other equipment.
VGA: For PC display.Connect it to the D-Sub 15 pins analog output connector of the PC.
PC-IN: Connect it to the audio output terminal of PC.
SCART: Connect them to the SCART video output terminal of DVD.(used in component source)
Headphone: Connect it to your headphone or other audio equipment.

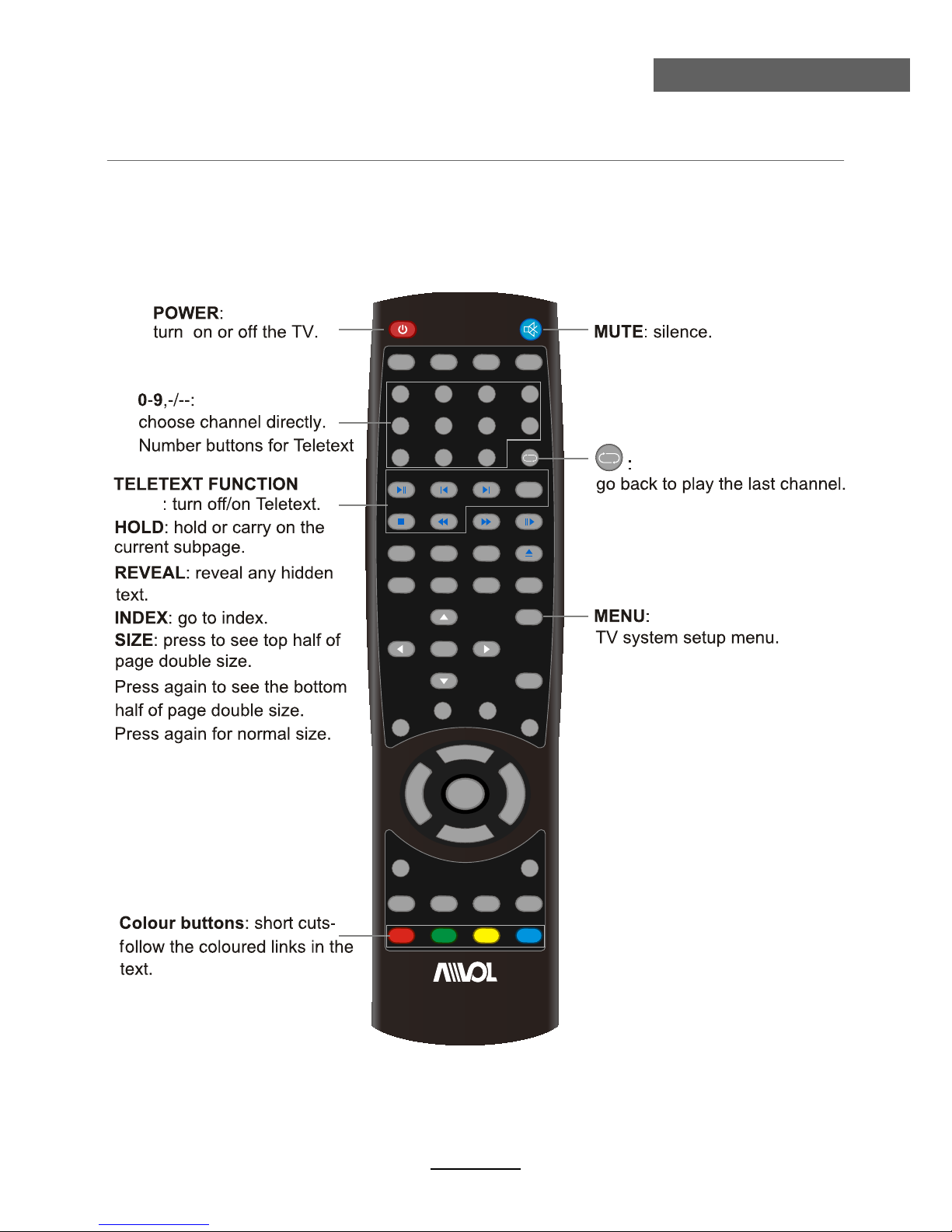

Remote Control
6
Remote Control
The remote control is using Infra-Red(IR). Point it towards the front of the LCD TV. The remote
control may not work correctly if it is operated out of range or out of angle.
1234
5678
90
-/--
PROGRAM
GOTO
D.TITLE D.MENU ZOOM
SUBT. AUDIO REPEATA-B
TEXT HOLD REVEAL INDEX
SIZE SUBPAGE
MENU
EXIT
OK
SOURCE
DISPLAY
CH+
LIST
ASPECT
PMODE BASS- BASS+ SMODE
ANGLE INTRO
SLEEP
CH-
VOL+VOL-
IPOD MENU
PC-AUTO
FAV FAV- FAV+ NICAM
EPG MTS
TV DVD STB SET
CC
ARC-U1
Note: The buttons not being mentioned here have no function on this universal remote.
TEXT
NICAM( NICAM / SUBPAGE in
Teletext).
Press “SUBPAGE” button to
cancel subpage mode only.

Remote Control
7
Remote Control
Note: The buttons not being mentioned here have no function on this universal remote.
SOURCE
Allows you to navigate the on-
screen menus and adjust the
system settings to your
preference.
1234
5678
90
-/--
PROGRAM
GOTO
D.TITLE D.MENU ZOOM
SUBT. AUDIO REPEATA-B
TEXT HOLD REVEAL INDEX
SIZE SUBPAGE
MENU
EXIT
OK
SOURCE
DISPLAY
CH+
LIST
ASPECT
PMODE BASS- BASS+ SMODE
ANGLE INTRO
SLEEP
CH-
VOL+VOL-
IPOD MENU
PC-AUTO
FAV FAV- FAV+ NICAM
EPG MTS
TV DVD STB SET
CC
ARC-U1
THUMBSTICK :
OK

Basic Operation
8
Basic Operation
Power on/off
1. Connect to the power supply with a power cord and an adaptor.
2. -To turn on the TV
Press POWER button on the TV or remote control.
-To turn off the TV
Press POWER button on the TV or remote control.
Input Source select
Press TV/AV button on the TV set or SOURCE button on the remote
control to display the input source menu, and use CH+/- button on the
TV set or Ĥ0ĥ!button on remote control to select the input source,
press OK button on the remote control to enter.
Note: Before you select the input source, make sure the
connections are prepared.
Basic OSD Menu operation
Main menu: PICTURE SOUND TV Function PC
Hint---you should operate
Press MENU button to display the OSD menu as below:
Use /
ĥ
ĥ
Ĥ ĥ
button to select the main menu, and press button to enter the submenu.
In the submenu, use
Ĥ
/
ĥ
Ĥĥ
button to select the function item, press button to enter,
or press / button to adjust/select.
* (Press MENU button to return to the upper menu.)
* (Press EXIT button to exit the menu display.)
Note1: Only when you input the suitable signal, the relevant items can be activated
Note2: Please operating the OSD menu according to hint on the bottom of the banner.
the OSD menu according
to the hint.
YPbPr
Submenu
(TV menu
for example)

OSD Menu
9
OSD Menu

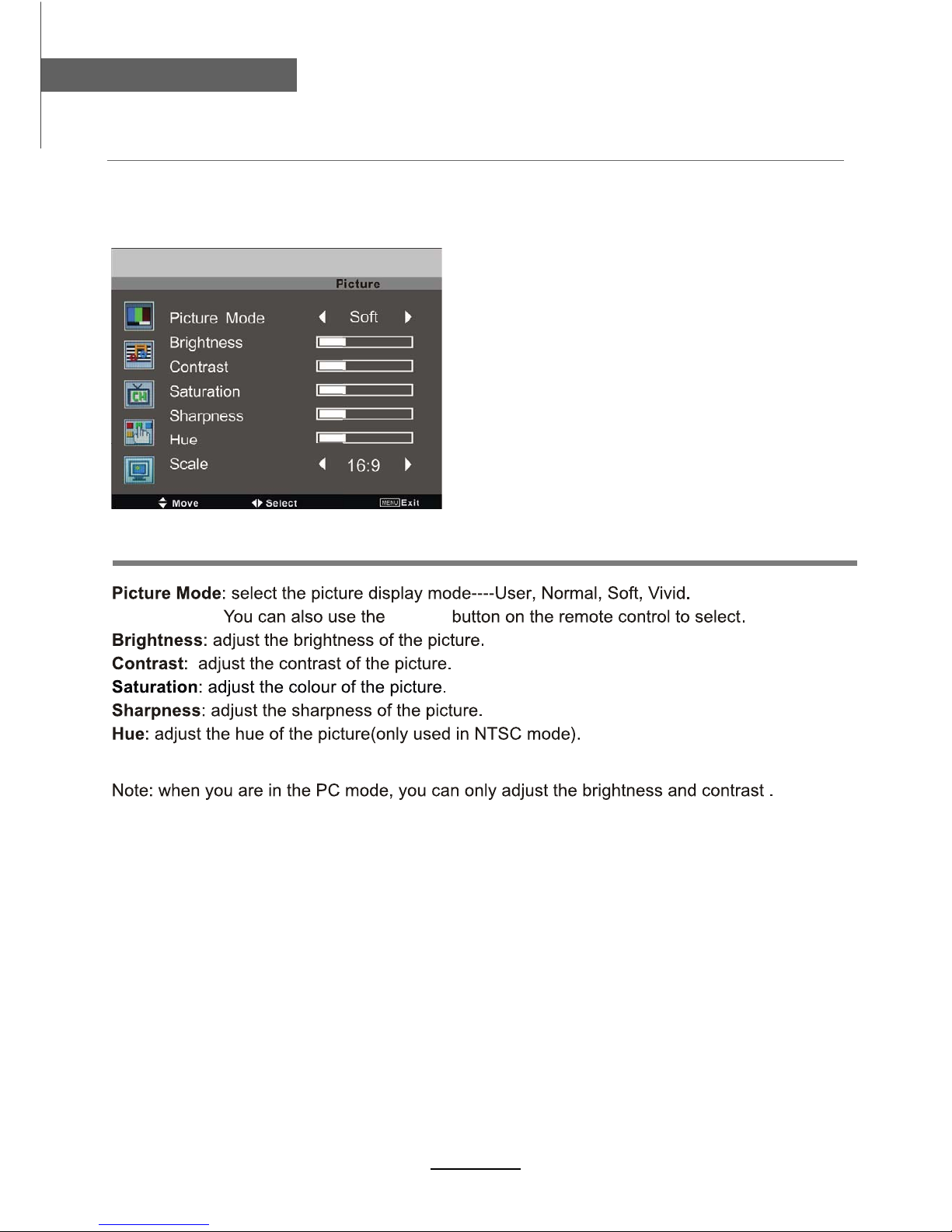

1. PICTURE menu
Description
PMODE
Scale: Select the display mode for screen.

OSD Menu
10
OSD Menu

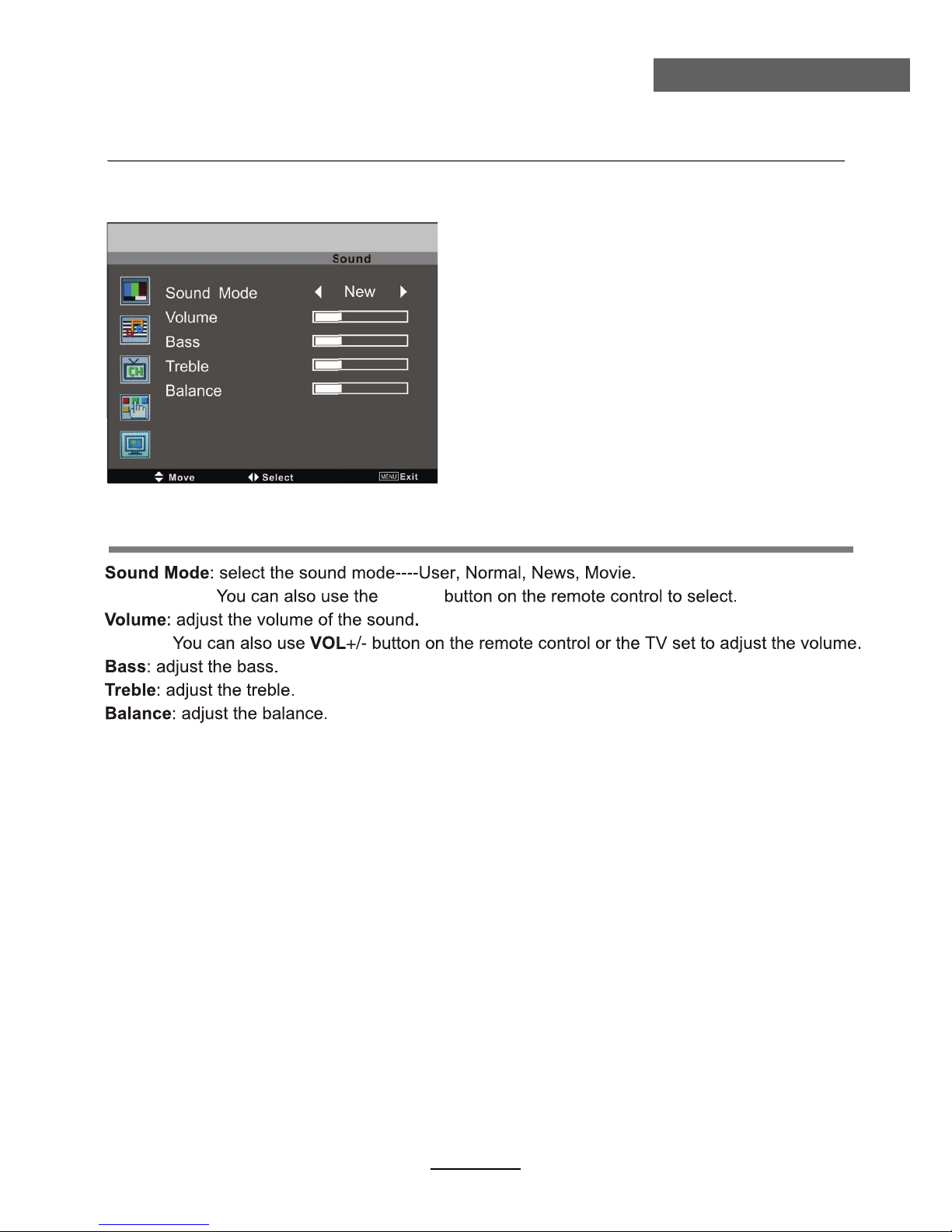

2. SOUND menu
Description
SMODE

OSD Menu
11
OSD Menu

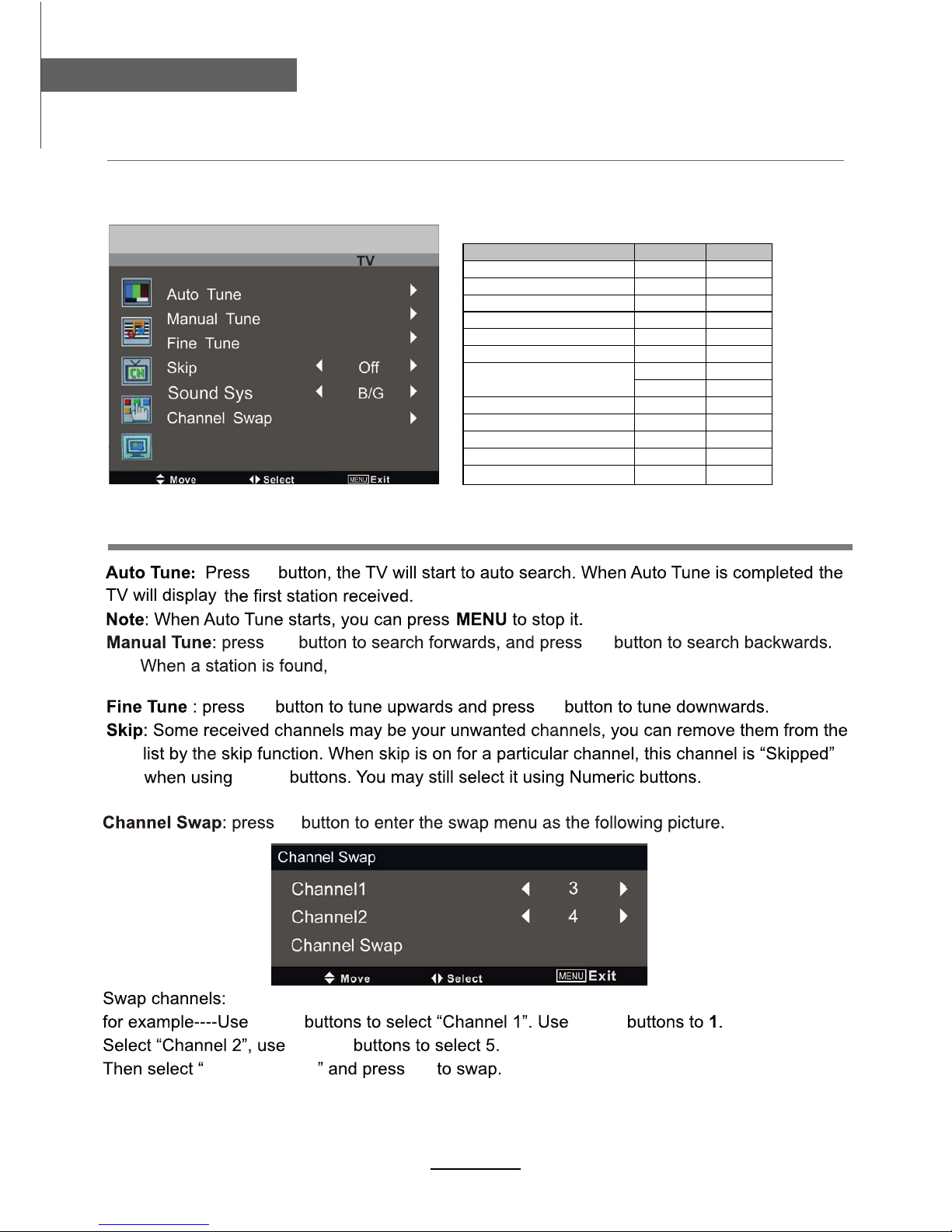

3. TV menu
Description
Ĥ
Ĥ
/
Ĥ
Ĥ
Ĥ
/
ĥ
Ĥ/ĥ
Ĥ
Ĥ
Ĥ
Ĥ
Ĥ
Ĥ
/
Ĥ/ĥ
Ĥ/ĥ
Ĥ
Sound Sys : press button to select the sound system.
press to move to the item "Store" and press to select
“on” to store the station.
Ĥ
Channel Swap
COLOR TV BROADCASTING SYSTEM
Country Color System Sound System
AZORES(PORTUGAL)
BALKANS(KOSOVO, BOSNIA)
BELGIUM/GERMANY/ITALY
IRAQ
AFGHANISTAN
NETHERLANDS/NORWAY
SAUDI ARABIA
KUWAIT/TURKEY/JORDAN
UNITED KINGDOM
CZECH/HUNGARY/POLAND
RUSSIA
PAL
PAL
PAL
PAL
PAL
PAL
PAL
PAL
PAL
SECAM
SECAM
SECAM
NTSC
B/G
B/G
B/G
B
B
B/G
B/G
B
B
I
D/K
D/K
MU.S.A./JAPAN/KOREA/GUAM

OSD Menu
12
OSD Menu
4. Function menu
Description
NICAM reception(option)
If your set is equipped with the receiver for NICAM reception, the high quality NICAM (Near Instaneous)
Companding Audio Multiplex digital sound can be received.
Sound output can be selected according to the type of received broadcast as follows by pressing the I/II
1.When NICAM mono is received, you can only select MONO.
2. When NICAM stereo is received, you can select NICAM STEREO or MONO. If the stereo signal is weak,
3. When NICAM dual is received, you can select NICAM DUAL I,NICAM DUAL II or MONO.
A2 Stereo is supported in this model.
y.
button repeatedl
switch to mono.
Color Temp.: select the Color temperature mode.
Reset: reset all the settings above.

OSD Menu
13
OSD Menu
5. PC menu
Description
sync
ĥ

Simple Troubleshooting
14
Simple Troubleshooting
If the display fails or performance dramatically deteriorates check the Display in accordance
with the following instructions.Remember to check the peripherals topinpiont the source of the
failure.
If the display still fails to perform as expected,connect your helpline for assistance.
No power
- Check all connections to the TV.
- Press either the power button or the Standby button on the Remote control.
No picture or sound
- Ensure that the TV is plugged in and the power is on.
- Ensure that the aerial is connected.
- Try a different programme.
Poor picture quality
- Check the aerial connections.
- Check that the channel is tuned in properly.
- Adjust the picture settings:brightness,colour,sharpness,contrast,hue.
- Make sure that the TV is not located close to electrical appliances that may emit radio
frequency interference.
No colour
- Adjust the colour setting.
- Check that the programme is broadcast in colour.
- Check that the cannel is tuned properly.
TV does not respond to remote control
- Check that there are no obstructions between the remote control and the unit.
- Check that the remote control is within range of the unit.
- Check that the batteries in the remote control and not weak or exhausted.
This LCD TV is for household use and registered as harmless on electromagnetic waves.
Therefor,you can use it in every location as well as residential areas.

;΀͵Ͷͽ ͽͲͳ΀΃ ΁Ͳ΃΅΄
ͲͶ΅ͷ; ͵ΒΪΤ ΊΖΒΣ
΅ΠΕΒΞΒΘΖΤΠΣΡΣΠΓΝΖΞΤΨΙΚΔΙΣΖΤΦΝΥΗΣΠΞΕΖΝΚΧΖΣΪΠΣΚΞΡΣΠΡΖΣΚΟΤΥΒΝΝΒΥΚΠΟ
΅ΙΖΣΖΗΠΣΖΥΙΖΤΖΔΠΤΥΤΒΣΖΡΒΚΕΓΪΥΙΖΔΠΟΤΦΞΖΣ
΃ΖΥΒΚΟΪΠΦΣΤΒΝΖΤΣΖΔΖΚΡΥΥΠΡΣΠΧΖΕΒΥΖΠΗΡΦΣΔΙΒΤΖ
ΈΚΥΙΠΦΥΣΖΔΖΚΡΥΠΗΡΣΠΠΗΠΗΡΦΣΔΙΒΤΖΟΠΨΒΣΣΒΟΥΪΨΚΝΝΓΖΙΠΟΠΣΖΕ
ʹΆ΄΅΀;Ͷ΃΄Ͷ΃·ͺʹͶͲ΄΄ͺ΄΅ͲͿʹͶ
ͲΤΚΒΧΖΟΥΦΣΖΝΚΟΜʹΠͽΥΕ
΃ΖΟΒΚΤΤΒΟΔΖ΅ΠΨΖΣ͸ΠΟΘΕΖΠΜΕΠΟΘ
;ΒΡΠΘΦ΄ΖΠΦΝͼΠΣΖΒ
΅Ͷͽ
ͷͲΉ׊
Ͷ;ͲͺͽͲ·ͽͱͲ·ͽΔΔΠΞ
ΈΖΓΨΨΨͲ·ͽΔΔΠΞ
΁ΣΚΟΥΖΕΚΟʹΙΚΟΒ
ͽͺ;ͺ΅Ͷ͵ΈͲ΃΃ͲͿ΅Ί
ʹΠΡΪΠΗΪΠΦΣΤΒΝΖΤΣΖΔΖΚΡΥΞΦΤΥΓΖΤΦΓΞΚΥΥΖΕΒΥΥΙΖΥΚΞΖΨΒΣΣΒΟΥΪΤΖΣΧΚΔΖΚΤΡΣΠΧΚΕΖΕ
΅͹ͶͲͳ΀·ͶΈͲ΃΃ͲͿ΅Ί͵΀Ͷ΄Ϳ΀΅Ͳ΁΁ͽΊ
΅ΠΕΒΞΒΘΖΤΠΣΡΣΠΓΝΖΞΤΨΙΚΔΙΣΖΤΦΝΥΗΣΠΞΞΚΤΦΤΖΒΓΦΤΖΒΔΔΚΕΖΟΥΒΝΥΖΣΒΥΚΠΟΠΣΚΟΔΠΣΣΖΔΥΖΝΖΔΥΣΚΔΒΝ
ΔΦΣΣΖΟΥΠΣΧΠΝΥΒΘΖ
΅ΠΤΖΣΧΚΔΖΔΒΝΝΤΨΙΚΔΙΕΠΟΠΥΚΟΧΠΝΧΖΕΖΗΖΔΥΚΧΖΨΠΣΜΞΒΟΤΙΚΡΠΣΞΒΥΖΣΚΒΝΤΦΔΙΒΤΙΖΒΕΔΝΖΒΟΚΟΘΒΟΕ
ΖΩΡΝΒΚΟΚΟΘΥΙΖΠΡΖΣΒΥΚΠΟΠΗΥΙΖΦΟΚΥ
΅ΠΡΣΠΧΖΨΒΣΣΒΟΥΪΔΠΧΖΣΒΘΖ
ΈͲ΃΃ͲͿ΅Ί΁Ͷ΃ͺ΀͵
ͲΤΚΒΧΖΟΥΦΣΖΝΚΟΜʹΠͽΥΕΨΚΝΝΣΖΡΒΚΣΠΣΣΖΡΝΒΔΖΨΚΥΙΠΦΥΔΙΒΣΘΖΒΥΚΥΤΠΡΥΚΠΟΪΠΦΣΡΣΠΕΦΔΥΨΙΚΔΙΡΣΠΧΖΤΥΠΓΖ
ΕΖΗΖΔΥΚΧΖΚΟΞΒΥΖΣΚΒΝΠΣΨΠΣΜΞΒΟΤΙΚΡΦΟΕΖΣΟΠΣΞΒΝΦΤΖΕΦΣΚΟΘΥΙΖΨΒΣΣΒΟΥΪΡΖΣΚΠΕΝΚΤΥΖΕΓΖΝΠΨΗΣΠΞΥΙΖ
ΕΒΥΖΠΗΠΣΚΘΚΟΒΝΡΦΣΔΙΒΤΖ
ͿΠΠΥΙΖΣΖΩΡΣΖΤΤΨΒΣΣΒΟΥΪΚΤΒΡΡΝΚΔΒΓΝΖΥΠΥΙΚΤΡΣΠΕΦΔΥ΅ΙΖΕΦΣΒΥΚΠΟΠΗΒΟΪΚΞΡΝΚΖΕΨΒΣΣΒΟΥΚΖΤΚΟΔΝΦΕΚΟΘ
ΥΙΖΚΞΡΝΚΖΕΨΒΣΣΒΟΥΪΠΗΞΖΣΔΙΒΟΥΒΓΝΚΝΚΥΪΚΤΝΚΞΚΥΖΕΥΠΥΙΖΕΦΣΒΥΚΠΟΠΗΥΙΖΖΩΡΣΖΤΤΨΒΣΣΒΟΥΪΙΖΣΖΚΟ
ͲΤΚΒΧΖΟΥΦΣΖΝΚΟΜʹΠͽΥΕΤΙΒΝΝΟΠΥΓΖΝΚΒΓΝΖΗΠΣΥΙΖΝΠΤΤΠΗΥΙΖΦΤΖΠΗΥΙΖΡΣΠΕΦΔΥΚΟΔΠΟΧΖΟΚΖΟΔΖΝΠΤΤΠΣ
ΒΟΪΠΥΙΖΣΕΒΞΒΘΖΤΕΚΣΖΔΥΠΣΔΠΟΤΖ΢ΦΖΟΥΚΒΝΒΣΚΤΚΟΘΠΦΥΠΗΥΙΖΦΤΖΠΗΠΣΚΟΒΓΚΝΚΥΪΥΠΦΤΖΥΙΚΤΡΣΠΕΦΔΥΠΣ
ΗΠΣΒΟΪΓΣΖΒΔΙΠΗΒΟΪΖΩΡΣΖΤΤΠΣΚΞΡΝΚΖΕΨΒΣΣΒΟΥΪΚΟΔΝΦΕΚΟΘΥΙΖΚΞΡΝΚΖΕΨΒΣΣΒΟΥΪΠΗΞΖΣΔΙΒΟΥΒΓΚΝΚΥΪ
ΒΡΡΝΚΔΒΓΝΖΥΠΥΙΚΤΡΣΠΕΦΔΥ
΄ΠΞΖΤΥΒΥΖΤΕΠΟΠΥΒΝΝΠΨΥΙΖΖΩΔΝΦΤΚΠΟΠΣΝΚΞΚΥΒΥΚΠΟΠΗΚΟΔΚΕΖΟΥΒΝΔΠΟΤΖ΢ΦΖΟΥΚΒΝΕΒΞΒΘΖΤΠΣΝΚΞΚΥΒΥΚΠΟΤΠΟ
ΙΠΨΝΠΟΘΒΟΚΞΡΝΚΖΕΨΒΣΣΒΟΥΪΝΒΤΥΤΤΠΥΙΖΤΖΝΚΞΚΥΒΥΚΠΟΤΠΣΖΩΔΝΦΤΚΠΟΤΞΒΪΟΠΥΒΡΡΝΪΥΠΪΠΦ΅ΙΚΤΨΒΣΣΒΟΥΪ
ΘΚΧΖΤΪΠΦΤΡΖΔΚΗΚΔΝΖΘΒΝΣΚΘΙΥΒΟΕΪΠΦΞΒΪΒΝΤΠΙΒΧΖΥΙΖΣΖΣΚΘΙΥΤΨΙΚΔΙΧΒΣΪΗΣΠΞΤΥΒΥΖΥΠΤΥΒΥΖ
