Avol AET58320UM User manual

Attention;
Please Kindly refer to "TV Broadcasting system"(Page 10 of User's manual) for choosing suitable
TV broadcasting system as per your living area when you use this unit firstly.TV Color system is
automatically searched regardless of your living area.
Model No.:AET58320UM
58" Full HD 100/120Hz Multi System LED TV

Contents
Contents
Caution
Safety Information
Accessories
Technical Specification
Product Introduction
Front View
Wall Mounting
OSD Menu
1. Channel menu
2. Picture menu
3. Sound menu
4. Time menu
5. OPTION menu
1
2
3
3
4
5
4
4
9-14
9-10
11
12
13
14
Connections
6-7
Remote Control
8
Basic Operation
Simple Troubleshooting 15

Caution
Correct disposal of this Product
(Waste Electrical & Electronic Equipment (WEEE)
Your product is designed and manufactured with high quality materials and
components which can be recycled and reused.
This symbol means that electrical and electronic equipment, at their end-
of-life should be disposed of separately from your household waste.
Please dispose of this equipment at your local community waste collection/
recycling center.
In the USA there are separate collection systems for used electrical and
electronic products. Please help us to conserve the environment we live in!
1
Caution
The exclamation point within an equilateral triangle is intend to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
The lightning flash with arrowhead symbol, within an equilateral triangle
is intended to alert the user to the presence of un-insulated “dangerous
voltage” within the products enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to the persons.
directives.
This unit complies with The Restriction of the use of certain Hazardous
substances in Electnical and Electronic Equipment

Safety Information
To ensure reliable and safe operation of this equipment, please read carefully all the
instructions in this user guide, especially the safety information below.
Electrical safety
vTo prevent overload, don't share the same mains supply socket with too many other
items of equipment.
- Do not place any connecting wires where they may be stepped on or tripped over.
- Do not place heavy items on the leads, which may damage them.
- Hold the Mains plug, not the wires, when removing from a socket.
- During a thunderstorm or while leaving the TV for long periods, disconnect the aerial
(if outdoor) and mains power from the supply.
- Do not allow water or moisture to enter the TV . Do NOT use in wet
or moist areas such as Bathrooms, steamy kitchens or near swimming pools.
v8]TT\PMXT]OW]\QUUMLQI\MTy, and seek professional help if:
- the mains plug or cable is damaged.
- liquid is spilt onto the set, or if it is accidentally exposed to water or moisture.
- anything accidentally penetrates the ventilation slots.
- the set does not work normally.
- Do NOT remove the safety covers. There are no user serviceable parts inside.
You may invalidate the warranty. Qualified personnel only are permitted to service
this apparatus.
- To avoid battery leakage, remove exhausted batteries from the remote control
handset, or when not using for along period.
- Do NOT break open or throw exhausted batteries on a fire.
Physical safety
v,W67T block ventilation slots in the back cover. You may place the TV in a cabinet,
but ensure at least 5cm (2") clearance all around the unit.
v,W67T tap or shake the TV screen, you may damage the internal circuitry. Take good
care of the remote control, do not drop it or allow it to come into contact with liquids.
v<WKTMIV\PM<>][MI[WN\LZaKTW\P,W67<][M[WT^MV\[WZXM\ZWTJI[MLNT]QL[.WZ
stubborn stains, you may use a damp soft cloth with diluted detergent.
2
Safety Information

Converter cable for
AV
Converter cable for
YPbPr video

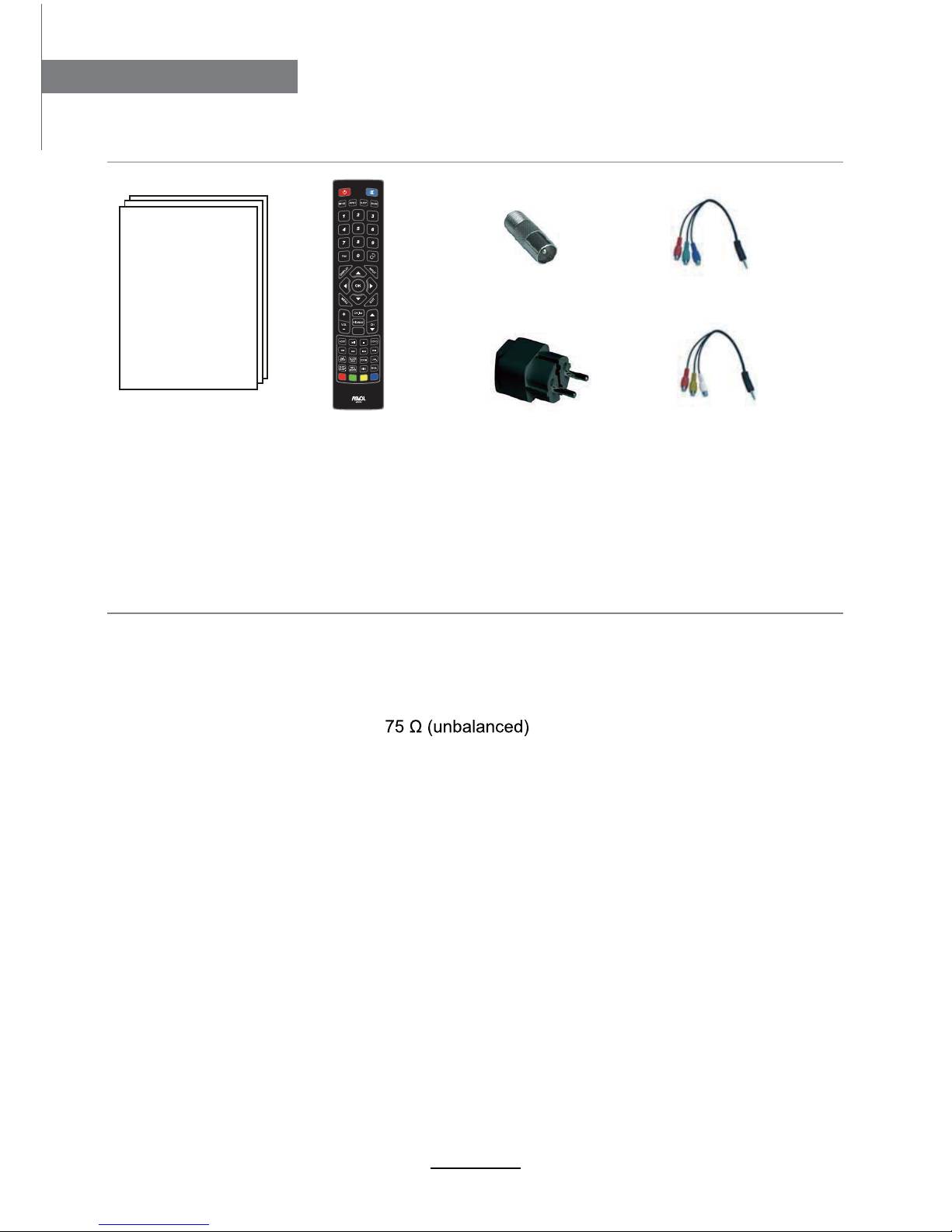

Accessories
3
Accessories & Technical Specification
Technical Specification
User’s Manual Remote control
* Note: The configuration of the components may look different from the following illustration
58 inch(diagonal)
1920X1080
2x10W
100-240V ~ 50/60Hz 180W
- Screen Size
- Resolution
- Aerial input
- Audio output power
- Power Consumption
- TV-System PAL/SECAM/NTSC
220V Power Socket
Din to F Connector
(Model no.: MA004)

Product Introduction
Product Introduction
4
Front View
POWER to turn on and off.
Indicator on(Green) Power on mode
Led Indicator Remote Control window
(Keep clear)
The TV is provided with mounting holes 400x200mm for a VESA approved wallmounting bracket (NOT
SUPPLIED). Remove the Posi screws holding the base to the base bracket and lift the base away (do not
remove the basemounting bracket).Mount the VESA bracket using 4xM5x12mm ISO metric threaded screws
(not supplied). Do not use screws longer than 12mm, it will occur damage to the internal parts. Fit the wall
- Do not fasten the screws too tight for this may damage the TV or cause the TV to fall, resulting in personal
injury.
- Do not mount your TV at more than a 15 degree tilt.
- Always use two people to mount the TV to a wall.
- Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric
shock.
Wall Mounting
INPUT:
MENU:
CH+/-:
Press to scan through channels.
VOL+/-:
POWER:
400mm
200mm
INPUT MENU CH+ CH- VOL+ VOL- POWER

AC POWER IN

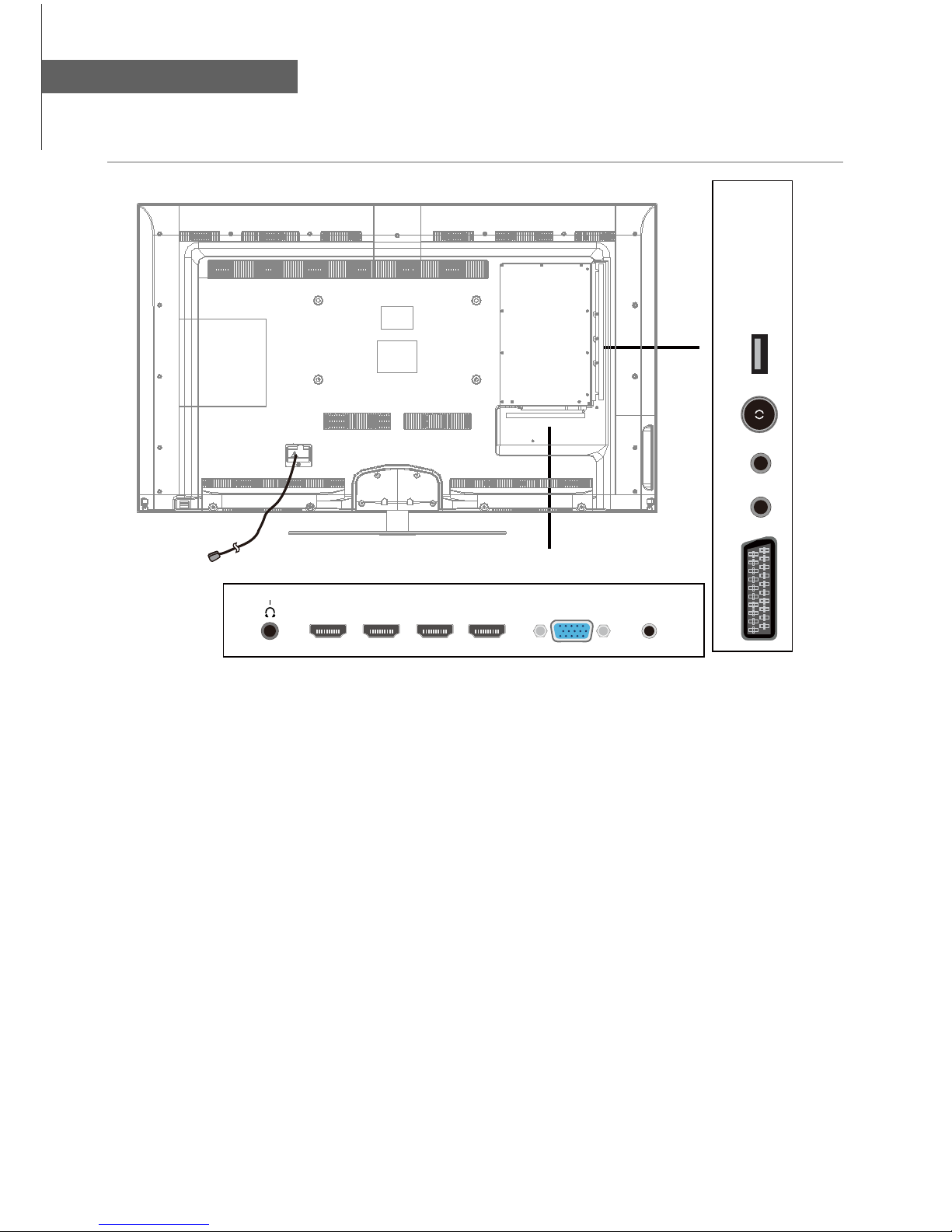

Connections
Connections
5
AC POWER IN : Connect to an earth 100-240V~ 50/60Hz outlet with the Power Cable.
SERVICE : For service (software update) .
HDMI1/2/3/4 : Connect it to the HDMI output of the external devices.
VGA: For PC display.Connect it to the D-Sub 15 pins analog output connector of the PC.
PC-IN : Connect it to the audio output terminal of PC.
SCART：Connect to the scart input / output of external devices.
Headphone out: Connect it to your headphone or other audio equipments.
Mini YPbPr ：Connect it to video output of video device.Connect them to the video output
terminal of DVD.
RF: Connect antenna or cable 75 Ohm coaxial to receive TV signal.
HDMI1 VGA PC-INHDMI2 HDMI3 HDMI4
RF SERVICE
Headphone out
SCART Mini
YPbPr
Mini
AV
Mini AV：Connect it to video output of video device.

Remote Control
6
Remote Control
The remote control is using Infra-Red(IR). Point it towards the front of the TV. The remote
control may not work correctly if it is operated out of range or out of angle.
INPUT: Source select.
POWER : Turn on/standby the TV
MUTE: Silence status
EXIT:Exit from the current menu
: Cursor up/down keys in OSD menu
: Cursor left/right keys in OSD menu
OK: Confirm button
FAV: Press to add or remove favorite channel.
MENU : TV system menu
DISPLAY: Display playing status
PICTURE: Select the picture mode
SOUND : Select the sound mode
ASPECT: Adjust picture size
SLEEP: Time shutting down
AY
CH+
CH-
0-9,: Choose channel
: Go to program you latest program
CH.LIST: Display the p
ro grams list.
NICAM/A2: NICAM/A2 select.
CH / : Scan the channel.
VOL+/-:Volume up/down
ASPECT
SOUND
SLEEP
123
456
789
0
VOL CH
INPUT
DISPLAY
FAV
CH.list
NICAM/A2
MENU
ROOT
A-B
TV/TXT HOLD
SUBT.
SUBP. REP.
INDEX SIZE
REVEAL
SLOW ZOOM LAN.
GOTO
EXIT
4

Remote Control
7
Remote Control
: Play/Pause program
: Stop program
: fast reverse
: fast forward
: previous chapter
: next chapter
ROOT: Come back to the home page.
ZOOM: Adjust picture size except USB mode.
LAN. : Select USB disc language.
SLOW: Play USB programs at slow speed.
SUBTITLE: Turn on/off the subtitle display in USB mode.
GOTO: Play your favorite title/chapter/track.
REPEAT: Repeat playing the title or chapter.
A-B: Select and play the preferable paragraph of USB program
by pressing this key twice at the beginning and end of it.
TV/TXT: Teletext on/off
HOLD: Hold or carry on the current subpage
COLOUR BUTTONS : Short cuts-follow the coloured links in the text.
REVEAL: Reveal any hidden text, for example-quiz answer.
SIZE: Press to see top half of page double size, Press again to see the
bottom half of page double size.
Press again for normal size
INDEX: Direct recall of page 100.
SUBPAGE: Go to subpage
ASPECT
SOUND
SLEEP
123
456
789
0
VOL CH
INPUT
DISPLAY
FAV
CH.list
NICAM/A2
MENU
ROOT
A-B
TV/TXT HOLD
SUBT.
SUBP. REP.
INDEX SIZE
REVEAL
SLOW ZOOM LAN.
GOTO
EXIT
4

button to select the function item, press button to adjust/setup,
Basic Operation
8
Basic Operation
Power on/off
1. Connect to the power supply with the power corde.
2. -To turn on the TV
Press POWER button on the TV or remote control.
-To turn off the TV
Press POWER button on the TV or remote control.
Input Source select
Press INPUT button on the TV set or remote control to display input
source menu, and use CH+/- button on the TV set or button
on remote control to select the input source, press OK button on the
remote control to enter.
Note: Before you select the input source, make sure the
connections are prepared.
Basic OSD Menu operation
Press MENU button to display the OSD menu as below:
Use /
/
button to select the main menu, and press button to enter the submenu.
In the submenu, use /
or press OK button to enter the submenu.
* (Press MENU button to return to the upper menu.)
* (Press EXIT button to exit the menu display.)
Note1: Only when you input the suitable signal, the relevant items can be activated
Note2: Please operating the OSD menu according to hint on the bottom of the banner.
Main menu
CHANNEL
SOUND
TIME
OPTION
Submenu
(PICTURE menu
for example)

OSD Menu
9
OSD Menu
1. CHANNEL menu
Description
Auto Tuning
Press OK button to start auto tuning.
You could press MENU/EXIT button to exit the process of tuning, there will be a hint on the
screen, and you should press button to confirm, or press button to cancel the operation.
ATV Manual Tuning
Press OK button to enter the ATV Manual Tuning menu.
Current CH: Select a Channel for storing the programme.
Color System: Select from NTSC, PAL & SECAM.
Sound System: Select from I,B/G,D/K,M.
Search: Press / button to manual search.
Fine Tune: Press / button to fine-tune.
AFC: Automatic Frequency control ON/OFF.

COLOR TV BROADCASTING SYSTEM
Country Color System Sound System
AZORES(PORTUGAL)
BALKANS(KOSOVO, BOSNIA)
BELGIUM/GERMANY/ITALY
IRAQ
AFGHANISTAN
NETHERLANDS/NORWAY
SAUDI ARABIA
KUWAIT/TURKEY/JORDAN
UNITED KINGDOM
CZECH/HUNGARY/POLAND
RUSSIA
PAL
PAL
PAL
PAL
PAL
PAL
PAL
PAL
PAL
SECAM
SECAM
SECAM
NTSC
B/G
B/G
B/G
B
B
B/G
B/G
B
B
I
D/K
D/K
MU.S.A./JAPAN/KOREA/GUAM
Move: Select an ATV channel, and press YELLOW button, then you can use and buttons
channel by buttons.
OSD Menu
10
OSD Menu
Programme Edit
Press OK button to enter the Programme Edit menu as the following picture.
Delete: Select a channel and press RED button to delete.
Rename: Select an ATV channel and press the GREEN button to change the name of the
to change the position of the program, press YELLOW again to confirm the change. Press menu
to exit and it will automatically save the current set.
Skip: Select a channel and press the BLUE button to label the channel, as long as the channel
has a skip label it will be skipped when searching through the channels with the CH+/- buttons.

OSD Menu
11
OSD Menu

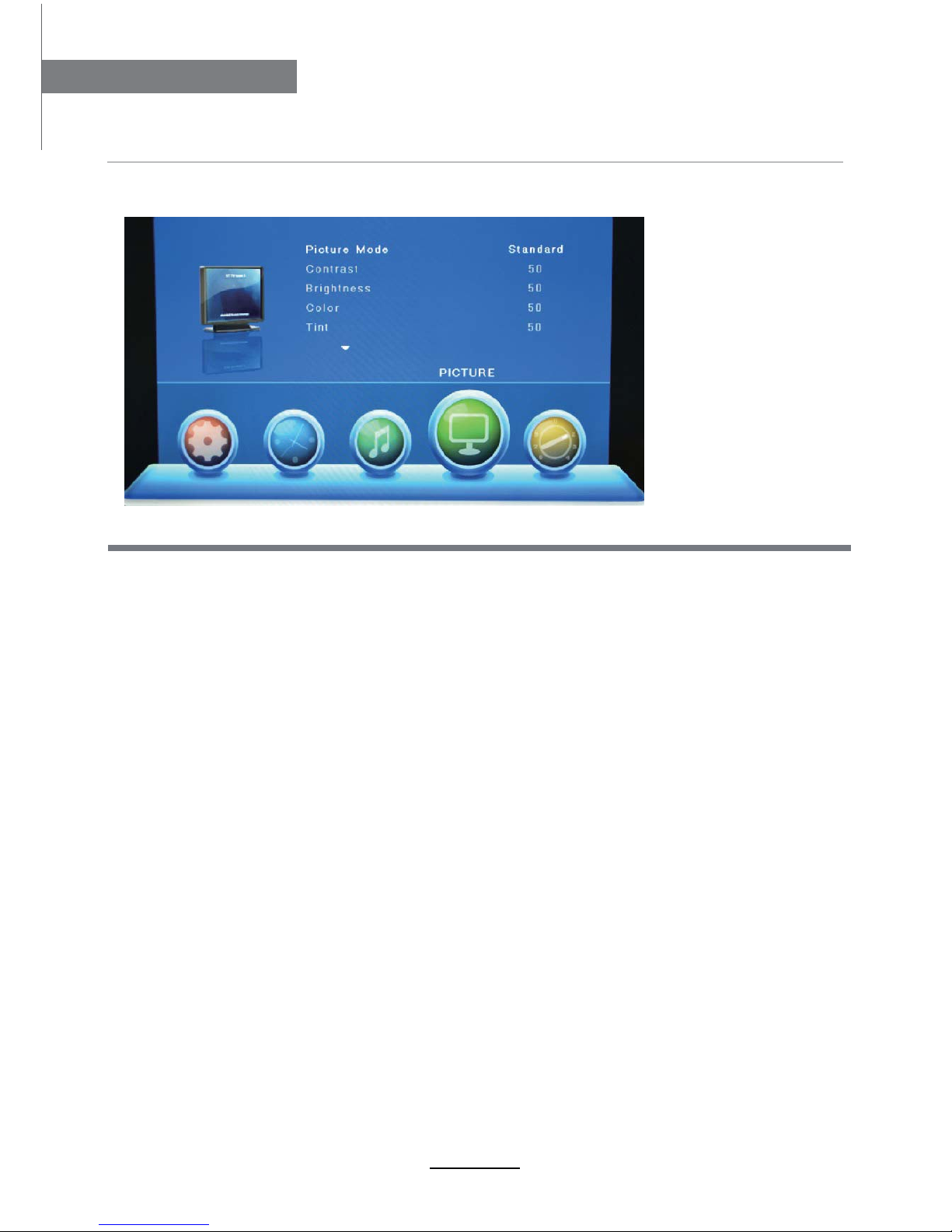

2. PICTURE menu
Description
Picture Mode: Choose from Standard, Dynamic, User and Mild.
Note: Contrast, Brightness, Color and sharpness are only available and can be adjusted in
the User mode option in the Picture Mode Settings.
Contrast: Controls the difference between the brightest and darkest regions of the picture.
Brightness: Controls the overall brightness of the picture.
Color: Control the color.
Sharpness: Increase this setting to see crisp edges in the picture; decrease it for soft edges.
Tint: Controls the tint ( NTSC mode only).
Color Temperature: Choose from Medium, Cool and Warm.
Noise Reduction: Choose interference noise modes form Off, Low, Middle and High.

OSD Menu
12
OSD Menu

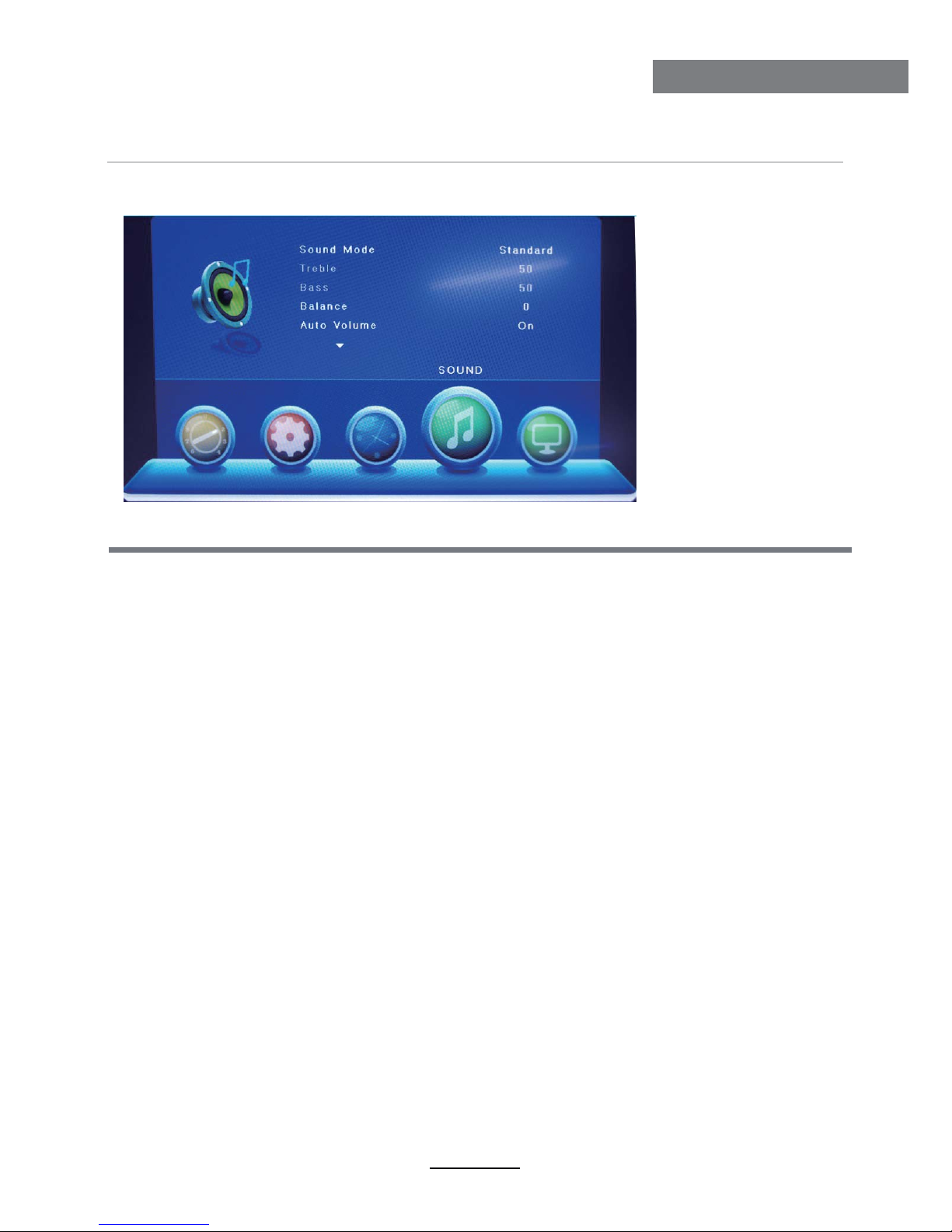

3. SOUND menu
Description
SPDIF MODE PCM
Sound Mode: Allows you to select among: Standard, Music, Movie, Sports and User.
Treble(Can be adjusted when the sound mode is User):Controls the relative intensity of
higher pitched sounds.
Bass (Can be adjusted when the sound mode is set to User): Controls the relative intensity of
lower pitched sounds.
Balance: To adjust the balance of the left and right sound track, or turn off the volume of the
left and right sound track.
Auto Volume: Control the volume of the programme automatically when you turn on the function
by selecting “On”.

OSD Menu
13
OSD Menu

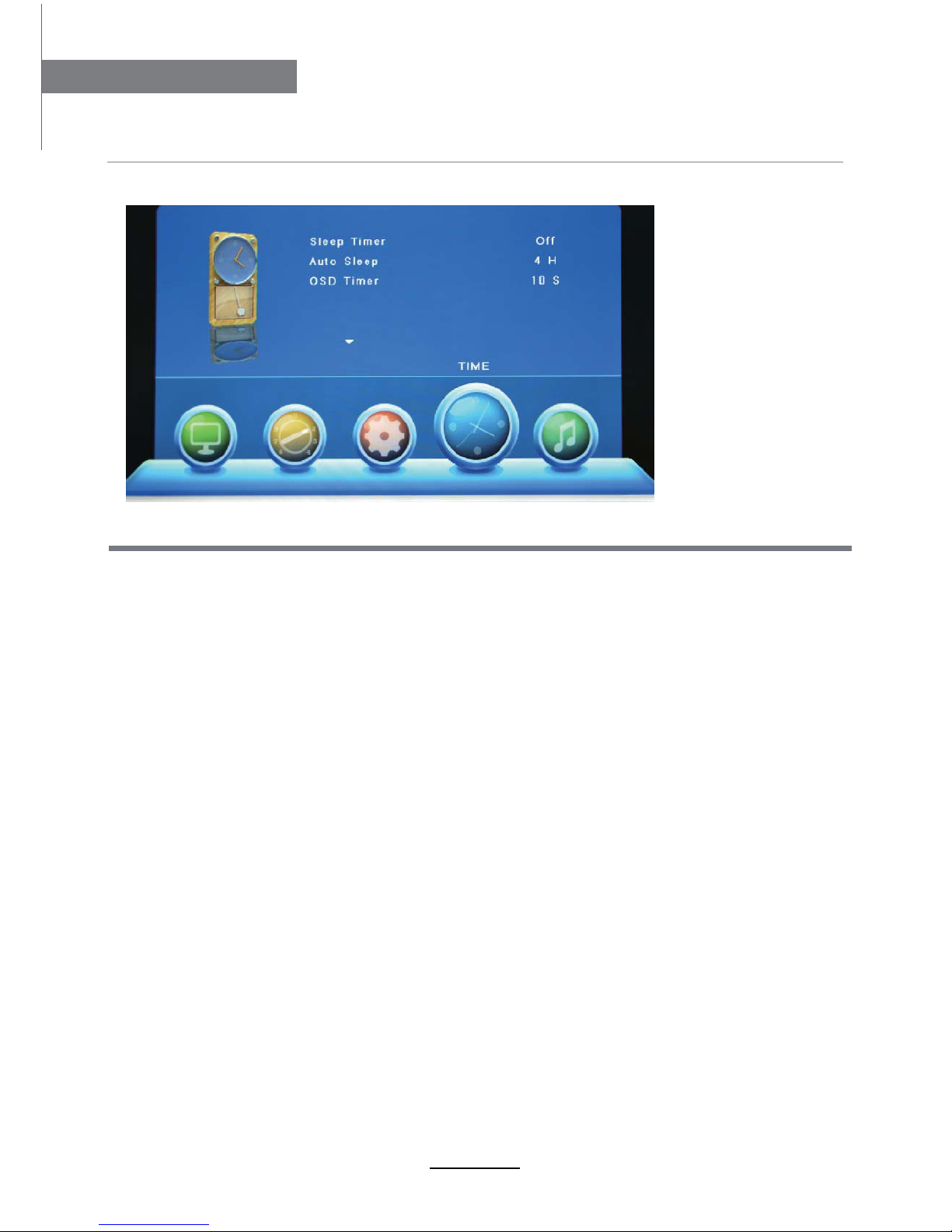

4. TIME menu
Description
Sleep Timer: Allows you to setup the sleep timer among: 10min, 20min, 30min, 60min, 90min,
120min,180min, 240min and off.
Auto Sleep : According to the latest ERP regulation, this unit will switch off itself automatically
if no change in status within the last 4 hours of operation.
OSD Timer: Allows you to select the time for OSD menu displays on the screen.

NICAM reception(option)
If your set is equipped with the receiver for NICAM reception, the high quality NICAM (Near Instaneous)
Companding Audio Multiplex digital sound can be received.
Sound output can be selected according to the type of received broadcast as follows by pressing the I/II
1.When NICAM mono is received, you can only select MONO.
2. When NICAM stereo is received, you can select NICAM STEREO or MONO. If the stereo signal is weak,
3. When NICAM dual is received, you can select NICAM DUAL I,NICAM DUAL II or MONO.
A2 Stereo is supported in this model.
y.
button repeatedl
switch to mono.
OSD Menu
14
OSD Menu

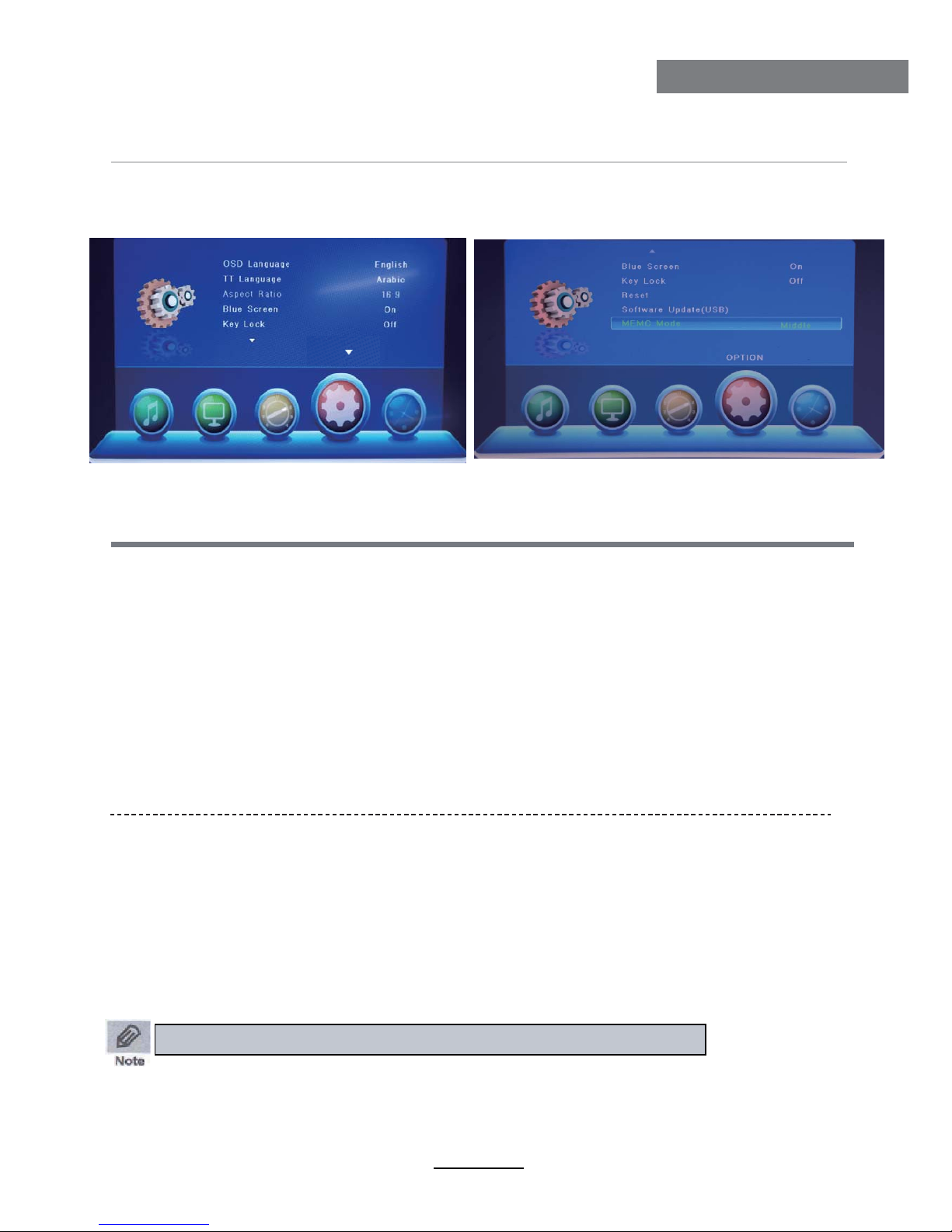

5. OPTION menu
Description
OSD Language: Allows you to select menu language.
Aspect Ratio: Choose from 4:3, 16:9, Zoom1, Zoom2 and Panorama.
Blue Screen: Turn on/off the blue screen function when there’s no signal.
Key Lock: Turn on the function, and the buttons on the TV will be invalid.
Reset: Press OK button to restore factory default.
Software Update(USB): Press
MEMC Mode: Medium, High and Off low.
Removes drag from fast scenes with a lot of movement to provide a clearer picture.
Note: If you enable MFC Level, noise may appear on the screen. If this occurs,
set "High" to "Off".
OK button to enter the software update menu.
TT Language:Seclet the Teletext language.

Simple Troubleshooting
Simple Troubleshooting
If the display fails or performance dramatically deteriorates check the Display in accordance
with the following instructions.Remember to check the peripherals topinpiont the source of the
failure.
If the display still fails to perform as expected,connect your helpline for assistance.
No power
- Check all connections to the TV.
- Press either the power button or the Standby button on the Remote control.
No picture or sound
- Ensure that the TV is plugged in and the power is on.
- Ensure that the aerial is connected.
- Try a different programme.
Poor picture quality
- Check the aerial connections.
- Check that the channel is tuned in properly.
- Adjust the picture settings:brightness,colour,sharpness,contrast,hue.
- Make sure that the TV is not located close to electrical appliances that may emit radio
frequency interference.
No colour
- Adjust the colour setting.
- Check that the programme is broadcast in colour.
- Check that the cannel is tuned properly.
TV does not respond to remote control
- Check that there are no obstructions between the remote control and the unit.
- Check that the remote control is within range of the unit.
- Check that the batteries in the remote control and not weak or exhausted.
This TV is for household use and registered as harmless on electromagnetic waves.
Therefor,you can use it in every location as well as residential areas.
15
Note : If Manual tuning do not find right TV system through RF input for specific system signal
after changing TV color system/sound system, We recommend you to do Auto search again.
Note : TV panel is built with very high precision technology giving you fine picture details in
vibrant color. Occasionally, a few non-active pixels may appear on the screen as fixed point of
red,green,blue or white. Please note this does not affect the performance of the product.
- Check SWITCH on rear cabinet of TV.

MODEL# LABOR PARTS
AET58320UM 90 Days 1 Year
- To damages or problems which result from delivery or improper installation
Therefore, these costs are paid by the consumer.
Retain your sales receipt to prove date of purchase.
Without receipt of proof of purchase, no warranty will be honored.
CUSTOMER SERVICE ASSISTANCE
Asiaventurelink Co.,Ltd.
#1007, Renaissance Tower, Gongdeok-dong,
Mapo-gu, Seoul, Korea
TEL. : +82 - 2 - 3273 - 8990
FAX : +82 - 2 - 712 – 8342
E-MAIL : [email protected]
Web : www.AVL21c.com
Printed in China
LIMITED WARRANTY
Copy of your sales receipt must be submitted at the time warranty service is provided.
THE ABOVE WARRANTY DOES NOT APPLY :
- To damages or problems which result from misuse, abuse, accident, alteration, or incorrect electrical
current or voltage.
- To service calls, which do not involve defective workmanship or material, such as head cleaning and
explaining the operation of the unit.
To prove warranty coverage :
WARRANTY PERIOD
Asiaventurelink Co.,Ltd. will repair or replace without charge,at its option, your product which proves to be
defective in material or workmanship under normal use, during the warranty period listed below from the
date of original purchase.
No other express warranty is applicable to this product. The duration of any implied warranties, including
the implied warranty of merchantablility, is limited to the duration of the express warranty herein.
Asiaventurelink Co.,Ltd. shall not be liable for the loss of the use-of the product, inconvenience, loss or
any other damages, direct or consequential, arising out of the use of, or inability to use, this product or
for any breach of any express or implied warranty, including the implied warranty of merchantability
applicable to this product.
Some states do not allow the exclusion or limitation of incidental consequential damages or limitations on
how long an implied warranty lasts ; so these limitations or exclusions may not apply to you. This warranty
gives you specific legal right and you may also have there rights which vary from state to state.
