Avol AET3220M User manual

Model No.: AET3220M
32" Full HD Multi System LED TV

Contents
Caution
Caution
Safety Information
Accessories
Technical Specification
Product Introduction

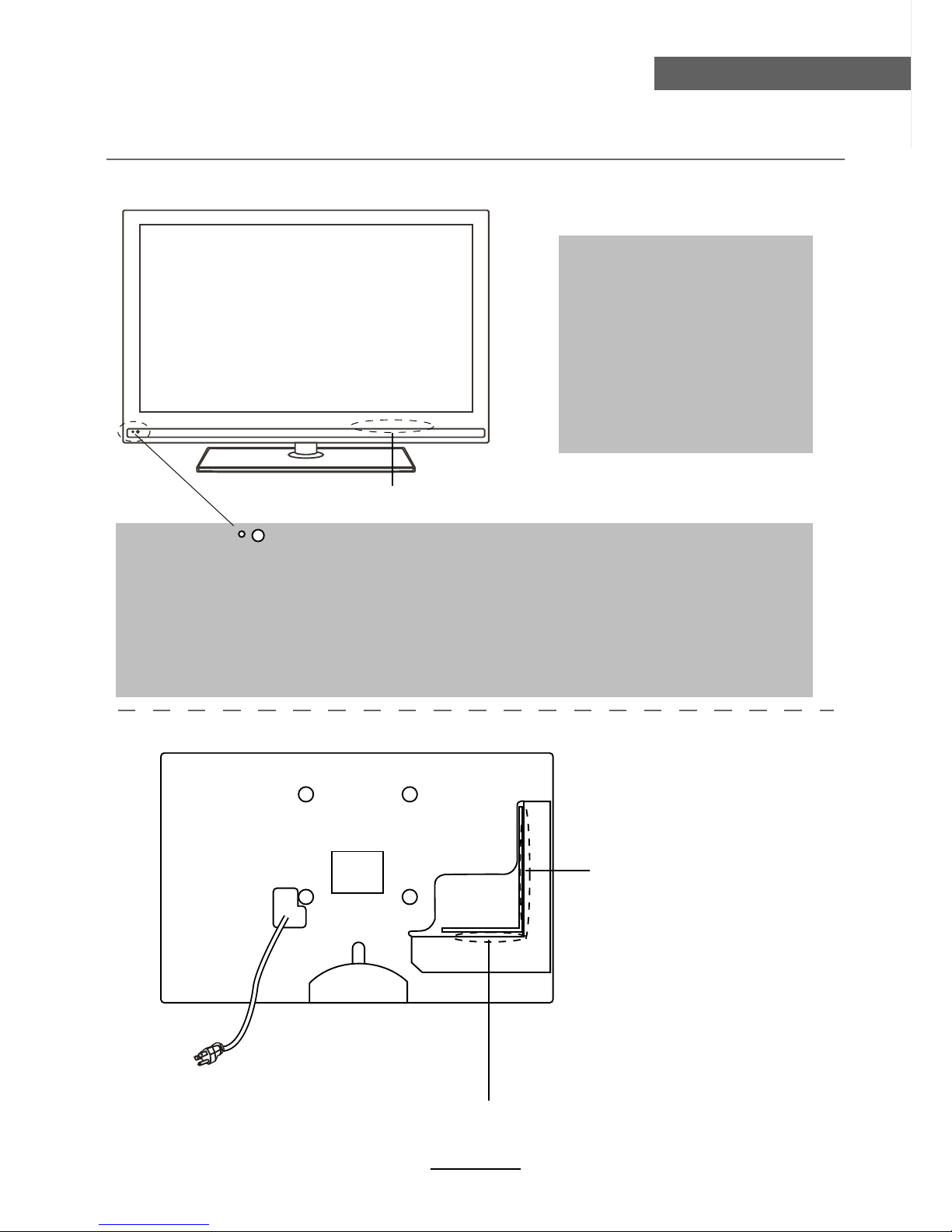

Front View
Rear View
OSD Menu
1. Video menu
2. Audio menu
3. Misc menu
4. TV menu
5. PC menu
Simple Troubleshooting
1
2
3
3
4
5
4
4
9-15
9
10
11-12
13-14
15
16
Connections
6-7
Remote Control
8
Basic Operation

Caution
Correct disposal of this Product
(Waste Electrical & Electronic Equipment (WEEE)
Your product is designed and manufactured with high quality materials and
components which can be recycled and reused.
This symbol means that electrical and electronic equipment, at their end-
of-life should be disposed of separately from your household waste.
Please dispose of this equipment at your local community waste collection/
recycling centre.
In the USA there are separate collection systems for used electrical and
electronic products. Please help us to conserve the environment we live in!
1
Caution
The exclamation point within an equilateral triangle is intend to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
The lightening flash with arrowhead symbol, within an equilateral triangle
is intended to alert the user to the presence of un-insulated “dangerous
voltage” within the products enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to the persons.
directives.
This unit complies with The Restriction of the use of certain Hazardous
substances in Electnical and Electronic Equipment

Safety Information
To ensure reliable and safe operation of this equipment, please read carefully all the
instructions in this user guide, especially the safety information below.
Electrical safety
• The TV set should only be connected to a mains supply which matches that stated on
the label on the mains adaptor.
• To prevent overload, don't share the same mains supply socket with too many other
items of equipment.
- Do not place any connecting wires where they may be stepped on or tripped over.
- Do not place heavy items on the leads, which may damage them.
- Hold the Mains plug, not the wires, when removing from a socket.
- During a thunderstorm or while leaving the TV for long periods, disconnect the aerial
(if outdoor) and mains adaptor from the supply.
- Do not allow water or moisture to enter the TV or mains adaptor. Do NOT use in wet
or moist areas such as Bathrooms, steamy kitchens or near swimming pools.
• Pull the plug out immediately, and seek professional help if:
- the mains plug or cable is damaged.
- liquid is spilt onto the set, or if it is accidentally exposed to water or moisture.
- anything accidentally penetrates the ventilation slots.
- the set does not work normally.
- Do NOT remove the safety covers. There are no user serviceable parts inside.
You may invalidate the warranty. Qualified personnel only are permitted to service
this apparatus.
- To avoid battery leakage, remove exhausted batteries from the remote control
handset, or when not using for along period.
- Do NOT break open or throw exhausted batteries on a fire.
Physical safety
• Do NOT block ventilation slots in the back cover. You may place the TV in a cabinet,
but ensure at least 5cm (2") clearance all around the unit.
• Do NOT tap or shake the TV screen, you may damage the internal circuitry. Take good
care of the remote control, do not drop it or allow it to come into contact with liquids.
• To clean the TV use a soft dry cloth. Do NOT use solvents or petrol based fluids. For
stubborn stains, you may use a damp soft cloth with diluted detergent.
2
Safety Information

Accessories
3
Accessories & Technical Specification
- TV System
- Sound System
- Screen Size
- Resolution
- Aerial input
- Audio output powe
- Power Consumption
Remote Control
Type
Control distance
Control angle
Batteries
Technical Specification
User’s Manual Remote control
* Note: The configuration of the components may look different from the folltowing illustration
PAL, SECAM, NTSC
B/G, D/K, I, M
32 inch(diagonal)
1920x1080
ȍXQEDODQFHG
2x6W
AC100-240V 50/60Hz 100W
0
infrared
5m
30 (horizontal)
2 x 1.5V, size AAA
220V
Power Socket
&RQYHUWHUFDEOH
for AV IN
&RQYHUWHUFDEOH
for MINI SCART
&RQYHUWHUFDEOH
for YPBPR video
&RQYHUWHUFDEOH
for YPBPR audio

Product Introduction
4
Product Introduction
Front View
Rear View
TV/AV:
Display the input source menu.
MENU:
Display/exit the OSD menu.
CH+/-:
Scan through channels.
VOL+/-:
Adjust the volume.
POWER:
Turn on/standby the TV set.
Remote Control window(keep clear)LED indicator
(IR) Infrared Receiver: Receives IR signals from the remote control.
(Power on/Standby) LED indicator: Press POWER to turn on and off.
The effective receiving range for the signal is 5-8 metres from the front of the remote
control window, and 30
0
to the left or right side and 20
0
above or below the control
window.
Indicator on(Red) Standby mode
Indicator on(Green) Power on mode
TV/AV MENU CH+ CH- VOL+ VOL- POWER
TV/AV MENU CH+ CH- VOL+ VOL- POWER
Connections--See next page
Connections--See next page
AC POWER IN

Connections
5
Connections
HDMI1/2/3: Connect it to the HDMI of DVD or other equipment.
USB For Service: USB jack for upgrade.
PC AUDIO IN: Connect it to the audio output terminal of PC.
VGA: For PC display. Connect it to the D-Sub 15 pins analog output connector of the PC.
Mini SCART1/2: Connect them to the SCART output terminal of DVD.
YPbPr audio/video: Connect them to the YPbPr audio/video output terminal of DVD.
AV IN(audio+video): Connect it to video & audio output terminal of DVD.
Coax: Digital coaxial output.
RF: Connect antenna or cable 75 Ohm coaxial to receive TV signal.
Headphone out: Connect to headphone.

Remote Control
6
Remote Control

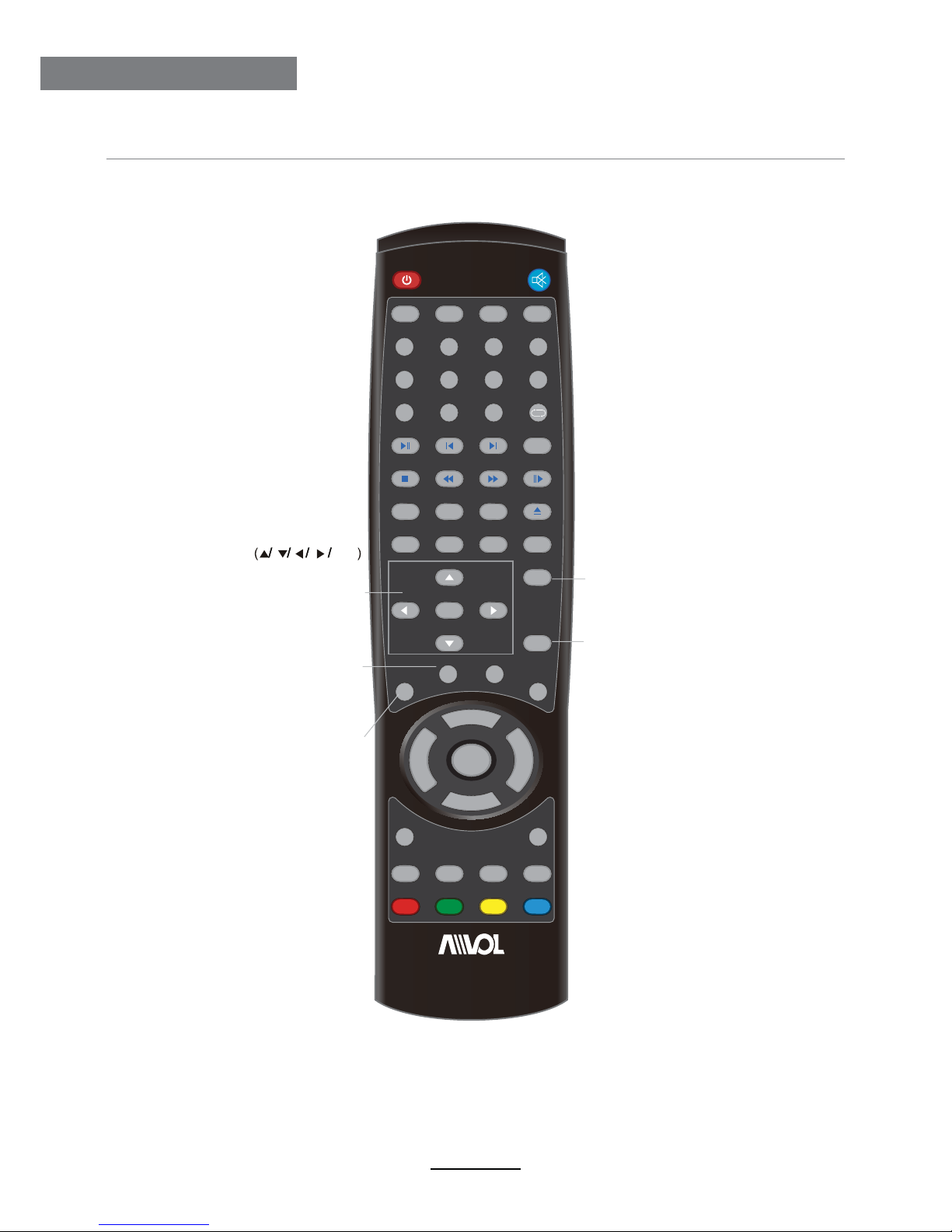

The remote control is using Infra-Red(IR). Point it towards the front of the LCD TV. The remote
control may not work correctly if it is operated out of range or out of angle.
POWER
Press to turn the TV on/standby
MUTE
Press to mute the sound.
Press again or press VOL+ to
unmute.
CH+/-
Channel/Program +/-
VOL+/-
Volume +/-
To select the program directly.
e.g.:
Select channel 5,
press “5” button.
Select channel 62
press “6” button, and press “2”
button in 2 seconds.
Select channel 152
press “1” button, and press “5”
button, then press “2” button
in 2 seconds.
select channel “5-1”,
press “5” then “-/--” and “1”.
NUMBER BUTTONS
1234
5678
90-/--
PROGRAM
GOTO
D.TITLE D.MENU ZOOM
SUBT. AUDIO REPEATA-B
TEXT HOLD REVEAL INDEX
SIZE SUBPAGE
MENU
EXIT
OK
SOURCE
DISPLAY
CH+
LIST
ASPECT
PMODE BASS- BASS+ SMODE
ANGLE INTRO
SLEEP
CH-
VOL+VOL-
IPOD MENU
PC-AUTO
FAV FAV- FAV+ NICAM
EPG MTS
TV DVD STB SET
CC
SLEEP
Press to setup the sleep time
among: 5min, 10min, 15min, 30min,
45min, 60min, 90min, 120min,
180min, 240min and off.
Press to Return to the previous
channel viewed.
PMODE
Press repeatedly to cycle
through the available video
picture modes.
SUBPAGE
Press “SUBPAGE” button to
cancel subpage mode only.
TEXT
Turn off/on Teletext
HOLD
Hold or carry on the current
subpage.
REVEAL
Reveal any hidden text.
INDEX
Go to index.
SIZE
Press to see top half of page
double size.
Press again to see the bottom
half of page double size.
Press again for normal size.
SMODE
Press to cycle through the
different sound settings.

Remote Control
7
Remote Control
Allows you to navigate the
on-screen menus and adjust the
system settings to your
preference.
THUMBSTICK OK
MENU
Press to display the OSD menu.
EXIT
Press to exit form the OSD menu.
1234
5678
90-/--
PROGRAM
GOTO
D.TITLE D.MENU ZOOM
SUBT.AUDIO REPEAT A-B
TEXT HOLD REVEAL INDEX
SIZE SUBPAGE
MENU
EXIT
OK
SOURCE
DISPLAY
CH+
LIST
ASPECT
PMODE BASS- BASS+ SMODE
ANGLE INTRO
SLEEP
CH-
VOL+VOL-
IPOD MENU
PC-AUTO
FAV FAV- FAV+ NICAM
EPG MTS
TV DVD STB SET
CC
SOURCE
Press to display the input source
menu
DISPLAY
Press to enter the EPG menu
directly.
Note: The buttons not being mentioned here have no function on this universal remote.

Basic Operation
8
Basic Operation
Power on/off
1. Connect to the power supply with the power code.
2. -To turn on the TV
Press POWER button on the TV or remote control.
-To turn off the TV
Press POWER button on the TV or remote control.
Input Source select
Press TV/AV/SOURCE button on the TV set or remote control to display
input source menu, and use CH+/- button on the TV set or Ĥ0ĥ!button
on remote control to select the input source, press OK button on the
remote control to enter.
Note: Before you select the input source, make sure the
connections are prepared.
Basic OSD Menu operation
Press MENU button to display the OSD menu as below:
Use /
ĥ
Ĥ
/
ĥ
button to select the main menu, and press button to enter the submenu.
In the submenu, use
Ĥ
/
ĥ
Ĥĥ
button to select the function item, press button to adjust/setup,
or press OK button to enter the submenu.
* (Press MENU button to return to the upper menu.)
* (Press EXIT button to exit the menu display.)
Note1: Only when you input the suitable signal, the relevant items can be activated
Note2: Please operating the OSD menu according to hint on the bottom of the banner.
Main:
TV
AV
SCART 1
SCART 2
YPbPr
HDMI1
HDMI2
HDMI3
VGA
Main menu
Video
Audio
Misc
TV
Geometric
Submenu
(Video menu
for example)
Hint---you should operate the OSD menu according to the hint.
Video
Audio
Misc
TV
Geometric
Select Back Adjust
MENU /ENTER
Picture Mode
Sharpness
Hue
Brightness
Contrast
Color Temperature
Saturation
Vivid
4
53
65
Normal
Advance Picture Adjust
72

OSD Menu
9
OSD Menu

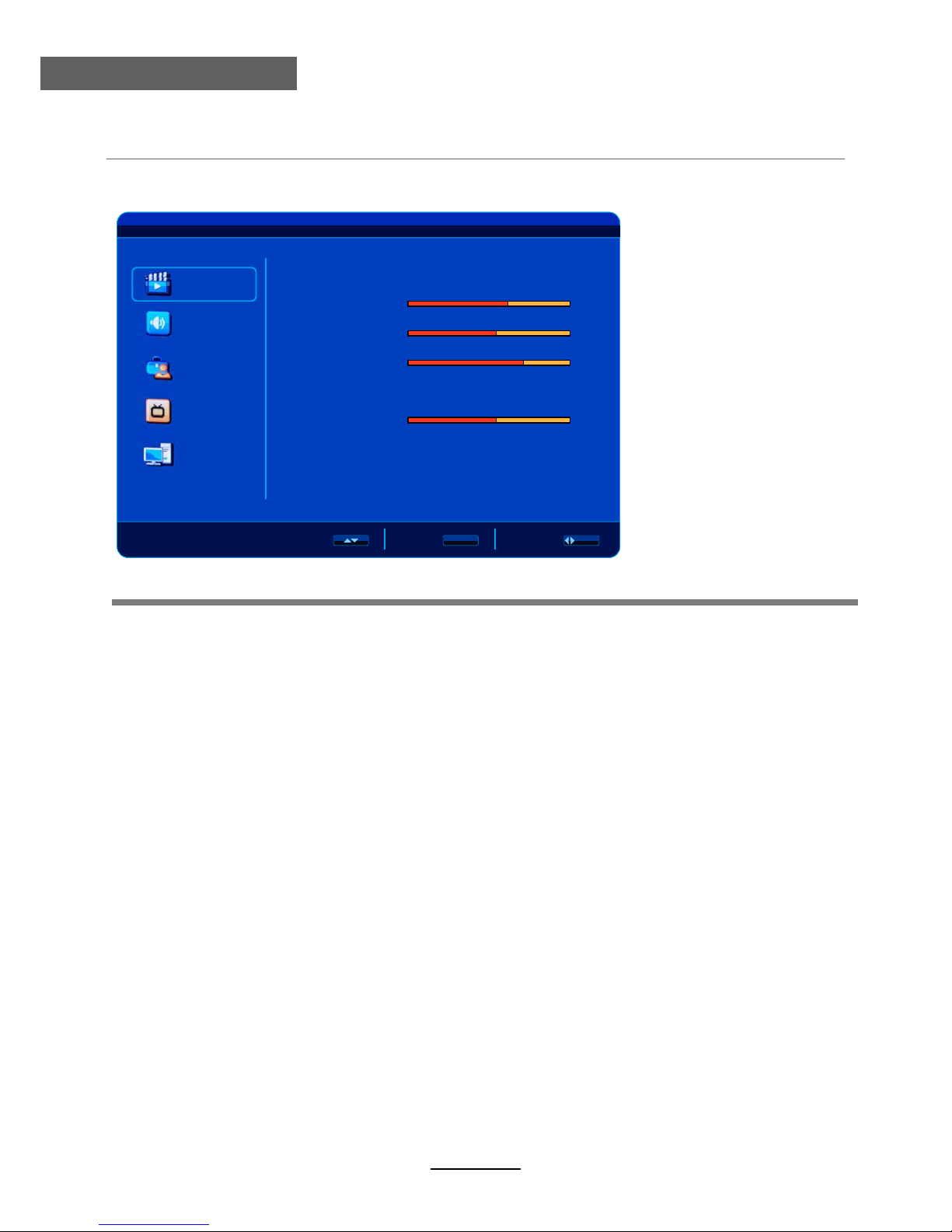

1. Video menu
Picture Mode: Select your desired picture mode.
You may select the picture mode directly by pressing the PICTURE button on the remote
control.
Contrast: Adjust image contrast.
Brightness: Adjust image black level.
Saturation: Adjust image saturation.
Hue: Adjust the tint of the picture (in NTSC mode).
Sharpness: Adjust the sharpness.
ColourTemperature: Select an optimum color temperature mode to suit your eyes for
viewing among User, Cool, Middle, Warm.
Note: You could not operate the Contrast, Brightness, Saturation, Sharpness and Color
Temperature items when you select picture mode Vivid , Normal or soft.
DNR: If the broadcast signal received is weak, you can select the DNR option to reduce the
video noise level between Off, Low, Mid and High.
Adaptive Luma Control: Adjust the brightness automatically.
Description
Video
Audio
Misc
TV
Geometric
Select Back Adjust
MENU /ENTER
Picture Mode
Sharpness
Hue
Brightness
Contrast
Color Temperature
Saturation
Vivid
4
53
65
Normal
Advance Picture Adjust
Advance Picture Adjust˖
72

OSD Menu
10
OSD Menu

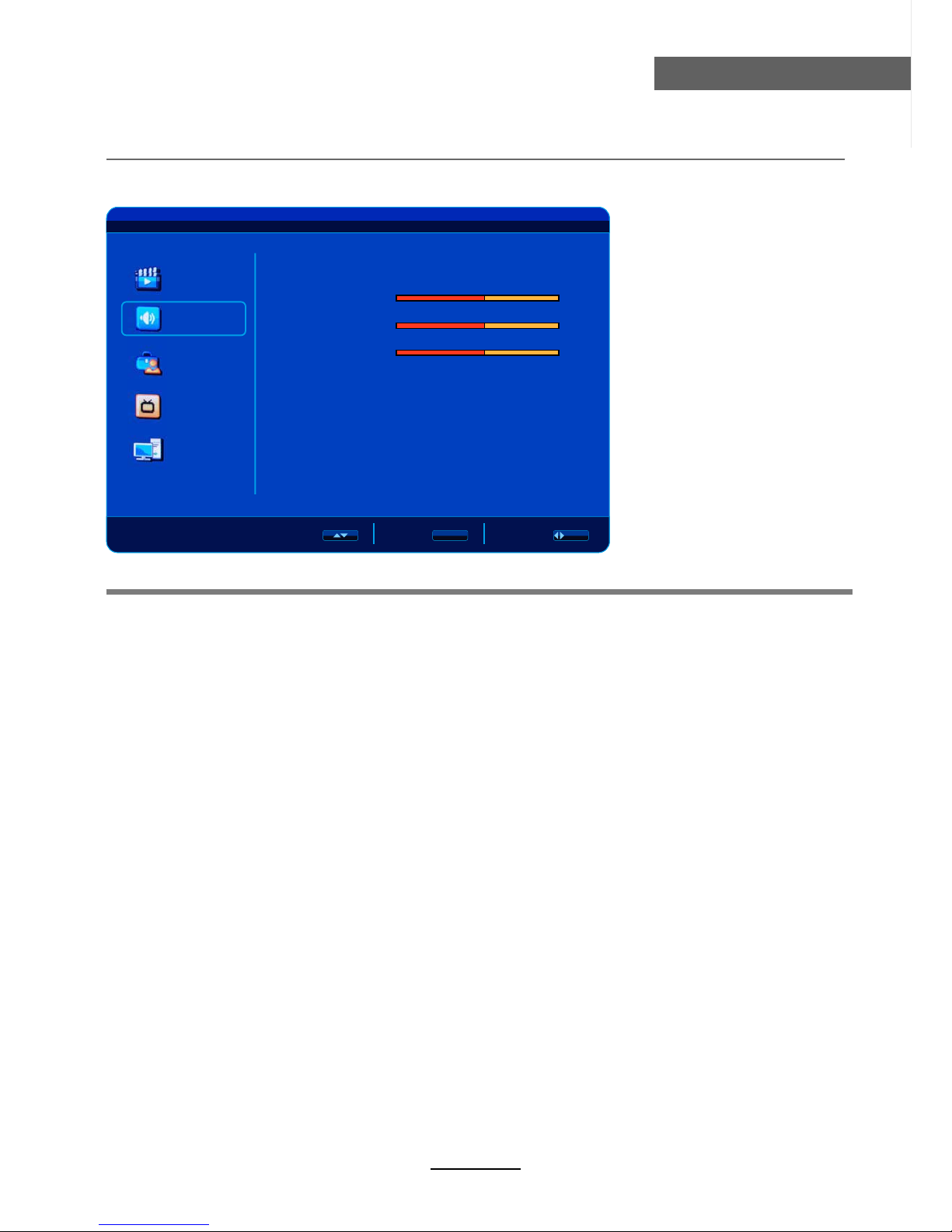

2. Audio menu
Video
Audio
Misc
TV
Geometric
Select Back Adjust
MENU /ENTER
Sound Mode
Balance
Surround
Bass
Treble
User
0
Off
50
50
Description
Sound Mode: Select your desired picture mode.
You may select the sound mode directly by pressing the SOUND button on the remote
control.
Bass: Adjust the level of the lower-pitched sounds.
Treble: Adjust the level of the higherpitched sounds.
Balance: Adjust the audio output between left and right speakers.
Surround: Turn on/off on the surround function.

OSD Menu
11
OSD Menu
Description
3. Misc menu
Video
Audio
Misc
TV
Geometric
Select Back Adjust
MENU /ENTER
OSD Language English
Default
Timer
SCART 1
SCART 2
Blue Mute
Parental
On
Picture Size 16:9
Teletext Language Arabic
Time
Start Time
Stop Activate
Start Time
Start Activate
00:13:24
00:00:00
0ff
00:00:00
Off
Teletext Language: Select Teletext language.
Picture Size: Adjust Picture Size.
SCART1/2: Select SCART mode .
OSD Language: Select OSD language.
Blue Mute: Turn on/off the Blue Back function while no signal.
Timer: Timer settings, as the picture below.
Parental: Parental settings, as the picture below.
You should enter the code(Initial Password: 0000) to enter the Parental menu.
Time: Display the current time.
Start Time:Set the on time of the TV.
Start Activate: Activate the on time setting.
Start Time:Set the off time of the TV.
Stop Activate: Activate the off time setting.

OSD Menu
12
OSD Menu
Channel Lock: Lock to playing a channel.
Video Lock: Lock to playing a input source.
Change Password: Change the pssword.
You have to enter the password to enter
the Parental menu above.
Clear All: Reset all the Parental settings.
Password - - - -
- - - -
Channel Lock
Clear All
Change Password
Video Lock
1
TV

OSD Menu
13
OSD Menu
4. TV menu
Video
Audio
Misc
TV
Geometric
Select Back Adjust
MENU /ENTER
Auto Search
Region Selection
Update Search
Program Edit
Manual Scam
Auto Search: Start auto searching.
Region Selection: Select Region Language.
Note: When the TV is auto tunning, you could press MENU button to stop auto tunning and
return to preview menu.
Manual Scan: Select a channel to manual scan as the picture below
Update Search: Save original programes and add newly searched programes.
.
PR Start: Select the channel you want to manual scan.
Start From: Select the freq. you want to start from.
Start Search: Press OK button to start search .
Stop MENU
Searching
46.87 MHz
0
0%
PR Start
Start From
Start Search
1
45.00 MHz
Manual Scan
Select Back Adjust
MENU /ENTER
Stop MENU
Searching
46.87 MHz
0
0%
EXIT EXIT
Description

OSD Menu
14
OSD Menu
Swap: Swap two channels' position.
Select the channel, and press RED button, then select the channel you want to swap, and
press OK button to swap.
Insert: Insert a channel.
Select the channel, and press Green button to pick-up, then select the position you want the
channel to be inserted to, and press OK button.
Copy: Copy a channel.
Select the channel, and press YELLOW button to copy, then select the position you want the
channel to be copied to, and press OK button.
Delete: Delete a channel.
Select the channel, and press BLUE button to delete the channel.
Channel Freq System Name Skip
1 - - - - - - - - - On
2 90.75 B/G - - - On
3 - - - - - - - - - On
4 - - - - - - - - - On
5 - - - - - - - - - On
6 - - - - - - - - - On
7 - - - - - - - - - On
8 - - - - - - - - - On
Program Edit
Select Back Adjust
MENU /ENTER
Swap Insert Copy Delete
Program Edit: Select a channel to manual scan as the picture below.

OSD Menu
15
OSD Menu
Description

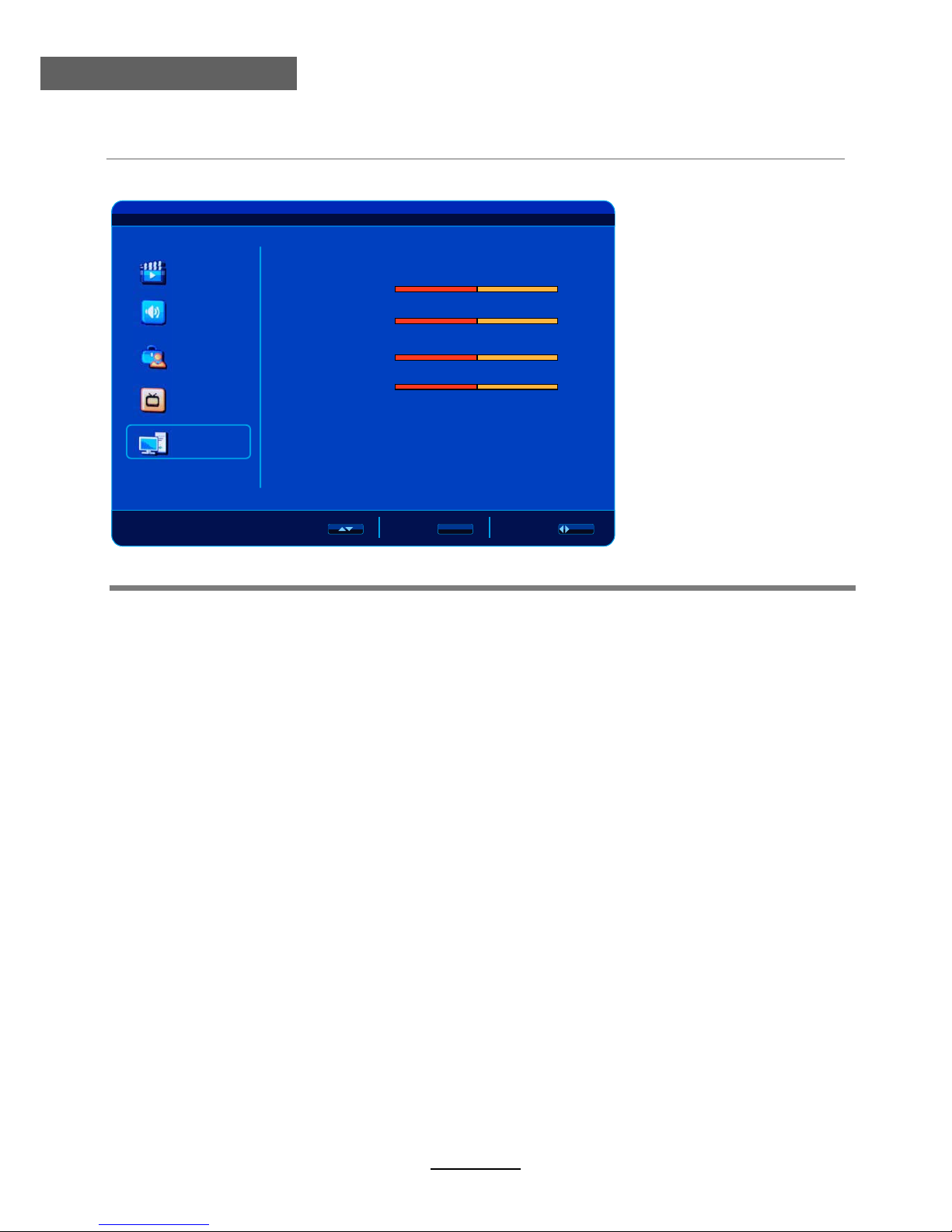

5. PC menu
Video
Audio
Misc
TV
Geometric
Select Back Adjust
MENU /ENTER
H/V Position: Adjust the transverse/vertical position of the screen.
Manual Clock : Adjust the pixel clock frequency, until the image size is maximized for the screen.
Phase: Adjust the phase of the ADC sampling clock relative to the sync signal, until a stable
image is obtained.
Auto Setting: Press button to setup the parameter of the screen automatically
.
H Position 0
V Position 50
Manual Clock 50
Phase 50
Auto Setting

Simple Troubleshooting
16
Simple Troubleshooting
If the display fails or performance dramatically deteriorates check the Display in accordance
with the following instructions.Remember to check the peripherals topinpiont the source of the
failure.
If the display still fails to perform as expected,connect your helpline for assistance.
No power
- Check all connections to the TV.
- Press either the power button or the Standby button on the Remote control.
No picture or sound
- Ensure that the TV is plugged in and the power is on.
- Ensure that the aerial is connected.
- Try a different programme.
Poor picture quality
- Check the aerial connections.
- Check that the channel is tuned in properly.
- Adjust the picture settings:brightness,colour,sharpness,contrast,hue.
- Make sure that the TV is not located close to electrical appliances that may emit radio
frequency interference.
No colour
- Adjust the colour setting.
- Check that the programme is broadcast in colour.
- Check that the cannel is tuned properly.
TV does not respond to remote control
- Check that there are no obstructions between the remote control and the unit.
- Check that the remote control is within range of the unit.
- Check that the batteries in the remote control and not weak or exhausted.
This LCD TV is for household use and registered as harmless on electromagnetic waves.
Therefor,you can use it in every location as well as residential areas.

;΀͵Ͷͽ ͽͲͳ΀΃ ΁Ͳ΃΅΄
ͲͶ΅; ͵ΒΪΤ ΊΖΒΣ
΅ΠΕΒΞΒΘΖΤΠΣΡΣΠΓΝΖΞΤΨΙΚΔΙΣΖΤΦΝΥΗΣΠΞΕΖΝΚΧΖΣΪΠΣΚΞΡΣΠΡΖΣΚΟΤΥΒΝΝΒΥΚΠΟ
΅ΙΖΣΖΗΠΣΖΥΙΖΤΖΔΠΤΥΤΒΣΖΡΒΚΕΓΪΥΙΖΔΠΟΤΦΞΖΣ
΃ΖΥΒΚΟΪΠΦΣΤΒΝΖΤΣΖΔΖΚΡΥΥΠΡΣΠΧΖΕΒΥΖΠΗΡΦΣΔΙΒΤΖ
ΈΚΥΙΠΦΥΣΖΔΖΚΡΥΠΗΡΣΠΠΗΠΗΡΦΣΔΙΒΤΖΟΠΨΒΣΣΒΟΥΪΨΚΝΝΓΖΙΠΟΠΣΖΕ
ʹΆ΄΅΀;Ͷ΃΄Ͷ΃·ͺʹͶͲ΄΄ͺ΄΅ͲͿʹͶ
ͲΤΚΒΧΖΟΥΦΣΖΝΚΟΜʹΠͽΥΕ
΃ΖΟΒΚΤΤΒΟΔΖ΅ΠΨΖΣ͸ΠΟΘΕΖΠΜΕΠΟΘ
;ΒΡΠΘΦ΄ΖΠΦΝͼΠΣΖΒ
΅Ͷͽ
ͷͲΉ׊
Ͷ;ͲͺͽͲ·ͽͱͲ·ͽΔΔΠΞ
ΈΖΓΨΨΨͲ·ͽΔΔΠΞ
΁ΣΚΟΥΖΕΚΟʹΙΚΟΒ
ͽͺ;ͺ΅Ͷ͵ΈͲ΃΃ͲͿ΅Ί
ʹΠΡΪΠΗΪΠΦΣΤΒΝΖΤΣΖΔΖΚΡΥΞΦΤΥΓΖΤΦΓΞΚΥΥΖΕΒΥΥΙΖΥΚΞΖΨΒΣΣΒΟΥΪΤΖΣΧΚΔΖΚΤΡΣΠΧΚΕΖΕ
΅͹ͶͲͳ΀·ͶΈͲ΃΃ͲͿ΅Ί͵΀Ͷ΄Ϳ΀΅Ͳ΁΁ͽΊ
΅ΠΕΒΞΒΘΖΤΠΣΡΣΠΓΝΖΞΤΨΙΚΔΙΣΖΤΦΝΥΗΣΠΞΞΚΤΦΤΖΒΓΦΤΖΒΔΔΚΕΖΟΥΒΝΥΖΣΒΥΚΠΟΠΣΚΟΔΠΣΣΖΔΥΖΝΖΔΥΣΚΔΒΝ
ΔΦΣΣΖΟΥΠΣΧΠΝΥΒΘΖ
΅ΠΤΖΣΧΚΔΖΔΒΝΝΤΨΙΚΔΙΕΠΟΠΥΚΟΧΠΝΧΖΕΖΗΖΔΥΚΧΖΨΠΣΜΞΒΟΤΙΚΡΠΣΞΒΥΖΣΚΒΝΤΦΔΙΒΤΙΖΒΕΔΝΖΒΟΚΟΘΒΟΕ
ΖΩΡΝΒΚΟΚΟΘΥΙΖΠΡΖΣΒΥΚΠΟΠΗΥΙΖΦΟΚΥ
΅ΠΡΣΠΧΖΨΒΣΣΒΟΥΪΔΠΧΖΣΒΘΖ
ΈͲ΃΃ͲͿ΅Ί΁Ͷ΃ͺ΀͵
ͲΤΚΒΧΖΟΥΦΣΖΝΚΟΜʹΠͽΥΕΨΚΝΝΣΖΡΒΚΣΠΣΣΖΡΝΒΔΖΨΚΥΙΠΦΥΔΙΒΣΘΖΒΥΚΥΤΠΡΥΚΠΟΪΠΦΣΡΣΠΕΦΔΥΨΙΚΔΙΡΣΠΧΖΤΥΠΓΖ
ΕΖΗΖΔΥΚΧΖΚΟΞΒΥΖΣΚΒΝΠΣΨΠΣΜΞΒΟΤΙΚΡΦΟΕΖΣΟΠΣΞΒΝΦΤΖΕΦΣΚΟΘΥΙΖΨΒΣΣΒΟΥΪΡΖΣΚΠΕΝΚΤΥΖΕΓΖΝΠΨΗΣΠΞΥΙΖ
ΕΒΥΖΠΗΠΣΚΘΚΟΒΝΡΦΣΔΙΒΤΖ
ͿΠΠΥΙΖΣΖΩΡΣΖΤΤΨΒΣΣΒΟΥΪΚΤΒΡΡΝΚΔΒΓΝΖΥΠΥΙΚΤΡΣΠΕΦΔΥ΅ΙΖΕΦΣΒΥΚΠΟΠΗΒΟΪΚΞΡΝΚΖΕΨΒΣΣΒΟΥΚΖΤΚΟΔΝΦΕΚΟΘ
ΥΙΖΚΞΡΝΚΖΕΨΒΣΣΒΟΥΪΠΗΞΖΣΔΙΒΟΥΒΓΝΚΝΚΥΪΚΤΝΚΞΚΥΖΕΥΠΥΙΖΕΦΣΒΥΚΠΟΠΗΥΙΖΖΩΡΣΖΤΤΨΒΣΣΒΟΥΪΙΖΣΖΚΟ
ͲΤΚΒΧΖΟΥΦΣΖΝΚΟΜʹΠͽΥΕΤΙΒΝΝΟΠΥΓΖΝΚΒΓΝΖΗΠΣΥΙΖΝΠΤΤΠΗΥΙΖΦΤΖΠΗΥΙΖΡΣΠΕΦΔΥΚΟΔΠΟΧΖΟΚΖΟΔΖΝΠΤΤΠΣ
ΒΟΪΠΥΙΖΣΕΒΞΒΘΖΤΕΚΣΖΔΥΠΣΔΠΟΤΖ΢ΦΖΟΥΚΒΝΒΣΚΤΚΟΘΠΦΥΠΗΥΙΖΦΤΖΠΗΠΣΚΟΒΓΚΝΚΥΪΥΠΦΤΖΥΙΚΤΡΣΠΕΦΔΥΠΣ
ΗΠΣΒΟΪΓΣΖΒΔΙΠΗΒΟΪΖΩΡΣΖΤΤΠΣΚΞΡΝΚΖΕΨΒΣΣΒΟΥΪΚΟΔΝΦΕΚΟΘΥΙΖΚΞΡΝΚΖΕΨΒΣΣΒΟΥΪΠΗΞΖΣΔΙΒΟΥΒΓΚΝΚΥΪ
ΒΡΡΝΚΔΒΓΝΖΥΠΥΙΚΤΡΣΠΕΦΔΥ
΄ΠΞΖΤΥΒΥΖΤΕΠΟΠΥΒΝΝΠΨΥΙΖΖΩΔΝΦΤΚΠΟΠΣΝΚΞΚΥΒΥΚΠΟΠΗΚΟΔΚΕΖΟΥΒΝΔΠΟΤΖ΢ΦΖΟΥΚΒΝΕΒΞΒΘΖΤΠΣΝΚΞΚΥΒΥΚΠΟΤΠΟ
ΙΠΨΝΠΟΘΒΟΚΞΡΝΚΖΕΨΒΣΣΒΟΥΪΝΒΤΥΤΤΠΥΙΖΤΖΝΚΞΚΥΒΥΚΠΟΤΠΣΖΩΔΝΦΤΚΠΟΤΞΒΪΟΠΥΒΡΡΝΪΥΠΪΠΦ΅ΙΚΤΨΒΣΣΒΟΥΪ
ΘΚΧΖΤΪΠΦΤΡΖΔΚΗΚΔΝΖΘΒΝΣΚΘΙΥΒΟΕΪΠΦΞΒΪΒΝΤΠΙΒΧΖΥΙΖΣΖΣΚΘΙΥΤΨΙΚΔΙΧΒΣΪΗΣΠΞΤΥΒΥΖΥΠΤΥΒΥΖ
