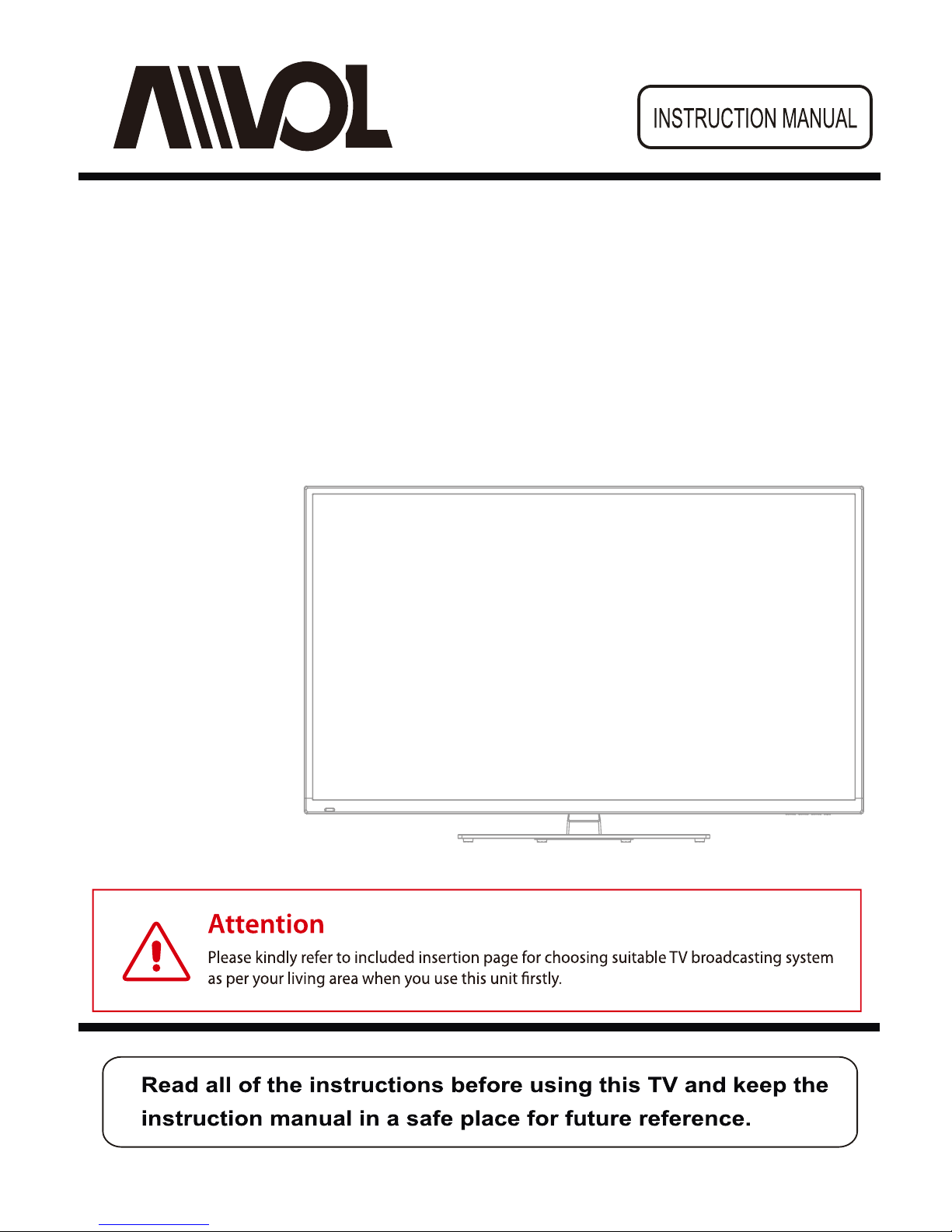

Avol AET55400UWD Instruction Manual

Model No.:AET55400UWD
55" Full HD 100/120Hz DVB-T /ATSC/ Multi System LED TV

Contents
Caution
Safety Information
Accessories
Technical Specification
Product Introduction
Front View
Wall Mounting
OSD MENU for EU-TV
1. Picture menu
Enter the USA signal source
Basic operations for OSD menu
2. Sound menu

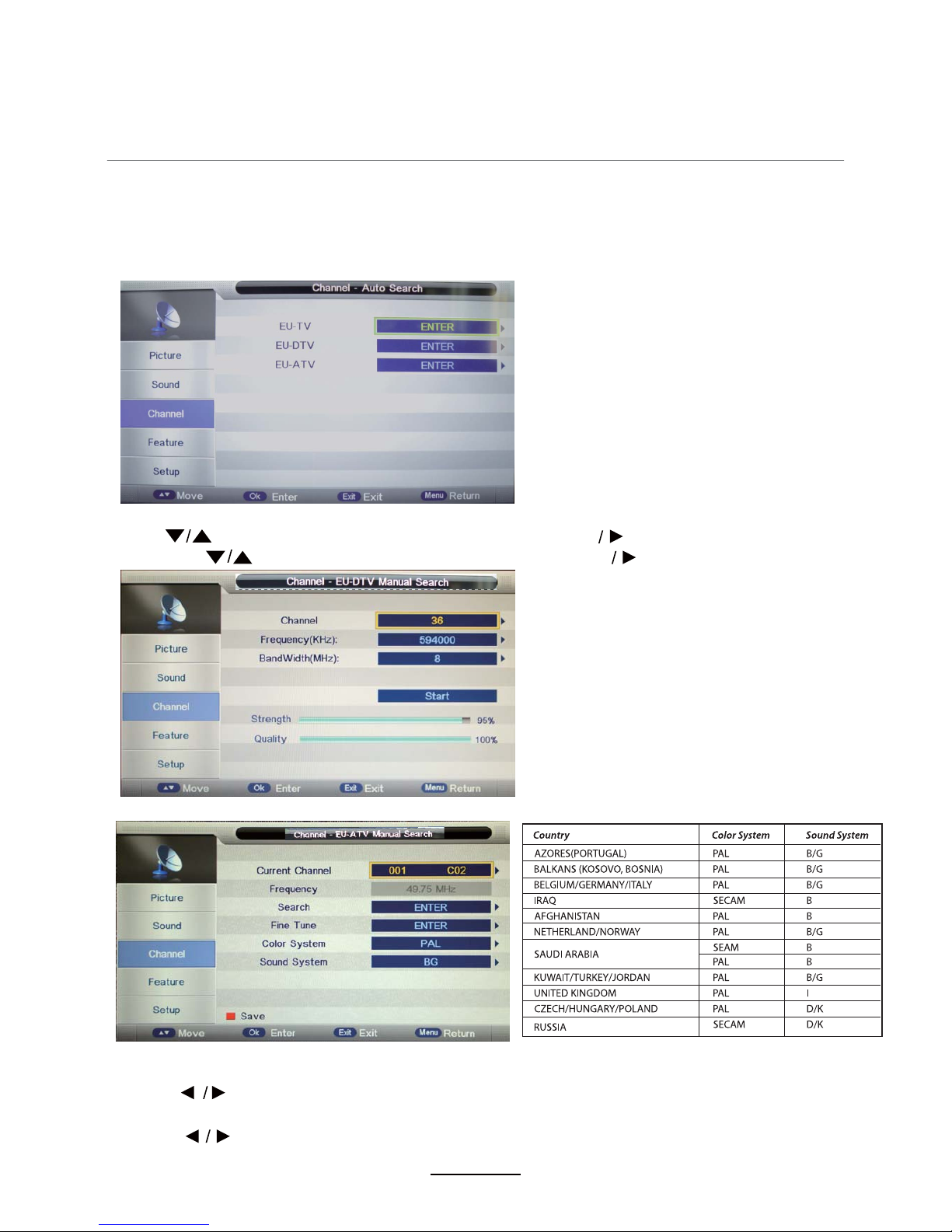

3. Channel menu
4. Feature menu

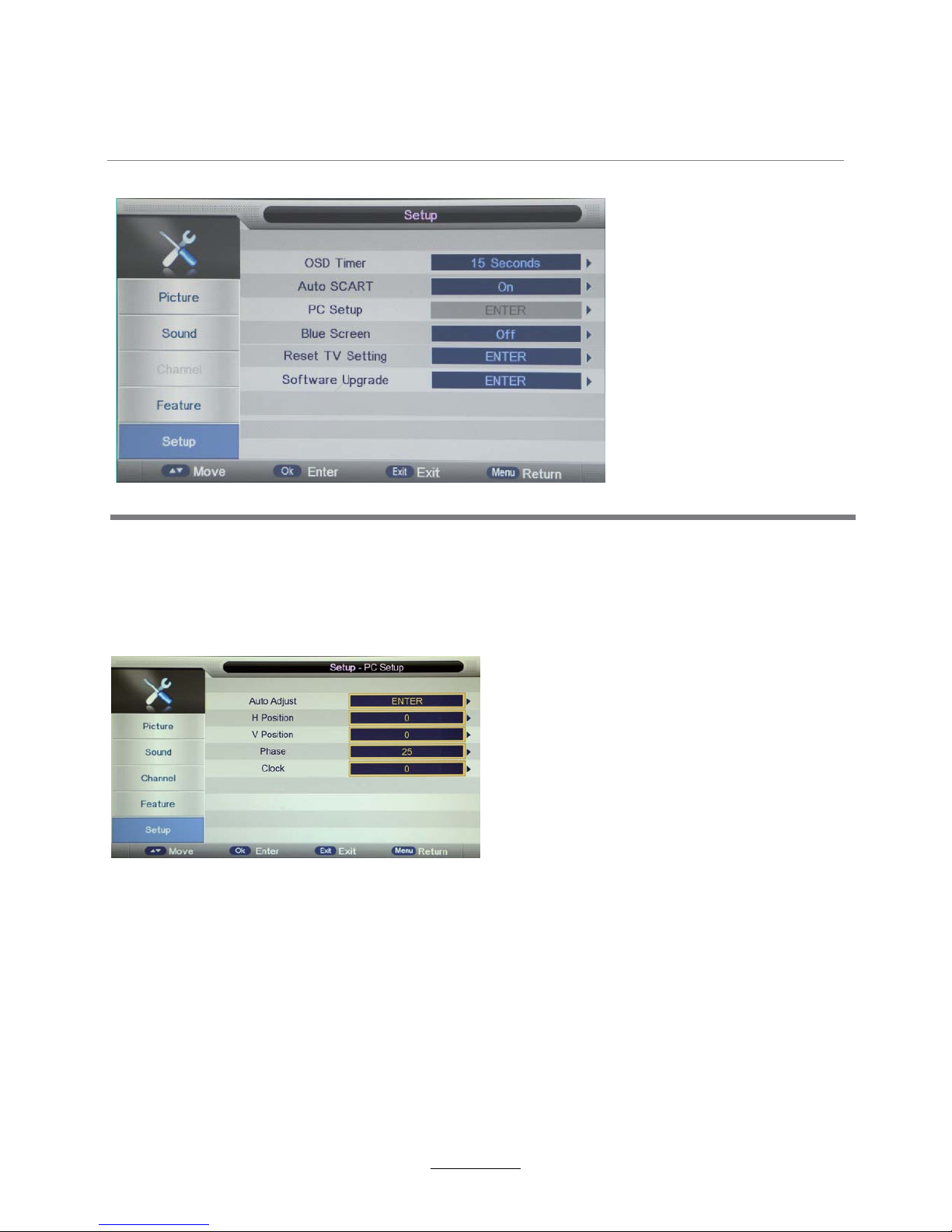

5. SETUP menu
1
2
3
3
4
5
4
4
11-17
11
18
19
20
21
22
23-24
12
13-14
15-16
17
Connections
6-7
8-9
Remote Control
OSD MENU for Europe
10
Basic Operation
OSD MENU for US-TV 18-24
Simple Troubleshooting 25
1. Time menu
2. Setup menu
3. Lock menu
4. Channel menu

Caution
Correct disposal of this Product
(Waste Electrical & Electronic Equipment (WEEE)
Your product is designed and manufactured with high quality materials and
components which can be recycled and reused.
This symbol means that electrical and electronic equipment, at their end-
of-life should be disposed of separately from your household waste.
Please dispose of this equipment at your local community waste collection/
recycling center.
In the USA there are separate collection systems for used electrical and
electronic products. Please help us to conserve the environment we live in!
1
The exclamation point within an equilateral triangle is intend to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
The lightning flash with arrowhead symbol, within an equilateral triangle
is intended to alert the user to the presence of un-insulated “dangerous
voltage” within the products enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to the persons.
directives.
This unit complies with The Restriction of the use of certain Hazardous
substances in Electnical and Electronic Equipment

Safety Information
To ensure reliable and safe operation of this equipment, please read carefully all the
instructions in this user guide, especially the safety information below.
Electrical safety
• To prevent overload, don't share the same mains supply socket with too many other
items of equipment.
- Do not place any connecting wires where they may be stepped on or tripped over.
- Do not place heavy items on the leads, which may damage them.
- Hold the Mains plug, not the wires, when removing from a socket.
- During a thunderstorm or while leaving the TV for long periods, disconnect the aerial
(if outdoor) and mains power from the supply.
- Do not allow water or moisture to enter the TV . Do NOT use in wet
or moist areas such as Bathrooms, steamy kitchens or near swimming pools.
• Pull the plug out immediately, and seek professional help if:
- the mains plug or cable is damaged.
- liquid is spilt onto the set, or if it is accidentally exposed to water or moisture.
- anything accidentally penetrates the ventilation slots.
- the set does not work normally.
- Do NOT remove the safety covers. There are no user serviceable parts inside.
You may invalidate the warranty. Qualified personnel only are permitted to service
this apparatus.
- To avoid battery leakage, remove exhausted batteries from the remote control
handset, or when not using for along period.
- Do NOT break open or throw exhausted batteries on a fire.
Physical safety
• Do NOT block ventilation slots in the back cover. You may place the TV in a cabinet,
but ensure at least 5cm (2") clearance all around the unit.
• Do NOT tap or shake the TV screen, you may damage the internal circuitry. Take good
care of the remote control, do not drop it or allow it to come into contact with liquids.
• To clean the TV use a soft dry cloth. Do NOT use solvents or petrol based fluids. For
stubborn stains, you may use a damp soft cloth with diluted detergent.
2

- DTV System DVB-T (EU DTV) / ATSC (US DTV)
- ATV System PAL/SECAM(EU ATV) / NTSC(US TV)

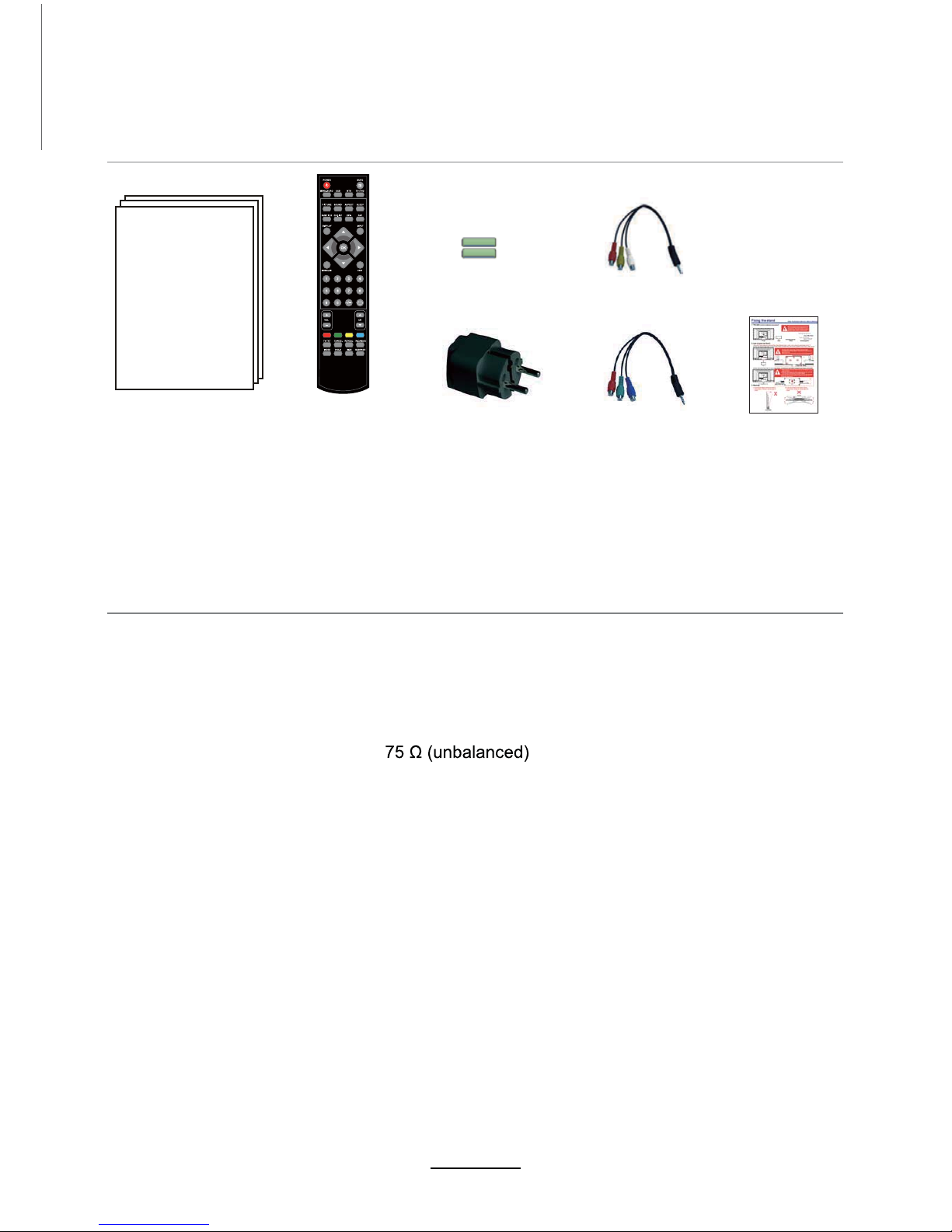

Accessories
3
Technical Specification
User’s Manua lRemote control
* Note: The configuration of the components may look different from the following illustration
55 inch(diagonal)
1920 X 1080
2x10W
100-240V ~ 50/60Hz 135W
- Screen Size
- Resolution
- Aerial input
- Audio output power
- Power Consumption
220V Power Socket
Batteries
Stand Installation
Guide
Mini YPbPr Cable
Mini AV Cable

The TV is provided with mounting holes 200x200mm for a VESA approved wallmounting bracket (NOT
SUPPLIED). Remove the Posi screws holding the base to the base bracket and lift the base away (do not
remove the basemounting bracket).Mount the VESA bracket using 4xM6x10mm ISO metric threaded screws
(not supplied). Do not use screws longer than 10mm, it will occur damage to the internal parts. Fit the wall
- Do not fasten the screws too tight for this may damage the TV or cause the TV to fall, resulting in personal
injury.
- Do not mount your TV at more than a 15 degree tilt.
- Always use two people to mount the TV to a wall.
- Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric
shock.
Wall Mounting
Led Indicator Remote Control window
(Keep clear)
Front View INPUT:
MENU:
CH+/-:
Press to scan through channels.
VOL+/-:
POWER:
Product Introduction
POWER to turn on and off.
Indicator on(Green) Power on mode
4
200mm
200mm

AC POWER IN
Connections
5
AC POWER IN : Connect to an earth 100-240V~ 50/60Hz outlet with the Power Cable.
US TV:
SERVICE : For service (software update) .
HDMI1/2: Connect it to the HDMI output of the external devices.
VGA: For PC display.Connect it to the D-Sub 15 pins analog output connector of the PC.
PC-IN : Connect it to the audio output terminal of PC.
MINI AV:Connect it to the audio & video output terminals of DVD with the Converter cable.
(Audio terminals are shared with YPbPr)
COAX: Digital audio output.
Common Interface: CI slot.
SCART：Connect to the scart input / output of external devices.
Headphone out: Connect it to your headphone or other audio equipments.
EU TV: Connect antenna or cable 75 Ohm coaxial to receive EU-TV signal.
Connect antenna or cable 75 Ohm coaxial to receive US-TV signal.
MINI YPbPr:Connect them to the YPbPr video output terminal of DVD.(used in
component source)
EU TV
HDMI1 HDMI2
SCART
VGA PC-IN Coax
SERVICE Headphone out
MINI YPbPr MINI AV
US TV

Remote Control
6
The remote control is using Infra-Red(IR). Point it towards the front of the TV. The remote
control may not work correctly if it is operated out of range or out of angle.
VOL+ to unmute.
MENU-US
TV/TXT CANCEL REVEAL NICAM/A2
INDEX HOLD SIZE SUBPAGE
EXIT
VOL CH
1234
5678
90
OK
POWER MUTE
DISPLAY INPUT
PICTURE SOUND ASPECT SLEEP
SUBTITLE CH.LIST EPG FAV
MENU-EURO CCD MTS TV1/TV2
-/--

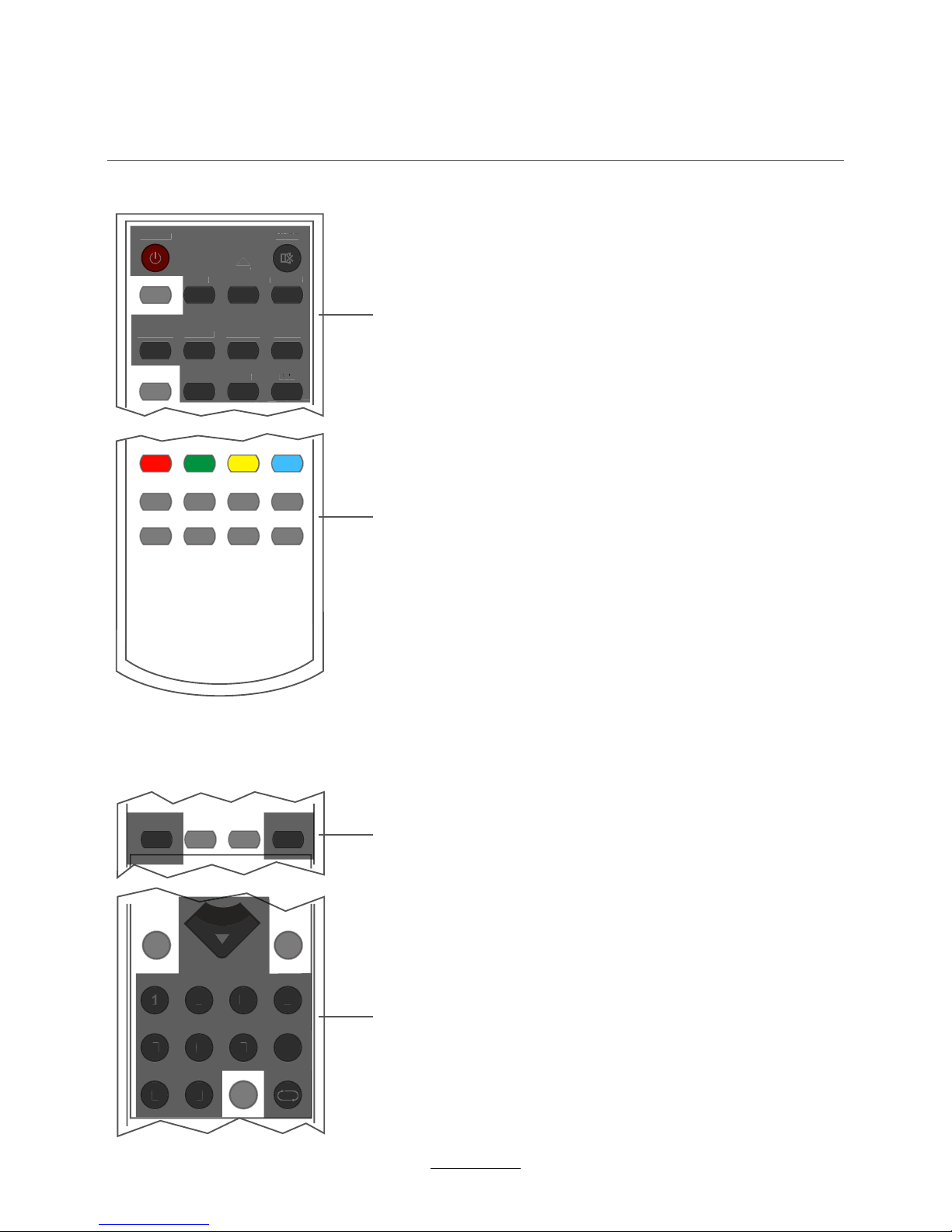

POWER: Turn the TV on/standby.
MUTE: Press to mute the sound, press again or press
TV1/TV2:Switch input source to EU-DTV/ US-TV.
PICTURE: Press repeatedly to cycle through the available
video picture modes.
SOUND: Press to cycle through the different sound settings.
ASPECT: Change the screen display mode.
SLEEP : Shutdown timer.

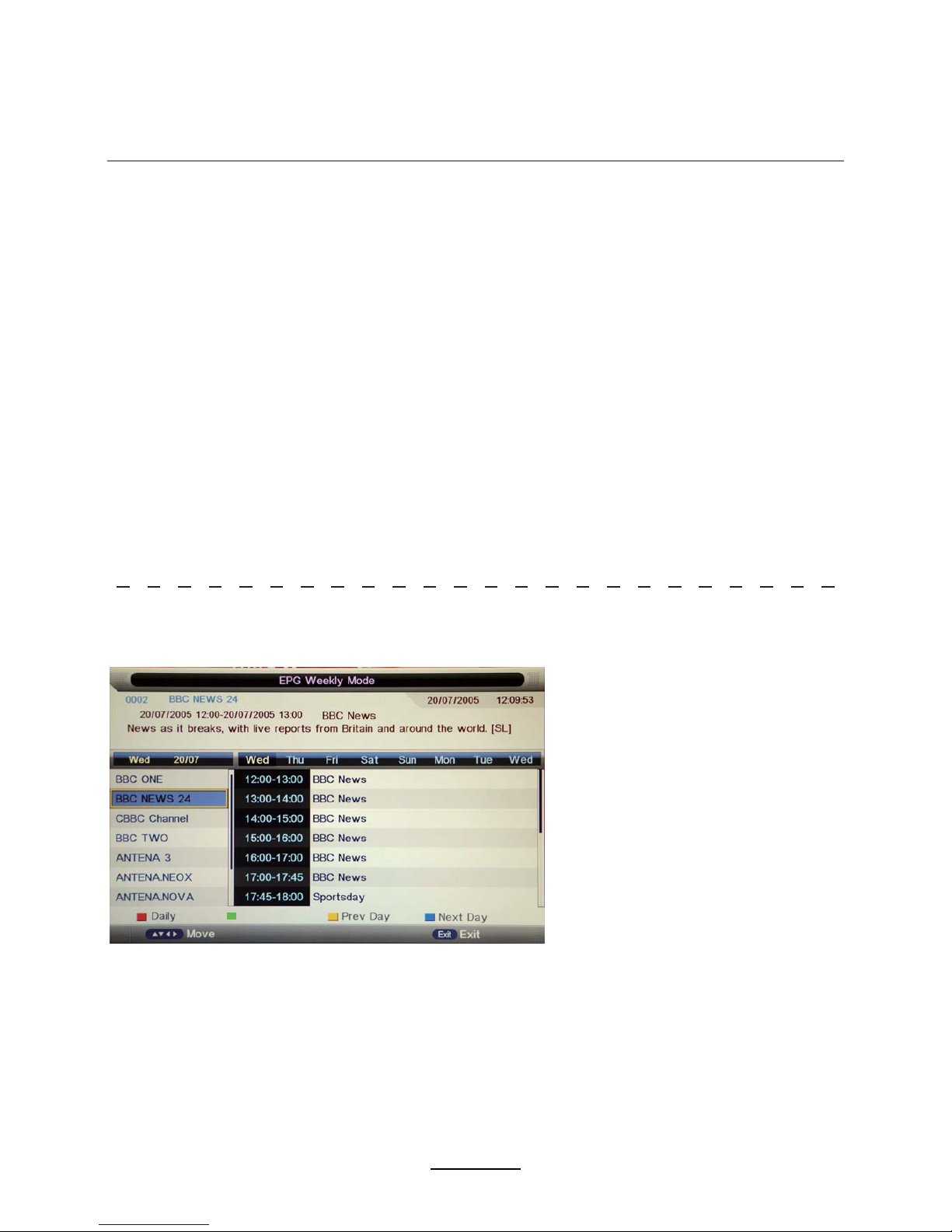

EPG: Press to enter the EPG menu directly.
FAV: Press to display favorite channel list.
DISPLAY: Display the information of current mode.
INPUT: Press to display the input source menu.
OK: Press to confirm your selection in the OSD menu.
menus and adjust the system settings to your preference.
Thumbstick( ): Allows you to navigate the on-screen
NUMBER BUTTONS: Press 0-9 to select a TV channel
directly when you are watching TV.
: Return to the previous channel viewed.
VOL+ / - : Press to adjust the volume.
CH / : Press to scan through channels.
Universal buttons for Europe and USA
MEN
U
-E
U
R
O
CCD
MTS
MENU-U
S
-/-
-
EXIT
T
V
/
TXT
C
AN
CE
L
REVEA
L
NI
C
AM
/
A2
INDEX H
O
LD
S
IZE
S
U
B
P
AGE
PP
CH.LIST: Display the programs list.
S
UBTITL
E

Remote Control
7
MENU-EURO CCD MTS TV1/TV2
MENU-US EXIT
1234
5678
90
-/--
TV/TXT CANCEL REVEAL NICAM/A2
INDEX HOLD SIZE SUBPAGE
POWER MUTE
PICTURE SOUND ASPECT SLEEP
SUBTITLE CH.LIST EPG FAV
MENU-EURO CCD MTS TV1/TV2 MENU-EURO: Display the OSD menu of Europe.
MENU-US: Display the OSD menu of USA and exit US-menu off.
CCD: Press to display the closed caption.
MTS: Press to select the audio channels.
SUBTITLE: Turn on/off the subtitle display in DTV.
Teletext buttons
Exclusive buttons for Europe
Exclusive buttons for USA
PO
WER
M
UTE
P
I
C
T
U
RE
SO
UN
D
A
S
PE
C
T
S
LEEP
C
H.LIS
T
EP
G
F
A
F
F
V
A
A
CCD
M
TS TV1
/
TV
2
Colour buttons: Short cuts-follow the coloured links in the
text.
TV/TXT: Turn off/on the Teletext display.
CANCEL: Cancel the Teletext display.
REVEAL: Reveal any hidden text.
INDEX: Go to index.
HOLD: Hold or carry on the current subpage.
SIZE: Press to see top half of page double size, Press again
to see the bottom half of page double size. Press again
for normal size.
SUBPAGE: Press to enter subpages, pressagain to cancel.
NICAM/A2
Select NICAM/A2
T
V1
/
TV2
M
EN
U
-E
U
R
O
-/-- button: Choose channel directly.
Select channel 5, Press button "5";
Select channel 62, Press button "6", then press button "2"
in 2 seconds;
Select channel 151, Press button "1", and press button "5"
in 2 seconds, and press button "1" in 2 seconds;
Select channel 5-1, Press button "5", and press button "-/--"
in 2 seconds, and press button "1" in 2 seconds;
1
2
3
4
5
6
7
8
9
0
EXIT: Press to exit the OSD menu.

Setup 1:Set up the Country
Setup 2:Set up the Language
Setup 3:Set up the Auto Power Off
8
OSD MENU for Europe
When you initially turn on the TV you will see the first time
installation menu EU-TV as below:

Setup 4: Set up the Auto Search
9
OSD MENU for Europe
EU-TV
EU-ATV
EU-DTV

button to select the function item, press / OK button to enter
Basic Operation
10
Power on/off
1. Connect to the power supply with the power code.
2. -To turn on the TV
Press POWER button on the TV or remote control.
-To turn off the TV
Press POWER button on the TV or remote control.

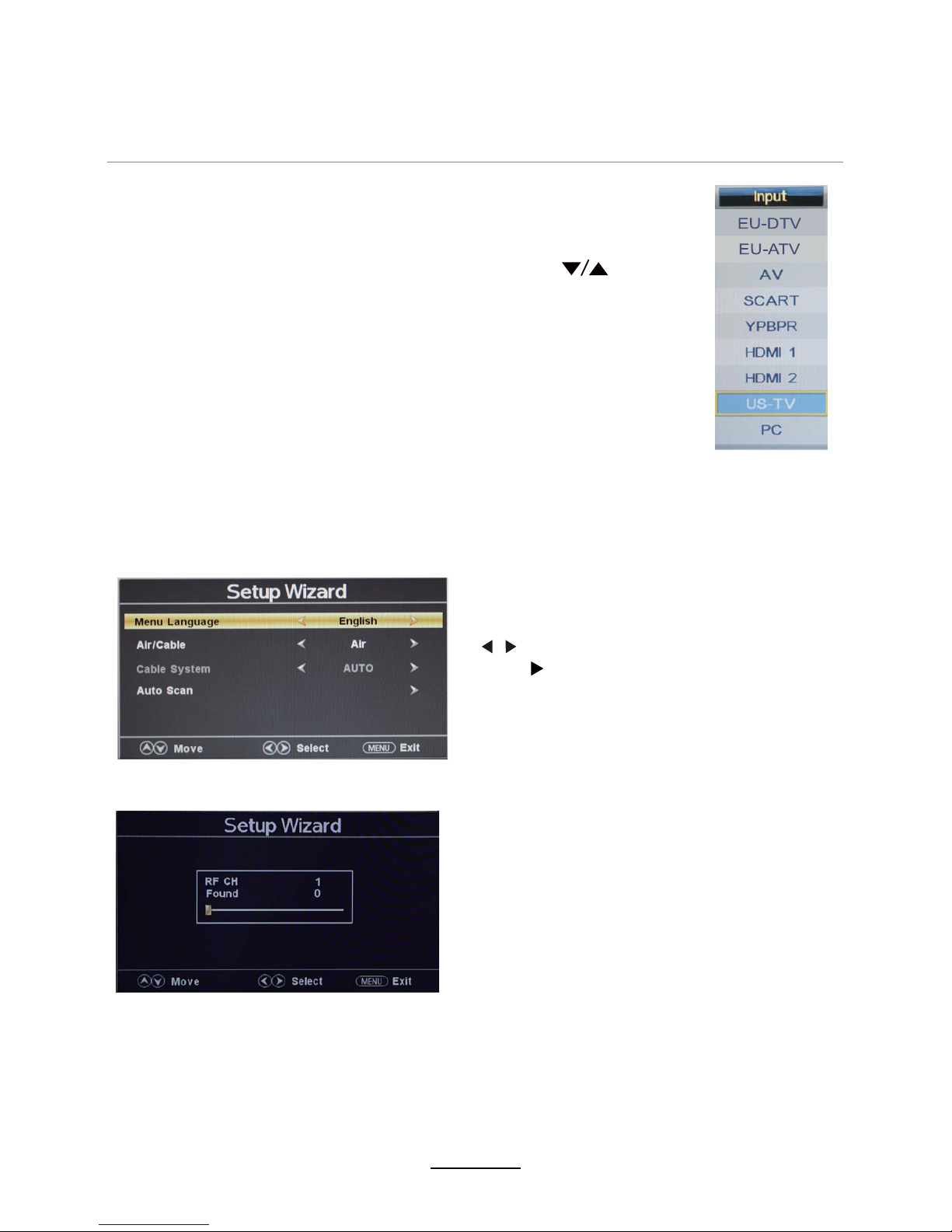

Input Source select
Press INPUT button on the EU-TV set or remote control to display the
input source menu, and use CH+/- button on the EU-TV set or
button on remote control to select the input source, press OK button on
the remote control to enter.
Note: Before you select the input source, make sure the
connections are prepared.
Basic operations for Mains (Europe) OSD menu
Main menu: Picture Sound Channel Feature Setup
Submenu
(Picture menu
for example)
Hint---you should operate
Press MENU-EURO button on the remote control or MENU button on the TV set to display the
OSD menu as below:
Use / button to select the main menu, and press / OK button to enter the submenu.
In the submenu, use
the setup menu, then press / button to adjust, or press / to select and press OK /
/ button to confirm.
/
* (Press MENU-EURO (MENU) / button to return to the upper menu.)
* (Press EXIT button to exit the menu display.)
Note1: Only when you input the suitable signal, the relevant items can be activated
Note2: Please operating the OSD menu according to hint on the bottom of the banner.
the OSD menu according
to the hint.
EU-DTV
EU-ATV
YPBPR
SCART
AV
HDMI1
HDMI2
PC
US-TV

the
OSD MENU for EU-TV
11

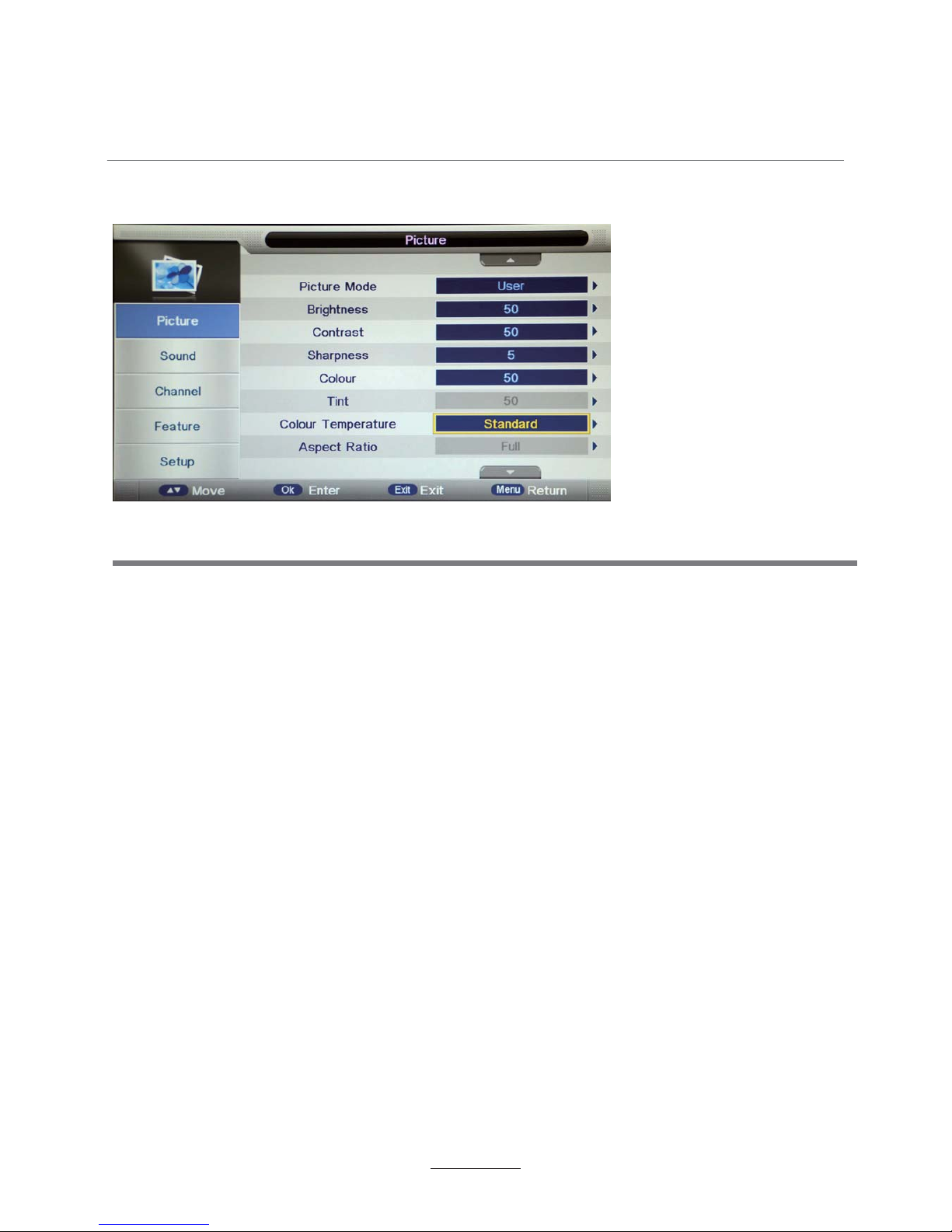

1. Picture menu
Description
Picture Mode: Select your desired picture mode from Dynamic, Standard, Mild and User.
Brightness: Adjust image black level.
Contrast: Adjust image contrast.
Sharpness: Adjust the sharpness(for EU-DTV,EU-ATV, YPbPr AV Scart).
Colour: Adjust image colour from black and white.
Colour Temp: Select an optimum color temperature mode to suit your eyes for viewing from
Warm, Cool, Standard.
Noise Reduction: If the broadcast signal received is weak, you can select the Noise Reduction
option to reduce the video noise level between Off, Low, Middle and High.
Tint: Control the tint.
Aspect: Change the aspect for the screen from Auto,4:3,16:9,Zoom1,Zoom2 ect.

OSD MENU for EU-TV
12
2. Sound menu
Description
Sound Mode: Select your desired sound mode from Standard, Movie, Music, Speech and User.
Bass: Adjust the level of the lower-pitched sounds.
Treble: Adjust the level of the higherpitched sounds.
Balance: Adjust the audio output between left and right speakers.
Auto Volume Level (AVL): The volumes of all sources will be maintained when the function’s on.
SPDIF: Select the spdif mode for the TV from off, PCM and Auto.
Surround: Turn on/off the surround sound function.

OSD MENU for EU-TV
13
3. Channel menu(In EU-ATV/ EU-DTV mode)
Description
Channel Management: Enter the Channel management menu to edit the channels.
Press GREEN button to sign(lock) or cancel(unlock) the channel. And you have to enter the
Note: You have to enter the Password (Lock Password in Feature menu) if you want to edit
the channels.
password to view the program, when the Lock-Lock Channel function is on in Feature menu.
Press RED button to sign the channels you want to delete, it will hint you when you exit.
Press YELLOW button to skip the channel or cancel the setting, and the program will not be
programed by CH+/- button.
Press BLUE button to sign the channel, press / button to move, and press OK button to
swap the position.
Press OK button to enter the rename menu to rename the ATV channel.
Favorite Management: Add or remove
favourite channels by the colour buttons.
Up to 4 favourite lists are available,
RED-Fav1, GREEN-Fav2, YELLOW-Fav3,
BLUE-Fav4.

14
OSD MENU for EU-TV
Country: Select the country.
Auto Search: Press OK button to enter the Auto Search menu, select search mode, and press
EU-DTV Manual Search : Enter the DTV Manual Search menu.
Press button to select the “Channel” item, and press ok button to select the channel,
then press button to select the “Start” item, and press ok button to manual search.
OK button to start auto search.
EU-ATV Manual Search: Analogue Manual Search.
Fine Tune: Press OK button to enter the Fine tune menu, and fine tune the frequency
Current Channel: Select the current channel for manual searching.
Search: Press OK button to enter the search menu, and manual search the frequency
Color/Sound System: Select the Color/Sound system for the program.
by button.
by button.
Note:
1. ALL: Auto search channels for DTV, ATV and
Radio.
DTV: Auto search channels for DTV and radio.
ATV: Auto search channels for ATV.
2. When the TV is auto tunning, you could
press MENU button to stop auto tunning and
return to preview menu.
When the Child Lock is on, please enter the Password (Lock Password in Feature menu)
to start Auto and Manual Search.
None of TV Broadcasting system in manual.
COLOR TV BROADCASTING SYSTEM

OSD MENU for EU-TV
15
4. Feature menu
Description
Lock: This menu allows you to lock certain features of the television so that they can not be used
or viewed. For example if you don’t want certain channels viewed by children or if the television
is to be used in a hotel and you want certain channels be locked.
When you enter the system lock menu you will be asked for a password. As default it is 0000.
Lock Enable - Turn on/off the Lock functions.
Parental Guidance - Select the Parental Guidance mode, or turn off the function.
Note: When it is be turned on, the functions of Parental Guidance and Change Pin code
below will be locked, and the functions Lock(in Channel Management), Auto Search, DTV
Manual Search, ATV manual Search in Channel menu will also be locked.
Change Pin Code – Press OK button to enter, first enter the current code, then enter your
new code and confirm your new code.

Reminder
Press EPG button on the remote control to display EPG menu.
EPG and Timer Recording
EPG mode: Press RED button to change the EPG display mode.
Daily mode: Shows the information of the programs to be broadcasted in daily mode.
Weekly mode: Shows the information of the programs to be broadcasted in weekly mode.
Reminder: Press GREEN button once to remind the program for watching, and press GREEN
button again to cancel, You could check it in Timer Menu.
Previous/Next Day: Press YELLOW/BLUE button to display the programs on previous or next day.
OSD MENU for EU-TV
16
Hearing Impaired: You can switch on the hearing impaired feature, this provides additional
information and subtitles
CI Info: Pay-per-view services require a “smartcard” to be inserted into the TV.
If you subscribe to a pay per view service the provider will issue you with a ‘CAM’ and a
“smartcard”. The CAM can then be inserted into the COMMON INTERFACE PORT
(CI Card In).
Language: Lets you adjust the different language options available.
Clock: Allows you to set the clock (as default the information is taken automatically from the
digital signal).
Sleep Timer: Lets you set the sleep timer so the television automatically switches off after a
certain amount of time.
Auto Power Off: The TV will switch off itself automatically if no change in status within the
time you select. You can choose 1H, 2H, 4H or off.
Timer: Set up Menu for Channel reminder.

OSD MENU for EU-TV
17
OSD Timer: Lets you adjust the amount of time the On Screen Menu stays on the screen
before disappearing.
Blue Screen: Changes the background when there is no input between clear and a blue
background (Only available in some sources).
Reset TV Setting - This clears all the TV settings for the television.
Software Upgrade: From time to time we may release new firmware to improve the running
of the television (available to download). This menu lets you upgrade that software onto the
television. Further details of how to do this will be issued with the firmware. Contact the
helpline or refer to the ‘product support’ section of the website.
5. SETUP menu
Description
Auto SCART: The TV will be changed to SCART source automatically when you connect the
TV to the SCART device.
PC Setup: Change the PC Settings in PC mode.
Auto Adjust: Setup the parameter of the screen automatically.
H/V-Position: Adjust the transverse/vertical position of the screen.
Phase: Adjust the phase of the ADC sampling clock relative to the sync signal, until a
stable image is obtained.
Clock: Adjust the pixel clock frequency, until the image size is maximized for the screen.

Enter the USA signal source
Setup Wizard
Press
When you enter the US-TV input source in first time, the TV will help you to setup the channel.
In the first time, the TV will display the Setup Wizard menu as below:
INPUT button on the TV set or remote control to display the
input source menu, and use CH+/- button on the TV set or button
on remote control to select the US-TV input source, press OK button on
the remote control to enter the USA signal source.
Note: Before your selection, make sure the antenna or cable 75
Ohm coaxial for receiving TV signals are connectted to the TV1 USA
terminal on the back of the TV.
Select the Menu Language by pressing
buttons.
Press button to go to next step.
The screen indicates the progress of "Auto Scan".
After completion of "Auto Scan", close the menu by
presssing "Menu" key. You may now view your local
or cable channels by the corresponding number or
by pressing the Channel up or down on your remote
control.
18
OSD MENU for US-TV
