AVProConnect AC-AUDEX-DIGI User manual

AC-AUDEX-DIGI
Digital Audio over Single CAT5e/6/7 Extender
Operation Manual

AC-AUDEX-DIGI
AVProConnect | 3518 N Casco Avenue | Sioux Falls, SD 57104
1-877-886-5112 | [phone] | [e-mail]
2
DISCLAIMERS
The information in this manual has been carefully checkedand
is believed to be accurate. AVProConnect assumesno
responsibility for any infringements of patents or other rights ofthird
parties which may result from its use.
AVProConnect assumes no responsibility for anyinaccuracies that
may be contained in this document. AVProConnect also makes no
commitment to update or to keep current the informationcontained
in this document.
AVProConnect reserves the right to make improvements tothis
document and/or product at any time and withoutnotice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its parttranslated
into any language or computer file, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
AVProConnect.
© Copyright 2017 by AVProConnect. All
Rights Reserved.
Version 1.0 December 2017
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document maybe
trademarks of the companies with which they are associated.

AC-AUDEX-DIGI
AVProConnect | 3518 N Casco Avenue | Sioux Falls, SD 57104
1-877-886-5112 | [phone] | [e-mail]
3
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, installor
operate this equipment and before connecting the powersupply.
Please keep the following in mind as you unpack and installthis
equipment:
• Always follow basic safety precautions to reduce the risk of fire,
electrical shock and injury topersons.
• To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into thisproduct.
• Never push an object of any kind into this product throughany
openings or empty slots in the unit, as you may damageparts
inside the unit.
• Do not attach the power supply cabling to buildingsurfaces.
• Use only the supplied power supply unit (PSU). Do not use thePSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allowany
weight to be placed upon it or any person walk onit.
• To protect the unit from overheating, do not block any ventsor
openings in the unit housing that provide ventilation and allowfor
sufficient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
VS1 12/1/17 First release

AC-AUDEX-DIGI
AVProConnect | 3518 N Casco Avenue | Sioux Falls, SD 57104
1-877-886-5112 | [phone] | [e-mail]
4
CONTENTS
1. Introduction ........................................... 5
2. Applications .......................................... 5
3. Package Contents................................ 5
4. System Requirements ........................... 5
5. Features ................................................. 5
6. Operation Controls and Functions ...... 6
6.1 Transmitter Front and Rear Panels..6
6.2 Receiver Front and Rear Panels.....7
6.3 RJ45 Pin Assignment...................8
7. Connection Diagram............................ 9
8. Specifications...................................... 10
9. Acronyms............................................. 10

AC-AUDEX-DIGI
AVProConnect | 3518 N Casco Avenue | Sioux Falls, SD 57104
1-877-886-5112 | [phone] | [e-mail]
5
1. INTRODUCTION
The Digital Audio Extender is useful for sending the digital audio signal
up to 150m away at high quality. The units can switchbetween
Coaxial and Optical digital signals and can be powered by either USB
or power adaptor allowing users flexibility of choice between power
sources. With its elegant and compact design, user friendlyoperation
and easy installation, the Digital Audio Extender is ideal tool for
extending digital audio from one location to another.
2. APPLICATIONS
• Coaxial or Optical digital audio signal extension over single
CAT5/6/7 cable up to 150m
3. PACKAGE CONTENTS
• Digital Audio over Single CAT5e/6/7 Transmitter
• Digital Audio over Single CAT5e/6/7 Receiver
• 5V/1A DC Power Adaptor
• Operation Manual
4. SYSTEM REQUIREMENTS
Coaxial/Optical audio input source and amplifier or speaker output
and single CAT6 cable for connecting transmitter and receiver.
5. FEATURES
• Supports Coaxial or Optical digital audio S/PDIF signal
• Supports stereo and multi-channel digital audio such as LPCM 2 CH,
Dolby Digital or DTS 5.1 CH
• Supports industry standard Category 5/5e/6cable
• Digital audio S/PDIF performance sampling rate 96 kHz
• Supports single Coaxial input to Coaxial signal output
• Supports single Optical input to Optical signal output
Note: Only one of the two units need to be powered for bothto operate. Use
only a single type of power per unit, either the 5VDC power supply or the 5V
USB connection.

AC-AUDEX-DIGI
AVProConnect | 3518 N Casco Avenue | Sioux Falls, SD 57104
1-877-886-5112 | [phone] | [e-mail]
6
6. OPERATION CONTROLS AND FUNCTIONS

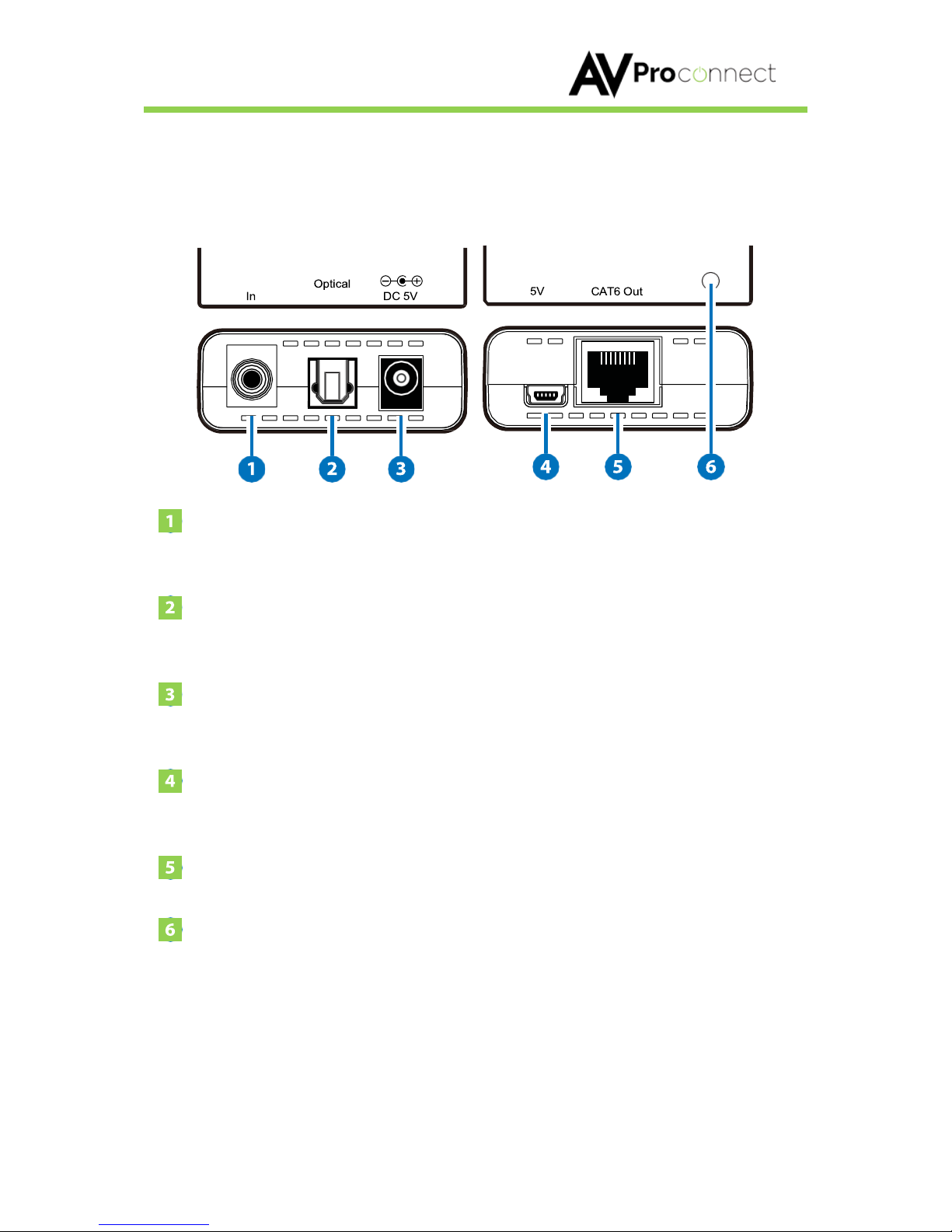

6.1 Transmitter Front and Rear Panels
Coaxial In
Connect to source audio equipment such as DVD or Blu-ray
players with a Coaxial digital audio output.
Optical In
Connect to source audio equipment such as DVD or Blu-ray
players with an Optical digital audio output.
DC 5V
Plug the 5V DC power supply into the unit and connectthe
adaptor to an AC outlet.
USB 5V
Connect with a USB cable for power supply from computer or
notebook.
CAT6 Out
Connect to the receiver unit with a single CAT6 cable.
Power LED
The blue LED will light when the device ispowered.
USB
Coaxial
In

AC-AUDEX-DIGI
AVProConnect | 3518 N Casco Avenue | Sioux Falls, SD 57104
1-877-886-5112 | [phone] | [e-mail]
7
6.2 Receiver Front and Rear Panels
USB 5V
Connect with a USB cable for power supply from computer or
notebook.
CAT6 In
Connect to the receiver unit with a single CAT6 cable.
Power LED
The blue LED will light when the device ispowered.
Coaxial Out
Connect to an amplifier or active speakers with coaxial input.
Optical Out
Connect to an amplifier or active speakers with optical input.
DC 5V
Plug the 5V DC power supply into the unit and connectthe
adaptor to an AC outlet.
USB
Coaxial
Out

AC-AUDEX-DIGI
AVProConnect | 3518 N Casco Avenue | Sioux Falls, SD 57104
1-877-886-5112 | [phone] | [e-mail]
8
6.3 RJ45 Pin Assignment
TRANSMITTER
CAT5e/6/7
150m
RECEIVER
Pin Definition Pin Definition
1Signal A 1Signal A
2Signal B 2Signal B
3Signal C 3Signal C
4GND 4GND
5GND 5GND
6Signal D 6Signal D
7DC 5V 7DC 5V
8DC 5V 8DC 5V

AC-AUDEX-DIGI
AVProConnect | 3518 N Casco Avenue | Sioux Falls, SD 57104
1-877-886-5112 | [phone] | [e-mail]
9
Digital
Coaxial
Input
Digital
Optical
Input
TX Power
Supply
CAT5e/6/7
Cable (150m)
RX
Digital Coaxial Digital Optical
Output Output
7. CONNECTION DIAGRAM
Example 1 Example 2
DVD/Blu-ray Player
Set-top Box PC or Laptop
Amplifier Amplifier
USB
Power Digital
Optical
Input
TX
CAT5e/6/7
Cable (150m)
RX
Digital Coaxial Digital Optical
Output Output

AC-AUDEX-DIGI
AVProConnect | 3518 N Casco Avenue | Sioux Falls, SD 57104
1-877-886-5112 | [phone] | [e-mail]
10
8. SPECIFICATIONS
TRANSMITTER
Input Ports 1×Coaxial, 1×Optical
Output Port 1×CAT6
RECEIVER
Input Port 1×CAT6
Output Ports 1×Coaxial, 1×Optical
CAT6 Cable Distance 150m
Sample Rate 32/44.1/48/88.2/96kHz
ESD Protection Human Body Model:
± 6kV (air-gap discharge)
± 4kV (contact discharge)
Power Supply 5 V/1 A DC (US/EU Standards, CE/FCC/UL
certified)
Dimensions 22 mm (H)×70 mm (W)×50 mm (D)/each
Weight 50 g/each
Chassis Material Plastic
Silkscreen Color White
Operating Temperature 0 °C~45 °C/32 °F~104 °F
Storage Temperature −20 °C ~ 60 °C/−4 °F~140 °F
Relative Humidity 20~90 % RH(non-condensing)
Power Consumption
2 W
9. ACRONYMS
ACRONYM COMPLETE TERM
CAT5 Category 5 Cable
CAT6 Category 6 Cable
S/PDIF Sony/Philips Digital Interconnect Format

AC-AUDEX-DIGI
AVProConnect | 3518 N Casco Avenue | Sioux Falls, SD 57104
1-877-886-5112 | [phone] | [e-mail]
11
NOTES:

AC-AUDEX-DIGI
AVProConnect | 3518 N Casco Avenue | Sioux Falls, SD 57104
1-877-886-5112 | [phone] | [e-mail]
12
3518 N Casco Avenue, Sioux Falls, SD 57104
1-877-886-5112 or [phone]
[email protected]
support.avproconnect.com
Thank you for choosing
AVProConnect!
Please contact us with any questions.
We are happy to be of service!
