Avson 370-211V80 User manual

ASSEMBLY INSTRUCTION
Styles and colo(u)rs may vary.
Made in China.
The owner’s manual contains important safety information as well as assembly, use and
maintenance instructions.
The Ride-on Car must be assembled by an adult who has read and understands the
instructions in this manual.
Keep the package away from children and dispose of properly before use.
Keep this manual for future reference.
BATTERY POWERED TRIKE
BMW HP4 RACE
INfab063_US_CA
370-211V80
EN
1/27

Battery
Charger
6V4AH*1
6V500mA
Suitable age:
Load Capacity:
Speed:
Size of car:
Power way:
Charge time:
37-96 months
Under 30kg
3km/h
82.5 x 42 x 54 CM
Charging type
8-12 hours
About Your New Ride-On │ 1
SPECIFICATIONS:
1WD
On the purchase of your new BMW Ride-On.
This ride-on will provide your child with many miles of riding of enjoyment.
To help assure you and your rider a safe ride we ask you to please read this
manual carefully, and keep it for future reference.
Follow the recommendations in this manual, they are designed to improve
the safety and operation of your ride-on car and it’s rider.
BMW HP4 Children Battery Powered Trike manufactured by Zhejiang
Jiajia Ride-On Co., Ltd. (Add: Xincang Industrial Zone, Pinghu City,
Zhejiang Province, P.R.China). The BMW logo and the BMW word mark
are trademarks of BMW AG and are used under license.
2/27

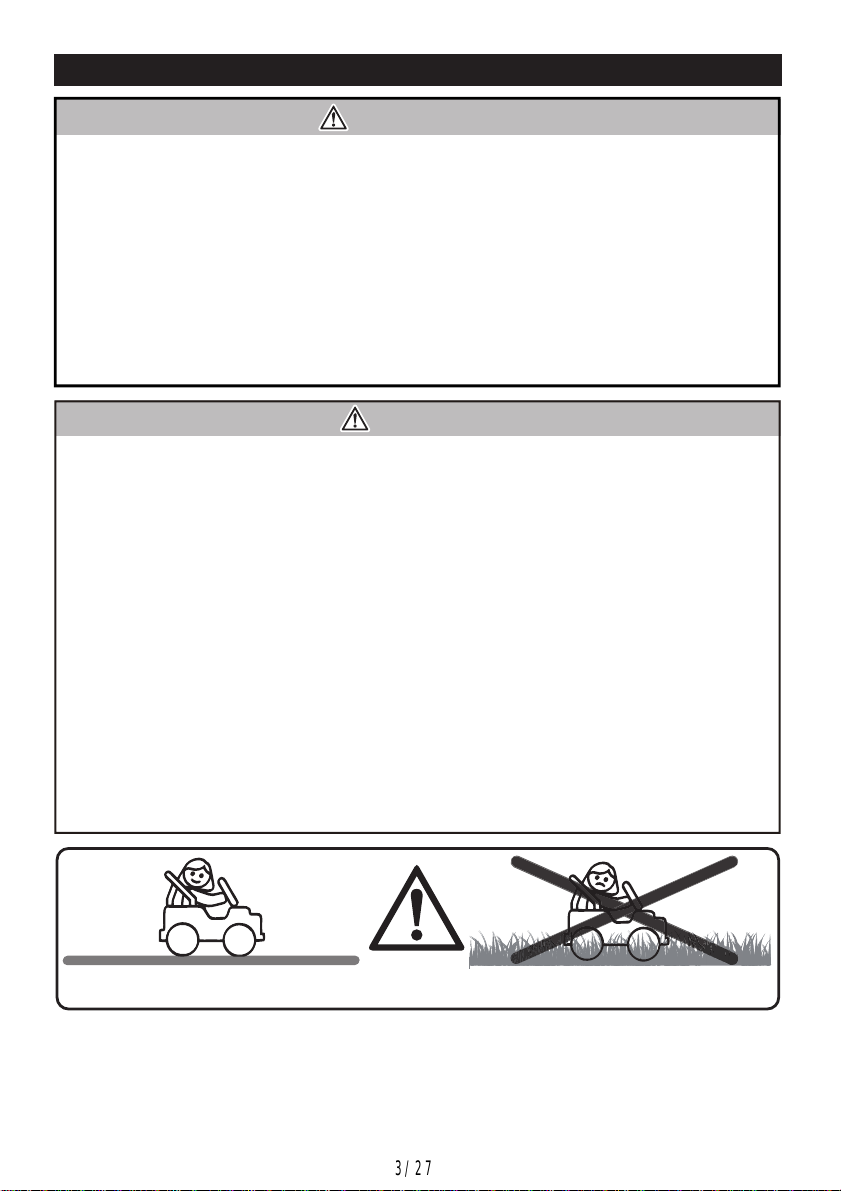

User Notice │ 2
Use the vehicle on generally level ground ONLY!
DO NOT Use the vehicle on Lawn space!
Please adhere to the following safety hazards to prevent injuries:
• Never leave your child unattended. Direct adult supervision is required. Always keep child in
view when child is in vehicle.
• To reduce the risk of injury, adult supervision is required. Never use in roadways, near motor
vehicles, on or near steep inclines or steps, swimming pools or other bodies of water, always
wear shoes, and never allow more than 1 rider.
• Never use in unsafe conditions such as snow, rain, loose dirt, mud, sand, or gravel,
otherwise may result in an unexpected accident such as tipping over, and could damage the
electrical system or battery
• Not to be used in traffic.
• This toy should be used with caution since skill is required to avoid falls or collisions causing
injury to the user or third parties.
• This toy is unsuitable for children under 36 months due to its maximum speed; Maximum
user weight is 30kg.
• This toy has no brake.
WARNING!
SAFETY
• CHOKING HAZARD - Small parts. Not suitable for children under 36 months. The product
contains small parts, keep children away when assembling.
• ADULT ASSEMBLY REQUIRED.
• Always remove protective material and poly bags and dispose before assembly.
• Protective equipment should be worn. Always wear shoes and sit in the seat when operating
the vehicle.
• Only drive on level ground. Never use on the lawn.
• Never leave a child unattended.
• Keep your hands, hair, and clothes away from moving parts.
3/27

1
11
4
5
6
3
12
12
6
5
4
4
7
8
2
9
10
14
13
HINT: Some parts shown are assembled on both sides of vehicle

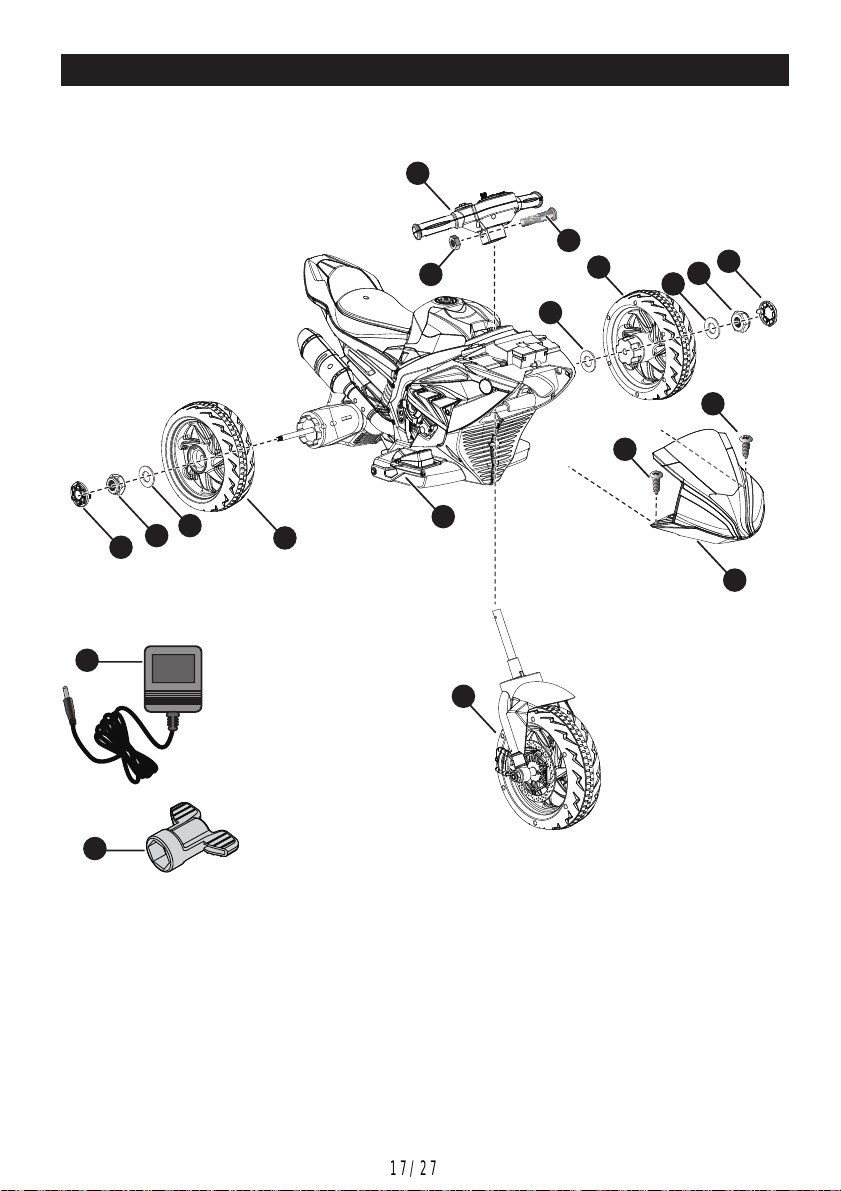

Parts Diagram │ 3
4/27

1
1
1
3
2
2
1
1
1
1
1
2
2
1
PART
NO.
REMARKS
PART NAME
Q’ty (pcs)
Vehicle body
Left rear wheel
Right rear wheel
Ø10 washer
Ø10 lock nut
Hubcap
Front wheel assembly
Handle bar
M5x35 machine screw
Ø5 nut
Faceguard
Ø4x16 screw
Spanner
Charger
Placed on the steering wheel
Placed on the steering wheel
Parts List │ 4
Assembly tools required (not included):
Screwdriver
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1WD
5/27

2
3
8
54 67
8
1

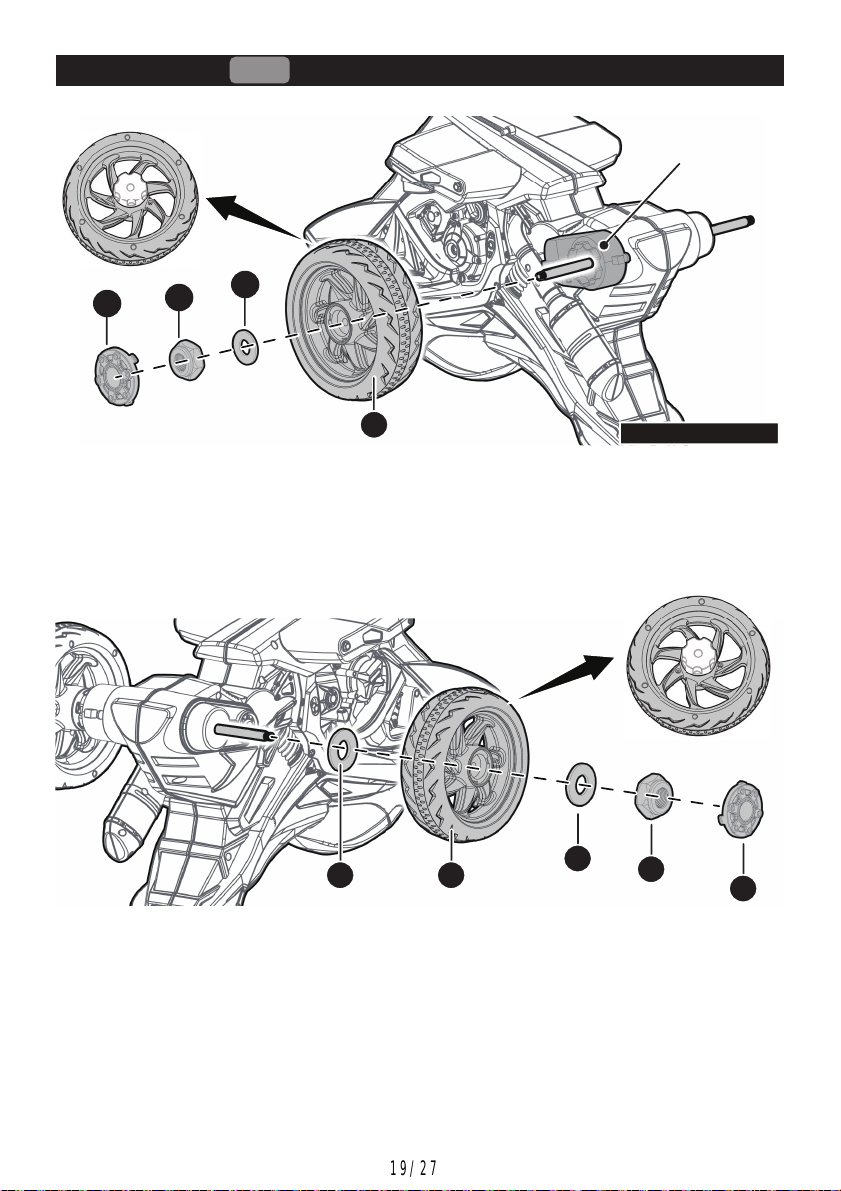

Attach the Rear Wheels │ 5
Rear Bottom View
Inside of rightrear wheel
Inside of right rear wheel
Inside of left rear wheelInside of left rear wheel
Remove all the parts from the rear axle. Turn the vehicle body upside down.
1. Slide the right rear wheel onto the rear axle from the left side of the vehicle body, and
make it match up with the motor on the vehicle body.
2. Slide a Ø10 washer onto the rear axle.
3. Tighten a lock nut to the end of the rear axle with a spanner.
1WD
4. Slide the Ø10 washer on the other side of the rear axle.
5. Slide the left rear wheel onto the rear axle.
6. Slide another Ø10 washer onto the rear axle.
7. Tighten a lock nut to the end of the rear axle with a spanner. TIP: An extra spanner
has been provided to hold the Lock Nut on the other side of the rear axle while
tightening the Lock Nut on the other side.
8. Fit the hubcaps to the both rear wheels.
Gear box
6/27

3
4
5
1
2
3
4
5

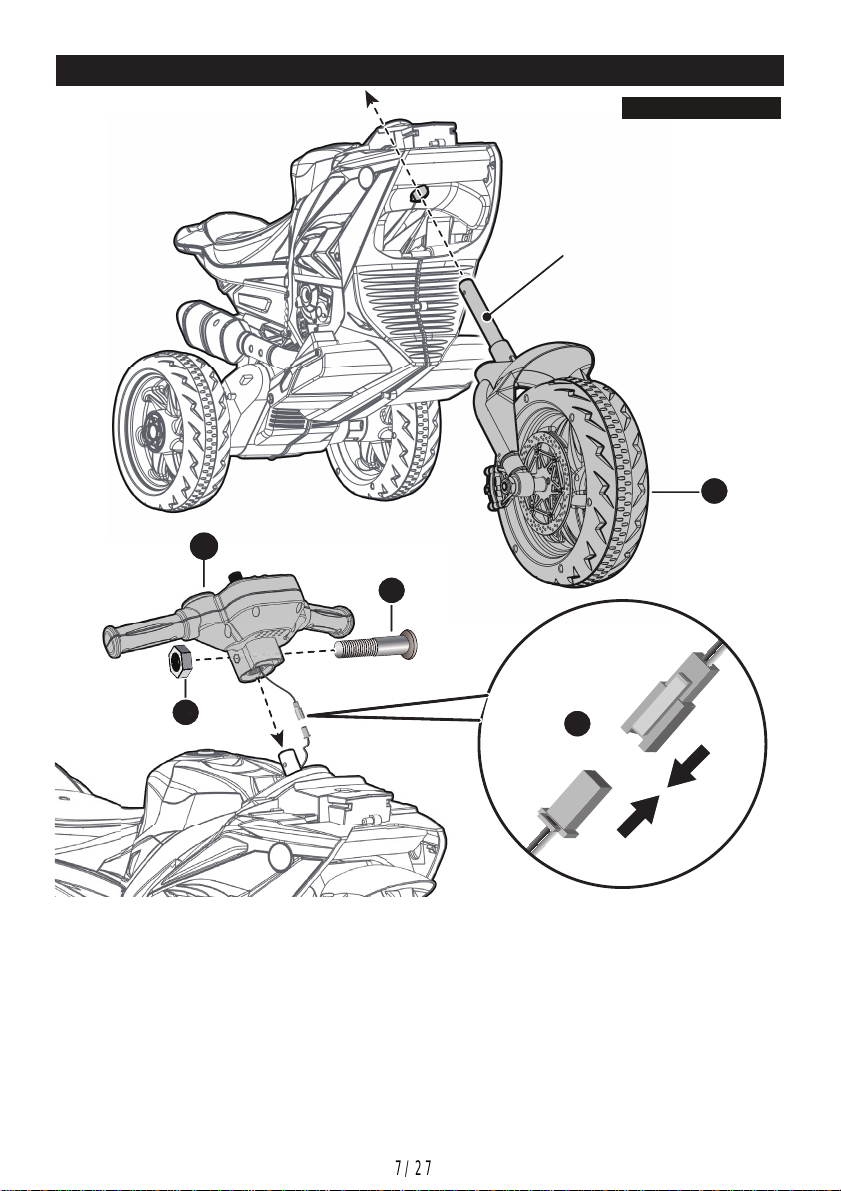

Attach the Front Wheel │ 6
Rear Bottom View
Turn the vehicle body upright.
1. Raise up the vehicle body, insert the fork tube on the front wheel assembly passes
through the hole in the bottom of the vehicle body.
2. Plug the connector on the handlebar with the connector on the vehicle body, and then
hide the connectors into the hole of the vehicle body.
3. Fit the handlebar into the fork tube on the front wheel assembly.
4. Align the holes on each side of the handle bar with the holes at the front fork.
5. Fasten a Ø5 nut on the opposite end of the M5x35 machine screw to secure the
handle bar to the front fork.
Fork tube on the
front wheel assembly
7/27

2
1
3
3
Attach the Faceguard │ 7
1. Plug the connector on the faceguard in the connecotor on the vehicle body. And hide
connectors into the hole in the vehicle body.
2. Fit the faceguard to the vehicle body.
3. Use a screwdriver to tighten two Ø4X16 screws to secure it.
8/27

21
Connect the Power Supply │ 8
1. Loosen the screws on the top of the seat with a screwdriver and remove the
seat.
2. Plug the connector on the vehicle body into the connector from the battery.
9/27

CA
D
FE
B
1
24
3
1. Power button: Turns the vehicle on and off.
2. Forward/reverse switch: Changes the direction that vehicle moves from forward to
reverse.
●To move the vehicle forward, shift the lever to top position.
●To move the vehicle backward, shift the lever to down position.
3. Foot pedal: Applies power (speed) to the vehicle.
●To move the car, press the pedal down.
●To brake or slow down, release pressure from the pedal.
A. Sound buttons: Press for sounds playing.
B. Volume knob: Turn the audio player on and off, +/- the volume.
C. Music / Wake button: Press for music playing.
TIP: This player has an power-saving function. If it is idle for three minutes when
it is turned on, the player will enter sleep mode. Press this button to wake up the
player from sleep mode.
D. Study / Nursery rhyme button.
E. Device 1 input.
F. Device 2 input.
Use Your Ride-on │ 9
When not using, please turn
the audio player off, avoid to
reduce the battery life.
IMPORTANT
Always stop vehicle when
changing the speed (if
equipped) or direction to
avoid damage the gears and
motor.
IMPORTANT
10/27

Battery Disposal
The battery will eventually lose the ability to hold a charge. Depending on the amount of use, and
varying conditions, the battery should operate for one to three years.
Important! Recycle the dead battery responsibly. The battery contains lead acid (electrolyte) and
must be disposed of properly and legally. It is illegal in most areas to incinerate lead acid batteries
or dispose of them in landfills. Take it to a federal or state-approved lead acid battery recycler,
such as local automotive battery retailer.
Do not throw the battery away with your regular household waste!
• ONLY an adult is allowed charge and recharge the battery!
• This product with Charging Protection: when charging, all functions will be cut off.
WARNING!
2
1. Plug the charger port into the input socket (the socket is above the foot pedal ).
2. Plug the charger plug into a wall outlet. The battery will begin charging.
1
• The POWER SWITCH must be in the OFF position when charging.
• Before the first use, you should charge the battery for 4-6 hours. Do not recharge the battery
for more than 10 hours to avoid overheating the charger.
• When the vehicle begins to run slowly, recharge the battery.
• After each use or once a month minimum recharge time as 8 to 12 hours, less than 20 hours at
most.
• Only use the rechargeable battery and charger supplied with your vehicle. NEVER substitute the
battery or the charger with another brand. Using another battery or charger may cause a fire or
explosion.
• Do not use the battery or charger for any other product.
Charging │ 10
11/27

Fuse
Maintaining │ 11
The battery features a thermal fuse with a rest fuse that will automatically trip and cut all
power to the vehicle if the motor, electric system or battery is overloaded. The fuse will
reset and power will be restored after the unit is turned OFF for 20 seconds and then
turned ON again. If the thermal fuse trips repeatedly during normal use, the vehicle may
need repair. Contact your distributor please.
To avoid losing power, follow these guidelines:
●Do not overload the vehicle.
●Do not tow anything behind the vehicle.
●Do not drive up steep slopes.
●Do not drive into fixed objects, which may cause the wheels to spin, causing the motor
to overheat.
●Do not drive in very hot weather, components may overheat.
●Do not allow water or other liquids to come in contact with the battery or other electric
components.
●Do not tamper with the electric system. Doing so may create a short, causing the fuse
to trip.
• It is the responsibility of the parent to check main parts of the toy before using. You
must regularly examine for potential hazard, such as the battery,charge,cable
orcord,plug,screwsare fastened,enclosure of other parts and that in the event of such
damage, the toy must not be used until that damage had been properly removed.
• Park the vehicle indoors or cover it with a tarp to protect it from wet weather.
• Recharge the battery after each use. Only an adult can handle the battery. Recharge the
battery at least once a month when the vehicle raider is not being used.
• Do not wash the vehicle with a hose. Do not wash the vehicle with soap and water. Do not
drive the vehicle in rainy or snowy weather. Water will damage the motor, electric system and
battery.
• Clean the vehicle with a soft, dry cloth. To restore shine to plastic parts, use a non-wax
furniture polish. Do not use car wax. Do not use abrasive cleaners.
• When not using, all the electrical source should be turned off. Turn off the power switch and
disconnect the battery connection.
12/27

.
Problem Possible Cause Solution
Vehicle does not run
Vehicle does not run
very long
Vehicle runs sluggishly
Vehicle needs a push
to go forward
Difficult shifting from
forward to reverse or
vice-versa
Loud grinding or clicking
noises coming from
motor or gear box
Battery low on power
Thermal fuse has tripped
Battery connector or wires
are loose
Battery is dead
Electrical system is damaged
Motor is damaged
Battery is under charged
Battery is old
Battery is old
Vehicle is overload
Vehicle is being used in harsh
conditions
Poor contact of wires or
connectors
“Dead Spot” on motor
Motor or gears are damaged
Battery low on power
Recharge battery.
Reset fuse, see <Fuse>
Check that the battery connectors are firmly plugged
into each other. If wires are loose around the motor
contact your distributor please.
Check that the battery connectors are firmly plugged
into each other. If wires are loose around the motor,
contact your distributor please.
A dead spot means the electric power is not being
delivered to the terminal connection and the vehicle
needs repair. Contact your distributor please.
Attempting to shift while the
vehicle is motion
Completely stop the vehicle and shift, see <Use Your
Ride-On>
Check that the battery connectors are firmly plugged
into each other when recharging
Replace battery, contact your distributor please.
Replace battery, contact your distributor please.
Replace battery, contact your distributor please.
Reduce weight on vehicle.
Avoid using vehicle in harsh conditions, see <Safety>.
Recharge battery, contact your distributor please.
Contact your distributor please.
Contact your distributor please.
Contact your distributor please.
Contact your distributor please.
Battery will not
recharge
Charger feels warm
when recharging
Battery connector or adapter
connector is loose
Charger not plugged in
Charger is not working
This is normal and not a
cause for concern
Check that the battery connectors are firmly plugged
into each other.
Check that the battery charger is plugged into a
working wall outlet.
Completely read through this manual and the troubleshooting guide table before calling. If you
still need help resolving the problem Contact your distributor please.
Troubleshooting Guide │ 12
13/27

ASSEMBLY INSTRUCTION
Les styles et les couleurs peuvent varier.
Fabriqué en Chine.
Le manuel d’instructions contient des informations importantes sur la sécurité,ainsi que des
instructions d’assemblage, d'utilisation et de maintenance.
La voiture doit être assemblée par un adulte ayant lu et compris les instructionsde ce manuel.
Conservez l'emballage hors de portée des enfants et éliminez-le avant l’utilisation.
Conservez ce manuel pour référence ultérieure.
TRICYCLE ALIMENTÉ PAR BATTERIE
BMW HP4 RACE
FR
370-211V80
14/27

6V4AH*1
6V500mA
À propos de votre nouveau véhicule │ 1
37-96 mois
Moins de 30kg
1WD
3km/h
82.5 x 42 x 54 CM
Type de charge
8-12 heures
À l'achat de votre nouveau véhicule.
Ce véhicule procurera à votre enfant de nombreux kilomètres deplaisir. Pour vous
assurer une conduite sûre, ainsi qu’à votre enfant,nous vous prions de lire
attentivement ce manuel et de le conserverpour pouvoir vous y référer
ultérieurement.
Suivez les recommandations de ce manuel, elles sont conçues pourassurer la
sécurité et le fonctionnement de votre voiture et de sonconducteur.
Le tricycle alimentépar batterie BMW HP4 destinéauxenfants est
fabriquépar Zhejiang Jiajia Ride-On Co., Ltd. (Adresse : Xincang
Industrial Zone, Pinghu City, Zhejiang Province, P.R.China). Le logo
BMW et la marque verbale BMW sont des marques de commerce de
BMW AG et sont utilisés sous licence.
SPÉCIFICATIONS:
Pile
Chargeur
Âge approprié:
Capacité de charge:
Vitesse:
Taille de la voiture:
Moyen de puissance:
Temps de charge:
15/27

Avis aux utilisateurs │ 2
Utilisez le véhicule sur un sol plat.
Ne pas utiliser sur la pelouse.
Les risques de sécuritésuivants peuvent entraîner des blessures graves ou la mort:
• Ne jamais laisser l'enfant sans surveillance. La surveillance directe d'un adulte est
nécessaire. Gardez toujours l'enfant en vue lorsqu'il est dans le véhicule.
• Pour réduire le risque de blessure, la surveillance d'un adulte est requise. Ne l'utilisez
jamais sur la route, àproximitéde véhicules àmoteur, sur ou près depentes ou de marches
abruptes, de piscines ou d'autres plans d'eau.Portezdes chaussures, et n'autorisez jamais
plus d’un conducteur.
• Ne jamais utiliser dans des conditions dangereuses telles que la neige, la pluie, la terre
meuble, la boue, le sable ou le gravier, car cela pourraitprovoquer un accident inattendu,
comme le renversement, et endommager le système électrique ou la batterie.
• Ne pas utiliser dans la circulation.
• Ce jouet doit être utiliséavec prudence, car il faut savoir éviter les chutes ou les collisions
qui pourraient causer des blessures àl'utilisateur ou àdes tiers.
• Ce jouet ne convient pas aux enfants de moins de 36 mois en raison de sa vitesse
maximale ; le poids maximal de l'utilisateur est de 30 kg.
• Ce jouet n'a pas de frein.
AVERTISSEMENT!
SÉCURITÉ
•DANGER - Petites pièces. Ne convient pas aux enfants de moins de 36 mois.
Le produit contient de petites pièces, tenez les enfants à l'écart lors du montage.
•ASSEMBLAGE PAR UN ADULTE REQUIS.
•Toujours enlever le matériel de protection et les sacs en poly et les éliminer avant l'assemblage.
•Il faut porter un équipement de protection. Portez toujours des chaussures et asseyez-vous sur
le siège lorsque vous utilisez le véhicule.
•Ne roulez que sur un terrain plat. Ne jamais utiliser sur la pelouse.
•Ne laissez jamais un enfant sans surveillance.
•Gardez vos mains, vos cheveux et vos vêtements loin des pièces en mouvement
16/27

1
11
4
5
6
3
12
12
6
5
4
4
7
8
2
9
10
14
13
CONSEIL: Certaines pièces illustrées sont assemblées des deux côtés duvéhicule.
Schéma des pièces │ 3
17/27

1
1
1
3
2
2
1
1
1
1
1
2
2
1
N°
DEPIÈCE
REMARQUES
Qté(pcs)
NOM DE LA PIECE
Carrosserie du véhicule
Roue arrière gauche
Roue arrière droite
Rondelle Ø10
Contre-écrou Ø10
Enjoliveur
Montage de la roue avant
Poignée
Vis de machine M5*35
Écrou Ø 5
Protège-visage
Vis Ø4*16
Cléàmolette
Chargeur
Installésur le volant
Installésur le volant
Liste des Pièces │ 4
Outils de montage requis:(non inclus)
Tournevis
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1WD
18/27

2
3
8
54 67
8
1
Monter les roues arrière │ 5
Vue arriere de bas
Interieur de la roue arriere gauche
Retirez toutes les pièces de l'essieu arrière. Retournez la carrosserie du véhicule à l'envers.
1. Faire glisser la roue arrière droite sur l'essieu arrière depuis le côté gauche de la carrosserie du
véhicule, et faites-la correspondre avec le moteur sur la carrosserie du véhicule.
2. Faire glisser une rondelle Ø10 sur l'essieu arrière.
3. Serrer un contre-écrou à l'extrémité de l'essieu arrière avec une clé.
1WD
4. Faire glisser la rondelle Ø10 de l'autre côté de l'essieu arrière.
5. Faire glisser la roue arrière gauche sur l'essieu arrière.
6. Faire glisser une autre rondelle Ø10 sur l'essieu arrière.
7. Serrer un contre-écrou à l'extrémité de l'essieu arrière avec une clé.
ASTUCE: Une clé supplémentaire a été fournie pour bloquer l'écrou de blocage de
l'autre côté de l'essieu arrière pendant le serrage de l'écrou de blocage.
8. Monter les enjoliveurs sur les deux roues arrière.
Intérieur de la roue arrière droite Boîte de vitesses
19/27

3
4
5
1
2
3
4
5
Monter les roues avant │ 6
Vue arriere de bas
Placer la carrosserie du véhicule à la verticale.
1. Soulever la carrosserie du véhicule, insérer le tube de la fourche de la roue avant
dans le trou situé au bas de la carrosserie.
2. Relier le connecteur du guidon au connecteur de la carrosserie du véhicule, puis
dissimuler les connecteurs dans le trou de la carrosserie.
3. Installer le guidon dans le tube de fourche de l'ensemble de la roue avant.
4. Aligner les trous de chaque côté du guidon avec les trous de la fourche avant.
5. Serrer un écrou Ø5 à l'extrémité opposée de la vis à métaux M5x35 pour fixer le
guidon à la fourche avant.
Fourche du dispositif
de la roue avant
20/27
