AVYCON AIVO-54T4K User manual

1
USER MANUAL
IP NETWORK TESTER
AIVO-54T4K

1
• Thank you for purchasing the IP camera tester. Please read the manual before using the IP camera tester and
use properly.
• For using the IP camera tester safely, please rst read the [ Safety Information] carefully in the manual.
• The manual should be kept well in case of reference.
• Keep the S/N label for after-sale service within warranty period. Product without S/N label will be charged for
repair service.
• If there is any question or problem while using the IP camera tester, or damages occurred on the product,
please contact our technical department.

2
Table of Contents
1. Safety Information ..................................................................................... 3
2. IP Camera Tester Introduction .................................................................. 4
2.1 General ......................................................................................................................................... 4
2.2 Packing List .................................................................................................................................. 4
2.3 Function Interface ......................................................................................................................... 4
3. Operation .................................................................................................... 8
3.1 Installing the Battery ..................................................................................................................... 8
4. IP Camera Test ........................................................................................... 9
4.1 Power Output ................................................................................................................................ 9
4.2 IPC Test Pro .................................................................................................................................. 9
4.3 IP Discovery ................................................................................................................................ 10
4.4 Rapid ONVIF Test ....................................................................................................................... 10
4.5 Non-Onvif IP Camera Test .......................................................................................................... 16
5. Analog Camera Test ................................................................................ 17
5.1 CVBS .......................................................................................................................................... 17
5.2 Auto HD ...................................................................................................................................... 17
5.3 CVI Camera Test ........................................................................................................................ 18
5.4 TVI Camera Test ......................................................................................................................... 20
5.5 AHD Camera Test ....................................................................................................................... 21
6. XVR Display ............................................................................................. 22
6.1 HDMI IN ...................................................................................................................................... 22
6.2 VGA IN ........................................................................................................................................ 24
7. Other Function ......................................................................................... 25
7.1 Network Tool ............................................................................................................................... 25
7.2 RJ45 Cable TDR Test ................................................................................................................. 27
7.3 Cable Tester ................................................................................................................................ 28
7.4 PoE Power / DC12V 3A Power Output ....................................................................................... 29
7.5 Update ........................................................................................................................................ 30
7.6 File Explorer ................................................................................................................................ 31
7.7 System Setting ............................................................................................................................ 32
8. Specications .......................................................................................... 35
8.1 General Specications ................................................................................................................ 35

3
1. Safety Information
• The tester is intended to use in compliance with the local rules of the electrical usage and avoid to apply at the
places which are inapplicable for the use of electrics such as hospital, gas station etc.
• To prevent the functional decline or failure, the product should not be sprinkled or damped.
• The exposed part of the tester should not be touched by the dust and liquid.
• During transportation and use, it is highly recommended to avoid the violent collision and vibration of the tester,
lest damaging components and causing failure.
• Don’t leave the tester alone while charging and recharging. If the battery is found severely hot, the tester
should be powered o󰀨 from the electric source at once. The tester should not be charged over 6 hours.
• Don’t use the tester where the humidity is high. Once the tester is damp, power o󰀨 immediately and move
away other connected cables.
• The tester should not be used in the environment with the ammable gas.
• Do not disassemble the instrument since no component inside can be repaired by the user. If the disassembly
is necessary indeed, please contact with the technician of our company.
• The instrument should not be used under the environment with strong electromagnetic interference.
• Don’t touch the tester with wet hands or waterish things.
• Don’t use the detergent to clean and the dry cloth is suggested to use. If the dirt is not easy to remove, the soft
cloth with water or neutral detergent can be used. But the cloth should be tweaked su󰀩ciently.

4
2. IP Camera Tester Introduction
2.1 General
The 5.4 inch IPS touch screen IP camera tester is designed for maintenance and installation of IP cameras,
analog cameras, TVI, CVI, AHD cameras, as well as testing 4K H.264 /4K H.265 camera by mainstream. The
1920x1152 resolution enables it to display in high resolution image from cameras. The meter supports many
ONVIF and analog PTZ control. The combination of touch screen and touch control keys make the IP camera
tester very user-friendly.
2.2 Packing List
1) Tester
2) Adaptor DC12V 1A
3) Network cable tester
4) Lithium ion battery 7.4V DC 3350mAh
5) BNC cable
6) RS485 cable
7) DC12V Power cable
8) Audio cable
9) Safety cord
10) Wrist belt
11) Tool bag
12) Manual

5
2. IP Camera Tester Introduction

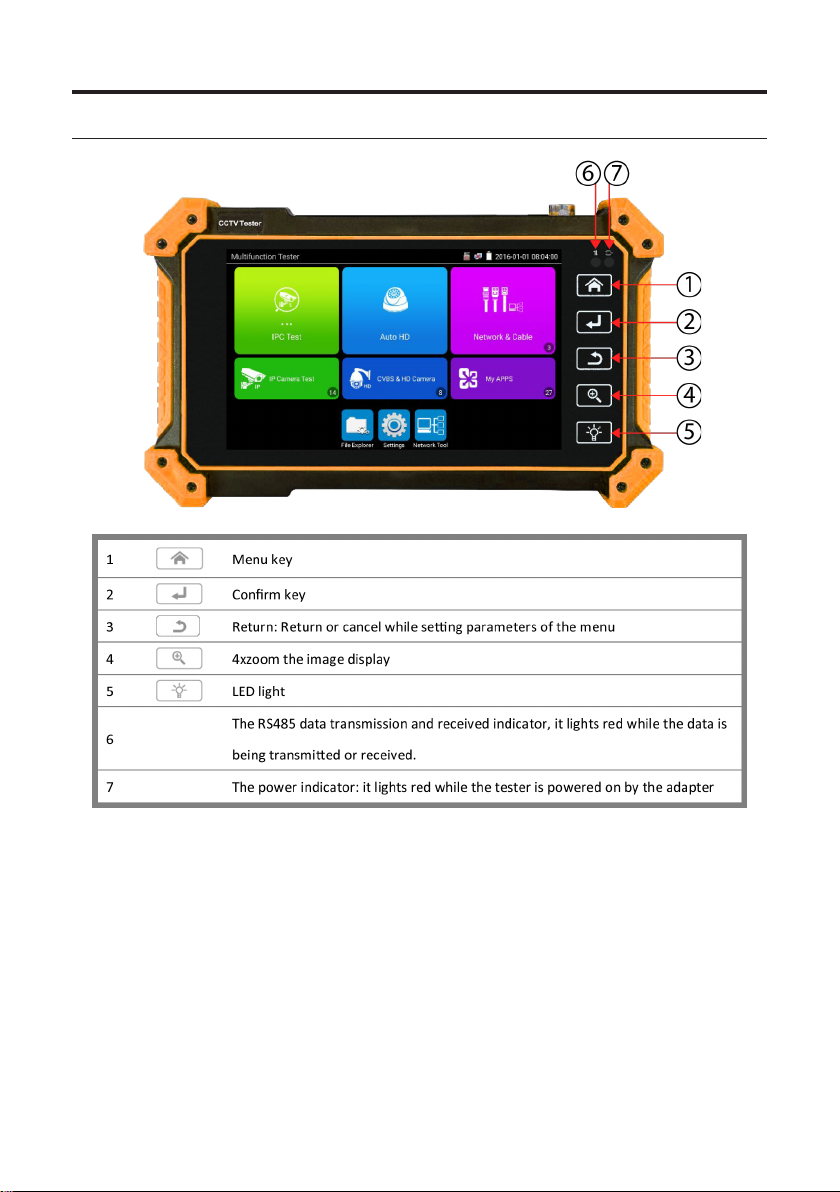

2.3 Function Interface

6
2. IP Camera Tester Introduction

7
2. IP Camera Tester Introduction

8
3. Operation
3.1 Installing the Battery
The tester has built-in lithium ion rechargeable battery. The battery inside battery cabin should be disconnected
for safety during transportation!
Prior to the use of the instrument, please take out the battery insulation paper.
Pressing the key continuously can power on or o󰀨 the tester.
Notice: Please use the original adaptor and connected cable of the device!
When the battery icon is full or the charge indicator turns o󰀨 automatically, indicate the
battery charging is completed.
Notice: When the Charge Indicator turns o󰀨, the battery is approximately 90% charged. The
charging time can be extended for about 1 hour and the charging time within 12 hours will
not damage the battery.
Notice: Press the key several seconds to restore the default settings when the instrument works
abnormally.
Notice: While Charging, someone must be present.

9
4. IP Camera Test
4.1 Power Output
Camera can be powered from the DC 12V/3A output or by Power over Ethernet.
4.2 IPC Test Pro
Camera test often need to open multiple apps, “IPC TEST PRO” app, using new technology and combine
multiple functions to one APP, it can increase e󰀩ciency.
Application:
Support multi-segment IP address scan, can visually display camera manufacturer, click IP address to play the
image. Connect IP camera, can supply the power to PoE camera.
Real-time display network port connection status.

10
By one key to connect camera test tool, browser can login and congure camera. Batch activate Hikvision and
Dahua cameras.

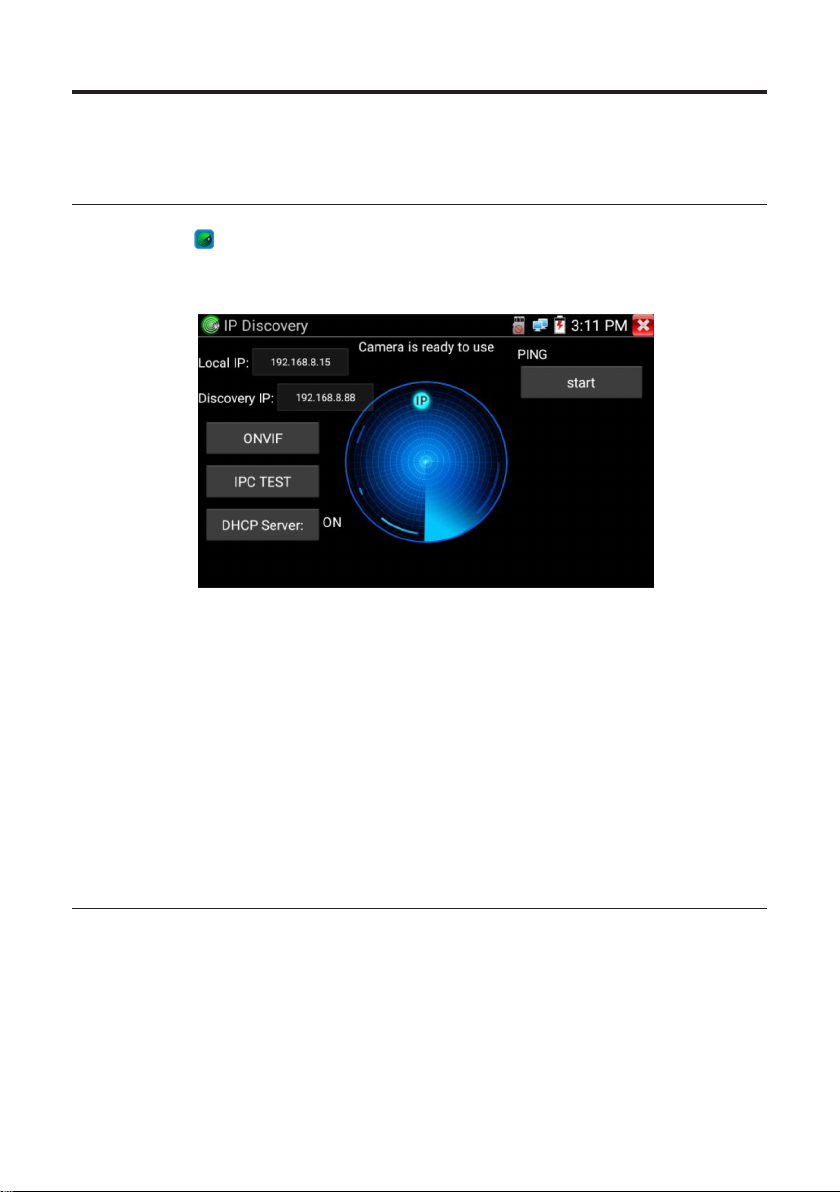

4.3 IP Discovery
Press IP discovery , tester auto-scan the whole network segment IP, as well as auto-modify the tester’s IP
to the same network segment with the scanned camera’s IP. The meter auto-search whole network segment IP,
and auto- add the IP of di󰀨erent network segments.
Local IP: Tester’s IP address, Tester can auto-modify the tester’s IP to the same network segment with the
scanned camera’s IP.
Discovery IP: Connected tester equipment’s IP address. If the camera connected to the tester directly, tester
will display the camera’s IP address, if tester connects to Local Area Network, it displays the current IP address.
Start: PING function, click “Start”, can PING camera’s IP.
ONVIF: Rapid ONVIF Quick link.
IPC TEST: IPC TEST Quick link, Non-Onvif IP camera test.
4.4 Rapid ONVIF Test
Rapid ONVIF can display 4K H.265/H.264 camera image by tester’s mainstream. The meter auto-scan all
ONVIF cameras in di󰀨erent network segments. It lists cameras name and IP address on the left of screen.
Tester can auto login camera and display camera image. Factory default use admin password to auto login, if
you modied the password, then default use the modied password to login.
4. IP Camera Test

11
Click the button “Refresh”, tester will scan the ONVIF camera again. Click the newly displayed ONVIF camera
on the “Device List”. The tester will show the IP camera’s relative information and settings.
Pop-up settings menu when click the “setting” icon in the upper left corner.
Across network segments scan: After open this function, Rapid ONVIF function can across network segments
to scan camera’s IP.
Auto Login: After open this function, tester can auto login camera and display camera image (The login pass-
word is the same with last time, the rst using password is the default password “admin”)
Video transmission protocol: UTP and TCP protocol.
Show focus Info: Focus Information.
View manual: Open Manual.
Restore Defaults: Revert “Rapid ONVIF” to default settings.
4. IP Camera Test

12
Conrm: Save the modied parameters.
Click “MENU” icon to open camera setting.
While in the “Live video” menu, click “Video Menu” at the top right of the image to access the following tools:
Snapshot, Record, Photo, Playback, Lens simulation, PTZ and Settings.
Network setting: Click “Network Set” to change the IP address. Some cameras cannot support change IP
address, so there is no change after saving.
If it is network video input to the tester, as the tester supports resolution up to 1080p, the input image will be very
clear after it is enlarged. This is greatly helpful for the installers to ensure the IP camera’s video coverage and
decide the IP camera’s install site.
Lens simulation: Simulate di󰀨erent lenses display area, supported lens:
“2.8/3.6/4/6/8/12/16/25mm”, for choosing the suitable camera lens.
4. IP Camera Test

13
OSD Menu: Select OSD and popup the OSD menu. include time, channel name and other optional items.
After selecting channel, you can edit the channel name, modify the display position, and switch the font size. If
not modify, select “Content location - Default location”. Select “Customize” to arbitrarily adjust the channel name
and display location. Click “OK” to save the modication. Press return key or click any area of the screen to
return to previous interface.
4. IP Camera Test

14
Video les can play in the Video player on the main menu.
PTZ
Set preset position: Move the camera to preset position, enter the preset number on the bottom right corner to
complete position preset.
Call the preset position: Select the preset number on the left, click “Call” to call preset.
PTZ speed set: Horizontal and Vertical speed set.
4. IP Camera Test

15
Doc: Click “Create document”, can create the testing reports document of camera. Click “Preview” to view the
report document
Enter the camera test information, click “Create Document” to complete the report. Click doc menu again, you
can preview the report document.
Icons description: The description of function icons on the bottom toolbar.
4. IP Camera Test

16
4.5 Non-Onvif IP Camera Test
Display image from the 4K H.265 camera by mainstream.
Note: Currently, the IPC Test App only supports some brands’ specic IP cameras, these include
specic models made by ACTI, AXIS, Dahua, Hikvision, Samsung, and many more. If the camera is
not fully integrated, please use the ONVIF or RTSP apps.
Local IP: This is the tester’s IP address. Click “Edit” to enter “IP setting” and change the tester’s IP address
settings.
IP camera type: Click on the IP Camera type to select the Manufacturer and model number of the integrated IP
camera.
Manual: Click IP camera type, list Honeywell, Kodak, Tiandy, Aipu-waton, ACTi, WoshiDA IP camera etc. If the
brand has o󰀨ered o󰀩cial original protocols, pls select camera type, input IP camera address, user name and
password, click “o󰀩cial” to enter the camera image display interface.
Stream code: When test camera via RTSP, you can select mainstream or sub stream to test (if camera’s RTSP
have not been start or without, it will prompt “auto match” fail, please switch to manual selection.
IP Camera’s IP: Enter the IP camera’s IP address manually or click “Search” to auto-scan for the IP camera’s
IP address. It is better to directly connect the IP camera to the tester so the search results will only display the
camera’s IP address.
IPC Port: When you select the IP camera type, it will default the camera’s port
number and doesn’t need to be changed.
After all settings are completed, click “Enter” to view the live video.
4. IP Camera Test

17
5. Analog Camera Test
5.1 CVBS
Analog camera test and PTZ control.
Check and set the protocols, address, interface and baud, all must be consistent with the dome
camera, then the IPC tester can test. After setting the parameter, the tester can control the PTZ
and lens.
5.2 Auto HD
Automatically recognize type and resolution of TVI/CVI/AHD camera and display image. Support coaxial PTZ
and call OSD menu. Support CVBS and 8MP TVI/CVI/ AHD cameras. Select relative function on the right tool-
bar to operate, functions including “Photos”, “Snapshot”, “Record”, “Playback”, “PTZ”, “Set”.
Double-taps on the screen to make the image displayed full screen.

18
5. Analog Camera Test
5.3 CVI Camera Test
When HD CVI signal input, the tester will display the image resolution at the top of the screen. Double-taps on
the screen to make the image displayed full screen. The tester supports resolution up to 3840 x 2160P 12.5/15
FPS.

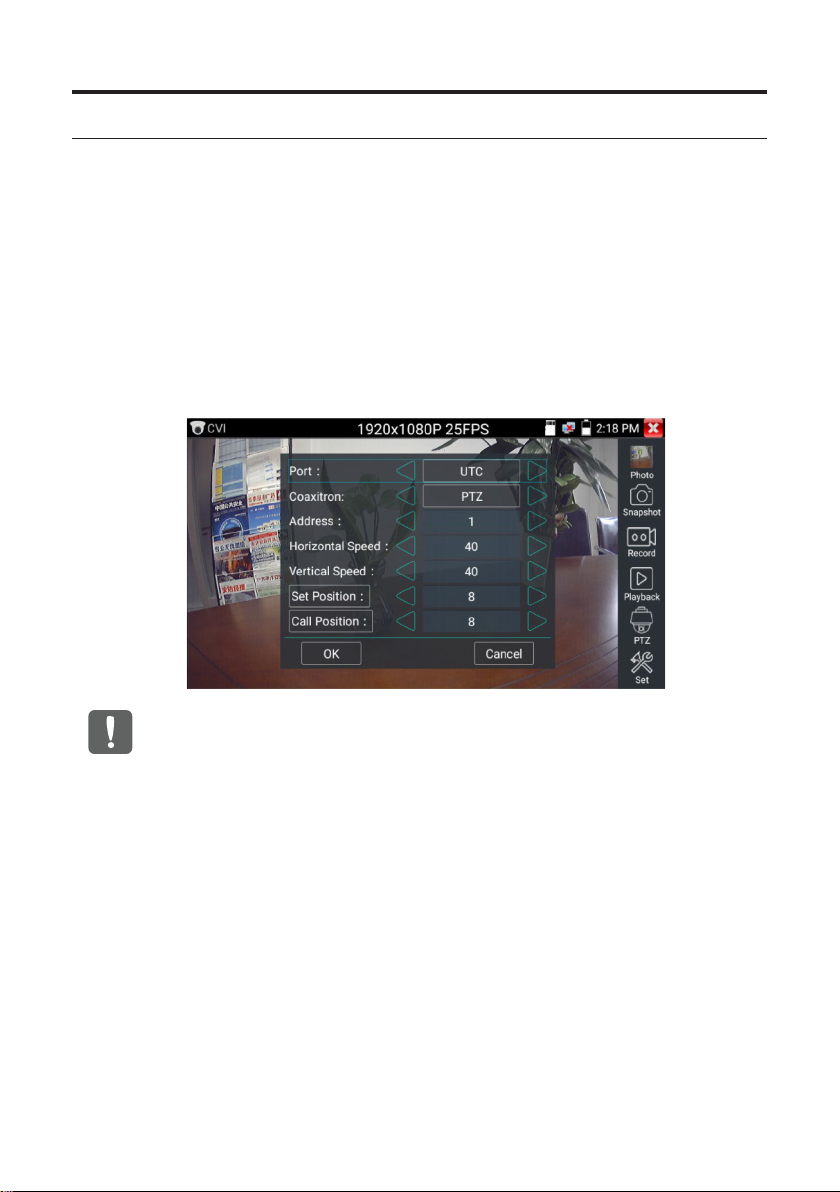

(1) PTZ Control
1.1 Coaxial PTZ Control
Click the icon “PTZ” on the right toolbar to do the corresponding setting.
“Port”: select coaxial control
Enter PTZ address to perform parameters setting.
The PTZ address in the tester must be consistent with the dome camera or decoder, then the IPC
tester can test. After setting the parameter, the tester can control the PTZ and lens.
Set preset position:
Move the PTZ camera to the preset position, tap it and input preset position number. Tap “Set position” to
complete set preset position.
Call preset position:
Tap the preset position area, input preset position number. Tap “call position” to complete call preset position.

19
5. Analog Camera Test
1.2 RS485 Control
(2) Coaxial Camera Menu Setting
Input calling dome camera menu address code, you can press the key “Enter” or click the icon to call the
dome camera menu.
Set the parameters by
