Award AFEC60S User manual

INSTRUCTION MANUAL
Please read this instruction manual before using your new stov
Cod:0040306753
e.
AFEC60S
AFEC60BL

2
DEAR CUSTOMER
The cooker is exceptionally easy to use and extremely efficient. After reading the
instruction manual, operating the cooker will be easy.
Before being packaged and leaving the manufacturer, the cooker was thoroughly checked
with regard to safety and functionality.
Before using the appliance, please read the instruction manual carefully.
By following these instructions carefully you will be able to avoid any problems in using the
appliance.
It is important to keep the instruction manual and store it in a safe place so that it can be
consulted at any time.
It is necessary to follow the instructions in the manual carefully in order to avoid possible
accidents.
Caution!
Do not use the cooker until you have read this instruction manual.
The cooker is intended for household use only.
The manufacturer reserves the right to introduce changes which do not affect the operation
of the appliance.

3
TABLE OF CONTENTS
Safety instructions......................................................................................................
3
How to save energy..............................................................................................................4
Unpacking...........................................................................................................................5
Disposal of the appliance.....................................................................................................5
Description of the appliance..................................................................................6
Installation......................................................................................................................7
Operation....................................................................................................................... 9
Before first use ...................................................................................................................9
Controlling the heating zones of the ceramic hob. .....................................................9
Cleaning and maintenance...................................................................................26
Operation in case of emergency........................................................................27
Baking in the oven.....................................................................................................19
Technical information...............................................................................................28
Oven functions and operation...........................................................................................14
Electronic programmer.......................................................................................................10

4
SSAAFFEETTYY IINNSSTTRRUUCCTTIIOONNSS
The appliance becomes hot during operation. Take care not to touch the hot parts
inside the oven.
Always keep children away from the cooker.While in operation direct contact with
Ensure that small items of household equipment, ,including connection leads, do not
touch the hot oven or the hob as the insulation material of this equipment is usually
not resistant to high temperatures.
Do not leave the cooker unattended when frying. Oils and fats may catch fire due to
overheating.
Do not allow the cooktop to get soiled and prevent liquids from boiling over onto the
surface of the cooktop, Any spillages should be cleaned up as they happen.
Do not place pans with a wet bottom on the warmed up heating zones as this can
cause irreversible changes to the cooktop(irremovable stains).
Do not switch on the cooktop until a pan has been placed on it.
Do not put pans weighing over 15kg on the opened door of the oven and pans over
25kg on the cooktop.
Do not use harsh cleaning agents or sharp metal objects to clean the doors as they
can scratch the surface, which could then result in the glass cracking.
Do not use the cooker in the event of a technical fault. Any faults must be fixed by an
appropriately qualified and authorized person.
In the event of any incident caused by a technical fault, disconnect the power and
report the fault to the service centre to be repaired.
The rules and provisions contained in this instruction manual should be strictly
observed. Do not allow anybody who is not familiar with the contents of this instruction
manual to operate the cooker.
The cooker should not be cleaned using steam equipment.
WARNING:Accessible parts will become hot when the grill is in use .Children should be
kept away.
The appliance is not intended to be operated by means of an external timer or separate
remote-control system.
This appliance is not intended for use by persons (including children) with reduced
Children should be supervised to ensure that they do not play with the appliance.
physical, sensory or mental capabilities, or lack of experience and knowledge,unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
If the supply cord is damaged, it must be replaced by the manufacturer or its service
agent or a similarly qualified person in order to avoid a hazard.
WARNING:In order to prevent accidental tipping of the appliance ,for example by a
child climbing onto the open door,the stabilizing means must be installed.
The oven must be switch off before removing the guard and that,after cleaning,the
guard must be replaced in accordance with the instrctions.
Ensure that the appliance is switch off before replacing the lamp to avoid the possibility
of electric shock.
the cooker may cause burns!
Use pans that are specified by the manufacturer as designed for use with a ceramic hob.
If the surface is cracked,switch off the appliance to avoid the possibility of electric shock.

5
HOW TO SAVE ENERGY
Using energy in a responsible
way not only saves money
but also helps the environment
So let’s save energy!
And this is how you can do it:
●Use proper pans for cooking.
Pans with thick, flat bases can save up to
1/3 on electric energy. Remember to cover
pans if possible otherwise you will use four
times as much energy!
●Match the size of the saucepan to the
surface of the heating plates.
A saucepan should never be smaller than
a heating plate.
●Ensure heating plates and pan bases
are clean.
Soils can prevent heat transfer-and
repeatedly burnt-on spillages can often
be removed by products which cause
damage to the environment.
●Do not uncover the pan too often(a
watched pot never boils!).
Do not open the door unnecessarily.
●Switch off the oven in good time and
make use of residual heat.
For long cooking times,switch off heating
zones 5 to 10 minutes before finishing
cooking.This saves up to 20% on energy.
●Only use the oven when cooking larger
dishes.
Meat of up to 1 kg can be prepared more
economically in a pan on the cooker burner.
●Make use of residual heat from the
oven.
If the cooking time is greater than 40minutes
it is recommended to switch off the oven
10 minutes before the end time.
Caution !
When using the timer set appropriately
shorter cooking times according to the dish
being prepared.
●Only grill with the ultrafan after closing
the oven door.
●Make sure the oven door is properly
closed.
Heat can leak through spillages on the door
seals.Clean up any spillages immediately.
●Do not install the cooker in the direct
vicinity of refrigerators/freezers.
Otherwise energy consumption increases
unnecessarily.
Do not use pans with sharp edges that may
cause damage to the ceramic hob.
Do not look directly at the halogen heating
zone (not covered with a pan)when they are
warming up.

6
UNPACKING
After unpacking, please dispose of all
elements of packaging in a way that will
not cause damage to the environment.
All materials used for packaging the
appliance are environmentally friendly;
they are 100% recyclable and are marked
with the appropriate symbol.
During unpacking, the packaging materials
(polythene bags, polystyrene pieces, etc.)
should be kept out of reach of children.
Caution!
During transportation,
protective packaging was
used to protect the appliance
against any damage.
DISPOSAL OF THE APPLIANCE
DESCRIPTION OF THE APPLIANCE
Control panel
centers for used devices can be provided
by your local authority.
Old appliances should not
simply be disposed of with
normal household waste,
but should be delivered to
a collection and recycling
centre for electric and
electronic equipment.
A symbol shown on the product, the
instruction manual or the packaging shows
that it is suitable for recycling.
Materials used inside the appliance are
recyclable and are labeled with information
concerning this. By recycling materials or
other parts from used devices you are
making a significant contribution to the
protection of our environment.
Information on appropriate disposal

7

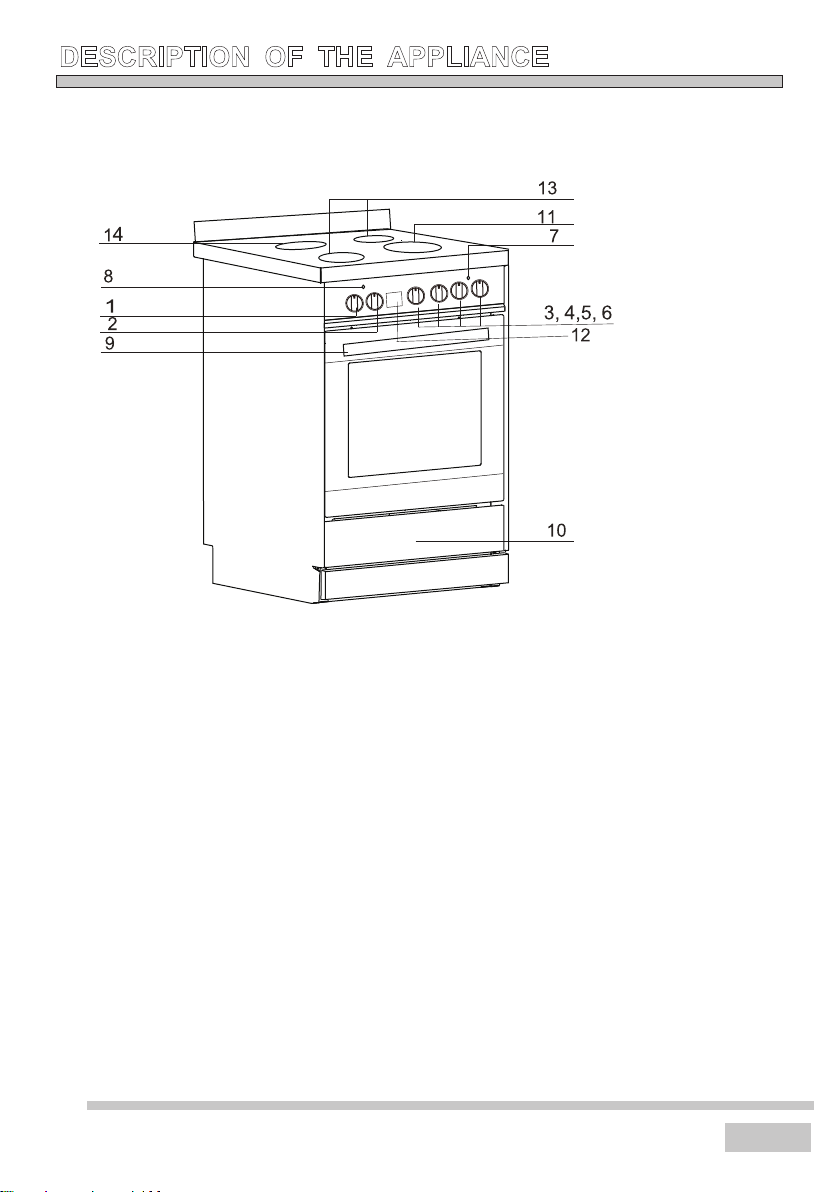

DESCRIPTION OF THE APPLIANCE
2 Temperature control knob
3,4,5,6 Heating zone control knobs
7 Cooker operation indicator
8 Oven operation indicator
9 Oven door handle
10 Drawer
11 220mm Hi-light heater
1 Oven function control knob
12 Electronic programmer
13 145mm Hi-light heater
14 180mm Hi-light heater

8
INSTALLATION
Installing the cooker
The kitchen should be dry and airy
and have effective ventilation
according to the existing technical
The room should be equipped with a
ventilation system that pipes away
exhaust fumes created during
combustion.This system should
consist of a ventilation grid or hood.
Hoods should be installed according
to the manufacturer’s instructions.
The cooker should be placed so as to
ensure free access to control
elements.
Coating or veneer used on fitted
cabinets must be applied with a heat
resistant adhesive (100℃). This
prevents surface deformation or
detachment of the coating. If you
resistance, you should leave
approximately 2 cm of free a pace
around the cooker. The wall behind
the cooker should be resistant to
high temperatures.During operation,
its back side can warm up to around
50℃ above the ambient temperature.
The cooker should stand on a hard,
750
even floor (do not put it on a base.)
provisions.
are unsure of your cabinets heat
Fix the cooker to the back wall with 2 chains
Anti tilt chains are located at the rear of the
appliance and must be secured to the wall
behind the appliance to prevent accidental
tipping/tilting. The chain length must be as
short as practicable to avoid appliance tilting
forward and also diagonal to avoid appliance
moving sideways.

9
INSTALLATION

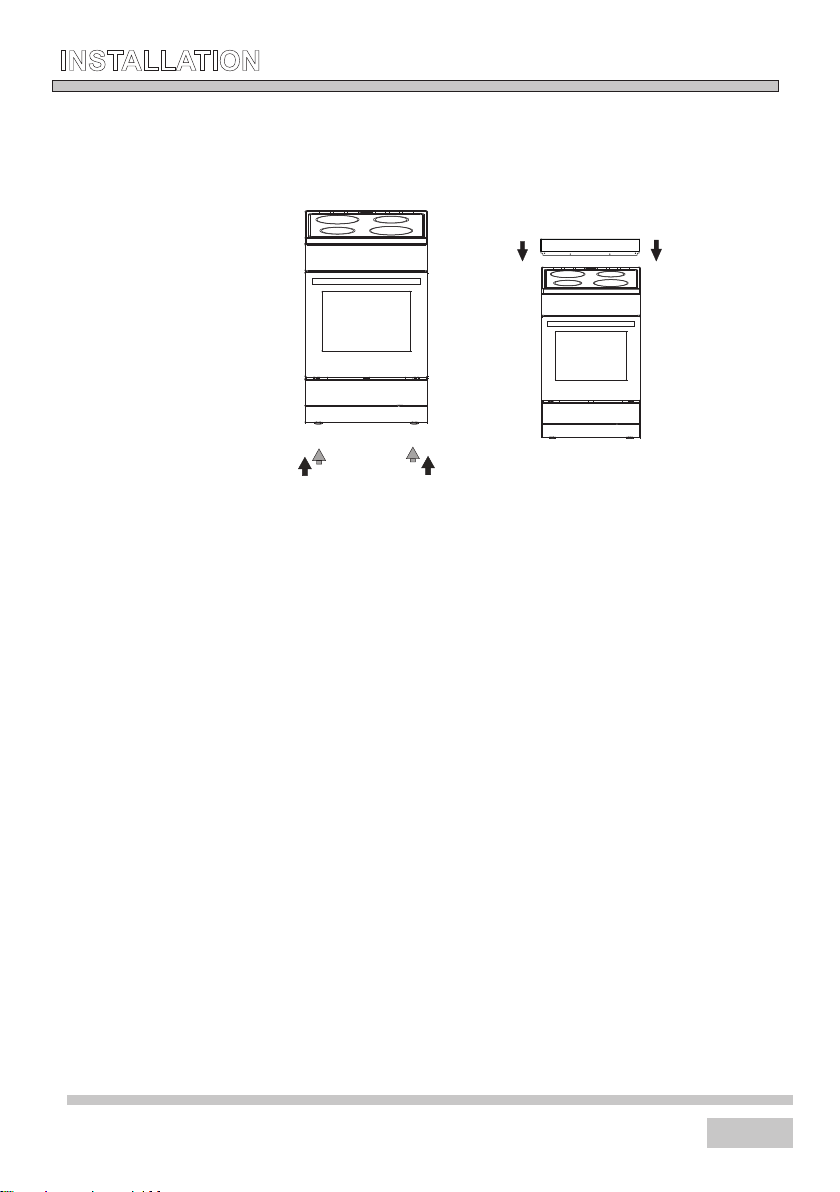

Before you start using the cooker it should be leveled,which is particularly Important for
fat distribution in a frying pan. To this purpose,adjustable feet are accessible after
removal of the drawer. The adjustment range is +/-5mm.

10
OPERATION
Before first use

Take out and wash the oven fittings with warm water and a little washing-up liquid.
Switch on the ventilation in the room or open a window.
Heat the oven (to a temperature of 250, for approx. 30 min.), remove any stains and

Choose a pan with a diameter that is at least as large as the heating zone.Do not use
The heating zones have different levels of heat. The level of heat can be adjusted
When heating the oven or the first time it is normal for the stove to give
off smoke and manufacturing odours.These will disappear after about 30
Remove packaging and empty t he drawer.Clean the interior of the oven with
Minutes.
warm soapy water and wipe clean with moistened cloth or sponge. Wipe clean the
wash carefully. The hotplates should be heated for around 4 minutes without
a pan or pot on them.
cooktop.
Choice of cookware

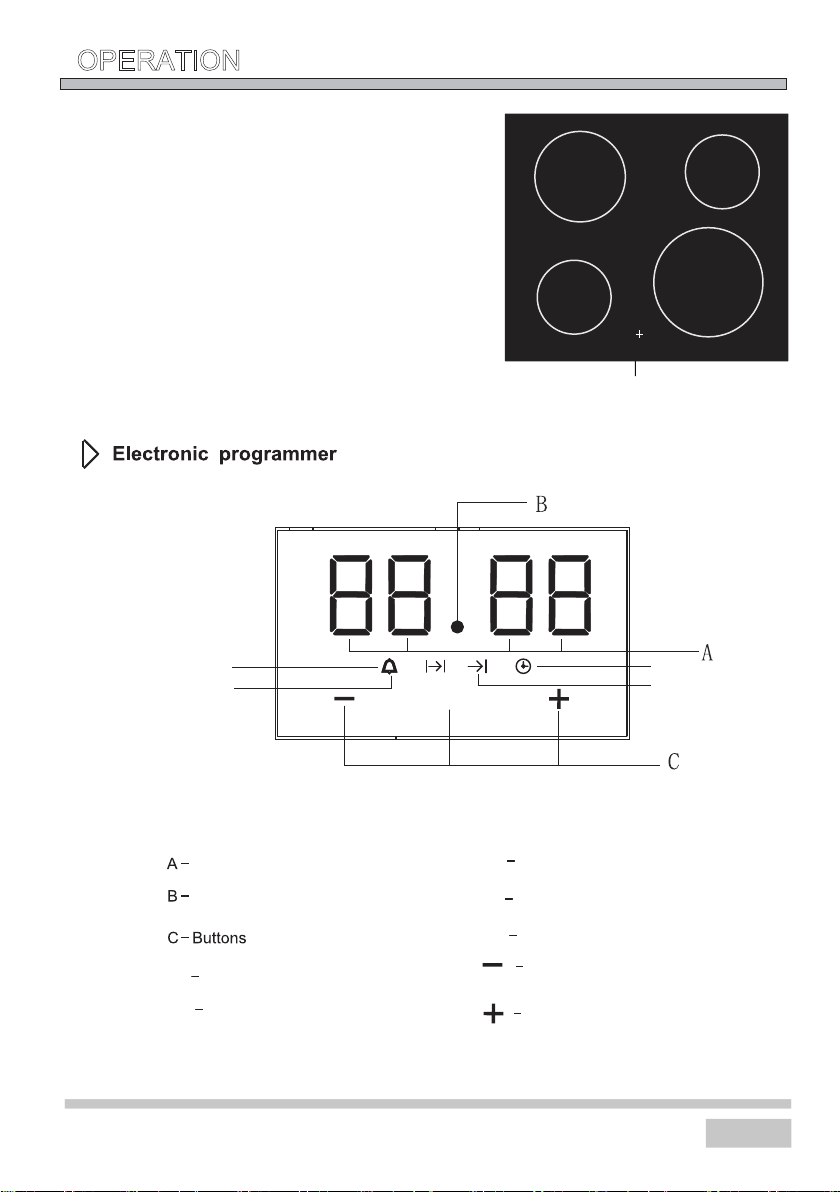

Controlling the heating zones of the ceramic hob
pans with a concave and convex base.Always remember or put a proper cover on the
pan.We recommend the use of pans with thick,even bases.
If the heating zones and pans are soiled it is impossible to make full use of the heat.
Right Wrong WrongWrong Wrong
Heat level selection
Step Suitable for
0
1-2
3
4-5
6
7-8
9
hot plate off,use of remaining heat
maintaining temperature,slow cooking,small quantities of food(min power)
slow cooking
slow cooking of large quantities,slow frying of large big chunks
frying,preparing soup basis
fry
boiling,browning,frying(maxmium power)
-push the knob gently and then turn it;
-set it to the right position.
The marks at the knob show the different levels reached by the heating zones.
the control panel,to select it you should:
gradually by turning the appropriate knob to the right or left.The knob are unfold on
3
7
5
9 1
00

11
OPERATION
If the temperature of a heating zone exceeds 65
Zone heating indicator
degree this is signalled by an indicator which lights
up for that zone.
When the heating indicator lights up it warns the
person using the cooker against touching a hot
heating zone.
For about 5 to 10 minutes after a heating zone is
switched off it will still have residual heat that can
be used,for example to warm up or keep dishes
warm without switching on another heating zone.
Zone heating indicator
Button1 Button3
M
Button2
D
E
F
G
To decrease the numbers
on the digital display
To increase the numbers
on the digital display
Display field
Seconds Icon
Function
Timer
Cooking time
Current time
End of cooking time
D
E
F
G
M

12
OPERATION
At power on, “12.00",
and flashes.
displayed
.Enter the
timer setting.
or
directly press the button 2,
The current time can be set with
button 1 and 3, 5 second safter the
time has been set ,the new data
will be saved .
23 and 59 minutes.
your setting is saved.
and alarm signal will go off. Or
signal will be turned off automatically
after 2 minutes.
the alarm
1 2 3
1 2 3
1 2 3
4
M
M
1 2 3
M
M
1 2 3
M

13
OPERATION
End of cooking time = current time + cooking
time
2 End of cooking time
end of cooking time
end of
end of cooking time
After the auto function be off,the cooking
time to 0,end of cooking time and current
time remains the same.
want to oven work
of 3 hours,end of cooking time
5:00 3:00 5:00
end of cooking time
set either the
cooking time.
1 2 3
M
Press any button,the alarm signal and
rOlliw ,ffoognocieht
the alarm
after 2 minutes.
turnedsignal will be off automatically
Press the function button ,
to adjust the
cooking time,
Or press button “ ” twice.
by
end
M

14
OPERATION
End of cooking time automatically
change to 5:00.
end of cooking time
Cooking time automatically change
1 2 3
1 2 3
to 3:00.
M
M
cooking
2nottub ,sserP
to adjust the cook
time,
the
and always on.
cooking
And press button 2.
Press any button,the alarm signal and
rOlliw ,ffoognocieht
end of cooking time:
the alarm
after 2 minutes.
turnedsignal will be off automatically
and the will go off.

15
OPERATION
●If the cooking time set to be 0or the
end of cooking time set to be the current
time,the auto function will be off.
1 and 3.
1 and 3.
end of cooking time-
1 and 3.
end of cooking time.
●End of cooking time > current time
+ cooking time <= 10hours
At least more than one minute cooking
time, cooking time and end of cooking
time must be set.
●
After the auto function be off,the cooking
time to 0,end of cooking time and current
time remains the same.
The oven is switched off
automatically.
end of cooking time
1 2 3
1 2 3
1 2 3
1 2 3
1 2 3
1 2 3
M
M
M
M
M
M

16
OPERATION
●If the cooking time set to be 0or the
end of cooking time set to be the current
time,the auto function will be off.
1 and 3.
1 and 3.
end of cooking time-
1 and 3.
end of cooking time.
●End of cooking time > current time
+ cooking time <= 10hours
At least more than one minute cooking
time, cooking time and end of cooking
time must be set.
●
After the auto function be off,the cooking
time to 0,end of cooking time and current
time remains the same.
The oven is switched off
automatically.
end of cooking time
1 2 3
1 2 3
1 2 3
1 2 3
1 2 3
1 2 3
M
M
M
M
M
M

17
OPERATION
it is best to keep children away from the
oven.
Static Grill
When the “combined grill” is active it
enables grilling with the grill and with the
top heater switched on at the same time.
This function allows a higher temperature
at the top of the cooking area, which
cause more intense browning of the dish
and permits larger portions to be grilled.
Warning!
When using function grill it is recommended
that the oven door is closed.
When the grill is in use accessible parts
can become hot.
At this function, allows the oven to be
heating up in a forced way with the
thermofan, which is in the central part of
the oven heating method is:
Redution of oven heating-up time and
Defrost
This function for defrosting
Fan Forced
of the initial heating stage.
Possibility to bake at two cooking levels
simultaneously.

18
OPERATION
Baking pans and accessories (oven grid,
baking tray, etc) may be inserted into the
oven in 6 guiding levels.
Appropriate levels are indicated in the
tables that follow.
Always count levels from the bottom upwards!
Caution: accessible appliance components
might be extremely hot after the use of grill.
Prevent little children from approaching
the appliance.
Grill heater is especially suitable or the
preparation of low-fat sausages, meat
and fish
fillets and steaks, and for browning and
crisping the roast skin.
Oven guide levels
6
Before any maintenance is started
involving electrical parts, the
appliance must be disconnected
from the power supply.
If the oven has been in use, let the
oven cavity and the heating elements
cool down before attempting any
maintenance.
Changing the bulb
Unscrew the protective cover. We
recommend that you wash and dry the
glass cover at this point.
Carefully remove the old bulb and
insert the new bulb suitable for high
temperatures (300º℃) having the
following specifications: 220-240V,
50Hz, 25W, G9 fitting.
Refit the protective cover.
IMPORTANT
Never use screwdrivers or other
utensils to remove the light cover.
This could damage the enamel of the
oven or the lampholder. Remove only
by hand.
IMPORTANT
Never replace the bulb with bare
hands as contamination from your
fingers can cause premature failure.
Always use a clean cloth or gloves.
Please note:
The bulb replacement is not covered
by your guarantee


Repacement of the oven
light bulb

19
BAKING IN THE OVEN
Baking
We recommend using the baking trays which were provided with your cooker which
should be put on the drying rack;
Before the cake is taken out of the oven, check if it is ready using a wooden stick(if
the cake is ready the stick should come out dry and clean after being inserted into the
cake);
After switching off the oven it is advisable to leave the cake inside for about 5 min.;
The baking parameters given in tables are approximate and can be corrected based
on your own experience and cooking preferences;
If information given in recipe books is significantly different from the values included
in this instruction manual, please apply the instructions from the manual.
CAKE TYPE
WARMED UP
( )
℃
TEMPERATURE
( )
℃
TEMPERATURE BAKING TIME
IN MINUTES
LEVEL FROM
THE BOTTOM
Fruit cake
Victoria sponge
Sponge layer cake
Buns
Teacake
Cake(crispy base)
Puff pastry
170
170
170
180
180
200
230-250
160
150-160
150-160
170
180
180
200-220
2
2-3
2-3
3
3
3
3
60-70
20-40
20-30
30-50
40-50
40-60
15-20

20
BAKING IN THE OVEN
Baking cakes and loaves
Warning!
The baking parameters given in Tables
are approximate and can be corrected
based on your own experience and
cooking preferences.
In case you may not find any particular
type of cake in the tables, use the
information available for the next most
similar type of cake.
Baking with upper and lower heaters
Use only a single guide level.
This baking position is especially suitable
for baking dry pastry, bread and teacakes.
Use dark baking pans. Light pans
reflect heat and pastry is not adequately
browned.
Always place baking pans on the grid
rack. Remove the grid only of baking in
the flat biscuit tray, supplied with the
appliance.
Preheating shortens the baking time. Do
not put the cake in the oven until proper
temperature is obtained.
Baking tips
Is cake cooked?
Pierce the cake with a wooden skewer at the
thickest part, if the dough does not stick to
it, the cake is baked. You may switch off
the oven and use the remaining heat.
cake has fallen
Check the recipe. Use less fluid next time.
Follow the mixing times, especially when
using powered kitchen mixers.
cake is too light on the bottom
Use dark baking pan next time, or place the
pan one level lower, or switch on the lower
heater a while before the completion.
Cheese cake is undercooked
Next time reduce the baking temperature
and extend the baking time.
Warnings regardin g th e baking
tables
The tables indicate the temperature range.
Always select lower temperature first.
You may always increase the
temperature in case pastry needs more
Baking times are indicative only. They
may vary in dependence of individual
characteristics.
The asterix indicates that the oven
.gnitaeherpseriuqer
disconnect the mains plug
call the service centre
some minor faults can be fixed by referring to the instructions given in the table below.
Before calling the customer support centre or the service centre check the following
points that are presented in the table.
gradually by turning the appropriate knob
to the right or left.The knob is unfold on
baking.
PROBLEM REASON ACTION
1. The appliance Break in power supply. sierehtfi;xobesufdlohesuohehtkcehC
a blown fuse replace it with a new one.
2. The programmer
display is flashing
The appliance was disconnected from the
mains or there was a temporary power cut.
Set the current time (see Use of the
programmer ).
3. The oven lighting
does not work.
The bulb is loose or damaged. Tighten up or replace the blown bulb(see
Cleaning and Maintenance)
does not work.
“0.00”.
