SBC81202VG LGA775 SBC User Manual
Introduction
1
Chapter 1 Introduction
1.1 General Description
The SBC81202VG PICMG 1.0 Single Board Computer
delivers new features for interactive application and many
other embedded computing solutions requiring higher
performance.it support two 184-pin DDR DIMM sockets and
support the maximum memory capacity could up to
2GB .VGA function with Intel® Extreme Graphic
Technology is built into the Intel® 865G chipset and the
board has a maximum video memory of up to 64MB, which
is shared by the system memory.so it is perfect platform
for all of application

SBC81202VG LGA775 SBC User Manual
Introduction
2
1.2 Specifications
¾Processor: Intel®Pentium D/Pentium4/Celeron
¾North Bridge: Intel®82865G
¾South Bridge: Intel®82801EB(ICH5)
¾CPU Socket: LGA775
¾FSB: 533/800 Mhz
¾L2 Cache: Integrated in CPU
Pentium D = 2M x 2/Pentium 4 = 1M or 2M/Celeron D = 256K or 512K
¾BIOS: Phoenix AwardBIOS Rev.6.00
¾System Memory: Support DDR266/333/400 memory and the
maximum capacity up to 2GB.
CPU FSB DDR Type DDR Frequency
800MHz PC3200/PC2700/PC2100 400/333*/266MHz
533MHz PC2700/PC2100 333/266MHz
*Because limited of chipset, when using FSB800Mhz CPU,
PC2700 DDR (333Mhz) only support 320Mhz.
¾IDE Interface: Two IDE connector and up to four devices, Ultra
DMA 100 supported
¾FDD Interface: Supports up to 2 drives
¾Serial Ports: Two 16550 UARTs ports with 16 byte as two
RS232.
¾Parallel Ports: One parallel port with ECP/EPP/SPP supported
¾VGA Controller:
¾Chipset Integrated VGA Controller and Supports up to
2048x1536 at 75 Hz resolution on non-interlaced CRT monitors
¾Ethernet: Realtek 8100S
¾SATAI: Two Channel and support the maximum data transfer
rate could up to 150MB/s
¾USB Interface: 4 USB ports; USB Spec. Rev. 2.0 compliant.

SBC81202VG LGA775 SBC User Manual
Introduction
3
¾Hardware Monitoring: Winbond W83627HG-AW detection of
CPU temperature, System temperature, Power failure and Fan
speed.
¾Watchdog Timer:
Software programmable time interval and hardware reset only.
255 level, 1~255 seconds
¾Dimensions:338 mmx122mm(6 Layer)
NOTE: Specifications are subject to change without notice.
1.3 Utilities Supported
zIntel®865G Utility and Drivers
zEthernet Utility and Drivers
zVGA Drivers

SBC81202VG LGA775 SBC User Manual
Introduction
4
1.4 Board Dimensions

SBC81202VG LGA775 SBC User Manual
Jumpers and Connectors 5
Chapter 2 Jumpers and Connectors
2.1 Board Layout

SBC81202VG LGA775 SBC User Manual
6 Jumpers and Connectors
2.2 Jumper Settings
Fllowed as below detailed description for Jumper setting
and installed the SBC81202 on your application
Jumper Description
JP1
JP2
JP4
RS232 Setting
JP5 Clear CMOS Setting
JP6 Disk On Chip Setting
JP7 Watchdog Trigger Mode
JP8 External Keyboard Wake up

SBC81202VG LGA775 SBC User Manual
Jumpers and Connectors 7

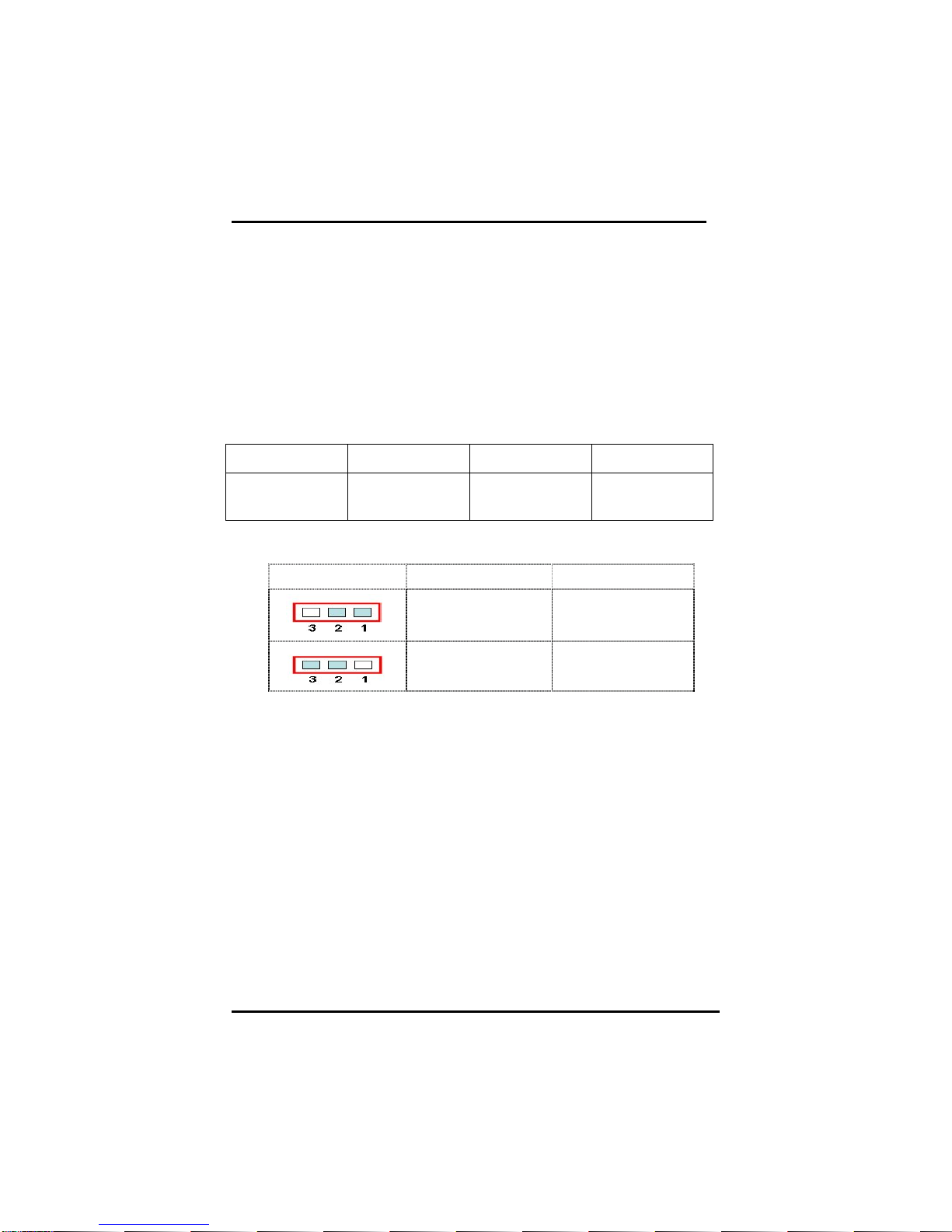

2.2.1 COM2 RS232 Settings: JP1, JP2,JP4
COM2 JP1 JP2 JP4
RS-232
(Default) Short 3-5,4-6 Short 3-5,4-6 Short 1-2,7-8
2.2.2 Clear CMOS Setting: JP5
Options Settings
Normal 1-2(Default)
Clear CMOS 2-3

SBC81202VG LGA775 SBC User Manual
8 Jumpers and Connectors
2.2.3 Disk on Chip Setting: JP6
Options Settings
D0000-D1FFF Short 1-2(Default)
D2000-D3FFF 3-4
D4000-D5FFF 5-6
D6000-D7FFF 7-8
2.2.4 Watchdog Tigger Mode: JP7
Options Settings
NMI 1-2
RESET 2-3
Disabled Open (Default)
2.2.5 External KB Wake up: JP8
Options Settings
Normal 1-2(Default)
Enabled 2-3

SBC81202VG LGA775 SBC User Manual
Jumpers and Connectors 9
2.3 Connectors
The connectors allow the CPU card to connect with other
parts of the system. Some problems encountered by your
system may be a result from loose or improper
connections. Ensure that all connectors are in place and
firmly attached. The following table lists the function of
each connector on the SBC81202.
Connectors Label Connectors Label
General Output Connector CN3 Primary IDE
Connector CN8
Printer Port Connector CN9 Secondary IDE
Connector CN4
COM1 CN6 DiskOnChipSocket U33
COM2 CN10 S-ATA Port 1
Connector CN13
USB Port 1, 2 Connector CN12 S-ATA Port 2
Connector CN11
USB Port 3, 4 Connector CN14 FDD Connector CN5
System BIOS U26 IrDA Connector CN15
CRT Connector CN19 LGA775 CPU Socket U23
Keyboard/Mouse Connector CN24 CPU FAN Connector CN22
External Mouse Connector CN20 SYSTEM FAN1
Connector CN23
External Keyboard Connector CN21 SYSTEM FAN2
Connector CN2
Ethernet Connector 1 CN16 Internal Buzzer BU1
Ethernet External Speed
LED CN17 Internal Battery BT1
Ethernet External Link/ACT
LED CN18 ATX SB5V Power Connector CN7
184-Pin DDR Memory
Channel-A DIMM2 ATX12V CPU Power Connector CN25
184-Pin DDR Memory
Channel-B DIMM1

SBC81202VG LGA775 SBC User Manual
10 Installation
Chapter 3 Installation
Before installing the processor, Please pay moe attention on Intel
website and obtained more information
http://www.intel.com.
3.1 CPU Installation
The LGA775 processor socket come with a lever to protect the
processor.Please pay more attention as below.Follow the pictures
and place the processor into CPU socket.
.

SBC81202VG LGA775 SBC User Manual
Installation 11
.

SBC81202VG LGA775 SBC User Manual
12 Installation

SBC81202VG LGA775 SBC User Manual
Installation 13

SBC81202VG LGA775 SBC User Manual
14 Installation
