Axis EP200 User manual

ImportantSafetyInstructions
This product has been designed to assure your personal safety. Improper use
can result in potential electrical shock or fire hazards. Carefully observe and
comply with all warnings, cautions, and instructions placed on the product, or
described in this operating guide.
WARNING! — When using your telephone equipment, these basic safety
precautions should always be followed to reduce the risk of fire, electrical shock,
and injury to persons:
Instructions — Read, understand, and retain all instructions.
Warnings — Follow all warnings and instructions marked on the product.
Cleaning — Unplug this product from the wall outlet before cleaning, and use a
dry cloth, without liquid or aerosol cleaners.
Water and Moisture — Do not use this product near water; for example, near a
bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement, or near a
swimming pool.
Placement — Do not place this product on an unstable cart, stand, or table. The
telephone may fall, causing serious damage to the unit.
Ventilation — Slots and openings in the cabinet and the back or bottom are
provided for ventilation. To protect the product from overheating, these openings
must not be blocked or covered. This product should never be placed near or
over a radiator or heat register. This product should not be placed in a built-in
installation unless proper ventilation is provided.
1

Power Sources — This product should be operated only from the type of power
source indicated on the marking label. If you are not sure of the type of power
supply to your home, consult your dealer or local power company.
Power-Cord Protection — Do not allow anything to rest on the power cord. Do
not locate this product where the cord will be damaged by persons walking on it.
Overloading — Do not overload wall outlets and extension cords, as this can
result in the risk of fire or electrical shock.
Obstructions — Never push objects of any kind into this product through
cabinet slots, as they may touch dangerous voltage points or short out parts that
could result in a risk of fire or electric shock. Never spill liquid of any kind on the
product.
Servicing — To reduce the risk of electric shock, do not disassemble this
product. Take it to qualified service personnel when service or repair work is
required. Opening or removing covers may expose you to dangerous voltages or
other risks. Incorrect reassembly can cause electric shock when the appliance is
subsequently used.
Damage Requiring Service — Unplug this product from the wall outlet and
refer servicing to qualified service personnel under the following conditions:
A. When the power supply cord is damaged or frayed.
B. If liquid has been spilled into the product.
C. If the product has been exposed to rain or water.
D. If the product does not operate normally when following the
operating instructions. (Adjust only those controls that are covered
by the operating instructions. Improper adjustment of other controls
may result in damage and will often require extensive repair work by
a qualified technician.)
E. If the product has been dropped or the cabinet has been damaged.
F. If the product exhibits a distinct change in performance.
Hazards — Do not use the telephone to report a gas leak in the vicinity of the
leak.
Important Safety Instructions
2

Privacy — Cordless telephones are radio devices. Communications between
the handset and base of your cordless telephone are accomplished by means of
radio waves which are broadcast over the open airways. Because of the
inherent physical properties of radio waves, your communications can be
received by radio receiving devices other than your own telephone unit.
Consequently, any communications using your cordless telephone may not be
private.
Important Safety Instructions
3

BatterySafety Precautions
To reduce the risk of fire or injury to persons by the battery, read and follow
these instructions:
Recommended Battery — Use only the appropriate type and size Battery Pack
specified in this Operating Guide.
Battery Disposal — Do not dispose of the Battery Pack in a fire. The cell may
explode. Check the Nickel-Cadmium Battery Disposal package insert for
disposal instructions.
Damage to Battery Case — Do not open or mutilate the Battery Pack.
Released electrolyte is corrosive and may cause damage to the eyes or skin. It
may be toxic if swallowed.
Battery Handling — Exercise care in handling the battery in order not to short
the battery with conducting materials such as rings, bracelets, and keys. The
battery or conductor may overheat and cause burns.
Battery Charging — Charge the Battery Pack provided with or identified for use
with this product only in accordance with the instructions and limitations
specified in the instruction manual provided for this product.
Battery Polarity — Observe proper polarity orientation between the Battery
Pack and battery charger.
MODEL BT-905
NICKLE-CADMIUM
RECHARGEABLE BATTERY
DC 3.6V 600mAh
NICKLE-CADMIUM RECHARGEABLE BATTERY
BATTERY MANUFACTURED BY
MUST BE DISPOSED OF PROPERLY
Ni-Cd
4

Introduction
Congratulations on the purchase of your new Axis EP200 Telephone Internet
Appliance. The EP200 is the industry’s first Internet integrated cordless
speakerphone with E-Mail and Caller ID. You can use your EP200 to send and
receive E-Mail messages, keep important notes, and store important names,
addresses, and phone numbers. Caller ID provides you with caller information
before you answer the phone. The EP200 also provides the hands-free
operation of a speaker phone.
EP200Features
❏E-Mail
❏Speakerphone
❏Automatic Message Retrieval
❏Calendar with Notepad
❏Address Book
❏Easy to Use Menu
❏QWERTY Keyboard
❏Flip-up LCD Monitor
❏Built-in Modem
❏On-hook dialing
❏Dual Keypad
Aboutthe Internet
The Internet is basically a large group of computers tied together to share
information. It started as a military project back in the 1950’s, and has
progressed to a stand-alone network of Universities and independent sites. The
Internet is a huge repository of information, provided by countless millions of
people, and covering every subject imaginable.
Your new EP200 allows you to tap into one of the most useful aspects of the
Internet. Electronic Mail, or E-Mail for short, is a tool for sending letters and
messages to people all over the world via the Internet.
There are two ways you can get on the Internet with your new EP200 phone.
One is to use the automated sign-up feature to set up an account. See page 24.
The other is to use an account you already have, called an Internet service
provider, to access the Internet. See page 27. There are many different Internet
service providers on the market, from small to large. These include industry
giants, like Microsoft Network, as well as local providers, like Internet America.
You can find information on how to contact a service provider in most
newspapers, computer magazines, and even television commercials.
Again, if you would rather not hassle with setting up an account on your own,
just use the automated sign-up feature of your new phone. Whatever you
choose to do, it will be an experience well worth the effort. Welcome to the
Information Superhighway, and enjoy!
For assistance in setting up and answering questions about your new Axis
EP200, contact Uniden at 1-888-777-AXIS, or visit our Web site at
HTTP:\\WWW.UNIDEN.COM.
5

GettingStarted
UnpackYour Phone
Remove all the components from the box.
Checkthe Contents
Your Axis EP200 phone should contain the following items. If any of these items
are missing, please contact your place of purchase.
A IS
Base Unit Handset Telephone Cord
E-mail Telephone Appliance
Operating Guide
UDZZ01818ZZ
EP /
100 200
AXIS
A IS
Operating Guide Handset Battery AC Adapter
Other Printed Material
7

PreparingthePhonefor Use
ConnectthePower
1. Plug one end of the AC Adapter into the DC 13V In jack on the back of your
EP200 Axis phone
2. Wrap the power cord around the strain relief notch in the base.
LINE TEL
DC 13V IN
+–
LINE TEL
DC 13V IN
Getting Started
8

3. Plug the other end of the AC Adapter into your wall outlet.
ConnectingthePhoneLine
1. Plug one end of the telephone cord into the Line Jack on the back of your
Axis EP200 phone.
+–
LINE TEL
DC 13V IN
9

2. Plug the other end of the telephone cord into your wall jack.
InstallingAdditionalEquipment
You can install additional equipment, such as an answering machine or
messaging system, by connecting it to the
TEL Jack on the back of your EP200
Axis phone.
1. Plug one end of your telephone cord into the
TEL Jack on the back of your
EP200 Axis phone.
2. Plug the other end of the telephone cord into the additional device, such as
an answering machine.
+–
LINE TEL
DC 13V IN
Getting Started
10

FinalTouches
RaisetheAntenna
Raise the antenna to the vertical position.
InstallingtheHandset BatteryPack
1. Press in on the Battery Cover Release and slide the battery compartment
cover down.
Getting Started
11

2. Align the plastic connector of the Nickel-Cadmium battery pack with its
socket and plug it in.
Note: The black lead will be on the left when the plug is properly aligned.
3. Place the battery pack inside the battery compartment, and slide the battery
cover back on.
Note: The built-in Memory Backup feature allows up to 3 minutes to
disconnect the old battery pack and install a new one without
losing any numbers stored in memory. For optimum battery
performance, please charge the battery overnight before using the
system.
Getting Started
12

ChargingtheHandset
Place the handset on the base to charge. The Charge message appears on
the LCD. See page 17 for details.
Note: The handset must be fully charged before the phone will operate
properly. The battery included with your phone is not charged.
Allow 12 to 15 hours for the Handset to charge.
During this time you can use the speaker phone to make calls.
BatteryMemory Effect
Rechargeable batteries can develop a “memory” (reduced charge capacity)
caused by repeated charge and discharge cycles. The battery life will seem to
be shorter over time as you use the unit.
ToAvoidMemory Effect
At least once a month, operate the unit until the “Battery Low” indicator appears.
Avoid “topping off” the charge after using the phone for a short time. Also, do not
charge the Rechargeable Battery for extended periods of time.
LowBatteryIndicator
When the Battery Pack in the Handset is low and needs to be charged, the
talk/batt low LED flashes every 3 seconds.
If this occurs while you are on the phone, you hear an alert tone. Complete
your call as quickly as possible, and return the Handset to the Base Unit for
charging.
Allow 12 to 15 hours without any interruption for the Handset to fully
recharge.
talk
2
abc
13
def
talk
batt
chan
Getting Started
13

CleaningtheBatteryContacts
To maintain a good charge, it is important to clean all battery contacts on
the Handset and Base Unit about once a month. Use a pencil eraser or
other contact cleaner. Do not use any liquids or solvents.
Adjustthe LCD Contrast
1. Lift the LCD Panel.
talk
talk
batt
chan
ringer
redial/pause
mem flash volume
2
abc
4
ghi
7
pqrs
5
jkl
8
tuv
6
mno
9
wxyz
13
def
tone
#
0
oper
AXIS
Contacts
Getting Started
14

2. Move the contrast adjustment knob to change the LCD contrast.
3. The LCD is properly adjusted when you can comfortably read the screen.
InitialPower Up
When you first turn on the EP200, a diagnostic is performed. During the
diagnostic, which lasts around 15 seconds, the screen will be blank.
A IS
A IS
Getting Started
15

Setup
TheLCD Screen
The LCD Screen is where all of your information is displayed. A typical Home
screen is shown below, and is broken down into several different sections.
The Home screen can be reached at any time by pressing the Function
Key under the
h
icon.
Note: The LCD display could look different depending on the software in
your EP200 Axis phone.
10:50 pm
Calendar
April 7, 1997
sm t wt f s
Dentist appointment
7:30 Dinner @ Grandma's
12:30 pick up Pete
April 1997 Notes: April 7,1997
mcas
6
13
20
26
1
8
15
22
29
2
9
16
23
30
3
10
17
24
4
11
18
25
5
12
19
26
7
14
21
28
7
charging
Use <> and "select" a day for notes.
ÙÚUse <> and "select" a day for notes. ÙÚ
10:50 pm
Calendar
April 7, 1997
sm t wt f s
Dentist appointment
7:30 Dinner @ Grandma's
12:30 pick up Pete
April 1997 Notes: April 7,1997
m
cas
6
13
20
26
1
8
15
22
29
2
9
16
23
30
3
10
17
24
4
11
18
25
5
12
19
26
7
14
21
28
7
6
7
8
12345
chargingUse < > and "select" a day for notes.
ÙÚUse < > and "select" a day for notes. ÙÚ
1. Screen Type Mode of operation. 5. Time Current time.
2. Date Current date. 6. Status Line Status and on-line instructions.
3. Notepad Notes for the current day. 7. Calendar Current month.
4. Charge Indicator PhoneisCharging 8. Function Icons Icons for Function Keys.
17

EP200Functional Areas
Your EP200 Axis phone is divided into several functional areas. These are:
❏The Arrow and Select Keys
❏The Function Keys
❏The Base Unit Keypad
❏The Keyboard
❏The LCD Screen
ArrowandSelect Keys
These keys are used to move the cursor on the screen, or to select a message.
Setup
18

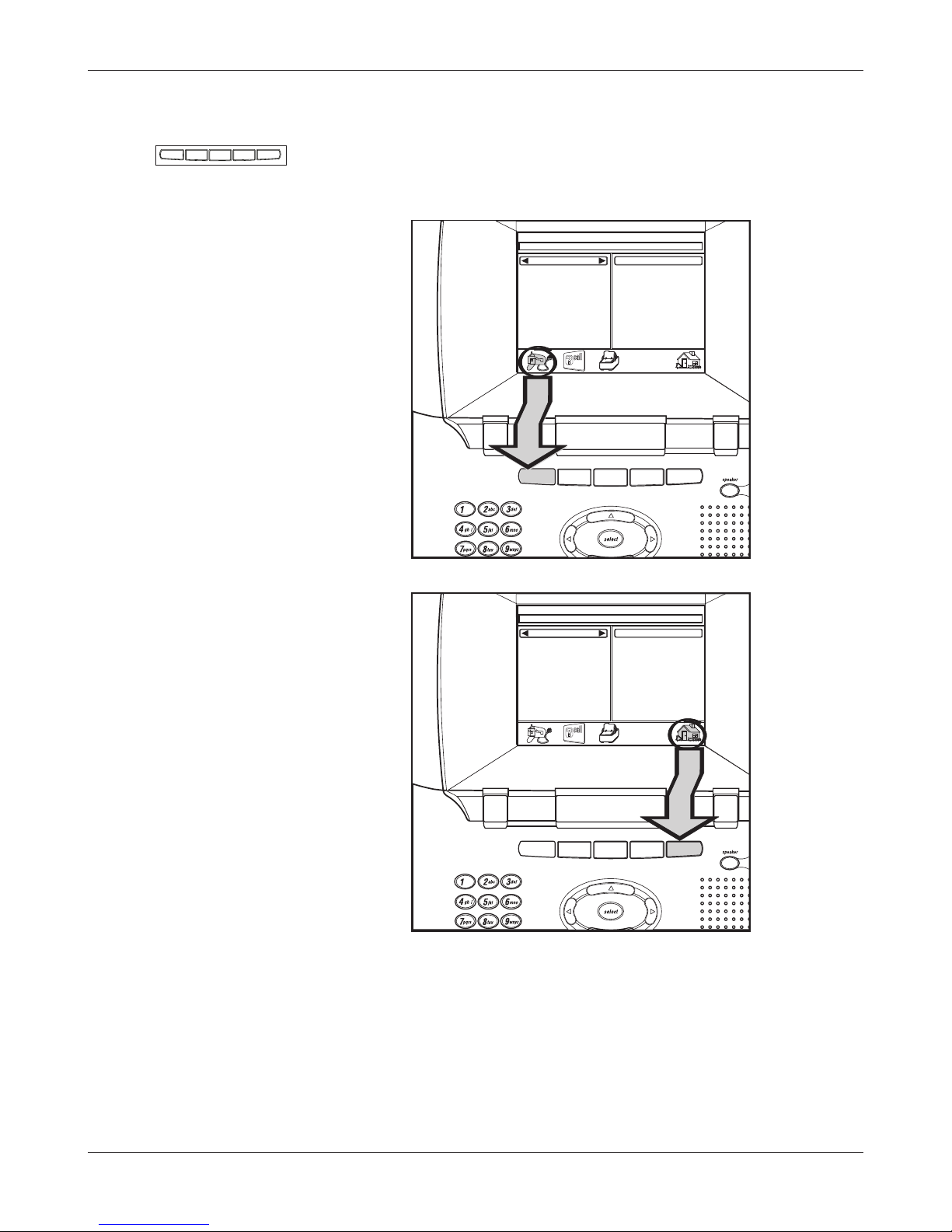

FunctionKeys
The Function Keys are associated with the icons on the LCD screen directly
above them. To select an operation represented by an icon on the LCD screen,
press the Function Key below the icon.
ID
10:50 pm
Calendar
april 7, 1997
april 1997
notes: april 1997
s m t w t f s
12345
6 7 8 9 10 11 12
13 14 15 16 17 18 19
20 21 22 23 24 25 26
27 28 29 30
•Dentist appointment
•7:30 Dinner @ Grandma's
•12:30 pick up Pierre
ID
10:50 pm
Calendar
april 7, 1997
april 1997
notes: april 1997
s m t w t f s
12345
6 7 8 9 10 11 12
13 14 15 16 17 18 19
20 21 22 23 24 25 26
27 28 29 30
•Dentist appointment
•7:30 Dinner @ Grandma's
•12:30 pick up Pierre
Setup
19

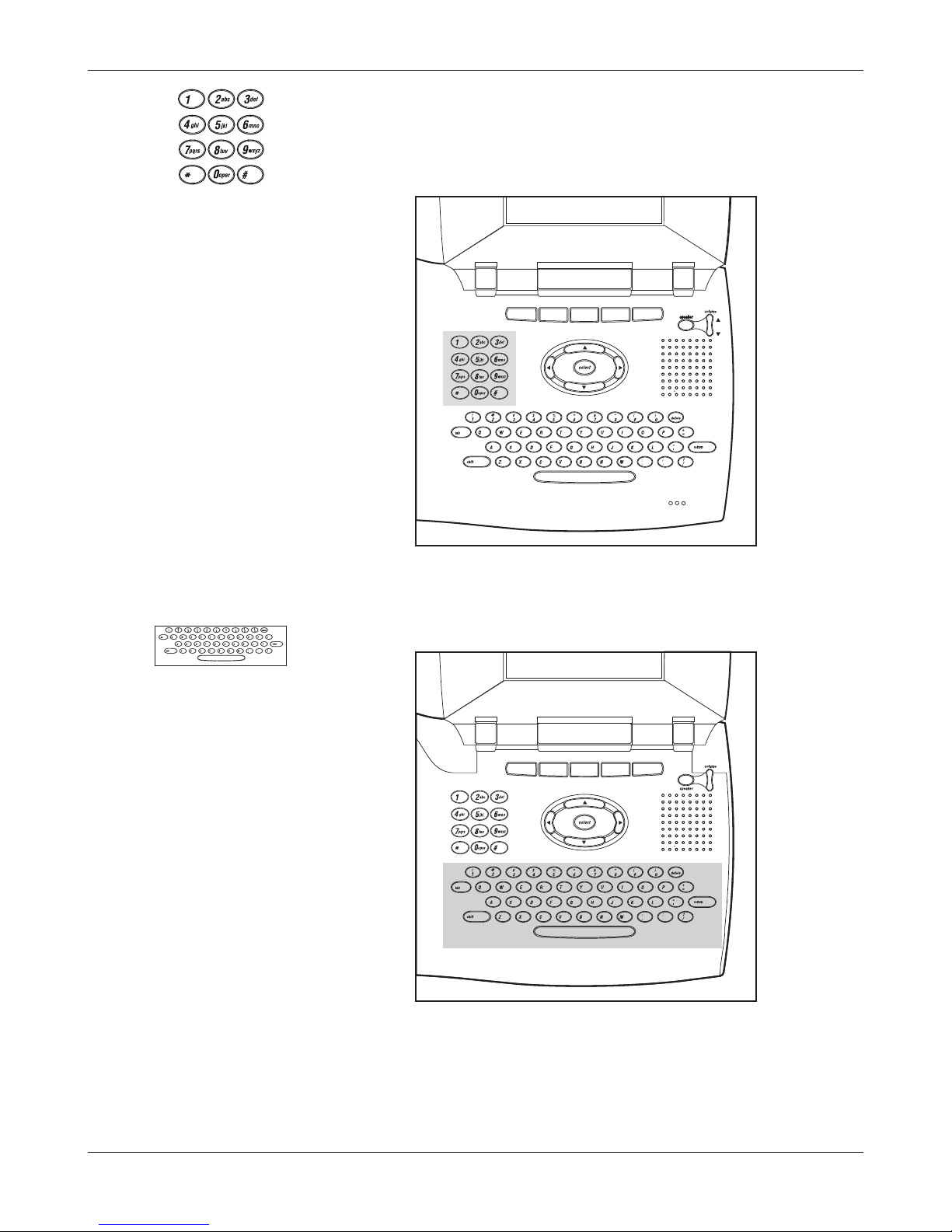

TheBase UnitKeypad
The base unit keypad can be used to dial phone numbers when using the
speaker option.
TheKeyboard
Use the keyboard to type e-mail messages and notes.
Setup
20
