D-Link DWR-720/PW User manual

Version 1.00 ǀ2018/09 1
WCDMA / 3G WIFI Fixed FLLA Phone
DWR-720/PW
User Manual

Back to Table of Contents 2
Preface
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to
notify any person or organization of such revisions or changes.
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the
United States or other countries. All other company or product names mentioned herein are trademarks or registered
trademarks of their respective companies.
Copyright ⓒ2018 by D-Link Systems, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written
permission from D-Link Systems, Inc.
For More Information, visit www.d-link.co.za
For Support relating to SIM card, Airtime, SMS, or Voicemail
Contact Telkom Customer Care on 081 180 from Telkom mobile or 10210 from Telkom landline

Back to Table of Contents 3
Table of Contents
Preface .................................................................................................................... 2
Trademarks ............................................................................................................. 2
1. Basic Overview.................................................................................................... 5
1.1 Package Contents.......................................................................................... 5
1.2 System Requirements ................................................................................... 5
1.3 Safety and Maintenance ............................................................................... 6
1.3.1 Using the Phone..................................................................................... 6
1.3.2 Using the Battery ................................................................................... 7
1.3.3 Using the Battery Charger...................................................................... 8
2. Instructions before Use....................................................................................... 9
2.1 Power ON .................................................................................................... 11
2.2 Power OFF................................................................................................... 11
2.3 Phone Security ............................................................................................ 11
2.4 PIN code ...................................................................................................... 12
2.5 PUK code ..................................................................................................... 12
2.6 microSD Card format & specification.......................................................... 13
3. Basic Functions.................................................................................................. 15
3.1 Direct dial.................................................................................................... 15
3.2 Quick dial from dialled list .......................................................................... 16
3.3 Receive a call............................................................................................... 16
3.4 Operations during a call ..............................................................................16
3.5 Terminate call..............................................................................................17
3.6 Make Emergency call...................................................................................17
3.7 Make International long-distance call.........................................................17
4. Hardware Overview...........................................................................................18

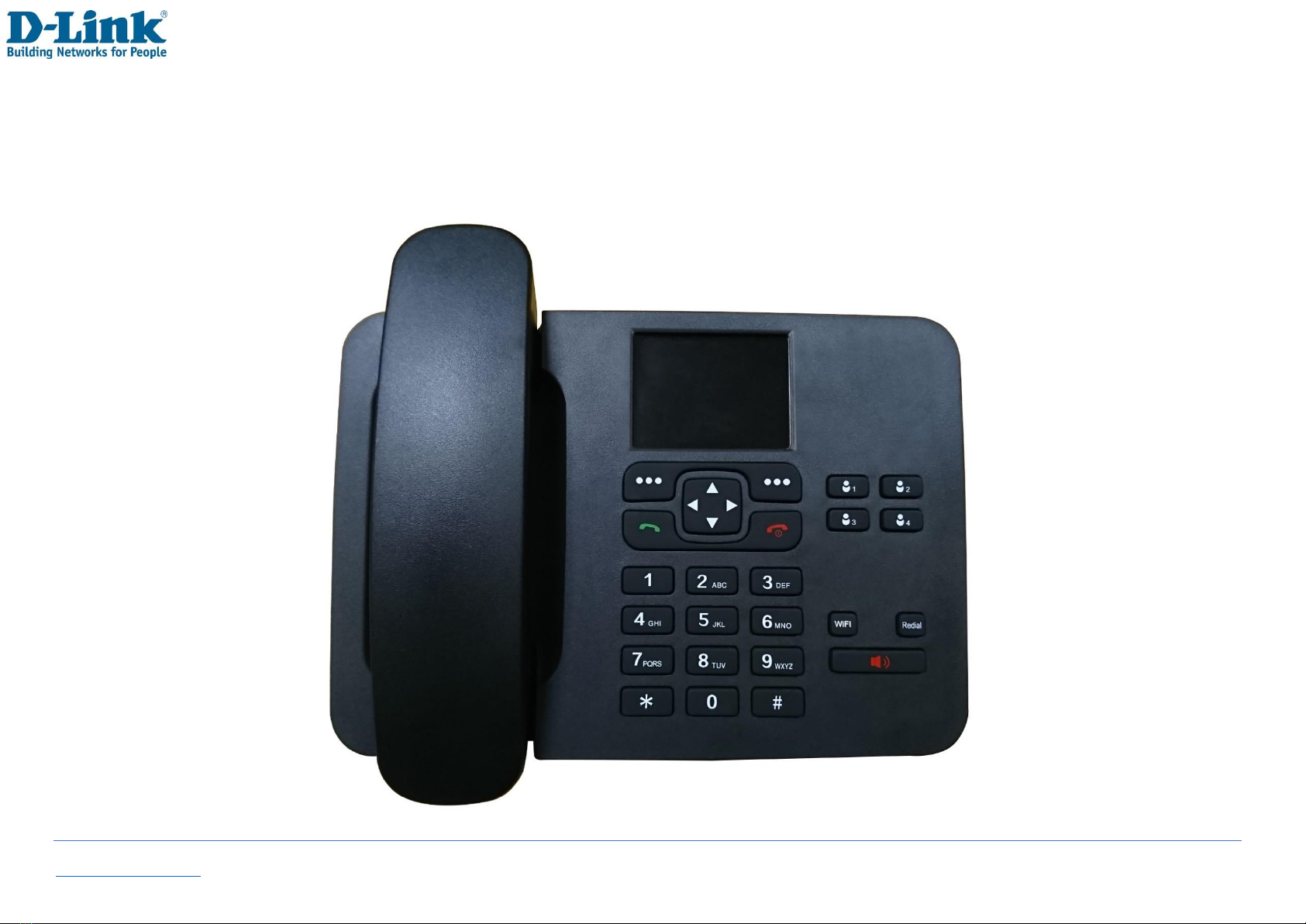

4.1 Front ............................................................................................................18

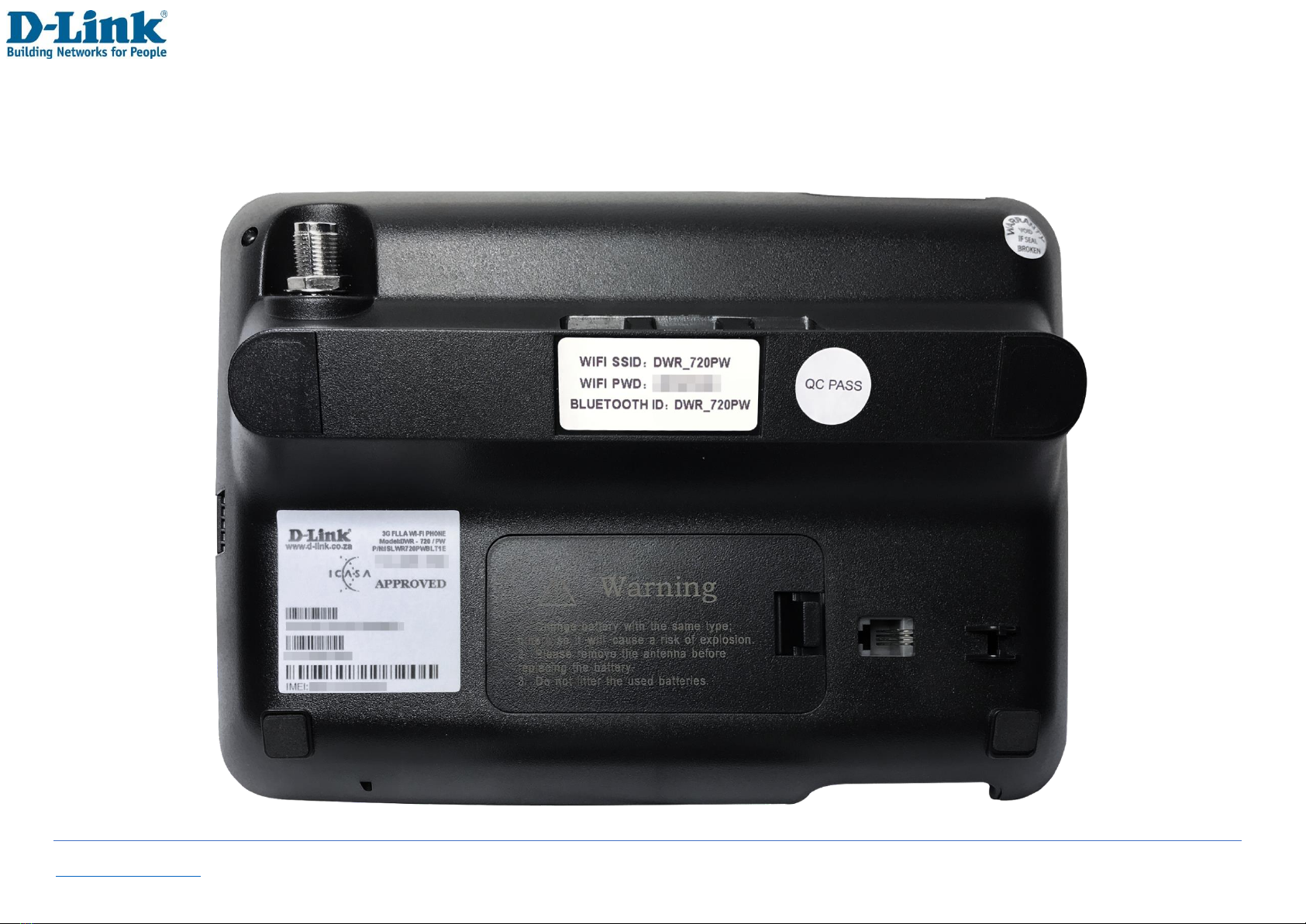

4.2 Back .............................................................................................................19

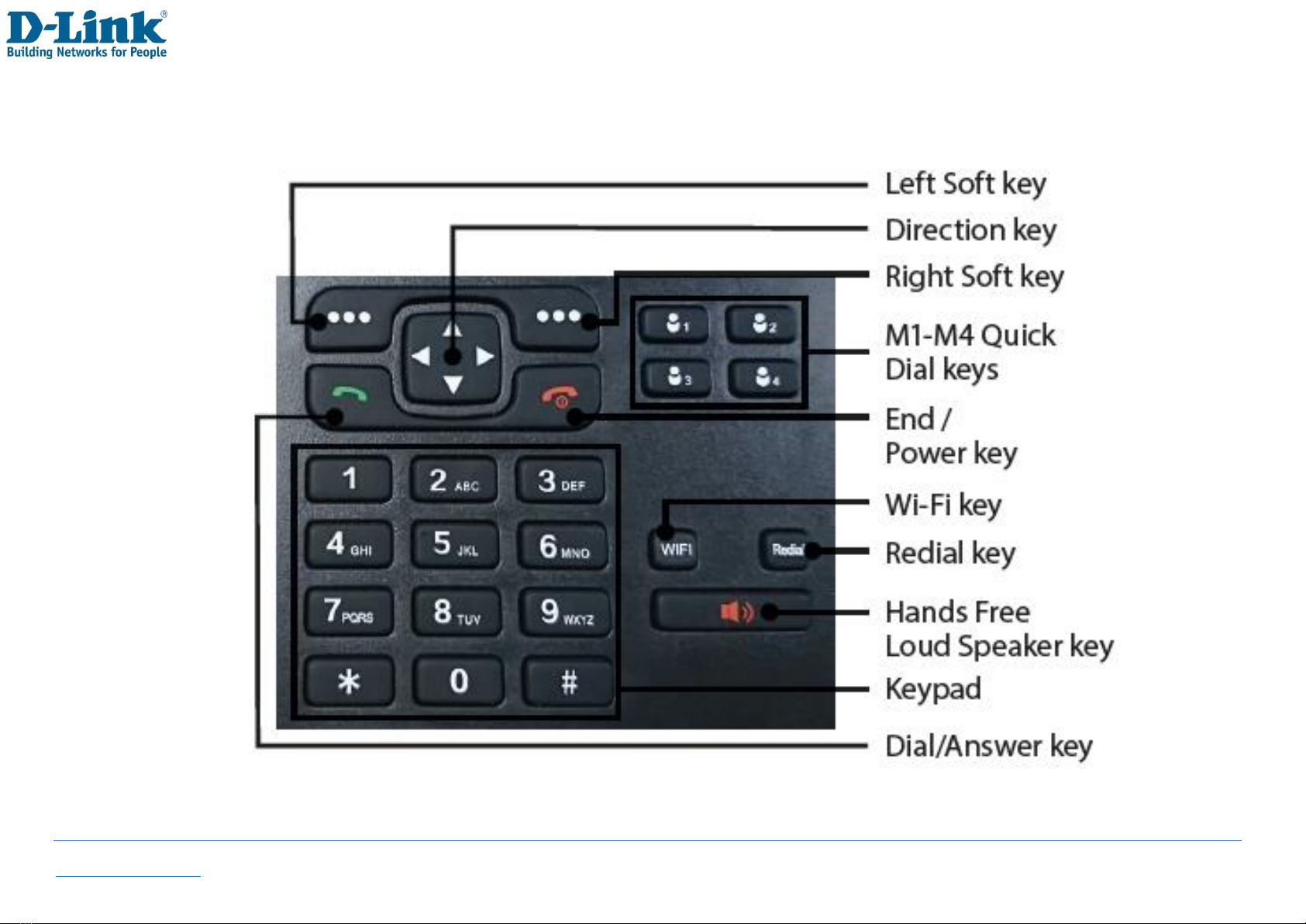

4.3 Key Descriptions..........................................................................................20
4.4 Status Icons .................................................................................................22
4.5 Menu Icons..................................................................................................24
5. Contacts.............................................................................................................25
6. SMS....................................................................................................................27
7. Call log ...............................................................................................................29
8. Calendar ............................................................................................................30
9. Tool box.............................................................................................................31
10. Settings............................................................................................................33
10.1 Display .......................................................................................................34
10.2 Sound.........................................................................................................35
10.3 Language ...................................................................................................36
10.4 Call settings ...............................................................................................36

Back to Table of Contents 4
10.4 Date & time............................................................................................... 39
10.5 Wireless & network................................................................................... 39
Wi-Fi tethering (Wi-Fi hotspot):................................................................... 41
Mobile Networks (APN) ............................................................................... 43
10.6 Quick number............................................................................................ 44
10.7 Security ..................................................................................................... 44
10.8 Fast dialling ............................................................................................... 44
10.9 Bluetooth .................................................................................................. 45
10.10 Factory Data Reset.................................................................................. 46
10.11 Phone Info ...............................................................................................46
11. FM Radio..........................................................................................................47
12. Browser ...........................................................................................................48
13. Wi-Fi ................................................................................................................50
14. File Manager....................................................................................................52
15. Music ...............................................................................................................54
16. Frequently Asked Questions ...........................................................................55
Technical Specifications ........................................................................................59

Back to Table of Contents 5
1. Basic Overview
1.1 Package Contents
D-Link DWR-720PW WCDMA / 3G WI-FI Fixed FLLA Phone
Battery
Handset Cord
Handset Receiver
Antenna
Power Supply
Note: Using a power supply with a different voltage rating than the one included with the DWR-720PW will cause
damage and void the warranty for this product.
1.2 System Requirements
A compatible (U)SIM card with service1
1Subject to services and service terms available from your carrier.

Back to Table of Contents 6
1.3 Safety and Maintenance
1.3.1 Using the Phone
Please observe the following points:
Before use, please read the instruction manual carefully.
Do not power on the phone when the use of a cellular phone is prohibited as it may cause interruptions or danger.
While using the phone, please keep away from heat source and high voltage environments, such as electric appliances or electric
cooking devices. Please use the phone under normal operating temperatures.
Only the original supplied battery, charger and accessories should be used.
Phone may cause interference to nearby electronic devices, therefore keep it away from electronic devices such as radios, PC’s,
pacemakers, hearing aids, etc. Do not place the phone near credit cards or any magnetic fields.
Do not disassemble the phone –Any unauthorized work performed on the phone will void the warranty.
Do not use benzene, thinners, alcohol, or corrosive chemicals such as detergent to clean the cover of your phone.
Your phone is not water-proof, so please keep it dry. Do not use it in damp environment, such as a bathroom. Keep it away from
rain and moisture.

Back to Table of Contents 7
1.3.2 Using the Battery
Please observe the following points:
Before use, please read instructions for use as well as label on the surface of the battery.
Please charge the battery in a cool and well-ventilated room as high temperatures may lead to overheating.
Do not attempt open the battery as it may lead to short circuit or electrolyte leakage.
If electrolytes get in contact with your eyes, there is danger of blindness.
In such case, immediately wash your eyes with clean water and seek medical attention immediately (Do not rub your eyes)
Keep the battery away from mechanical vibration and shaking. Do not short connect the battery as this may damage the battery
and components connected to it.
Keep the metal contact points and battery clean.
Do not use damaged or depleted batteries.
The battery should be replaced when it cannot meet the requirement for performance. Battery can be charged hundreds of times
before it should be replaced.
Battery can be charged hundreds of times, its electric charge may decrease gradually overtime. When service time (talk time and
standby time) is found to have reduced, the battery needs to be replaced.
Prevent the battery from exposure to the skin or places with excessive smoke or dust. Do not use it in damp environments, such as
a bathroom. The battery is not waterproof; so keep it away from rain and moisture.
Do not put the battery in places that are too hot or too cold. Temperature above 55 degrees Celsius or below -10 degrees Celsius
may affect performance of the battery.

Back to Table of Contents 8
Do not put the battery in an open fire as this could lead to an explosion.
Do not put the battery in water to avoid short circuit inside, resulting in battery overheat, smoking, distortion, damage or even
explosion.
Treat battery according to local regulations (for example, recycling). Do not treat battery as domestic garbage.
Only the original charger supplied with the phone should be used for charging the battery.
Keep battery out of reach of children to avoid danger.
Using another type of battery, charger or generic accessories may violate the certification or warranty terms of equipment and may
result in damage.
1.3.3 Using the Battery Charger
Please observe the following points:
Before use, please read the user instructions as well as the label on the surface of the charger.
Do not disassemble or modify the charger or use it when power cable is damaged.
Do not touch the charger with wet hands. If the charger connects with water or other liquid, immediately cut off the power supply.
Do not short connect the charger and keep it away from mechanical vibration or shaking and direct sun shine.
Do not use it in damp environments, such as a bathroom.
The battery charger is not waterproof; keep it away from rain and moisture.
Keep the charger out of reach of children to avoid danger as components and the phone may pose choking hazard.

Back to Table of Contents 9
2. Instructions before Use
Before using the phone, make sure the USB jack, power adapter or battery is correctly connected and the SIM

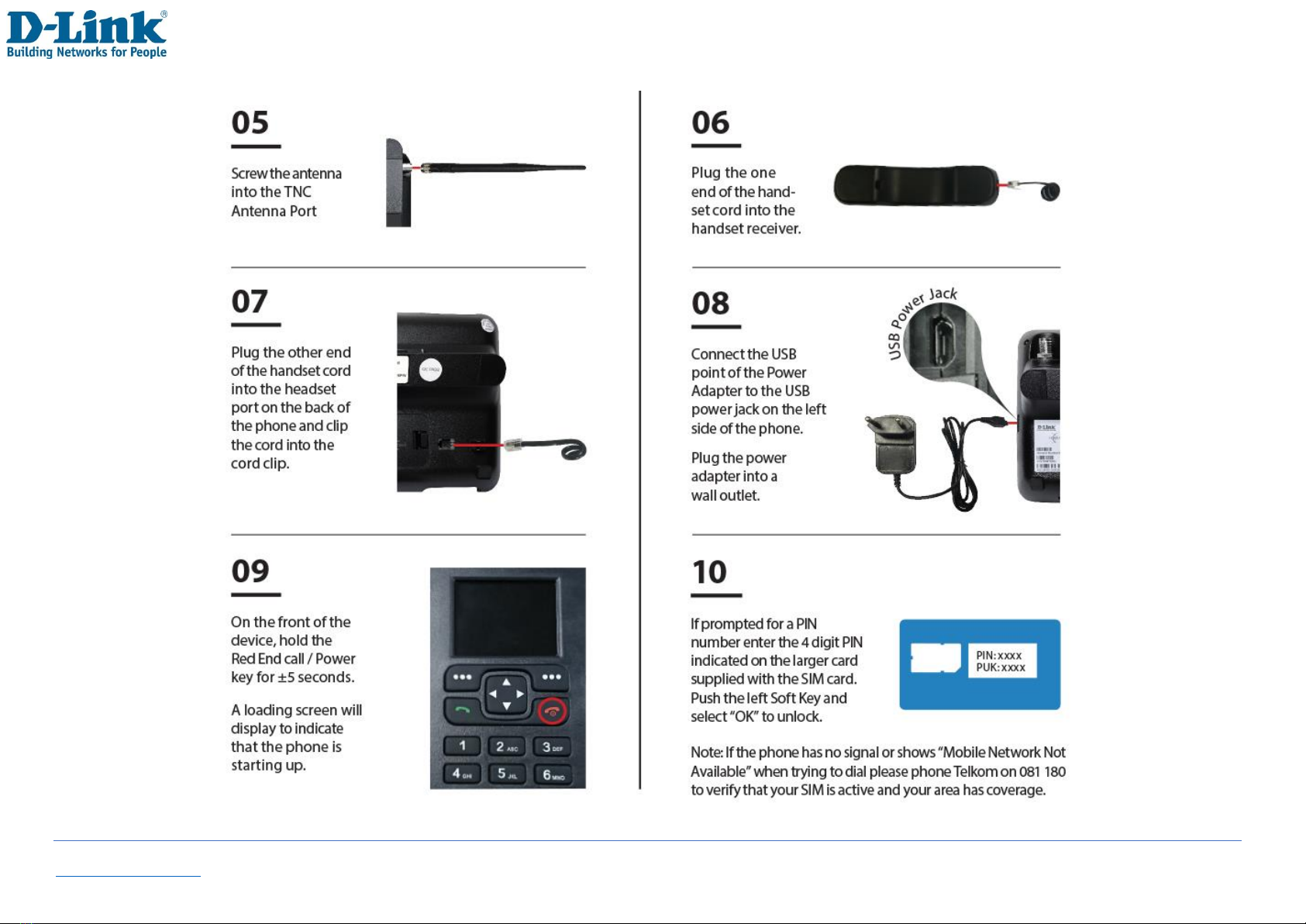

card has been inserted correctly. Follow the instructions below on how to install the phone:

Back to Table of Contents 10

Back to Table of Contents 11
2.1 Power ON
The device can work on single battery mode, single charger mode or both battery and charger mode.
Press and hold [Red Power Key] button until boot screen appears
If there is a prompt for Type PIN code, please enter your SIM PIN code and press [Unlock] key.
Should you type in the SIM PIN code incorrectly 3 times, the SIM will be locked and can only be unlocked with the PUK code.
Note: Please contact your service provider for the default SIM PIN code if unavailable.
After power on, if the SIM card is valid or inserted correctly, your phone will automatically search available network to connect.
If the SIM card is invalid or inactive or incorrectly inserted, it will prompt you to Insert SIM card or Emergency Calls only.
2.2 Power OFF
To power off, press and hold the [Red Power key] until power off screen appears.
Note: In this state, all alarms will still sound if set. Power off the phone and disconnect the external power whenever inserting the
battery or SIM card.
2.3 Phone Security
You can set an SIM password to avoid unauthorized use of your phone SIM.
This can be done under section 10.7 Settings > Security > SIM Lock

Back to Table of Contents 12
Set up SIM card lock: Set SIM PIN lock to on or off, or modify SIM PIN. Note that the SIM PIN number is
issued by your network provider and is shown on your Complete SIM card. If a SIM PIN is set, it will be indicated
with a tick.
2.4 PIN code
PIN code is used to prevent illegal use of user’s SIM card.
If your SIM has enabled PIN code protection, you will be prompted to enter your PIN code every time on start-up.
If the wrong PIN code is entered three times consecutively the SIM card will be automatically soft locked.
You will be required to enter the PUK code to unlock it.
Note: The PIN code is related to SIM card, not the telephone and is provided by your Network Service Provider. Please contact your
service provider if you do not know your SIM PIN code.
2.5 PUK code
PUK code, referring to Personal Unlock Code, is used to unlock a SIM card that is locked because of wrong input of PIN code.
If the PUK code entry attempts exceed ten times, the SIM card will be hard locked and a SIM replacement will be required.
PUK codes or Replacement SIM cards are provided by your Network Service Provider.

Back to Table of Contents 13
2.6 microSD Card format & specification
Installation

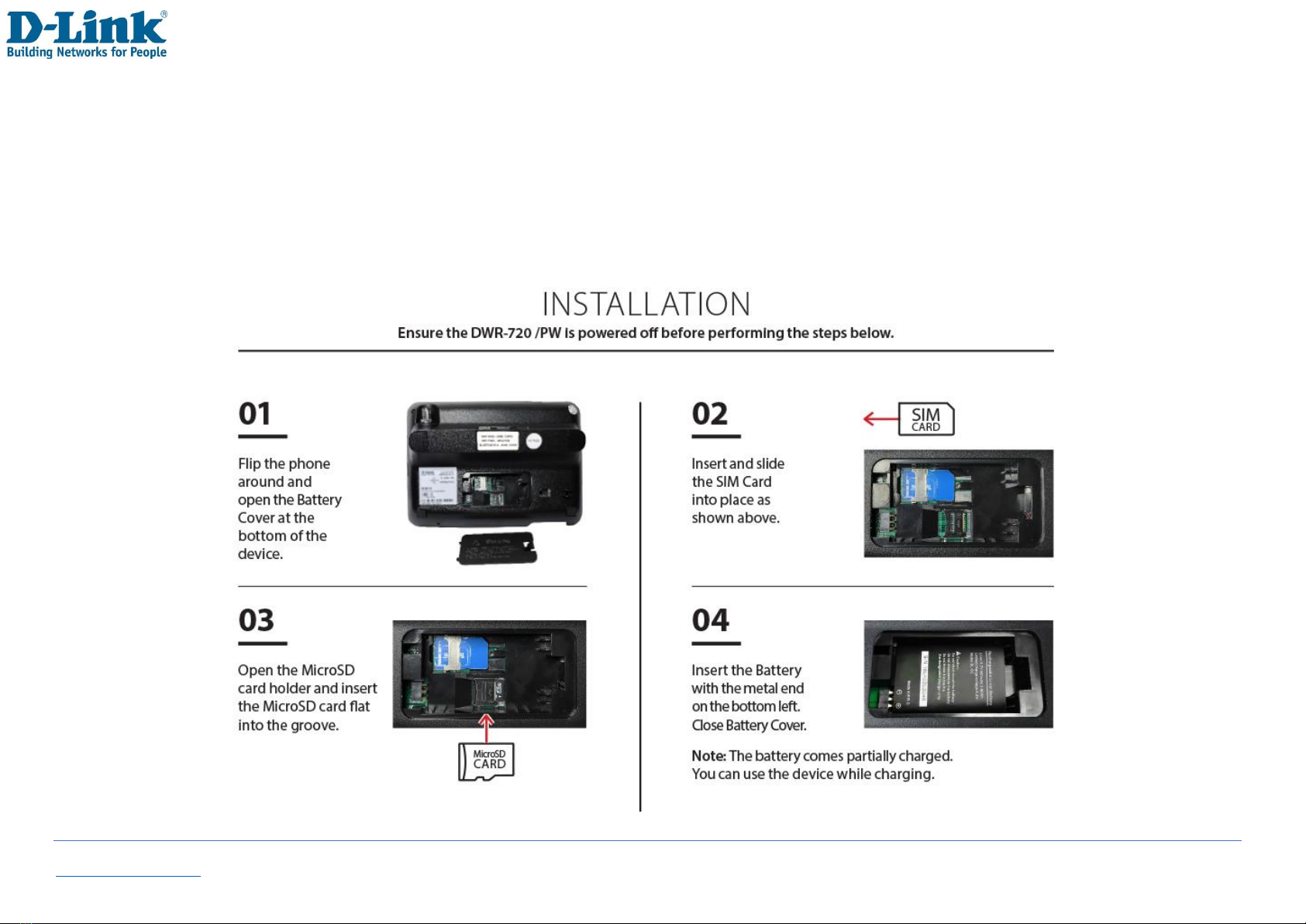

Step 1: Slide the clip to the right carefully. You will hear a small click and the clip will now be loose.
Step 2: Flip open the clip by softly lifting it to the right and place the microSD Card down flat into the groove with the pins facing
down to the right.
Step 3: Close the clip by flipping the cover left and softly press down and slide the clip to the left to lock. You will hear a small click
and the clip is now locked.
Compatible microSD Card Format & Types
The DWR-720PW is compatible with most microSD Cards with the following specifications:
microSD card format type: FAT32
Memory Capacity: Up to 32GB (Gigabytes)
Speed: microSD cards with slow speed may experience slow transfer time when loading files, or may not work at all. Slow transfer
times can also occur with microSD cards that have a great number of files on them.
If the SD-Card is inserted and the icon shows , it means there is format issue, this can be fixed by referring to section
14. File Manager
Note: If the microSD card is placed in the phone correctly and the SD card icon does not show up on the top bar, it means this card is
not compatible. Check your microSD card meets the specification or try another microSD card.

Back to Table of Contents 14
The DWR-720PW is compatible with the following file types:
Video File types: .3gp, .mp4,
Audio File types: .aac, .flac, .m4a, .mid, .mp3, .ogg, .wav,
File name Extensions: .gif, .jpg, .png, .bmp

Back to Table of Contents 15
3. Basic Functions
3.1 Direct dial
Making a phone call:
In Home Screen, press the numerical key to enter the phone number then pick up the handset to dial or press the [Green Dial key]
to initiate the call on hands free loudspeaker.
Or pick up the handset to initiate dialling tone, enter the phone number and press [Green Dial key] to initiate the call.
Press [Right soft key] to delete the last digit or long press it to clear all should you have entered the number incorrectly.
Pick up the handset or press [Hands Free] for the dialling tone.
If the phone number being dialled out is recognized by the phonebook, the name of contact person will be displayed on the
dialling screen as well as the calling screen.
To end the call, press the [End Call/Red Power key] or press the [Hands Free key] or simply hang up.
Quick dial from contacts list:
In Home Screen, press the [Right soft key] to enter [Contacts].
Scroll down to select a contact and press the [Green Dial key] to initiate the call on hands free loudspeaker.
To switch over to handset calling, pick up the handset.

Back to Table of Contents 16
3.2 Quick dial from dialled list
In Home Screen, press the [Green Dial key] to enter [Outcall number] list.
Scroll down to the previous number you have dialled or received a call from.
Press the [Green Dial key] again to initiate the call.
3.3 Receive a call
When there is an incoming call, the screen will display the phone number together with ringtone (unless the phone is set to silent).
Press the [Green Dial key] or pick up the handset or Press [Hands Free] to answer calls.
If phone number of the caller is not hidden, the number will be displayed on the incoming call screen.
If the contact information of the caller is stored in contacts, then the caller’s name will be displayed.
Note: If the caller ID is hidden or the network bans call indication, the incoming call is displayed as ✲✲✲✲✲ or Private or Unknown.
3.4 Operations during a call
During a call, you have the option to:
Back stage: Press the right soft key to return the screen to home page. You can now access the Menu and Contacts.
Hold: Press the left soft key [OK] for the hold option. Place the current call on hold.
Mute: Press the left soft key [OK] for the mute option. This will cut off the microphone on the phone.
Add a call: Press the left soft key [OK] for the Add a call option. You can phone another caller while you are busy on a call. This will
place the first call on hold. To swap between the 2 calls, press [OK] then [Swap].

Back to Table of Contents 17
3.5 Terminate call
When there is an incoming call, press the [Red Power key] to reject the call.
During the call, press the [Red Power key] to terminate current call. Or hang up the handset to end the current call.
If hands free calling, press the [Hands Free] key to end the current call.
A number that has just been dialled can be cancelled by pressing [Red Power key].
3.6 Make Emergency call
As long as you are within coverage of network, you can make an emergency call even if you have not registered to the local
network or do not have SIM card or have not yet unlocked the SIM.
Enter the local emergency number and then press [Green Dial key] to make an emergency call.
3.7 Make International long-distance call
Press and hold the [0] key until the “+”sign appear before international phone number can be dialled. “+”sign tells the network
that you are making an international call.
Enter the country code, area code (without the 0) and phone number
Press [Green Dial key] to initiate the call.
Note: Some networks do not allow “+”for dialling international numbers.

Back to Table of Contents 18
4. Hardware Overview
4.1 Front

Back to Table of Contents 19
4.2 Back

Back to Table of Contents 20
4.3 Key Descriptions
