Axis 2N Indoor Touch 2.0 User manual

www.2n.cz
2N Indoor Touch 2.0
®
User guide
Version: 4.0.x

The 2N TELEKOMUNIKACE a.s. is a Czech manufacturer and supplier of
telecommunications equipment.
The product family developed by 2N TELEKOMUNIKACE a.s. includes GSM gateways,
private branch exchanges (PBX), and door and lift communicators. 2N
TELEKOMUNIKACE a.s. has been ranked among the Czech top companies for years
and represented a symbol of stability and prosperity on the telecommunications
market for almost two decades. At present, we export our products into over 120
countries worldwide and have exclusive distributors on all continents.
2N is a registered trademark of 2N TELEKOMUNIKACE a.s. Any product and/or other
®
names mentioned herein are registered trademarks and/or trademarks or brands
protected by law.
2N TELEKOMUNIKACE a.s. administers the FAQ database to help you quickly find
information and to answer your questions about 2N products and services. On www.
faq.2n.cz you can find information regarding products adjustment and instructions for
optimum use and procedures „What to do if...".
2N TELEKOMUNIKACE a.s. hereby declares that the 2N product complies with all
basic requirements and other relevant provisions of the 1999/5/EC directive. For the
full wording of the Declaration of Conformity see the CD-ROM (if enclosed) or our
website at www.2n.cz.
The 2N TELEKOMUNIKACE a.s. is the holder of the ISO 9001:2009 certificate. All
development, production and distribution processes of the company are managed by
this standard and guarantee a high quality, technical level and professional aspect of
all our products.

2N TELEKOMUNIKACE a.s., www.2n.cz 4/135
3. 2N® Indoor Touch 2.0 Configuration
3.1 Factory Reset
3.2 Home Screen
3.3 Device Configuration
3.3.1 User Settings
3.3.1.1 Device
3.3.1.2 Personal
3.3.1.2.1 Security
3.3.1.2.2 Language and Input Methods
3.3.1.3 System
3.3.1.3.1 Date & Time
3.3.1.3.2 Backup & Reset
3.3.2 Administrator Settings
3.3.2.1 Device
3.3.2.2 Wireless & Networks
3.3.2.3 Security
3.3.2.4 Backup & Reset
3.3.3 Intercoms
3.3.3.1 General Settings
3.3.3.2 Call Settings
3.3.3.3 My2N/SIP Configuration
3.3.3.4 Video
3.3.3.5 Recorder
3.3.3.6 Input and Output
3.4 Device Upgrade

2N TELEKOMUNIKACE a.s., www.2n.cz 5/135
4. Intercoms Applications Configuration
4.1 Application Description
4.2 Application Environment and Configuration
4.2.1 Device
4.2.2 Call Log
4.2.3 Dial Pad
4.2.4 Settings
4.3 Notifications in 2N® Indoor Touch Environment
4.4 Application Use
4.4.1 LAN Calls
4.4.2 SIP Proxy Server Calls
4.4.3 2N® Mobile Video Calls
4.5 Supplementary Information
4.5.1 Troubleshooting
5. Web Interface Configuration
5.1 Login
5.2 System Info
5.2.1 Status
5.3 Device
5.3.1 Network
5.3.2 Home Screen
5.3.3 Local Settings
5.3.4 Display
5.3.5 Audio
5.3.6 System Administration
5.4 Application
5.4.1 Intercoms
5.4.2 Settings
5.5 Limitations
6. Technical Parameters
7. Supplementary Information
7.1 Troubleshooting
7.2 Directives, Laws and Regulations - General Instructions and Cautions

2N TELEKOMUNIKACE a.s., www.2n.cz 6/135
1. Product Overview
In this section, we introduce the product, outline its application 2N Indoor Touch 2.0
®
options and highlight the advantages following from its use. The section also includes
safety precautions.
Here is what you can find in this section:
1.1 Product Description
1.2 Differences between Models
1.3 Terms and Symbols
1.4 Safety Precautions

2N TELEKOMUNIKACE a.s., www.2n.cz 7/135
1.1 Product Description
Based on the Android OS, helps load third party applications to 2N Indoor Touch 2.0
®
a device (if enabled so in the device configuration), thus improving its flexibility. It
contains a 7" colour LCD display with a capacitive touch layer, loudspeaker,
microphone and Ethernet and WiFi interfaces (depending on the Part No.) for LAN
connection. Analogue inputs and outputs are also part of the equipment.
2N Indoor Touch 2.0
® has a factory pre-installed application – , which 2N IP Mobile
®
helps establish video calls with any other video call supporting devices (SIP + H.263
/4). Primarily, the application is intended for the family.2N IP intercom
2N Indoor Touch 2.0
® contains a specific user interface for an increased user comfort
and safety.
2N Indoor Touch 2.0
® basic features:
7" LCD colour display with capacitive touch layer
Wall mounting option
LAN interface with PoE supply option
802.11bgn WiFi interface (depending on the Part No.)
Status RGB LED at front
Binary inputs and outputs for control of other devices
Android operating system with pre-installed basic applications and own user
interface
Pre-installed application 2N IP Mobile
®

2N TELEKOMUNIKACE a.s., www.2n.cz 8/135
1.2 Differences between Models
This manual is valid for all the types. Therefore, please note that 2N Indoor Touch 2.0
®
several features described in this document are only available in selected models or
need to be activated with a licence key. If a feature is not available in all the models, a
note is added to the respective subsection.
2N ® Indoor Touch Types 2.0
Part Nos.:
91378375
91378376
– black2N Indoor Touch 2.0
®
WiFi version (lower Part No.)
Part Nos.:
91378375WH
91378376WH
– white2N Indoor Touch 2.0
®
WiFi version (lower Part No.)

2N TELEKOMUNIKACE a.s., www.2n.cz 9/135
Accessories
Part No.:
91378382, 01425-001 2N Indoor Touch
® desk stand black
Part No.:
91378382W, 01426-001 2N Indoor Touch
® desk stand white
Part Nos.:
91378381E
91378381GB
91378381US
Stabilised 12 V / 0,75 A source to be used where PoE
supply is unavailable.
The part numbers differ in their electric socket
markings (E/GB/US).
The exclusive type of power adapter to SYS1561-0912
be used with all 2N Indoor Touch 2.0 devices.
®

2N TELEKOMUNIKACE a.s., www.2n.cz 10/135
Licence
Part No. Description
91378395 – the licence unlocks the HTTP API functionsHTTP API

2N TELEKOMUNIKACE a.s., www.2n.cz 11/135
1.3 Terms and Symbols
The following symbols and pictograms are used in the manual:
Safety
Always abide by this information to prevent persons from injury.
Warning
Always abide by this information to prevent damage to the device.
Caution
Important information for system functionality.
Tip
Useful information for quick and efficient functionality.
Note
Routines or advice for efficient use of the device.

2N TELEKOMUNIKACE a.s., www.2n.cz 12/135
1.4 Safety Precautions
The manufacturer reserves the right to modify the product in order to improve its
qualities. The manufacturer continuously responds to the clients' requirements by
improving the software. Refer to the company websites for the latest www.2n.cz 2N
®
firmware and User Manual.Indoor Touch 2.0
It is prohibited to use any transmitters, including with an 2N Indoor Touch 2.0
®
internal WiFi adapter, in areas where explosives are used, such as quarries.
WiFi adapters may affect sensitive life-saving devices in medical centres.
Therefore, it is prohibited to use device with an internal WiFi adapter in such
facilities.
In general, any RF energy radiation prohibition regarding WiFi antenna equipped
devices applies to device with an internal WiFi adapter.
Where necessary, a device unit can be installed at a safe distance from the
prohibited area and an Ethernet cable can only be carried to the required site.
Although the device is not intended for cars or aeroplanes, all prohibitions and
regulations relating to adapter equipped devices apply to device too.

2N TELEKOMUNIKACE a.s., www.2n.cz 13/135
2. Description and Installation
This section describes the installation and correct connection.2N Indoor Touch 2.0
®
Here is what you can find in this section:
2.1 Before You Start
2.2 Brief Installation Guide
2.3 Installation Conditions
2.4 Status LED
2.5 First Startup
The device is designed solely for wall mounting. Install the device with the aid of a
holder, which is included in the product and Installation Manual delivery.
Prepare the proper wall fittings (screws and wall plugs suitable for the given wall type
and structure). Respect the local standards for installation of electronic devices onto
flammable materials while mounting!
Use a cross-point screwdriver for tightening the fitting screws on the device sides to
place properly.2N Indoor Touch 2.0
®

2N TELEKOMUNIKACE a.s., www.2n.cz 14/135
2.1 Before You Start
Product Completeness Check
Please check the delivery before starting installation:2N Indoor Touch 2.0
®
1
2N Indoor Touch 2.0
®
1 Quick Start manual
1 Wall holder (screwed to device)
1 Installation fittings (2 screws, 2 plugs for flush mounting)
1 Microfiber screen cleaning cloth

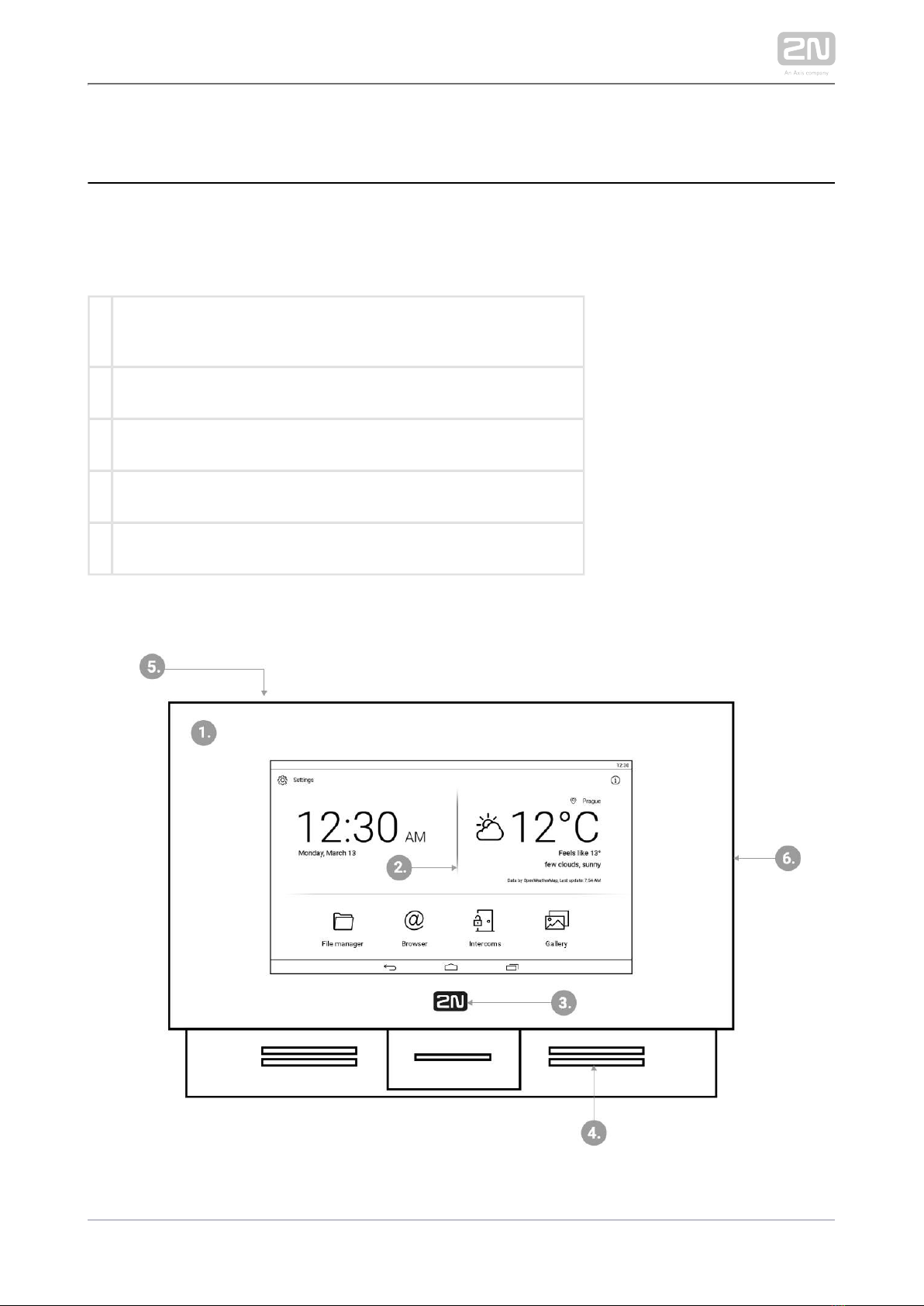

Front Layout

2N TELEKOMUNIKACE a.s., www.2n.cz 15/135
1.
2.
3.
4.
5.
6.
Glass frame
LCD display with capacitive touch layer
Status RGB LED
Loudspeaker
Microphone
Micro SD card slot
Backside Connectors

2N TELEKOMUNIKACE a.s., www.2n.cz 16/135
1.
2.
3.
4.
5.
6.
RJ-45 LAN 10/100BaseT connector
12 V / 0,75 A DC supply terminal board (only if PoE is not used)
Restart/Factory reset button
Binary input/output terminal board (for application control)
Micro SD card slot
Logic inputs and outputs
Tip
External doorbell button or Relay connection guides are available at faq.
.2n.cz
Warning
Do not remove the backside rubber sealing as it improves the accoustic
properties of the product during wall mounting.

2N TELEKOMUNIKACE a.s., www.2n.cz 17/135
1.
2.
a.
b.
c.
3.
a.
b.
4.
2.2 Brief Installation Guide
Install the device holder onto a vertical wall. The recommended installation
height is 120 cm above the floor. The product package includes screws and plugs
for mounting into classic bricks. Use appropriate installation fittings for a
different type of wall material!
Feed the device via an Ethernet PoE adapter (or PoE supporting Ethernet switch
/router) or a 12 V / 0,75 A DC power adapter.
With PoE supply, just snap RJ-45 into the appropriate connector.
With 12 V DC 0,75 A supply, screw the power adapter plus and minus
cables into the appropriate terminal board on the device.
Simultaneous PoE + 12 V / 0,75 A DC supply is not recommended!
Put the device on the holder as follows:
Place the device carefully from top to bottom with its bottom part slightly
away (up to 5 cm) from the wall.
When the device fits to the main holder supports, push the device bottom
part onto the wall.
Tighten the safety screws on both the device sides.

2N TELEKOMUNIKACE a.s., www.2n.cz 18/135
1.
2.
3.
4.
2.3 Installation Conditions
Make sure that the following installation conditions are met:2N Indoor Touch 2.0
®
There must be enough space for device installation.
Device is designed for vertical wall mounting (perpendicular to the floor) in the
height of up to 120 cm above the floor. If necessary, operate device in a position
other than as aforementioned for a short time only, for quick testing purposes in
a servicing centre, for example.
Exceeding the allowed operating temperature may not affect the device
immediately but leads to premature ageing and lower reliability. Refer to
for the acceptable range of operating temperatures and 6. Technical Parameters
relative humidity values.
Device is not designed for environments with increased vibrations such as
means of transport, machine rooms and so on.
Device is not intended for dusty environments and places with unstable humidity
and abrupt temperature changes.
Device may not be exposed to aggressive gas, acid vapours, solvents, etc.
Device is not intended for direct connection into the Ethernet/Internet.
Device must be connected to the Ethernet/Internet via a separating active
network element (switch/router).
Device is designed for indoor use. It may not be exposed to rain, flowing water,
condensing moisture, fog, etc.
Device cannot be operated on places exposed to direct sunshine and near heat
sources.
Keep some free space above and below device to allow air to flow and conduct
heat away.
No strong electromagnetic radiance is allowed on the installation site.
The VoIP connection must be configured properly according to the SIP and
other VoIP recommendations.
It is recommended that the power adapter be connected to the mains via a UPS
and reliable overvoltage protection.
Wall Mounting
is designed for wall mounting. Follow the steps below:2N Indoor Touch 2.0
®
Unscrew the holder-fitting screws on the device sides.
Turn the metal holder slightly aside in the upper part of the device.
Move the holder downwards.
Fit the loose holder to the wall on the installation site.

2N TELEKOMUNIKACE a.s., www.2n.cz 19/135
5.
1.
2.
Put the device on the holder and tighten the safety screws.
Follow the installation instructions printed on the device package.
Power Supply Connection
You can feed as follows:2N Indoor Touch 2.0
®
Use 12 V / 0,75 A DC power adapter (order no. 91378381E/91378381GB
/91378381US)connected to the terminal board (see the figure).
Use an Ethernet cable connected to a PoE supply or PoE supporting Ethernet
switch/router.
A successful operation is indicated by a status RGB LED or LCD display.
PoE Supply Connection
Use a standard straight RJ-45 terminated cable to connect device to the Ethernet. The
device supports the 10BaseT and 100BaseT protocols. The Ethernet connection state
is indicated by the LEDs placed on the RJ-45 connector.
Refer to for the factory settings of the device Ethernet 3.3 Device Configuration
interface.
Caution
Factory reset results in a change of the Ethernet interface configuration!
A defective Ethernet cable may lead to a high packet loss in the
Ethernet and subsequent instability and poor video call quality!
Warning
Connection of a defective or improper power adapter may lead to a
temporary or permanent failure of the unit!2N Indoor Touch 2.0
®

2N TELEKOMUNIKACE a.s., www.2n.cz 20/135
Ethernet cable connector Ethernet port
Licence Limitations
2N Indoor Touch 2.0
® can contain time-limited software licences. Refer to 3.3 Device
for details.Configuration
Firmware Upgrade
We recommend you to upgrade the device firmware during installation. Refer to www.
for the latest FW version. Refer to for the firmware upgrade 2n.cz 3.4. Device Upgrade
procedure.
Other manuals for 2N Indoor Touch 2.0
1
Table of contents
Popular Touch Panel manuals by other brands

Siemens
Siemens SIMATIC LS120 installation instructions

weintek
weintek eMT Series Installation instruction

2N
2N Indoor Touch Api guide

Cooper Instruments
Cooper Instruments DFI 9000 user guide

Power-Genex
Power-Genex LSB-3 Series Instructions and operating manual

Avalue Technology
Avalue Technology APC-2138-B1 Quick reference guide
