Axminster Trade AT50LP Ultimate Edge User manual

AT50LP Ultimate Edge
Reverse Running Linisher
with compound Jig
Code 105529
Original Instructions
AT&M: 11/09/2019
BOOK REF : 007789
AT50LP Ultimate Edge Linisher
Fixed Speed
Compound Jig
for the Ultimate Edge

Index of Contents
2
The symbols below advise the correct safety procedures when using this machine.
Fully read manual
and safety instructions
before use
Eye protection
should be worn
Ear protection
should be worn
HAZARD
Dust mask
should be worn
EU Declaration of Conformity
Cert No: P-50
Axminster Tools & Machinery Ltd
Axminster Devon
EX13 5PH UK
axminster.co.uk
Type Ultimate Edge
Model AT50LP & AT50UE conforms to the machinery example for which the
EC Type-Examination Certificate No M.2016.201.N1187, 14091705IDA 15001
has been issued by UDEM International Certification Auditing
Training Centre Industry and Trade Co.Ltd
at: Mullukent Mahallesi 2073 Sokak (Eski 93 Sokak) No: 10 Cankaya-Ankara-TURKEY
and complies with the relevant essential health and safety requirements.
2006/42/EC
2014/35/EU
EN ISO 12100:2010
EN ISO 60204-1:2006+AC:2010
declares that the machinery described:-
This machine complies with the following directives:
EU Declaration of Conformity
Signed
Andrew Parkhouse
Operations Director Date: 08/05/2022
EU Declaration of Conformity 02
What’s Included 03
General Instructions for 230 Machines 04
Specification 04
Assembly 05-06-07
Illustration & Parts Description 08-09
Setup/Adjustment 10
Changing the Belt 11-12
Maintenance 12
Compound Jig 13-14-15

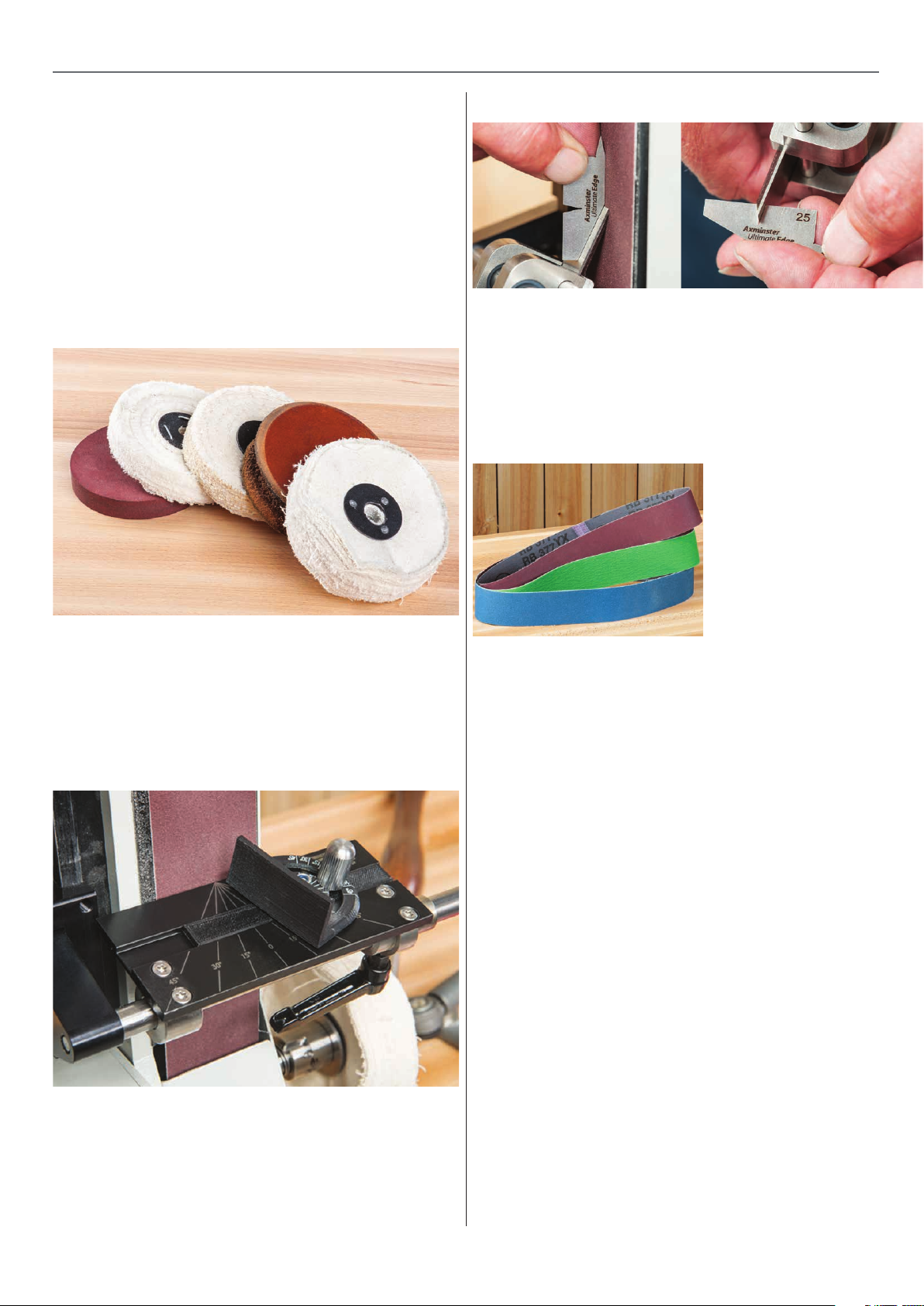

Ultimate Edge Accessories 16-17-18-19
Exploded Diagrams/List 20-21
Wiring Diagrams 22
Notes 23

What’s Included
3
Quantity Item Part
1 Ultimate Edge Linisher Reverse Running A
1 Abrasive Belt (Fitted) B
4 Adjustable Rubber Feet C
1 Graphite Pad (Self Adhisive) D
1 Long Hex Key 4mm E
2 Butterfly Threaded Knobs with Washers F
1 Sanding Belt Access Plate G
1 Euro Plug Adaptor 13A H
1 Instruction Manual
Model Number AT50LP
A
B
C
F
H
D
E
G
Code 103738 Compound Jig
G
F
H
A
BC
E
D
I
• Clamping Handle A
• Large Bolt B
• Four Caphead Screws C
• Large Clear Washer D
• Four Spring Washers E
• Round Bar F
• Mounting Plate G
• Round Bar Jig Plate H
• Jig Plate Cradle I

General Instructions for 230 Machines
4
The following will enable you to observe good working
practices, keep yourself and fellow workers safe and maintain
your tools and equipment in good working order.
WARNING!! KEEP TOOLS AND EQUIPMENT
OUT OF REACH OF YOUNG CHILDREN
Mains Powered Tools
• Tools are supplied with an attached 13 Amp plug.
• Inspect the cable and plug to ensuree that neither are
damaged. Repair if necessary by a suitably qualified person.
• Do not use when or where it is liable to get wet.
Workplace
• Do not use 230V a.c. powered tools anywhere
within a site area that is flooded.
• Keep machine clean.
• Leave machine unplugged until work is about to commence.
• Always disconnect by pulling on the plug body and not the
cable.
•Carry out a final checks to the machine.
•Ensure you are comfortable before you start work,
balanced, not reaching etc.
•Wear appropriate safety clothing, goggles, gloves,
masks etc.Wear ear defenders at all times.
•If you have long hair wear a hair net or helmet to prevent it
being caught up in the rotating parts of the machine.
•Consideration should be given to the removal of rings and
wristwatches.
•Consideration should also be given to non-slip footwear etc.
•If another person is to use the machine, ensure they are
suitably qualified to use it.
•Do not use the machine if you are tired or distracted
•Do not use this machine within the designated safety areas
of flammable liquid stores or in areas where there may be
volatile gases.
•Check cutters are correct type and size, are undamaged
and are kept clean and sharp, this will maintain their
operating performance and lessen the loading on the
machine.
•OBSERVE…. make sure you know what is happening
around you and USE YOUR COMMON SENSE.
KEEP WORK AREA AS UNCLUTTERED AS IS
PRACTICAL. UNDER NO CIRCUMSTANCES SHOULD
CHILDREN BE ALLOWED IN WORK AREAS.
Code 105529
Model AT50LP (Fixed Speed Reverse Running)
Rating Trade
Power 375W AC 230V 50Hz
Motor Speed 2,800 rpm
Motor Pulley Diameter 56mm
Belt Speed 498 mpm
Belt Size 50mm x 785mm
Dust Extraction Outlet 25mm
Overall L x W x H 330 x 280 x 480mm
Weight 17.5kg
Specification

Assembly
5
Threaded Rubber Feet
Locate the four ‘Rubber Feet’ (C), remove one nut from each
of the threaded feet and place aside. Slot each threaded foot
through the four pre-drilled holes to each corner of the units
base. Replace the nuts, stand the unit upright and adjust each
foot in turn until the machine is level, see fig 01-02.
Fig 01-02
C
Access Plate
Find the the linishers side ‘Access Plate’(G) and the two
threaded butterfly knobs and washers (F). Position the plate
against the linisher main assembly and line up the two holes
with the wo threaded studs on the linisher. Secure the plate in
position with the threaded knobs and washers, see fig 03-04-05.
Fig 03-04-05
G
Continues over...
Fig A
Fig B
H
Euro plug adaptor 13A
Loosen the two screws on the Euro plug, open up and insert
the pinned plug into the adapter as shown.Close the cover and
tighten the screws.
WORK TABLE
NOT INCLUDED

Assembly
6
F
Graphite Pad
The ‘Graphite Pad’ is used to reduce the friction and heat
building between the abrasive belt and Linisher plate.This
will help to prolong the llife of the abrasive belt.
1. Remove the side access plate (G) and raise the linisher to the
upright position by loosening the two Hex screws (1), see fig 06.
Tighten the Hex screws to secure the linisher.
NOTE: IF YOU PREFER NOT TO USE THE
‘GRAPHITE PAD’ SKIP THIS STEP
Fig 06
2. Rotate the lever (2) to the side of the linisher, see fig 07-08.
Press down the lever to release the belt tension, see fig 09.
1
Fig 07-08
2
Fig 09
WORK TABLE
NOT INCLUDED

Assembly
7
Fig 11-12-13
4. Locate the‘Graphite Pad’, (D) and peel off the adhesive
backing. Position the pad down onto the linishers platen
and press firmly down, see fig 11-12-13.
Note: After a period of time the ‘Graphite Pad’ will become worn
and we recommend fitting the optional‘Slip Plate’, code 105676,
see picture below.
D
5. Slide the belt back on the drive rollers and centre the belt on
the linisher. Press the lever (2) down and hold in place, pull the
locking ‘PIN’ (3) out and raise the linisher’s head to re-tension
the belt, see fig 14.
6. Replace the side access plate (G)
3. Remove the belt and place safely aside, see fig 10.
Fig 10
Fig 14
3
2
WORK TABLE
NOT INCLUDED

Illustration & Parts Description
8
Linisher guarding
Clamping knob
Belt access plate
Power takeoff
for attaching the
‘Twist n Fix Arbor’
Elongated slots
allowing access to
pivot the linisher
Base plate
Adjustable rubber foot
Belt tracking control knob
Motor
NVR Control switch
Belt
Belt tension mechanism
Dust extraction outlet
Locking pin
105529 AT50LP Fixed Speed Reverse Running Linisher

Illustration & Parts Description
9
NVR ON/OFF switch (Green ON) & (Red OFF)
Locking pin for tension mechanism (A), Tracking control knob
(B), Operating lever (C) too release the tenstion to the belt
A
C
B
25mm Dust extraction outlet (F)
Power takeoff for attaching future accessories (G)
F
G
Belt tension mechanism
The linisher can be pivoted to the required
angle by adjusting the two Hex screws (H)
H

Setup/Adjustment
10
Tracking the Belt
Setting the Linisher Angle
CONNECT THE MACHINE TO THE
MAINS SUPPLY!
KEEP WORK AREA AS UNCLUTTERED AS IS
PRACTICAL. UNDER NO CIRCUMSTANCES SHOULD
CHILDREN BE ALLOWED IN WORK AREAS.
Fig 16-17-18
1. Press the‘Green’“ON”button, see fig 15 then track the belt as
described below.
Fig 15
3. Once complete, press the ‘RED’ button to stop the machine.
2. Turn the ‘Tracking Control Knob’ until the belt is centred
on the platen, see fig 16-17-18.
NOTE: Don’t make sudden adjustments otherwise you
may over correct. Make small adjustments.
The linisher can be pivoted to the required angle by loosening
the two button Hex screws, see fig 06 on page 06 then lower the
linisher to the required angle, see fig 19-20. Re-tighten the Hex
screws to secure the setting.
Fig 19-20
Making small adjustments to centre
the belt on the linisher
Turning the tracking knob anti-clockwise
moves the belt to the right
Turning the tracking knob clockwise
moves the belt to the left

Changing the Belt
11 Continues over...
DISCONNECT THE MACHINE
FROM THE MAINS SUPPLY!
G
F
1
2
3
Remove the belt
‘Access Plate’
5
4
Clean linisher
Remove old belt
WORK TABLE
NOT INCLUDED

Changing the Belt
12
6
Place a new belt
on the drive rollers
and centre.
NOTE: Make sure
the arrows on the
reverse side of the
belt are pointing
down towards the
work table.
7
Pull locking pin
Press down
Press down the lever and hold in place, pull the locking pin out
and raise the roller assembly to re-tension the linisher belt.
8
Replace the belt ‘Access Plate’ (H) and secure in place with the
two butterfly threaded knobs
G
2
1
Maintenance
There is very little mechanical maintenance that can be carried
out on the machine, keep the machine clean.
1. Remove the belt access plate and check there is no dust or
resin build up on the pulleys or at the edges of the platen.
2. Remove all dust deposits and clean the motor using an
Vaccum Cleaner.
3. Remove the dust extraction hose and check any build up
of deposites inside the hose and extraction outlet.
4. Check the motor brushes every 5-6 months.
WORK TABLE
NOT INCLUDED

Compound Jig
13
1
2
3
4
Slot the bolt (B) through the
elongated slot in the mounting
plate (G).
G
B
Position the plate
(G) against the
linisher, line up the
four holes, secure in
position using the
screws (C) & spring
washers (E).
C
E
Tighten the
mounting plate
(G) against the
linisher using a
5mm Hex key.
Slot the bolt (B) through the pre-drilled hole in the jig plate
cradle (I), see step 4. Repeate the procedure for round bar jig
plate (H), see step 5.While holding the assembly, place the clear
washer (D) over the bolt and screw on the clamping handle (A).
Nip-up the handle to secure the assembly, see step 6.
8
Compound jig assembled.
Locate the honing guide
assembly and slide the
unit onto the round bar.
I
5
H
6
H
D
A
7
Screw the thread
end of the round
bar (F) into the
thread hole in jig
plate (H).
Compound Jig Assembly

Compound Jig
14
1
Terminology of the Jig
Back
Right
Front
Up
Down
Left
Platen
Bar
Compound jig
These are the striations,
we call them sharpening lines
25mm
The ‘RED’circles in figure (A) shows the positions of the
grub screws used to adjust the compound jig, to the side
of the frame.The ‘GREEN’ circles in figure (B) shows the
postion of the Hex head screws used to fix the compound
jig to the side of the linisher.
A
B
Grub screw AGrub screw B
Grub screw C
Grub screw D
Setting the jig to the Platen
2
3
4
Setting the Jig
To adjust the compound Jig to the machine you need to set the guide jig bar
assembly to the zero position.Once done tighten the locking handle.
With the two 12mm bolts slightly undone you will be able to move the platen forwards or
backwards in position.
With the abrasive belt fitted move the platen so that the abrasive just touches the bar.
Undo the two 12mm
bolts half a turn
Platen
Bar
This one needs re-setting
as the gap is to large
This is correct with no
gap showing
Locking
handle
Set the guide jig to zero

Compound Jig
15
5
6
With 25˚ degrees set on the jig the measurement between the face of the abrasive and
the inner face of the side bar should be 25mm clearence.
Place your chisel with the bevel face up in the Honing Guide Assemby, code 105281 and
adjust the chisel so it projects 25mm out from the Honing Guide using the ultimate edge
projection gauge and clamp the chisel in place.Note: 25mm projection is used for all
angles.
Using a digital leveling box check the compound jig bar is perpendicular to the linisher.
Place the leveling box onto the bar, it should read ‘ZERO’ on the display. If adjustment is
required, lightly loosen the four Hex screws and adjust the compound jig until the‘Bar’is
in line with the linisher Nip up the Hex screws to secure the jig.
Set the guide jig to the
25˚ degrees position
Chisel projected 25mm out
from the Honing Guide
Honing Guide
25mm projection gauge
Linisher
Bar
Setting the Bar at 90˚ to the Platen
Hex screw
Alternately place a 90˚ square on the bar and check its in line with the edge of the platen
and make adjustments accordantly.
7
Gap
Square to the platen
Gap
8
Linisher
Right
Left
Bar
Setting the Clearence of the Platen to the Bar
Note Make sure that the
diameter of the squares
handle or similar is the
same distance.This
ensures the bar will be
accurately set.
Place a square or similar down between the bar and platen and clamp the jig in place.
Check the distance is the same across the bar and platen.To adjust,first place the
square to the far right and turn grub screws (B-D) in a clockwise direction to move the
bar forward.Ajust until correct.Now move to the square to far left and adjust screws (A-C)
until the bar is at the correct diatance.

16
Axminster Compound Jig (code 103738) Ultimate Edge Micro Bevel Gauge (code 105427)
Axminster Honing Guide Assembly (code 105281)
Tormek®Jigs for Gouges (code 102132)
Polishing and Honing “Twist n Fix” Arbor (code 105419)
This is machined from specially anodised alloy and bolts easily
onto 4 pre tapped threaded holes on the belt arm.This jig has
the familiar round bar in ground silver steel to allow Tormek
jigs to be mounted. One length of round bar are provided. A
clever system of sliding the bar in two directions in one
operation is employed, locked with just a twist of a handle.
The jig has graduations laser marked into the body so that
consistent repeat settings can be made.There are 4 adjusting
grub screws to allow the jig to be set correctly to the belt
platter both horizontally and vertically.
Having ground the primary bevel on any tool the secondary
bevel or micro bevel actually does the majority of the work.
It is exactly what it says it is a micro bevel which can be
increased with ease each time the tool becomes dull.The
micro bevel guide is made of stainless steel and aluminium
and has the ability to accept the tool still mounted in the
honing guide, the precise angle of the micro bevel can be
easily set and with a few positive passes over a fine diamond
or waterstone a superb edge can be achieved.
The Ultimate Edge Honing Guide is perfect for plane blades,
joinery chisels etc.This fits onto the round bar which is part of
the Compound Jig. Clamping the blade tightly, both primary
and secondary bevels can be achieved if required.The whole jig
is manufactured from stainless steel and has a simple setting
screw to control the width. The LH jaw is reversible and has
twin jaws, one curved so that chisels that do not have perfectly
parallel sides (such as Japanese and old hand forged chisels)
can be clamped, the other jaw being parallel.The jaws are
dovetailed, so securely clamp thetools against the body.The
jaws accommodate blades from 3-66mm in width. A setting
gauge is provided to enable the correct sharpening angle to
be set based upon a standard projection of the cutting tool at
25mm from the guide.
Many of the Tormek® jigs work amazingly well on the 12mm bar
of the Ultimate Edge and provide the user with extremely sharp
and accurately ground tools.The Tormek fingernail grinding jig
is shown using an aluminium oxide belt with a 65mm
protrusion. See the Tormek® pages for full details.
Ultimate Edge Accessories

Ultimate Edge Accessories
17
Universal Sharpening Table (code 105426)
Belts and Accessories for the Ultimate Edge Machine
Universal Edge Gauge Setting (code 103730)
Polishing and Honing Accessories
This table is an accessory for the Ultimate Edge Compound
Jig.This is machined from anodised alloy and is supplied
with a mitre setting guide.The table is locked by a handle
locking securely onto the round bar. Anodised in black, there
is a quadrant of angles laser marked into the surface for
easy reference. Ideal for freehand lathe tool sharpening and
general linishing. Size 130 x 75mm.
The unique“Twist n Fix”multipurpose arbor allows for the
virtually instant change of different mops, felt wheels and
profiling wheels. Supplied with mounting screws and one
“Twist n Fix” arbor additional arbors can be purchased
singularly or in a set of 3.This unique 12mm diameter quick
change arbor system allows the power source to be run in
either forward or reverse direction. Polishing mops, felt wheels
etc should always be used in a specific order; the ability to
change these almost instantly ensures that the process of
starting coarse and ending up fine is always followed.
As with all accurate sharpening, it’s all about the angles and
our 18 piece set gives all angles from 90° through to 5°.The
set is perfect for setting up sharpening guides as well as
checking ground angles.The UJK level box is an additional
useful accessory for the Ultimate Edge, its ability to record
and set angles is perfect for this application.
A variety of 12mm bore accessories are available for use on
the“Twist n Fix”12mm arbor including a leather profiled
wheel for carving tools, a rubberised wheel for polishing and
traditional mops both stitched, loose leaf and sisal.
N.B. Smaller sizes of abrasive soaps are available online.
There are many different
types of abrasive ideally
suited to the purpose
of metal sharpening or
grinding.We have
listed below the most
popular ones and will
add online a number of
other types of abrasive
belt. As well as abrasive belts we have added a high quality ultra
flexible leather honing belt which can be used with the various
polishing pastes. For general use we recommend aluminium
oxide at about 180g working finer to 400g for final finishing
before any secondary bevel is applied using an ultra fine
diamond or waterstone. 3M’s Trizact abrasive is ideal for final
grinding of all materials resulting in a fine edge ready to use
straight off the machine.This is a different abrasive from normal
convention but equates to 600G, 1200G and 3000G Note: if dust
extraction is to be used a fireproof hose should ALWAYS be
used (103717).
Description Grit Code
Alu Oxide Cloth Belt 785 x 50mm 120G 105233
Alu Oxide Cloth Belt 785 x 50mm 180G 105234
Alu Oxide Cloth Belt 785 x 50mm 240G 105235
Alu Oxide Cloth Belt 785 x 50mm 320G 105236
Zirconium Cloth Belt 785 x 50mm 60G 105238
Alu Oxide Cloth Belt 785 x 50mm 400G 105237
Zirconium Cloth Belt 785 x 50mm 120G 105239
Trizact Abrasive Belt 50 x 785mm A30 600G 105428
Trizact Abrasive Belt 50 x 785mm A16 1,200G 105429
Trizact Abrasive Belt 50 x 785mm A6 3,000G 105430
Hermes FB637 Blue Film 785 x 50mm Belt 800G 105553
Hermes FB637 Blue Film 785 x 50mm Belt 1500G 105554
Hermes FB637 Blue Film 785 x 50mm Belt 2500G 105555
Slip Plate 105676
Red Medium Grade Paste 103703
Blue Fine Grade Paste 103715
White Super Fine Paste 103716
Flame Retardant Extraction Hose 25mm x 2m 103717

Ultimate Edge Accessories
18
Medium Polishing & Honing Paste 250g
Code 103703
Angle Gauge Set In Wallet 5-90 Deg
Code 103730
Flame Retardant Hose 25 mm x 2 m
Code 103717
Axminster Profiled Honing Wheel
Code 103717
Axminster Profiled Honing Wheel
Code 104737
Fine Polishing & Honing Paste 250g
Code 103715
Super Fine Polishing & Honing Paste 250g
Code 103716
A variety of 12mm bore polishing wheel mops both stitched, loose leaf and sisal.
• A three layer belt with a nylon core
and two layers of chrome tanned leather
• Always use the belt in a clockwise
direction (belt traveling away from
the blade tip)
• Never use the belt in a anti-clockwise
direction (belt traveling towards the
blade tip)
No Description Code
1 4”Sisal Polishing Mop 105421
2 4”Standard Stitched Polishing Mop 105422
3 4”Loose Fold Polishing Mop 105423
4 Rubber Sharpening/Honing
Wheel 100 x 13 x 12mm 105202
Axminster Polishing & Honing Accessories
124 3
5
Numatic NQS350B-B1 Vaccum Extractor
Code 105725

Ultimate Edge Accessories
19
No Description Code
1 Nylon Abrasive Wheel for Ultimate Edge - Soft 105581
2 Nylon Abrasive Wheel for Ultimate Edge - Medium 105582
3 Nylon Abrasive Wheel for Ultimate Edge - Hard 105583
Felt Wheel for Ultimate Edge - Hard 105580
Felt Wheel for Ultimate Edge - Medium 105579
Felt Wheel for Ultimate Edge - Soft 105578
See the full range of accessories on our webside including video guides on how to use
Online Product Video
Ultimate Edge Sharpening System
1 2 3

Exploded Diagrams/List
20
105529 A50LP (Fixed Speed Reverse Running)
