Axon Synapse ASV22 User manual

____________________________________________
ASV22
12 bit Composite / YC to Serial Digital Converter
with SDI Input

Lange Wagenstraat 55
NL-5126 BB Gilze
The Netherlands
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
Web: www.axon.tv
TECHNICAL MANUAL
12 bit Composite / YC to Serial Digital Converter
with SDI Input

1
WARNING: TO REDUCE THE RISK OF FIRE OR
ELECTRICAL SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE
●ALWAYS disconnect your entire system from the AC mains before cleaning any component. The product
frame (SFR18 or SFR04) must be terminated with three-conductor AC mains power cord that includes an
earth ground connection. To prevent shock hazard, all three connections must always be used.
●NEVER use flammable or combustible chemicals for cleaning components.
●NEVER operate this product if any cover is removed.
●NEVER wet the inside of this product with any liquid.
●NEVER pour or spill liquids directly onto this unit.
●NEVER block airflow through ventilation slots.
●NEVER bypass any fuse.
●NEVER replace any fuse with a value or type other than those specified.
●NEVER attempt to repair this product. If a problem occurs, contact your local Axon distributor.
●NEVER expose this product to extremely high or low temperatures.
●NEVER operate this product in an explosive atmosphere.
Warranty: Axon warrants their products according to the warranty policy as described in the general terms.
That means that Axon Digital Design BV can only warrant the products as long as the serial numbers are not
removed.
Copyright © 2001 – 2006 AXON Digital Design B.V.
Date created: 18-11-02
Date last revised: 11-11-06
Axon, the Axon logo and Synapse are trademarks of Axon Digital Design B.V.
This product complies with the requirements of the product family standards for audio, video, audio-visual
entertainment lighting control apparatus for professional use as mentioned below.
EN60950
EN55103-1: 1996
EN55103-2: 1996
Safety
Emission
Immunity
Axon Digital Design ASV22
Tested To Comply
With FCC Standards
FOR HOME OR OFFICE USE
This device complies with part 15 of the FCC Rules
Operation is subject to the following two conditions:
(1) This device may cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.

2
Table of Contents
Chapter 1 Introduction to Synapse 3
An introduction to Synapse 3
Local Control Panel 3
Remote Control Capabilities 3
Chapter 2 Unpacking and Placement 4
Unpacking 4
Placing the card 4
Chapter 3 A Quick Start 5
When powering-up 5
Default settings 5
Changing parameters and settings 5
Front Panel Control 5
Example of changing parameter using
Front Panel control
5
Synapse Setup Software 7
Menu Structure Example 7
Chapter 4 The ASV22 card 8
Introduction 8
Key Features 8
Chapter 5 Settings Menu 10
Chapter 6 Status Menu 17
Chapter 7 Events Menu 20
Chapter 8 LED Indication 23
Chapter 9 Block Schematic 24
Chapter 10 Connector panel 25

3
1 Introduction to Synapse
An Introduction to
Synapse Synapse is a modular system designed for the broadcast industry.
High density, intuitive operation and high quality processing are
key features of this system. Synapse offers a full range of
converters and processing modules. Please visit the AXON Digital
Design Website at www.axon.tv to obtain the latest information on
our new products and updates.
Local Control Panel The local control panel gives access to all adjustable parameters
and provides status information for any of the cards in the Synapse
frame, including the Synapse rack controller. The local control
panel is also used to back-up and restore card settings. Please refer
to the RRC18, RRC10 and RRC04 manuals for a detailed
description of the local control panel, the way to set-up remote
control over IP and for frame related settings and status
information.
Remote Control
Capabilities The remote control options are explained in the rack controller
(RRC18/RRC10/RRC04) manual. The method of connection to a
computer using Ethernet is described in the RRC manual.
! CHECK-OUT: “SYNAPSE SET-UP” SOFTWARE
WILL INCREASE SYSTEM FLEXIBILITY OF ONE OR
MORE SYNAPSE FRAMES
Although not required to Setup a Synapse frame, you are strongly
advised to use a remote personal computer or laptop PC with the
Synapse Setup software as this increases the ease of use and
understanding of the modules.

4
2Unpacking and Placement
Unpacking The Axon Synapse card must be unpacked in an anti-static
environment. Care must be taken NOT to touch components on the
card – always handle the card carefully by the edges. The card
must be stored and shipped in anti-static packaging. Ensuring that
these precautions are followed will prevent premature failure from
components mounted on the board.
Placing the card The Synapse card can be placed vertically in an SFR18 frame or
horizontally in an SFR04 frame. Locate the two guide slots to be
used, slide in the mounted circuit board, and push it firmly to
locate the connectors.
Correct insertion of card is essential as a card that is not located
properly may show valid indicators, but does not function
correctly.
REMARK: On power up all LEDs will light for a few seconds, this
is the time it takes to initialise the card.

5
3A Quick Start
When Powering-up On powering up the Synapse frame, the card set will use basic data
and default initialisation settings. All LEDs will light during this
process. After initialisation, several LEDs will remain lit – the
exact number and configuration is dependant upon the number of
inputs connected and the status of the inputs.
Default settings In its default condition, the ASV22 will act as a frame synchroniser
and auto phase corrector.
Changing settings
and parameters The front panel controls or the Synapse Set-Up Software can be
used to change settings. An overview of the settings can be found
in chapter 5, 6 and 7 of this manual.

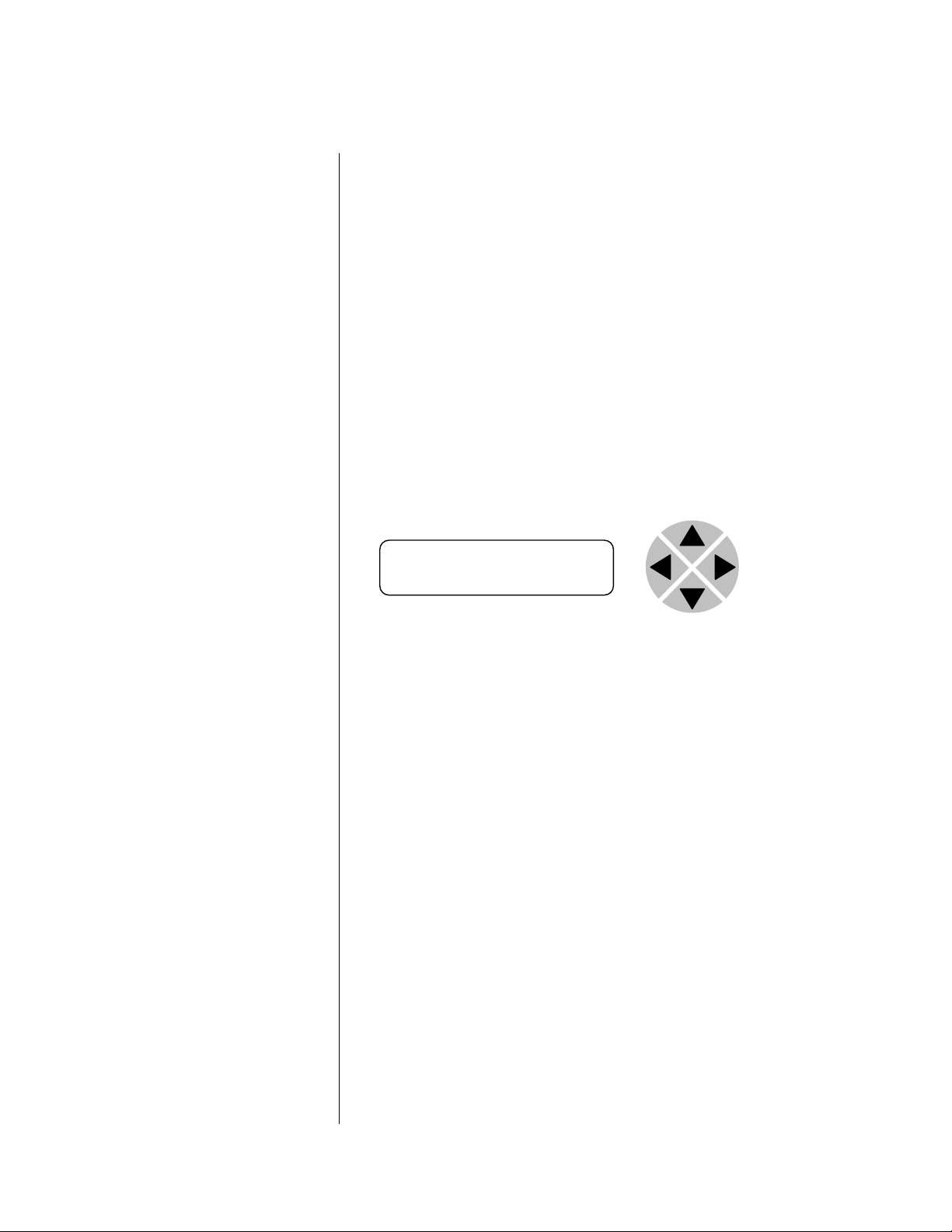

Front Panel Control Front Panel Display and Cursor
Settings are displayed and changed as follows;
Use the cursor ‘arrows’ on the front panel to select the menu and
parameter to be displayed and/or changed.
Press ►To go forward through the menu structure.
Press ◄To go back through the menu structure.
Press ▲To move up within a menu or increase the value of
a parameter.
Press ▼To move down through a menu or decrease the
value of a parameter.
REMARK: Whilst editing a setting, pressing ►twice will reset
the value to its default.
[
No Alarms]

6
Example of
changing
parameters using
front panel control
With the display as shown below
Pressing the ►selects the SFS10 in frame slot 01.
The display changes to indicate that the SFS10 has been selected.
In this example the Settings menu item is indicated.
Pressing the ►selects the menu item shown, in this example
Settings.
(Pressing ▲or ▼will change to a different menu eg Status,
Events).
The display changes to indicate that the SFS10 Settings menu
item SDI-Format has been selected and shows that it current
setting is Auto.
Pressing the ►selects the settings item shown, in this example
SDI-Format.
(Pressing ▲or ▼will change to a different setting, eg Mode,
H-Delay).
The display changes to indicate that the SFS10 Edit Setting
menu item SDI-Format has been selected.
To edit the setting of the menu item press ▲or ▼.
All menu items can be monitored and/or changed in this way.
Changing a setting has an immediate effect.
Synapse Setup Synapse Setup Software can be used to change the settings of
RRC18 [Select Card]
>
S01=SFS10
SFS10 [Select Menu]
>
Settings
SFS10 [Settings]
>
SDI-Format=Auto
SFS10 [Edit
Setting]

7
Software Synapse modules from a PC, either locally or remotely. The
software enables communication based on TCP/IP between the
Setup PC and Synapse frames/modules.
Each Synapse frame is addressed through its rack controller’s
unique IP address, giving access to each module, its menus and
adjustment items. The Synapse Setup software has access to data
contained within the Synapse module and displays it on a GUI.
The software has an intuitive structure following that of the
module that it is controlling.
Having selected the desired Frame and Module from the GUI
Synapse Network View, select the menu item that you wish to
open. Opening the menu item gives a complete list of available
properties with their associated Value.
For example to change a setting e.g. SDI-Format, select SDI-
Format form the list of settings by ‘double clicking’ to open a
dialogue box. The dialogue box allows parameters to be changed
or set to default value. On completion close the dialogue box.
Menu Structure
Example
Slot Module Item Parameter Setting
▲
▲
S02 Identity
▲▲
S01 SFS10 ►Settings ►SDI-
Format
►Auto
▼▼▼▼
S00 RRC18 Status Mode 625
▼▼▼
Events Ref-Input 525
▼
H-Delay
▼
▼
REMARK: Further information about Front Panel Control and
Synapse Setup Software can be obtained from the RRC18 and
RRC04 operational manuals.

8
4 TheASV22 Card
Introduction The AXON ASV22 is a 12bit analog to digital converter that
converts Analog Composite or Y/C signals to Serial Digital (SDI).
In addition the ASV22 has an SDI input.
The converter is capable of working with most common television
standards, PAL, NTSC.
All Digital Decoding The ASV22 utilises 12 bit digital decoding to ensure accurate high
quality signal processing.
Four Serial Digital
Outputs Four SDI ouputs are available with embedded audio, reducing the
need for distribution amplifiers and external embedders.
Composite, Y/C and
SDI Inputs The ASV22 has two analog inputs that can be used for Composite
video or Y/C signals and a separate SDI input. A software switch
allows selection between the inputs. The ASV22 enables the
Active Picture, Vertical Interval and Horizontal Interval
information of the output SDI signal to be selected from separate
input sources.
Automatic Standard
Selection Most video standards can be handled by the ASV22. In ‘Auto’
Mode (see later) the unit automatically detects the input standard
being used and changes the signal processing to the standard
detected at the input.
Built-in Framestore In order to allow the ASV22 to handle poor quality input signals
and correct timing errors a frame store is provided.
Reference Input Two reference input are provided to the ASV22 by the Synapse
Bus, these can be the same TV standard in order to provide
redundancy, or different TV standards to allow operation in two
different modes.
External Freeze External Freeze allows the ASV22 to freeze the output signal. This
is performed manually by switching to freeze input.
Tracking output A tracking output is provided by the ASV22. This output provides
a timing pulse for use with other Axon Synapase devices, e.g. for
Audio Synchronisation with a DIO24.

9
Back planes The ASV22 can be used with the BPL01 back plane.
Miscellaneous The ASV22 cards fit into the Axon SFR04 & SFR18 rack.
LED’s on the front of the board indicate the presence Video
Reference, Input signal, Connection & Processor Errors.
The ASV22 can be controlled by Axon Synapse set-up software.

10
5Settings Menu
Introduction The settings menu displays the current state of each setting within
the ASV22 and enables the item to be changed or adjusted.
Settings can be changed using the front panel of the Synapse
frame (SFR18 or SFR04) or Synapse Setup software.
Please refer to chapter 3 for information on the Synapse front
panel control and Synapse Setup software.
AP-Sel The ASV22 accepts a range of inputs, SDI, composite (CVBS)
and Y/C signals. AP-Sel selects the Active Picture content from
the selected source.
The settings of AP-Sel are;
CVBS: Composite input with 12bit decoding.
YC: Y/C input with 12bit decoding.
SDI: SDI.
The default setting of AP-Sel is CVBS.
The Active Picture content is combined with Vertical Interval
information and Horizontal Interval information that is set using
the following VI-Sel & HI-Sel settings.
VI-Sel VI-Sel selects the Vertical Interval information to be used by
the ASV22.
Analog: VI information contained within the decoded
Composite input.
SDI: VI information contained within the SDI input signal
Blank: Blanks the VI
The default setting of VI-Sel is Analog.
HI-Sel The HI-Sel settings selects the Horizontal Interval information
to be used. The settings of HI-Sel are;
Blank: Blanks the HI.
SDI: HI information contained within the SDI input signal.
The default setting of HI-Sel is Blank.
REMARK: If the input analog signal does not have information
contained within the Horizontal Interval HI-Sel can only be set
to Blank or SDI.
REMARK: If HI-SEL is set to SDI, the SDI signal has to be
locked to the same reference as the analog active picture input.

11
Standard This item controls the detection the input standard. The settings
of Standard are Auto detection, 625, 525. The default
setting is Auto. Having detected or set a standard, the ASV22
automatically utilises the settings in the menus 625-Stndrd or
525-Stndrd.
625-Stndrd The handling of 625 TV Line standards can be set using 625-
Stndrd. The settings are PAL-BGHI, PAL-N. The default
setting is PAL-BGHI.
525-Stndrd The handling of 525 TV Line standards can be set using this item.
The settings are NTSC, PAL-M. The default setting is NTSC.
Mode Synchronize and Delay mode can be selected within the
Mode menu. In Synchronize mode, the Autophaser/Line
synchroniser is active. In Delay mode a reference is not
required, the output timing is derived from the analog input
signal, if used otherwise timing is derived from the sdi input
signal.
The default setting is Synchronize.
Synchronizing Mode:
When Mode is set to Synchronize and the card is locked to a
reference, the card is in synchronizing mode. (NOTE that it is
referred to the output signal so it takes the H-V-delay into
account)
Delay Mode:
When Mode is set to Delay, the card is in Delay Mode. The H-
Delay and V-Delay settings give the delay, addition to the
processing time of the card.
Note: The delay of the card is indicated by the tracking pulse on
the BNC output. This can be used, for example, to track an audio
delay.

12
Input-Gain The input gain can be set to Fixed, Auto-Brst, Auto-Sync
or Variable. The default setting is Fixed. In Fixed mode
the input stage is static and expects a compliant input signal with
the correct amplitude. In Auto-Brst an Automatic Gain Control is
enabled, and the gain is based on the color subcarrier’s amplitude.
In Auto-Sync mode an AGC stage is enabled and the input
voltage is adjusted automatically depending on the sync
amplitude. If the sync is smaller then 300 mV, the video input
signal will be amplified in the exact amount to give 300 mV sync
amplitude. If the sync amplitude is too high, the opposite will
occur. And in Variable mode the input signal is manually
adjustable.
Var-gain This is the adjustment menu for the Variable mode mentioned
above. The range of adjustment is 0,26x to 1,99x. The
default setting is 1,00x.
Ref-Input This setting allows the user to determine which reference input is
used to lock the ASV22. Input 1 is the uppermost input of on the
RRC18 rack controller connection panel at the rear of the SFR18,
Input 2 is the lower. The SFR04 has one reference input.
The available settings for Ref-Input are 1, 2 and Auto. The
default setting of Ref-Input is 1.
1, 2: Lock to the reference at the respective input.
Auto: Selects Ref_1 to 625, Ref_2 to 525. If a signal is not
connected the reference the reference will automatically be
locked to the reference.
H-Delay The H-Delay setting allows adjustment of the horizontal phase
of the output signal with respect to the selected reference input.
The H-Delay setting gives a delay in addition to the reference
timing. For example, if H-Delay is set to 10 samples, the output
signal will be delayed by the reference timing + 10 samples of
37ns, therefore the delay = Ref timing+ 37ns x10. The signal is
delayed (advanced) with respect to the phase of the reference
signal.
In 625/50 the adjustment range of H-Delay is 0-1727 samples,
0..64 µs (one PAL TV line).
In 525/60 the adjustment range of H-Delay is 0-1715 samples,
0...63.556 µs (one NTSC TV line).
The default setting is 0samples.

13
Note: Please refer to the following description of Ref input for
synchronization and timing information.
V-Delay V-Delay setting allows adjustment of the vertical phase of the
output signal with respect to the selected reference input.
The V-Delay setting gives a delay in addition to the reference
timing. For example, if V-Delay is set to 10 TV lines, the output
signal will be delayed by the reference timing + 10 TV lines. The
signal is delayed (advanced) with respect to the phase of the
reference signal.
In 625/50 the adjustment range of V-Delay is 0-624 lines (one TV
frame).
In 525/60 the adjustment range is 0-524 lines (one TV frame).
The default setting is 0 lines.
The delay of the card is indicated by the tracking pulse on the
BNC output. This can be used, for example, to track an audio
delay.
Note: Please refer to the description of Ref input for
synchronization and timing information.
Remove-Setup Remove-setup enables setup (Black Level) of NTSC signals
to be removed. The settings of Remove-setup are On and
Off. The default setting is On.
Chroma-Enh The Chroma-Enh setting item enables the enhancement of the
Chrominance signal being processed in 12bit mode. The settings
of Chroma-Enh are On and Off. The default setting is Off.
Freeze Freeze enables the capture of one Video Frame when it is set to
On. Freeze can be set On or Off. The default setting is Off.
Frz-Mode Frz-mode gives the choice of storing a complete Video Frame
or Field (double written) for the above Freeze Menu and the
external freeze input. The settings of Frz-mode are Field
and Frame. The default setting is Field.
Panic Frz Panic-Frz enables the capture of the last video information
when the input signal is lost. Panic freeze always uses Field mode
irrespective of the settings of the Freeze-mode menu item.
The settings of Panic-Frz are On or Off. The default setting
is On.

14
Ext-Frz Ext-Freeze enables the external freeze input. GPI contact
closure J9 of the BPL01. the settings of Ext-Freeze are
Disabled and Enabled. The default setting is Disabled.
Y-Gain Y-Gain controls the Luminance gain of the built-in processing
amplifier. The control range is between 0% and 150%.The default
setting is 100%.
C-Gain Cb-Gain controls the Colour Difference gain of the built-in
processing amplifier. The control range is between 0% and 150%.
The default setting is 100%.
Y-Black This item controls the Luminance black level adjustment between
-128……..+127bits The black level can be aligned by +/–
100mV(analog video). The default setting is 0.
Cb-Black This item controls the Colour Difference (Cb) black level
adjustment.
Cr-Black This item controls the Colour Difference (Cr) black level
adjustment.
EDH-Gen This setting allows the user to switch the built in EDH generator
on/off. The EDH generator inserts EDH (SDI Error Detection
Handling) into the output signal.
The settings of EDH-Gen are On and Off. The default setting is
On.
VLI-Ins The Video Line Index insertion menu enables the generation of
Video Index information. Video Index is used to trigger cascaded
equipment that process wide screen manipulation, aspect ratio
converters for example. VLI-Ins can be set On or Off. The
default setting is Off.
VLI-Data Video Line Index data insertion recognises 16 different modes.
These modes are divided into 2 groups, 4:3 and 16:9, each group
having 8 sub-categories numbered 0-7. Valid VLI-Data ranges
are 4:3_0, 4:3_1, 4:3_2, etc., to 16:9_0, 16:9_1, 16:9_2 etc. The
default setting is 4:3_0.
Emb-Mode Emb-Mode enables additional audio channels to be appended

15
added to the existing audio-groups in the ancillary data space of
the SDI stream Emb-Mode has three settings, Off, Append,
and Overwrite. The default setting is Off.
In Overwrite mode all existing audio groups will be
overwritten and the processes group is inserted.
In Append mode additional audio channels will be added.
In order to blank the ancillary data space of the SDI stream, set
Emb-Mode to Overwrite and set Emb-Sel to Off (see
below).
Emb-A-Sel Emb-A-Sel determines which of the four groups of audio
available on the Synapse bus will be embedded by embedder A of
the ASV22 into the SDI stream. The settings of Emb-A-Sel are
Off, Group_1, Group_2, Group_3, Group_4. The default
setting is Off.
Emb-B-Sel Emb-B-Sel determines which of the four groups of audio
available on the Synapse bus will be embedded by embedder B of
the ASV22 into the SDI stream. The settings of Emb-B-Sel are
Off, Group_1, Group_2, Group_3, Group_4. The default
setting is Off.
Emb-A1/2 Emb-A1/2 determines which audio channels are embedded by
channels 1 and 2 of embedder A. The available settings are,
AddOn_A1/2, AddOn_A3/4, AddOn_B1/2, AddOn_B3/4,
AddOn_C1/2, AddOn_C3/4 , AddOn_D1/2 , AddOn_D3/4.
The default setting of Emb-A1/2 is AddOn_A1/2.
Emb-A3/4 Emb-A3/4 determines which audio channels are embedded by
channels 3 and 4 of embedder A. The available settings are,
AddOn_A1/2, AddOn_A3/4, AddOn_B1/2, AddOn_B3/4,
AddOn_C1/2, AddOn_C3/4 , AddOn_D1/2 , AddOn_D3/4.
The default setting of Emb-A3/4 is AddOn_A3/4.
Emb-B1/2 Emb-B1/2 determines which audio channels are embedded by
channels 1 and 2 of embedder B. The available settings are,
AddOn_A1/2, AddOn_A3/4, AddOn_B1/2, AddOn_B3/4,
AddOn_C1/2, AddOn_C3/4 , AddOn_D1/2 , AddOn_D3/4.
The default setting of Emb-B1/2 is AddOn_B1/2.
Emb-B3/4 Emb-B3/4 determines which audio channels are embedded by
channels 3 and 4 of embedder B. The available settings are,
AddOn_A1/2, AddOn_A3/4, AddOn_B1/2, AddOn_B3/4,

16
AddOn_C1/2, AddOn_C3/4 , AddOn_D1/2 , AddOn_D3/4.
The default setting of Emb-B3/4 is AddOn_B3/4.

17
6Status Menu
Introduction The status menu indicates the current status of each item listed
below.
Analog-Inp This status item indicates the presence of a valid analog video
signal at the input. Analog-Inp indicates if an input signal is
NA (not available) or Present.
SDI-Input This status item indicates the presence of a valid Serial video
signal at the SDI input. SDI-Input indicates if an input signal
is NA (not available) or Present.
Reference This status item recognises a valid reference input on the chosen
reference input. Status is not fedback when there is no input.
Reference indicates if a reference input is NA (not available)
or Present.
Format-Det 625-Lines and 525-Lines standards can be detected as the
valid input signal format, 625/50 and 525/60 are recognised as
valid inputs.
EDH-Stat EDH-Stat, indicates the status of the EDH within the incoming
SDI signal.
OK is indicated if the status of the detected EDH does not indicate
errors.
UES is shown if an EDH data block is not present.
EDA is displayed if an EDH error has previously been detected by
another card in the SDI chain.
EDH is displayed if a previously undetected EDH error is detected
by this device.

18
GrpInUse_In GrpInUse_In indicates the audio groups that are already
present in the incoming SDI signal. The indication of a group, or
groups being present is as follows,
Display
____
1___
_2__
12__
__3_
1_3_
_23_
123_
___4
1__4
_2_4
12_4
__34
1_34
_234
1234
When no groups are present GrpInUse_In indicates ____.
Grp-Ins When the serial digital video signal already contains audio data
and Emb-Mode is set to Append and the selection Emb-Sel is
set to the same group number as the present audio, this status item
will generate an Error. No embedding occurs for the selected
group that creates the error. If Emb-Mode is set to Overwrite
the present audio data will be lost, and replaced by the new audio
data. If Emb-Mode is set to Overwrite, no Grp-Ins error
can occur. If an error does not occur Grp-Ins will indicate
Ok.
Audio-CH_A1 Audio-CH_A1 displays the status of audio channel A1. The
status can be NA (not available) or Ok.
Audio-CH_A2 Audio-CH_A2 displays the status of audio channel A2. The
status can be NA (not available) or Ok.
Audio-CH_A3 Audio-CH_A3 displays the status of audio channel A3. The
status can be NA (not available) or Ok.
Audio-CH_A4 Audio-CH_A4 displays the status of audio channel A4. The
status can be NA (not available) or Ok.
