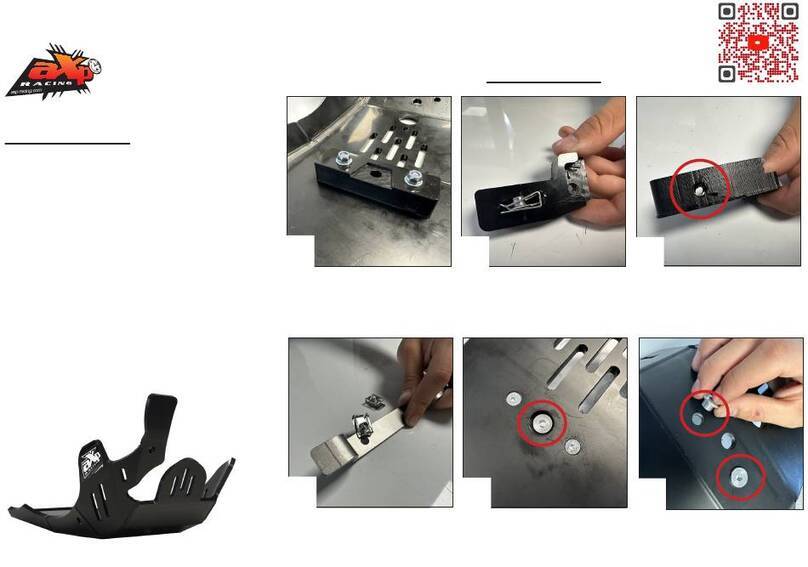

aXp RACING AX1712 Installation guide

Assembling
instructions
Approximate time of assembly: 5 minutes.
A skid plate is made to protect the vital components of your bike and does not have
a « life warranty ». However, production default may happen and we cover it during
the rst year of use.
In case of premature breakage, please write to [email protected]
The paper instructions may be limitless, a tutorial video is available online
to help you.
The pictures below might show different components but their function is
the same. This does not impact the assembly of the skid plate.
What’s in the box ?
1 PM01-04-268 - Front xation 20mm
2 NE01-04-002 - Clamped bolts
2 NE10-01-004 - Alloy spacers
2 NE01-04-003 - EM6F bolts
2 NE01-02-002 - Screws TFHC 6x20mm
2 NE01-10-001 - Screws THF 6x30mm
1 NE04-01-219 - Sticker
AX1712
KTM 250/350 EXCF
Xtrem skid plate

2
345
678
Place the 2 TFHC 6x20 screws
+ EM6F bolts in the holes.
Tighten the screws. Place the front xation on the
frame.
Insert the plate on the frame
using the 2 hooks.
Lift the plate. Insert the 2 THF 6x30 screws +
alloy spacers and tighten.
You’re all ready to ride !
Adjust in height.
1
Place the two clamped bolts inside the
front xations.
Follow the steps
