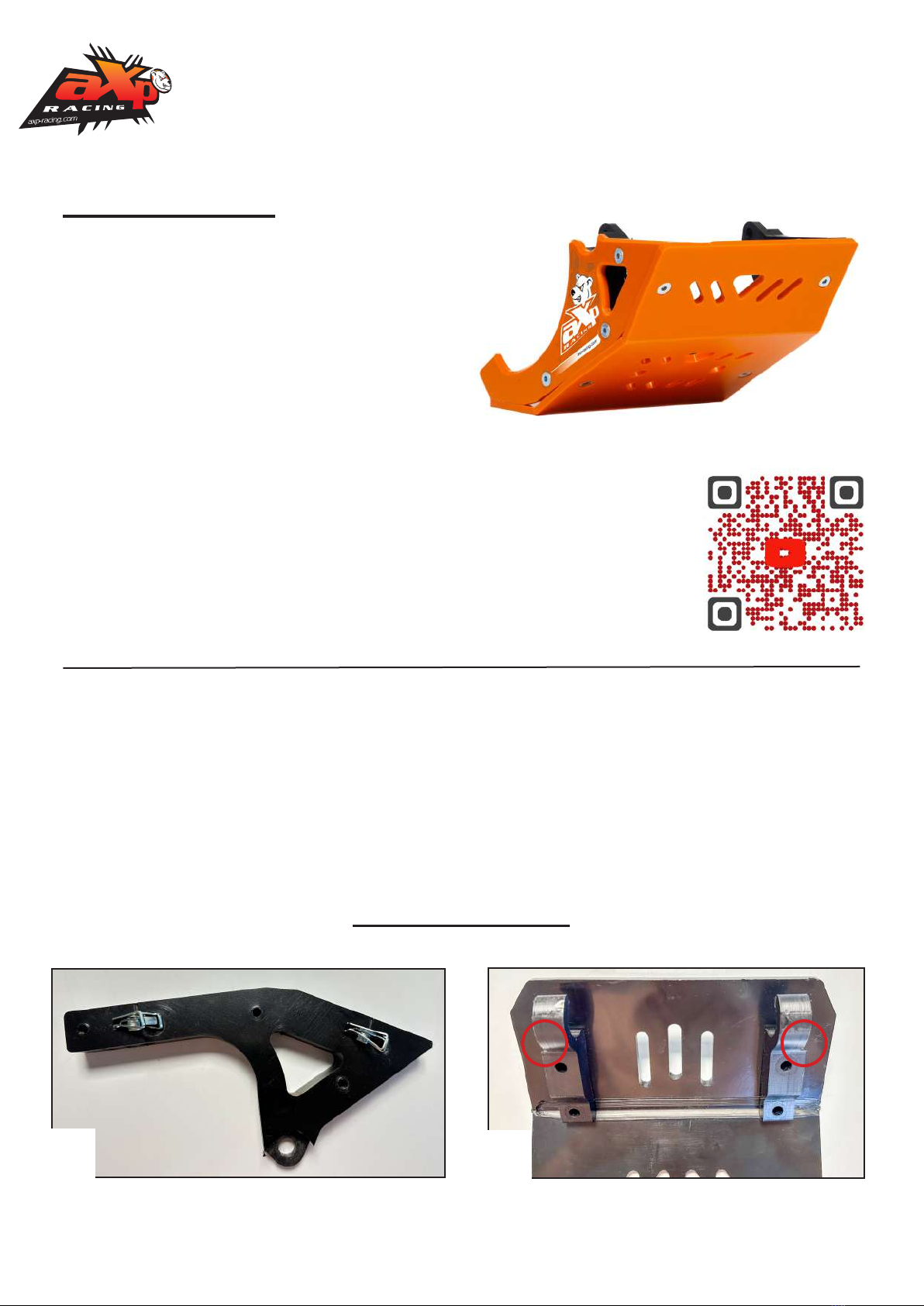

aXp RACING AX1706 Installation guide

Assembling
instructions
Approximate time of assembly: 15 minutes.
A skid plate is made to protect the vital components of your bike and does not have
a « life warranty ». However, production default may happen and we cover it during
the rst year of use.
In case of premature breakage, please write to [email protected]
Follow the steps !
12
Place the clamped bolts inside the front
xations.
Place the rear hooks with the machined faces
on the outside.
The paper instructions
may be limitless, a
tutorial video is available
online to help you.
The pictures might not
represent the same skid
plate but the tment is
similar.
What’s in the box ?
4 NE01-04-003 - EM6F bolts
4 NE01-03-001 - EM6 washers
6 NE01-02-003 - TFHC 6x25 screws
6 NE01-02-001 - TFHC 6x16 screws
2 NE01-02-004 - TFHC 6x30 screws
2 NE01-01-004 - TBHC 8x25 screws
2 NE01-04-001 - EM8F bolts
4 NE01-04-002 - Clamped bolts
1 PM01-04-263 - Front left xation
1 PM01-04-264 - Front right xation
1 PM01-04-265 - Rear left hook
1 PM01-04-266 - Rear right hook
1 PM01-07-064 - Left cover
1 PM01-07-065 - Right cover
1 NE04-01-244 - Sticker
Surron - LightBee
AX1706
Skid plate

345
6 7 8
910 11
Place the smaller screw
(6x25mm) in the bottom hole,
the 6x30 screw on top and
tighten.
Repeat the operation on the
other side.
Remove the plastic protection.
Place the front right xation
using 8x25 screw + EM8F bolt
and tighten.
Place the plastic protection
back and x the second front
xation on the left side.
Insert the plate on the frame
using the 2 hooks.
Lift the plate up and tighten the
four 6x25 screws.
Place the stickers and x the
cover using the three 6x16
screws. Repeat the operation
on the other side.
You’re all ready to ride !
Lift the cable up.
