aXp RACING AX1725 Installation guide

Assembling
instructions
Approximate time of assembly: 15 minutes.
Radiator guards are made to protect the vital components of your bike and does not
have a « life warranty ». If you notice a defect on your radiaor guards at reception,
please write to [email protected]
The paper instructions may be limitless, scan
the QR code to watch the tutorial video online.
What’s in the box ?
6 NE01-03-001 - M6 washers
4 NE01-01-008 - TBHC 6x25mm screws
2 NE01-01-009 - TBHC 6x20mm screws
Fantic
AX1725
Radiator braces

123
46
7
Remove the plastic protections
on both sides.
Pinch the hose for an easier
mounting.
Place the TBHC 6x25mm
screw + M6 washer in
the top hole.
You’re all ready to ride !
Place the aluminium guard on
the radiator using the OEM
screw.
9
8
Use the screwdriver to place the
plastic correctly.
Place the plastic protection
back in place and use the
TBHC 6x25mm + M6 washer in
the bottom hole.

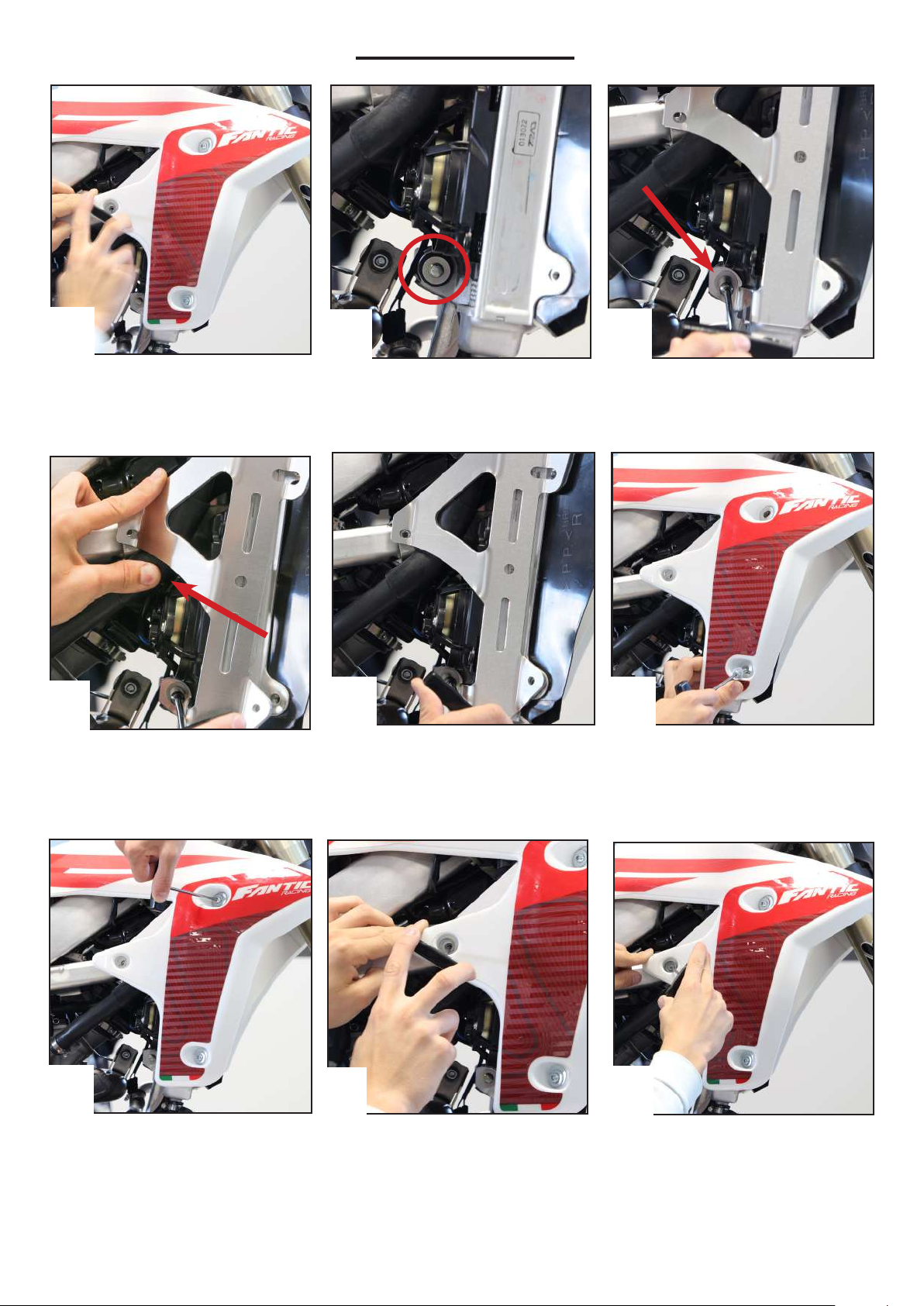

Follow the steps
Use the 6x20mm screw +
M6 washer and tighten all
the screws. Then, repeat the
operation on the other side.
Tighten the OEM screw.
5
Remove the OEM screw.
