aXp RACING AX1687 Installation guide

Assembling
instructions
Approximate time of assembly: 15 minutes.
A skid plate is made to protect the vital components of your bike and does not have
a « life warranty ». However, production default may happen and we cover it during
the rst year of use.
In case of premature breakage, please write to [email protected]
Yamaha - YZ450F/ YZ450FX
The paper instructions may be limitless, a tutorial video is available online to
help you.
Scannez le QR code pour regarder la vidéo de montage.
What’s in the box ?
2 NE01-04-002 - Clamped bolts
2 NE10-01-004 - Alloy spacers
2 NE01-03-001 - M6 washers
2 NE01-04-003 - EM6F bolts
2 NE01-02-002 - TFHC 6x20 screws
1 NE01-06-010 - TH 6x15 screws
2 NE01-06-026 - TH 6x25 screws
1 NE04-01-247 - Sticker
1 PM02-07-028 - Front steel part
1 PM01-07-037 - Rear xation PHD 6mm
AX1687
Skid plate

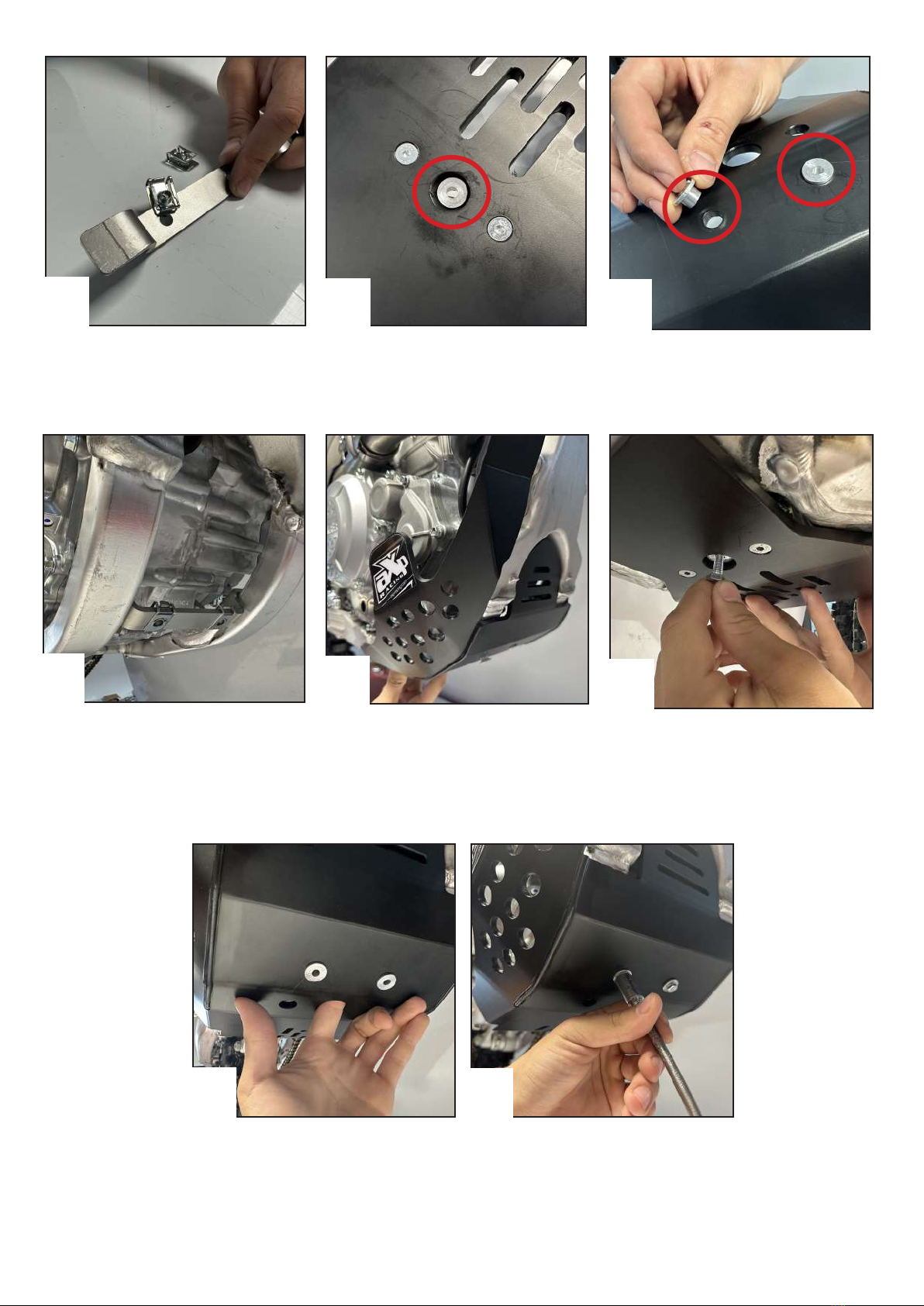

Follow the steps !
123
Place the small block on the
rear part of the plate.
Place the TFHC 6x20 screws +
washers + bolts.
Tighten both sides.

456
789
10 11
Place the clamped bolts on the
steel part. Make sure to align
them to the holes.
Place the alloy spacer on the
back of the plate.
Plate the alloy spacers on the 2
front holes of the plate.
Place the plate, it must t
perfectly to the frame. Place the TH 6x15 screw at the
back rst and tighten.
Use your nger to maintain the
steel part in place and have the
clamped bolts aligned to the
holes.
Place the steel part inside the
frame. The round sides of the
clamped bolts must be upwards
and the part rest on the welds
of the frame.
You’re all ready to ride !
Place the TH 6x25 screws in
the front holes and tighten.
