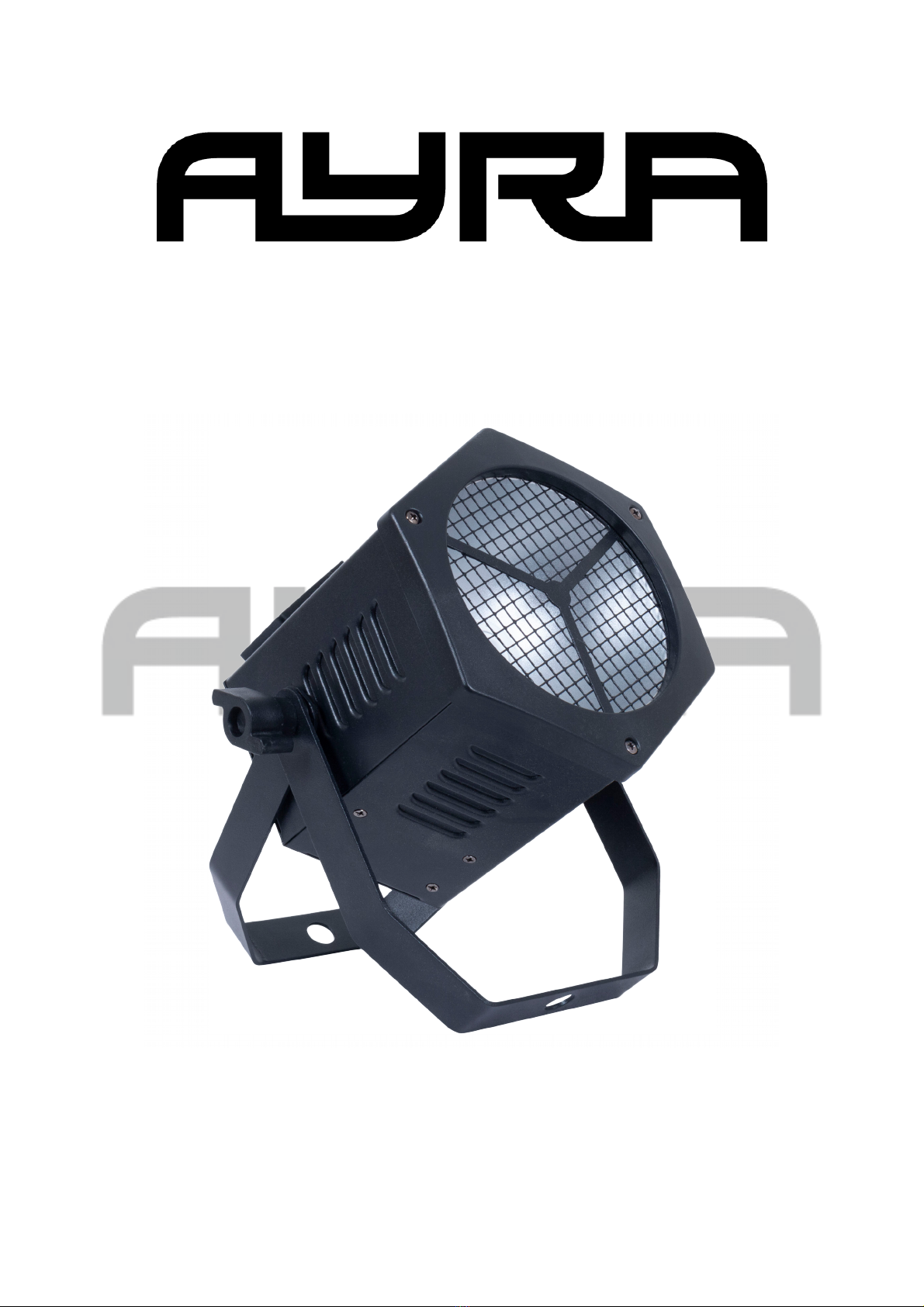

Ayra IntenZ CB040 User manual

IntenZ CB040
40W RGBW LED Blinder / Spotlight
User Manual
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials: 07-10-2019 RV Revision date and author's initials: -

Introdu tion
Thank you for purchasing the Ayra IntenZ CB040. This versatile spot fixture is fitted with potent GBW LED-
chips and a diffuser and reflector to give your lighting a traditional, industrial effect. This manual provides all
the information you need to know about the product before you start using it.
We advise that you read this user manual in its entirety before unpacking the contents of the box, so that you
are familiar with all of the functionality that this product has to offer. Please make sure to check that all of the
parts and accessories listed below under 'Box Contents' are included in the package. In the event that the
IntenZ CB040 does not function properly, or if you have any issues while operating it, please remove the plug
from the power socket and contact your retailer for assistance.
Box Contents:
- Ayra IntenZ CB040 Fixture
- Connection cable from IEC C13 to Schuko, 1.5 mm²
Please inspe t the devi e and in luded a essories
Should you discover that either the device or one or more of the included parts have been damaged or
rendered defective while in transit, please contact your dealer directly.
Please note that the pictures in this user manual serve illustrative purposes only and may differ from the
actual product.
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials: 07-10-2019 RV Revision date and author's initials: -

Safety Instru tions
Everyone involved with the installation, operation and maintenance of this device must:
- Be qualified.
- Be skilled.
- Have read the instructions included in this user manual.
- Be sure that neither the device nor the included accessories are damaged. Should the device or the
included accessories be damaged, please contact your retailer for more information.
- Ensure that the device is in good working condition and is safe to operate. Please follow the advice and
instructions as they are described in this user manual.
Damage caused by misuse and/or modifications made to the device are not covered by the warranty.
This device does not contain any parts that can be repaired or replaced by the user. Should maintenance or
repairs be necessary, they must be handled by a qualified technician.
The light source of this device is not replaceable. If the light source no longer functions, the entire device
needs to be replaced.
Important information regarding health and safety:
- Do not remove any labels or stickers from this device.
- Do not leave any cables lying around.
- The device should not be opened up and any hardware or software that may be present should not be
modified.
- To achieve optimal performance, any inputs on the device should not be fed with a signal higher than
necessary.
- The device should only be used indoors; contact with water, rain and moisture should always be avoided.
Do not place any objects containing liquid on top of the device.
- emove the device from any nearby flames or heat sources; do not place it near flammable fluids, gasses
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials: 07-10-2019 RV Revision date and author's initials: -
WARNING!
Keep this devi e away from moisture, water and rain to avoid the han e of ele tri sho ks!
WARNING!
Only onne t this devi e to a suitable power so ket. This devi e fun tions on a spe ifi power
voltage. If it is plugged into a power so ket with a different voltage, it ould result in permanent
damage and even dangerous situations su h as fire or ele tri sho ks.
WARNING!
Be areful when operating this devi e. Tou hing the wires that are onne ted to the mains,
inside or outside the devi e, ould result in ele tri sho ks!

or objects.
- Disconnect this device from a power source if it is not being used for a long period of time; if maintenance is
necessary, or if it needs to be cleaned.
– Do not pull or tug on the cable to remove a connector as this may cause damage.
- Do not use any cables other than the ones described in this manual. Do not use defective cables. Please
contact your retailer if the included or necessary cables do not function properly with this device.
- Only use this device with a stable AC power supply.
- Only use this device with power from a grounded power source.
- In the event that the device is exposed to extreme temperature changes (e.g. transported from a cold
outdoor environment into a warm indoor environment), it should not be turned on until it has reached room
temperature. This is necessary to prevent moisture (condensation) from forming inside the device, which
could lead to electric shocks.
Guidelines and operation of this devi e:
- This device is intended for use by professionals on stage, in theatres, in clubs and in similar entertainment
locations.
- This device is not suitable for use by children and should always be operated by an adult.
- This device is designed to create light effects for entertainment purposes. It is not suitable for household
illumination.
- This device may only be used in a suitable environment where no damage to the device can occur. Do not
use the device in moist or dusty environments such as:
- indoor swimming pools where chlorine is used
- beaches or any location where sand and/or salt is present
- outdoors
- indoors in spaces where intense heat sources are present, or where it can reach temperature levels
that would be considered uncomfortable for a person
- Avoid impact and collisions during use and transport. Do not move or transport the device while it is in use.
Avoid using excessive force when installing and operating the device.
- Any user must become familiar with the functions of this device before using it.
- Should the device not be used in the manner described in this user manual, damages or even injuries could
occur. Ayra cannot be held responsible for any injuries or damages that occur as a result of improper use of
this product.
Storage and transport:
- This product was designed for mobile use. Please only transport the device in the original packaging, or in
a flight case with a suitable foam inlay.
- This device was not designed for permanent (24/7) use. The expected lifespan of the device will not be
affected by occasionally turning the device off. Disconnect the device or turn off the power when it is not
actively in use.
- If the device is not in use for a long period of time, it should be disconnected and stored in a dust-free
environment.
- Do not expose the device to extreme temperature differences.
Housing:
- Inspect the device's housing frequently and always just before use. Avoid operating the device if there are
any large dents or cracks, or if screws are missing. Do not use the device if the housing is not in good
condition.
Contact your dealer or a qualified technician if you are unsure about the state of the device.
- Check the device and the screws for corrosion. Corrosion must not be present on this device. Contact your
dealer or a qualified technician if you find any corrosion on the screws.
Every power and signal connector should be securely attached. Do not use the device if the connectors are
not secure.
- Avoid dust and dirt build-up. Clean the device once a month by disconnecting it from the power supply and
wiping it down with a dry or slightly moist cloth. If the device is used frequently, the cleaning intervals should
increase.
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials: 07-10-2019 RV Revision date and author's initials: -

Symbol Explanation:
WEEE: Ensure that this device is disposed of properly. This product falls under the WEEE
(Waste Electrical and Electronic Equipment) directive. The requirements of this directive apply
to all manufacturers and producers of electronic devices in the EU. Do not throw this product
away with regular rubbish. Please contact your local authority for more information about how
to recycle and dispose of these products in your region. By recycling this product in the proper
manner, we can work together to ensure that we can continue to enjoy these kinds of
products and still protect the environment as much as possible from pollution.
CE: The CE logo indicates that this product meets the European norms and requirements to
which it must legally conform.
Suitable for indoor use only: this product was only designed for indoor use. The maximum
environmental temperature must not exceed 40 degrees Celsius (104 degrees Fahrenheit).
Conta t:
Ayra professional lighting products
Verrijn Stuartweg 18
4462 GE Goes
The Netherlands
Please do not send any products to this correspondence address.
Should you wish to send in a product for repairs or for a refund, please contact your dealer for an RMA
re uest (Return Merchandise Authorisation).
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials: 07-10-2019 RV Revision date and author's initials: -

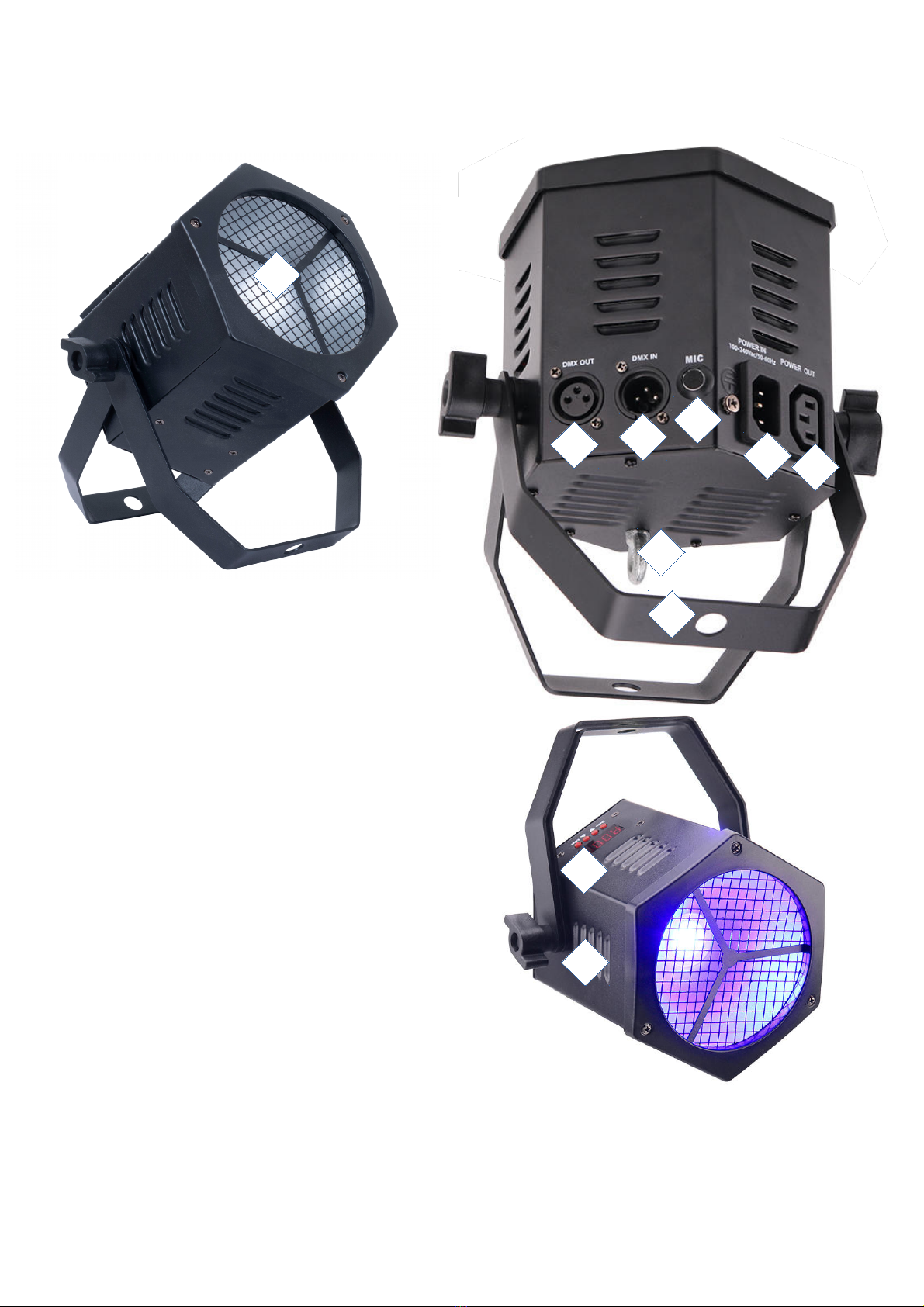

Operation Guidelines for this Devi e
1. Light Output
2. DMX output via 3-pin XL
3. DMX input via 3-pin XL
4. Microphone
5. Power input via IEC C14
6. Power output via IEC C14
7. Safety-eyelet
8. Double suspension bracket / floor stand
9. LED Display with Menu buttons
10. Ventilation grille
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials: 07-10-2019 RV Revision date and author's initials: -
256
7
8
1
3
4
9
10

Operation and Mounting
To activate the device, plug it into a mains socket. Once it's connected to an active power source, it will turn
on automatically.
The device cannot be operated while it is still starting up and displays the ‘AY A’ logo. Once the device has
fully started up, it will automatically jump to the last mode and setting. Operation modes and other settings
shown on the display can now be adjusted or changed via the menu buttons.
If a DMX signal is detected, the device shall automatically switch to DMX mode and the DMX address that
was last used. For a new device, this is usually DMX address 001. The DMX address can of course be
changed via the display and menu buttons.
The functions, modes and settings can be changed by using the display and menu buttons. Push ‘Enter’ to
select a function or to confirm a change. Push ‘Up’ and ‘Down’ to change any values and push the ‘Menu’
button to return to the main menu. A few seconds after confirming a setting by pressing ‘Enter’, the device
shall automatically return to the main menu and perform the set actions. This can be sped up by holding the
‘Menu’ button down for 2 seconds after confirming a setting by pressing ‘Enter’. This is usually done after
adjusting the working mode or DMX address.
The Menu includes the following options and fuctions:
Display Mode Fun tion
ADDR / A001 DMX Address Configuration Address A001 … A512
CHND Channel Mode Selection 5CH / 7CH / 9CH
MASL Slave Mode Master
Slave
COLO Fixed Colours kleuren CO 1-15 Colour presets
ST O 0-100 (Stroboscope effect, slow to fast)
JUMP Colour Jump Mode JU 1-100 (Colour jump effect, slow to fast)
ST O 0-100 (Stroboscope effect, slow to fast)
FADE Colour Fade Mode FA 1-100 (Colour fade effect, slow to fast)
ST O 0-100 (Stroboscope effect, slow to fast)
MANU Manual Mode ST O 0-100 (Stroboscope effect, slow to fast)
DIMM 0-100 (Master Dimmer 0-100%)
ED 0-100 (Dimmer ed 0-100%)
G EE 0-100 (Dimmer Green 0-100%)
BLUE 0-100 (Dimmer Blue 0-100%)
WHIT 0-100 (Dimmer White 0-100%)
SOUN Sound-Controlled Mode Mode: ON / OFF
SENS Sound Sensitivity 0 - 100: Sensitivity in %
DIMC Dim Curve HALO Halogen simulation
LI Linear
EO Exponential
LO Logarithmic
SC S-curve
BLND Blackout Mode NO: Fixture switches to auto stand-alone
operation in event of DMX signal loss
YES: Fixture switches to blackout in event of
DMX signal loss
LED LED Display On / OFF when not
in use
ON/OFF
DISP Display Inversion Display Invert, disp - dslp
TEST Test Mode Test programme to check the operation of each
LED by illuminating each LED one by one
TEMP Temperature Display Displayed in Degrees Celsius
FHRS Duration of use 0000 – 9999 Hour of use
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials: 07-10-2019 RV Revision date and author's initials: -

VER Firmware Version Displays current version of firmware installed.
This cannot be adjusted or changed
An explanation of all available fun tions an be found below:
ADDR: With this function, you can determine the DMX start address of the device. Set it channel 001, and
the device will respond to DMX channel 1. Set it to channel 003, then the device will respond to DMX
channel 3 and so on.
CHND: This device can operate with various DMX channel modes. If your DMX circuit is reasonably full with
devices and you do not need extensive control over the functions, a concise channel mode can be selected.
It is also possible to select a more extensive channel mode, making more channels available for the control
of several separate functions.
SLND: Using the Master / Slave Mode, it’s possible to connect several devices of the same type with one
another, via DMX 3-pin XL cables so that they perform exactly the same movements and functions at the
same time. Therefore, single devices do not respond individually (or chaotically) and this results in a
completely coordinated show. In the Master / Slave function, the first device in the circuit is set as the Master
and does not receive DMX signal.
PLEASE NOTE: When Slave mode is activated, the device shall wait for a signal from the designated Master
device. Selecting an automatic or sound-controlled mode is then not possible! To cancel the Slave mode,
enter the ‘SLND’ menu and select ‘NAST’. This then sets the device to Master mode and the stand-alone
functions can then be activated once more.
COLO: Select one of the 15 built-in static colour presets. Then add an optional stroboscope effect.
JUMP: Alternate between diverse colours. One colour preset jumps to the next colour preset in one go. Then
add an optional stroboscope effect.
FADE: Slow colour fade with adjustable speed. One colour blends smoothly into the other. Then add an
optional stroboscope effect.
MANU: This is the manual colour mix function. Select a master level, add an optional stroboscope effect and
set a value per basic colour (red, green, blue, white) to mix a colour according to your preference.
SOUN: Deze instelling geeft aan of de microfoonfunctie van het apparaat in- of uitgeschakeld moet zijn. Dit
wordt aangegeven met de ON of OFF melding.
SENS: This mode allows you to set the sensitivity of the in-built microphone. The further the device is
installed from the sound-source, the higher the sensitivity of the microphone needs to be so that the sound is
registered and the device responds accordingly and in time to the music. The microphone is able to
withstand high sound pressure. However, if the sound is loud and the sensitivity is high, the microphone will
find it more difficult to register the beat. Experiment with the sensitivity and distance from the positioning of
the device to make sure you’re getting the best possible signal and optimum performance.
DIMC: Add the Dim Curve from the LED-engine, so that a halogen lamp can be simulated (for example). All
the different dimming curves can be experimented with to produce varied effects by dimming the LED in
relation to the rising or falling DMX value.
BLND: Use this function to set what the device will do in the event of DMX signal drop-out or loss. When set
to Master mode, the device shall start an in-built programme. In the LAST mode, the device remains in the
last active DMX command received. In the Blackout mode, all settings return to zero and that device no
longer moves or gives light.
LED: When the LED display is not in use, it can be switched off. By setting ‘LED’ to ‘Off’, this will prevent red
symbols from illuminating when the device is being used in dark spaces. If you press of the menu buttons,
the display shall immediately light up and show all necessary information. If the display is not used, it shall
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials: 07-10-2019 RV Revision date and author's initials: -

automatically switch off again within 30 seconds.
DISP: This function is useful when the device is suspended and the display screen is upside down. Use this
function to flip the screen so that it can be easily read when the device is suspended.
TEST: When the device needs to be checked, use the ‘TEST’ function to test one or more devices at the
same time. The device(s) shall continuously runs through a programme within which the LEDs are tested so
that any deviations or defects can be easily detected. The device shall continue to repeat the programme
until it is manually interrupted (when you switch the device to sound control, for example).
HOUR: If this device is used professionally or rented, it should be regularly maintained and inspected in
between use. The HOU function shows exactly how long the device has been in use. This amount
accumulates over time as long as the device is being used and cannot be manipulated by the user.
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials: 07-10-2019 RV Revision date and author's initials: -

Operation Modes
Please find a clear explanation of the differences between all available Operation Modes below and how they
are affected by the menu functions listed above.
Auto:
In Auto Mode, you can select one of the Operation Modes in which the device is not dependent on external
factors such as DMX signals, master signals or sound. Here, one of the basic programmes can be selected
such as setting the alternating speed or correcting the intensity.
Sound:
The sound-controlled mode or ‘sound mode’ uses an in-built microphone that registers the beat of music and
a runs a program based on this. For example, the device can move in virtual synchronisation with any music,
providing an automatic light-show.
When no music is detected or only highs are present in the music due to a break, the device will continue its
program at a slower pace. As such, the light show does not appear to come to a stand still. As soon as sound
is registered by the microphone once more, the device shall continue its program in synchronisation with the
beat.
Slave
In Slave Mode, it is possible to connect several devices of the same type with one another so that they
perform exactly the same movements and functions at the same time. Therefore, single devices do not
respond individually (or chaotically) and this results in a completely coordinated show. In theory, by adding a
DMX booster, an unlimited number of Slave devices can be linked to one Master device. Initially, no problem
would occur if 4 devices were linked and no DMX booster were added.
Please note: If you link devices of a different type or brand (even if they appear to have the same function),
chaotic or strange behaviour can occur. This is often because certain functions are linked to the incorrect
channels. This applies to DMX lighting of all types and brands.
DMX
The DMX Mode is the most comprehensive mode for optimum control over all functions of this device. Via
DMX, it is possible to control either a limited or large amount of functions via a DMX controller or DMX
software.
The device can be set to different channel modes so the channel layout (included below) is in alignment with
the layout of your DMX circuit and with the functions you want to use.
DMX modus
5CH mode:
CH Fun tion Value
1 Master dimmer 000-255 (0-100%)
2 Dimmer ed 000-255 (0-100%)
3 Dimmer Green 000-255 (0-100%)
4 Dimmer Blue 000-255 (0-100%)
5 Dimmer White 000-255 (0-100%)
7CH mode:
CH Fun tion Value
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials: 07-10-2019 RV Revision date and author's initials: -

1 Master Dimmer 000-255 (0-100%)
2 Stroboscope / Shutter Channel 000-007 LED On
008-015 LED Off
016-131 Stroboscope, slow to fast
132-139 LED On
140-181 Fast out, slow on, pulse effect, slow to fast
182-189 LED On
190-231 Slow out, fast on, pulse effect, slow to fast
232-239 LED On
240-247 andom Strobe
248-255 LED On
3 Dimmer ed 000-255 (0-100%)
4 Dimmer Green 000-255 (0-100%)
5 Dimmer Blue 000-255 (0-100%)
6 Dimmer White 000-255 (0-100%)
7 Dim Curve 000-050 Linear
051-101 Exponential
102-152 Logarithmic
153-204 S-curve
205-255 Halogen
9CH mode:
CH Fun tie Waarde
1 Master dimmer 000-255 (0-100%)
2 LED on / strobe 000-007 LED on
008-015 LED off
016-131 Stroboscope slow to fast
132-139 LED on
140-181 fast on, slow off pulse-effect, slow to fast
182-189 LED on
190-231 slow on, fast off pulse-effect, slow to fast
232-239 LED aan
240-247 random strobe
248-255 LED aan
3 Dimmer red 000-255 (red 0-100%)
4 Dimmer green 000-255 (green 0-100%)
5 Dimmer blue 000-255 (blue 0-100%)
6 Dimmer white 000-255 (white 0-100%)
7 Colour modes 000-005 No function
006-125 Colour 1-15
126-128 Colour stop
129-192 Colour jump, slow to fast
193-255 Colourfade, slow to fast
8 Sound-controlled mode 000-005 No function
006-255 Sound-controlled mode, sensitivity low to high
9 Dimcurve 000-050 Linear
051-101 Exponential
102-152 Logarithmic
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials: 07-10-2019 RV Revision date and author's initials: -

153-204 S-curve
205-255 Halogen
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials: 07-10-2019 RV Revision date and author's initials: -

Installation and Conne tion Instru tions
Now you know how the IntenZ CB040 works. So that the device is used in the correct and safest way, please
make sure to follow the installation and connection instructions.
Make sure that children do not have access to the device or any connecting cables. If there are children
present, make sure that they are supervised. Since the device can be placed upright or be suspended, it is
possible for children to pull on any connecting cables and cause the device to fall. To prevent any accidents
or injury, this must be taken into account whenever the device is being positioned and/or installed.
Upright use
When you want to place the IntenZ CB040 in an upright position, make sure that the device is placed on a
stable surface such as a table, DJ booth or bar. The IntenZ CB040 is not fitted with rubber feet to grip the
ground and stabilise the device. As such, always make sure that the light is positioned on a stable surface
and that any cabling is secured so that no one can trip and knock or pull the device over.
Suspended use (bra kets)
Should you want to suspend the IntenZ CB040, use the suspension brackets, tightening knobs and rubber
rings included.
Place the rubber rings between the bracket and the fixture. Then tighten the knobs on both sides to make
sure that the bracket is secure.
If you want to suspend the device with a half-coupler or G-hook, this can be done by using the pre-drilled
holes in the bracket. Standard hooks and/or brackets for 35 or 50 mm tubes (trusses or light stands) are
available from your local retailer.
Hardware for mounting the IntenZ CB040 to the wall, ceiling, or beam is not included. Contact a specialist if
you're not sure what hardware is required for your situation. A wooden beam and stone wall require different
mounting methods.
When the IntenZ CB040 is suspended, you will need to attach a safety cable to the fixture. This is not
included but is available at your local retailer. The device is fitted with an attachment point for hooking a
safety cable. Once hooked on, the cable can be wrapped around the truss or light stand and attached once
more to the same hook. This ensures the device is secure and prevents it from falling, even if one or both of
the brackets should come loose and fail.
Ensure that the safety cable has a load capacity of 10x the weight of the armature and that the device can
not fall farther than 30cm. You can wrap the safety cable around the truss or light stand several times to
ensure the fall is as short as possible. The shorter the fall, the less chance of damage or injury.
Light sour e
The IntenZ CB040 uses powerful LED modules that are made even more powerful by a special lens that
combines and focuses these beams, much like a magnifying glass. Since the human eye cannot adjust
quickly enough to sudden and intense exposure to the level of brightness this device produces, never look
directly into the lens at close range. While it won't result in permanent damage, it can cause temporary blind
spots which may cause disorientation and discomfort.
Cooling
The IntenZ CB040 is cooled by a ventilation fan fitted in the housing. This fan activates when the device is
switched on. Make sure the fans and vents are not blocked and regularly check that they are functioning
normally. Be aware that should the fans becomes clogged with substances like dust, smoke and moisture,
this may impair operation and shorten the life-span of the device.
Parts and repairs
This product does not include spare parts and can not be repaired by the user. Any inspections and overall
maintenance should be carried out by a specialist only.
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials: 07-10-2019 RV Revision date and author's initials: -

Cleaning and maintenan e
Clean the exterior of this device on a monthly basis with a dry, or slightly damp microfibre cloth. Ensure that
the device is unplugged before cleaning it.
Check that all screws are intact and secured and tighten or replace them where needed. Check all metal
parts of the device for any signs of corrosion. If corrosion is found, the device needs to be checked
thoroughly.
Power Output
The IntenZ CB040 is fitted with IEC C14 power input and an IEC C13 power output. This makes it possible to
link multiple devices with one single power supply, wall socket or power block.
The fuse fitted in this device is intended to protect that single device only. The input and output of the power
supply are directly wired to each other.
Since a standard 230 V group can handle a maximum load of 16A, and each InteZ CB040 consumes energy
itself, the output can only handle 9A worth of external devices. This also includes a calculated safety margin.
This is more than enough room to connect multiple LED light effects to each other without having to use
more than one power socket. Avoid connecting high-power equipment such as powerful smoke machines
and high-output halogen lighting.
DMX Terminator
When using the device in DMX mode, it is common for a ‘terminator’ to be used at the end of the DMX
circuit. A DMX terminator is a terminal resistor, consisting of a 120 Ohm resistor placed between the second
and third pins to eliminate any data reflections. Data reflections can cause strange behaviour in DMX
controlled devices.
DMX-terminators are sold read-made but it is possible to solder a 120 Ohm resistor between the second and
third pins of a standard, male XL connector.
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials: 07-10-2019 RV Revision date and author's initials: -

DMX Lighting Troubleshooting
If you have a problem with your DMX light effect, please consult the troubleshooting section for possible
solutions. If, after consulting this section, the problem remains unresolved, please contact your retailer for
more information and/or help.
This troubleshooting section contains information on how to solve the most common DMX light effect
problems, but it does not and cannot cover every eventuality.
Problem Possible Cause Solution
The device can not be turned on The fuse is blown Check the fuse to rule out if it is
blown or not. If it is blown, replace
it with a new fuse of the same type
and class.
Power cable not plugged in Check if the power cable is
properly connected to the device
and plugged into an active power
socket.
The device is not reacting to DMX
signals
Incorrect DMX start address Check if the device has been set
to the correct DMX start address
DMX controller is set to ‘Blackout’ Make sure the ‘Blackout’ function
on the DMX controller is not
activated
Make sure the polarity switch on
the DMX controller is set correctly
Try to reverse the DMX polarity
switch on the DMX controller.
The device is not reacting, there is
no DMX signal indication
Make sure the XL cables are
connected properly and are not
defective. eplace if necessary.
The device does not react to
sound/music
Incorrect operation mode Make sure the sound-activated
mode has been selected.
The internal microphone sensitivity
is too low
Check the microphone sensitivity
level and increase it if necessary.
The speaker is too far away, or is
not producing enough low tones
Place the light effect closer to a
speaker (or vice versa) and/or
increase the low-frequency level.
The built-in microphone is not
triggered by high tones.
The amount of projected light is
minimal
Dirty or dusty optics Clean the lens and/or other optics.
Dimmer is not completely open Check if the dimmers on the
spotlights themselves and/or if the
master dimmer is completely open.
Also, check the colour balance
settings.
The DMX signal appears to be
interrupted and some devices are
flashing or behaving strangely
Damaged/defective cables Check and replace the DMX
cables if necessary.
Power interference on the DMX
signal
Avoid connecting signal cables
parallel to power cables.
DMX terminator missing Close the DMX circuit with a DMX
terminator
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials: 07-10-2019 RV Revision date and author's initials: -

Signal loss or interference in the
DMX circuit
Close the DMX circuit with a
terminator or connect a booster
after maximum 32 fixtures.
The device is not reacting properly
to DMX commands
Incorrect DMX channel mode Check that the correct DMX
channel mode is set
The operation mode can not be
changed
The device is in Slave mode If the device is in Slave mode, it
will wait for a master signal unless
there is a DMX signal present. Set
the device to Master to activate the
sound-controlled or automated
operation modes.
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials: 07-10-2019 RV Revision date and author's initials: -

Te hni al Spe ifi ations
Basi Fun tions:
- LED fixture with with broad spread
- Metal construction with protective grille
- Standard U-form double suspension bracket
- 40 Watt GBW LED per pixel, with warm white
- Diverse operation modes
- Adjustable Dimmer Curves
- Display with Menu buttons
- Industrial design with numerous application capabilities
- Power input and output for easy power distribution to multiple fixtures
Te hni al Details:
- Light source: 40W Tianxin COB GBW LED-chip
- LED-chips fitted with a diffuser and reflector for wide beams
- LED-Display with Menu buttons
- Operation Modes: Automatic, Sound-controlled, Master / Slave, DMX
- Dimmer Curves: Linear, halogen, S-curve, square, inverted square
- LED-calibration and correction options
- Power input: IEC C14
- Power output: IEC C13
- DMX input and output via 3-pin XL
- DMX Channel Mode: 5, 7, 9 channels
- Power capacity: 48 Watt maximum
- Power supply: 100-240V AC, 50/60 Hz
- Power factor: 0.665 at 110V, 0,640 at 220V
- Maximum surface temperature of housing: 46°C
- Operation temperature: 0°C to 40°C
- Weight: 1.8 kg
- Dimensions: 159 x 215 x 200 mm
Performan e:
- Beam angle: 98 Degrees
- ed: 306 lumen at 1m
- Green: 269 Lux at 1m
- Blue: 292 Lux at 1m
- White: 182 Lux at 1m
- Full on GBW: 907 Lux at 1m
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials: 07-10-2019 RV Revision date and author's initials: -
