Ayrton magicpanel 602 User manual

USER MANUAL V.3.2
ENGLISH VERSION
12 16 2014

USER MANUAL _ 3
Introduction
Security instruction
Conditions of use
Presentation
Dimensions
Description
Installation instructions
Installation method using truss hooks
DMX512 connection
Using DMX via Art-Net
The luminaire’s DMX address setting
Instructions for using the wireless internal DMX system
Updating the fixture
Control Panel
MagicPanel 602 menu - Option details
DMX Chart
Care and maintenance
Cleaning
Compliance check
Technical Specifications
Foam for flight case
Warranty
Summary
4
4
4
5
5
6
6
7
7
7
8
8
8
8
9
14
16
16
16
16
17
17

USER MANUAL _ 4
INTRODUCTION
Thank you for selecting the AYRTON MAGICPANEL 602 luminaire.
WARNING !
This product is not suitable for household use.
You now own a professional lighting unit that offers endless possibilities.
Before installing, make sure that no damage was done to your luminaire
during transport. If this is the case, do not use the product and immediately
contact your authorized AYRTON dealer.
For your own safety and that of others, please read this instruction manual
carefully before installing this unit.
Anyone involved in installing, operating or servicing the 602 MAGICPANEL
must:
• Be a qualified, authorized professional.
• Strictly follow the instructions in this user manual.
Please take the time to read this manual carefully and thoroughly before
installing and operating the luminaire. You should have a good knowledge
of its operating conditions and all pertinent product information.
After you have become familiar with this manual, we recommend that you
keep a copy for future use.
All the information found in this manual is subject to change without notice.
AYRTON reserves the right to modify and upgrade its range of products,
with no obligation to integrate these changes into products already sold.
SAFETY INSTRUCTIONS
Please read the safety instructions and warnings in this manual carefully
before installing and operating the MAGICPANEL 602.
WARNING!
Risk of electric shock.
Use caution when handling. This luminaire requires high voltage,
which can result in electric shock.
The MAGICPANEL 602 left our factory in perfect working condition.
However, if you notice a defect, immediately contact your authorized
AYRTON dealer before use. The manufacturer cannot be held responsible
for damages caused by a failure to follow the safety, installation or
assembly instructions contained herein, or by any modification made to
the luminaire.
Failure to observe the safety, installation or assembly instructions
contained herein, or any modification made to the MAGICPANEL 602
luminaire will render the warranty null and void.
Check that the supply voltage does not exceed the maximum authorized
limit.
Check that your electrical installation complies with current standards.
In all cases,make sure that the power cables attached to your MAGICPANEL
602 have not been damaged due to cuts and splices or crushed in any
way. Handle these cables with extreme caution while they are connected
to a power source.
Your MAGICPANEL 602 conforms to Class 1 safety standards. The unit
must be grounded electrically.
Make sure that the power source connected to your MAGICPANEL 602 is
switched off before attempting any work on it.
Installation and connection to an electrical source must be performed
by an authorized installer. AYRTON declines all responsibility should this
luminaire be installed by an unqualified person.
Never disconnect your MAGICPANEL 602 by pulling on the power cable!
First unlock the connector lock ring on the power cable until it is fully
disengaged, and then gently pull on the connector to disconnect the cable.
Do not connect or disconnect the power cable of your MAGICPANEL 602
with wet hands.
At first use, your MAGICPANEL 602 may give off an odor. This is a normal
occurrence that should dissipate after a few minutes of operation.
WARNING!
Do not connect or disconnect the power cable at your
MAGICPANEL 602 if the cable is energized! This could cause arcing
and damage your MAGICPANEL 602, requiring repair.
Be careful to power off your MAGICPANEL 602 by removing the power
plug from the source, before connecting or disconnecting the luminaire.
WARNING!
This unit contains Class 2 LED emitters (EN60625-1): 1994)
This luminaire uses multiple high-power (Class 2) LED-type (Light Emitting
Diode) lamps. Never look directly into the lamps if lit or stand directly in
line with the luminaire if close by.
Installation, removal or replacement of the unit must be performed with
power off to prevent any risk of glare and eye injury.
WARNING!
The fixture quickly becomes very hot during operation.
To avoid risk of burn, never handle or adjust the luminaire while it is
energized and after it has been lit for more than 10 consecutive minutes.
Some parts of the luminaire can reach a high temperature, particularly the
body/radiator. Turn off the luminaire and wait for it to cool before handling.
CONDITIONS OF USE
Your MAGICPANEL 602 is a moving-head luminaire equipped with multiple
LEDs intended for professional use (e.g., architectural, stage, television,
theater, or museum lighting).

USER MANUAL _ 5
The MAGICPANEL 602 luminaire has an IP20 protection rating.
It is intended strictly for indoor use. It must never be partially or fully
submerged, even temporarily.
Condensation may form on your MAGICPANEL 602 in the following cases:
• Immediately after turning on the heating.
• In places with fog or a high level of humidity.
• When the luminaire is suddenly moved from a cold to a warm
environment, or vice versa.
In such cases, you must wait until the luminaire readjusts to the ambient
temperature of the room where it will be installed for operation.
Do not shake the MAGICPANEL 602 while installing or handling.
Do not by pull the MAGICPANEL 602 by one of its cables to move it. Lift
the luminaire by its handles.
Choosing the appropriate place to install the MAGICPANEL 602 is
essential. The following points should be observed:
• Do not expose it to a heat source.
• Do not install it near flammable materials.
• Be sure that dust or miscellaneous debris cannot clump around the
body of the luminaire as this may interfere with its optimal cooling and
proper operation.
The MAGICPANEL 602 must be installed out of reach of the public and all
persons not authorized to operate the luminaire.
We recommend a minimum distance of 20 cm between the outside
surface of the light and the illuminated object. The color mixture of the
MAGICPANEL 602 can be improved if the illuminated surface is very close
to the luminaire (up to about 50 cm).
Due to the nature of its cooling principle, you should never prevent air
from circulating around the body of the luminaire. You must provide a
minimum clearance of 20 cm around your 602 to allow for cooling.
The MAGICPANEL 602 can be installed in a ground pit or any other
confined enclosure only under certain conditions. With this kind of
installation, a system of forced ventilation should be used up to allow
air to circulate freely around the luminaire(s). The air must be constantly
renewed because the luminaire cannot be operated in closed system.
Failure to comply with these requirements may destroy or prematurely
wear the MAGICPANEL 602, and AYRTON cannot be held responsible.
Please consult your AYRTON dealer for more information on this type of
installation.
No load should be placed on the MAGICPANEL 602. The fixture must not
be installed in such a way as to allow a person, vehicle or any object to
run over or park on it.
Never lay or drop any hard, heavy, or blunt, objects on the MAGICPANEL
602. This includes items made of glass or porcelain (e.g., bottles,
dishware, or glass beads). The luminaire is made of materials such as
plastic and extruded aluminum, making it resistant but not unbreakable.
Objects made of hard materials such as steel or glass that fall on the
unit may cause breakage of the plastic parts or the body. AYRTON cannot
be held responsible for the luminaire’s broken plastic parts or body, not
covered under warranty.
The temperature of the room where the MAGICPANEL 602 is installed
must never exceed 45 °C (Ta = 45 °C).
The MAGICPANEL 602 luminaire requires a 110-240 VAC supply voltage.
Check that your luminaires have been installed for an application that is
compatible with this information.
Check that the bracket on which you hang or attach your MAGICPANEL 602
can sustain the weight of the luminaire (20 kg), taking into consideration
all necessary safety factors.
Do not use your MAGICPANEL 602 before being familiar with these
recommendations and do not allow unqualified personnel to handle the
product.
To transport your MAGICPANEL 602, we strongly recommend that you use
the complete original packaging, including the polyfoam inserts.
If your 602 MAGICPANEL is not being used for a long period, you should
disconnect the luminaire from the power source.
Never dispose of the MAGICPANEL 602 in a rubbish bin. Ensure that
it is recycled. Please consult the current legislation in your country on
recycling electronic equipment.
WARNING!
The number of daisy chain, or tandem, connections to the
MAGICBLADE-R (power input and output sockets on the luminaires)
is limited for safety reasons. The maximum authorized number of
connections is as follows, with the power line protected by a 10A
circuit breaker:
5 MAGICPANEL 602 on the same source at 230 VAC or
2 MAGICPANEL 602 on the same source at 110 VAC.
PRESENTATION AND FEATURES
MAGICPANEL 602 is a continuous-rotation moving head wash light (IP20
protection rating) using the latest generation of high-performance of LED-
type lamps.
This luminaire incorporates multi-chip LEDs using 4 colors: Red, green,
blue and white. This color-light luminaire operates on the CMY additive
color principle and along with white light can potentially render a palette
of 4.2 billion colors.
The MAGICPANEL 602 has a total of 36 15-Watt LEDs that can be
controlled independently. The luminaire requires from 18 to 160 DMX
channels to be controlled remotely via an external command system that
sends a DMX512 signal (see below for details).
To adjust the settings on the MagicPanel 602 (i.e., DMX address, DMX
operating mode and other options), an RDM (Remote Device Management)
-type DMX controller may be required. The DMX RDM protocol is a
universal, widely used standard.
There are a multitude of RDM DMX controllers on the market from different
manufacturers (excluding AYRTON). It is worth noting that an RDM DMX
controller is not required to change the settings on the MagicPanel 602. A
light console or any standard DMX-type controller is sufficient.

USER MANUAL _ 6
The MagicPanel 602 consists of a metal frame and plastic covers. The
luminaire is non-waterproof. The power connectors and DMX512 signal
connectors are on the back of the fixture’s base.

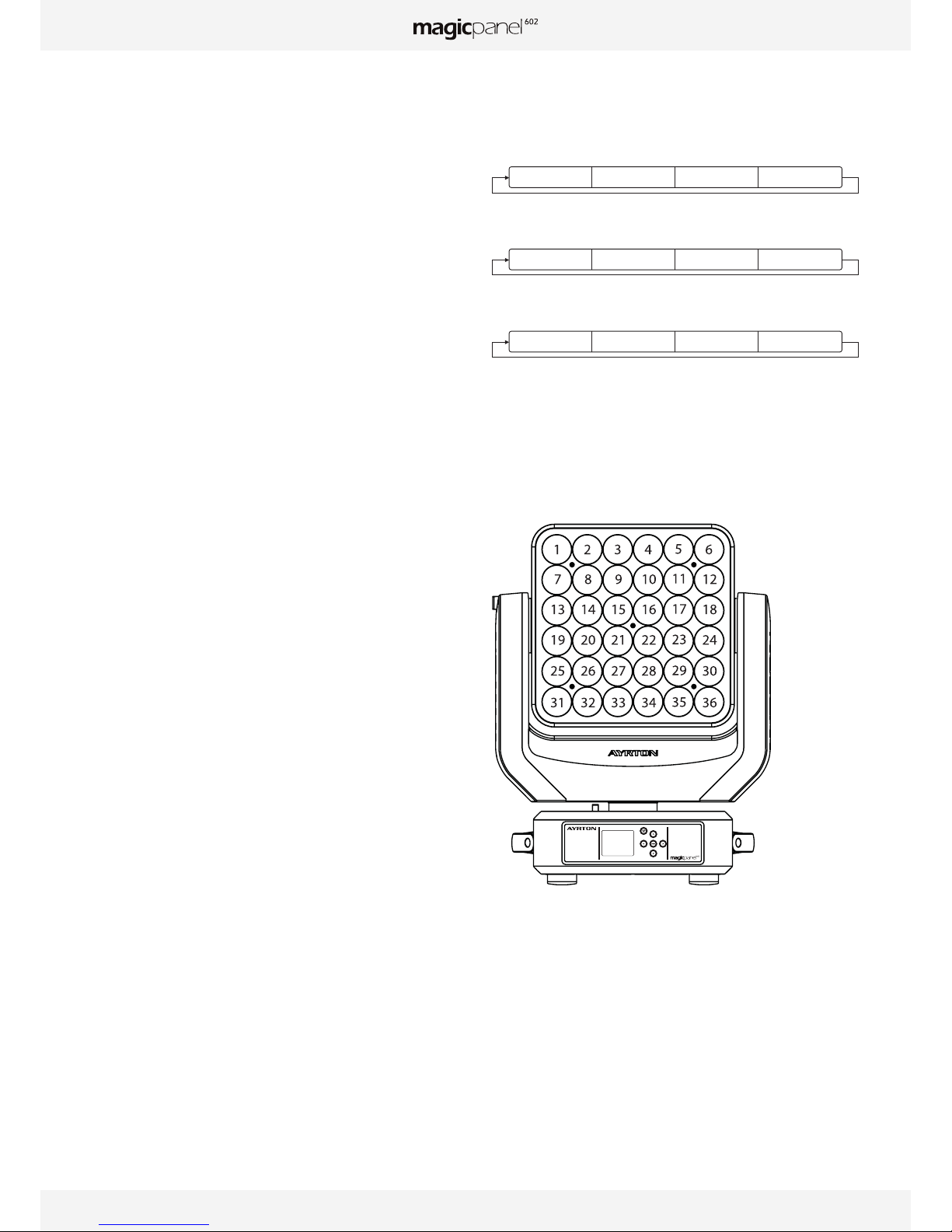

DIMENSIONS
Bottom view
Front view
Side view
DESCRIPTION

USER MANUAL _ 7
1. LCD display
2. Left button
3. Down button
4. Enter button
5. Right button
6. Handle
7. Up button
8. MODE/ESC button
9. Collimators
10. Antenna - Wireless DMX
11. DMX512 output connector (5-pin)
12. DMX512 input connector (5-pin)
13. RJ45 output connector
14. RJ45 input connector
15. Fuse holder
16. Power source input connector
17. Power source output connector
INSTALLATION INSTRUCTIONS
During installation please observe the instructions according to
GB7000.15 / EN60598-2-17 standards and other national standards
applicable.
This luminaire should be installed by a qualified technician.
The fixture should be used in an environment with a temperature between
-5 °C and +45 °C. Do not operate the luminaire outside this temperature
range.
The luminaire must be hung so that the weight of this unit multiplied by
10 can be sustained for 1 hour without causing the suspension system or
the supporting structure to be deformed.
The installation must always be secured at a second attach point, e.g., by
a safety cable of the appropriate size.
Do not stand under the luminaire while it is being installed, dismantled
or serviced.
The operator must ensure that a qualified technician has approved the
installation of the luminaire for safety before it is first operated.
Installation should be inspected once a year by a qualified technician.
WARNING!
The installation of this luminaire must be validated by a qualified
technician before it is used for the first time.
The luminaire should be installed in a location where the public cannot,
touch, walk or sit on the luminaire.
Suspending the luminaire and/or installing it high up requires considerable
experience, e.g., calculating load, selecting and adapting quality fastening
materials, and periodically inspecting the entire installation. Without this
skill and knowledge, do not attempt to install this unit by yourself. Improper
installation may cause an accident resulting in personal injury or death.
WARNING!
The luminaire should be connected to an electrical source by a
qualified electrician.
Before installing the luminaire make sure that the selected installation
spot can support at least 10 times the weight of the unit. Connect the
luminaire to the power source by the power cord.
INSTALLATION METHOD USING TRUSS HOOKS
Refer to the following diagram:
• Attach the clamp to the omega bracket using an M12 screw.
• Insert the quick-lock fasteners of the first omega bracket into the
respective holes on the base of the unit. Turn the quick fasteners fully
clockwise.
• Install the second Omega bracket.
• Insert the safety cable through the holes at the bottom of the base and
the truss or a stable attachment point. Insert the end into the hole and
tighten the safety screw.
Note: This step is very important to ensure that the luminaire does not fall.
DMX512 CONNECTION
Connect the DMX input (XLR connector) cable of the luminaire to the DMX
output (female XLR connector) of your controller.
You can connect multiple luminaires to this same DMX line in a daisy
chain.
The DMX cable must be a shielded twisted pair that is equipped with male
and female XLR connectors.

USER MANUAL _ 8
Refer to the following diagram:
Address 41 Address 21 Address 1
Warning:
To ensure maximum stability at a 100-120 VAC, no more than tow
luminaires should be connected together. A third luminaire should be
connected to another power source.
When the power voltage is 220-240 VAC, a maximum of five luminaires
can be connected together in this way. A sixth luminaire should be
connected to another power source.
DMX512 CONNECTION WITH TERMINATION PLUG
For installations where the DMX cable must extend over long distances,
or if it is located near areas with major electrical disturbance, it is
recommended to use a DMX termination plug. This helps prevent
luminaires from malfunctioning due to interference. The DMX termination
plug, composed simply of a male XLR input connector with a 120-Ohm
resistor, is soldered between pins 2 and 3. This plug must be connected
to the DMX output of the last luminaire in the chain.
Refer to the following diagram:
UsING DMX vIA ART-NET
To control the MagicPanel 602 DMX via ART-NET, the fixtures must be
interconnected with CAT5 RJ45 cable. Be careful to enter all necessary
information into the ART-NET universe being used and specify in the menu
that the MagicPanel 602 is controlled through ART-NET (see OPTION
DETAILS in the “OPTION” menu).
WARNING! The MagicPanel 602 can only read the first twelve universes of
an ART-NET packet. If you have more than 12 universes in your network,
you must use a configurable switch to filter each RJ45 output.
THE LUMINAIRE’s DMX ADDREss sETTING
All luminaires have a DMX start address correctly set when using a DMX
signal to control them. The DMX start address is the channel from which
the luminaire “listens” to the digital control information sent by the DMX
controller.
The start address must conform to the one recorded on the DMX controller
to run the luminaire. This address is the DMX value that appears on the
luminaire’s display. You can set the same address for all the luminaires,
or a group of them, but you can also set a different address for each
luminaire, as needed.
If you set the same address for all the luminaires, they will all “listen” from
the DMX channel that you have set. The orders sent by the DMX controller
will affect all luminaires at the same time.
If you set a different address per luminaire, each can be controlled
independently by the DMX controller. If, for instance, the fixtures are
preset in 20-channel DMX mode (required for full control), you will need to
adjust the DMX address for the luminaires as follows: The first unit with
DMX address 001, the second with DMX address 021 (20 + 1), the third
with DMX address 041 (20 + 21), etc.
INSTRUCTIONS FOR USING THE WIRELESS
INTERNAL DMX SYSTEM
1. REQUIRED HARDWARE
DMX512 controller, LumenRadio™ wireless transmitter, and MagicPanel
602 luminaires with wireless receivers.
2. WIRELESS INDICATOR – FIXTURE SCREEN
• Solid green: Connected to transmitter and receiving DMX data.
• Solid red: No connection to transmitter.
3. W-DMX IN THE FIXTURE MENU:
This part of the menu allows you to select if the unit will be controlled by
wireless DMX (See WDMX in OPTION DETAILS)
Choose the WDMX option in the “Signal Select” submenu under the
“OPTION” menu. The fixture will always return the DMX signal through
the XLR 5 output.
REST WDMX: Antenna – In the “Wireless DMX” submenu. This function
allows you to remove a luminaire from a wireless network, e.g., to pair it
with another transmitter.
4. CONFIGURING THE WIRELESS SYSTEM:
• Connect the transmitter to the DMX controller.
• The fixture’s indicator should default to red.
• Press the configuration button on the transmitter for 3 seconds. Wait
5-10 seconds for the pairing to occur. The “wireless” indicator on the
receiver fixture should be green.
• Once pairing is achieved, the receiver fixture retains the connection

USER MANUAL _ 9
in memory. When the installation is powered on, pairing will be done
automatically.
5. REMOVE RECEIVER FROM TRANSMITTER T1 AND PAIR WITH ANOTHER
TRANSMITTER T2.
Case 1: Removing a receiver
• Activate the REST WDMX function in the fixture menu (see OPTION
DETAILS).
• The “wireless” indicator on the fixture screen should be red. The
receiver fixture is then disconnected from transmitter T1.
• Press the configuration button on transmitter T2 for at least 3 seconds,
and the unit will start to pair with the receiver fixture.
Case 2: Removing all receivers from transmitter T1 to pair all to transmitter
T2
• Press the configuration button on transmitter T1 for at least 5 seconds
to reset pairing with receiver fixtures.
• All green indicators on the receiving fixtures will turn red, indicating that
the receiver fixtures are no longer paired with transmitter T1.
• Press the configuration button on transmitter T2 for at least 3 seconds
to pair it with the receiver fixtures.
Note:
• Unpair receiver fixtures from transmitter after use.
• Do not connect the DMX console to the fixture when it is controlled
via wireless. This could cause interference between the two modes of
operation.
CONTROL PANEL (MENU OPTIONS)
A large number of settings are accessible from the fixture’s control panel.
A good working knowledge of it will enhance the fixture’s possibilities.
You can access the Main Menu by pressing the key until the display
flashes.
Cycling through the menus is performed by pressing the , ,
or keys, as required:
Press the key to select the desired menu.
Change the selection by pressing the , or , keys.
Confirm your selection by pressing the key.
Exit a menu at any time by pressing the key.
Notes:
You can return to the display by pressing the or keys from the
basic display.
If the screen fails to respond, hold the “Mode Esc” key down for at least 3
seconds to free up the display.
The fixture’s menu functions are described in the following table:
Address Set Dmx Addr A001~AXXX DMX address setting
Users Mode
User Mode Stand Mode
Basic Mode
Extend Mode
User Mode A
User Mode B
User Mode C
User’s mode to change
channel numbers
Edit User Max channel
PAN :
Preset User modes
Options
Status Addr via DMX
No DMX Mode
Pan Reverse
Tilt Reverse
Pan Degree
Tilt Degree
Feedback
Pan/Tilt Spd
Mic Sens.
Hibernation
ON/OFF
Close/Hold/Auto/Music
ON/OFF
ON/OFF
630/540
270/540
ON/OFF
Speed 1~ 4
0~99%
OFF, 01M~99M,15M
Add. via DMX
Auto run if no DMX
Pan Reverse movement
Tilt Reverse movement
Pan Degree Select
Movement Feedback
Reset Pan/Tilt
Sensitivity of Mic.
Stand by Mode
Service PIN Service PIN
RDM PID
Set IP
Set Device ID
Set LED BIN
Change To BIN
Password=XXX
xxxxxx
xxx.xxx.xxx.xxx
xx
LED BIN
Change To LED BIN
Service Code“=050”
RDM PID Code
Fans Control Head Control Auto
High
Low
Head Fans Speed Mode
Select
Disp.Setting Shutoff Time
Flip Display
Key Lock
DispFlash
02~<60m> <05m>
ON/OFF
ON/OFF
ON/OFF
Display shutoff time
Reverse 180 degree
Key Lock
No Signal Flash
Signal Select DMX
WDMX
Art--Net
LED Control Kling-Net OFF
Kling-Net RGB
Kling-Net RGBW
Set Universe xx
Temp. C/F Celsius
Fahrenheit
Temperature switch
between °C/°F
Initial Pos. PAN =XXX Initial effect position
Wireless DMX Act&Data Out
Rest WDMX
Trigger DMX Value Disp.
Set To Slave
Auto Program
Music Ctrl.
PAN……
Slave1,Slave2,Slave3
Master / Alone
Master / Alone
DMX value display
Slave setting
Auto program
Music control
Reset Default ON/OFF Restore factory sett.
Info
Time Info. Current Time
Ttl Life Hrs
Last Run Hrs
Timer PIN
Clr Last Run
XXXX(Hours)
XXXX(Hours)
XXXX(Hours)
Password=XXX
ON/OFF
Temp. Info Head Temp. XXX °C/°F
Software Ver V1.0…… Software version
Network IP,Mask,Mac
Test
Home All
Pan&Tilt
Reset all motors
Reset Pan&Tilt
Test Channel PAN …… Test function
Manual Ctrl. PAN =XXX
:
Fine adjustment of
parameters
Calibration --Password--
PAN
:
Password “050”
Calbrate and adjust the
effects to standard/right
position
Preset
Select Prog. Prog. Part 1 = Program 1 ~ 10 Program 1
Prog. Part 2 = Program 1 ~ 10 Program 2
Prog. Part 3 = Program 1 ~ 10 Program 3
Select programs to be run
Edit Prog. Program 1
:
Program 10
Program Test
Step 01=SCxxx
Step 64=SCxxx
Testing program
Program in loop
Save and exit
Edit Scenes Edit Scene 001
~ Edit Scene 250
Pan,Tilt,……
--Fade Time--
--Secne Time--
Input By Outside
Save and automatically
return
manual scenes edit
Scenes Input XX~XX Automat. scenes rec

USER MANUAL _ 10
MAGICPANEL 602 CONTROL PANEL MENU – OPTION
DETAILS
The following section provides details on the options that can be selected
through the control panel menu. Refer to the table above.
Note:You can exit this menu at any time by pressing “Mode Esc” repeatedly
until you return to the home screen.
ADDREss
Allows you to change a DMX address from the fixture’s control panel.
wAccess the menu by pressing the “Mode Esc” key.
wGo to the “ADDRESS” menu and press “Enter”, then find “Set DMX
Address.”
wUse the up/down arrows to scroll through until you locate the desired
address and press “Enter” to confirm.
MODE
USERS MODE
Allows you to select the DMX mode from the following: “Basic Mode” (18
DMX channels ), “Standard Mode” (20 DMX channels), “Extended Mode”
(160 DMX channels), “User Mode A”, “User Mode B”, “User Mode C.”
wAccess the menu by pressing the “Mode Esc” key.
wUse the up/down arrow keys to reach the “MODE” menu and press
“Enter.” Then from “User Mode” choose one of the 6 modes above.
Consult the “CHART DMX” table for more information on Basic, Standard
and Extended Mode. “User Modes A”, “B”, or “C” are user-definable.
EDIT USER A, B, C
To customize the mode, go to “MODE” and select “Edit User A, B or C”
and press “Enter.” Scroll through each setting and press “Enter” to set the
desired address.
OPTIONs
STATUS
No DMX Mode
Defines the fixture’s state when there is no command signal from the DMX
controller. The fixture either can launch a program automatically, close the
Shutter, or even remain in the state when the last DMX values (Hold) were
received. The default setting is “Hold.”
wAccess the menu by pressing the “Mode Esc” key.
wUse the up/down arrow keys to reach the “OPTION” menu and press
“Enter.” Then use the left/right arrow keys to select “Status.” Finally, use
the left/right arrow keys to select “No DMX Mode.”
wScroll through the different options using the left/right arrows and press
“Enter” to confirm.
Pan Reverse
Reverses the PAN movement.
wAccess the menu by pressing the “Mode Esc” key.
wUse the up/down arrow keys to reach the “OPTION” menu and press
“Enter.” Then use the left/right arrow keys to select “Status.” Finally, use
the left/right arrow keys to select “Pan Reverse.”
wScroll through the different options using the left/right arrows and press
“Enter” to confirm.
Tilt Reverse
Reverses the direction of the TILT movement.
wAccess the menu by pressing the “Mode Esc” key.
wUse the up/down arrow keys to reach the “OPTION” menu and press
“Enter.” Then use the left/right arrow keys to select “Status.” Finally, use
the left/right arrow keys to select “Tilt Reverse.”
wScroll through the different options using the left/right arrows and press
“Enter” to confirm.
Pan Degree
Adjusts the amplitude of the PAN movement at 630° or 540°.
wAccess the menu by pressing the “Mode Esc” key.
wUse the up/down arrow keys to reach the “OPTION” menu and press
“Enter.” Then use the left/right arrow keys to select “Status.” Finally, use
the left/right arrow keys to select “Pan Degree.”
wScroll through the different options using the left/right arrows and press
“Enter” to confirm.
Tilt Degree
Adjusts the amplitude of the TILT movement at 540° or 270°. The 540°
function allows you, for instance, to add an accessory to the rear part of
the fixture head.
wAccess the menu by pressing the “Mode Esc” key.
wUse the up/down arrow keys to reach the “OPTION” menu and press
“Enter.” Then use the left/right arrow keys to select “Status.” Finally, use
the left/right arrow keys to select “Tilt Degree.”
wScroll through the different options using the left/right arrows and press
“Enter” to confirm.
Feedback
Readjusts the PAN and TILT positions automatically in the event of
accidental shifting due to a physical shock.
wAccess the menu by pressing the “Mode Esc” key.
wUse the up/down arrow keys to reach the “OPTION” menu and press
“Enter.” Then use the left/right arrow keys to select “Status.” Finally, use
the left/right arrow keys to select “Feedback.”
wScroll through the different options using the left/right arrows and press
“Enter” to confirm.
Pan/Tilt Spd
You can choose between four movement speeds, from “Speed 1” to
“Speed 4.” The “Speed 1” setting is the fastest.
wAccess the menu by pressing the “Mode Esc” key.
wUse the up/down arrow keys to reach the “OPTION” menu and press
“Enter.” Then use the left/right arrow keys to select “Status.” Finally, use
the left/right arrow keys to select “Pan/Tilt Spd.”
wScroll through the different options using the left/right arrows and press
“Enter” to confirm.
Hibernation — Standby mode
The LEDs and the pan/tilt motors will be powered down if the luminaire
receives no DMX signal for 15 minutes (default setting). If the DMX signal
is restored after this time limit, the luminaire will perform a RESET before
resuming normal operation.
wAccess the menu by pressing the “Mode Esc” key.
wUse the up/down arrow keys to reach the “OPTION” menu and press
“Enter.” Then use the left/right arrow keys to select “Status.” Finally, use
the left/right arrow keys to select “Hibernation.”
wScroll through the different options using the left/right arrows and press
“Enter” to confirm.

USER MANUAL _ 11
SERVICE PIN
WARNING! For normal operation the “Service pin” menu information
should not be changed. Contact your dealer for more information.
Service PIN
Allows you to enter a password to access the advanced options such as
RDM PID, Set IP, Set Device IP, Set LED BIN and Change to bin (pwd: 50).
wAccess the menu by pressing the “Mode Esc” key.
wUse the up/down arrow keys to reach the “OPTION” menu and press
“Enter.” Finally, use the left/right arrow keys to select “Service Pin.”
wScroll up to “50” using the left/right arrows and press “Enter” to confirm.
RDM PID
Allows you to set the fixture’s RDM PID code.
wAccess the menu by pressing the “Mode Esc” key.
wUse the up/down arrow keys to access the “OPTION” menu and press
“Enter.” Then use the left/right arrow keys to select “Service Pin.”
Finally, use the left/right arrow keys to select “RDM PID.”
wUse the up/down arrow keys to change the value and left/right to move
from one number to the next. Press “Enter” to confirm.
Set IP
Allows you to change the fixture’s IP address. The fixture’s default IP
address is associated with the serial number.
wAccess the menu by pressing the “Mode Esc” key.
wUse the up/down arrow keys to reach the “OPTION” menu and press
“Enter.” Then use the left/right arrow keys to select “Service Pin.”
Finally, use the left/right arrow keys to select “Set IP.”
wUse the up/down arrow keys to change the value and left/right to move
from one number to the next. Press “Enter” to confirm.
Set Device ID
Allows you to change the fixture’s identifier.
wAccess the menu by pressing the “Mode Esc” key.
wUse the up/down arrow keys to reach the “OPTION” menu and press
“Enter.” Then use the left/right arrow keys to select “Service Pin.”
Finally, use the left/right arrow keys to select “Set Device ID.”
wUse the left/right arrow keys to change the value displayed. Press
“Enter” to confirm.
Set LED BIN
Allows you to change the model of LED card used in the fixture. The last
part of the serial number indicates the LED card binning (6 binnings: BINA,
BINB, BIN B21/B23, BIN B25/B27 BIN B28 and BIN B22).
wAccess the menu by pressing the “Mode Esc” key.
wUse the up/down arrow keys to reach the “OPTION” menu and press
“Enter.” Then use the left/right arrow keys to select “Service Pin.”
Finally, use the left/right arrow keys to select “LED BIN.”
wUse the left/right arrow keys to change the value displayed. Press
“Enter” to confirm.
Change to BIN
This option makes it possible for several fixtures that do not have the
same model of LED card to operate compatibly. Simply select a reference
BIN which will be used for each fixture.
wAccess the menu by pressing the “Mode Esc” key.
wUse the up/down arrow keys to reach the “OPTION” menu and press
“Enter.” Then use the left/right arrow keys to select “Service Pin.”
Finally, use the left/right arrow keys to select “Change to bin.”
wUse the left/right arrow keys to change the value displayed. Press
“Enter” to confirm.
FAN CONTROL
Head Control
Allows you to choose the fan speed on the fixture head. The options are
AUTO, HIGH or LOW.
wAccess the menu by pressing the “Mode Esc” key.
wUse the up/down arrow keys to reach the “OPTION” menu and press
“Enter.” Then use the left/right arrow keys to select “Fan Control.”
wUse the left/right arrow keys to select the fan option. Press “Enter” to
confirm.
DISP.SETTING
Shut off Time
Allows the fixture’s LCD display to be turned off after a period of 2 to 59
minutes.
wAccess the menu by pressing the “Mode Esc” key.
wUse the up/down arrow keys to reach the “OPTION” menu and press
“Enter.” Then use the left/right arrow keys to select “Disp.Setting.”
Finally, use the left/right arrow keys to select “Shut off Time.”
wUse the left/right arrow keys to change the value displayed. Press
“Enter” to confirm.
Flip Display
Allows you to rotate the display by 180°. This can be highly useful when
the fixture is installed with the head facing down.
wAccess the menu by pressing the “Mode Esc” key.
wUse the up/down arrow keys to reach the “OPTION” menu and press
“Enter.” Then use the left/right arrow keys to select “Disp.Setting.”
Finally, use the left/right arrow keys to select “Flip Display.”
wUse the left/right arrow keys to select ON or OFF. Press “Enter” to
confirm.
Key Lock
Activates the automatic keypad lock. If this function is enabled, the keys
will be automatically locked 15 seconds after exiting edit mode. Hold the
MENU key down for 3 seconds to deactivate this function.
wAccess the menu by pressing the “Mode Esc” key.
wUse the up/down arrow keys to reach the “OPTION” menu and press
“Enter.” Then use the left/right arrow keys to select “Disp.Setting.”
Finally, use the left/right arrow keys to select “Key Lock.”
wUse the left/right arrow keys to select ON or OFF. Press “Enter” to
confirm.
DispFlash
Causes the display to flash as a warning that there is no DMX signal.
wAccess the menu by pressing the “Mode Esc” key.
wUse the up/down arrow keys to reach the “OPTION” menu and press
“Enter.” Then use the left/right arrow keys to access the “Disp.Setting”
submenu. Finally, use the left/right arrow keys to select “DispFlash.”
wUse the left/right arrow keys to select ON or OFF. Press “Enter” to
confirm.
SIGNAL SELECT
This menu allows you to choose what type of signal is used to control the
fixture (DMX, Art-Net or WDMX).
wAccess the menu by pressing the “Mode Esc” key.
wUse the up/down arrow keys to reach the “OPTION” menu and press
“Enter.” Then use the left/right arrow keys to access the “Signal Select”
submenu.
wUse the left/right arrow keys to select the signal type used. Press “Enter”
to confirm.

USER MANUAL _ 12
LED CONTROL
Defines whether the Kling-Net Protocol is used to control the LEDs. Kling-
Net is a protocol designed by Arkaos ™ that simplifies use of their media
server with LED panels if so equipped.
wAccess the menu by pressing the “Mode Esc” key.
wUse the up/down arrow keys to reach the “OPTION” menu and press
“Enter.” Then use the left/right arrow keys to access the “LED Control”
submenu.
wUse the left/right arrow keys to activate the Kling-Net option, if desired.
Press “Enter” to confirm.
SET UNIVERSE
wAccess the menu by pressing the “Mode Esc” key.
wUse the up/down arrow keys to reach the “OPTION” menu and press
“Enter.” Then use the left/right arrow keys to access the “Set Universe”
submenu.
wUse the up/down arrows to scroll through until you locate the desired
universe and press “Enter” to confirm.
TEMP. C/F
Allows you to select the unit of measurement for the temperature values,
in either Celsius or Fahrenheit.
wAccess the menu by pressing the “Mode Esc” key.
wUse the up/down arrow keys to reach the “OPTION” menu and press
“Enter.” Then use the left/right arrow keys to access the “Temp. C/F”
submenu.
wUse the left/right arrow keys to select the unit of measurement. Press
“Enter” to confirm.
INITIAL POS.
Controls the initial position of the fixture’s effects.
wAccess the menu by pressing the “Mode Esc” key.
wUse the up/down arrow keys to reach the “OPTION” menu and press
“Enter.” Then use the left/right arrow keys to access the “Initial Pos”
submenu.
wUse the left/right arrow keys to select the desired setting, press “Enter”,
and use the left/right arrow keys to change the value. Press “Enter” to
confirm.
WIRELESS DMX
This menu allows you to “reset” wireless pairing.
wAccess the menu by pressing the “Mode Esc” key.
wUse the up/down arrow keys to reach the “OPTION” menu and press
“Enter.” Then use the left/right arrow keys to access the “Wireless
DMX” submenu.
wUse the left/right arrow keys to activate the setting. Press “Enter” to
confirm.
TRIGGER
DMX Value Disp.
Allows you to view the DMX value received for each setting. The “ALL”
option will display only the setting being edited.
wAccess the menu by pressing the “Mode Esc” key.
wUse the up/down arrow keys to reach the “OPTION” menu and press
“Enter.” Then use the left/right arrow keys to access the “Trigger”
submenu. Use the right/left arrow keys to select “DMX value Disp.”
wUse the left/right arrow keys to select which setting to display. Press
“Enter” to confirm.
Set To Slave
Sets the fixture to SLAVE Mode for receiving instructions from a master
luminaire (see Master/Save mode settings, below).
wAccess the menu by pressing the “Mode Esc” key.
wUse the up/down arrow keys to reach the “OPTION” menu and press
“Enter.” Then use the left/right arrow keys to access the “Trigger”
submenu. Use the right/left arrow keys to select “Set To Slave.”
wUse the right/left arrow keys to define whether the fixture is Slave 1,
Slave 2 or Slave 3, accordingly. Press “Enter” to confirm.
Auto Program
Allows you to run an internal program (a sequence of scenes) by selecting
whether the fixture is operating alone or as a master.
wAccess the menu by pressing the “Mode Esc” key.
wUse the up/down arrow keys to reach the “OPTION” menu and press
“Enter.” Then use the left/right arrow keys to access the “Trigger”
submenu. Use the right/left arrow keys to select “Auto Program.”
wUse the right/left arrow keys to select whether the fixture is “Alone” or
“Master.” Press “Enter” to confirm.
Note: See “AUTO” menu to create internal programs.
RESETDEFAULT
Restores the factory default settings on the fixture.
wAccess the menu by pressing the “Mode Esc” key.
wUse the up/down arrow keys to reach the “OPTION” menu and press
“Enter.” Then use the left/right arrow keys to access the “ResetDefault”
submenu.
wUse the right/left arrow keys to select ON to perform a reset to defaults.
Press “Enter” to confirm.
INFO
TIME INFO.
Current Time
Shows the number of hours the fixture has been operating since it was
powered on.
wAccess the menu by pressing the “Mode Esc” key.
wUse the up/down arrow keys to reach the “INFO” menu and press
“Enter.” Then use the left/right arrow keys to access the “Time Info”
submenu.
wUse the left/right arrow keys to select “Current Time”, and press “Enter”
to display the value.
Ttl Life Hrs
Shows the fixture’s total number of hours of operation.
wAccess the menu by pressing the “Mode Esc” key.
wUse the up/down arrow keys to reach the “INFO” menu and press
“enter.” Then use the left/right arrow keys to access the access the
“Time Info” submenu.
wUse the left/right arrow keys to select “Tlt Life Hrs”, and press “Enter”
to display the value.
Last Run Hrs
Shows the fixture’s length of operation since the last time this counter
was reset.
wAccess the menu by pressing the “Mode Esc” key.
wUse the up/down arrow keys to reach the “INFO” menu and press
“Enter.” Then use the left/right arrow keys to access the access the
“Time Info” submenu.
wUse the left/right arrow keys to select “Tlt Life Hrs”, and press “Enter”
to display the value.

USER MANUAL _ 13
Timer PIN
The “Timer PIN” is the password required to reset the counter for “Last
Run Hrs.” The PWD is 038.
wAccess the menu by pressing the “Mode Esc” key.
wUse the up/down arrow keys to reach the “INFO” menu and press
“Enter.” Then use the left/right arrow keys to select “Time Info.” Finally,
use the left/right arrow keys to select “Timer PIN.”
wScroll through using the left/right arrows until 038 appears and press
“Enter” to confirm.
CLR LAST RUN
After entering the “Timer PIN”, you can reset the value for “Last Run Hrs”
through this menu.
wAccess the menu by pressing the “Mode Esc” key.
wUse the up/down arrow keys to reach the “INFO” menu and press
“Enter.” Then use the left/right arrow keys to access “Clr Last Run”
submenu.
wUse the left/right arrow keys to select “ON” to validate the reset.
TEMP. INFO
Head Temp.
Shows the current temperature of the fixture head.
wAccess the menu by pressing the “Mode Esc” key.
wUse the up/down arrow keys to reach the “INFO” menu and press
“Enter.” Then use the left/right arrow keys to access the “Temp.Info”
submenu.
wPress “Enter” once again to display the temperature of the head.
SOFTWARE VER
Displays the software version of the fixture.
wAccess the menu by pressing the “Mode Esc” key.
wUse the up/down arrow keys to reach the “INFO” menu and press
“Enter.” Then use the left/right arrow keys to access the “Software ver”
submenu.
wPress “Enter” once again to display the software version.
NETWORK
This menu directly displays the following network information for the
fixture: IP address, subnet mask, and MAC address.
wAccess the menu by pressing the “Mode Esc” key.
wUse the up/down arrow keys to reach the “INFO” menu and press
“Enter.” Then use the left/right arrow keys to access the “Network”
submenu.
wPress “Enter” once again to display the information.
TEsT
HOME
Allows you to reset the functions from a DMX controller. You can select
these functions by adjusting the channel.
wAccess the menu by pressing the “Mode Esc” key.
wUse the up/down arrow keys to reach the “TEST” menu and press
“Enter.” Then use the left/right arrow keys to access the “Home”
submenu.
wPress “Enter” once again to select “All” or “Pan&Tilt.”
TEST CHANNEL
Tests each of the fixture’s settings (e.g., PAN, TILT).
wAccess the menu by pressing the “Mode Esc” key.
wUse the up/down arrow keys to reach the “TEST” menu and press
“Enter.” Then use the left/right arrow keys to access the “Test Channel”
submenu.
wThe fixture then runs in test position. Use the left/right arrow keys to
scroll through and test each setting.
MANUAL CTRL.
Allows you to access all the fixture’s settings manually. The shutter and
the electronic dimmer are by default 100% open.
wAccess the menu by pressing the “Mode Esc” key.
wUse the up/down arrow keys to reach the “TEST” menu and press
“Enter.” Then use the left/right arrow keys to access the “Manual Ctrl”
submenu.
wUse the left/right arrow keys to scroll through and check each setting.
CALIBRATION
Calibrates certain settings such as Pan, Tilt and Zoom. The password
required to access the calibration function is 050.
wAccess the menu by pressing the “Mode Esc” key.
wUse the up/down arrow keys to reach the “TEST” menu and press
“Enter.” Then use the left/right arrow keys to access the “Calibration”
submenu.
wPress “Enter” once again to access the password (050), and press
“Enter” to confirm.
wUse the left/right arrow keys to move from one setting to another and
press “Enter” to access the calibration function of the setting. Finally,
press “Enter” to confirm the change.
PREsET
SELECT PROG.
Allows to choose the program for “Program Run.”
EDIT PROG.
Allows you to edit internal programs.
EDIT SCENES
Allows you to edit scenes within the internal programs.
SCENES INPUT
The fixture features a DMX recorder, which can receive the scenes
programmed on your DMX controller.
Set the desired number of scenes from the control panel. Then run the
scenes from your controller. They will be automatically transmitted to the
fixture.
MASTER/SLAVE MODE SETTINGS
A MASTER fixture can send up to 3 different sets of data to a SLAVE
fixture (e.g., a MASTER fixture can control 3 different SLAVE fixtures which
will each perform 3 different programs). The MASTER fixture sends the 3
programs in a continuous loop.
The SLAVE fixture receives data from the MASTER fixture according to the
group to which the SLAVE fixture is assigned. For example, if the SLAVE
fixture has been assigned to “Slave 1” in the menu “Set to Slave”, the

USER MANUAL _ 14
MASTER fixture sends “Auto Program Part 1” to this SLAVE fixture. If it
was assigned to “Slave 2”, the SLAVE fixture would receive the program
“Auto Program Part 2” from the MASTER fixture.
To launch a program, follow this procedure:
1. Slave Settings - SLAVE fixture adjustment
Use the buttons to select “Function Mode.”
Press ENTER to confirm.
Use the buttons to select “Set slave to.”
Press ENTER to confirm.
Use the buttons to select “Slave 1”, “Slave 2” or “Slave 3.”
Press ENTER to confirm.
Press MODE/ESC to return to the main menu.
2. Automatic Program Run
Use the buttons to select “Function Mode.”
Press ENTER to confirm.
Use the buttons to select “Auto Program.”
Press ENTER to confirm.
Use the buttons to select “Master” or “Alone.” “Master” sets the fixture
as the master.
Press ENTER to confirm.
Press MODE/ESC to return to the main menu.
3. Program selection for Auto Pro Part
Use the buttons to select “Edit program.”
Press ENTER to confirm.
Use the buttons to select “Select programs.”
Press ENTER to confirm.
Select “Auto Program Part 1”, “Auto Program Part 2” or “Auto Program
Part 3”, for the Slave program to be sent. Selecting “Part 1” will cause the
SLAVE to run the same program as the MASTER fixture.
Press ENTER to confirm.
Press MODE/ESC to return to the main menu.
4. Program selection for Edit Program
Use the buttons to select “Edit program.”
Press ENTER to confirm.
Use the buttons to select “Edit program.”
Press ENTER to confirm.
Use the buttons to select the desired program.
You can edit specific scenes in a given program.
Press ENTER to confirm.
Press MODE/ESC to return to the main menu.
5. Automatic Scene Recording
Use the buttons to select “Edit program.”
Press ENTER to confirm.
Use the buttons to select “Edit scenes.”
Use the buttons to select the number of desired scenes. (maximum
amount: 250 scenes)
Press ENTER to confirm.
Press MODE/ESC to return to the main menu.
Example:
”Program 2” includes scenes: 10, 11, 12, 13.
”Program 4” includes scenes: 8, 9, 10.
”Program 6” includes scenes: 12, 13, 14, 15.
”Auto Program Part 1” is “Program 2.”
”Auto Program Part 2” is “Program 3.”
”Auto Program Part 3” is “Program 6.”
The 3 groups of SLAVE fixtures run the “Auto Program” in the following
sequence:
Part 1:
Scene 10 Scene 11 Scene 12 Scene 13
Part 2:
Scene 8S cene 9S cene 10 Scene 8
Part 3:
Scene 12 Scene 13 Scene 14 Scene 15
LED MAPPING
The diagram shows the order of the LED addresses from a front view of
the fixture and control panel, with the latch to the left.

USER MANUAL _ 15
DMX CHART
DMX channel´s functions and their values (160 DMX channels)
Mode/Channel Value Function
St Ba Ex
111 PAN Movement 8bit
0-255 Pan Movement
2 2 Pan Fine 16bit
0-255 Fine control of Pan movement
323 TILT Movement 8bit
0-255 Tilt Movement
4 4 Tilt Fine 16bit
0-255 Fine control of Tilt movement
535
Speed Pan/Tilt movement
0-225 max to min speed
226-235 blackout by movement
226-235 no function
646
Pan Motor continuous rotation
0-127 no function
128-189 Forwards Pan rotation from fast to slow
190-193 No rotation
194-255 Backwards Pan rotation from slow to fast
757
Tilt Motor continuous rotation
0-127 no function
128-189 Forwards Tilt rotation from fast to slow
190-193 No rotation
194-255 Backwards Tilt rotation from slow to fast
8 6 Red LED - all arrays
0-255 Red ( 0-Black , 255-100% Red )
9 7 Green LED-all arrays :
0-255 Green ( 0-Black , 255-100% Green )
10 8 Blue LED -all arrays :
0-255 Blue ( 0-Black , 255-100% Blue )
11 9 White LED -all arrays :
0-255 White ( 0-Black , 255-100% White )
17 Red LED -array 1 :
0-255 Red ( 0-Black , 255-100% Red )
18 Green LED-array 1 :
0-255 Green ( 0-Black , 255-100% Green )
19 Blue LED -array 1 :
0-255 Blue ( 0-Black , 255-100% Blue )
20 White LED -array 1 :
0-255 White ( 0-Black , 255-100% White )
21 Red LED -array 2 :
0-255 Red ( 0-Black , 255-100% Red )
22 Green LED-array 2 :
0-255 Green ( 0-Black , 255-100% Green )
23 Blue LED -array 2 :
0-255 Blue ( 0-Black , 255-100% Blue )
24 White LED -array 2 :
0-255 White ( 0-Black , 255-100% White )
...
157 Red LED -array 36 :
0-255 Red ( 0-Black , 255-100% Red )
158 Green LED-array 36 :
0-255 Green ( 0-Black , 255-100% Green )
159 Blue LED -array 36 :
0-255 Blue ( 0-Black , 255-100% Blue )
160 White LED -array 36 :
0-255 White ( 0-Black , 255-100% White )
DMX channel´s functions and their values (44 DMX channels)
Mode/Channel Value Function
St Ba Ex
12 10 8
Shutter, strobe:
0-31 Led trun off
32-63 Led turn on
64-95 Strobe effect slow to fast
96-127 Led turn on
128-159 Pulse-effect in sequences
160-191 Led turn on
192-223 Random strobe effect slow to fast
224-255 Led turn on
13 11 9 Dimmer intensity:
0-255 Intensity 0 to 100%
14 12 10
Color Macro:
0-7 No function
8-39 from RED to YELLOW
40-71 from YELLOW to GREEN
72-103 from GREEN to CYAN
104-135 from CYAN to BLUE
136-167 from BLUE to MAGENTA
168-199 from MAGENTA to RED
200-231 from RED to WHITE
232-255 Crossfading colours from slow to fast
15 13 11
Color Presets:
0-4 No function
5--9 White2700k
10--14 White3200k
15-19 White4200k
20-24 White5600k
25-29 White6500k
30-34 White8000k
35-39 Yellow
40-44 Magenta
45-49 Cyan
50-54 Salmon
55-59 Turquoise
60-64 Light Green
65-69 Steel Blue
70-74 Orange
75-79 Straw
80-84 Pale Lavander
85-89 Pink
90-94 Red
95-99 Green
100-104 Blue
105-109 Rainbow1
110-104 Rainbow2
115-119 Rainbow3
120-124 Rainbow4
125-129 Rainbow5
130-134 Rainbow6
135-139 Rainbow7
140-144 Rainbow8
145-149 Rainbow9
150-154 Rainbow10
155-159 Rainbow11
160-164 Rainbow12

USER MANUAL _ 16
DMX channel´s functions and their values (44 DMX channels)
Mode/Channel Value Function
St Ba Ex
15 13 11
Color Presets:
165-169 Rainbow13
170-174 Rainbow14
175-179 Rainbow15
180-184 Rainbow16
185-189 Rainbow17
190-194 Rainbow18
195-199 Rainbow19
200-255 Reserved
19 17 15
Color Presets Dimmer:
0-255 Dimmer 100 to 0%
16 14 12
Chase Patterns:
0--9 Led trun off
10--13 Chase 1
14--17 Chase 2
18--21 Chase 3
22--25 Chase 4
26--29 Chase 5
30--33 Chase 6
34--37 Chase 7
38--41 Chase 8
42--45 Chase 9
46-49 Chase 10
50--53 Chase 11
54--57 Chase 12
58--61 Chase 13
62--65 Chase 14
66--69 Chase 15
70--73 Chase 16
74--77 Chase 17
78--81 Chase 18
82--85 Chase 19
86--89 Chase 20
90--93 Chase 21
94--97 Chase 22
98--101 Chase 23
102--105 Chase 24
106--109 Chase 25
110--113 Chase 26
114--117 Chase 27
118--121 Chase 28
122--125 Chase 29
126--129 Chase 30
130--133 Chase 31
134--137 Chase 32
138--141 Chase 33
142--145 Chase 34
146--149 Chase 35
150--153 Chase 36
154--157 Chase 37
158--161 Chase 38
162--165 Chase 39
166--167 Chase 40
170--173 Chase 41
174--177 Chase 42
178--181 Chase 43
182--185 Chase 44
186--189 Chase 45
190--193 Chase 46
DMX channel´s functions and their values (44 DMX channels)
Mode/Channel Value Function
St Ba Ex
16 14 12
Chase Patterns:
194--197 Chase 47
198--201 Chase 48
202--205 Chase 49
206--209 Chase 50
210--213 Chase 51
214--217 Chase 52
218--221 Chase 53
222--225 Chase 54
226--229 Chase 55
230--233 Chase 56
234--237 Chase 57
238--255 Reserved
17 15 13
Chase Speed:
0-125 Fast to Slow Backward
126-130 Stop(Speed=0)
131-255 Slow to Fast Forward
18 16 14 Chase Fade:
0-255 Fade Chase
20 18 16
Reset, internal programs:
0-79 Normal
80-84 All motor reset
85-87 Scan motor reset
88-90 no function
91-93 no function
94-96 no function
97-99 Others motor reset
100-119 Internal program 1 (secne1~8 of EEPROM)
120-139 Internal program 2 (secne9~16 of EEPROM)
140-159 Internal program 3 (secne17~24 of EEPROM)
160-179 Internal program 4 (secne25~32 of EEPROM)
180-199 Internal program 5 (secne33~40 of EEPROM)
200-219 Internal program 6 (secne41~48 of EEPROM)
220-239 Internal program 7 (secne49~56 of EEPROM)
240-255 Music Control (secne of Program 1)
CARE AND MAINTENANCE
The care and maintenance of your MAGICPANEL 602 should be ensured
by a qualified technician. Your MAGICPANEL 602 requires regular
servicing. The frequency depends essentially on its operating conditions
and environment. Intensive use in a dusty environment, or a lack of
ventilation around the fixture, may disrupt operation, result in overheating
and cause damage that is not covered by the warranty.
WARNING!
Disconnect from mains before servicing.
UPDATING THE LUMINAIRE
Ayrton is continually upgrading this product line. It is therefore possible

USER MANUAL _ 17
that a new software version is available that will increase the unit’s
capabilities.
Updates are performed using Ayrton’s update box. Contact your dealer for
more information.
To display the version of your , go into the “Info” menu and select “Software
version” (see options details under the “INFO” menu). It is advisable to use
the same software version for multiple fixtures.
CLEANING
Your MAGICPANEL 602 requires cleaning at regular intervals. Be aware
that accumulated dust and residue on the air vents, body and glass of the
fixture may reduce efficiency and impair proper operation.
Before cleaning, disconnect the power cable from source.
Use compressed air to blow away dust particles accumulated on and
between the cooling fins at the rear of the luminaire’s optical system.
Clean the glass of the fixture with a slightly damp soft cloth. When
necessary, use a non-alcohol glass cleaner. Never use harsh solvents!
WARNING!
Never use alcohol or any chemical agent to clean the optical system
of an Ayrton product.
COMPLIANCE CHECk
Your installation should be checked regularly by certified service center.
In addition, the following should be checked once a year by a qualified
technician. Be sure to observe the following:
• The fixture’s attachment system must be correctly installed and show
no sign of corrosion.
• The fixture’s mounting bracket should not be distorted in any way or
show any trace of corrosion.
• The safety cable should be attached at the appropriate spot.
• Mechanical parts should show no sign of wear.
• The electrical cables should show no sign of wear, cuts or splices.
TECHNICAL SPECIFICATIONS
OPTICAL
• Optical efficiency: 85% maximum
• Opening angle of the beam: 7.5°
sOURCE
• 36 high-power multicolor LED emitters
• Brightness: up to 14,000 lumen
• Estimated lifespan of LED emitters: 50,000 hours
• Guaranteed “no-flicker” effect perfectly suited for television applications
and all video recorded events
COLORs
System of 4-color mixing (red, green, blue and white) ensuring a high
color-rendering index (CRI)
Uniformly produced light, without shadows, and offering rich saturated
shades and pastel hues in 4.29 billion colors (8-bit resolution).
Virtual color wheel including white light presets
Fixed colors and reprogrammed dynamic color change
DIMMER, sTRObE
Electronic dimmer for light adjustment from 0 to 100% without color
change (16-bit)
High-speed strobe effect in white or color at 1 to 25 flashes/second
Pre-programmed variable strobe effect
sOFTWARE FEATUREs
Full menus for setting DMX address and advanced functions
Compatible with the DMX/RDM (Remote Device Management) protocol
Pre-programmed macro modes
Information menu including: timer, temperature, software version, etc.
CONTROL
USITT DMX512
Automatic features for managing your fixture without a DMX console
DMX RDM-compatible
Integrated control panel with LCD display and 5 buttons
DMX512 input/output
DMX adapter cables with XLR5 connectors included
Choice of 3 DMX modes (18, 20, 160 channels)
Wireless System: LumenRadio
POWER
Electronic power distribution with Power factor Correction (PFC) from
110-240 VAC, 50/60 Hz
600 W maximum power
Power supply via powerCON TRUE1 connector
Supplied AC power cable
COOLING
Forced air cooling system
Fan with automatically adjustable speed to reduce noise level (in AUTO
mode)
User-selectable air-cooling modes
CONsTRUCTION
Covers: molded PC-ABS thermoplastic, class V0 (fire retardant)
Chassis: steel plates and aluminum
2 handles for transport
Protection rating: IP20 (indoor use only)
Finish: Carbon (black)
INsTALLATION
2 OMEGA brackets with quarter-turn locks included
Floor-mounting attachments
OPERATING PARAMETERs
Operating positions: all
Maximum authorized ambient temperature (Ta Max): 45 °C (104 °F)
Minimum authorized ambient temperature (Ta Min): -5 °C (23 °F)
Minimum projection distance: 0.2 m (8 inches)
DIMENsIONs
Product: 424 mm x 556 mm x 307 mm (W x H x D)
Packing: 530 mm x 670 mm x 425 mm (W x H x D)

USER MANUAL _ 18
WEIGHT
Product: 20 kg
Product in the packaging with accessories: 25 kg
PRODUCT CODE
015550
FOAM FOR FLIGHT CAsE
MAGICPANEL 602 is delivered in a carton packed with a dense protective
foam surrounding the fixture.
This reusable protective shell is intended for a flight case that can be
custom built for the luminaire.
AYRTON does not offer custom flight cases for the MAGICPANEL 602. This
accessory is to be provided by the user.
The main dimensions of the protective shell appear in the following
diagram:
WARRANTY
TheAYRTON MAGICPANEL 602 fixture is guaranteed against manufacturing
defects for the duration of one (1) year from the date of purchase.
This warranty does not cover the unit for evidence of physical shock or
damage caused by abuse or any use not in accordance with the operating
conditions set forth in the present user manual.
In addition, cosmetic defects caused by the normal wear and tear of the
unit are not covered under the warranty.
Any modification to the fixture will void the warranty.AYRTON cannot under
any circumstances be held liable for quality and conformity regarding the
installation of this product, which is the responsibility of the installer.
Broken glass lenses on the MAGICPANEL 602, and any damage that
could arise thereof, are excluded from the warranty. Any possible cosmetic
defects, provided you report them to your AYRTON dealer upon unpacking
the device and before use, may be covered by the warranty.
Note:
The manufacturer is not responsible for any errors or omissions that may
occur in this document. All information contained in this manual is subject
to change without notice.

USER MANUAL _ 19

www.ayrton.eu
