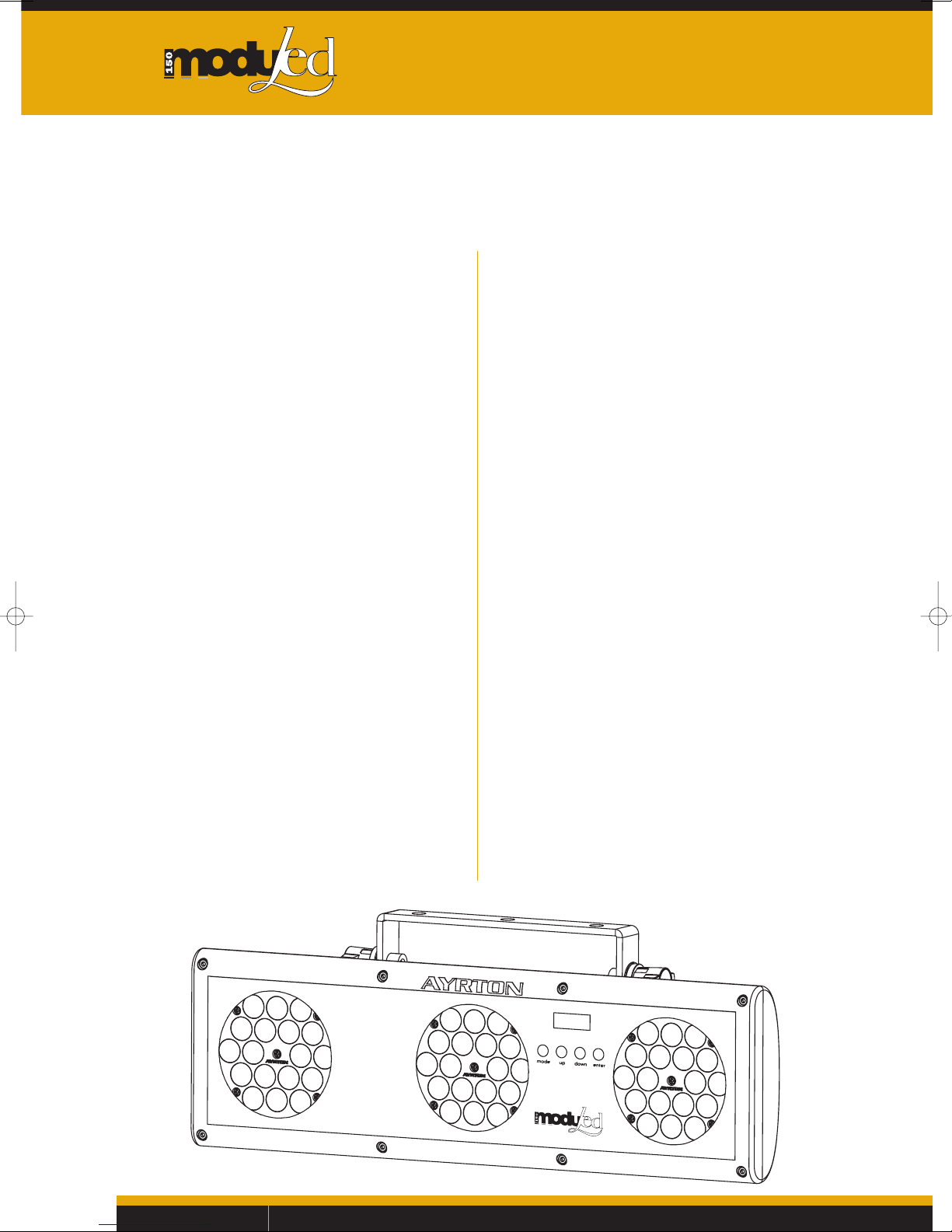

THE MODULED 150 has an internal universal power
supply, so it can work in either 110 AC, AC 208V or 230V
AC.
However, the currents vary for each mains voltage level. It
is necessary to adjust the amount of MODULED 150 that
can be connected in series in a row in terms of the sector
and lengths of cable used.
The Maximum current consumption of the line composed
of MODULED 150 should never exceed 10A.
The table below will indicate the amount of MODULED
150 which can be connected on a single connection box
EASYBOX HD depending on the conditions of use :
Connecting the EASYBOX HD, and therefore your
MODULED 150, on a dimmer highly deteriorates these
devices!
The EASYBOX HD (and therefore your MODULED 150)
must be connected to the Earth.
On the last MODULED 150 of the line, it is recommended
to place a specific AYRTON cap DMX line ending. The
AYRTON code of this optional accessory is: 025398.
IF you do not use this accessory, be sure to set up on the
output connector of the last MODULED 150 of the line the
cap seal of origin, came with the device.
WARNING:
Never perform connection or disconnection of any cable
from the MODULED 150 line without power off before the
connection box EASYBOX HD.
The Golden Rule is particularly important for MODULED
150, unless you risk to damage the products.

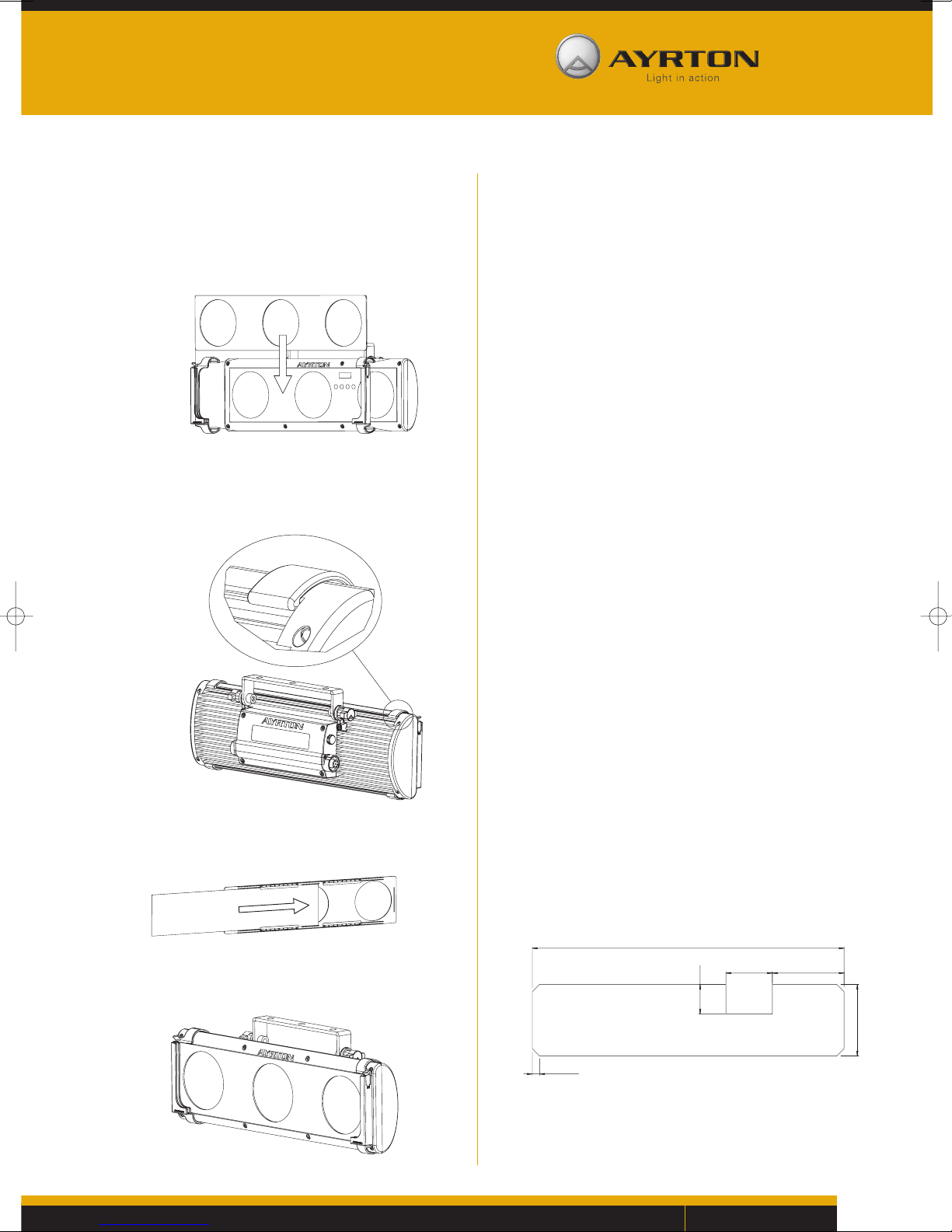

The connection of 2 MODULED 150 side by side needs a
hybrid multifunction 0.28 m cable length.

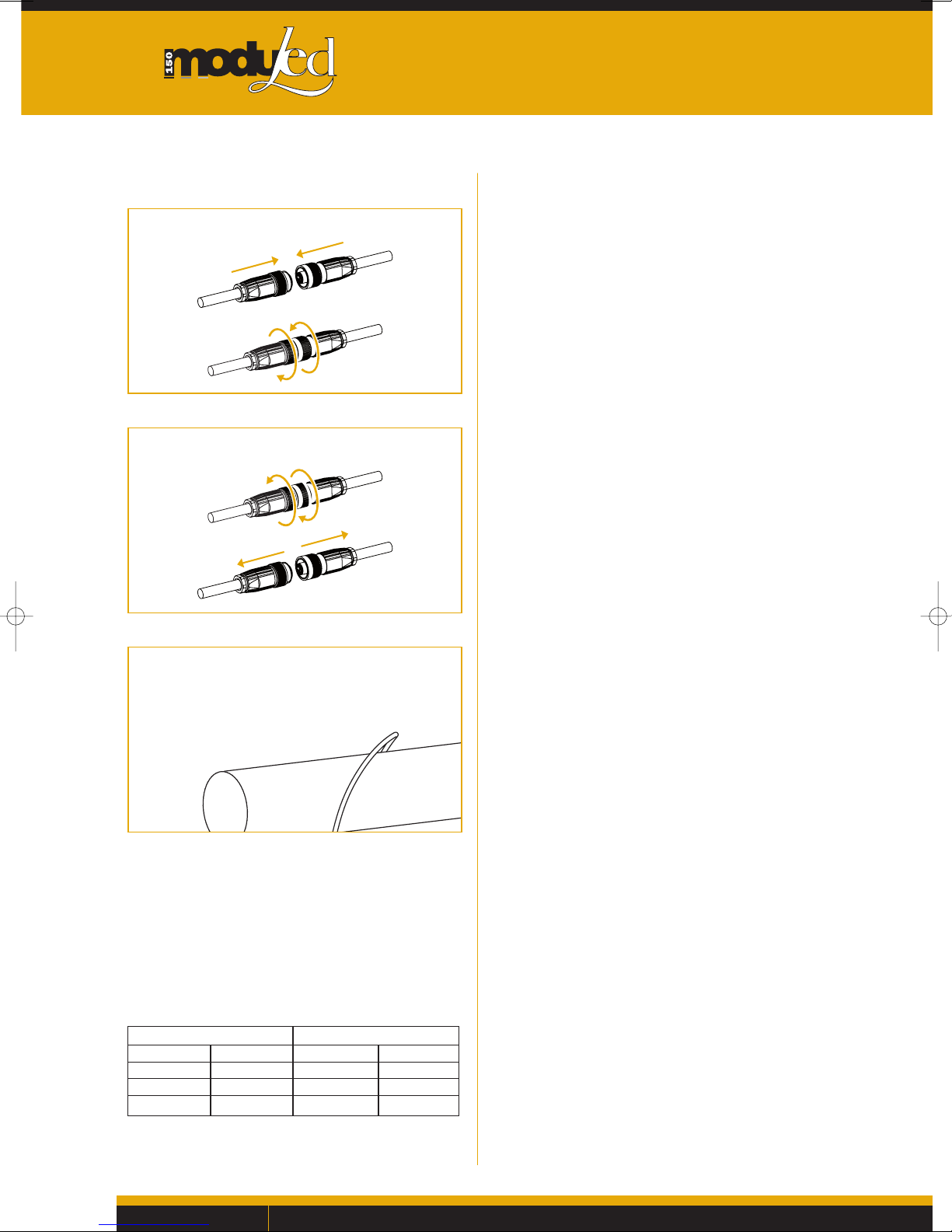

The multifunction connectors installed on the
multipurpose AYRTON cables for connecting the
MODULED 150 are elements watertight locking.
Their correct use requires an understanding of the method
of connection or disconnection appropriate to use.
You must not turn the body connectors, but act on the
locking ring for their connection or disconnection.
Failure to comply with this rule can cause damage to the
cables and risk breaking your MODULED 150 when used
with a cable.
Voltage 230V AC: Maximum 10 MODULED 150
Connected in series in a sector line.
Voltage 110 V AC: Maximum 5 MODULED 150
Connected in series in a sector line.
In any case, do not exceed a 50 meters length
between EASYBOX HD and the last MODULED
150 of the line, consisting in several devices
connected in series.
THE MODULED 150 has an internal universal power
supply, so it can work in either 110 VAC, 208 VAC or
230 VAC.
However, the currents vary for each mains voltage level. It
is necessary to adjust the amount of MODULED 150 that
can be connected in series in a row in terms of the sector
and lengths of cable used.
The Maximum current consumption of the line composed
of MODULED 150 should never exceed 10A.
The table below will indicate the amount of MODULED
150 which can be connected on a single connection box
EASYBOX HD depending on the conditions of use :
Connecting the EASYBOX HD, and therefore your
MODULED 150, on a dimmer highly deteriorates these
devices!
The EASYBOX HD (and therefore your MODULED 150)
must be connected to the Earth.
On the last MODULED 150 of the line, it is recommended
to place a specific AYRTON cap DMX line ending. The
AYRTON code of this optional accessory is: 025398.
If you do not use this accessory, be sure to set up on the
output connector of the last MODULED 150 of the line the
cap seal of origin, came with the device.
WARNING:
Never perform connection or disconnection of any cable
from the MODULED 150 line without power off before the
connection box EASYBOX HD.
This Golden Rule is particularly important for MODULED
150, unless you risk to damage the products.
The connection of 2 MODULED 150 side by side needs a
hybrid multifunction 0.28 m cable length.
The multifunction connectors installed on the
multipurpose AYRTON cables for connecting the
MODULED 150 are elements watertight locking.
Their correct use requires an understanding of the method
of connection or disconnection appropriate to use.
You must not turn the body connectors, but act on the
locking ring for their connection or disconnection.
Failure to comply with this rule can cause damage to the
cables and risk breaking your MODULED 150 when used
with a damaged cable.
Voltage 230 VAC: Maximum 10 MODULED 150
Connected in series in a sector line.
Voltage 110 VAC: Maximum 5 MODULED 150
Connected in series in a sector line.
In any case, do not exceed a 50 meters length
between EASYBOX HD and the last MODULED
150 of the line, consisting in several devices
connected in series.
9
06. INSTALLATION
