Az-Box Newgen+ User manual

Digital Satellite Receiver
GX6107 Twin Tuner
User's Guide

Preface
The information in this document is subject to change without prior notice in
order to improve reliability, design and function and does not represent a commitment
on the part of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special,
incidental, or consequential damages arising out of the use or inability to use the
product or documentation, even if advised of the possibility of such damages.
This document contains proprietary information protected by copyright. All
rights are reserved. No part of this manual may be reproduced by any mechanical,
electronic, or other means in any form without prior written permission of the
manufacturer.
Limitation of Liability
While reasonable efforts have been made to ensure the accuracy of this manual,
the manufacturer and distributor assume no liability resulting from errors or
omissions in this manual, or from the use of the information contained herein.
Federal Communications Commission Radio Frequency Interference
Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:1.This device may not cause harmful interference; and
2.This device must accept any interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy
and if not installed and used in accordance with the instruction manual may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
●Consult the dealer or an experienced Notebook technician for help.
NOTE:FCC Radiation Exposure Statement:This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled environment.This transmitter must not
be co-located or operating in conjunction with any other antenna or transmitter .
NOTE: Changes or modifications not expressly approved by FG DIGITAL TEKNOLOJILER
ELEKTRONIK could void the user's authority to operate the equipment.

-1-
Content
Safety Precaution ...................................................2
1. Reference
1.1 General Features .......................................................3
1.2 Accessories ................................................................4
2. Basic Function
2.1 Front Panel .................................................................5
2.2 Rear Panel .................................................................6
2.3 Remote Control Unit ...................................................7
3. Installation and Connection
3.1 Connecting to TV .....................................................9
3.2 Connecting to Dish LNB ...........................................10
4. Installation and Operation
4.1 Menu Guide ..............................................................12
4.2 Other Useful Information ..........................................17
5. Additional Information
5.1 Problem Solving ......................................................30
5.2 Technical Specification .............................................31
5.3 Menu Screen Structure.............................................32
5.4 Glossary ..................................................................33

-2-
Safety Precaution
This STB has been designed and manufactured to satisfy the international safety
standards. Please read the following safety precautions carefully before operating this
receiver.
Main Supply:
Before operating, please check the units operating voltage is 90~250V AC 50/60Hz.
Overload:
Do not overload a wall outlet, extension cord or adapter, neither use damaged power cord
or touch it with wet hand as this may result in electric shock.
Liquid:
The receiver shall not be exposed to dripping or splashing water, and that no objects filled
with liquids, such as base, shall be placed on the apparatus.
Ventilation:
Keep the slots on top of the receiver uncover to allow sufficient airflow to the unit. Do not
put the receiver on soft furnishings or carpets. Do not expose the receiver to direct light or
do not place it near a heater or in humid conditions. Do not stack other electronic
equipments on top of the receiver.
Cleaning:
Plug out the receiver from the wall outlet before cleaning. Clean the receiver by a soft cloth
or mild solution of washing-up liquid (no solvents).
Connection:
Disconnect the receiver from the mains when you connect it to satellite LNB or disconnect
it from LNB. Failure would possibly cause damage to the LNB.
Location:
Put the receiver indoor in order to avoid lightening, raining or sunlight.
Uncover:
Do not remove the cover, to reduce the risk of electric shock. Contact qualified and
licensed service personnel to repair the receiver, or contact your dealer.

-3-
1. Reference
1.1 General Features
MPEG-2 Digital and Fully DVB-S Compliant
SCPC/MCPC Receivable from C/KU-Band Satellite
User Friendly OSD Menu with Full Function
Installation by Easy Setup Guide
100 Satellites, 4000 Transponders, 6100 Channels.
Brilliant On Screen Graphic
Small Picture in Graphic and Zoom in Function
8 Favorite Groups and Parent Lock Function
EPG, Including 7 Days Epg and Timer
Supports DiSEqC 1.0/1.2 and 22KHz Tone
Fast Channel Switching
256 Color graphic user interface
High Sensitivity QPSK Tuner and Demodulator
Network Search/ Blind Search/Easy Tunning
Multi Language (Menu/Audio)
Support 32 Audio PID (Language)
USB and Rs232 port for Additional Information Service and Upgrading Software.
Supports DVB and TTX subtitles.
Supper fast 800 pages OSD Teletext supported
Twin tuner
LNB Power Overload Protection
Digital audio support with AC3.
Picture in Picture, Multi Picture Selection(4/9/10/12/13/16)
View Jpeg/Bmp, Play *.dat,*.mpg,*.vob and mp3
Support USB
PVR: Time Shift and PIP
Ethernet
HDMI Output, Support Ypbpr
CA
Update Via SDX (www.satcodx.com)

-4-
1.2 Accessories
A/V Cable
Batteries
Users manual
Remote Control Unit
Figure 1. Accessories

-5-
2. Basic Function
2.1 Front Panel

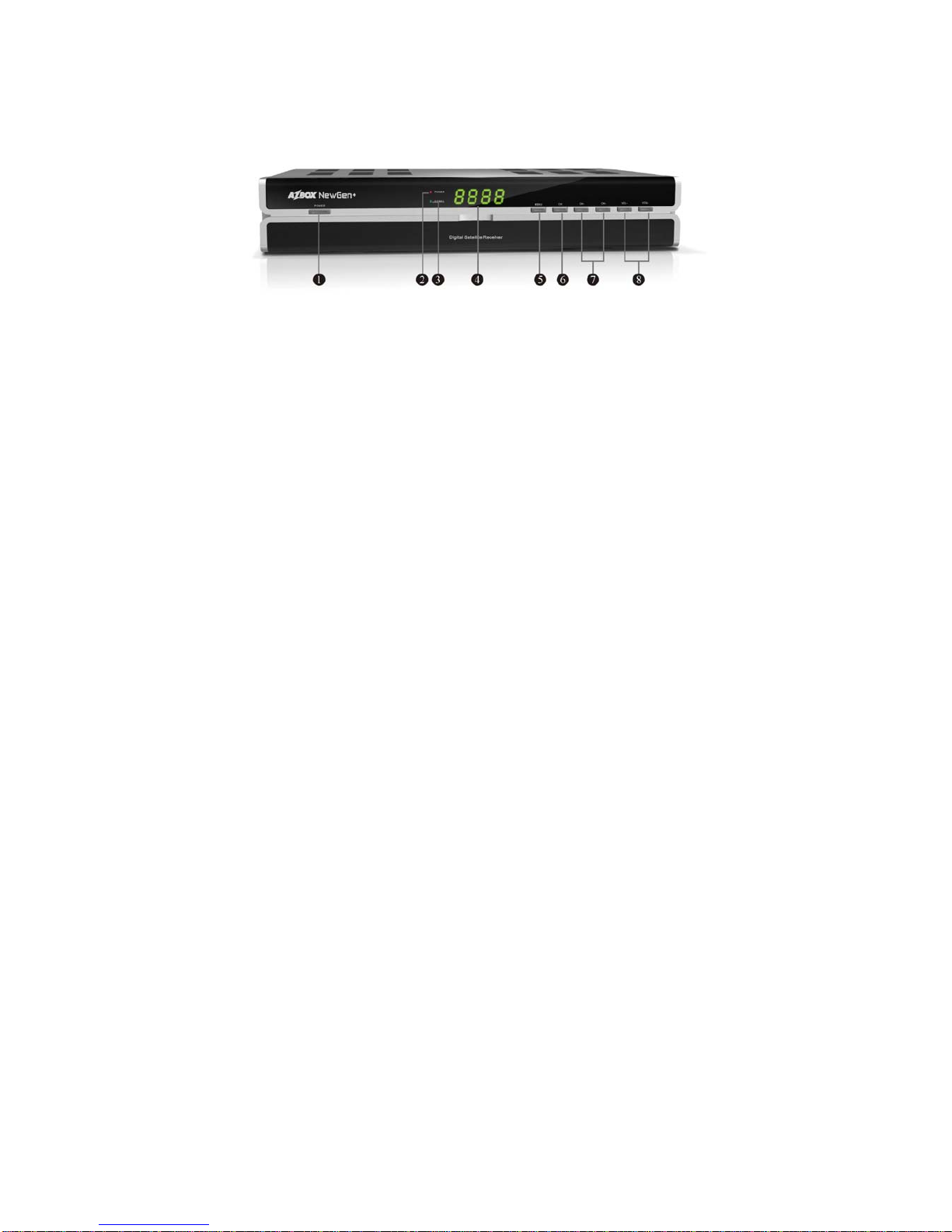

Figure 2. Front Panel
1. Power Button
The POWER button is used to turn the power on or to make it on Standby Mode.
2. Power LED
Power indicator.
3. Signal LED
Signal indicator.
4. Display (4-digi 7-segment)
4-digi displays channel information. In Standby mode the 7-segment displays local time.
5. MENU Button
Activate the main menu in viewing mode, or exit all menu.
6. OK Button
Activate the highlighted sub menu in menu mode and activate the channel list
in viewing mode.
7. CH+ / CH- Button
Change channel in viewing mode and move the cursor up/down in menu mode.
8. VOL+/ VOL- Button
Increase / decrease the volume in viewing mode and change settings in menu mode.

-6-
2.2 Rear Panel

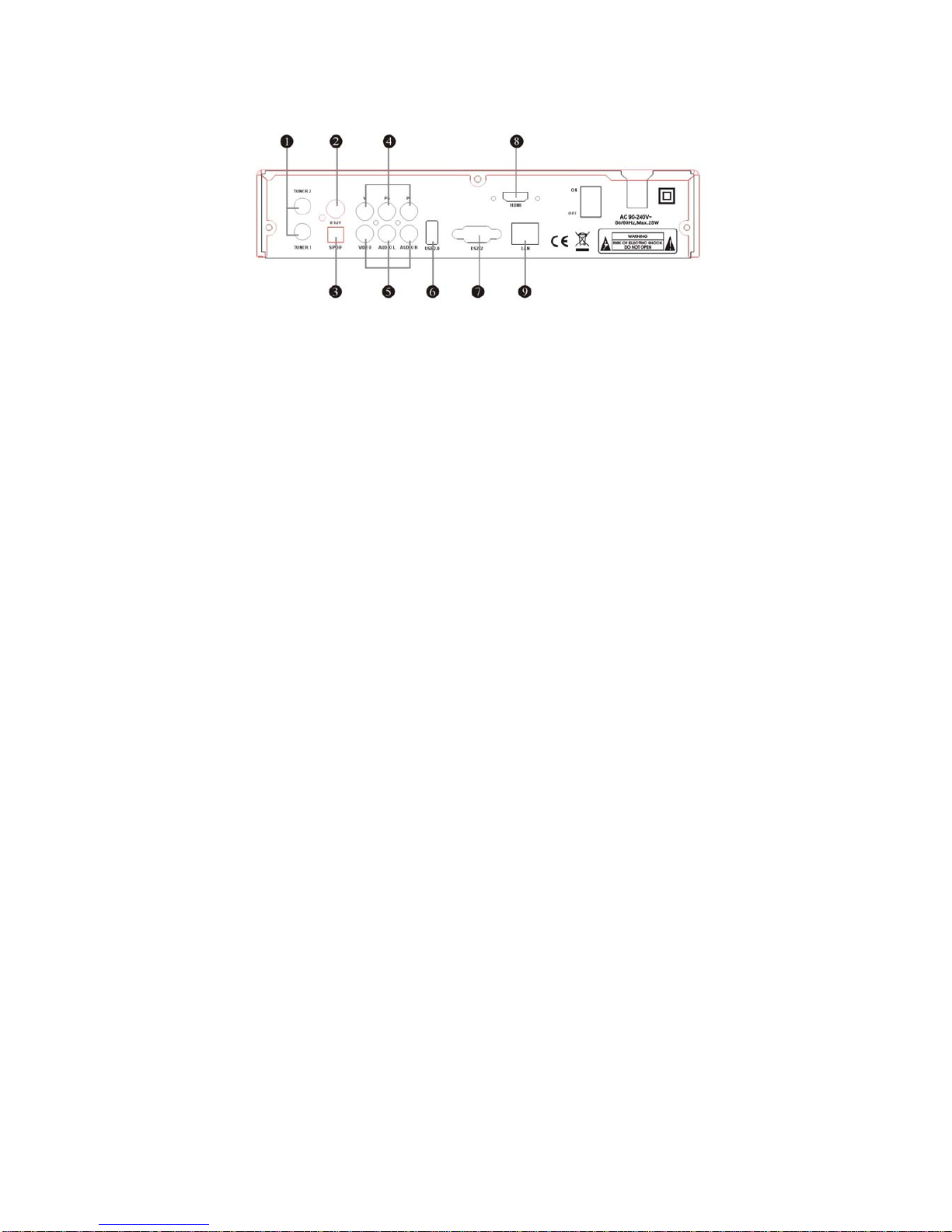

Figure 3. Rear Panel
Figure 3. Rear Panel
1. TUNER1/2
Connect the Satellite Dish LNB.
2. 0/12V
Supply 12V DC to other apparatus.
3. S/PDIF
Digital Audio output.
4. Y, Pb, Pr
Components Video.
5. AUDIO, VIDEO
Connect to Audio/Video of TV. Connect Yellow to Video port, connect Red and White to
Audio Right and Audio Left.
6. USB2.0
One USB 2.0 Host Port.
7. RS232
Connect to serial port of PC for software upgrade by manufacturer ONLY (Not by user).
8. HDMI
HD signal output.
9. LAN
Network Interface.

-7-
2.3 Remote Control Unit(RCU)
You can control this receiver by this remote controller with full function.
1. POWER:Switch the receiver on or off.
2.TV/R: Switch between TV and RADIO.
3. MUTE: Turn the sound On/Off.
4. NUMERIC KEY (0~9):
Change program or input number
5. RECALL:
Move to the previous viewed channel.
6. SAT:
Show the scanned satellite list.
7. MENU:
Activate main menu or exit to live channel.
8. EPG (Electronic Program Guide):
Show the TV/Radio program guide.
9. FAV:
To get favorite channel list you set before.
10. EXIT:
Exit current menu step by step.
11. CH/:
Change program.
12. VOL /:
Change volume in viewing mode.
13. PAGE+/-
Page up/down on menu.
14. OK:
Confirm the highlighted menu item.
Open the program list.
Figure 4. Remote Control Unit

-8-
15. AUDIO : Select or change the Audio.
16. PAUSE: Freeze the picture.
17. ZOOM: Picture Zooming function.
18. INFO (i):
Show the information of the current channel.
19.F1: No Function
20 F2 SUB:
Showing Subtitle information if the channel contains.
21. F3 : Activate Multi picture menu and select picture.
22. TXT:
Show the teletext content if teletext is transmitted.
23. : Fast forward.
24. : Fast backward.
25. : Start playing / Release pause.
26. ■/USB : Enter USB/Stop recording.
27. I : Play previous item.
28. I: Play next item.
29. I I: Pause/time shift.
30. ●: Start recording.

-9-
3. Installation and Connection
The following diagram shows you the connections among receiver, TV, LNB and other
equipment, please read this first if you are not sure about the connection, and it will guide
you to the correct connection.
3.1 Connecting to TV
Figure 5. Connecting to TV

-10-

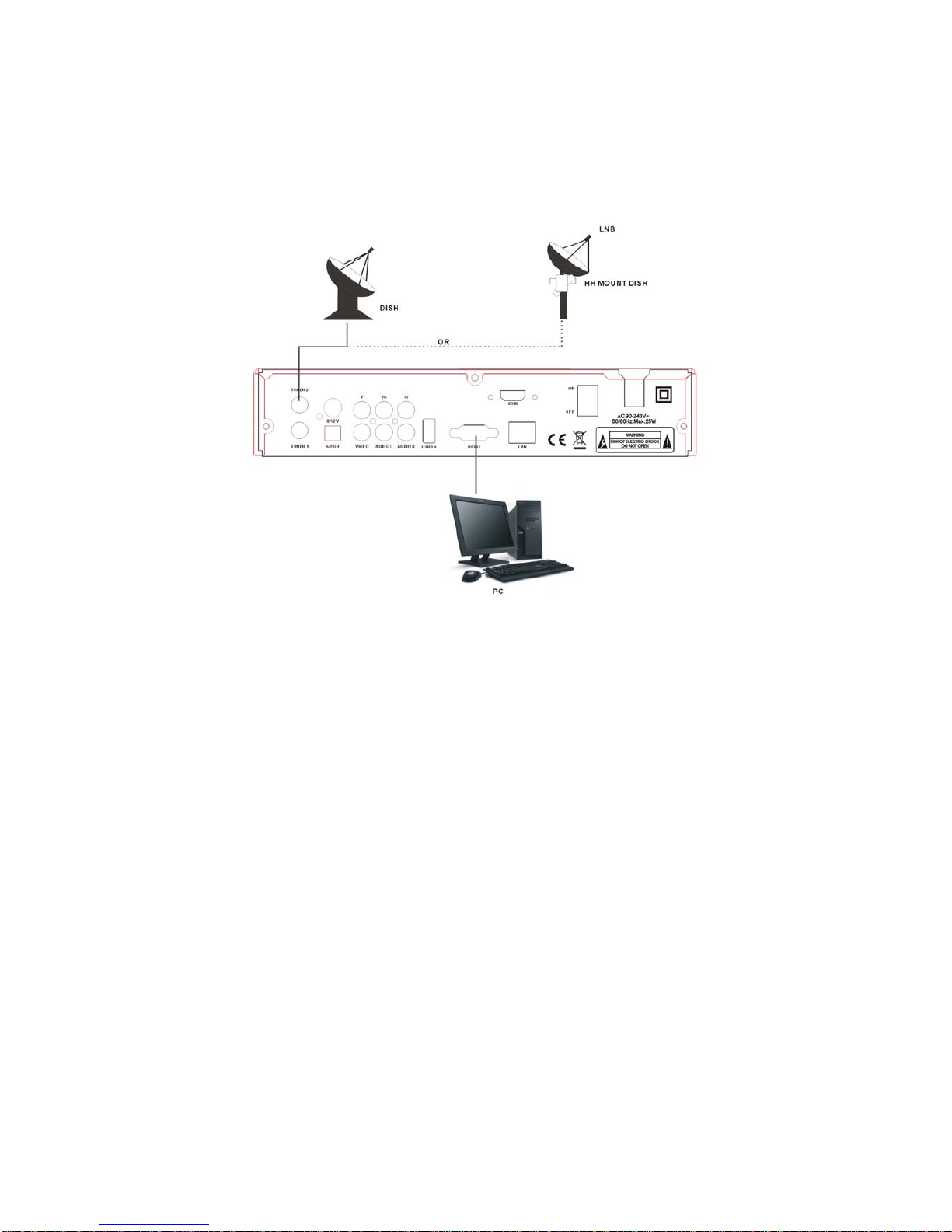

3.2 Connecting to Dish LNB
You can connect one fixed dish LNB directly to the LNB IN, or connect at least two dish
LNB by DiSEqC Switch, you can also connect to HH mount dish LNB.
Figure 6. Connecting to Dish LNB

-11-

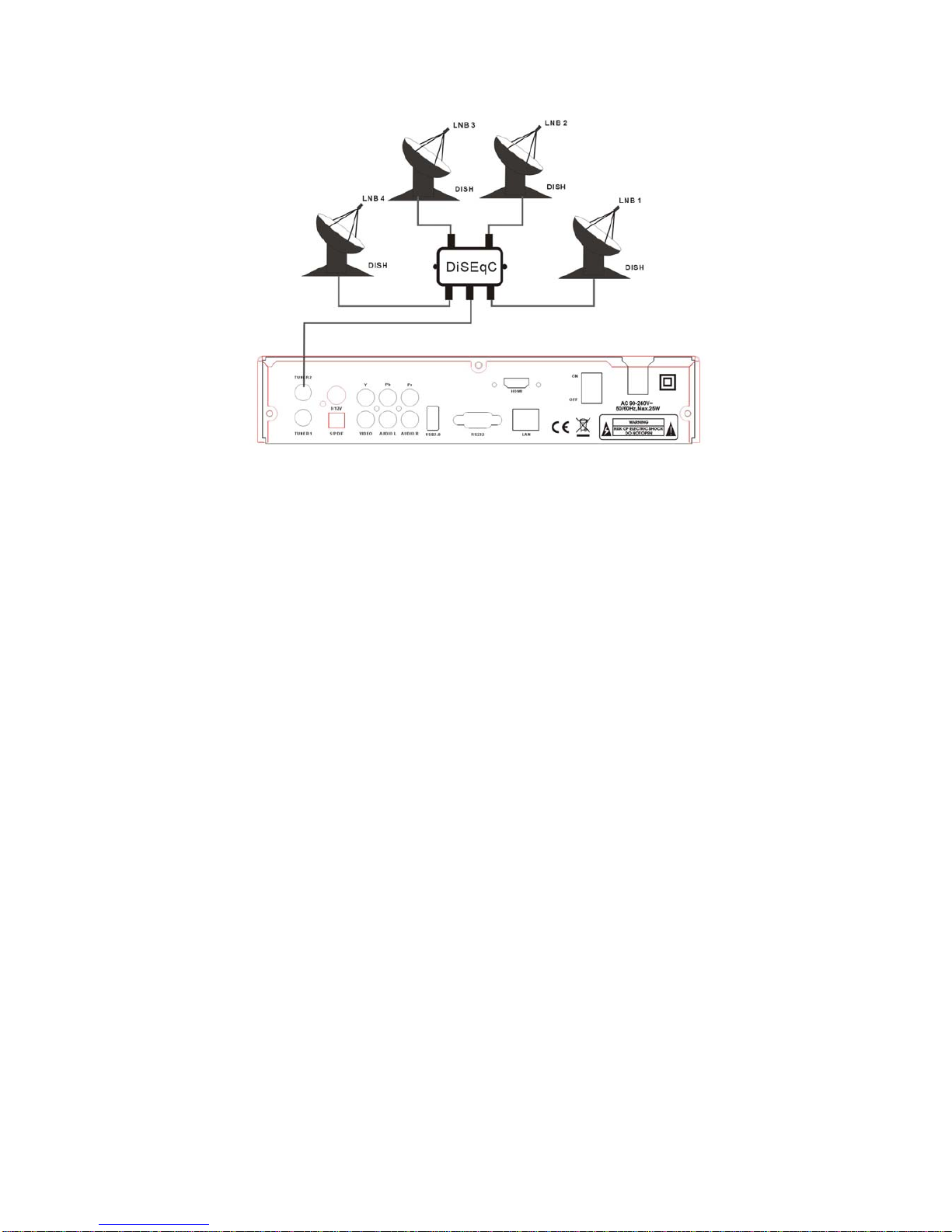

Figure 7. Connecting to Dish LNB

-12-
4. Installation and Operation
After connecting the receiver to other required equipment, turn on the receiver, there
should be no channel information available at the first startup; you need to follow the
procedure to setup your receiver to search the channel

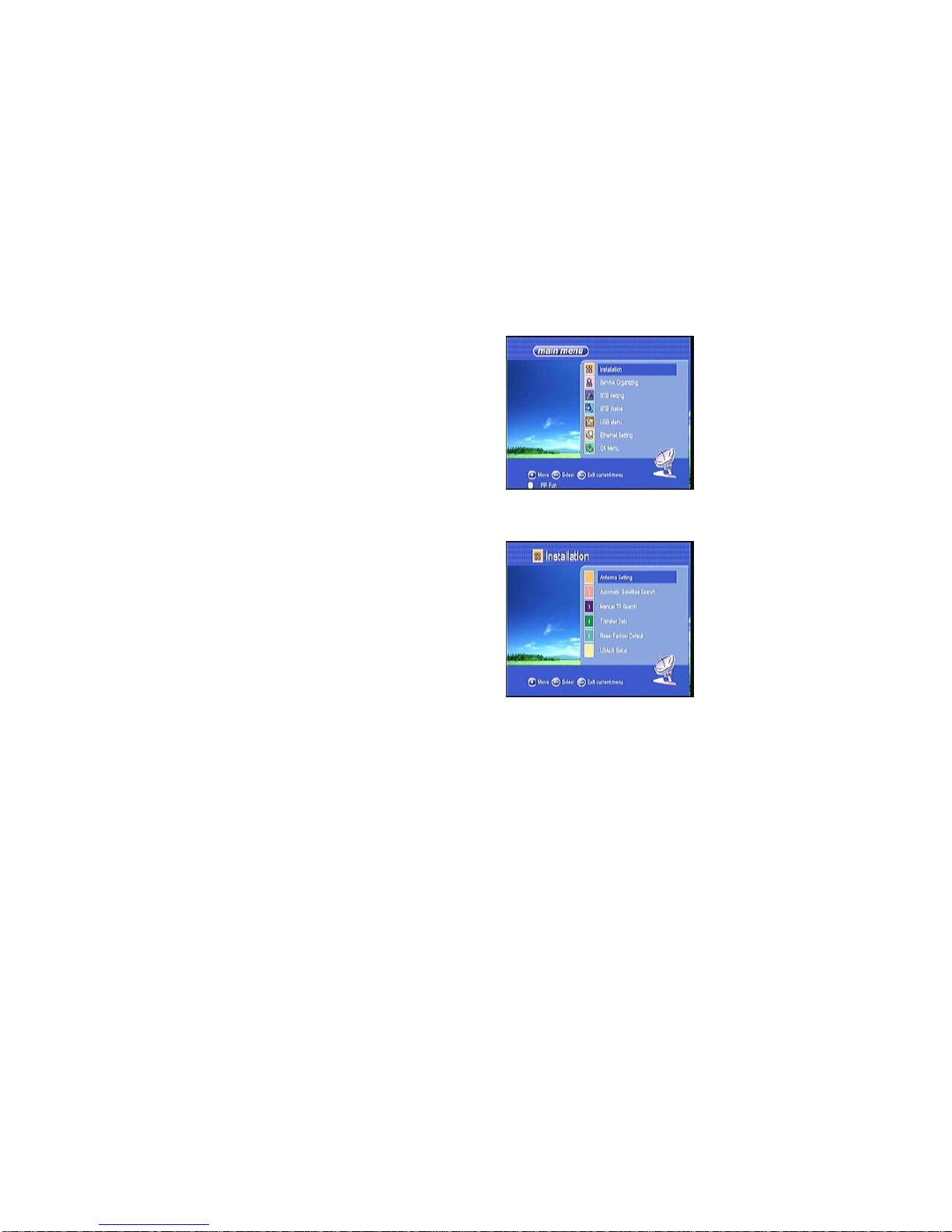

--Main Menu--
Press MENU button to activate main menu, main menu consists of Installation, service
organization,STB setting ,STB status, USB Menu, Ethernet Setting, CA Menu.
Use UP/DOWN button to select your subject and press OK to confirm your selection
and enter that sub menu, press EXIT button you can return to the previous menu.
4.1 Installation
Select Installation, press OK button to activate
Installation menu, the Installation window will be
displayed.
4.1.1Antenna Setting
Press OK to Enter Antenna Setting; here you
can make Satellite Search, TP search, blind
Search and other Functions.

-13-

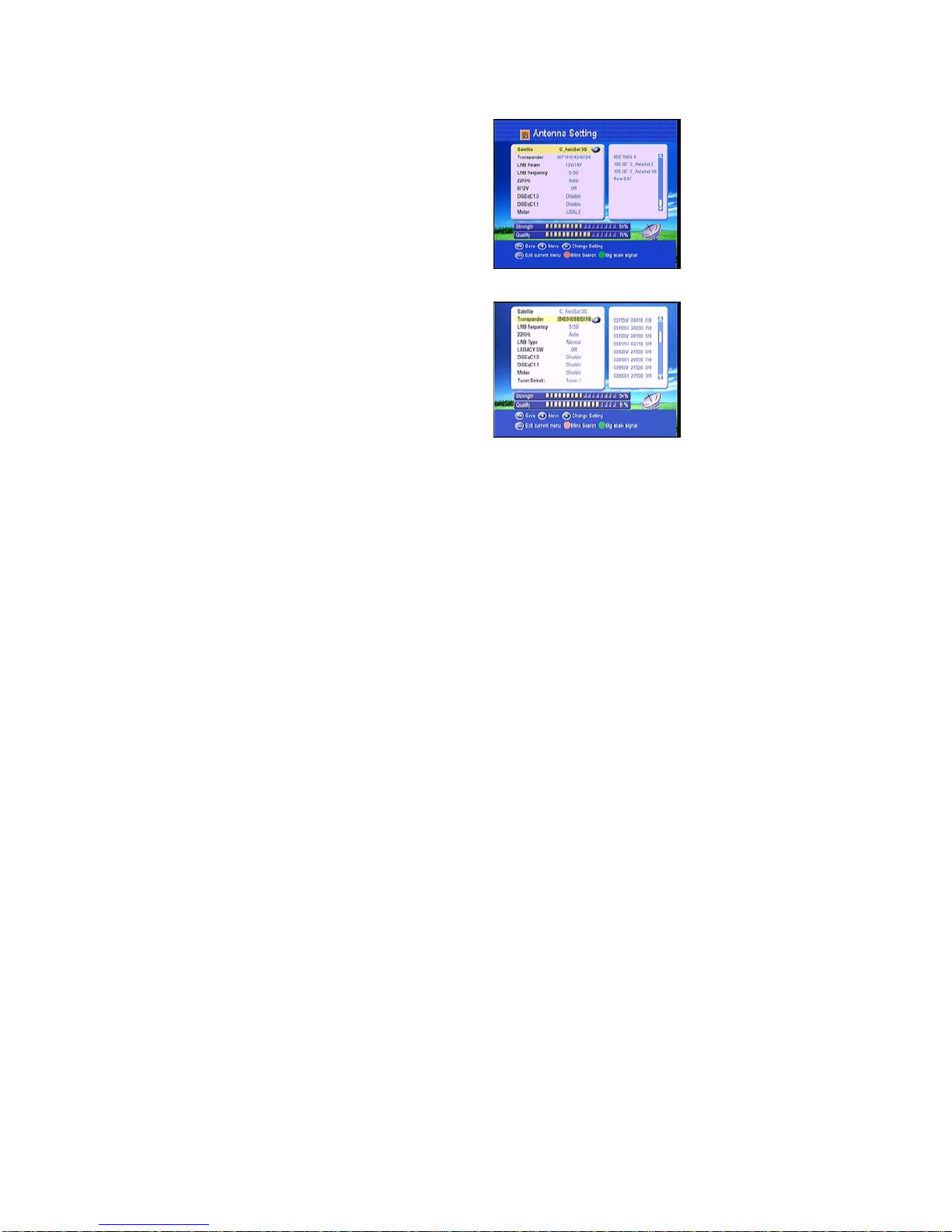

a: Satellite List
Enter this picture, you can see the presorted
Satellite list, in this menu, you can press the
UP/DOWN keys choose the satellite which
you want to use, then press the OK to confirm
the setting, you can setting other parameters.
b: Transponder List
If you change the satellite, the transponder
will be changed automatically. You will find
the transponder list of selected satellite here.
Choose TP which you want to use, then press
the OK to confirm the setting, you can setting
other parameters.
c: LNB frequency and power
Here you need to check the LNB frequency according to your antenna, set the correct
frequency or define yourself, and keep LNB power to be 13/18V.
d: 22KHz
In case you are using two antennas connected to a 22KHz tone switch box. You can
supply either 22KHz by setting “ ON” or “ OFF” to select antenna.

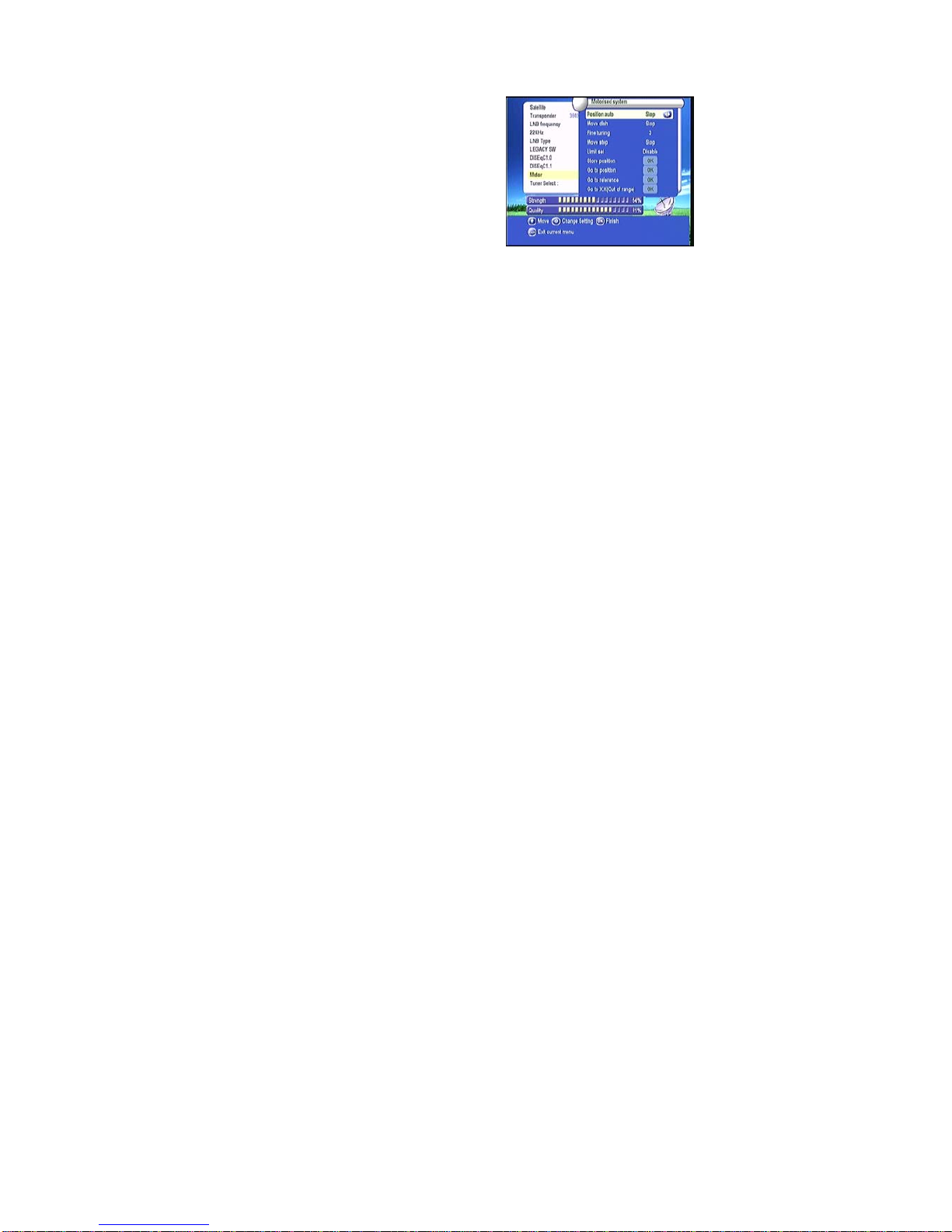

e: DiSEqC1.0 DiSEqC1.1
If you connect antenna to DiSEqC Switch, you need to specify the DiSEqC input to which
your selected satellite have been configured.

-14-
f :Motor
When you Enable this option, and press OK, you
will get this window to show you how to adjust
position of the dish.
Move Auto [W/E]
Press RIGHT/LEFT button, the dish will be
motorized to East/West
continuously, it will stop until it find the best signal.
Move west-east
Push RIGHT/LEFT button, the dish will be motorized to East/West step by step until you
find the best signal showed on the signal bar.
Fine Tuning(1)
Input digital button to set the moving step; Press RIGHT/LEFT button to move steps.
Store Position
Save the current position you searched.
Go to Position
Press OK button to move the dish to the stored position.
Go to Reference
Press OK button to move the dish to 0 position.
Pres Exist after setup, and you can search channel now
Set West Limit
Enable West limit.
Set East Limit
Enable East limit.
Disable Limit
Disable West limit and East limit.
USALS: If you use USALS and select the Motor Mode to USALS, here one more option
you can move the dish to exact position of the satellite.

-15-
g:Tuner Select
Enter this menu, select tuner which one you input the signal, tuner1 or tuner2 supply
change
NOTE: If you don’t know any message about the satellite you can press the RED key
using blind search.
4.1.2 Automatic Satellites Search
Selecting one satellite, and press OK to mark, you
can select more satellite at this time, but make sure
they are all configured to your DiSEqC Switch,
after this step , select all channel scan, free
channel scan or blind search, Pressing OK will
start searching, During searching
the TV Channel and Radio Channel will be listed separately.
4.1.3 Manual TP Search
Here you need to select one satellite which your
dish pointed, then select the frequency, you need
to setup the Polarization of that selected
transponder, symbol rate, FEC,Network search (if
the transponder contains this function), if you know
the PID figure for that channel, you can input and
search by this way.

-16-
4.1.4 Transfer Data
Here you can transfer main sw or channel data from pc to STB
FTP Download
VFTP download some receiver like message, sw,
channel list, so you should connect the Ethernet,
then connect FTP severs.
4.1.5 Reset Factory Default
You can erase all the channels and settings you
made by selecting ALL, if you only want to erase
the channels you searched and stored, please
select Channel List. You also can save or load
channels

-17-
4.1.6 USALS Setup
You can setup the Dish position to the satellite you
want to search, you need to check the detailed
information from internet and input the accurate
parameters about your local position.
4.2 Service Organizing
Enter the service organizing; you can set channel
fav, edit channels, like lock, rename, delete, and so
on.
4.2.1Edit Favorites
Here you can select your favorite channel and
mark them set 8 fav, Press the FAV button, you
can classify the favorites categories.
4.2.2 Edit Channels
In this menu you can delete, rename, lock and
move the selected channel.

-18-
4.2.3 Remove Satellite
Select one satellite and press OK to mark, after
you exit this menu, you will be asked to confirm
whether delete the satellite or not. If you select
YES, all the channels in the selected satellite will
be deleted.
4.2.4 Sort channels
You can sort the channels in different sequence;
press OK on viewing mode you can check the
sorting result..
4.2.5 Edit Transponder list
Here if you press OK on the left you can rename
Delete, Move, and Add satellite. If you are on the
right and press OK, you can Delete, Edit and
add transponder.
4.3 STB Setting
Here you can setup Menu Language, audio
Language, TV output and Time setting
according to your country.
Table of contents
Other Az-Box Receiver manuals
