Az-Box SD99010A User manual

1

Applicant&
Address:
Description of Satellite Receiver + Android Box
Equipment:
Model:
Trade Name:
2
Shenzhen Sen5 Technology Co., Ltd.
7 floor North block, SDG Infoport,No.2 Kefeng Road,
Hi-tech Park, Nanshan district, Shenzhen, China
AZBOX, Sen5, Aidooo
Titan,SD99010A, SD99010B, SD99010C,
SD99010D, SD99010E

SAFETY INSTRUCTIONS
This STB has been manufactured to satisfy international safety standards.
Please read the following recommended safety precautions carefully.
This marking indicates that this product should not be disposed with
other household wastes throughout the EU. To prevent possible harm
to the environment or human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the return and
collection system or contact the retailer where the product was
purchased. They can take this product for environmental safe
recycling.
This Symbol indicates that this product incorporates double insulat
between hazardous mains voltage and user accessible parts.
ion
3

SAFETY INSTRUCTIONS
MAINS SUPPLY: AC 100-240V ~ 50/60Hz
OVERLOADING: Do not overload wall outlets, extension cords or adapters as this can result in fire or
electrical shock.
LIQUIDS: Keep liquids away from the STB.
CLEANING: Before cleaning, disconnect the STB from the wall socket. Use a cloth lightly dampened
with water (no solvents) to clean the exterior.
VENTILATION: Do not block the STB ventilation holes. Ensure that free airflow is maintained around the
STB. Never store the STB where it is exposed to direct sunlight or near heating equipment e.g. a
radiator.
Never stack other electronic equipment on top of the STB. Place the STB at least 30mm from the wall.
ATTACHMENTS: Do not use any attachment that is not recommended by the manufacturer; it may
cause a hazard or damage the equipment.
CONNECTION TO THE SATELLITE DISH LNB:
The LNB connector cable has voltage in its center core. It is therefore recommended that the STB be
disconnected from the mains power before connecting or disconnecting this cable.
FAILURE TO DO SO COULD DAMAGE THE LNB.
SERVICING: Do not attempt to service this product yourself. Any attempt to do so will make the warranty
invalid. Refer all servicing to a qualified service agent.
LIGHTNING: If the STB is installed in an area subject to intense lightning activity, protection devices for
the STB mains connector and modem telephone line are essential. The individual manufacturer’s
instruction for safeguarding other equipment, such as TV set, Hi-Fi, etc., connected to the STB must
also be followed during lightning storms.
GROUNDING: The ground of the LNB cable must be directly connected to the system ground for the
satellite dish. The grounding system must comply with local regulations
Note: Dispose the used batteries at designated place for environment protection
4
Extreme Temperature: 45 Celsius degree

Warning! Important Safety Instructions
Always be careful when using your product. To reduce the risk of fire, electrical shocks, and other
injuries, keep these safety precautions in mind when installing, using, and maintaining your machine.
• Read all safety and operating instructions before operating your product.
• Keep the safety and operating instructions for future reference.
• Heed all warnings on the product receiver and in the operating instructions.
• Follow all operating and use instructions.
• Unplug the product from the wall outlet before cleaning. Use a damp cloth; do not use liquid or aerosol
cleaners.
• Never add any attachments and/or equipment without approval of the manufacturer. Such additions
can increase the risk of fire, electric shock, or other personal injury.
• Do not use the product where contact with or immersion in water is a possibility, such as near bath tubs,
sinks, washing machines, swimming pools, etc.
• Do not place the product on an unstable cart, stand, tripod, bracket, or table where it can fall. A falling
product can cause serious injury to a child or adult, and serious damage to the appliance. Use only with
a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product. Follow
the manufacturer’s instructions when mounting the unit, and use a mounting accessory recommended
by the manufacturer. Move the product and cart with care. Quick stops, excessive force, and uneven
surfaces can make the unit and cart unsteady and likely to overturn.
• Provide ventilation for the product. The unit is designed with slots in the cabinet for ventilation to
protect it from overheating. Do not block these openings with any object, and do not place the
Product on a bed, sofa, rug, or other similar surface. Do not place it near a radiator or heat
register. If you place the product on a rack or bookcase, ensure that there is adequate ventilation
and that you’ve followed the manufacturer’s instructions for mounting.
• Operate your product only from the type of power source indicated on the marking label.
If you are not sure of the type of power supplied to your home, consult your appliance dealer
or local power company.
• Use only a grounded or polarized outlet. For your safety, this product is equipped with a polarized
alternating current line plugs having one blade wider than the other. This plug will fit into the power
outlet only one way. If you are unable to insert the plug fully into the outlet, try reversing the plug.
5

If the plug still does not fit, contact your electrician to replace your outlet.
• Protect the power cord. Power supply cords should be routed so that they won’t be walked on
or pinched by objects placed on or against them. Pay particular attention to cords at plugs, convenience
receptacles, and the point where they exit from the unit.
• Unplug the product from the wall outlet and disconnect the antenna or cable system during a
lightning storm or when left unattended and unused for long periods of time. This will prevent damage to
the unit due to lightning and power-line surges.
• Avoid overhead power lines. An outside antenna system should not be placed in the vicinity of
overhead power lines or other electric light or power circuits or where it can fall into such power
lines or circuits. When installing an outside antenna system, be extremely careful to keep from
touching the power lines or circuits. Contact with such lines can be fatal.
• Do not overload the wall outlet or extension cords. Overloading can result in fire or electric shock.
• Do not insert anything through the openings in the unit, where they can touch dangerous voltage
points or damage parts. Never spill liquid of any kind on the product.
• Do not attempt to service the product yourself. Refer all servicing to qualified service personnel.
Unplug the unit from the wall outlet and refer servicing to qualified service personnel under the
following conditions:
- When the power-supply cord or plug is damaged
- If liquid has been spilled on the unit or if objects have fallen into the unit
- If the product has been exposed to rain or water
- If the product does not operate normally by following the operating instructions
- If the product has been dropped or the cabinet has been damaged
- When the product exhibits a distinct change in performance
• If you make adjustments yourself, adjust only those controls that are covered by the operating
instructions. Adjusting other controls may result in damage and will often require extensive work
by a qualified technician to restore the product to normal.
• When replacement parts are required, be sure the service technician uses replacement parts specified
by the manufacturer or those that have the same characteristics as the original part. Unauthorized
substitutions may result in additional damage to the unit.
• Upon completion of any service or repairs to this product, ask the service technician to
perform safety checks to determine that the product is in a safe operating condition.
6

CAUTION
You are cautioned that any changes or modifications not expressly approved in this manual could void
your authority to operate this equipment.
NOTE:
This equipment limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
7

Content
CONTENT .....................................................................................................................8
1．SIDE PANEL ....................................................................................................10
2．REAR PANEL...................................................................................................10
3．CONNECTING YOUR SYSTEM.......................................................................11

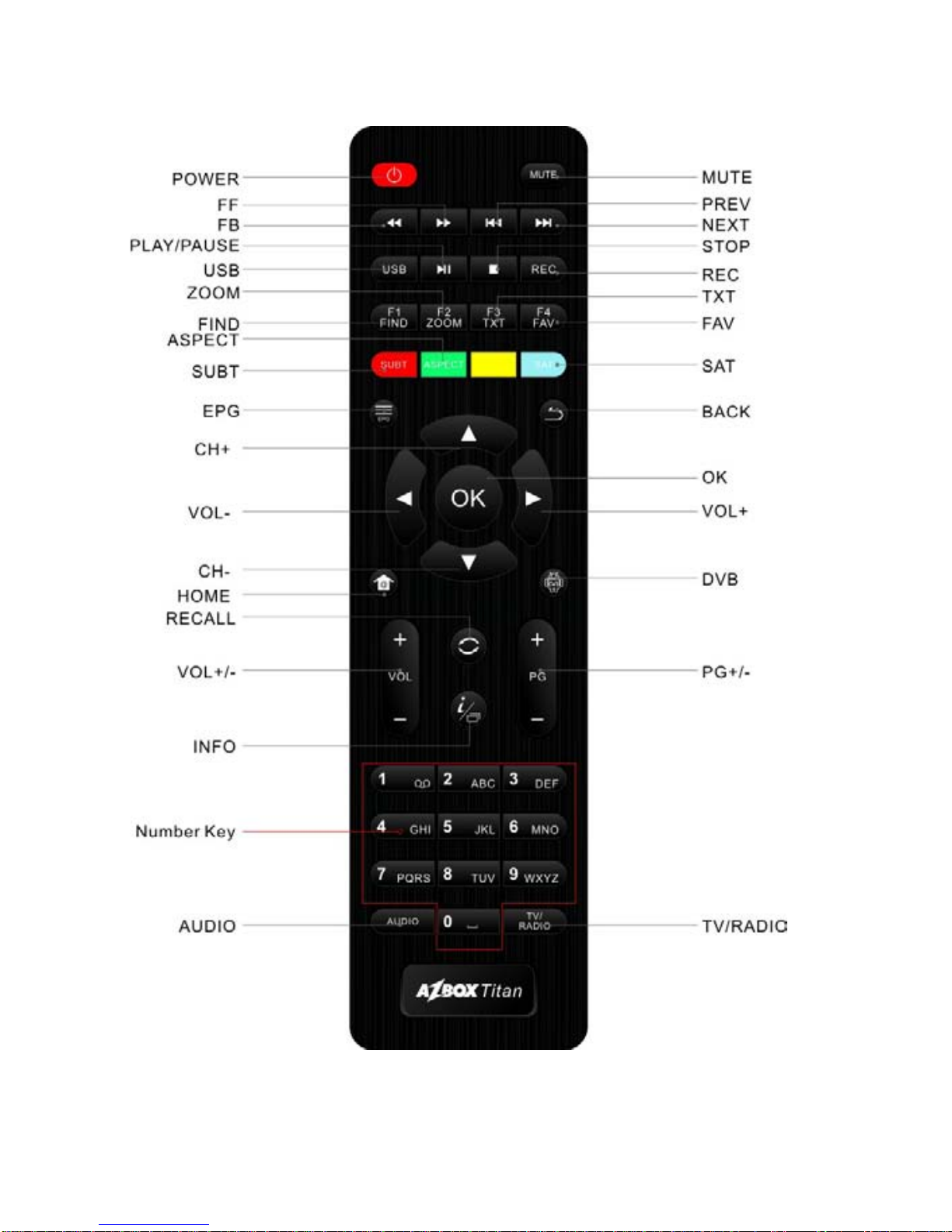

4．REMOTE CONTROLLER.................................................................................12
5．BASIC OPERATIONS ......................................................................................14
DVB SECTION............................................................................................................14
5.1 TURN ON STB ........................................................................................14
5.2 POWER ..................................................................................................14
5.3 CHANNEL UP/CHANNEL DOWN ................................................................14
5.4 VOLUME UP/VOLUME DOWN-..................................................................14
5.5 NUMBER.................................................................................................14
5.6 MUTE .....................................................................................................14
5.7 PAUSE....................................................................................................14
5.8 RECALL ..................................................................................................14
5.9 FAVORITE ...............................................................................................14

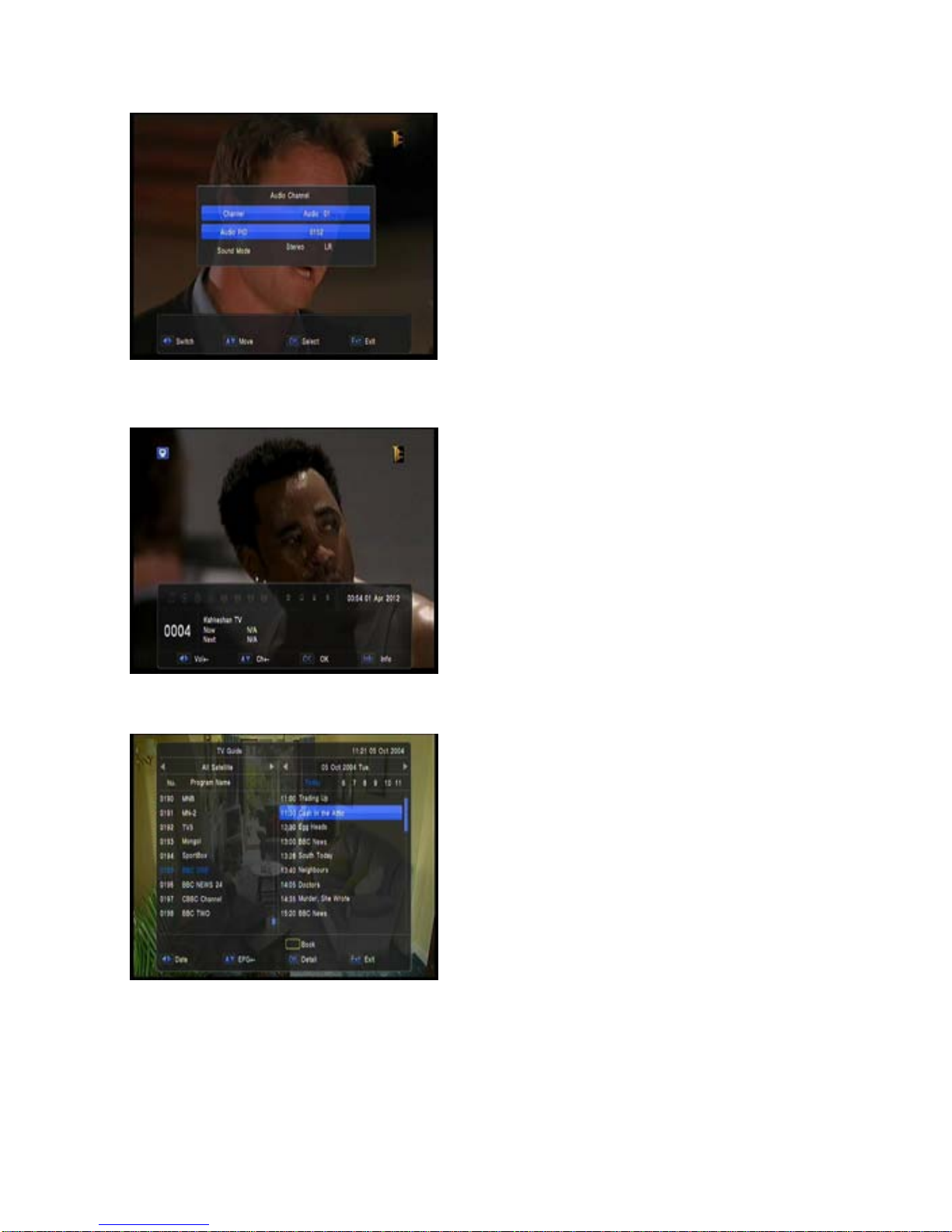

5.10 AUDIO ....................................................................................................15
5.11 INFORMATION .......................................................................................15
5.12 EPG ....................................................................................................15
5.13 TV/RADIO...........................................................................................16

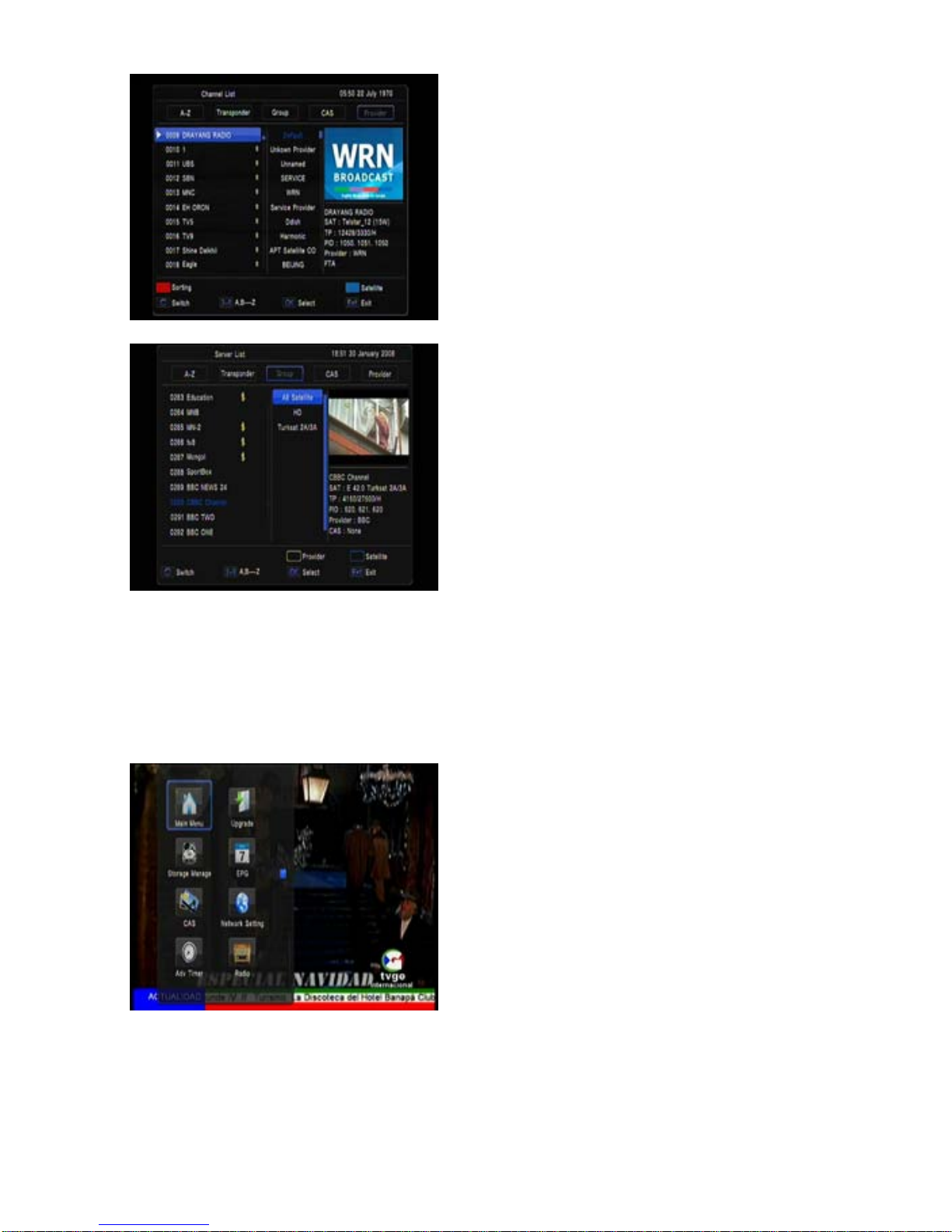

5.14 CHANNEL LIST ......................................................................................16
5.15 PAGE UP/PAGE DOWN ..........................................................................16
5.16 TELETEXT.............................................................................................16
5.17 SUBTITLE..............................................................................................16
5.18 FIND.....................................................................................................17
5.19 ZOOM...................................................................................................17
5.20 HOME...................................................................................................17
5.21 BACK....................................................................................................17
5.22 OK.......................................................................................................18
6．MAIN MENU .....................................................................................................19
6.1.1 CHANNEL...............................................................................................20
6.1.2 INSTALLATION ........................................................................................20
8

6.1.3 MOTOR ANTENNA ..................................................................................21
6.1.4 MANUAL SCAN .......................................................................................22
6.1.5 SYSTEM SETUP......................................................................................23
6.1.6 USB......................................................................................................26
7．UPGRADE........................................................................................................27
8．STORAGE MANAGE .......................................................................................28
9．EPG ..................................................................................................................28
10．CAS ..................................................................................................................29
11．ADV TIMER ......................................................................................................29
12．RADIO ..............................................................................................................29
13．ANDROID SECTION ........................................................................................30
14．SPECIFICATION ..............................................................................................43
9

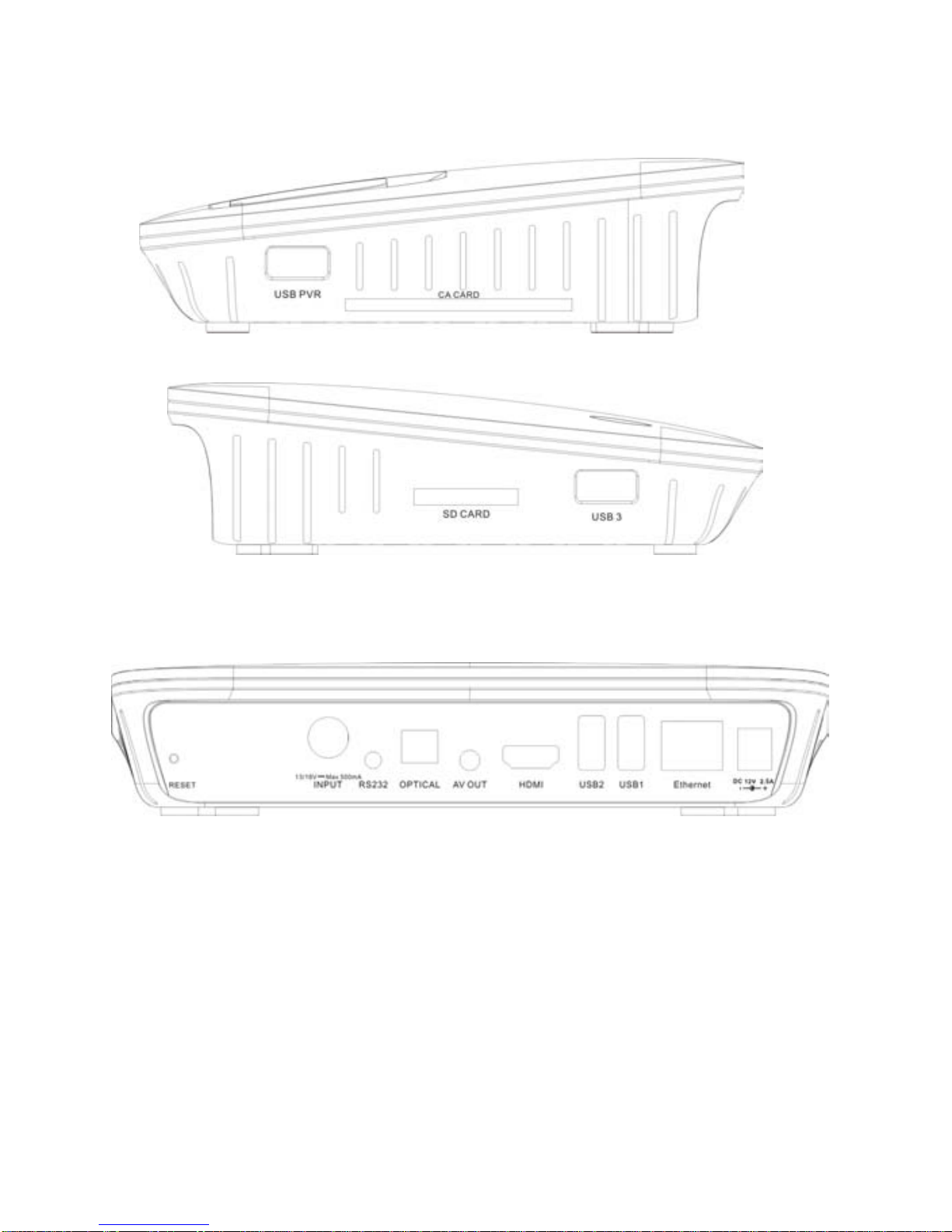

1．Side Panel
The USB PVR port only work for DVB system
2．Rear Panel
10

3．Connecting Your System
There are four ways to connect the receiver to your existing TV system. We recommend using one of the
following cases for the best result:
1. If you have a high definition television set, you should use a HDMI cable for best result. Plug one
end of the cable into the HDMI socket on the receiver and the other end into the matching socket
on your television. In this case, you do not have to make audio connections because the HDMI
connector can output stereo audio or Dolby digital audio.
2. Connect one end of RCA cable to the RCA jack on the back of the receiver and the other end to a
RCA jack on your TV.
Finally connect the coaxial cable from the LNB to the Input on the receiver.
Notice: the Video can not be output simultaneously with RCA and HDMI interface
TV with Motorized System (DiSEqC 1.2 / USALS)
Connect one end of your coaxial cable to the LNB IN connector on the receiver and the other end to the
Receiver connector on the DiSEqC 1.2 / USALS motor.
Connect the coaxial cable from the LNB to the LNB connector on the DiSEqC 1.2 / USALS motor.
All our receivers are designed to be DiSEqC 1.0 / DiSEqC 1.2 /USALS compatible.
This allows multiple antennas to be connected to the receiver at the same time.
If you have two or more fixed antennas or LNBs, we recommend you use a DiSEqC 1.0 switch. Connect
the coaxial cable from the first LNB to the LNB 1 or LNB A input connector of the DiSEqC switch. Do the
same for any other LNBs that you have.
Connect one end of a coaxial cable to the RF output connector of the DiSEqC switch,
Connect the other end to Input on the receiver.
11

4．Remote Controller
12

1．POWER: To switch ON/OFF the receiver power supply.
2．DVB/Android：To switch between DVB and Android.
3．MUTE: To mute or restore the sound
4．TV/RADIO: To switch between TV and RADIO.
5．NUMBER KEYPAD: To select TV/Radio channel and enter to programming parameters by the
numeric keys and to input the character by the alphabetical keys.
6．RECALL: To return to the previously viewed channel.
7．RED, GREEN, YELLOW, BULE KEYS: Multi-function keys in menu mode.
8．HOME: Display the main menu or return to the previous one.
9．Back: To exit from the menu or pop-up window or cancel the present running functions.
10．PAGE +/-: To move up the cursor to the next or previous page in the menu or channel list.
11．SUB: To show subtitle.
12．TXT: To open teletext page on the channel which has teletext information
13．FIND: Enter into a menu to search the channel you want.
14．ZOOM: To magnify a certain area on the images
15．OK: To carry out the selection and enter into choused menu.
16．CH Up/Dn: To turn the next or previous channel and to move the highlight bar for selecting options
to upward or downward on the menu.
17．VOL +/-: To adjust the sound volume up or down and to move the highlight bar for selecting
options to right or left on the menu.
18．FAV: The shortcut key to favorite menu.
19．INFO: The shortcut key to the information menu.
20．EPG: The shortcut key to the EPG menu.
21．AUDIO : Selects the audio mode among Left / Right / Stereo / Mono
22．USB: The shortcut key to the USB menu.
23．FB/FF: To play back or forward faster.
24．PLAY/PAUSE: to pause and play the file when you press play / pause key.
25．STOP: To stop the current play.
26．STEP: Jump forward by chapter.
27．RECORD: To make record of play.
28．NEXT: To change into the next play.
29．PREV: To change into the previous play.
13

5．Basic Operations
This model has two systems with android and DVB，Press key to switch system
quickly between android and DVB, the user is very easy to choose which system to
use.
DVB Section
5.1 Turn on STB
First, press the Power to turn on the unit.
When the STB is first used, there will play the first channel from the default Channel List. If the STB is
not first used, STB will play the same channel as last time before turning off.
5.2 Power
1. Press [Power] Key can enter the Standby state
2. In Standby state, press [Power] Key again can call back the unit and go on play the previous
channel
3. User can also disconnect the device’s main power to end the Standby state.
5.3 Channel Up/Channel Down
In full screen, press [CH Up/Dn] to change channel.
5.4 Volume Up/Volume Down-
In full screen, press [Vol +/-] to adjust volume.
5.5 Number
In full screen, use number key and press [OK] on the Remote Control Unit to change channel.
You can press “0” key to set a sleep timer
5.6 Mute
1. Press [MUTE] key to mute the sound and the screen will show up mute OSD.
2. Press [MUTE] key again to restore sound.
5.7 Pause
By pressing [Pause] key once, the picture and the sound will be paused, by pressing [PAUSE] key
again, you can continue to watch.
5.8 Recall
Press [RECALL] key will directly switch to the previous channel that you played before current
channel.
5.9 Favorite
1. In full screen, press [FAV] key, it will display a window of “Favorite Group” on the left of the screen.
2. In the window of “Favorite”, you can move highlight by press [Ch Up/Dn] key and press [OK] key to
select favorite group.
3. You also can press [VOL +/-] keys to select different “Favorite Group”.
4. Press [Exit] key to exit the current window.
14

5.10 Audio
1 In full screen, press [AUDIO] key to open the
“Audio” window on the screen.
2 You can modify the audio track by pressing [Ch
Up/Dn] key and modify the audio mode by
pressing [VOL +/-] key among Left / Right /
Stereo / Mono.
5.11 Information
In full screen, press [INFO] key can open information
screen, in the window shows the parameters of current
channel.
5.12 EPG 1 The STB has an Electronic Program Guide (EPG)
to help you navigate channels through all the
possible viewing options. The EPG supplies
information such as channel listings and starting
and ending times for all available channels.
2 Press [EPG] key to display EPG screen.
3 Press [OK] key in each item can see more detail
information and press [Exit] key to cancel
4 Press [Yellow] key in EPG menu can display “Adv
Time” Menu. In “Adv Time” menu, you can press
[Vol +/-] to select “back/current time/last program
or last day/next day”. Press [Ch Up/Dn] key to
channel change.
5 Press [Green] key in EPG menu can open timer
menu. Yo can save a timer as you want.
6 In EPG menu, press [Exit] to close EPG
Screen.
15

5.13 TV/RADIO
In TV mode, pressing [TV/RADIO] key can switch to Radio mode. In Radio mode, press [TV/RADIO]
key to switch to TV mode.
5.14 Channel List
1 In full screen, press [OK] key or [CH.LIST] can
enter “Channel List”.
2 Press [Vol +/-] key to change satellite.
3 Press [Ch Up/Dn] key to move highlight and press
[OK] key to play the highlighted channel.
4 Press [Page +/-] key to page up and page down.
5 Press [Exit] key to exit the channel list.
5.15 Page Up/Page Down
In Channel list, press [Page +/-] key to move up the cursor to the next or previous page in the menu or
channel list.
5.16 Teletext 1 Press [TTX] key in full screen, you can open
teletext page on the channel which has teletext
information.
2 If the channel has no teletext information, it will
show “No Teletext Data” on the screen.
5.17 Subtitle Press [SUB] key in full screen, you can switch subtitle on
or off.
You can select the language for a subtitle, if the program
provides subtitle information
16

5.18 Find
1．Pressing [FIND] key in full screen can open the
“Find” window. Press [Vol +/-] [Ch Up/Dn] keys to
move highlight and press [OK] key to input the
selected symbol or letter into the dialogue. The
search result display on the right screen.
2．You can press [Red] key to delete the char, press
[Blue] key to confirm, press [Green] key to cancel.
3．Pressing [EXIT] key can close “Find” window.
5.19 Zoom
1 The [ZOOM] key allows you to magnify a certain
area on the images
2 Press [ZOOM] key again, the image will enlarge
rotate as x2, x4, x6
3 In “x2 ~ x6” image, using [Up/ Down/ Up/ Down]
keys to move the image center area you want to
see.
4 In zoom mode, press [Exit] to close “Zoom”
window.
5.20 Home
Press [Home] key can open the menu, exit the current menu to last menu or close the window.
5.21 Back
Press [Back] key can exit the current menu to last menu or close the window.
17

5.22 OK Pressing [OK] key in full screen can open the “OK LIST”
window
Press RED Button to display different SORT Group, you
can list up the channels by 4 kinds of sorting ways.
Press Green Button to display the fast find channel
menu
18

Press Yellow Button to display previous list with all
channel
Press Blue Button to display Satellite list with all channel
6．Main Menu
When pressing the [MENU] on the RCU, the 8 icons will appear on your TV screen where you can
configure all your settings :Main Menu, Upgrade, USB Formatter, EPG, CAS, PVR,Reservation,
Radio
When the focus on the mainmenu, press ok key will
display four items like below
Channel:Radio channel editor, TV channel editor
Installation: Satellite Find, Automatic SAT Scan,
Manual Scan, SAT/TP Manager, Satellite Find
System Setting:Factory Setting, Upgrade Backup,
Parental control, TV setup, Time, OSD setting,
Language
Tool: USB Safe Remove PVR Settings
19

6.1.1 Channel
By selecting “Channel” menu,
- You can move highlight by press [Ch Up/Dn] key to select Radio channel editor、TV channel editor
NAME [Red Key]: To edit the channels name
LOCK [Green Key]: To lock the channels which you want
to lock.
- It will display a dialogue to ask you to input
password. The default password is “0000”. If you
input the correct password you can see a “lock
mark” in the right side of the highlighted channel.
- After save and exit menu, STB will request you to
input the password while you want to watch the
locked channel.
DEL [Yellow Key]: To delete the channel
SKIP [BULE Key]: By pressing Red key, To select the
channels you want to skip.
FAV [FAV Key]: To select the channel which you want to add in the Favorite List
Satellite [F1 Key]: Press F1 key to switch the channel list with the different satellite
MOVE [F2 Key]: To move the channel to the position you want to place.
SORT [F3 Key]: By pressing F3 key, you can list up the channels by 4 kinds of sorting ways.
Alphabet (A-Z): To list up alphabetically.
Transponder: To list up by transponder
Fay-Free: To sort channel through free and scramble sequence.
Default: To sort channel by default channel list from Satellite list
6.1.2 Installation By pressing [Menu] and press [Vol+/-] to move the
highlight on the Installation
When the highlight on the satellite setting , press OK key
to satellite setting menu
When the focus on the satellite list, you can press OK
key to setting which satellite will be select with LNB
You can press RED key to set SAT/tp Manager
Press Green key to start channel search
Press blue key to update transponder from network
1 Satellite: In this item, press [Volume Up/ Volume
Down] key can switch Satellites and press [OK]
20
