AZAMERICA S809 User manual

.
User´s Guide

English

GENERAL INFORMATION
INSTALLATION
MENU INFORMATION
1
5
7
Main Features
For your Safety
Unpacking
General Operation
RCU
1
2
3
3
4
Front Panel
Rear Panel
Connecting to TV using RCAsupport
Connecting to Digital Amplifier
5
5
6
6
Main Menu
1. Channel List
1.1 TV Channel List
1.2 Radio ChannelList
1.3 DeleteAll
2. Installation
2.1 AntennaConnection
2.2 Satellite List
2.3 AntennaSetup
2.4 Single SatelliteSearch
2.5 Multi SatelliteSearch
2.6 TP List
3. System Setup
3.1 Language
3.2 TV
3.3 Local Time setting
3.4 TimerSetting
3.5 Parental Control
3.6 OSD Setting
3.7 Favorite
3.8 Other
7
8
8
10
10
10
11
11
12
13
14
14
15
15
16
16
16
17
17
18
18

4. Tools
4.1 Information
4.2 Factory Setting
4.3 Upgrade byUSB
4.4 ConditionalAccess
4.5 USB
4.6
5. Game
6. REC
6.1 Record Mangager
6.2 PVR Setting
6.3 HDD Information
7. Hot key
7.1 Info
7.2 EPG
7.3 Find
7.4 Numer
7.5 TV/Radio
7.6 Up/Down
7.7 Left/Right
7.8 Mute
7.9 Pause
7.10 OK
7.11 Audio
7.12 Recall
7.13 Fav
Network Local Setting
4.7 Upgrade byNetwork
18
18
18
19
19
20
21
21
21
22
22
22
22
22
23
23
23
23
24
24
24
24
24
24
25
25
25
26

A Digital Satellite Receiver is a convenient product that allows you to view a variety
of programs provided through satellite. This user's guide covers the installation of
the DSR and the necessary steps to implement various features. This also explains
special features available only in thisDSR in detail, which will allow you to make full
use of thesefeatures.
Information confirmed in this document is subject to change. We reserves the right,
without notice, to make change in product design or performances as progress in
engineering or technology.
Main Features
MPEG-2 digital &fully DVB-S compliant
SCPC and MCPC receivable from C/Kuband satellite
Automatic PAL/NTSC conversion
4000 channels TV and Radioprogrammable
32 different favorite groups selection
On Screen Displaywith multi-language
Fully support to7 days ElectronicProgram Guide(EPG)
Picture in Graphics(PIG)support
256 colors OnScreen Display
Automatic network searchfor newly addedtransponders
DiSEqC 1.2 fullysupport, 13/18V, 0/22K, 0/12VLNB control
Various channel editing function(favorite,move, lock, renameand sort)
Parental control forchannels
Easy to useMenu System
Software upgrades throughRS232 port andReceiver to receiver
Automatic turn on/off by Timer setting(multiple options)
Subtitle support DVBEN300743 and EBU
Teletextsupport DVB ETS300472by VBI andOSD
Automatic save forlast channel
Channel list canbe sorted byalphabetic A-Z
Up to 3X3pictures on screen,only 1 active
Video zoom function with 1/2/4/6/8/12/16ratio
Supprot FAT16/FAT32/FAT12
Only list JPEG/BMPfiles
Default 2 hours,user can settingthe end time(Supportsubtitle)
Based on sizeof HDD, 512M~8Gsize will reservefor time shifted
recording(Support subtitle)
Lock/Delete/Rename,Preview playback,Browse recordfiles information
Play/Pause/Stop/Step
Fast Forward/Fast Backward2/4/8/16/24, Slow Forward/SlowBackward
1/2, 1/4, 1/8,Jump to userselected time point
480i/p, 576i/p

For Your Safety
Be sure to turn the Receiver off and
disconnect the AC power cord before
cleaning the Receiver surface. If the
surface is dirty, wipe clean with a cloth
which has been dipped in a weak soap-and-
water solution and wrung out thoroughly,
and then wipe again with a dry cloth.
Switch the receiver off whenever it remains
out of service for an extended period.
Do not touch the receiver during thunder,
since that might create electric-shock
hazards.
Do not block ventilation holes of the
Receiver so that air can circulate freely.
Do not expose the receiver un-der the
sunlight. And keep it away from the heat
source.
Keep the receiver away from flower vases,
tubs, sinks, etc., in order to avoid damaging
the equipment.
To avoid electric-shock hazards, do not
open the cabinet, refer servicing to qualified
personnel only.
When the abnormal phenomenon occur,
you should cut off the power immediately.

General Operation
Throughout this manual you will notice that the everyday operation of the receiver is
based on a series of user friendly on screen display and menus. These menus will
help you get the most from your receiver, guiding you through installation, channel
organizing, viewing andmany other functions.
All function can be carried out using the buttons on the RCU, and some of the
function can alsobe carried outusing the buttonson the frontpanel.
The receiver is easy to use, always at your command and adaptable for future
advances.
Please be awarethat new softwaremay change thefunctionality of thereceiver.
Should you experience any difficulties with the operation of your receiver, please
consult the relevant section of this manual, including the Problem Shooting, or
alternatively call yourdealer or acustomer service adviser.

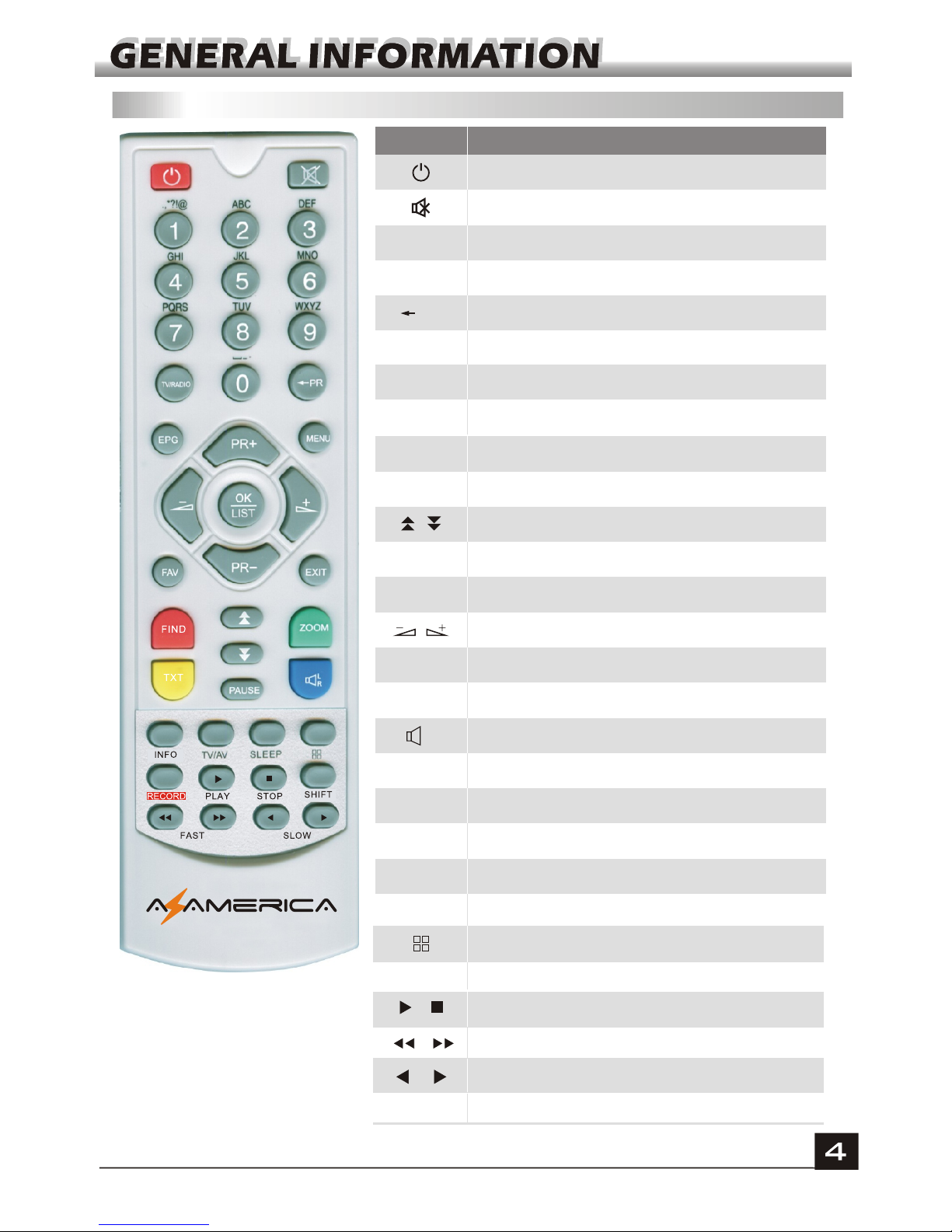

Remote Control Guide
AV cable

RCU
Key Function
Turns power ON/OFF of theDSR
When watching achannel, mute thesound
Switches between TVand Radio mode
0~9
MENU
EXIT
OK, LIST
PR+, PR-
Enter number ofthe required menu item or
select a channelnumber to watch
Press this keyone time to run menu onscreen
Return to theprevious menu on the menu
screen or escapefrom the menu
Press once topause the screen picture, press
once again togo to the normal mode
TV/RADIO
PR
Switches back toprevious channel
Displays the favoritegroup list
Show information ofthe current channel
Switch to teletextor subtitle mode
Moves up /down a page in the list
FAV
INFO
Executes the selecteditem in the menu screen
or enters thedesired value in any input mode
When watching achannel, change channels or
move to thenext higher or lower item inthe menu
When watching achannel, adjust the volume or
move to theleft or right item in themenu
Call up the EPG (Electronic Program Guide)
Display the Audio window.
Switch between TV and AV modes
EPG
L
R
TV/AV
PAUSE
FIND Display the Findwindow
ZOOM
Enter into thezoom in mode
SLEEP
Enter into thesleep in mode
Enter into thenine-pictures mode displayed
on the screen.
TXT
SHIFT
RECORD
Play and stopthe program
Press to fastforward or fastbackward
Record the program
Timeshift function key
,
Press to slowforward or slow backward
SAT Display the satellite list

Rear PanelRear Panel
CONNECT VIDEO TO TV USING RCAJACK
LNB IN: CONNECTTO SATELLITE ANTENNA
LNB OUT:CONNECT TOTHE OTHER RECEIVER
POWER ON/OFF
CONNECT TO ADIGITAL AMPLIFIER
CONNECT TO AUDIO R/L TO TV OR AUDIO TUNER
CONNECT TOA PC FOR S/WUPGRADE
Rear PanelFront Panel
RF : CONNECTTO TVANT INPUT
CONNECT TOTV SET OR VIDEO PROJECTORYPbPr OR
COMPONENT INPUTS
CONNECT TOTHE INTERNET
.

Connecting to TVusing RCA support
Connecting to DigitalAmplifier
Satellite
Dish
LR
IN VIDEO
TV
AUDIO
DIGITALAUDIO
CONVERTOR OR
AMPLIFIER
SPEAKER
Satellite
Dish
DIGITAL AUDIO
LR

Main Menu
This menu consistsof 6 majormain menus
as follow.
- Edit Channel
- Installation
- System Setup
- Tools
- Game
-REC
During the installation the OK key confirms a selection and LIST key shows Down
List Box if the column has 34 mark. You can also use the numeric keys on the
RCU to enternumeric value.
Use the PR+,PR- key to move upwards and downwards from one line to another
line and use key to move from main menu to sub menu and move from left
side to rightside or versa.
Meantime, you want to escape the menu system, please press MENU or EXIT key
on the RCU.
Make sure thatyou have properly installed and connected the cables ofthe receiver
well. If the receiver is the factory status or there is no program list, when power on,
the Main Menuwindow will bedisplayed on thescreen.
During the normal TV/Radio mode, press MENU key on the RCU to enter into the
Main Menu window.
If there is no program, you can not exit from the Main Menu window by pressing
MENU or EXIT key. System will inform"No channel" andthe following itemsturn grey.
Sub-menu Turn grey when there is no program
Edit Channel
Installation
System Setup
Tools
TV Channel List
Radio Channel List
Delete all
Antenna Connection SatelliteList
Antenna Setup SingleSatellite Search
Multi Satellite Search TP List
Language TV System
Local TimeSetting TimerSetting
Parental Lock OSDSetting
Favorite Other
Information Factory Setting
Game Tetris Othello Sudoku
REC Record Manager HHDInformation
PVR Setting
Upgrade by USB Conditional Access
USB
Upgrade by Network Network Local Setting

1. Press OK key or key to pop up the "Input
Password" dialogue, you can not enter into the
menu unless the correct password is inputted. The
default password is"0000".
2. Press PR+, PR- keys to move the cursor up or
down.
3. Press EXIT key or key to move the focus to
the left menu.
1. Edit Channel
1. Press keysto select satellite.
2. Press PR+, PR- keys to select the program that
you want toplay, and then press OK key to viewit in
the small window. If move the yellow cursor to
select up or down, you will see a gray line which
indicates the playingprogram in thesmall window.
1.1 TV Channel List
3. Press FAV key to move the FAV button upward.
Select the programand press OK key to popup the
favourite group list.In the list,select the group that
you want to add into and press OK key, and then
you will find the favourite mark is displayed at the
right side ofthe selected program.
Press FAV key again toexit from thefav mode, and
you will find the FAV button return to the origin
position.
4. Press red colour key to move the Lock button
upward. Select the program and press OK key to
mark this program with the Lock mark. You can
cancel this markby pressing OK key once more.
Press red colour key again to exit from the lock
mode, and you will find the Lock button return to
the origin position.
5. Press green colour key to move the Skip button
upward. Select the program and press OK key to
mark this program with the skip mark. You can
cancel this markby pressing OK key once more.
Press green colour key againto exit from the skip
mode, and you will find the Skip button return to
the origin position.

6. Press yellow colour key to move the Move
button upward. Select the program and press OK
key to markthis program withthe move mark.Press
PR+, PR- keys to move the cursor to the position
where you want to locate and press OK key to
confirm.
Press yellow colour key again to exit from the
yellow mode, and you will find the yellow button
return to theorigin position.
7. Press blue colour key to enter into the Edit
channel window.
Press red colour key to pop up the Sort drop-down
list.
Name(A-Z): The ascending order, omitting the $
character, the number is ahead, then the capital
letter, atlast the lowercase.
Name (Z-A): The opposite order of the above Name
(A-Z).
Free/Scramble: All FTA programsare listed ahead,
while all scrambledprograms are listedlast.
Lock: all locked programsare listed atthe last.
i . Sort(red colour key)
Press green colour key to move the Edit button
upward. Select the program and press OK key to
pop up theRename window.
In Rename window, press red colour key to switch
between capital letterand lower letter;press green
colour key to delete the character on the cursor;
press keys to move the cursor left or right;
press numeric keys (0-9) to input the character,
please refer to the down table. Press yellow colour
key to save and exit, or press blue key to cancel
and exit.
ii. Edit (greencolour key)

Numeric keys Press numeric keyrepeatedly, displayin circle
1
2
3
4
5
6
7
8
9
0
.,*?!@1
ABC2
DEF3
GHI4
JKL5
MNO6
PQRS7
TUV8
WXYZ9
[space]_-0
If the name is empty, system will pop up a dialogue informing "Name" once yellow
colour key ispressed. Press OK key to closethis dialogue.
In Delete window, press blue colour key to move the
Delete button upward. Select the program and press
OK key to mark this program with the deletion mark.
You can cancel this mark by pressing OK key again.
Press EXIT key to pop up the dialogue "Are you sure
to save?". Select Yes button and press OK key to
save, or select NO button and press OK key to exit
without saving.
1.2 Radio ChannelList
Sine the sameoperation as 1.1 TV ChannelList, here wedon't explain anymore.
iii. Delete (bluecolour key)
1.3 Delete All
Move cursor tothe Delete All item, and press OK Key
to pop up the dialogue "Warning! Do you really want
to delete allchannel?".
Press EXIT key to pop up the dialogue "Are you sure
to save?". Select Yes button and press OK key to
save, or select NO button and press OK key to exit
without saving.
2. Installation
1. Press OK key or key to pop up the "Input
Password" dialogue, you can not enter into the
menu unless the correct password is inputted. The
default password is"0000".

2. Press PR+, PR- keys to movethe cursor upor down.
3. Press EXIT key or keyto move thefocus to theleft menu.
2.1 Antenna Connection
Press keys to select between Motor Antenna
and FixedAntenna.
2.2 Satellite List
1. Press PR+, PR- keys to select the satellite up or
down. Press OK key to select and mark, and you can
press OK key again to cancel the selection and the
mark.
2. If there is no satellite, the red colour and blue
colour keys willbe invalid.
3. Press red colour key to pop up the Edit Satellite
window. Press PR+, PR- keys to move cursor up or
down.
Name: User numeric keys to change the name of the
satellite, please referto the Edit Channel Name.
Longitude: You can press keys to switch
between east longitude and west longitude. After
pressing OK key, you can use numeric keys to edit
the longitude, press EXIT key or the PR+, PR- keys
to exit editing mode. The range of the longitude is from 1to 180 degree. If beyond
this range, system will inform you "out of range" when you press yellow colour key
on the RCU.After setting,press yellow colour key to save and exit, while press blue
colour key to exit without saving.
4. Press green colour key to pop up the Add
Satellite window. Since the same operation as the
above Edit Satellite window, here we don't explain
any more.
5. Press blue colour key to pop up the dialogue "Are
you sure to delete?". Select Yes button and press OK
key to delete the selected satellite. You can cancel
this operation bypressing OK key at theNO button.

Suppose that you have selected Fixed Antenna in
the Antenna Connection window.
1. Satellite: All selected satellites in the satellite list
are displayed inthis item.
Press keys toselect the satellite in circle. Or
2.3 Antenna Setup
Part A:Fixed
3. 22K, 0/12V, Polarity: Youcan press keysto select incircle.
2. LNB Freq,Transponder,DiSEqC1.0, DiSEqC1.1: The same operation as theabove.
Part B: Motor
Suppose that you have selected Moter Antenna in
the Antenna Connection window.
1. LNB Type: Select the proper LNB type.
2. Motor Type: Select between DiSEqC1.2 and
USALS. If you select DiSEqC1.2, the following Local
Longitude and LocalLatitude items willturn grey.
3. Delete All: Press OK key to pop up the dialogue
"Are you sure to clear set satellite position of this
tuner?". Press OK key at the Yes button to clear all
the memories about the position of the satellites that
has connected tothe current turner.
4. Motor Setting: Press OK key to the Motor Setting
window.
Satellite: Press keys to select the satellite in
circle. Or press OK key to pop up the drop-down list,
then select the desired satellite in the list and press
OK key toconfirm.
Transponder: Thesame operation asthe above.
Position No., & Save: The range is from 0 to 63. "0" delegates the original position.
You can select the proper value when you has rotated the antenna.
Go to X: Press OK key to pop up the drop-down list, select the proper position
(reference or from1to 63) torealize the selectedposition.
West <Save> East: Press key to turn west, while press key to turn east.
Press OK key to pop up the dialogue "Are you sure to change this satellite's
position?". Press OK key at the Yes button to save the current position, or press OK
key at theNo button tocancel the operation.
Recalculation: Press OK key to pop up the dialogue "Are you sure to change this
satellite's position?". PressOK key at the Yes button to recalculation.
press OK key to pop up the drop-down list, then select the desired satellite in the
list and pressOK key to confirm.

5. Limit Setup: Press OK key to pop up the Limit
Setup window.
Limit Setup: Press keys to switch among
Disable Limit, EastLimit and West Limit.
Limit Setup: Move cursor tothe Limit Setupbutton.
You can press keyto turn west, or press key
to turn east.
Go to Reference:Press OK key to goto reference.
If you select Disable Limit in the above Limit Setup
item, this buttonwill turn grey.
6. If select USALS,Delete Allitem will turngrey.
Local Longitude, LocalLatitude: Press
keys to switch between West and East, or
press keys to switch between North and
South. Press OK key to enterinto the editingmode.
Use numeric keys (0-9) to input the longitude or
latitude, press MENU key or EXIT key to exit. The
range of the longitude is from 0 to 180,while the
range of the latitude is from 0 to 90. If the inputted
value is not in this range, system will pop up a
dialogue "Out of Range" when exit from this
window. You can press OK key to close this
dialogue.
7. Motor Setting: Press OK key to enter into the
Motor setting window.
Satellite, Transponder: Press keys to
select satellite or transponder, or press OK key to
pop up thedrop-down list andselect in thelist.
2.4 Single SatelliteSearch
1. Satellite :
2. FTA Only: Press keys to select between
Yes and No.
3. Scan Channel: Press keys to select
among TV+Radio, TVChannel, Radio.
Press keys to select the
satellite in circle. Or press OK key to pop up the
drop-down list, then select the desired satellite
in the listand press OK key to confirm.

2.5 Multi SatelliteSearch
4. Network Search: Select between No and Yes.
This item turns grey when Auto Scan is selected in
the following Scanmode item.
5. Scan Mode: Press keys toselect between
Auto Scan and Preset Scan. Auto Scan is Blind
scan, while Preset Scan is to search the preset
frequencies.
6. Search: Press OK key to startsearching.
From the Multi Satellite Search window, you can
search several satellitesat the onetime.
1. Satellite: All selected satellites in the satellite
list window are displayed on the down part. You
can press keysto switch amongthem.
2. FTA Only: Press keys to select between
Yes and No.
3. Scan Channel: Press keys to select
among TV+Radio, TVChannel, Radio.
4. Network Search: Select between No and Yes. This item turns grey when Auto
Scan is selectedin the followingScan mode item.
5. Scan Mode: Press keys to select between Auto Scan and Preset Scan.
Auto Scan isBlind scan, whilePreset Scan isto search thepreset frequencies.
6. Search: Press OK key to startsearching.
2.6 TP List
1. Press PR+,PR- keys to selectthe proper satellite.
2. Press red colour key to pop up the Edit TP
window.
Frequency, Symbol rate: Press keys toadd
or reduce by step one. Or press numeric keys (0-9)
to input the desired value. The range of the
frequency is 3000-13450, while the range of the
symbol rate is 1000~45000. The inputted value is
beyond this range, the value will return to the origin
value.
Polarity: Press keys to switch between
Vertical andHorizontal.

3. Press green colour key to pop up the Add TP
window. Since the same operation as the above Edit
TP window, herewe don't explainany more.
4. Press yellow colour key to pop up dialogue " Are
you sure to delete?". Press OK key at the Yes button
to delete the selected TP, or press EXIT key to
cancel the operation.
5. Press blue colour key to pop up the TP Search
window.
FTAonly, Scan Channel, NetworkSearch: Press
keys to select the proper option.
Press OK key at theOK button tostart searching.
1. Press OK key to enter into the Language
window. Press keys to select the language in
circle, while press PR+, PR- keys to move the
cursor up ordown in circle.
2. Press MENU key or EXIT key to saveand exit.
3. The types of the language, pleaser refer to the
configuration of thecustomer.
3. System Setup
1. Press OK key or key to move the cursor to
the right menu.
2. Press PR+, PR- keys to move the cursor up or
down.
3. Press EXIT key or key to move the focus
to the leftmenu.
3.1 Language

Press PR+, PR- key to move the cursor up or down,
while press keys to change the setting and
the setting willtake effect immediately.
1. Display Mode: Select among PAL-M, PAL-N,
NTSC.
3.2 TV System
2. Video Output: Select between RGBand CVBS.
3.RF System: Select among NTSC,PAL-BG, PAL-I and PAL-DK.
4.RF Channel: PAL:Select from 21-69,NTSC: Select between3 and 4.
1. Summer Time: Select between ON and OFF.
"OFF" delegates the normal time. If select ON, time
will add onehour.
2. GMT Offset: When select "ON" in GMT Usage
item, system will get the date and time information
from the screen automatically. Date and Time two
items will turn grey. Select the proper option in the
GMT Offset item. The default setting isGMT ON.
3.3 Local Time Setting
3.Date, Time: When select "OFF" in GMT Usage, Date and Time two items take
effect, while GMT Usage turns grey. Use numeric keys to input the desired value.5.
After setting, press MENU key or EXIT key to exit and save. If the value is invalid,
system will inform "Invalid input! Continue to edit?". Press OK key at the Yes button
to continue themodification, or pressOK key at theNo button toexit without saving.
3.4 Timer Setting
If there is no program, you can not enter into this
window. There are 8 timers that can be set. Select
Timer up or down, and press OK key to enter into the
setting window.
1. Timer mode: The default mode is off. You can set
the timer once,daily, weekly, monthly and yearly.
