Azbil KUX60G User manual

Field Mount type P/I Converter
Model KUX60G (Waterproof)
Model KUX70G (Explosion-proof)
User’s Manual
CM2-KUX100-2001

Copyright, Notices and Trademarks
© 2002-2020 Azbil Corporation. All Rights Reserved.
While this information is presented in good faith and believed to be
accurate, Azbil Corporation disclaims the implied warranties of mer-
chantability and fitness for a particular purpose and makes no express
warranties except as may be stated in its written agreement with and for
its customer.
In no event is Azbil Corporation liable to anyone for any indirect, spe-
cial or consequential damages. This information and specifications in
this document are subject to change without notice.

Thank you for purchasing the Azbil Corporation’s Model KUX60G/
70G field mount P/I converter.
The model KUX60G/70G offers high performance and is provided
with highly reliable P/I converters with a microprocessor incorporated
in each one.

KUX60G / KUX70G - Field mount type P/I converter i
Safety
About this manual
Correct installation and periodic maintenance are essential for the safe use of this
instrument. Carefully read the safety precautions described in this instruction manual
and have a thorough understanding of it before starting installation or maintenance.
Upon receiving the product, check to see if it has the correct specifications or if it has
sustained any damage during delivery. This instrument is shipped after being tested
according to a strict quality control program. If you find any omissions in aspects of
quality or specifications, inform us of the unit’s model number and product number
written on its identification plate.
The identification plate is attached to the Product.
WARNING
A warning alerts the user of a potentially hazardous situation that may result in death
or serious injury in the event of improper handling.
CAUTION
A caution warns the user of a potentially hazardous situation that may result in light
to moderate injuries or only in property damage in the event of improper handling or
operation.
For correct and safe use of the instrument, be sure to observe the cautions described
in the following pages. Azbil Corporation will not be responsible for any damage that
is a result of handling of the product without heeding these cautions.

Safety Azbil Corporation
ii KUX60G / KUX70G - Field mount type P/I converter
Safety precautions
Cautions on installation
WARNING
• Do not use the instrument beyond the rated pressure, connection specifications
or the rated temperature specified for the instrument. This may result in a serious
accident due to damage to the unit.
• Wiring in an explosion-proof area should be performed according to the procedures
specified in the explosion-proof guideline.
CAUTION
• After installation, do not use this instrument as a step or foothold. This may
damage the instrument or may result in physical injury
• Perform installation correctly. Insufficient installation or no installation may result
in output errors or violate applicable regulations.
Cautions on wiring
WARNING
Do not perform wiring with wet hands or with the power turned on. This may result
in electrical shock. Work with dry hands or wear gloves with the power to the unit
turned off power.
CAUTION
• Carefully check the specifications and perform wiring correctly. Incorrect wiring
may damage the instrument or cause the unit to malfunction.
• Use a power supply that conforms to the specifications. Using a wrong power
supply may damage the instrument.
Cautions on maintenance
WARNING

Azbil Corporation Safety
KUX60G / KUX70G - Field mount type P/I converter iii
• When removing this instrument from the process for maintenance, be especially
careful of residual pressure or any residual fluid remaining in the process line or in
the instrument.
• When carrying out venting or draining, check the direction of the venting or
draining and take precautions to prevent it from coming into contact with the
human body. Failure to do so may result in burns or physical injury.
• If the instrument is used in an explosion-proof area, do not leave the Product
uncovered to avoid sparks or ignition.
CAUTION
This instrument is shipped under strict product control by Azbil Corporation. Do
not modify the instrument under any circumstances as this could result in permanent
damage to the instrument.
Cautions on use of communication devices
CAUTION
Using a transceiver, cellular phone, pager, etc. near this instrument may prevent the
instrument from functioning correctly depending on the transmission frequency being
used. Observe the following precautions.
• Check beforehand the distance at which the communication device will not affect
the correct operation of this instrument. Always use the communication device at a
greater distance than this.
• Use the communication device after putting the cover on the Product.

Safety Azbil Corporation
iv KUX60G / KUX70G - Field mount type P/I converter

Table of Contents
Safety
About this manual................................................................................................. i
Safety precautions................................................................................................ ii
Chapter 1 : Description of parts
1-1 : Description of parts....................................................................................... 1-1
Chapter 2 : Installation
2-1 : Precautions................................................................................................... 2-1
2-2 : Installation to pipe......................................................................................... 2-1
2-3 : Piping............................................................................................................ 2-2
Chapter 3 : Wiring
3-1 : Precautions................................................................................................... 3-1
3-2 : Power supply ................................................................................................ 3-1
Chapter 4 : Maintenance
4-1 : Maintenance ................................................................................................. 4-1
Chapter 5 : Spare parts
5-1 : Spare parts ................................................................................................... 5-1

Table of Contents

KUX60G / 70G - Field mount type P/I converter 1-1
Chapter 1 : Description of parts
1-1 : Description of parts

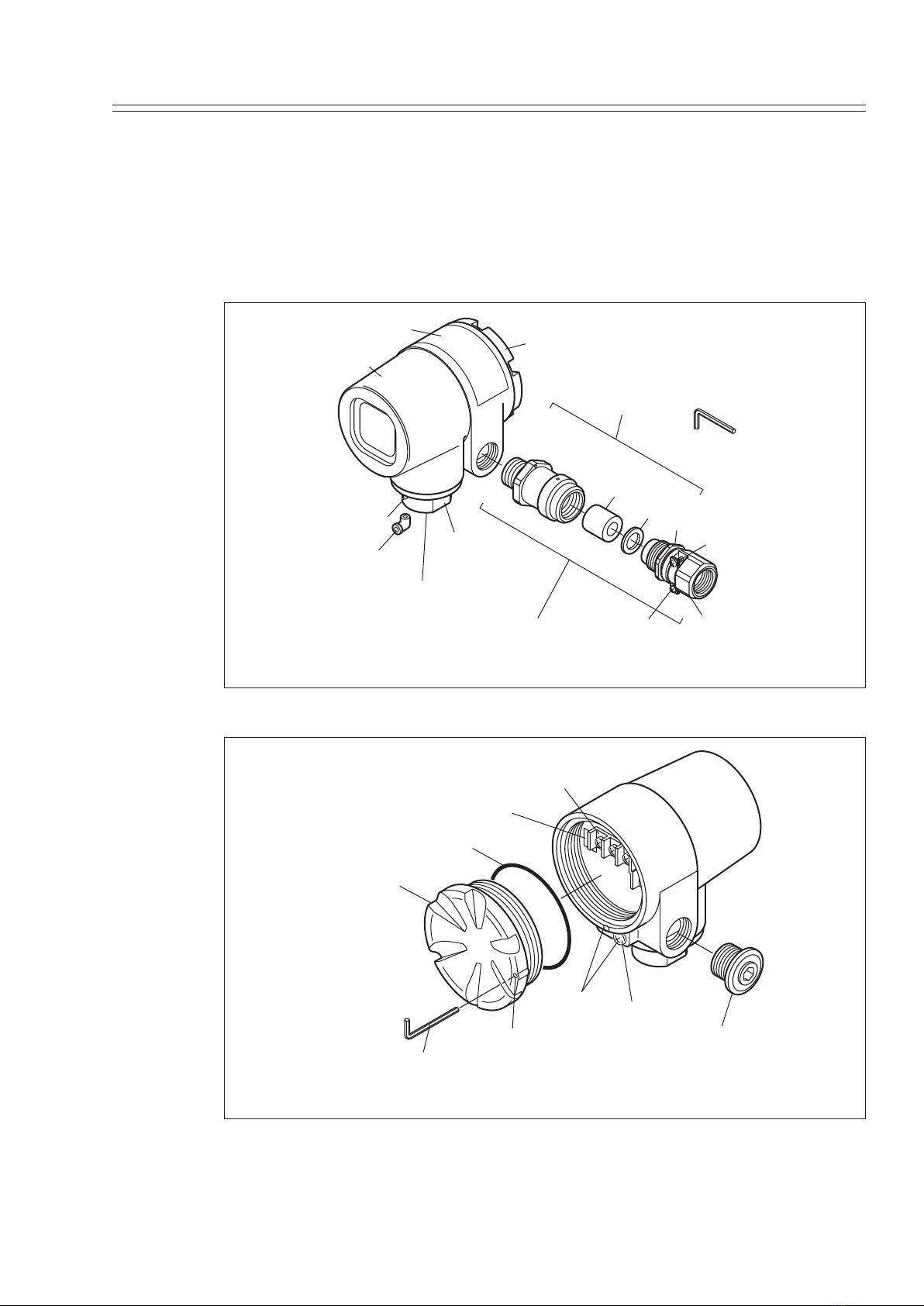

Figure 1-1 and Figure 1-2 show expanded front and rear views of the KUX60/70 P/I
converter.
Packing
Explosion proof
cable gland
Washer
Locking nut
Cable clamp
Packing gland
Packing sets for wiring
(for explosion-proof models)
Pneumatic line port
Chamfering
for a wrench
Housing
Identification label
Terminal box cover
Hex-wrench key
Screw (M4x12)
Joint for air
introduction port
Air
introduction
port
Figure 1-1 Front view of model KUX60/70
Hex-wrench key
Cover locking
screw
O-ring
Zero adjustment
terminal pin
Terminal
Holes for
mounting
bracket
Conduit plug
Grounding
terminal
Terminal box cover
Figure 1-2 General view (rear view)

Description of parts Azbil Corporation
1-2 KUX60G / 70G - Field mount type P/I converter
U-bolt for mounting
on 2 inch pipe
Mounting bracket
(Option)

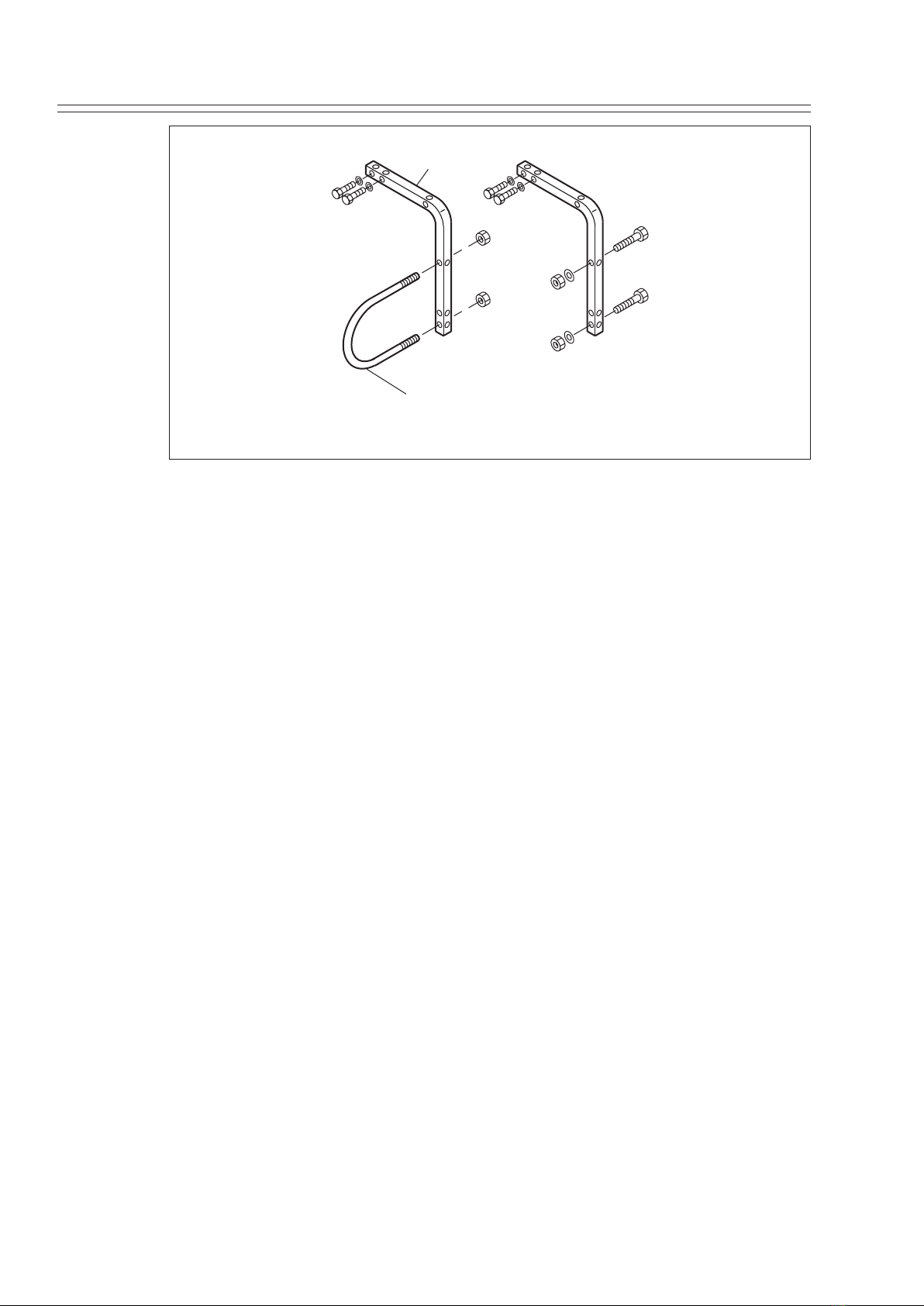

Figure 1-3 Mounting brackets (Optional)

KUX60G / 70G - Field mount type P/I converter 2-1
Chapter 2 : Installation
2-1 : Precautions
CAUTION
Once the model KUX60/70 converter is installed, do not use it as foot-hold or any
other improper purpose. Doing so may damage the equipment and could result in
personal injury.
• When installing the converter, position and secure the gasket in order to avoid
any leakage from where the converter is connected to the pneumatic signal line. If
gasket protrudes out, output errors may results.
• Do not use the converter under any other operating conditions than those
specified in the product specifications. Using this product under incorrect
operating conditions may result in damage to the product or leakage that could
lead to a major accident.
• Wiring work in a hazardous area should be performed carefully by following the
procedures specified in explosion-protection guidelines.
2-2 : Installation to pipe
Sealing tape
Figure 2-1 Installing on to pipe
• Securely wrap sealing tape around the joint of the connecting pipe to prevent
leakage. Using a wrench, securely tighten the pneumatic line port of the converter
to the connecting pipe. When doing so, use a wrench to hold the chamfering
part. Do not tighten by holding the housing of the product as this may damage
the converter. Avoid holding the housing when tightening without a wrench (See
Figure 2-1).
• Install the converter in a location where there will be no excessive impact or
vibration.

Installation Azbil Corporation
2-2 KUX60G / 70G - Field mount type P/I converter
• When mounting the converter directly onto the pneumatic signal pipe, full
consideration must be given to its weight and vibration.
2-3 : Piping
Mounting brackets are supplied with the converter as an option. With the mounting
bracket, the converter can be installed on a 2 inch pipe or a panel.
Figure 2-2 illustrates examples of installing the converter with mounting brackets.
Figure 2-3 gives the dimensions of the mounting bracket.
95 or 135 116 or 156
2 inch pipe
78
86 or 126
100 or 140 78
6910
(Unit: mm)
Screw (M5)
Screw (M5)
Screw (M5)
U bolt on
2 inch pipe
Mounting bracket
(Option)
Figure 2-2 Installing the converter with mounting brackets on a 2 in. pipe and a
panel

Azbil Corporation Installation
KUX60G / 70G - Field mount type P/I converter 2-3
100
69
8
13
69
8
13
69
13
10
69
13
10
10
140
Figure 2-3

Installation Azbil Corporation
2-4 KUX60G / 70G - Field mount type P/I converter

KUX60G / 70G - Field mount type P/I converter 3-1
Chapter 3 : Wiring
3-1 : Precautions
CAUTION
• Performing wiring with wet hands or with its power turned on may result in
electrical shock to personnel. Always perform wiring work with dry hands, always
wear gloves and turn the power to the converter off before performing wiring
work.
• Turning on the power in an explosion-protected area while the housing is open can
induce explosion.
• Perform the wiring work correctly while carefully following the specifications.
Incorrect wiring will cause damage to or result in malfunction of the product.
• Use the power supply properly based on the specifications. Incorrect power
supply will damage the product.
• This instrument is designed based on a two-wire system. The power supply line
also functions as a signal line. The wires are routed through the conduit hole on
the side face of the converter and are connected to the terminals. The conduit end
is potted with sealing agent or capped with a sealing plug so the water cannot
permeate into the housing. The connecting wires to the terminals must be drawn
in below the position of where the connection port is located.
• The converter has two grounding terminals: one at the terminal and the other on
the outside face. Either terminal may be used. The grounding terminal must be
connected to a ground having a resistance of 100Ωor less.
3-2 : Power supply
Power supply to the converter should be between 11.5V DC and 30V DC.

Wiring Azbil Corporation
3-2 KUX60G / 70G - Field mount type P/I converter

KUX60G / 70G - Field mount type P/I converter 4-1
Chapter 4 : Maintenance
4-1 : Maintenance
CAUTION
• If the converter is disconnected from the pipe for maintenance purposes, securely
shut off the pneumatic line to the product. Personal injury could result from the
blowout of air.
• Do not open the housing cover while it is operating in hazardous area. Opening the
cover may induce an explosion.
Check the following on periodic basis:
• Has the housing, cover or grounding cable been damaged?
• Are the grounding cable, cover or housing locking screw loose?
• Are the terminal screws loose?
• Is there any deterioration in the O-rings?
• Is there any leakage from the connection pipes?

Maintenance Azbil Corporation
