CT002 Overview
IQS127, IQS128, IQS211A, IQS227AS, IQS228AS, IQS231A programming socket
The CT002 is indented for small scale IC programming prior to assembly, where on board
programming is not possible or unwanted.
The following Azoteq IC’s can be programmed with this socket:
IQS127
IQS128
IQS211A
IQS227AS
IQS228AS
IQS231A
This will only be for the TSOT23-6 package type of these IC’s.
Please note: CT210/A required for programming, not included in CT002 EV-Kit.
1 Hardware Set-up
Connect CT210/A to PC with USB data cable.
Connect CT210/A to CT002 with ribbon cable.

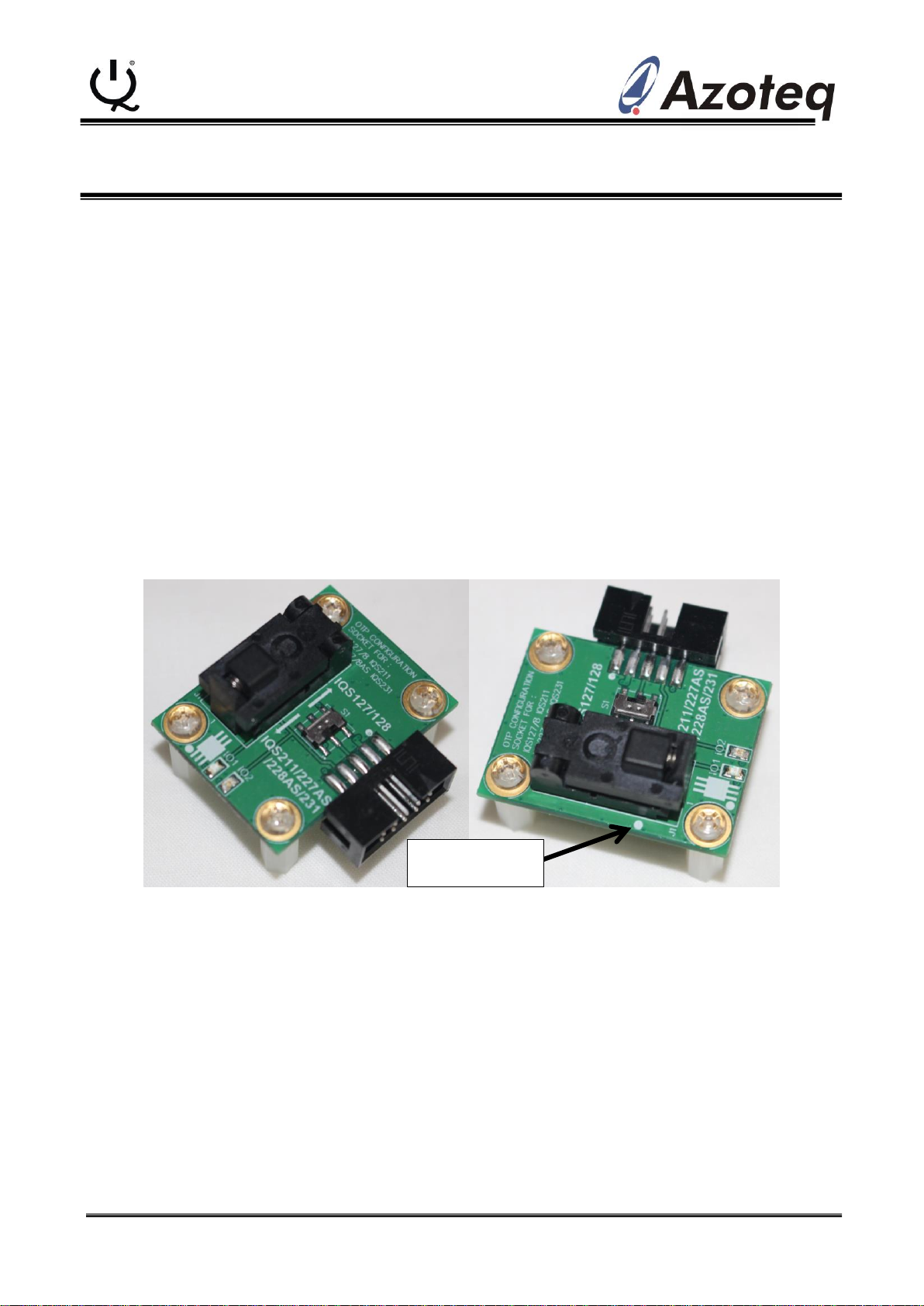

Please note the Pin 1 indicator: Ensure IC is placed in socket with Indicator in the Left
Bottom position.
Move switch S1 to the upwards position for programming:
IQS127
IQS128
Move switch S1 to the downwards position for programming:
IQS211A
IQS227AS
IQS228AS
IQS231A
Pin 1 indicator

IQ Switch®
ProxSense®Series
Copyright © Azoteq (Pty) Ltd 2018.
CT002 Overview
Page 2 of 2
All Rights Reserved.
Revision 1.0
June 2018
2 Software Set-up:
Download and install USBProg software: http://www.azoteq.com/design/software.html
Select the device you would like to program.
Choose the settings that must be on the device.
Click Program Chip.
Please note: This is OTP (One Time Programmable) devices, thus once a setting is
programmed on the device, the setting cannot be erased.
