Aztech ASF883 User manual

ASF883
Aztech 16” Stand Fan
USER MANUAL
PLEASE KEEP THIS USER MANUAL FOR FUTURE USE.

USER MANUAL CONTENTS
SAFETY INSTRUCTIONS.......................................................................3
PACKAGE CONTENTS.......................................................................5
APPLIANCE OVERVIEW.....................................................................5
ASSEMBLING THE STAND...................................................................8
ASSEMBLING THE FAN.......................................................................9
USING THE APPLIANCE....................................................................10
CLEANING & MAINTENANCE.........................................................13
TECHNICAL SPECIFICATIONS..........................................................14
SAFETY INSTRUCTIONS
• Ensure that the appliance and all of its parts and components are
properly assembled, prepared, and locked into place.
• Ensure to ALWAYS position your Stand Fan on a smooth, dry, and
stable ground. Placing the appliance on unstable surfaces such as
cushioned carpets and/or uneven surfaces may cause the appliance
to lose its balance during operation.
• Before use, please check if the power voltage of your Stand Fan
correctly corresponds to your home’s power supply.
• Always ensure that the fan ring’s clip is tightly holding the front and
rear fan grills in place.
• Do not use wet hands in operating the Stand Fan and/or in inserting
or removing its power adapter to prevent electrical shocks. It is
recommended that you thoroughly dry your hands rst before using
your Stand Fan or its remote control.
• Unplug the power adapter if you are done using your stand fan or
before doing any cleaning, relocation, or appliance maintenance.
• If the remote control would not be used for long periods of time,
remove the remote control’s battery.
3

4
• When unplugging the power adapter, do not pull or tug its cord. Hold
the power adapter properly on its base when unplugging it from the
power outlet. Also, ensure that its power cord is kept away from any
source of heat or sharp edges that could cause external damage to
the cord.
• Should damages be found in the appliance, please do not use the
appliance and immediately bring it to the Aztech Service Center for
repair or replacement.
• Your Aztech Stand Fan is not intended for people with reduced
physical, sensory or mental capabilities, and/or lack of experience
or knowledge. Constant supervision (from a person responsible for
their safety) should be provided if such individuals would be using,
cleaning, or operating, the appliance.

5
• Main Body
• Fan Blade
• Fan Stand
• Fan Base
PACKAGE CONTENTS
• Front Grill
• Rear Grill
• Remote Control
COMPONENTS
• Easy Start Guide
• User Manual
• Warranty Policy
APPLIANCE OVERVIEW
FRONT GRILL
HOOP
FAN BLADE CAP
FAN BLADE
GRILL NUT
REAR GRILL
FAN MOTOR/
FAN HEAD
CONTROL PANEL
SCREW
INNER TUBE
OUTER TUBE
TUBE CAP
BASE CAP
FAN BASE
BASE NUT
BASE SCREW

6
FAN CONTROL PANEL
FAN BUTTONS
• ON/SPEED
Press this button to turn ON the fan.
Subsequent presses: LOW → MEDIUM
→ HIGH.
• OSC.
Press this button to enable or disable
the 4-Way Fan Oscillation (horizontally
and vertically).
First press: Horizontal oscillation
Second press: Vertical oscillation
Third press: Horizontal and vertical
oscillation
Fourth press: Disable Fan Oscillation
• OFF
Press this button to turn OFF the fan.
LED DISPLAY
1/2/3
Displays the currently selected fan
speed: 1 (LOW), 2 (MEDIUM) or 3
(HIGH).

7
REMOTE CONTROL
• ON/SPEED
Press this button to turn ON the fan.
Subsequent presses: LOW → MEDIUM
→ HIGH.
• TIMER
Press this button repeatedly until the
preferred operation time (0.5h, 1h, 2h,
or 4h) is selected.
• MODE
Press this button repeatedly to shift
between the three blowing modes
of the fan: (1) Normal (default when
turned on), (2) Natural, and (3)
Sleep (please see the Knowing and
Changing the Modes section).
• OSC.
Press this button to enable or disable
the 4-Way Fan Oscillation (horizontally
and vertically).
First press: Horizontal oscillation
Second press: Vertical oscillation
Third press: Horizontal and vertical
oscillation
Fourth press: Disable Fan Oscillation
• OFF
Press this button to turn OFF the fan.
TIPS IN USING THE REMOTE CONTROL
• Ensure to insert two (2) AAA batteries in the Remote Control’s
battery compartment while observing the correct polarity.
NOTE: Incorrect battery installation may damage the Remote
Control and/or cause unexpected operation failures.
• In using the remote control, ensure that you are 5 meters near the
Stand Fan and that the remote control is properly aimed at your
stand fan’s front panel.

8
ASSEMBLING THE STAND
STEP 1
Attach the Outer Tube and Base Cap
to the Fan Base.
STEP 2
Using the Base Nut and Base Screw,
fasten the Fan Base tightly to the Outer
Tube.
STEP 3
Loosen the Height Adjustment Ring
and pull out the Inner Tube until the
desired fan height is achieved.
TIPS BEFORE ASSEMBLING THE FAN
• Ensure to unpack the fan and its components.
• Remove the Fan Blade Cap and the Grill Nut from the motor shaft.
• Remove the Base Nut and Base Screw from the Outer Tube.
STEP 4
You may then fasten the Height
Adjustment Ring to tightly clamp the
Inner Tube with the desired height in
place.
NOTE: Ensure that the Height
Adjustment Ring is solidly fastened
before assembling the fan motor’s
components.
STEP 5
Ease in the Main Body into the Outer
Tube and fasten the Main Body Lock
to hold it in place.

9
ASSEMBLING THE FAN
STEP 1
On the Fan Motor, position the Rear
Grill with the Fan Handle facing up.
Ensure that the Rear Grill is stably
positioned into the grooves of the Fan
Motor.
STEP 2
Using the Grill Nut, fasten the Rear Grill
by turning it clockwise until the Rear
Grill is securely fastened into place.
STEP 3
Install the Fan Blade by mounting it into
the Motor Shaft. Ensure that the Fan
Blade has securely reached the motor
shaft’s retaining pins.
STEP 4
With the Fan Blade in place, t the Fan
Blade Cap into the motor shaft and
turn it counter clockwise to tightly lock
in the Fan Blade into the motor shaft.
STEP 5
Attach the Front Grill by easing it
properly against the Rear Grill.
STEP 6
Use the Fan Grill Clip, securely lock in
both grills in place.

10
USING THE APPLIANCE
STEP 1
Correctly assemble the fan as shown on the
Stand Fan Assembly section.
STEP 2
Position the fan on a smooth and stable
ground and plug its power adapter to a
power outlet.
STEP 4
Press the ON/SPEED button to turn ON the
fan.
NOTE: By default, the speed is set to LOW.
Upon setting your preferred speed (e.g.
high), and turning it OFF and ON again,
the fan would resume using the previously
selected speed (e.g. high).
ADJUST
HEAD TILT
TIPS BEFORE USING THE FAN
• Before use, please check if the power voltage of the fan correctly
corresponds to your home’s power supply.
• If the remote control would not be used for long periods of time,
remove the remote control’s battery.
• Should damages be found in the appliance, please do not use
the appliance and immediately bring it to the Aztech Service
Center for repair or replacement.
ASSEMBLE AS
REQUIRED
STABLE GROUND
2 METERS
NOTE: Ensure that there are no objects
within 2 meters of the fan’s head that may
hinder its oscillation / swing feature.
STEP 3
Firmly lower or raise the fan’s head angle
until you get the desired fan head angle.

11
STEP 1
Correctly assemble the fan as shown on the
Stand Fan Assembly section.
STEP 2
Using your other hand, loosen the Height
Adjustment Ring.
ADJUSTING THE FAN’S HEIGHT
STEP 3
Slowly lower or raise the Main Body until the
desired height is achieved and tighten the
Height Adjustment Ring to hold it in place.
BLOWING MODES
Your Stand Fan has three (3) Blowing
Modes for you to choose from.
Each mode would either use a constant
speed setting (e.g. Low while ON), or
is preprogrammed with interval-based
speed changing (e.g. Low – Medium - Low
speed using 5 second interval).
To change between modes, simply press
the MODE button on your remote control
repeatedly until the desired mode is
selected.
KNOWING AND CHANGING THE MODES

12

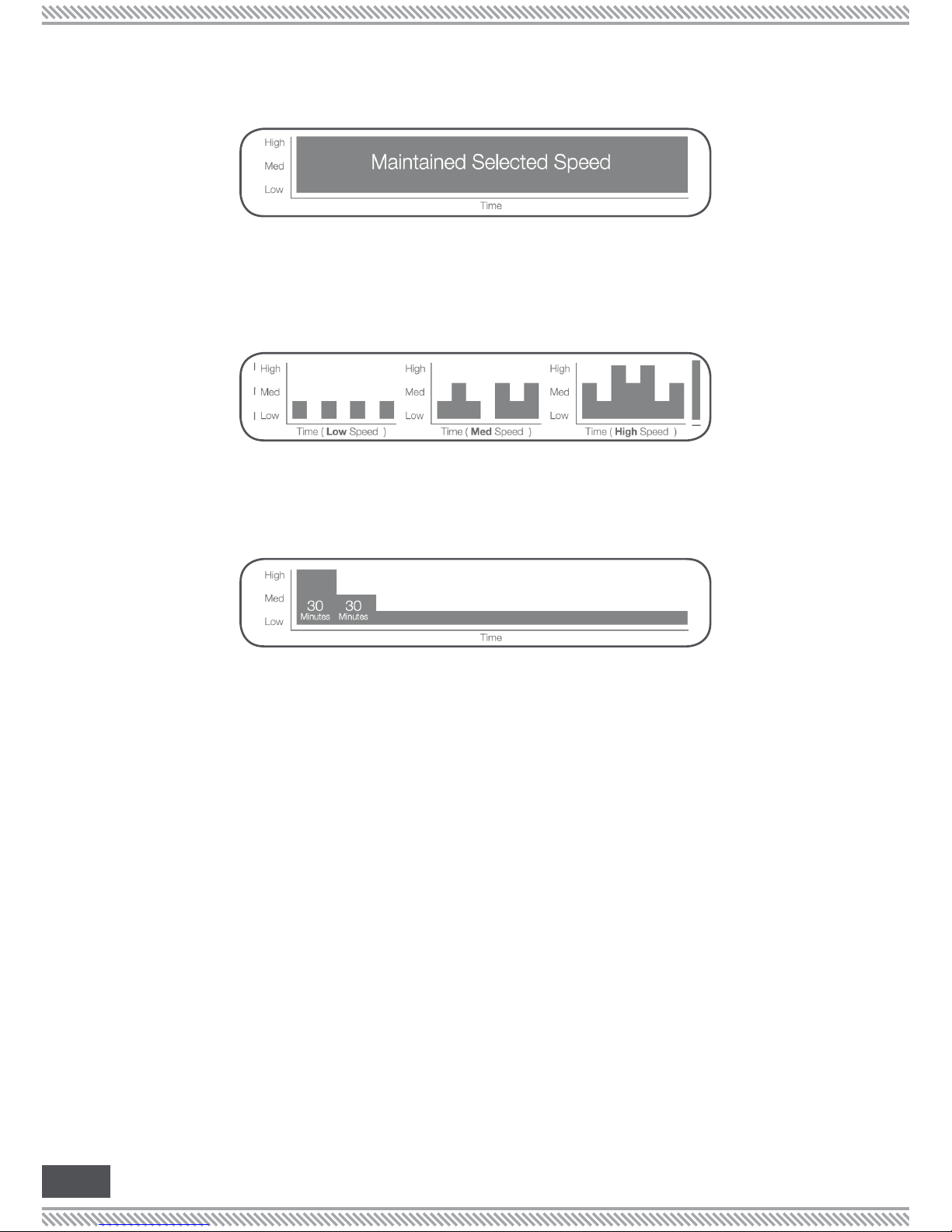

• NORMAL MODE
Uses one (1) speed setting (e.g. LOW) throughout the operation.
• NATURAL MODE
Depending on your initially selected speed, the Natural Mode automatically
changes speed using a regular set of intervals.
NOTE: Starting speed depends on your initially selected speed (e.g. LOW
speed would enable LOW NATURAL SPEED).
• SLEEP MODE
Depending on your initially selected speed, the Sleeping Mode automatically
decreases the speed using 30 minute intervals until it reaches LOW speed
setting.
NOTE: Speed decline rate depends on your initially selected speed (e.g. if
MEDIUM speed has been selected, it would only take 30 minutes to reach LOW
speed).

13
CLEANING & MAINTENANCE
Remove the fan components and
clean each component using a damp
cloth.
For the Main Body, use a dry cloth to
wipe off dust from its surface.
CLEANING
TIPS BEFORE CLEANING / MAINTENANCE
• Your Aztech Stand Fan is not intended for people with reduced
physical, sensory or mental capabilities, and/or lack of experience
or knowledge. Constant supervision (from a person responsible for
their safety) should be provided if such individuals would be using,
cleaning, or operating, the appliance.
• Unplug the power adapter of your Stand Fan before doing any
cleaning, relocation, or appliance maintenance.
Add a few drops of lubricant or oil
on the motor shaft’s base to extend
motor life.
MAINTENANCE

14
TECHNICAL SPECIFICATIONS
Motor 100% full copper with heat protection
Motor Size 74mm x 16mm
Fan Grill 1.4mm wire diameter
Power Consumption 60W
Timer 450 minutes
Blade 5-piece AS transparent blades

Copyright © 2018 Aztech Technologies Pte Ltd (CRN:199800635M). All rights reserved.
