B-Built RAKE-N-ATOR User manual

Rake-N-Ator 2 B-Built Manufacturing
January 2018 [phone]
Introduction
WARNING
Read And Understand Manual
To prevent personal injury or even death, be
sure you read and understand all of the
instructions in this manual and other related OEM
equipment manuals! The Rake-N-Ator, if not used
and maintained properly, can be dangerous to users
unfamiliar with its operation. Do not allow operating,
maintaining, adjusting, or cleaning of the attachment
until the user has read this manual and has
developed a thorough understanding of the safety
precautions and functions of the unit.
The Rake-N-Ator is designed for the specic
purpose of landscaping and land leveling. DO NOT
modify or use this attachment for any application
other than that for which it was designed. When
this attachment is no longer capable of performing
its designed purpose, it should be dismantled and
scrapped. Do not use any materials or components
from this attachment for any other purpose.
WARNING
READ THE
MANUAL
Avoid serious injury or death
Read, understand, and follow all OEM
skid steer machine operating instructions
and work tool operating and safety
instructions prior to use.
Download the appropriate App on your
smart phone and scan this QR (Quick
Reference) code to review the safety
signs and operating instructions for
this work tool.
BB-LR-0009
Welcome
Congratulations on your choice of a B-Built
Manufacturing Rake-N-Ator, the simplest landscaping
and land leveling tool that has a quick-attach mount for
any variety of skid steer loader.
The Rake-N-Ator has ve bars that are equipped with
eighty, two inch long teeth to loosen and atten the
landscaping area, but can also be used for numerous
other applications. The rake works with the same
basic ideas and principles as the ordinary garden rake,
by ltering material over the rake teeth and carrying
material to low places, thus leveling the area.
Safe Operation
Safe, e󰀩cient, and trouble-free operation of this
attachment requires that you, and anyone else who will
be using or maintaining the unit, read and understand
the information contained within the Owner’s Manual.
Intended Usage
The Rake-N-Ator is intended for landscaping and land
leveling. Do not use the Rake-N-Ator for any purpose
other than its intended use.
Product Improvements
Because B-Built Manufacturing maintains an ongoing
program of product improvement, we reserve the
right to make improvements in design or changes in
specications without incurring any obligation to install
them on units previously sold.
Serial Number Location
The Rake-N-Ator’s serial number is located on the front
of the frame. Please use this number when requesting
service, seeking information, or ordering parts. Record
the serial number in the space provided for easy
reference when contacting B-Built Manufacturing with
questions.
Serial Number ______________________________
Date of Purchase ___________________________

B-Built Manufacturing 3 Rake-N-Ator
[phone] January 2018
Unanswered Questions
If you have any questions not answered in this manual
or require additional copies or the manual is damaged,
please contact your dealer or:
B-Built Manufacturing
1550 Fairgrounds Road
Je󰀨erson City, MO 65109
Phone: [phone]
Continuous Improvements
The information, specications, and illustrations in this
manual are based on the information that was available
at the time this material was written and can change at
any time without notice.

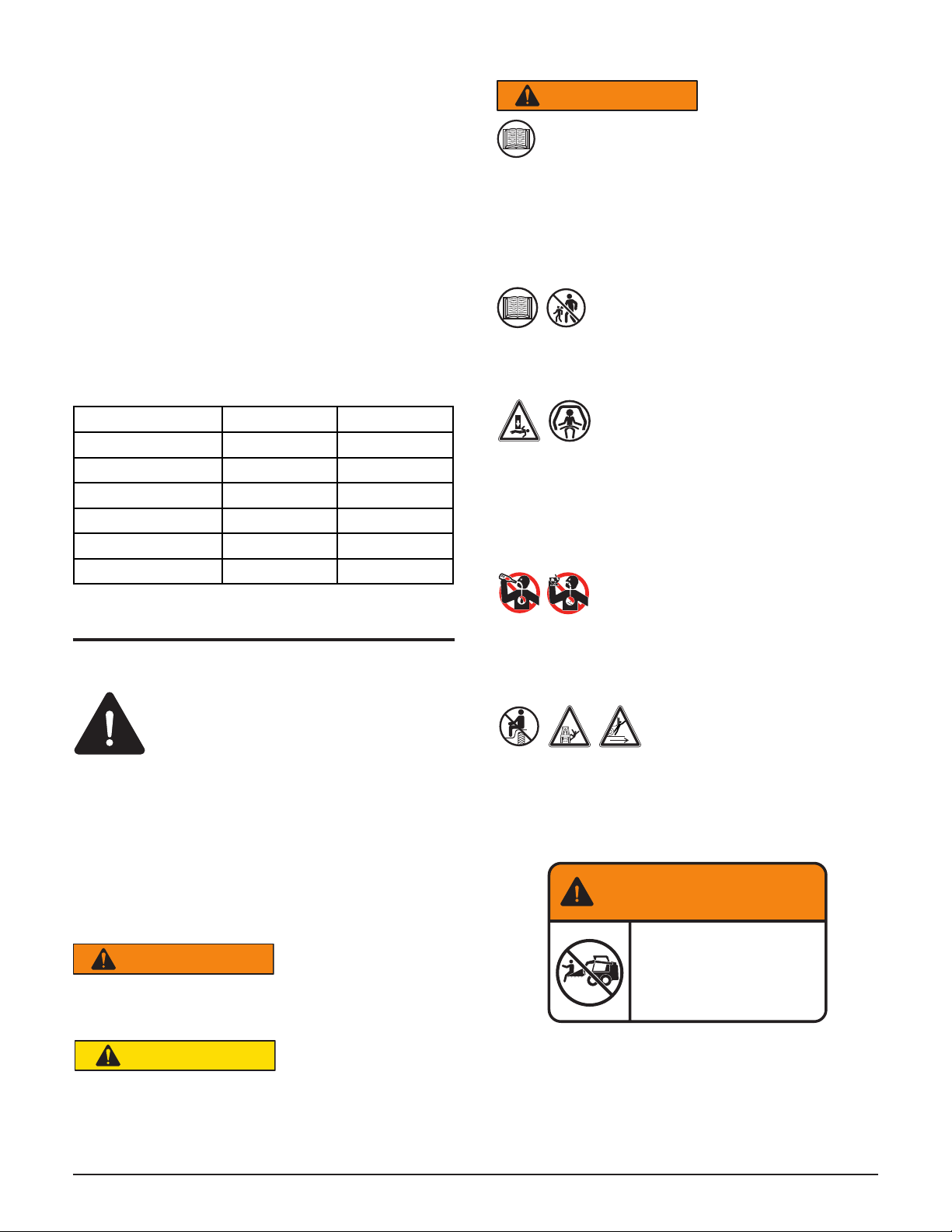

Specifications
Overall Width 78” 96”
Overall Length 53-1/2” 53-1/2”
Overall Height 24-3/4” 24-3/4”
Weight 585 lbs. 670 lbs.
Number of Teeth 65 80
Tooth size 2” 2”
Shipping Weight 650 lbs. 750 lbs.
Safety Instructions
Safety Alert Symbol
This is the safety alert symbol. It is used to
alert you to potential personal injury hazards.
Obey all safety messages that follow this
symbol to avoid possible injury or death.
Signal Words
Hazards are identied by the “Safety Alert Symbol” and
a signal word such as “WARNING”, or “CAUTION”.
To prevent the possibility of personal injury or death,
comply with all instructions that follow one of these
signal words.
WARNING
Indicates a potentially hazardous situation which, if
not avoided, could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation which, if
not avoided, may result in minor or moderate injury.
Note: Contains additional information important to a
procedure.
General Safety Instructions
WARNING
Provide User with Literature
B-Built Manufacturing Rake-N-Ator owners
must provide operator instructions to anyone
using this attachment before use, and at least
annually thereafter. Do not assemble, operate, or
maintain the attachment until you read and
understand the information contained in this manual
and the loader’s OEM manual.
Stay Clear
Clear the area of people, especially small
children, before using this attachment.
Under no circumstances should young children be
allowed to work with or around the bale spike.
Crush Hazard
The loader must be equipped with a Roll
Over Protective Structure (ROPS) and a
seat belt. A crushing hazard can occur if the operator
is ejected from the seat while the skid steer is in
motion. Fasten the seat belt whenever the skid steer is
moving. Operate the skid steer from the operator’s
seat only.
Impaired User Hazard
Do not attempt to assemble, operate,
or maintain this attachment under the
inuence of drugs or alcohol. Consult your doctor
before using this attachment while taking
prescription medications.
Crush Hazard
Do not allow anyone to ride
on the skid steer or the
attachment. Falling or crushing hazards can result
in severe injuries or death.
Do not use the pallet fork as a work platform. Do not
stand or climb on the pallet fork.
WARNING
NO RIDERS
Do not lift or
carry persons.
BB-LR-0011

Rake-N-Ator 4 B-Built Manufacturing
January 2018 [phone]
CAUTION
Personal Protection
Equipment
When using this
attachment, wear appropriate personal protective
equipment. This list may include, but is not limited to:
• Protective shoes with slip resistant soles
• Eye protection
• Protective clothing and gloves
• Hearing protection
Safety Signs and Instructional
Labels
WARNING
N
I
NG
AR Damaged Safety Signs
Pay close attention to the safety signs and
instructional labels attached to the skid steer
and to this attachment. If this attachment is missing
a label or one is unreadable, replace the label before
using the attachment.

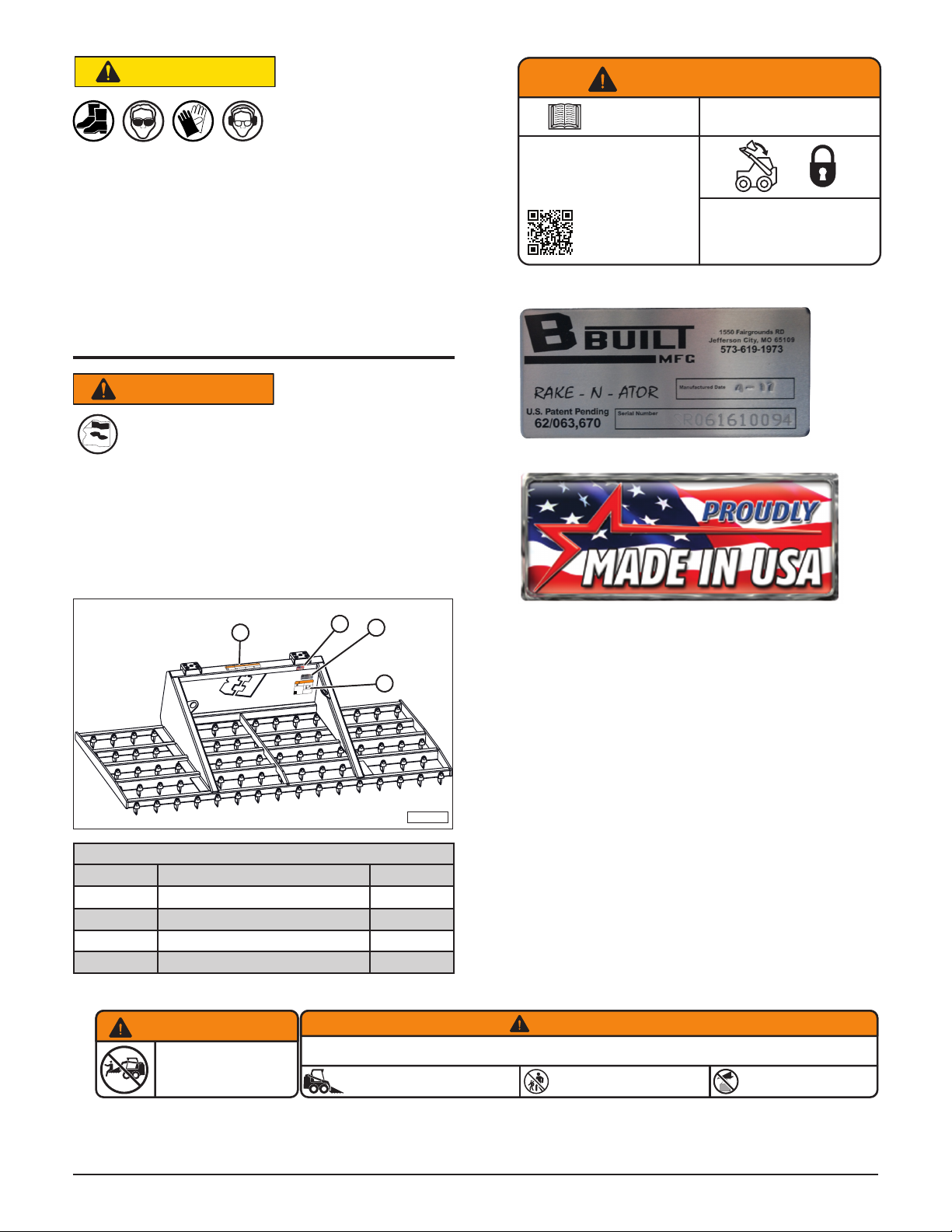

Safety Sign Locations
BB-00002
WARNING
PERSONALINJURYHAZARD
Topreventequipment damage,serious injury, or death:
Useonlyfortheintendedpurposeof
loosening,leveling,orclearingsoil.
Priortouse,clear thearea of
people,especiallysmallchildren.Donotuse asa lifting device.
BB-LR-0031
WARNING
NORIDERS
Donot lift or
carrypersons.
WARNING
READTHE
MANUAL
FALLING
OBJECTHAZARD
Avoidserious injury or death
Read,understand,and follow all OEM
skidsteermachine operating instructions
andworktool operating and safety
instructionspriorto use.
DownloadtheappropriateApponyour
smartphoneandscanthisQR(Quick
Reference)codetoreviewthesafety
signsandoperatinginstructionsfor
thisworktool.
BB-LR-0028
Topreventserious injury or death:
Priortouse, make sure the work tool is
properlyandsecurelyattached to the
skidsteermachineper OEM
instructions.
2
3
4
1
Safety Signs and Instructional Decals
Item Description Qty.
1 Read the Manual 1
2 No Riders 1
3 Serial No. 1
4Made in USA 1
1.
WARNING
PERSONAL INJURY HAZARD
To prevent equipment damage, serious injury, or death:
Use only for the intended purpose of
loosening, leveling, or clearing soil.
Prior to use, clear the area of
people, especially small children. Do not use as a lifting device.
BB-LR-0031
WARNING
NO RIDERS
Do not lift or
carry persons.
2.
WARNING
READ THE
MANUAL
FALLING
OBJECT HAZARD
Avoid serious injury or death
Read, understand, and follow all OEM
skid steer machine operating instructions
and work tool operating and safety
instructions prior to use.
Download the appropriate App on your
smart phone and scan this QR (Quick
Reference) code to review the safety
signs and operating instructions for
this work tool.
BB-LR-0028
To prevent serious injury or death:
Prior to use, make sure the work tool is
properly and securely attached to the
skid steer machine per OEM
instructions.
3.
4.
Keep safety signs or instructional labels clean and
legible at all times. Use a clean, damp cloth to clean
safety decals.
1. Use care when washing or cleaning the equipment
not to remove or damage the labels.
2. Replacement parts must have replacement labels
attached during installation and/or before the bale
spike is used.
3. Labels are available from your authorized dealer or
from B-Built Manufacturing at no charge.

B-Built Manufacturing 5 Rake-N-Ator
[phone] January 2018
Attachment
This attachment is designed to be mounted on a
universal quick-attach coupler.
Refer to the loader Operator’s Manual for the
attachment/detachment procedure specic to the
machine being used. Follow the procedure given in the
manual.
WARNING
Crush Hazard
Always verify that the locking pins on the
coupler are fully engaged down through the
holes in the attachment plate before using the bale
spike. The bale spike could fall o󰀨 if it is not locked
on the coupler and cause serious injury or death.
WARNING
FALLING OBJECT HAZARD
To prevent serious injury or death:
Prior to use, make sure the work
tool is properly and securely
attached to the skid steer machine
per OEM instructions.BB-WD-0002
Operation
Operating Safety
WARNING
THINK
SAFETY! Train Unfamiliar Users
It is the owner’s responsibility to make
sure any person using this attachment,
especially if it is loaned or rented, has read this
manual and all related OEM manuals, and has been
thoroughly trained on its proper and safe use.
WARNING
READ THE
MANUAL
Avoid serious injury or death
Read, understand, and follow all OEM
skid steer machine operating instructions
and work tool operating and safety
instructions prior to use.
Download the appropriate App on your
smart phone and scan this QR (Quick
Reference) code to review the safety
signs and operating instructions for
this work tool.
BB-LR-0009
Electrical Contact Hazard
Be aware of lift clearance and low electrical
wires when loader is raised. Serious injury or
death can result if contact is made.
SAFETY
INSTRUCTIONS
• When working on a slope, do not raise the
attachment higher than required to complete the
task. Always keep the rake low to the ground.
• Transport the rake slowly and as low as possible
to the ground.
• Always lower the attachment to the ground when
not in use.
• This attachment is to be used only for
landscaping. Do not use it for digging, pushing
or pulling objects, or as a lifting device.
Operating Guidelines
WARNING
PERSONAL INJURY HAZARD
To prevent equipment damage,
serious injury, or death:
Use only for the intended
purpose of loosening,
leveling, or clearing soil.
Prior to use, clear the area of
people, especially small
children.
Do not use as a lifting device.
BB-LR-0010
1. The attachment works on the same basic principle
as an ordinary garden rake. First, it lters material
through the rake teeth, breaking up large pieces of
soil. Secondly, it moves material from high places
into low places, leveling the area.
2. Make sure the rake is securely attached to the
loader before use.
3. Use the rake in the forward direction while keeping
the back of the rake close to the ground.
4. Pull the rake backwards with the front tilted slightly
forward to level and smooth the ground. Back
dragging with the rake is best for nishing work or
preparing the top layer for a seedbed.
Note: Back dragging will pull large unwanted debris
(rocks, sticks, stones, etc.) along with the rake .
Transporting
SAFETY
INSTRUCTIONS
• Do not travel on public roads. Always use a trailer
to transport the skid steer and this attachment
from one site to another.

Rake-N-Ator 6 B-Built Manufacturing
January 2018 [phone]
Long-term Storage
Inspect the attachment for loose, damaged, or worn
parts. Replace items as needed.
CAUTION
Personal Injury Hazard
Store this attachment in a clean, dry area
away from human activity. To prevent the
possibility of serious injury, do not permit children
to play on or around the stored attachment.
Always set the attachment on the ground for
long-term storage.
Maintenance
CAUTION
No Unauthorized Modications
Do not modify this attachment or its
safety devices. Do not weld on this
attachment. Unauthorized modications may impair
its function and safe operation. Personal injury or
death can result from unauthorized modications.
If this attachment has been altered in any way from
the original design, the manufacturer does not
accept any liability for injury or warranty.
Damaged Parts Hazard
Do not use this attachment if any parts are
damaged. If this attachment has a defect,
immediately stop using it and remedy the problem
before continuing.
SAFETY
INSTRUCTIONS
• Periodically check the bolts that hold the spikes,
and inspect the overall unit for damage.
• Replace unreadable or missing safety signs.
• Immediately replace worn or damaged parts with
OEM certied parts. Do not use the attachment
with damaged or missing parts.
• Replacement bolts must be of the same grade as
the removed bolt.
Tooth Replacement
Replace the teeth when they become worn.
1. Using a suitable lifting device, stand the unit
vertically on the quick-attach plate.
2. Remove the bolts. The bolts may be tight. An impact
wrench can be used to make removal easier.
3. Install the new teeth. Use the new bolts that are
supplied with the teeth.

B-Built Manufacturing 7 Rake-N-Ator
[phone] January 2018

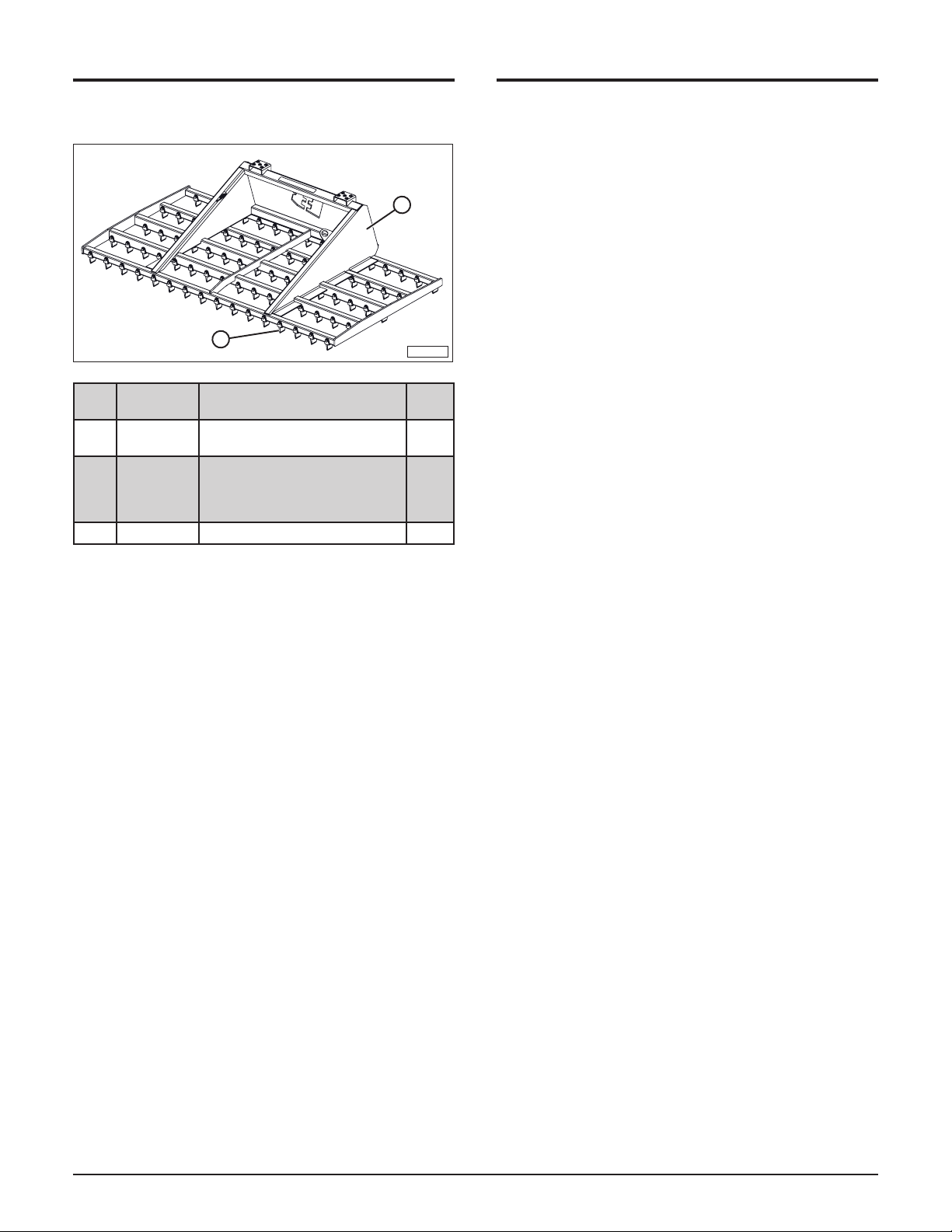

Parts
Replacement parts are available from your authorized
Dealer Parts Department or from B-Built Manufacturing.
BB-00002
2
1
Item Part
Number
Description Qty.
1RNA-CF78
RNA-CF96
Rake N Ator Frame, 78”
Rake N Ator Frame, 96” 1
2
RNA-T65
RNA-T13
RNA-T80
RNA-T16
Tooth Set, 65 Pc with Bolts (78”)
Tooth Set, 13 Pc with Bolts (78”)
Tooth Set, 80 Pc with Bolts (96”)
Tooth Set, 16 Pc with Bolts (96”)
1
5
1
5
3 RNA-DS Decal Set (not shown) 1
Warranty
B-Built Manufacturing (the “Manufacturer”) warrants,
only to the original Purchaser, this equipment will be
free from defects in material and workmanship, under
normal use and service, for one (1) year from the date
of purchase providing this equipment is purchased
for individual use only. Equipment in commercial use
is warranted for six (6) months. This warranty does
not apply to any equipment which has been damaged
or which has been subjected to change, misuse,
negligence, abnormal wear and tear, alterations,
tampering, or failure to follow operating instructions.
This warranty does not apply to any ground-engaging
component, hydraulic hose, or cutting blade.
Under this warranty, the Manufacturer will repair or
replace any part which the Manufacturer determines
has failed during the period of the warranty due to
defects in material or workmanship. After written
approval by the manufacturer, the equipment
or defective part must be returned to B-Built
Manufacturing.
B-Built Manufacturing reserves the right to make
improvements and changes in specications without
notice or obligation to modify previously sold units.
PURCHASER’S EXCLUSIVE REMEDY FOR
BREACH OF WARRANTY, OTHER DEFECT, OR
CONDUCT GIVING RISE TO LIABILITY SHALL
BE THE REPAIR OR REPLACEMENT OF THE
PRODUCT SOLD, AND THE MANUFACTURER
UNDER NO CIRCUMSTANCES SHALL BE
LIABLE FOR ECONOMIC LOSS OR INCIDENTAL
OR CONSEQUENTIAL DAMAGES. THE
MANUFACTURER DISCLAIMS ALL IMPLIED
WARRANTIES, INCLUDING THE WARRANTY OF
MERCHANTABILITY AND FITNESS FOR PURPOSE.
This warranty gives you specic legal rights, and you
may have other rights which vary from state-to-state.

Rake-N-Ator 8 B-Built Manufacturing
January 2018 [phone]
Revised 1-24-18
