Bühler technologies TC-Double Plus User manual

Gas Analysis
Installation and Operation Instructions
Original instructions
Sample gas cooler
TC-Double (+)
BE440021
09/2021
Bühler Technologies GmbH, Harkortstr. 29, D-40880 Ratingen
Tel. [phone] / 49 89-0, Fax: [phone] / 49 89-20
E-Mail: [email protected]
Internet: www.buehler-technologies.com

Bühler Technologies GmbH, Harkortstr. 29, D-40880 Ratingen
Tel. [phone] / 49 89-0, Fax: [phone] / 49 89-20
Internet: www.buehler-technologies.com
E-Mail: [email protected]
Read this instruction carefully prior to installation and/or use. Pay at-
tention particularly to all advises and safety instructions to prevent in-
juries. Bühler Technologies can not be held responsible for misusing
the product or unreliable function due to unauthorised modifications.
All rights reserved. Bühler Technologies GmbH 2021
Document information
Document No.......................................................... BE440021
Version......................................................................... 09/2021

TC-Double (+)
Contents
1 Introduction..................................................................................................................................................................................................................... 3
1.1 Intended use ......................................................................................................................................................................................................... 3
1.2 Overview ................................................................................................................................................................................................................ 3
1.3 Scope of delivery.................................................................................................................................................................................................. 3
1.4 Ordering instructions ........................................................................................................................................................................................4
1.4.1 TC-Double .............................................................................................................................................................................................. 4
1.4.2 TC-Double+.............................................................................................................................................................................................5
2 Safety instructions.........................................................................................................................................................................................................6
2.1 Important advice.................................................................................................................................................................................................6
2.2 General hazard warnings ................................................................................................................................................................................. 7
3 Transport and storage ..................................................................................................................................................................................................8
4 Installation and connection ........................................................................................................................................................................................9
4.1 Installation site requirements.........................................................................................................................................................................9
4.2 Installation ............................................................................................................................................................................................................9
4.2.1 Flow adapter connection (optional)............................................................................................................................................... 9
4.2.2 Connecting the moisture detector (option)................................................................................................................................. 9
4.2.3 Connecting the peristaltic pump (option) ................................................................................................................................... 9
4.2.4 Sample gas pump connection gas lines (optional) ..................................................................................................................10
4.2.5 Connecting the heat exchanger.....................................................................................................................................................10

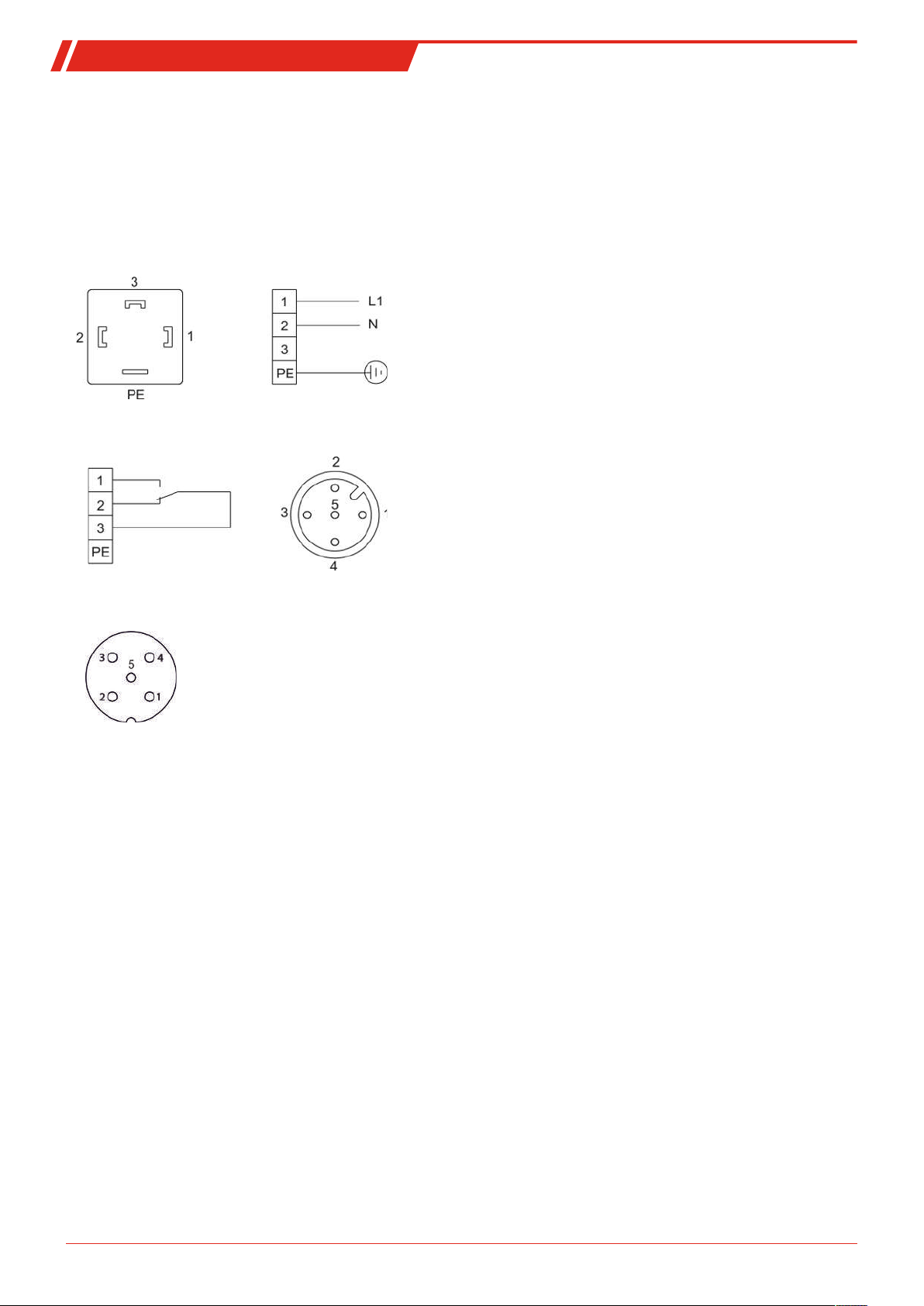

4.3 Electrical connections ....................................................................................................................................................................................... 11
4.4 Signal outputs.....................................................................................................................................................................................................13
5 Operation and control ................................................................................................................................................................................................ 14
5.1 Description of functions.................................................................................................................................................................................. 14
5.2 Use of menu functions .....................................................................................................................................................................................15
5.2.1 Lock Menu............................................................................................................................................................................................. 15
5.2.2 Menu navigation overview..............................................................................................................................................................16
5.3 Description of menu functions ..................................................................................................................................................................... 18
5.3.1 Display menu.......................................................................................................................................................................................18
5.3.2 Main menu...........................................................................................................................................................................................18
5.3.3 Submenu 1 ............................................................................................................................................................................................19
5.3.4 Submenu 1 (Global Settings) .......................................................................................................................................................... 20
5.3.5 Set favourite menu ........................................................................................................................................................................... 24
5.4 Using the Digital Interface .............................................................................................................................................................................24
5.5 Modbus Configuration....................................................................................................................................................................................24
5.6 Modbus Communication................................................................................................................................................................................24
5.7 Modbus Register................................................................................................................................................................................................ 25
6 Maintenance..................................................................................................................................................................................................................29
7 Service and repair.........................................................................................................................................................................................................30
7.1 Troubleshooting ................................................................................................................................................................................................30
7.1.1 Error messages on the display........................................................................................................................................................31
7.2 Safety instructions............................................................................................................................................................................................32
7.3 Cleaning and removal of the heat exchanger........................................................................................................................................... 33
7.4 Replacing the fuse of the cooler.................................................................................................................................................................... 33
7.5 Replacing the hoses of the peristaltic pump (option) ............................................................................................................................33
7.6 Replacing the filter element (option) ..........................................................................................................................................................34
7.7 Drying of the moisture detector (option)...................................................................................................................................................34
7.8 Calibration of the moisture detector (option)..........................................................................................................................................34
7.9 Replacing sample gas pump inlet and outlet valves (optional)..........................................................................................................35
7.10 Replacing the O-ring on the bypass valve (optional).............................................................................................................................. 35
7.11 Replacing the bellow (optional) ....................................................................................................................................................................36
7.12 Spare parts and accessories ...........................................................................................................................................................................36
7.12.1 Consumables and accessories ........................................................................................................................................................37
8 Disposal...........................................................................................................................................................................................................................38
iBühler Technologies GmbHBE440021 ◦ 09/2021

TC-Double (+)
9 Appendices.....................................................................................................................................................................................................................39
9.1 Gas Cooler Technical Data ..............................................................................................................................................................................39
9.2 Technical Data - Options ................................................................................................................................................................................ 40
9.3 Flow chart ............................................................................................................................................................................................................ 41
9.4 Performance curves.......................................................................................................................................................................................... 41
9.5 Heat exchanger..................................................................................................................................................................................................42
9.5.1 Heat exchanger description ........................................................................................................................................................... 42
9.5.2 Heat exchanger overview................................................................................................................................................................ 42
9.6 Dimensions (mm)..............................................................................................................................................................................................43
10 Attached documents...................................................................................................................................................................................................44
ii Bühler Technologies GmbH BE440021 ◦ 09/2021

TC-Double (+)
1 Introduction
1.1 Intended use
This unit is intended for industrial use in gas analysis systems. It's an essential component for conditioning the sample gas to
protect the analysis instrument from residual moisture in the sample gas.
Please note the specifications in the data sheet on the specific intended use, existing material combinations, as well as pressure
and temperature limits.

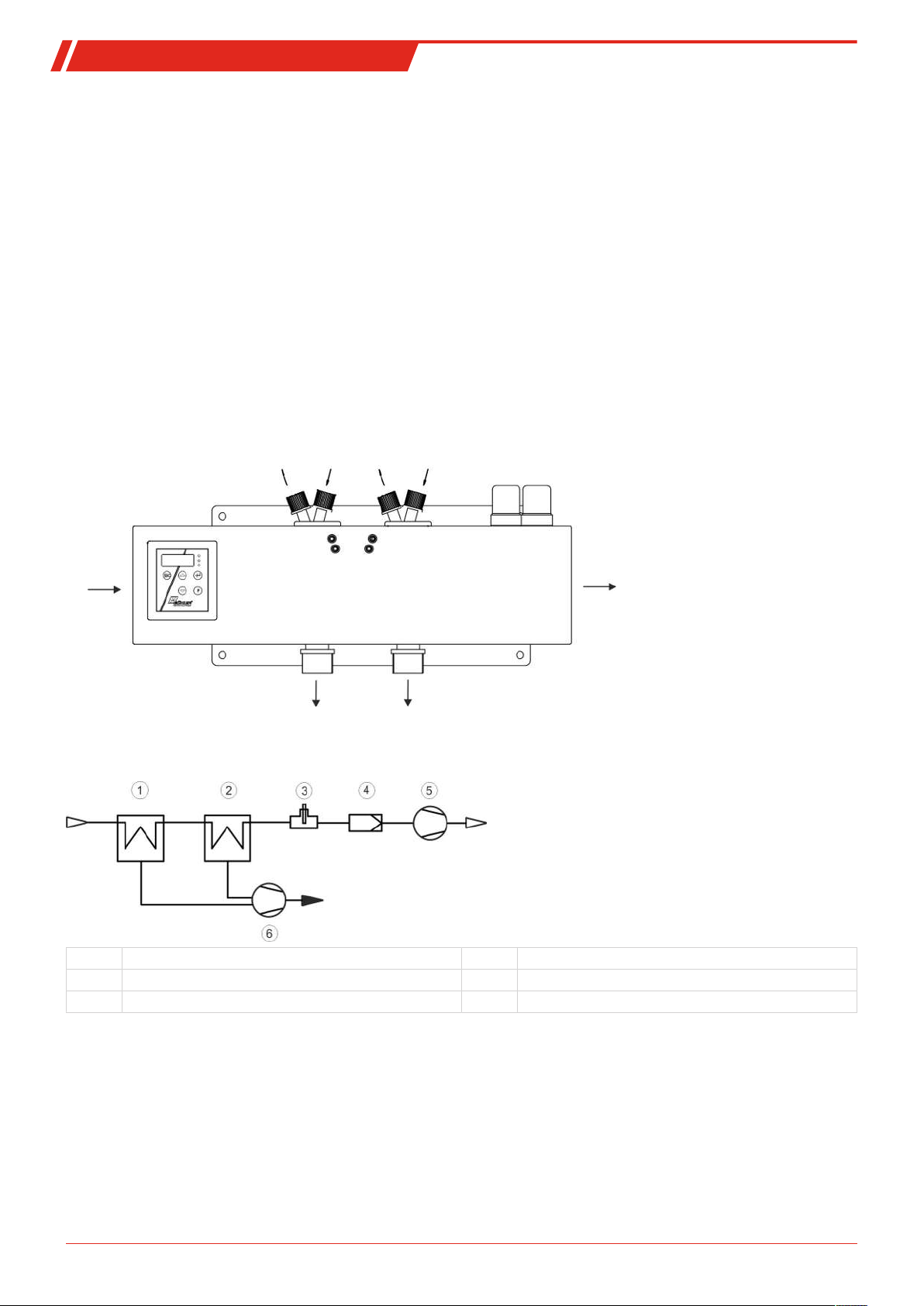

1.2 Overview
The TC-Double series was designed specifically for high cooling capacities, high ambient temperatures and to cool in two cycles
to minimise wash out effects. The two cooling blocks on the TC-Double+ can be set do different temperatures.
Any other use of this cooler is determined by the type of built-in passive pre-cooling, i.e. the first cooling level is not controlled
electronically.
The Peltier cooler is distinguished by two types according to cooling capacity or operation temperature. This classification is re-
flected in the type designation. The exact item number of the model defined by you is determined by the model code in the cat-
egory ordering information.
Application Standard applications
Operation temperature 40 °C 50 °C
2 heat exchangers in series TC-Double 6111 TC-Double 6112
2 heat exchangers in series TC-Double+ 6111 TC-Double+ 6112
Additional components which every conditioning system should feature can optionally be integrated:
– Peristaltic pump for condensate separation,
– Filter,
– Moisture detector,
– sample gas pump.
In addition, we offer different signal outputs:
– Status output
– Analog output, 4…20 mA, incl. status output,
– Modbus RTU digital output, incl. status output
This allows for various configurations of cooler and options. Here the approach is to simplify creating a complete system in a
cost-efficient way through pre-installed components with hoses connected. We further paid attention to easy access to wear
parts and consumables.
1.3 Scope of delivery
– Cooler
– Product documentation
– Connection-/mounting accessories (optional)
3Bühler Technologies GmbHBE440021 ◦ 09/2021

TC-Double (+)
1.4 Ordering instructions
1.4.1 TC-Double
The item number is a code for the configuration of your unit. Please use the following model code:
4496 6 1 1 X 0 X 1 X X X X X X X 0 0 0 Product Characteristics
Gas cooler type
1 TC-Double 6111: Ambient temperature 40 °C
2 TC-Double 6112: Ambient temperature 60 °C
Certifications
0 Standard applications – CE
Supply voltage
1 115 V AC, 50/60 Hz
2 230 V AC, 50/60 Hz
Heat exchanger
1 1 0 Stainless steel, PTS, metric
1 1 5 Stainless steel, PTS-I, US
1 2 0 Duran glass, PTG, metric
1 2 5 Duran glass, PTG-I, US
1 3 0 PVDF, PTV, metric
1 3 5 PVDF, PTV-I, US
Condensate drain 1)
0 without condensate drain
2 CPdouble with hose nipple, angled
4 CPdouble with screw connection 2)
Sample gas pumps 1) 3)
0 without sample gas pump
1 P1, PVDF
2 P1, with bypass valve
Moisture detector/filter 1) 2)
0 0 without filter, without moisture detector
0 1 without filter, 1 moisture detector with PVDF adapter 4)
1 0 1 filter, without moisture detector
1 1 1 filter with built-in moisture detector
Signal outputs
0 0 status output only
1 0 Analog output, 4..20 mA, incl. status output
2 0 Modbus RTU digital output, incl. status output
1) With this option, the maximum ambient temperature is limited to 50°C.
2) Metric or US connection, per heat exchanger.
3) Factory installed tubing for suction operation.
4) Also available in stainless steel.
4 Bühler Technologies GmbH BE440021 ◦ 09/2021

TC-Double (+)
1.4.2 TC-Double+
The item number is a code for the configuration of your unit. Please use the following model code:
4496 6 1 1 X 0 X 1 X X X X X X X 0 0 0 Product Characteristics
Gas cooler type
1 TC-Double+ 6111: Ambient temperature 40 °C
2 TC-Double+ 6112: Ambient temperature 60 °C
Certifications
0 Standard applications – CE
Supply voltage
1 115 V AC, 50/60 Hz
2 230 V AC, 50/60 Hz
Heat exchanger
1 2 2 Duran glass, PTG-2, metric
1 2 7 Duran glass, PTG-2-I, US
1 3 2 PVDF, PTV-2, metric
1 3 7 PVDF, PTV-2-I, US
Condensate drain 1)
0 without condensate drain
2 CPdouble with hose nipple, angled
4 CPdouble with screw connection 2)
Sample gas pumps 1) 3)
0 without sample gas pump
1 P1, PVDF
2 P1, with bypass valve
Moisture detector/filter 1) 2)
0 0 without filter, without moisture detector
0 1 without filter, 1 moisture detector with PVDF adapter 4)
1 0 1 filter, without moisture detector
1 1 1 filter with built-in moisture detector
Signal outputs
0 0 status output only
1 0 Analog output, 4..20 mA, incl. status output
2 0 Modbus RTU digital output, incl. status output
1) With this option, the maximum ambient temperature is limited to 50°C.
2) Metric or US connection, per heat exchanger.
3) Factory installed tubing for suction operation.
4) Also available in stainless steel.
5Bühler Technologies GmbHBE440021 ◦ 09/2021

TC-Double (+)
2 Safety instructions
2.1 Important advice
Operation of the device is only valid if:
– the product is used under the conditions described in the installation- and operation instruction, the intended application
according to the type plate and the intended use. In case of unauthorized modifications done by the user Bühler Technolo-
gies GmbH can not be held responsible for any damage,
– when complying with the specifications and markings on the nameplates.
– the performance limits given in the datasheets and in the installation- and operation instruction are obeyed,
– monitoring devices and safety devices are installed properly,
– service and repair is carried out by Bühler Technologies GmbH,
– only original spare parts are used.
This manual is part of the equipment. The manufacturer keeps the right to modify specifications without advanced notice. Keep
this manual for later use.
Signal words for warnings
DANGER
Signal word for an imminent danger with high risk, resulting in severe injuries or death if not avoided.
WARNING
Signal word for a hazardous situation with medium risk, possibly resulting in severe injuries or death if not
avoided.
CAUTION
Signal word for a hazardous situation with low risk, resulting in damaged to the device or the property or
minor or medium injuries if not avoided.
NOTICE
Signal word for important information to the product.
Warning signs
These instructions use the following warning signs:
Warns of a general hazard General information
Warns of voltage Unplug from mains
Warns not to inhale toxic gasses Wear respiratory equipment
Warns of corrosive liquids Wear a safety mask
Warns of explosive areas Wear gloves
6 Bühler Technologies GmbH BE440021 ◦ 09/2021

TC-Double (+)
2.2 General hazard warnings
The equipment must be installed by a professional familiar with the safety requirements and risks.
Be sure to observe the safety regulations and generally applicable rules of technology relevant for the installation site. Prevent
malfunctions and avoid personal injuries and property damage.
The operator of the system must ensure:
– Safety notices and operating instructions are available and observed,
– The respective national accident prevention regulations are observed,
– The permissible data and operational conditions are maintained,
– Safety guards are used and mandatory maintenance is performed,
– Legal regulations are observed during disposal,
– compliance with national installation regulations.
– the device is protected from mechanical loads.
Maintenance, Repair
Please note during maintenance and repairs:
– Repairs to the unit must be performed by Bühler authorised personnel.
– Only perform conversion-, maintenance or installation work described in these operating and installation instructions.
– Always use genuine spare parts.
– Do not install damaged or defective spare part. If necessary, visually inspect prior to installation to determine any obvious
damage to the spare parts.
Always observe the applicable safety and operating regulations in the respective country of use when performing any type of
maintenance.
DANGER Electrical voltage
Electrocution hazard.
a) Disconnect the device from power supply.
b) Make sure that the equipment cannot be reconnected to mains unintentionally.
c) The device must be opened by trained staff only.
d) Regard correct mains voltage.
DANGER Toxic, corrosive gas/condensate
Sample gas/condensate may be hazardous to health.
a) If necessary, ensure a safe gas/condensate discharge.
b) Always disconnect the gas supply when performing maintenance or repairs.
c) Protect yourself from toxic/corrosive gasses/condensate when performing mainten-
ance. Wear appropriate protective equipment.
DANGER Potentially explosive atmosphere
Explosion hazard if used in hazardous areas.
The device is not suitable for operation in hazardous areas with potentially explosive at-
mospheres.
Do not expose the device to combustible or explosive gas mixtures.
7Bühler Technologies GmbHBE440021 ◦ 09/2021

TC-Double (+)
3 Transport and storage
Only transport the product inside the original packaging or a suitable alternative.
The equipment must be protected from moisture and heat when not in use. It must be stored in a covered, dry and dust-free
room at a temperature of -20 °C to 60 °C (-4 °F to 140 °F).
8 Bühler Technologies GmbH BE440021 ◦ 09/2021

TC-Double (+)
4 Installation and connection
4.1 Installation site requirements
The unit is only intended for wall-mounted use in enclosed areas. Adequate protection from the weather must be provided
when used outdoors.
Install the unit leaving enough room below the cooler to discharge the condensate. Leave room above for the gas supply.
Be sure to maintain the approved ambient temperature. Do not obstruct the convection of the cooler. The vents must have
enough room to the next obstacle. The distance must especially be a minimum of 10 cm on the air outlet side.
Ensure adequate ventilation when installing in enclosed housings, e.g. analyser cabinets. If the convection is inadequate, we re-
commend aerating the cabinet or installing a fan to lower the inside temperature.
4.2 Installation
Run the gas supply to the cooler with a downward slope. The gas inputs are marked in red and additionally labelled “IN”. The op-
timal gas connection is detailed in chapter Connecting the heat exchanger.
If a large amount of condensate accumulates, we recommend using a condensate trap with automatic condensate drain before
the cooler.
Glass vessels and automatic condensate drains are available for draining condensate for external mounting below the unit.
When using automatic condensate drains, the sample gas pump must be installed ahead of the cooler (pressure operation) to
ensure proper function of the condensate drain.
If the sample gas pump is located at the cooler outlet (suction operation), we recommend using glass condensate traps or peri-
staltic pumps.
Connecting the condensate drains
Depending on the material, build a connecting line with fittings and tubing or hose between the heat exchanger and condens-
ate drain. For stainless steel the condensate drain can be suspended directly to the connecting tube, for hoses the condensate
drain must be secured separately using a clamp.
The condensate drain can be mounted directly to the heat exchanger.
Condensate lines must always be installed with a slope and a minimum inside diameter of DN 6/8 (1/4”).
4.2.1 Flow adapter connection (optional)
When ordering the cooler with the option moisture detector without filter, it will be factory installed inside a flow adapter.
The connection between the heat exchanger outlet and the flow adapter inlet does not have tubing included. The connection
G1/4 or NPT1/4" (flow adapter marked NPT) for the gas inlet/outlet must be carefully and properly connected using a suitable
screw connection. Here the direction of flow is not relevant.
4.2.2 Connecting the moisture detector (option)
When ordering the cooler with moisture detector option, it will be factory installed inside a flow adapter, or for the filter option
installed and connected in the filter head.
4.2.3 Connecting the peristaltic pump (option)
Coolers ordered with attached peristaltic pump already have it installed and wired. Heat exchangers ordered at the same time
are already installed and connected to the peristaltic pump.
The connection via the condensate outlet screw connection on the pump must be carried out carefully and properly.
NOTICE
Installing peristaltic pumps CPsingle / CPdouble limits the maximum permissible oper-
ating pressure in the system!
Operating pressure ≤ 1 bar
9Bühler Technologies GmbHBE440021 ◦ 09/2021

TC-Double (+)
4.2.4 Sample gas pump connection gas lines (optional)
On coolers ordered with attached sample gas pump these are already installed and wired. Add-on parts ordered at the same
time are already installed and connected to the sample gas pump.
Avoid mixed-material installation, i.e. metal piping to plastic bodies. If this cannot be avoided in isolated applications, screw the
metal connections into the pump body with care, never use force.
Lay the lines so the line at the inlet and outlet remains flexible for an adequate distance.
The pumps are marked IN for inlet and OUT for outlet at the mounting ring. Be sure the gas line connections are tight.
4.2.5 Connecting the heat exchanger
To minimise gas wash out in the cooler, the two (identical) heat exchangers must be operated in series. This should be done as
follows:
1. Gas inlet line to red gas inlet on heat exchanger no. 2 (pre-cooling).
2. Connection between the heat exchanger no. 2 gas outlet and the red gas inlet on heat exchanger no. 1 (after-cooling).
3. Secure final gas outlet line to the heat exchanger no. 1 gas outlet.
Air
IN
Air
OUT
Heat exchanger 2
Heat exchanger 1
Condensate outlet
Flow chart:
1 Heat exchanger 2 / pre-cooling 4 Filter (optional)
2 Heat exchanger 1 / after-cooling 5 Sample gas pump (optional)
3 Moisture detector (option) 6 Condensate pump (optional)
10 Bühler Technologies GmbH BE440021 ◦ 09/2021

TC-Double (+)
The gas inputs are marked in red.
On glass heat exchangers the correct position of the seal is important when connecting the gas lines (see image). The seal con-
sists of a silicone ring with a PTFE sleeve. The PTFE side must face the glass thread.
Glass PTFE
4.3 Electrical connections
The operator must install an external separator for the device which is clearly assigned to this device.
This separator
– must be located near the device,
– must be easy for the operator to reach,
– must comply with IEC 60947-1 and IEC 60947-3,
– must separate all live conductors and the status output, and
– must not be attached to the power feed.
WARNING Hazardous electrical voltage
The device must be installed by trained staff only.
CAUTION Wrong mains voltage
Wrong mains voltage may damage the device.
Regard the correct mains voltage as given on the type plate.
WARNING High voltage
Damage to the device in case of insulation testing
Do not proceed insulation tests with high voltage to the device as a whole!
Electric strength test
This device is equipped with extensive EMC protection. The necessary tests were carried out at the factory (test voltage 2.1kV or
2.55kVDC depending on approval).
If you wish to check the electric strength again yourself, you can do so on the entire unit. Only test the device with the specified
values using direct current voltage. Testing the electric strength with alternating current voltage will damage electronic com-
ponents. The recommended voltage in this case is 2.1kV DC, 2s. Disconnect all supply lines from the device before testing. Power
can be supplied via the mains connection.
11Bühler Technologies GmbHBE440021 ◦ 09/2021

TC-Double (+)
Plug connection
This device has one EN 175301-803 plug each for the power supply and the signal output. If the lead is connected correctly, these
cannot be confused. Therefore please be sure to correctly reassemble the plugs after connecting the wires. Below you will find
the pin assignments, with the numbers corresponding to those on the plugs:
The supply line cross-sections must be suitable for the rated current. Use a maximum line cross-section of 1.5mm² (AWG16) and
a cable diameter of 8-10mm (0.31-0.39 inch).
Shielded signal lines are required to connect the analog output or the digital interface.
Plug numbering Electric supply S1
Alarm contact S2 Analog output S3
1 - not assigned
2 - not assigned
3 - GND
4 - 4-20 mA out
5 - shield
Digital output S4
1 - not used
2 - RS485 A
3 - GND/Common
4 - RS485 B
5 - Shielding
The clamping areas for S1 and S2 are 8-10mm (0.31–0.39 inches) in diameter.
12 Bühler Technologies GmbH BE440021 ◦ 09/2021

TC-Double (+)
4.4 Signal outputs
The device has various status signals. The maximum switching power of the alarm outputs is 250V AC/150 V DC, 2A, 50 VA,
each.
An alarm is triggered by the alarm contact/status output (S2) if the temperature in block 1 is outside the specified limits. It does
not indicate if the alarm was triggered due to excess temperature or insufficient temperature.
Description of signal outputs
Function/contact type Description
Regard-
ing S2)
internal changeover con-
tact: max. 250V AC/150V
DC, 2A, 50VA
the following device statuses
can be indicated via two
switching outputs:
Contact between 3 and 2 closed (alarm)
– No mains voltage and/or actual temperature outside
the alarm thresholds
Contact between 3 and 1 closed (OK)
– Mains voltage attached + actual temperature within the
alarm thresholds
With temperature signal option
Regard-
ing S3)
4-20mA analog output
(RLoad<500Ω)
Signalling of actual temper-
ature in block 1
Tcooler = -20°C ≙ (-4°F) -> 4mA/ 2V
Tcooler = 5°C ≙ (41°F) -> 9mA/ 4.5 V
Tcooler = 60°C ≙ (140°F) -> 20mA/ 10 V
Regard-
ing S4)
Digital output Modbus RTU (RS-485) Interface default values
Baudrate – parity – stop bit:
19200 – Even – 1
Default ID: 10
The bus lines are not internally terminated.
The front film on the display module has three LEDs:
Colour Marking Function
Red S2 High/low temperature
Device error
Yellow S1 Reserved
Green OP Normal operation
The LEDs OP and S2 indicate the device status similar to S2.
If the option “temperature signal” is built in, the unit has a signal output via the analogue output to indicate the actual cooler
temperature.
The temperature signal can be read via the panel plug (S3) using the M12x1 connector. This plug is located next to the moisture
detector connectors at the top of the cooler.
The temperature (CH1) which continuously appears in the display corresponds to the temperature in block 1 (after-cooling). The
analogue temperature signal also corresponds to the temperature in block 1.
13Bühler Technologies GmbHBE440021 ◦ 09/2021

TC-Double (+)
5 Operation and control
NOTICE
The device must not be operated beyond its specifications.
After switching on the cooler the block temperature will be displayed (block 1). The display will flash until the block temperature
has reached the preset target value (± adjustable alarm range). The status contact is in the Alarm position.
Once the target temperature range has been reached, the temperature will continuously be displayed and the status contact
switches over.
If the display flashes during operation or an error message appears, please refer to bullet “Troubleshooting”.
Please refer to the data sheet for performance data and maximum ratings.
5.1 Description of functions
The cooler is controlled by a microprocessor. With the factory preset the control already incorporates the various characteristics
of the built-in heat exchangers.
The programmable display shows the block temperature in the selected display unit (°C/°F) (factory preset °C). Application-spe-
cific settings can easily be configured guided by the menu, using the 5 buttons. For one, this applies to the target outlet dew
point, which can be set from 2 to 20°C (36°F to 68°F) (factory preset 5°C/41°F).
And then the warning thresholds can be adjusted for low and excess temperature. These are set relative to the outlet dew point
τa setting.
For the low temperature the range is τa -1 to - 3K (at a minimum 1°C/ 34°F cooling block temperature), for the excess temperat-
ure the range is τa +1 to +7K. The factory presets for both values are 3K.
The flashing display and the status relays indicate the conditions are below or above the configured warning range (e.g. after
switching on).
The status output can e.g. be used to control the sample gas pump to allow for the gas flow to only be switched on once the per-
missible cooling range has been reached or shut off the pump in the event of a moisture detector alarm.
The separated condensate can be drained via connected peristaltic pumps or add-on automatic condensate drains.
Fine mesh filters can also be used, which in turn can be installed in optional moisture detectors.
The glass dome allows the dirt level of the filter element to easily be determined.
The moisture detector is easy to remove. This may be required if a condensate enters the cooler due to a malfunction and the
peristaltic pump or the automatic condensate drain is unable to remove it.
The TC-Double has an additional cooling stage for pre-cooling the gas (heat exchanger 2), the block temperature of which varies
by ambient temperature and load. The target value of the pre-cooling stage corresponds to that of block 1.
14 Bühler Technologies GmbH BE440021 ◦ 09/2021

TC-Double (+)
5.2 Use of menu functions
Brief description of the operating principle:
The unit is operated using 5 keys. Their functions are:
Button Section Functions
or
OK
Display – Switches from the measurement display to the main menu
Menu – Selects the menu item displayed
Enter – Applies an edited value or a selection
Display – temporarily switches to the alternative measurement display (if option installed)
Menu – Back
Enter – Increase value or browse selection
– Note:
– Press button 1 x = changes parameter / value by one;
– Hold button = fast mode (numerical values only)
– Display flashes: modified parameter/value
– Steady display: original display/value
Display – temporarily switches to the alternative measurement display (if option installed)
Menu – Next
Enter – Reduce value or browse selection
ESC
Menu – Move one level up
Enter – Return to menu
Changes will not be saved!
F
or
Func
– Sets a menu to favourite.
(Note: The favourite menu will also be activated with the menu locked!)
5.2.1 Lock Menu
Some menus can be locked to prevent inadvertently changing the settings of the unit. This requires setting a code. For informa-
tion on setting up or disabling the menu lock please refer to "Global Settings" (toP) under menu item toP>Loc.
The menu lock is not enabled at the time of delivery, all menu items can be accessed.
With the menu locked, only the following menu items will be visible without entering the correct code:
Menu item Explanation
toP > unit Temperature unit selection (°C or °F).
F or Func. Accessing the Favourites menu
NOTICE!This menu may be one that is normally locked.
15Bühler Technologies GmbHBE440021 ◦ 09/2021

TC-Double (+)
5.2.2 Menu navigation overview
When pressing the OK button in normal mode, the display will show the prompt code if the menu is locked. Use the ▲ and ▼
buttons to enter the correct code and press OK.
If an incorrect code or no code is entered, the menu will not be unlocked and you will not be able to access all menu items.
If you forgot the password you can always enter master code 287 to access the menu; the menu will be unlocked.
The following image shows an overview of the menu structure.
Items with a dashed frame will only appear with the respective settings or with the respective status messages.
The factory defaults and settings ranges are specified in the overview as well as under the respective menu item. The factory de-
faults apply unless otherwise agreed.
You can cancel entries and menu selections without saving by pressing the ESC key.
Menu:
Top Settings top
Globale Einstellungen
3
21
1.
2.
3.
Menu designation
Display
Brief description
Parameter:
Eingabe 5'C
-20 . . . 60 'C
6
54
4.
5.
6.
Value input
Factory preset
Parameter range
Auswahl oP
op haLf Lo hi
9
87
7.
8.
9.
Selecting from the list of values
Factory preset
Parameter range/selection
Optional menu
navigation:
10
10. dashed box = Optional
16 Bühler Technologies GmbH BE440021 ◦ 09/2021

TC-Double (+)
Selection
oP
op- haLf - Lo - hi
OK
OK
OK
OK
OK
OK
OK
Input 0
0. . . . 999
OK
OK
Selection Unit
°C - °F
TC-Double tcdo
Device designation
Display ch1
Temp. Heat exchanger 1
Top Settings top
Global settings
Analog Out1 An1
Settings menu Analog 1
Settings menu unit
Temperature unit
Temperature tEmP
Target temp. Cooling block 1
Exit
Close submenu
Drop-down menu out
Functional test
Exit E
Close submenu
OK
Login Loc
Enable menu lock
Display Main menu Submenu 1 Submenu 2 Parameter
Input 5°C
2 . . . 20 °C
OK
OK Input 3°C
1 . . . 7 °C
Settings menu A hi
Alarm hysteresis
Settings menu A Lo
Alarm hysteresis
OK
OK
OK Input -3°C
-1 . . . -3 °C
Drop-down menu cout
Output signal
Selection
i
i- u
Exit E
Close submenu
Drop-down menu PuMP
Stop pumps
Drop-down menu PuMP
nop- off
OK
Drop-down menu h2o
Drop-down menu sen
Moisture detector 1 sensitivity
Calibrate moisture detector 1
Confirm rst
OK
Input non
non - hi - Lo
OK
yes - no
Error Err
Status message
Display ch2
Temp. Heat exchanger 2
Login Loc
Enable menu lock
Input 0
0. . . . 9999
OK
Reset rSt
Factory settings
Exit E
Close submenu
Confirm rst
yes - no
OK
Drop-down menu hLtc
Humidity auto reset
Input no
yes - no
OK
Drop-down menu bLtc
Cable break auto reset
Input YES
yes - no
OK
Restart rESt
Restart device
Confirm no
yes - no
OK
Drop-down menu h.chn
Heat exchanger material selection
Drop-down menu tS
tS
OK
t6 tU
(Steel) (Glass) (PVDF)
oper
Hour meter
Display
baud
Modbus RTU baudrate
1920
480 - . - 1152
OK
pari
Modbus RTU parity
Input EUen
none - odd - eUen
OK
addr
Modbus RTU device ID
Input 10
1 . 247
OK
Drop-down menu
Drop-down menu
Drop-down menu
Input
Fig.1: TC-Double menu overview
17Bühler Technologies GmbHBE440021 ◦ 09/2021

TC-Double (+)
5.3 Description of menu functions
5.3.1 Display menu
Block temperature display
Display → ch1
Depending on the device state, the temperature will be displayed as a constant, flashing, or alternat-
ing with a status message.
Pre-cooling stage display
Display → ch2
Depending on the device state, the temperature will be displayed as a constant, flashing, or alternat-
ing with a status message.
Operating hours /runtime display
Display → oper
Displays the operating hours of the unit. The runtime cannot be reset and can be output in various
display formats. To view/exit the runtime, press the „Enter" key.
–yy.mm – display in years and months (default)
–mth – display in months
–weeh – display in weeks
–days – display in days
– One month corresponds to 30 days. Press the „F" key to switch between the display formats. The
display will then first show the selected format as short text, then the duration.
Error code display
Display → err
In the event of errors/malfunctions not related to operation, the error code indicates possible causes
and solutions.
5.3.2 Main menu
Peltier cooler TC-Double (tc.do)
Display → tc.do
This will take you to the cooler target temperature and the tolerance range setting (alarm
threshold).
Global setting (ToP Settings)
Display → toP
This menu is used to configure the global cooler settings.
18 Bühler Technologies GmbH BE440021 ◦ 09/2021
