Thank you for purchasing the B.I.C America WTR-SYS wireless transmitter/receiver
system. This kit makes it easy to connect your powered subwoofer and powered
speakers wirelessly. With the purchase of additional W-Receivers, you can play mul-
tiple subwoofers or pairs of powered speakers on the same wireless channel simul-
taneously. ever has it been easier to extend your bass and upgrade your .1 system
to a .2, .3, or even a .4 system – no need to upgrade to an expensive audio receiver!
When you install additional WTR-SYS wireless kits, the WTR-SYS also offers 4 sep-
arate wireless channels which enable you to play up to 4 different wireless channels
or zones. Eliminate the need to run expensive, long bulky wires and cables to multiple
audio zones. Place your powered speakers where they look and sound best with no
front to back of room wires or cables.
The W-Transmitter can be connected to your A/V receiver (variable pre-amp out jacks
required), PC, Mac, mobile device, TV or any product with 1/8” (3.5mm) or RCA con-
nectors to send a signal to any powered speakers in your business or home wirelessly.
With set-up in just minutes, you can immediately enjoy CD quality sound from your
patio, second audio zone or anywhere you’d like!
SPECIFICATIONS
• External antennas enable range of 80’ unobstructed and up to 60’ obstructed.
• 4 selectable channels permit multiple wireless signals simultaneously
• Wireless 20Hz-20kHz
• CD quality sound
• o software required
• Super compact size and self-adhesive Velcro strips enable multiple
placement options.
• S R: 93dB
• RF band: 2.4GHz
• Compatible with most subwoofers, powered speakers, and A/V receivers
(must have variable pre-amp out RCA jacks).

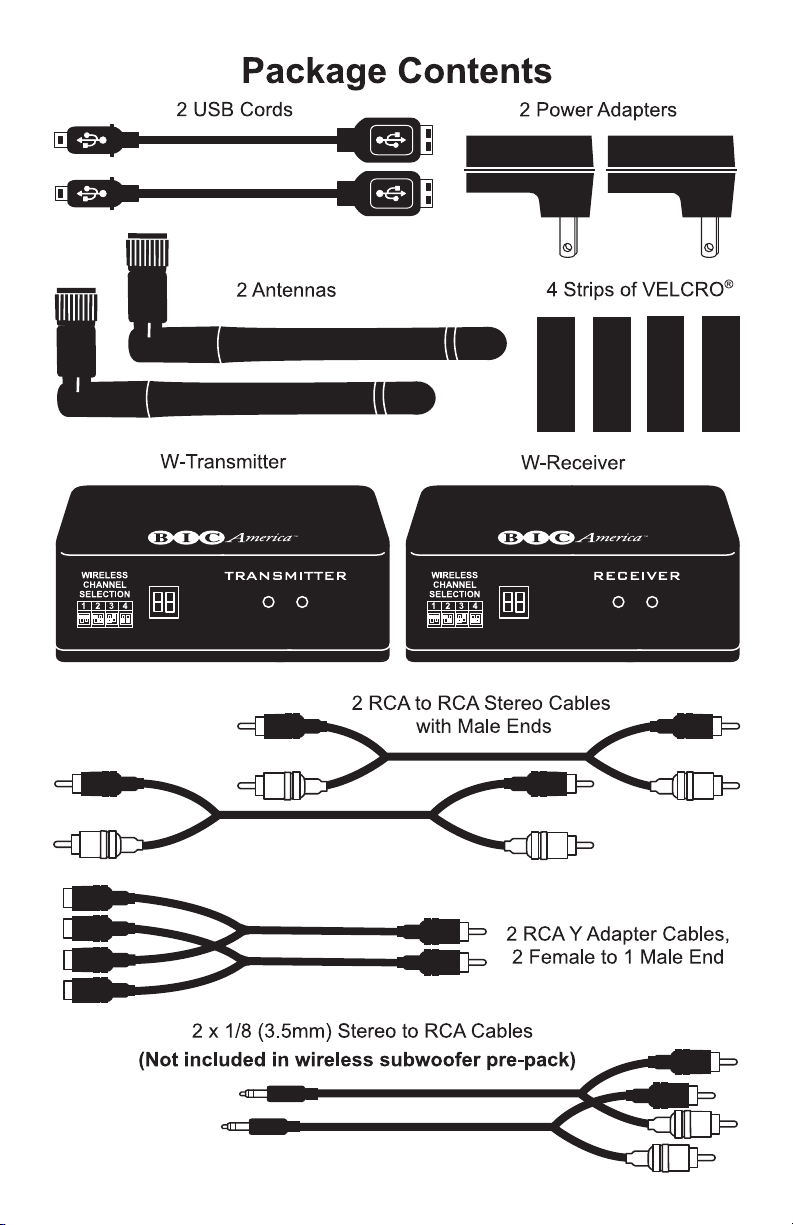

4

5

6
Connections and Configurations
1. Channel Selector
The WTR-SYS features four different selectable channels. Be sure to set both the transmitter and receiver
to the same channel for each application.
Playing Different Channels and/or Audio Zones
Example: When you install additional WTR-SYS wireless kits, you can play up to four separate selectable
wireless channels or zones. Set your first WTR-SYS transmitter and receiver to channel #1 for wireless
subwoofer(s). Then, set your second WTR-SYS transmitter and receiver to channel #2 to add wireless
powered surround speakers. Add up to four WTR-SYS transmitter/receiver kits to play different channels
and audio zones throughout your home!
Add Additional Powered Subwoofers & Powered Speakers to the Same Wireless Channel
Example: Extend your bass and add more wireless B.I.C powered subwoofers to your system with the
purchase of additional B.I.C W-Receivers. Set your second W-Receiver to the same wireless WTR-SYS
channel that Subwoofer #1 is set to. Enjoy 5.2 sound from a 5.1 receiver, 7.3 sound from a 7.1 receiver,
or 9.4 sound from a 9.1 receiver! Or, play what’s running in your living room or basement in any other
area in your home.
2. Status LED
There are two LED on each W-Transmitter and W-Receiver – a red power indicator and a blue status
indicator. The red LED will remain lit as long as the unit is on. The blue LED will either flash or remain
constant. If the blue LED is flashing, the receiver or transmitter is looking for a signal. When the blue
LED is constant, the unit has successfully paired the receiver and transmitter.
3. Micro USB Power Port
4. Analog Input/Output Connection
5. Antenna Connection

* EXTE D YOUR BASS!... Add extra wireless powered subwoofers
without having to upgrade to a more expensive audio receiver. This
can be done by purchasing additional B.I.C W-Receivers and setting
them to the same wireless channel that your first subwoofer is set to.
SURROUND YOURSELF!
7.3 Configuration (3 Subs!)
7

HOOKUP GUIDE FOR
8

WIRELESS SUBWOOFER(S)
9
1) Set W-Transmitter and W-Receiver to the same channel located on the front of the units.
OTE: If your subwoofer or audio receiver has left and right RCA inputs, do not use the
Y-adapter cable.

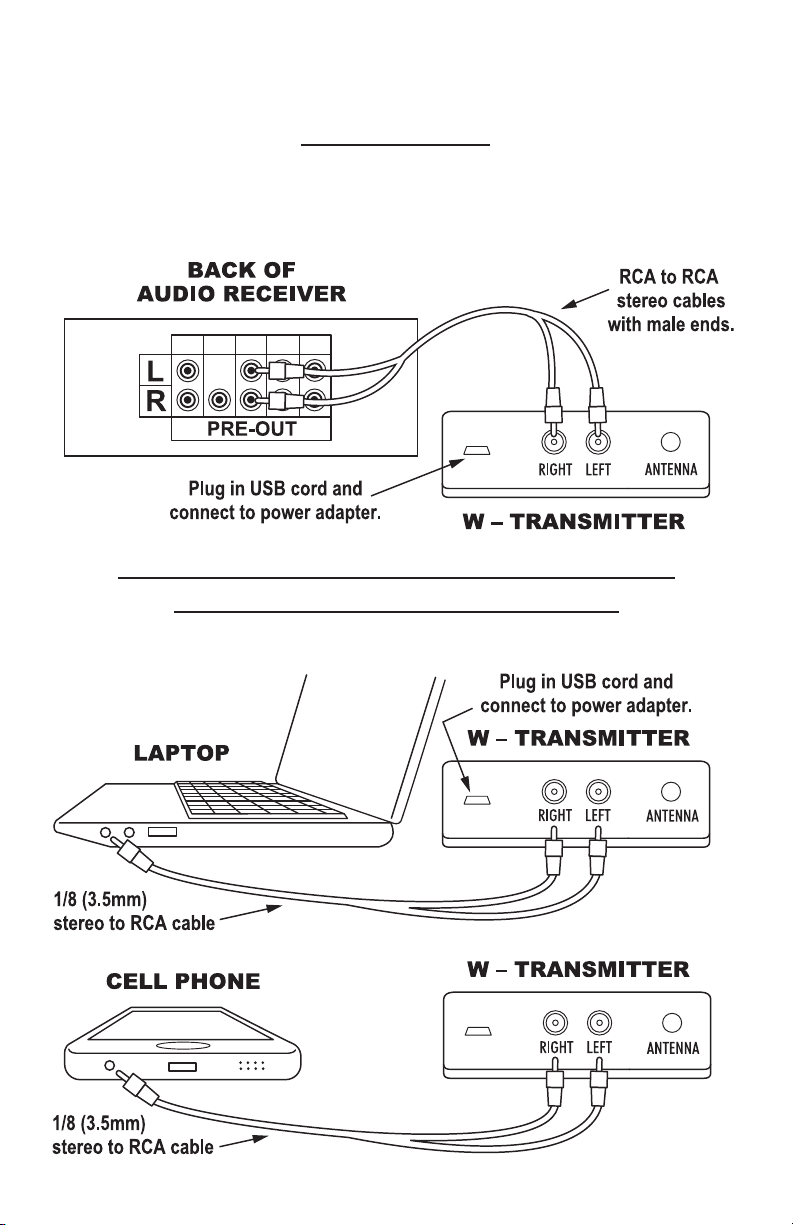

HOOKUP GUIDE FOR
Audio Receiver
OTE: In order for this hook-up to work, your audio receiver must have variable pre-amp
out RCA jacks.
1) Set W-Transmitter and W-Receiver to the same channel located on the front of the units.
Computer, Phone, Tablet or Any Other Device
with 1/8˝ (3.5mm) Stereo Jack Output
1) Set W-Transmitter and W-Receiver to the same channel located on the front of the units.
10

IMPORTA T SAFETY I FORMATIO : The WTR-SYS is not waterproof or weather resistant.
If you are plugging into outdoor speakers, the WTR-SYS transmitter, receiver, USB cord
and power adaptor must be located indoors. For outdoor speaker placement, longer cords

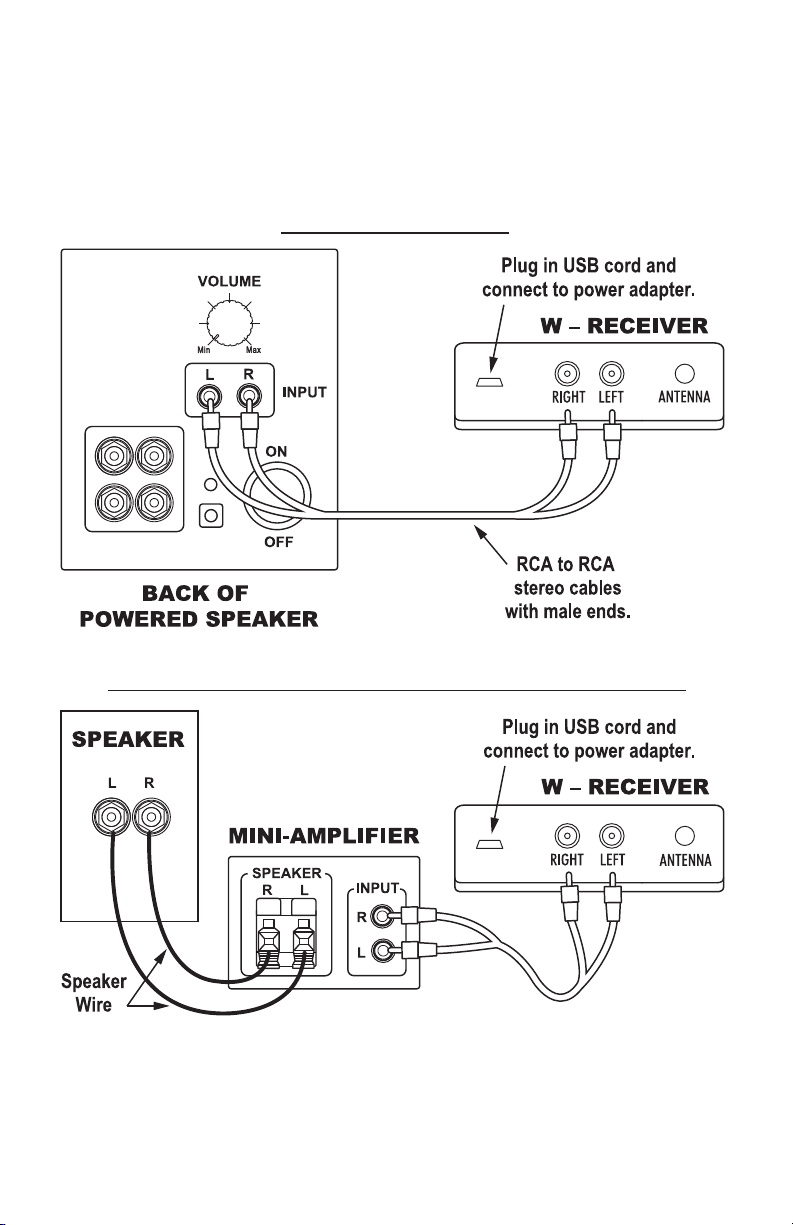

may be necessary. Powered Speakers
Non-Powered Speakers with External Amplifier
STEREO SPEAKERS
ADD ADDITIO AL POWERED SPEAKERS TO THE SAME CHA EL!
Great for both residential and commercial applications! Add multiple pairs of powered outdoor
speakers or multiple pairs of powered speakers by purchasing additional B.I.C W-Receivers
and setting them to the same WTR-SYS channel your first pair of speakers is set to
(see front of W-Transmitter).
11

Please read the LIMITED WARRA TY completely
to fully understand your warranty/service coverage.
WTR-SYS Limited Warranty
If this system proves to be defective in materials or
workmanship within one year from the date of the
original purchase, we will, at our option, repair or re-
place the defective product.
*DISCLAIMER
THE WARRA TY STATED HEREI IS I LIEU OF
ALL OTHER WARRA TIES, EXPRESS OR IM-
PLIED, I CLUDI G MERCHA TABILITY A D
FIT ESS FOR PARTICULAR PURPOSE A D ALL
OTHER LIABILITIES A D OBLIGATIO S OF B.I.C
AMERICA, ALL OF WHICH ARE EXPRESSLY DIS-
CLAIMED. B.I.C AMERICA HAS OT MADE A D
DOES OT HEREBY MAKE A Y OTHER REPRE-
SE TATIO , WARRA TY OR COVE A T WITH
RESPECT TO THE CO DITIO , QUALITY, DURA-
BILITY, DESIG , OPERATIO , CAPACITY, FIT-
ESS FOR USE OR SUITABILITY OF THE B.I.C
ELECTRO IC PRODUCT.
Exclusion of Certain Damages
B.I.C America’s liability for any defective product is
limited to repair or replacement of the product at our
option. B.I.C America shall not be liable for inciden-
tal or consequential damages of any kind or char-
acter because of product defects. Some states do
not allow limitations on how long an implied war-
ranty lasts and/or do not allow the exclusion or lim-
itation of incidental or consequential damages, so
the above limitations and exclusions may not apply.
This Warranty Does ot Cover:
• Damage caused by abuse, accident, misuse,
negligence, or improper operation.
• Products that have been altered or modified.
• Any product whose serial number has been
altered, defaced, or removed.
• ormal wear and maintenance.
• Damages caused by shipping. (All claims for ship-
ping damage must be made with the carrier.)
Warranty Service
If your WTR-SYS requires service, please call B.I.C
America at 877-558-4242, ext. #2.
All warranty repairs must be accompanied by
the original bill of sale. o other document is
acceptable or required.
This warranty gives you specific legal rights, and
you may also have other rights which vary from
state to state.
Due to our continual efforts to improve product quality as new
technology and techniques become available, B.I.C America
reserves the right to revise specifications without notice.
Warranty Information
Troubleshooting Guide
Once your WTR-SYS is set up, you should have many years of maintenance-free enjoyment from your
system. However, if you should encounter a problem, refer to the following guide to help you find the solu-
tion. If a problem persists, please contact B.I.CService at 877-558-4242, ext. #2.
Problem Solutions
a. Make sure both transmitter and receiver are connected
to a power supply
b. Switch to supplied USB AC Adapter
a. Make sure your W-Transmitter and W-Receiver are both
set to the same channel
b. W-Receiver may be out of range. Try moving the receiver closer
a. Ensure that your source components are functioning properly
b. Ensure that the audio levels are configured for audible output
(volume at source and/or destination may be muted or turned
too low)
W-Transmitter and/or
W-Receiver are connected but
Status LED does not light up
o Wireless Connection
(W-Transmitter and W-Receiver
Status lights are “Red”)
W-Transmitter and W-Receiver
are connected, but no audio
occurs
TM
www.bicamerica.com
12
